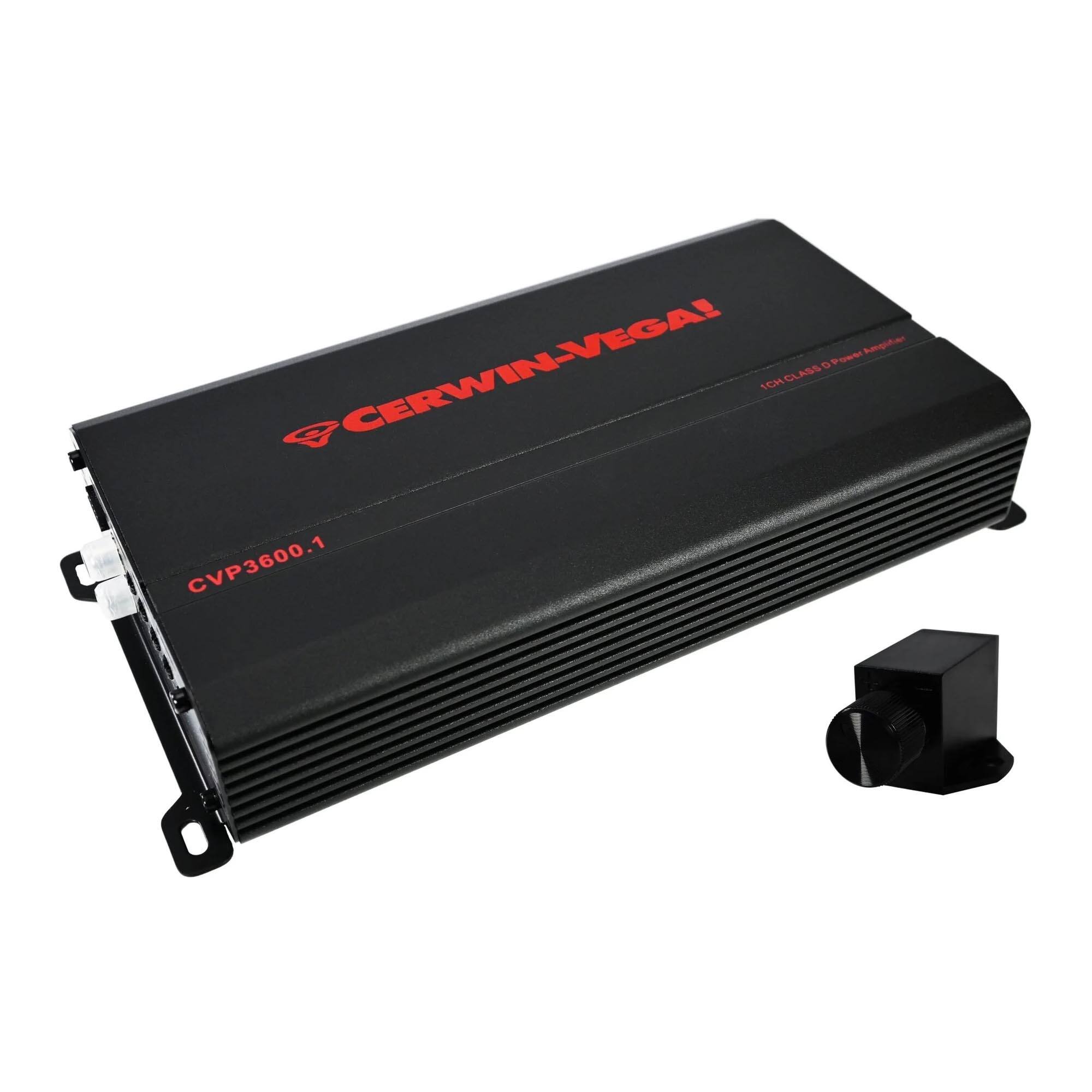

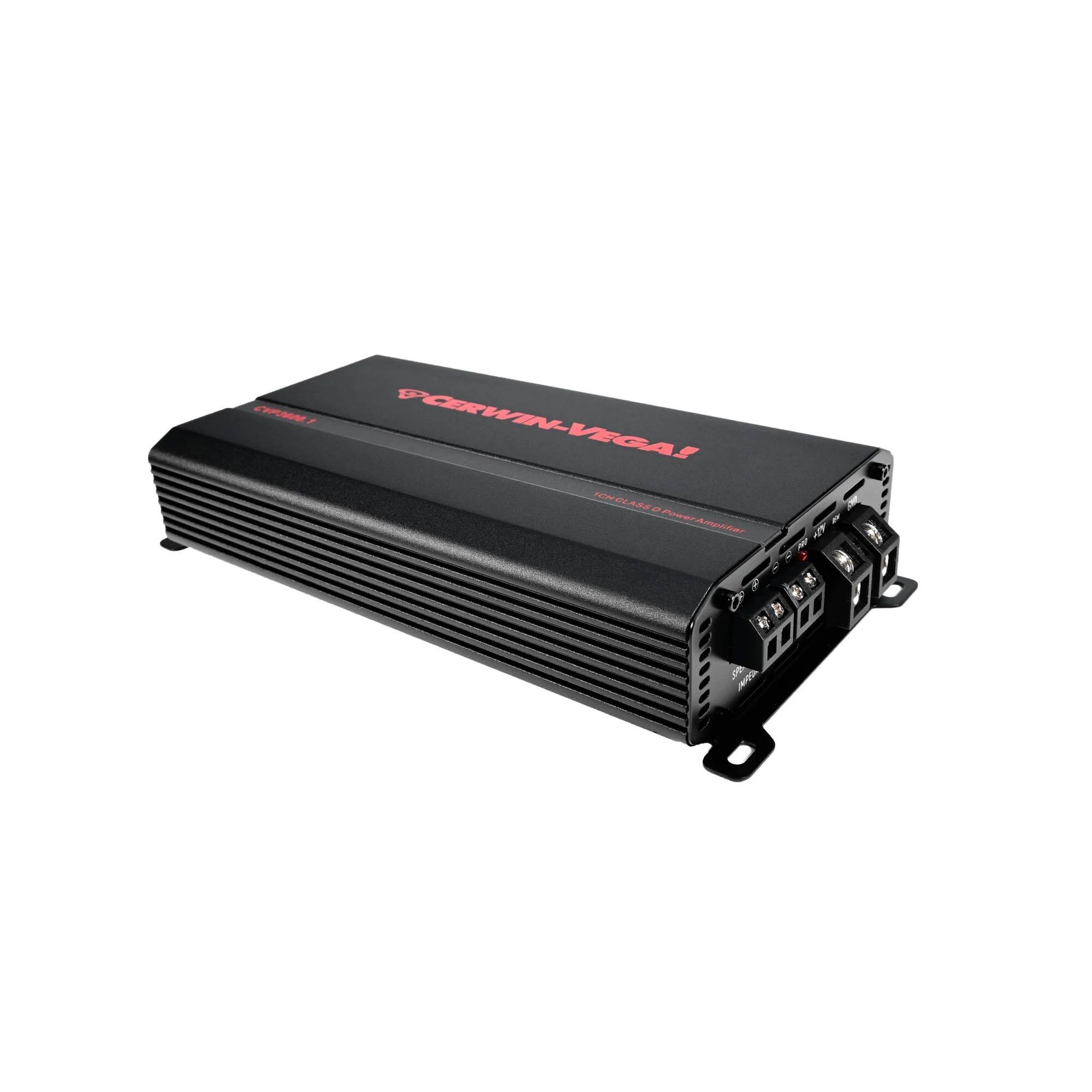

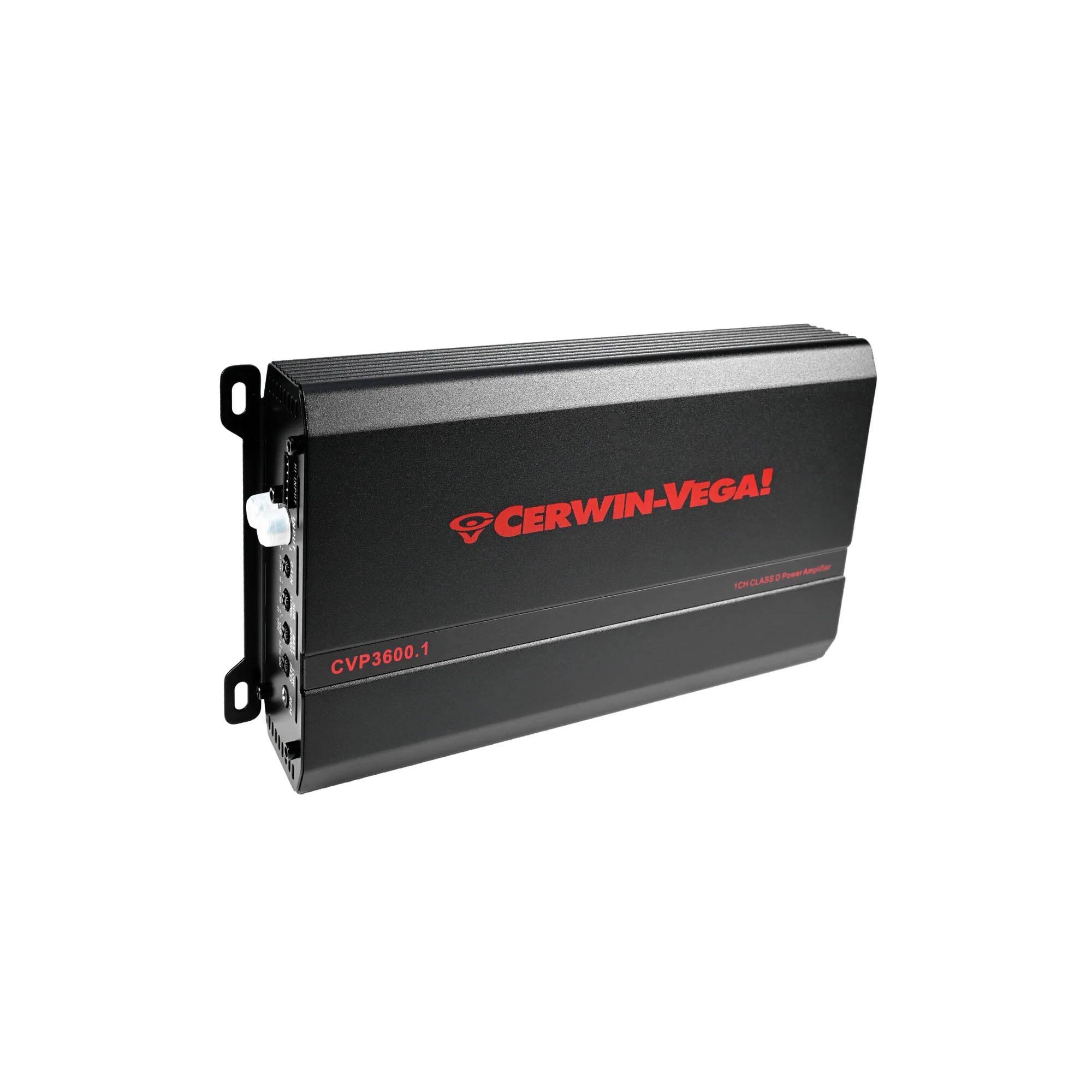

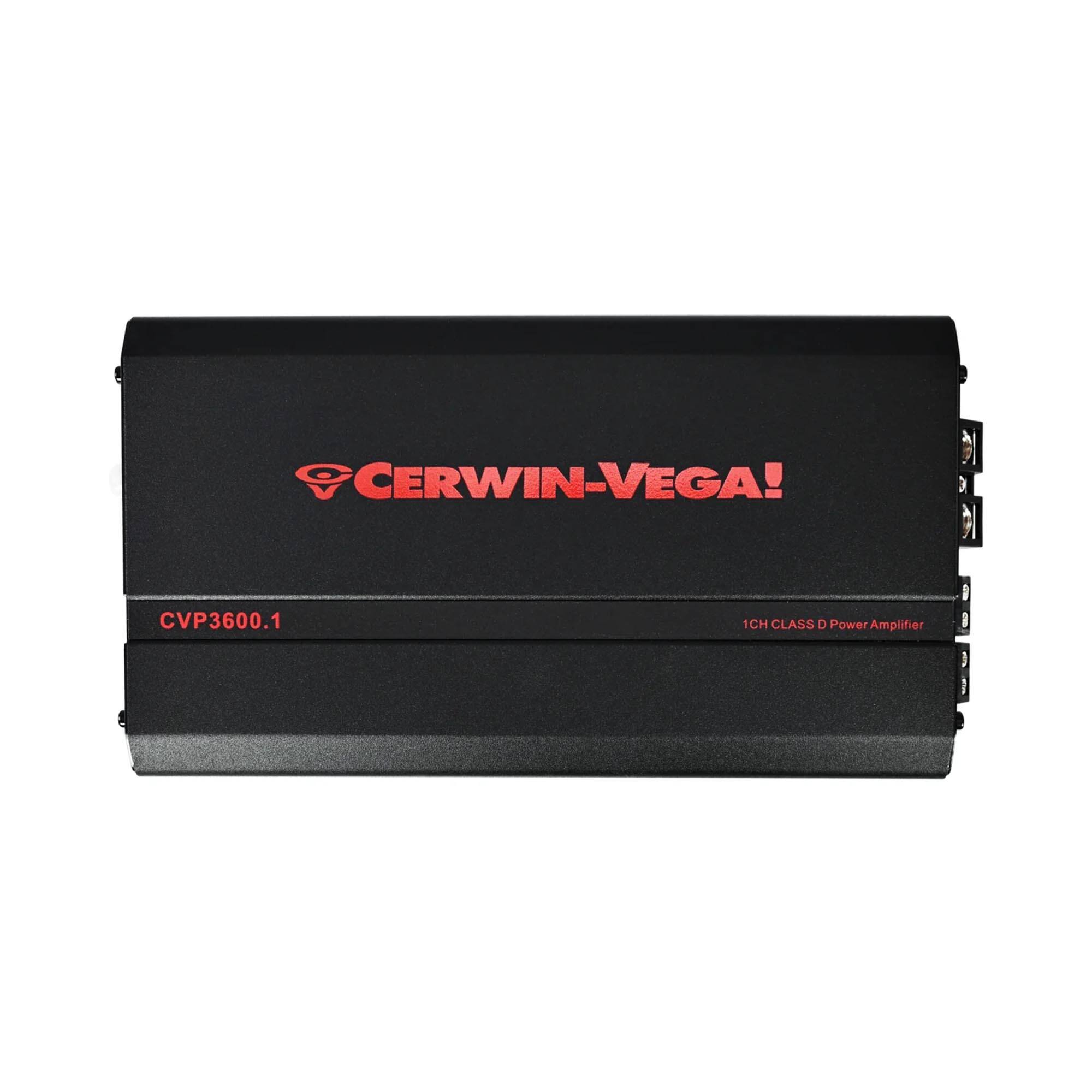

Cerwin Vega - CVP3600.1 Cvp Performance 3600W Max 1-Ch Small Chassis Amplifier 580W@4Ω Rms / 900W@2Ω Rms - Black/Gray
Related Item
Specifications
- Amplifier ClassDNumber Of Channels1Bass BoostVariable
Compare similar products
The Cerwin-Vega CVP3600.1 CVP Performance 1-Channel Amplifier is engineered for serious bass enthusiasts who demand maximum output in a compact, space-saving design. Delivering an impressive 3600 watts max power, this small chassis mono amplifier is built to drive subwoofers with authority, precision, and the unmistakable punch that defines Cerwin-Vega performance. Part of the newly redesigned CVP Series Amplifiers, the CVP3600.1 combines power, performance, and affordability into a streamlined solution for modern vehicles. Its compact footprint makes it ideal for installation in cars, trucks, and SUVs where space is limited. Whether mounted under a seat, behind a panel, or in a tight trunk space, this amplifier provides high-output performance without requiring bulky hardware. Designed specifically for subwoofer applications, the CVP3600.1 mono car amplifier delivers deep, controlled low-frequency power that enhances impact and overall system balance. It produces strong bass response that cuts through road and engine noise while maintaining clarity and consistency at high volume levels. The impressive power-to-size ratio ensures that your subwoofer system performs beyond expectations. Equipped with high-level inputs, the CVP3600.1 integrates seamlessly with both factory and aftermarket radios, making it an excellent upgrade for OEM systems without replacing the head unit. This flexibility simplifies installation while maintaining compatibility across a wide range of vehicles. Compact chassis. Extreme output. Legendary Cerwin-Vega bass power. Specifications RMS Power Ratings @ 4Ω: 500W x1 RMS Power Ratings @ 2Ω: 900W x1 RMS Power Ratings @ 1Ω: 1300W x1 Channel Separation: >60dB Frequency Response(+/-3bB): 10Hz-400Hz S/N Ratio @ A/W 30k: ≥90dB Sensitivity: 250mV-6V High Pass Filter(-6dB)/Subsonic: 10Hz-50Hz Low Pass Filter(-12dB): 52Hz-400Hz Bass Boost: 12dB Short Circuit And Thermal Protection Subwoofer Level Remote Control Included Fuse: 35A x 4
Street Reference amplifiers are the ultimate combination of performance, aggressive style and value. These powerhouses are capable of pushing the envelope without breaking the bank. Street Reference is the perfect choice for any entry to mid-level system. These amplifiers feature a sleek black aluminum textured finish with a brilliant LED accent. Features - • Textured aluminum heatsink • Selectable bass boost • Variable crossover network • Ultra-bright LED accent light strip • Remote level control included • Variable subsonic filter Specifications - • RMS POWER 4Ω: 550 x 1 • RMS POWER 2Ω: 950 x 1 • RMS POWER 1Ω: 1200 x 1 • THD % 4Ω: <1% • FREQ RESP: 16Hz – 250Hz • RECOMMENED AMP KIT: 4GKIT
The KENWOOD KAC-835 is a 1600 watts high-performance 5-Channel Amplifier designed to deliver powerful, clear, and dynamic sound. Engineered for audio enthusiasts who seek both precision and versatility in their car audio systems. The KAC-835 provides the perfect blend of power, flexibility, and ease of installation. The 5-channel design allows the KAC-835 to power both front and rear speakers as well as a dedicated subwoofer channel, offering a complete audio solution in a single unit. Despite its powerful performance, the KENWOOD KAC-835 is designed to be compact and easy to install. The KAC-835 amplifier fits into tight spaces, making it ideal for vehicles where space is at a premium. The KENWOOD KAC-835 is equipped with both high-pass and low-pass filters. The high-pass filter is adjustable and allows users to set the crossover frequency for the full-range speakers, ensuring that only the appropriate frequencies are sent to the speakers, preventing distortion, and maximizing clarity. The low-pass filter, dedicated to the subwoofer channel, ensures that the subwoofer receives only the low-end frequencies, delivering tight, punchy bass. For those who crave deep, powerful bass, the KAC-835 features a variable bass boost function that allows you to adjust the low-frequency output to your preference.
Specifications POWER RATING RMS Power (2Ω): 150W x 4/350W x 1 RMS Power (4Ω): 80W x 4/200W x 1 Bridged (Mono 4Ω): 300W X 2/200W x 1 POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-17.0V (DC) Idle Current: (0.7A) DISTORTION THD 4 (1KHz @4Ω): 0.05% S/N Ratio (A weighted @1W): -85 dBA S/N Ratio (A weighted @FP): -101.1 dBA INPUT SENSITIVITY Low Input Level: 200mV-10.0V High Input Level: 200mV-10.0V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: 20 KΩ OUTPUT STAGE Output Impedance: 0.018Ω Damping Factor (50Hz @ 4Ω): >250 Bandwidth (-3dB): 10Hz-35KHz CROSSOVER (-12/-24 dB/Oct) Variable High-Pass: Flat or Fixed 70Hz Variable Low-Pass: 40Hz-400Hz FUSE RATINGS ATC: 60A DIMENSIONS L x W x H: 10.45”x 4.02”x 1.4” (265.6mm x 102mm x 36mm) FEATURES Full Range Class D IR Chipset DirectFET Power Mosfet Output Stage SMD Technology on 4-Layer PCB Board Water Resistant Conformal PCB Board Coating LED Power/Protect Light Speaker-level (high-level) inputs Signal sensing remote turn-on 3-way protection circuitry (thermal, overload, and speaker short protection) Conformal-coated circuit boards Sleek and compact design Water resistant Input sensitivity: Low level: 200mV - 10.0 volts High level: 200mV - 10.0 volts Frequency Response: 10 - 33000 Hz Total Harmonic Distortion (THD): 0.5% Signal to Noise Ratio: -101.1 dB Variable high-pass filter: 50 - 250 Hz Variable low-pass filter: 50 - 250 Hz Fuse Rating: 60A 4 AWG gauge amplifier wiring kit is recommended for installation
Specs
