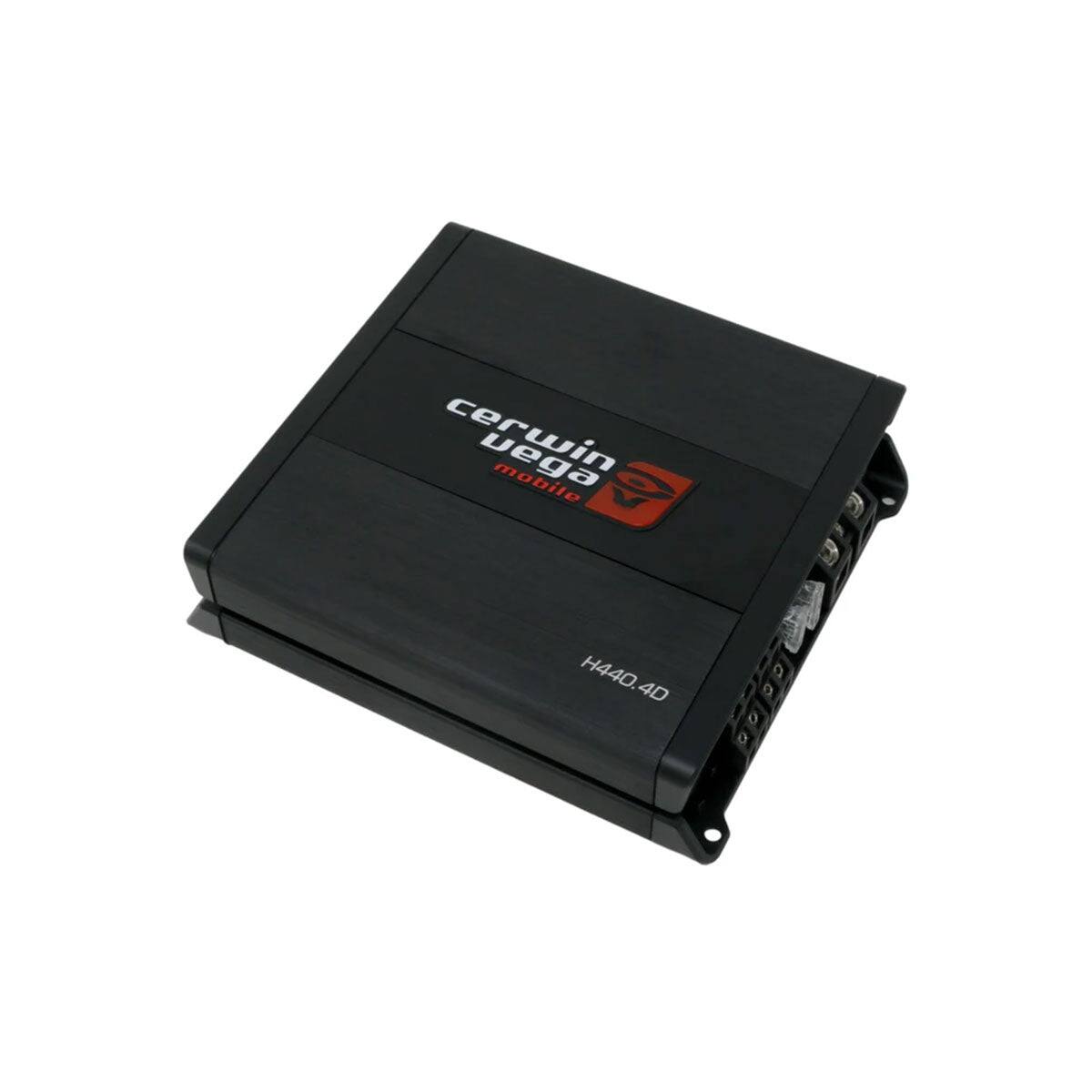

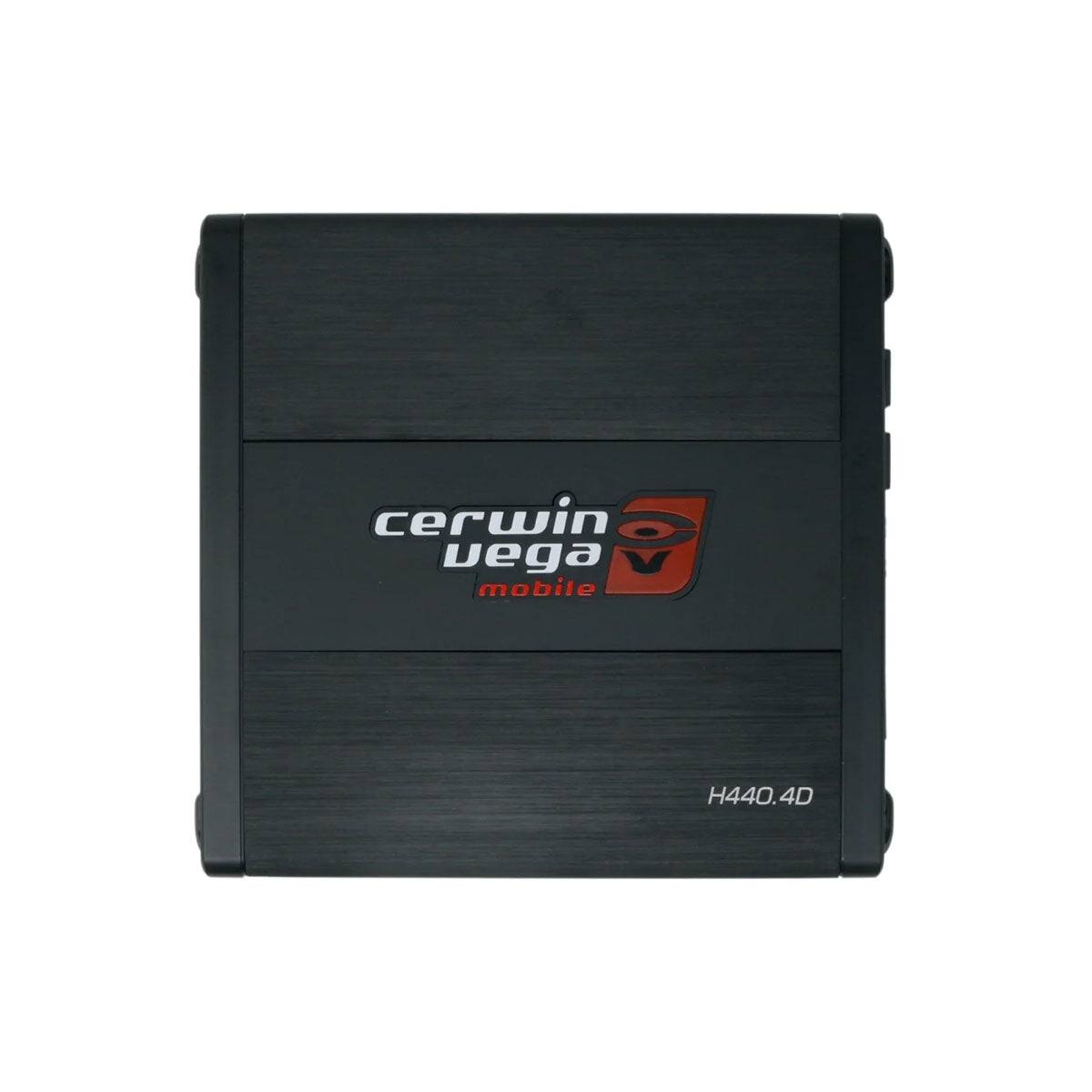

Cerwin Vega - H440.4D HED 4-Channel 440W Full Range Class-D Amplifier - Black
Specifications
- Amplifier ClassDNumber Of Channels4Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Cerwin Vega
- Model Number: H440.4D
- Product Name: Cerwin Vega - H440.4D HED 4-Channel 440W Full Range Class-D Amplifier
- Color: Black
- Audio Power
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Dimensions
- Product Height: 0.01 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 0.01 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 0.01 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.01 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 0.01
- Warranty - Labor: 0.01
- Other
- UPC: 847169059094
The Cerwin-Vega HED Series Amplifiers are engineered to elevate your car audio experience with cutting-edge technology, unmatched performance, and long-lasting durability. Built for enthusiasts who demand superior sound and reliability, the HED Series amplifiers deliver power and precision in every note.High-Efficiency Class D Technology: Maximizes power output while minimizing heat, ensuring clean and distortion-free sound reproduction. Lightweight Aluminum Chassis: Provides exceptional heat dissipation, ensuring optimal performance even under demanding conditions. Durable and Reliable by Design Meticulous Construction: Crafted with high-quality components for a robust, long-lasting build. Efficient Cooling: Innovative chassis design dissipates heat effectively, keeping the amplifier cool for continuous operation. Power That Drives Your Audio The HED Series Amplifiers are designed to deliver powerful, clear sound that meets the needs of even the most demanding audio setups. Whether you're pushing massive subs or powering a full-range speaker system, these amplifiers provide the energy and precision you need.
- Features: Built for Performance – Designed for demanding setups that require consistent, high-power output. Cutting-Edge Class D Technology – Provides high efficiency and reliable power without overheating. Versatile and Durable – Perfect for audiophiles looking for a robust and efficient amplifier that excels in any environment.
- POWER RATING: Frequency Response (Hz): 50Hz-500Hz RMS Power per Channel 4Ω: 75W x 4 RMS Power per Channel 2Ω: 110W x 4 RMS Power per 2 Channels Bridged 4Ω: 220W x 2 Power Supply: 12V-14.4V Power Supply Threshold: 8.4V-16.5V Idle Current: 0.66A
- DISTORTION & INPUT SENSITIVITY: THD: <0.3% S/N Ratio (A weighted @1W): >90dBA S/N Ratio (A weighted @FP): -88dBA Input Sensitivity – Low Input Level: Wide Range Input Sensitivity High Input Level: 0.3V-8.5V Low Input Level: 22KΩ High Input Level: Output Impedance: 2Ω Damping Factor (50Hz @ 4Ω): >100 Bandwidth (-3dB): 20Hz-30KHz.

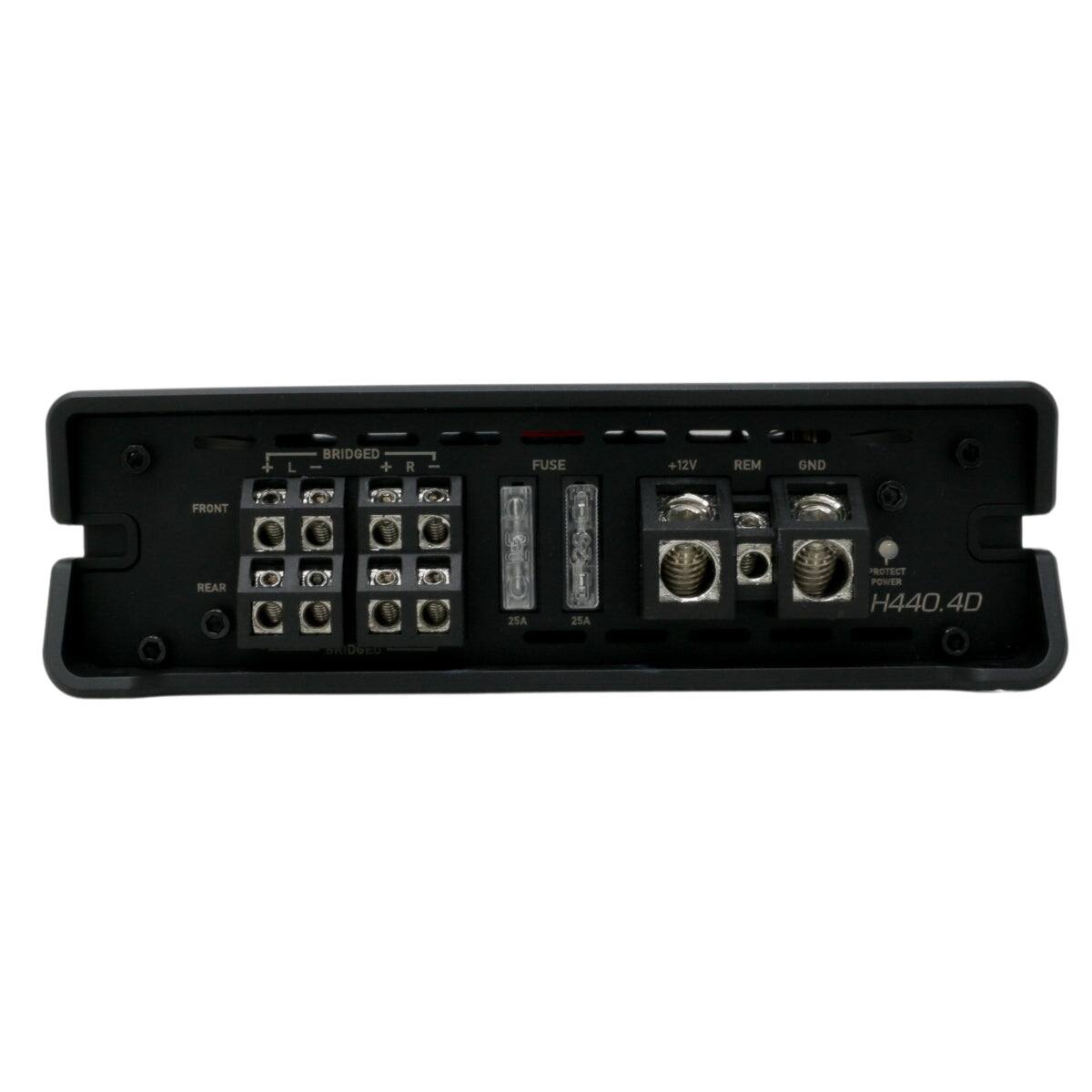

- CROSSOVER (-12/-24 dB/Oct): High Pass: 50Hz-500Hz Variable Low-Pass: 50Hz-500Hz Variable Sub-Sonic: Fuse Rating ATC: 25A x 2 Dimensions (L x W x H): 7” x 6.3” x 1.9” (179.5mm x 160mm x 48.3mm).

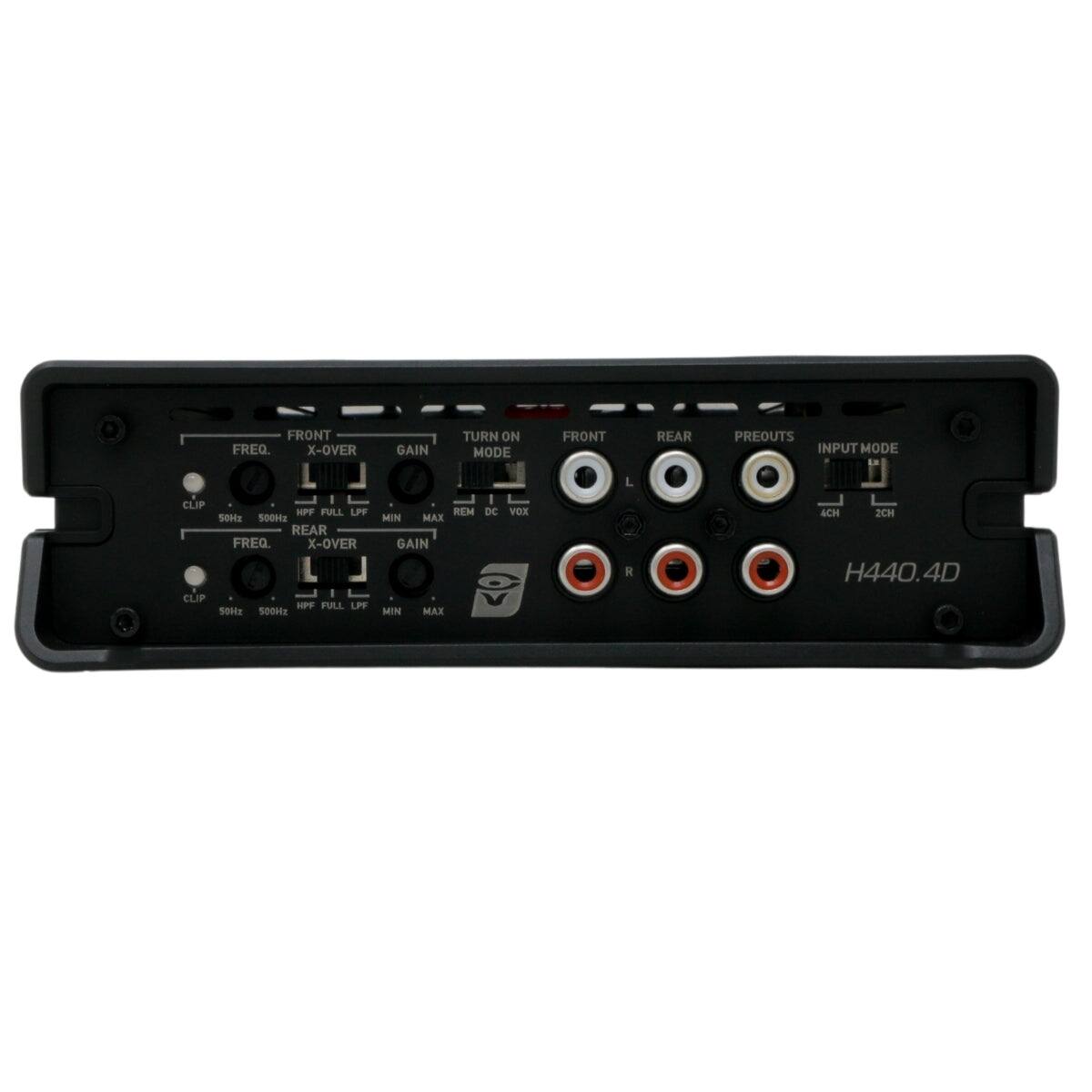

- Features: Selectable X-over: Low Pass/Flat/High Pass Selectable Turn On Mode: REM/VOX/DC LED Power/Protect Light Indicator LED Clipping Indicator - Helps Set Gains.
- Features: Built for Performance – Designed for demanding setups that require consistent, high-power output. Cutting-Edge Class D Technology – Provides high efficiency and reliable power without overheating. Versatile and Durable – Perfect for audiophiles looking for a robust and efficient amplifier that excels in any environment.
- POWER RATING: Frequency Response (Hz): 50Hz-500Hz RMS Power per Channel 4Ω: 75W x 4 RMS Power per Channel 2Ω: 110W x 4 RMS Power per 2 Channels Bridged 4Ω: 220W x 2 Power Supply: 12V-14.4V Power Supply Threshold: 8.4V-16.5V Idle Current: 0.66A
- DISTORTION & INPUT SENSITIVITY: THD: <0.3% S/N Ratio (A weighted @1W): >90dBA S/N Ratio (A weighted @FP): -88dBA Input Sensitivity – Low Input Level: Wide Range Input Sensitivity High Input Level: 0.3V-8.5V Low Input Level: 22KΩ High Input Level: Output Impedance: 2Ω Damping Factor (50Hz @ 4Ω): >100 Bandwidth (-3dB): 20Hz-30KHz.
- CROSSOVER (-12/-24 dB/Oct): High Pass: 50Hz-500Hz Variable Low-Pass: 50Hz-500Hz Variable Sub-Sonic: Fuse Rating ATC: 25A x 2 Dimensions (L x W x H): 7” x 6.3” x 1.9” (179.5mm x 160mm x 48.3mm).
- Features: Selectable X-over: Low Pass/Flat/High Pass Selectable Turn On Mode: REM/VOX/DC LED Power/Protect Light Indicator LED Clipping Indicator - Helps Set Gains.
- Features: Built for Performance – Designed for demanding setups that require consistent, high-power output. Cutting-Edge Class D Technology – Provides high efficiency and reliable power without overheating. Versatile and Durable – Perfect for audiophiles looking for a robust and efficient amplifier that excels in any environment.
- POWER RATING: Frequency Response (Hz): 50Hz-500Hz RMS Power per Channel 4Ω: 75W x 4 RMS Power per Channel 2Ω: 110W x 4 RMS Power per 2 Channels Bridged 4Ω: 220W x 2 Power Supply: 12V-14.4V Power Supply Threshold: 8.4V-16.5V Idle Current: 0.66A
- DISTORTION & INPUT SENSITIVITY: THD: <0.3% S/N Ratio (A weighted @1W): >90dBA S/N Ratio (A weighted @FP): -88dBA Input Sensitivity – Low Input Level: Wide Range Input Sensitivity High Input Level: 0.3V-8.5V Low Input Level: 22KΩ High Input Level: Output Impedance: 2Ω Damping Factor (50Hz @ 4Ω): >100 Bandwidth (-3dB): 20Hz-30KHz.
- CROSSOVER (-12/-24 dB/Oct): High Pass: 50Hz-500Hz Variable Low-Pass: 50Hz-500Hz Variable Sub-Sonic: Fuse Rating ATC: 25A x 2 Dimensions (L x W x H): 7” x 6.3” x 1.9” (179.5mm x 160mm x 48.3mm).
- Features: Selectable X-over: Low Pass/Flat/High Pass Selectable Turn On Mode: REM/VOX/DC LED Power/Protect Light Indicator LED Clipping Indicator - Helps Set Gains.
Whats Included
- amp
- amp
- amp
