CORSAIR - FRAME 4500X RS-R ARGB Panoramic Glass Mid-Tower PC Case - White
Color
WhiteRelated Item
Specifications
- Motherboard Form FactorMini-ITX, microATX, ATX, EATXMaximum GPU Length460 millimetersProduct Height18.82 inchesProduct Width9.68 inchesProduct Depth19.65 inchesWindow Panel(s)Front, Left side
- Key Specs
- Motherboard Form Factor: Mini-ITX, microATX, ATX, EATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum GPU Length: 460 millimeters
- Product Height: 18.82 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.68 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.65 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Window Panel(s): Front, Left side
- Case Material: Steel, Tempered glass, Plastic
- General
- Brand: CORSAIR
- Model Number: CC-9011315-WW
- Product Name: FRAME 4500X RS-R ARGB Panoramic Glass Mid-Tower PC Case
- Color: White
- Case Material: Steel, Tempered glass, Plastic
- Assembly Required: Yes
- Compatibility
- Motherboard Form Factor: Mini-ITX, microATX, ATX, EATX (Physical size of the motherboard, which can determine how many PCIe slots are available. Smaller board means fewer slots and features.)
- Maximum Power Supply Length: 250 millimeters
- Maximum GPU Length: 460 millimeters

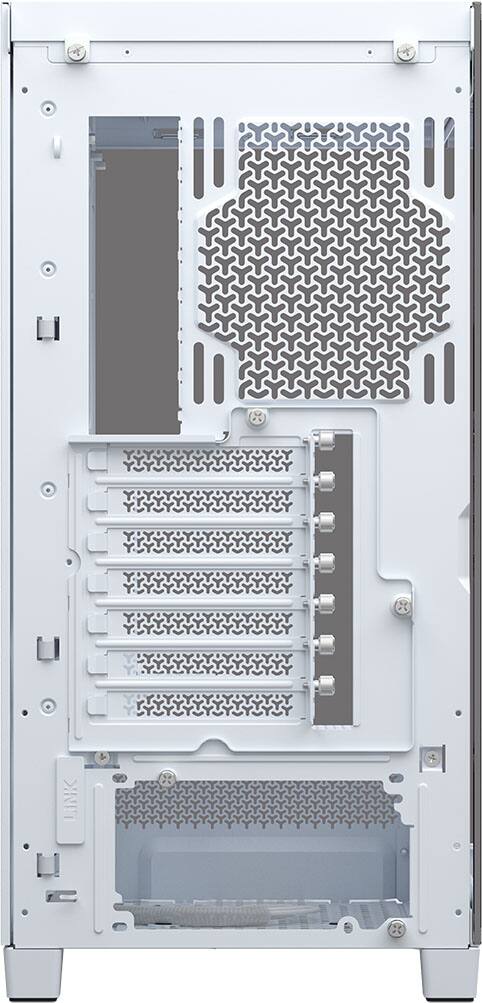

- Number of Expansion Slots: 8
- Ports
- USB Port Location: Front
- Number of USB Ports (Total): 3

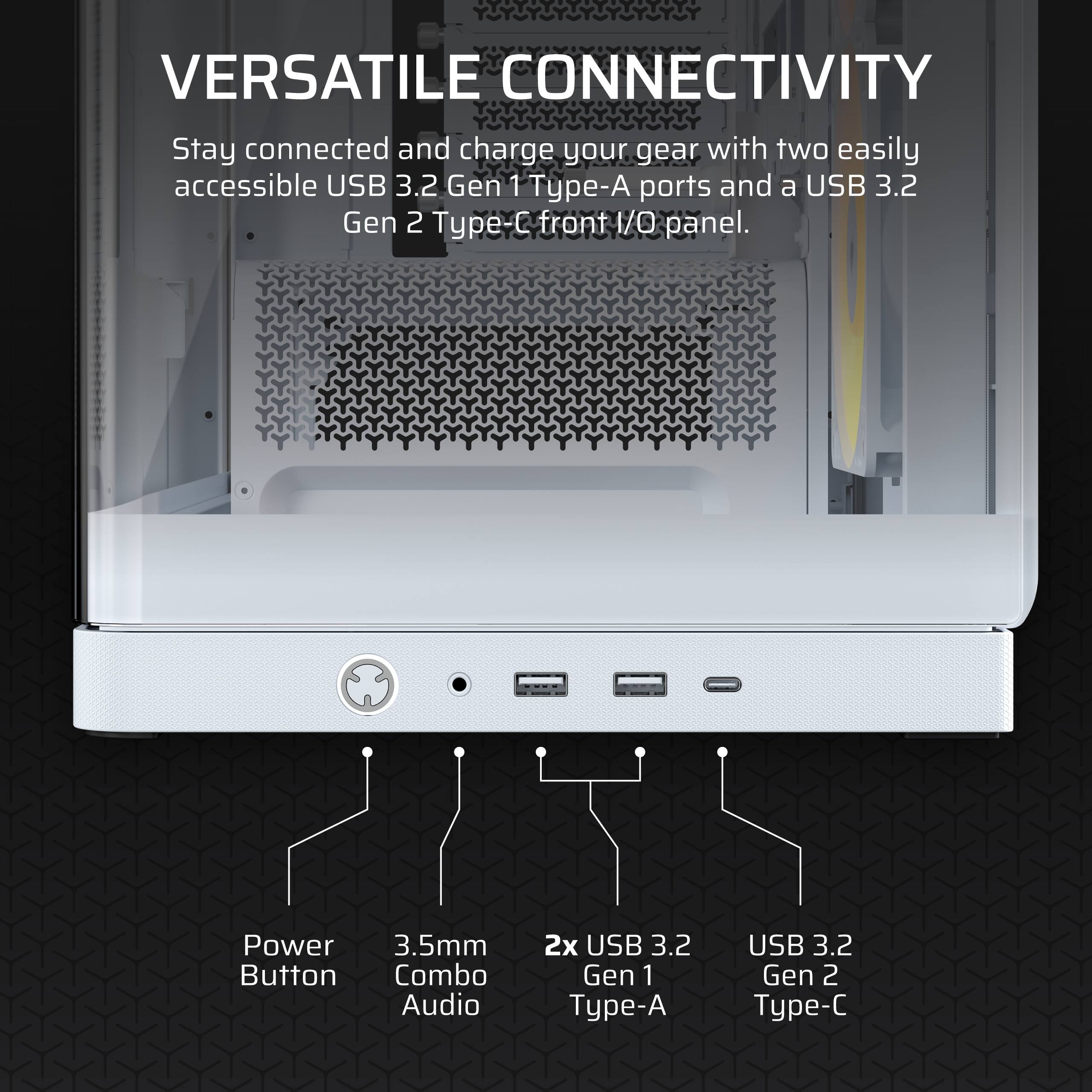

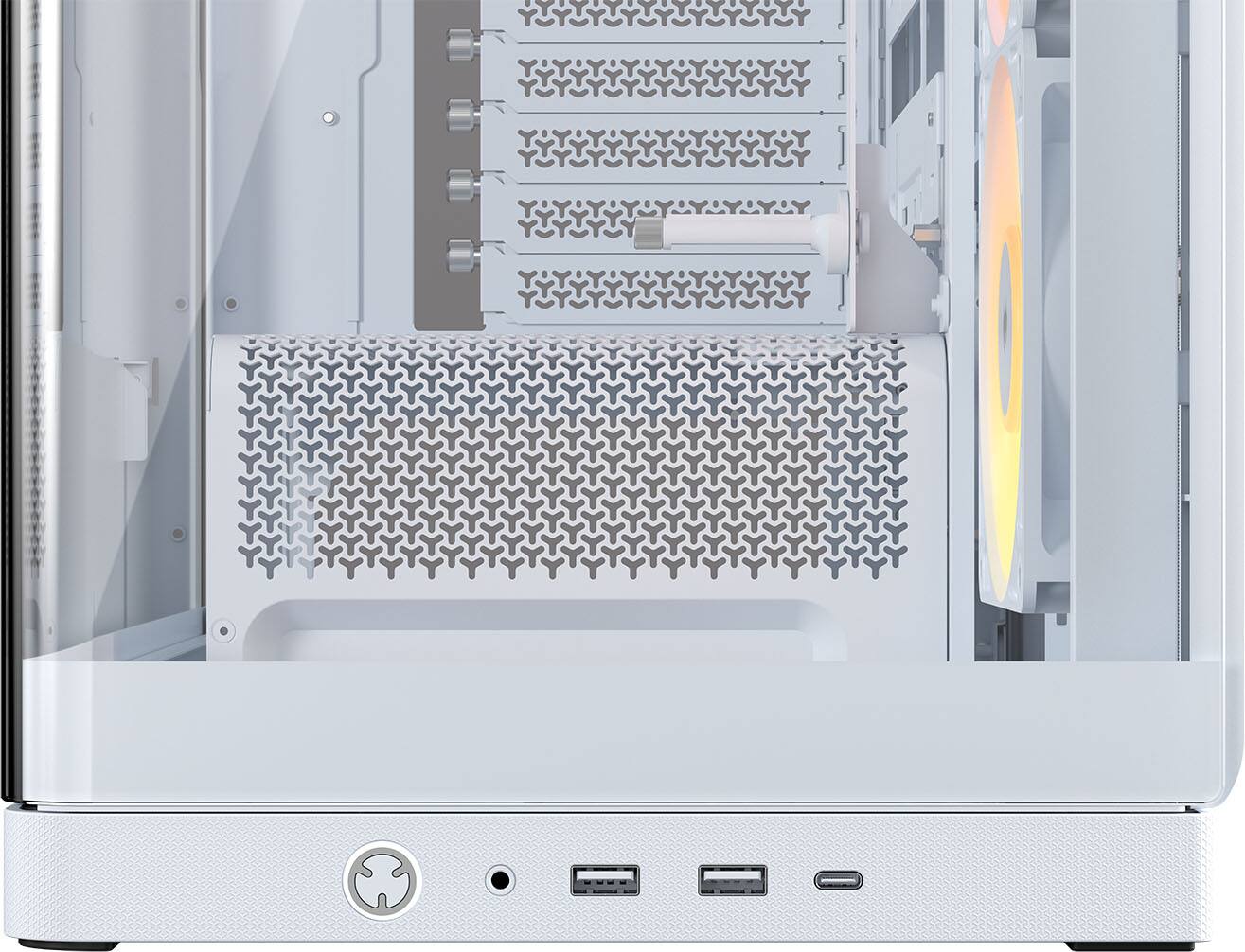

- USB Ports: 2 x USB-A 3.2, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Headphone Jack: true (The device features an interface that allows for the connection of headphones.)
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Bays
- Number Of Internal 2.5" Bays: 2
- Number Of Internal 3.5" Bays: 1
- Dimensions
- Product Height: 18.82 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9.68 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 19.65 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 408.47 ounces (The out of box weight of the item.)
- Features
- Enclosure Type: Mid tower
- Window Panel(s): Front, Left side
- Customizable Case Lighting: false
- Lighting Type: None
- Cooling
- Maximum CPU Cooler Height: 185 millimeters
- Number of Fans Supported: 10
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Number of Fans Included: 3
- Radiator Support: Top 360mm, 280mm, 240mm; Side 360mm, 280mm, 240mm; Rear 140mm, 120mm
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 840440402787

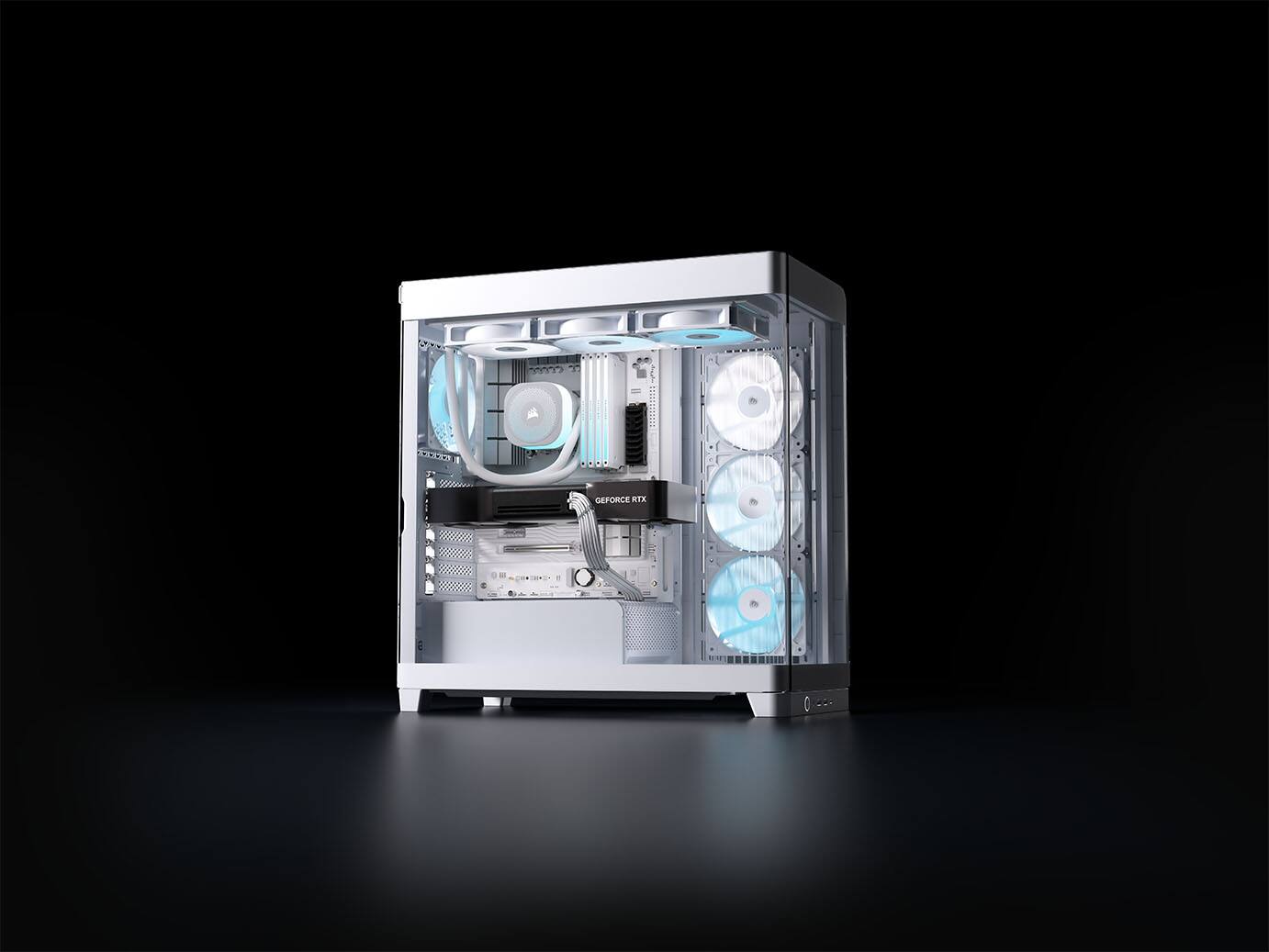

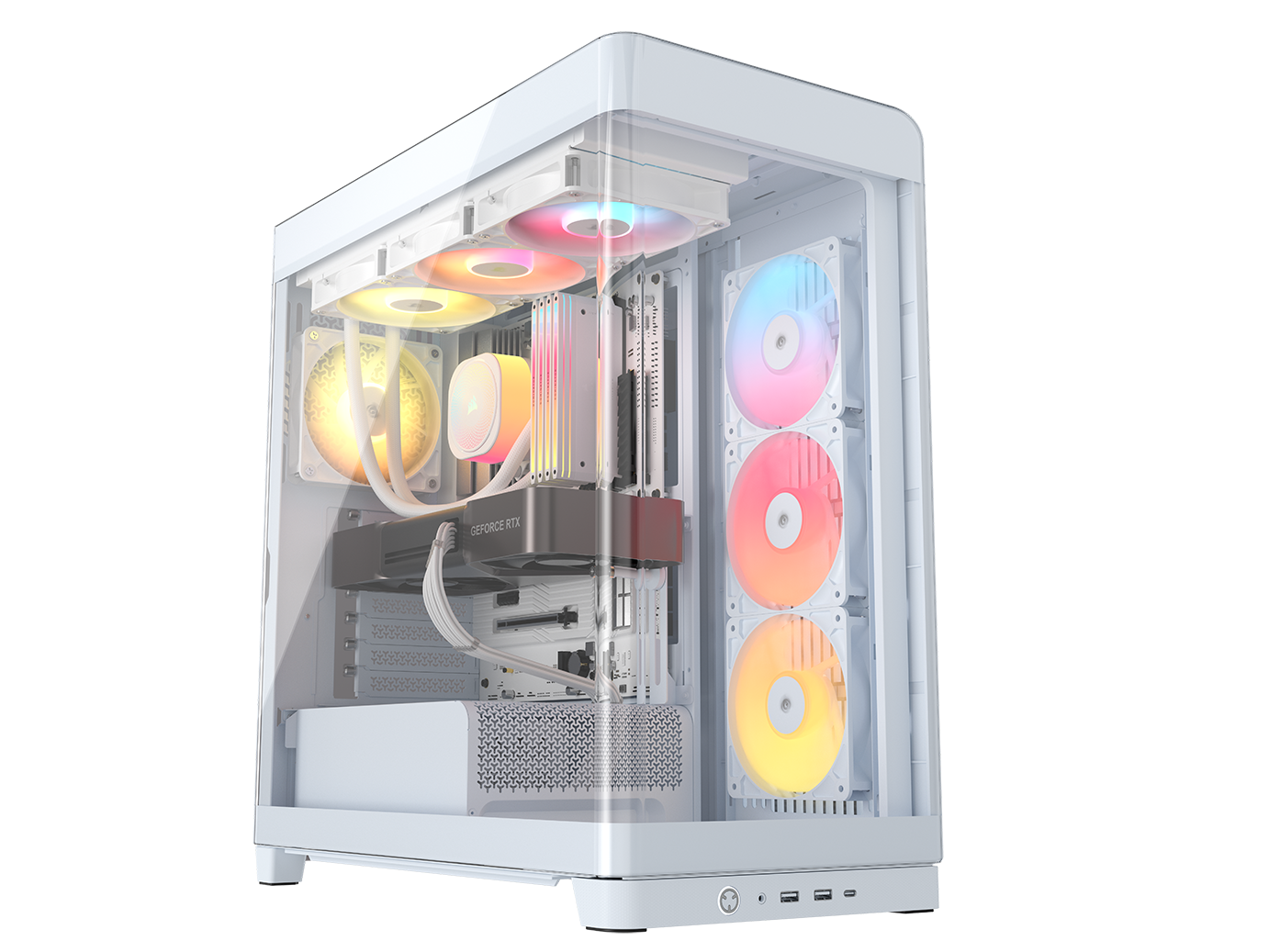

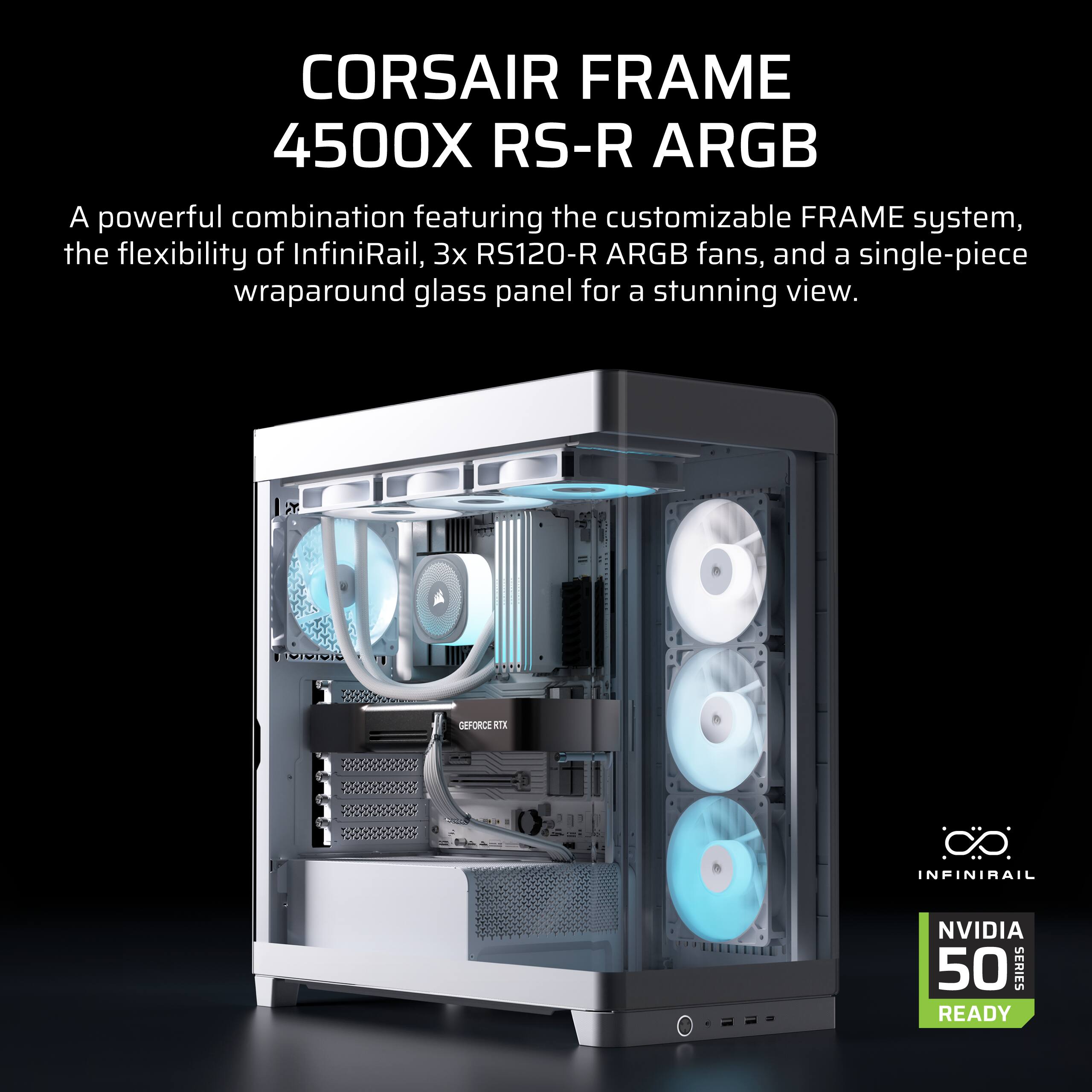

The CORSAIR FRAME 4500X is a mid-tower chassis that offers stunning visuals and high-performance features, all built on the customizable FRAME Modular Case System. Immaculate builds are achievable thanks to the single-piece wraparound glass panel and support for reverse-connector motherboards, while temps stay frosty with room for dual 360mm radiators and up to 10x 120mm fans or 5x 140mm fans using the InfiniRail fanmounting system. The roomy interior is designed for oversized GPUs and includes an Anti-Sag arm, and reverse-rotor RGB fans complete the package. If your mood changes down the road, the case is customizable via the modular FRAME system, so it’s also future-proof.

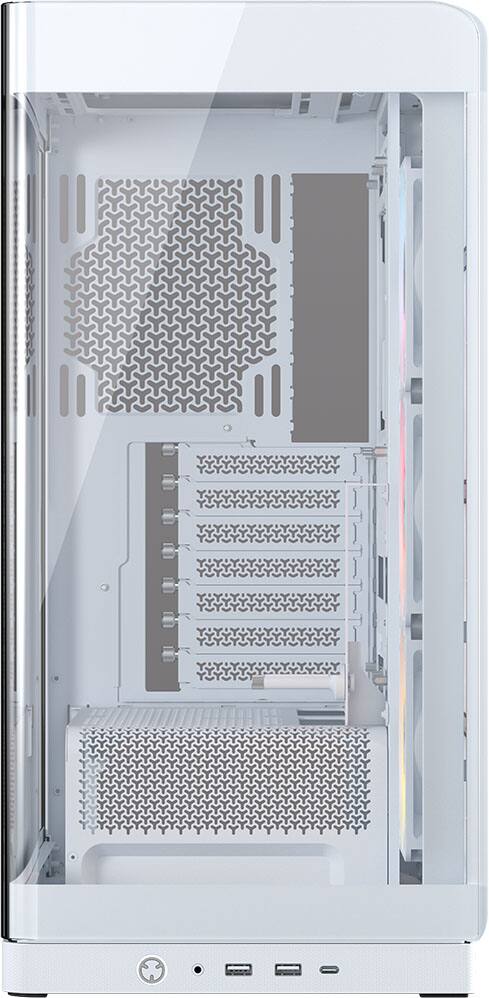

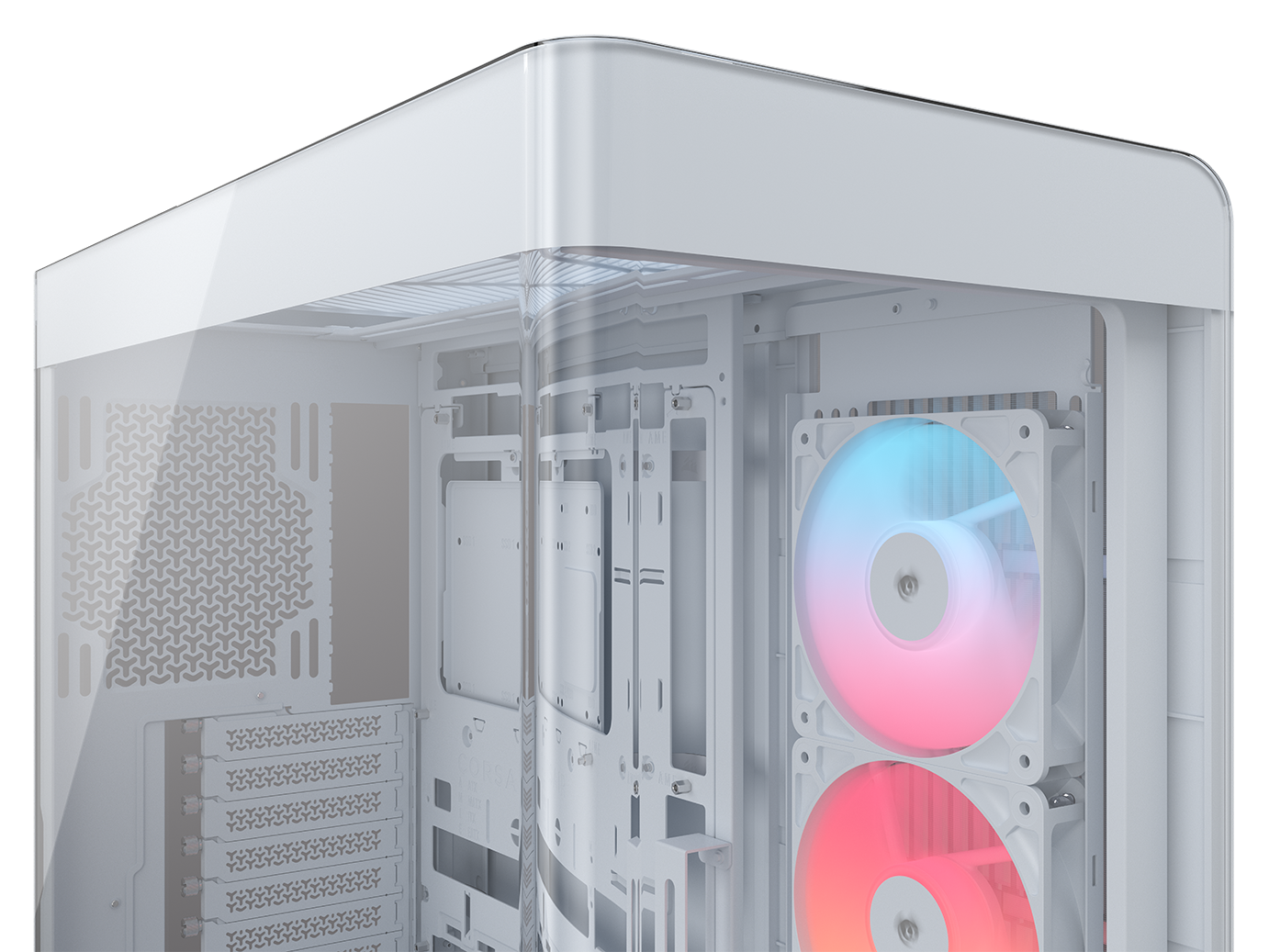

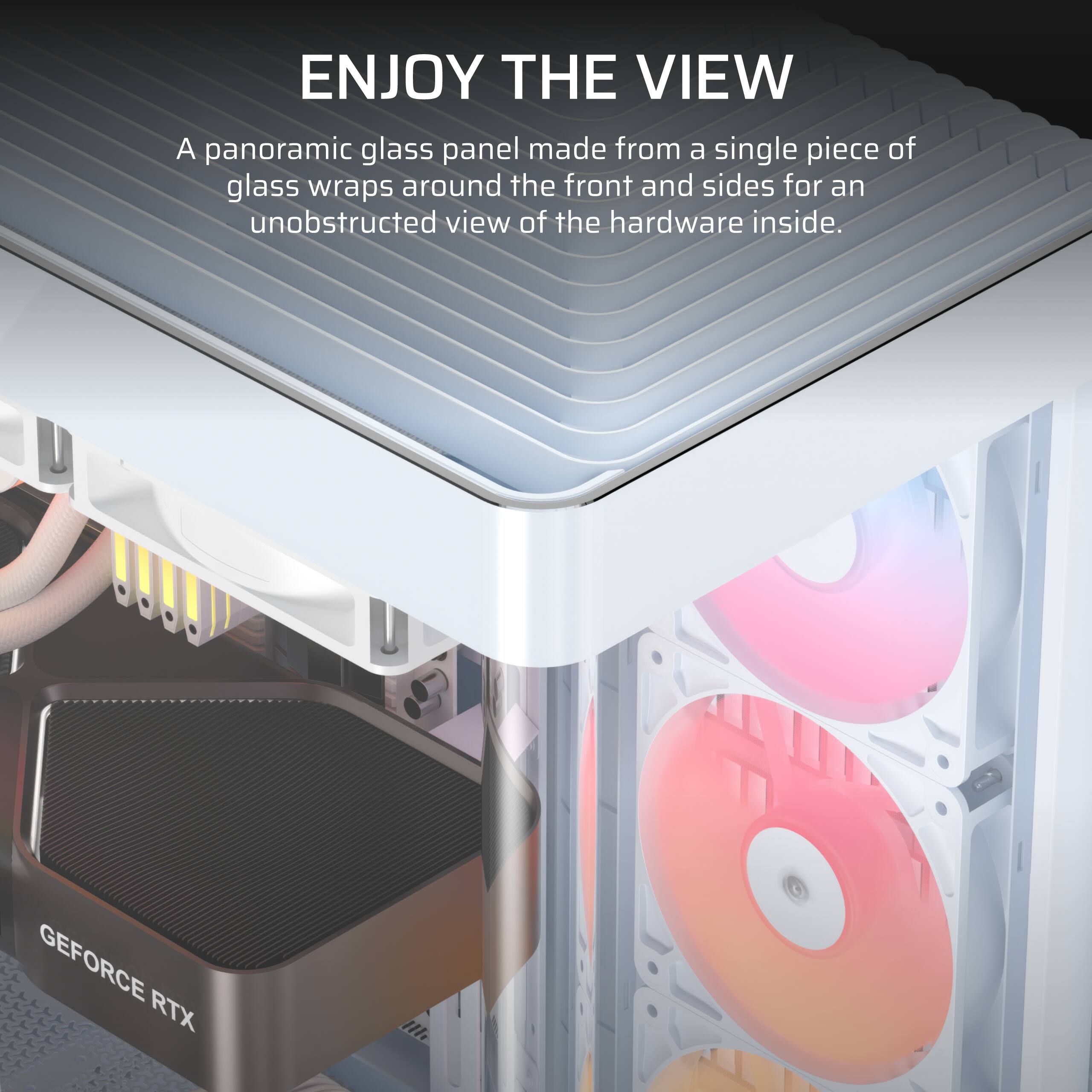

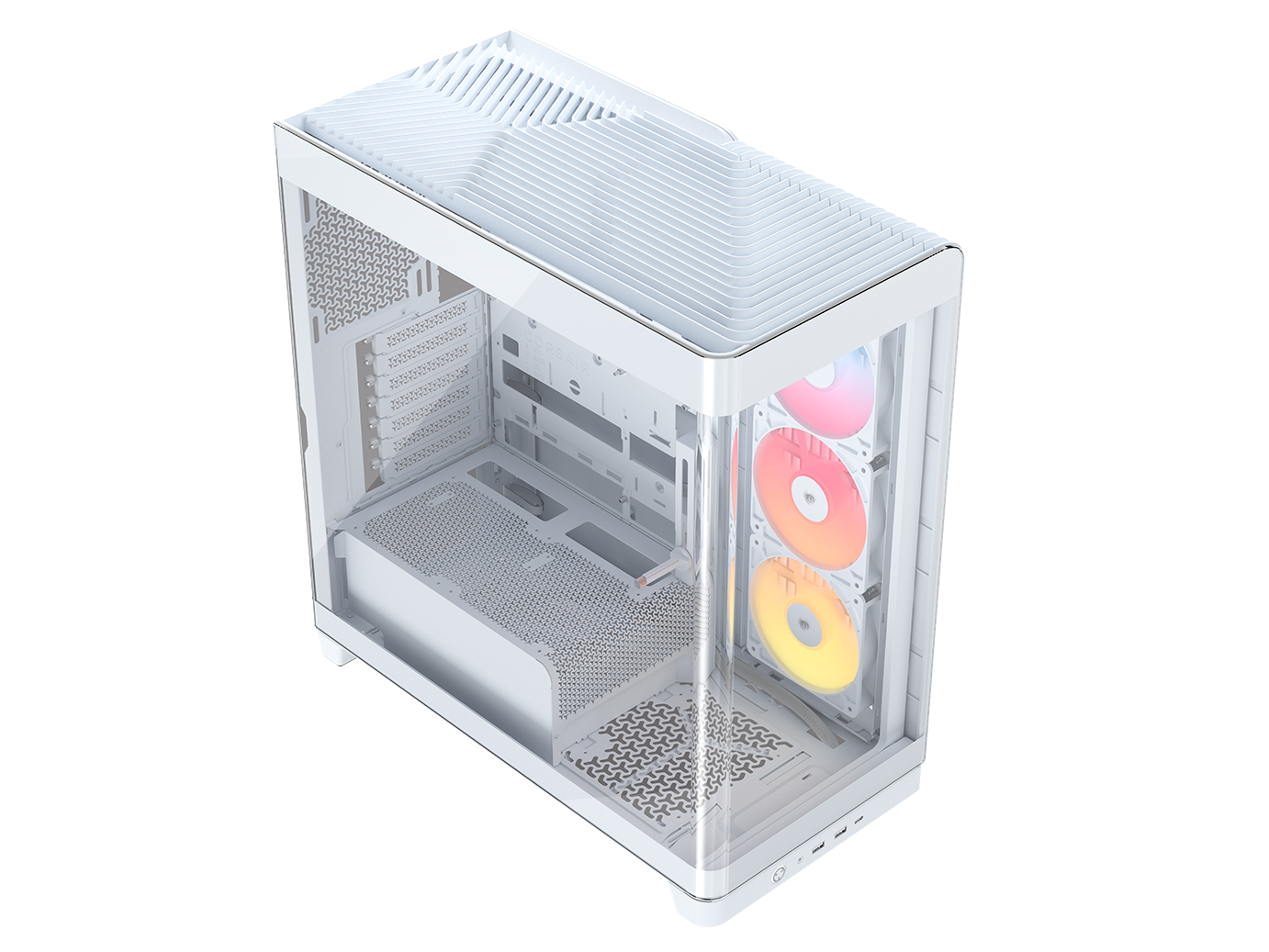

- Single-Piece Curved Glass Panel: The front and side panel are made from a single piece of glass, providing an unobstructed, wraparound view of a PC’s glorious hardware.

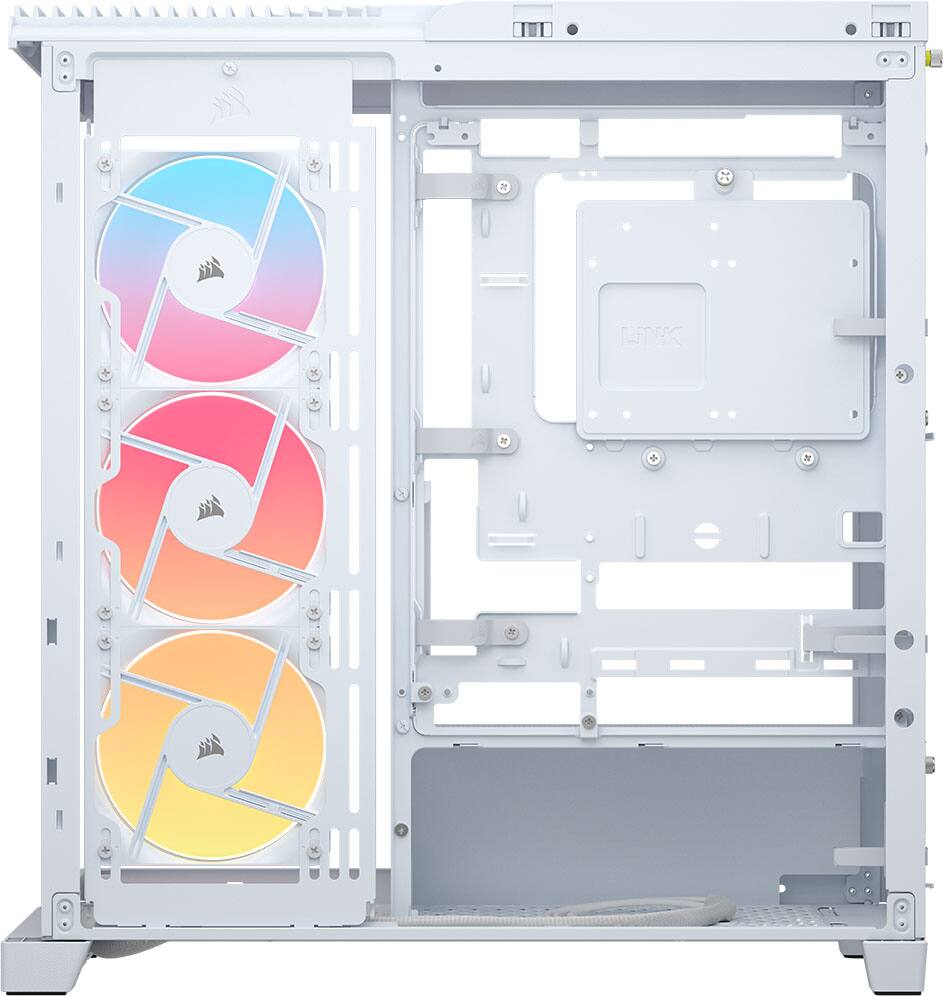

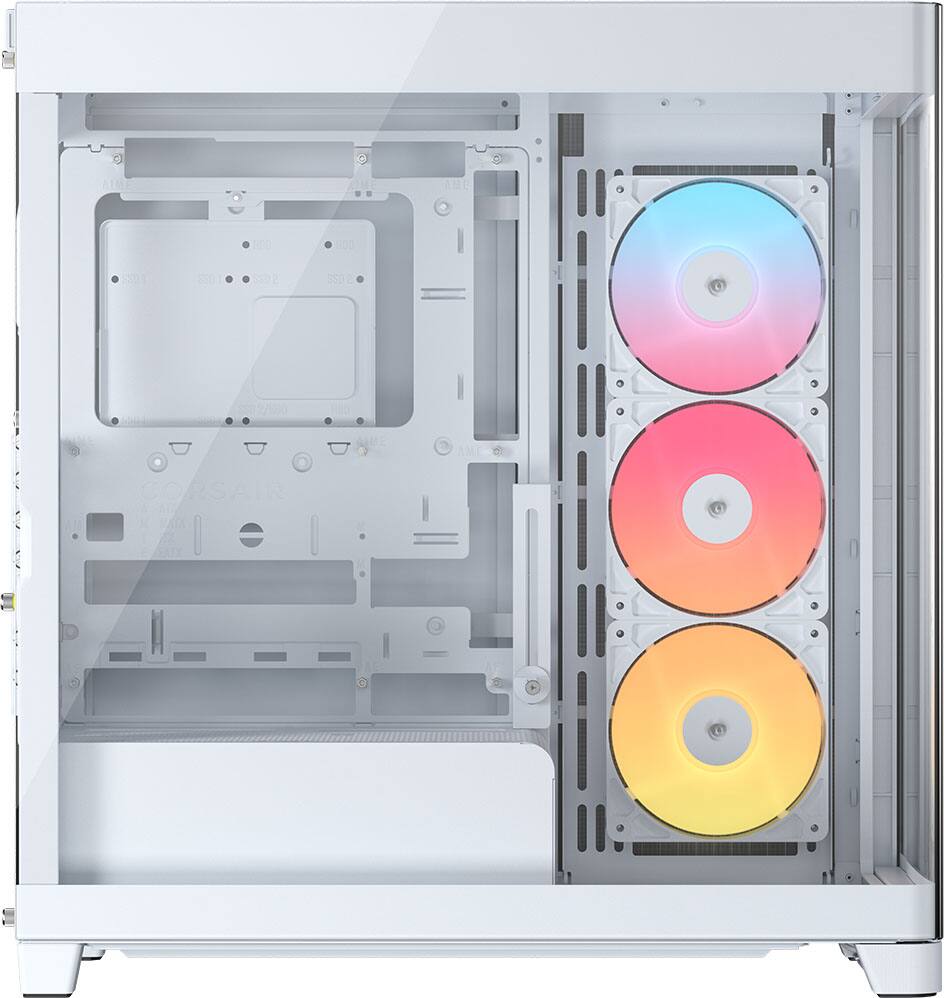

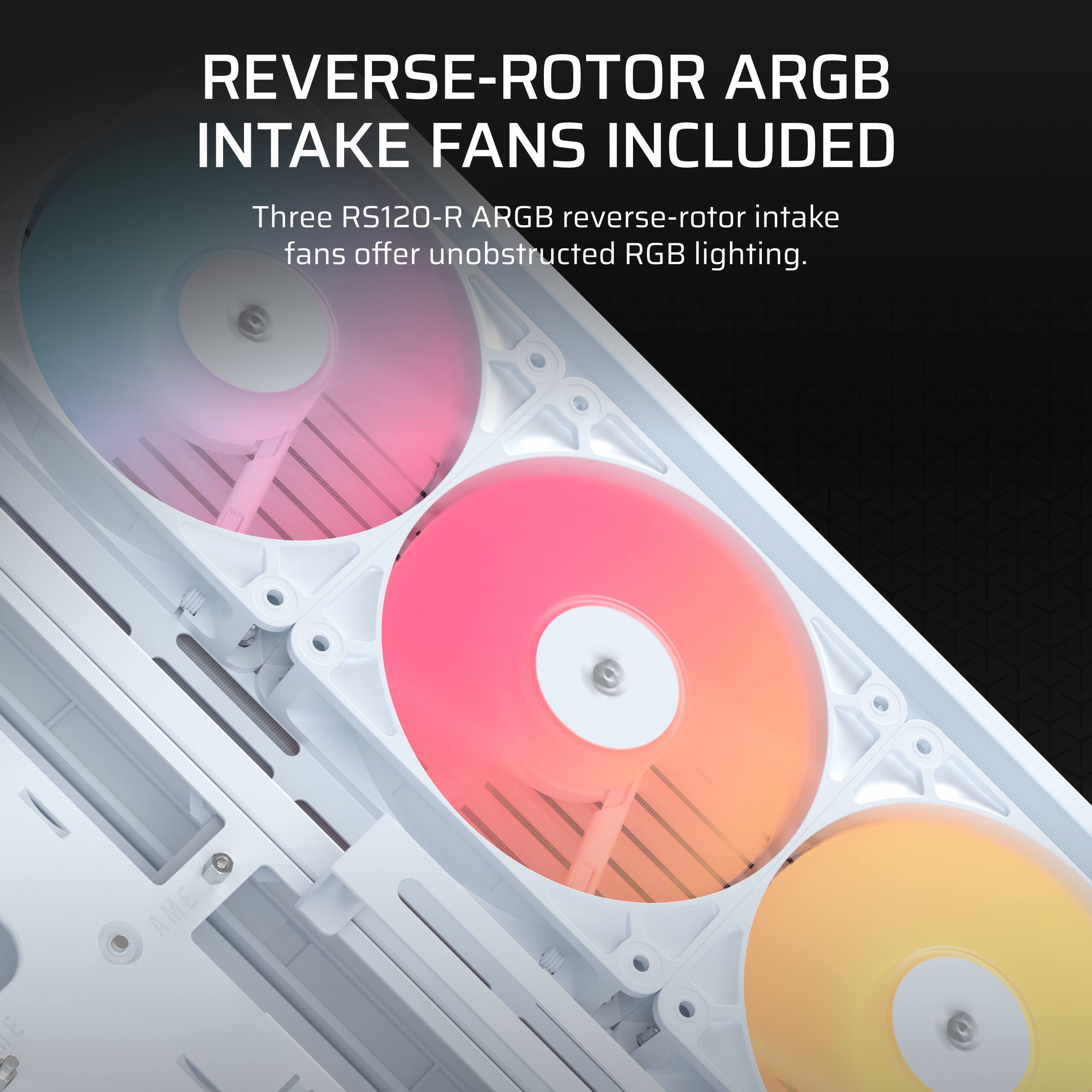

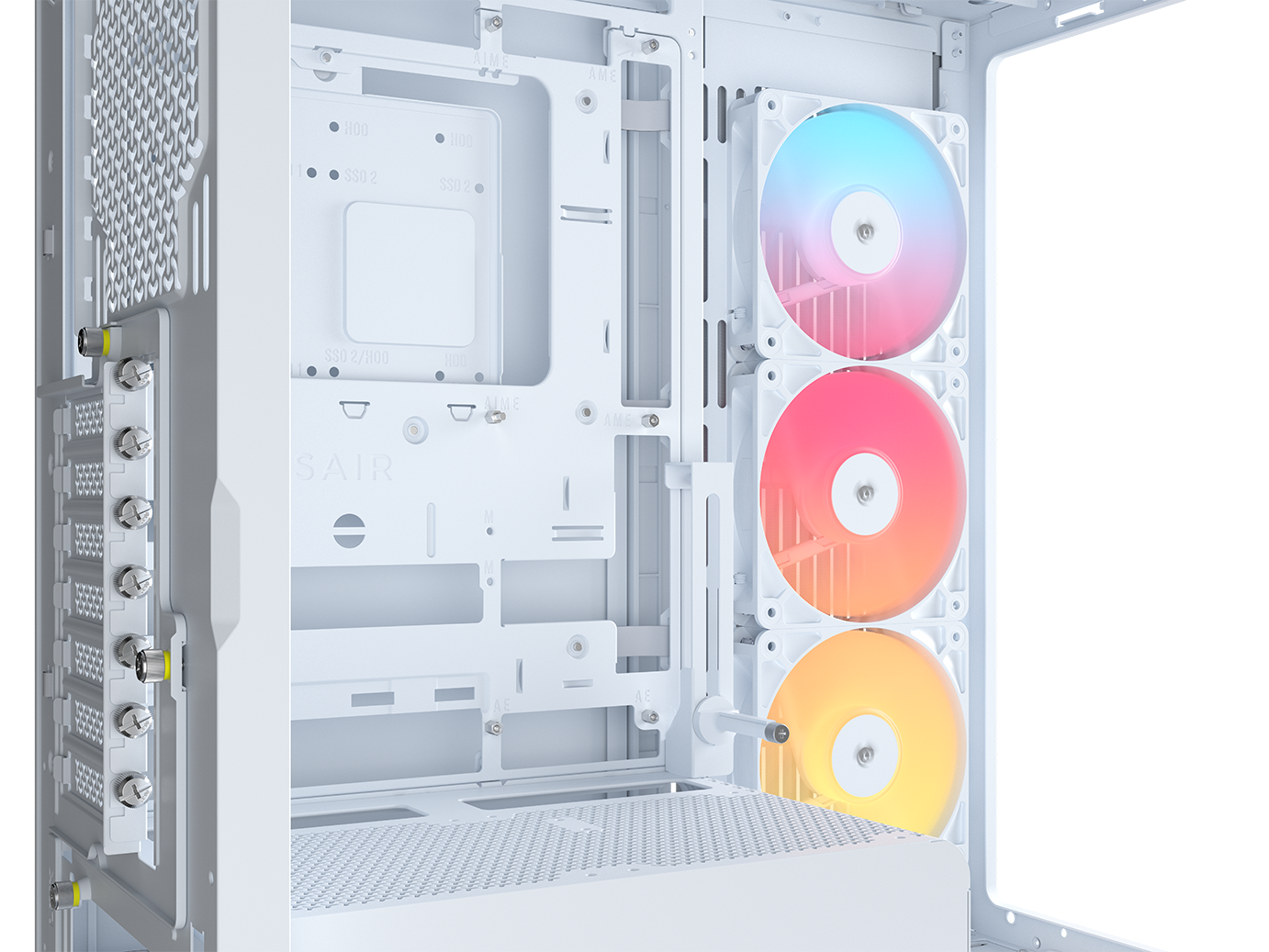

- Reverse-Rotor RGB Fans: The included side-mounted 120mm fans use a reverse-rotor design to blow cool air into the case while providing an unobstructed view of their dazzling RGB LEDs.

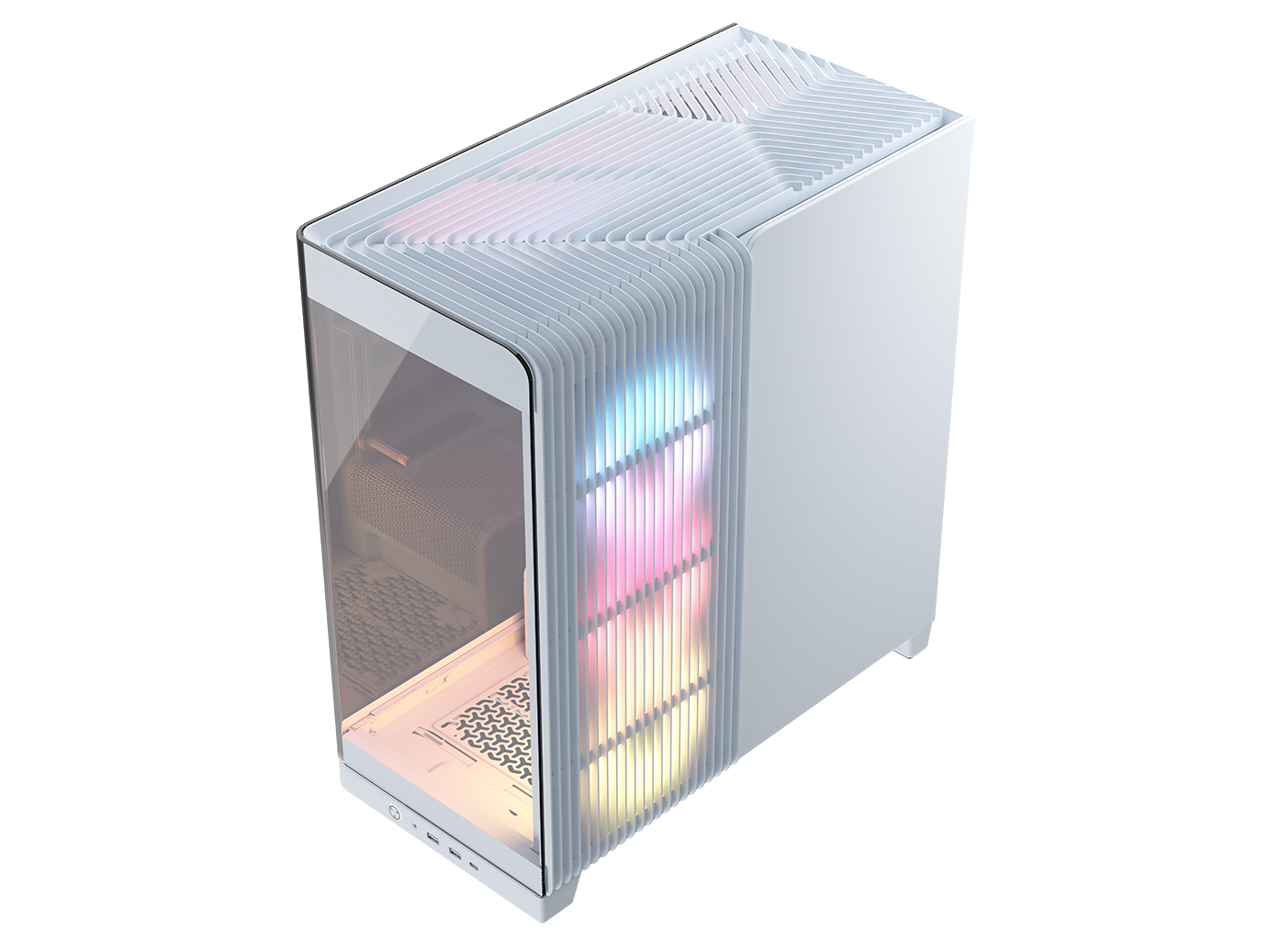

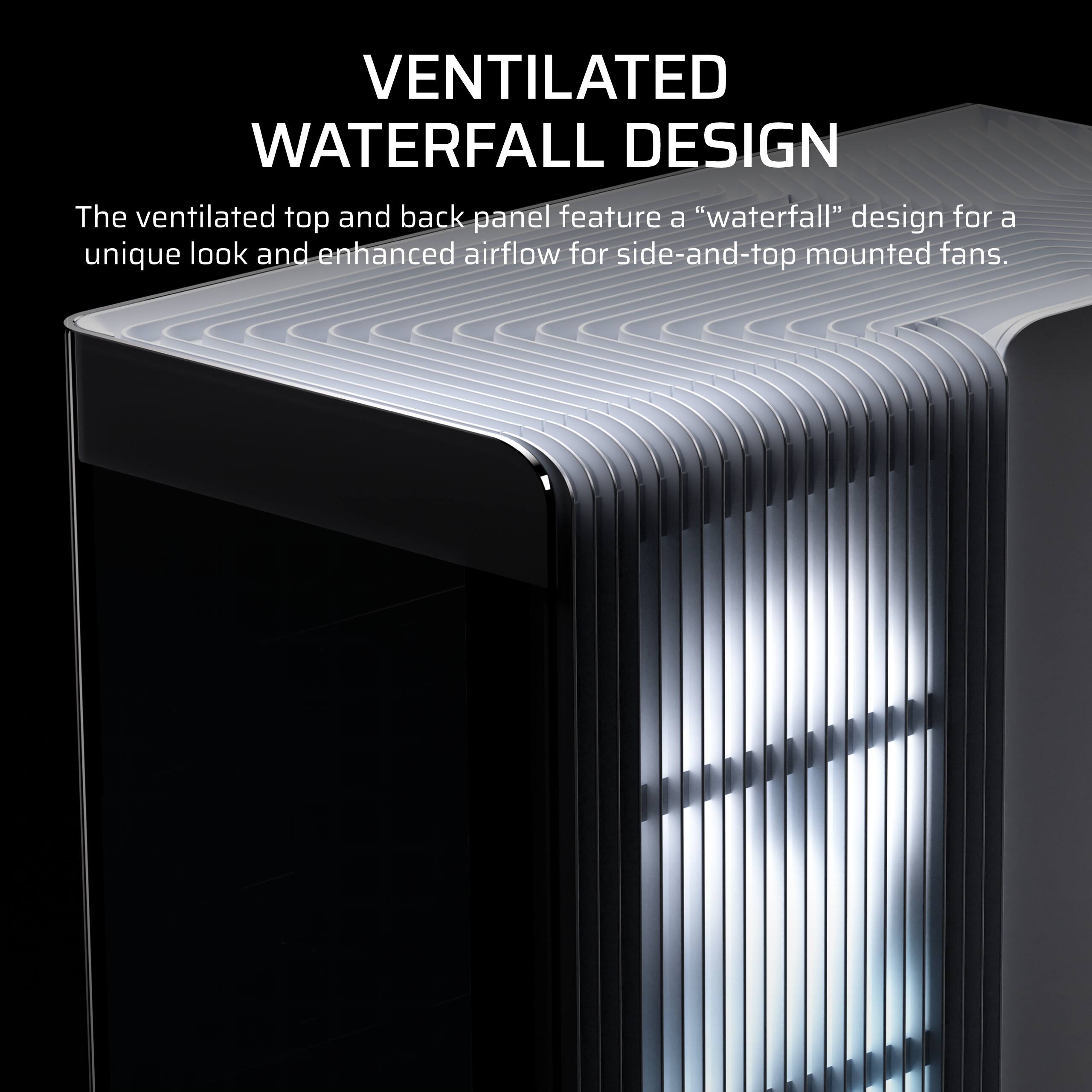

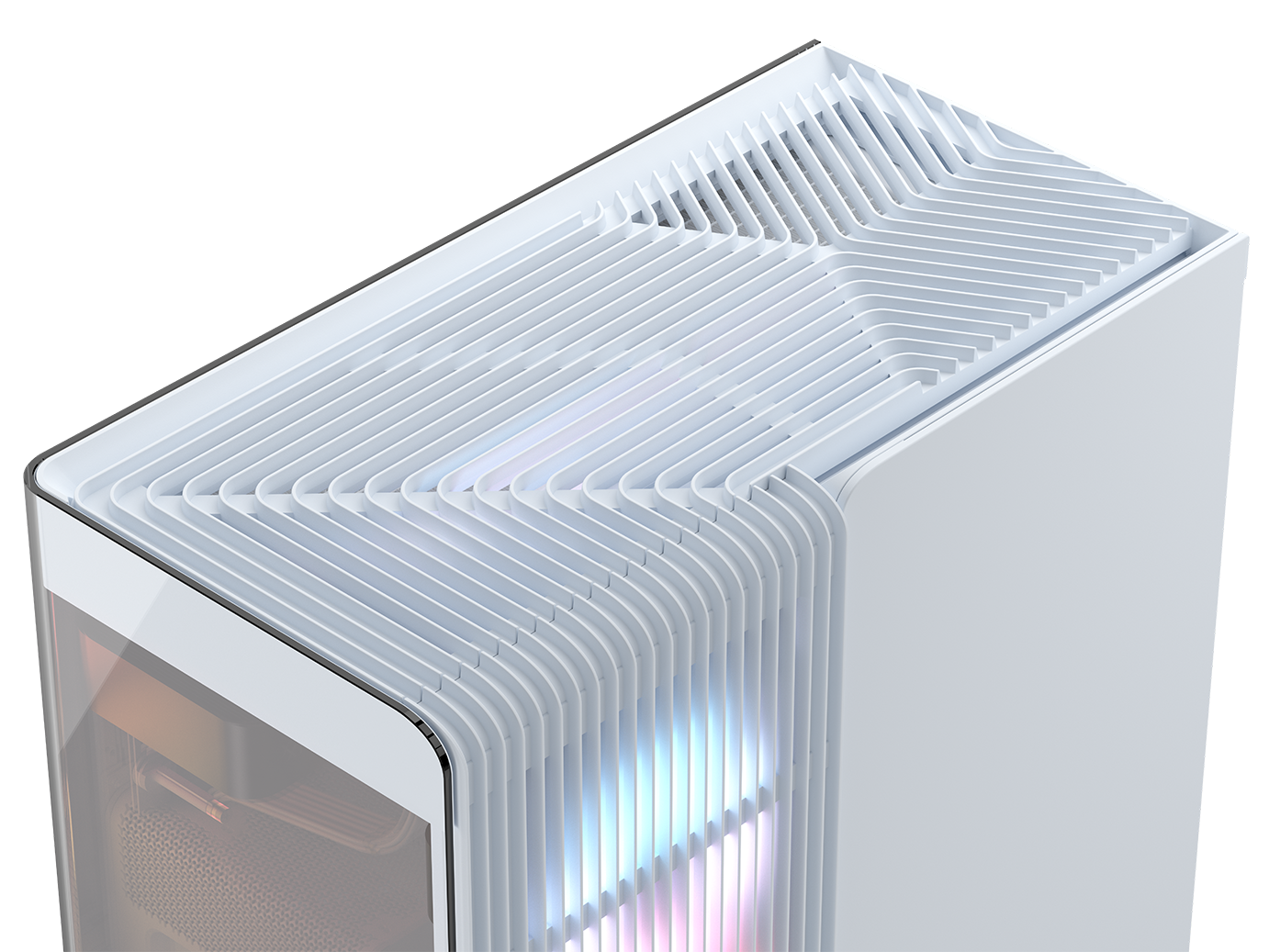

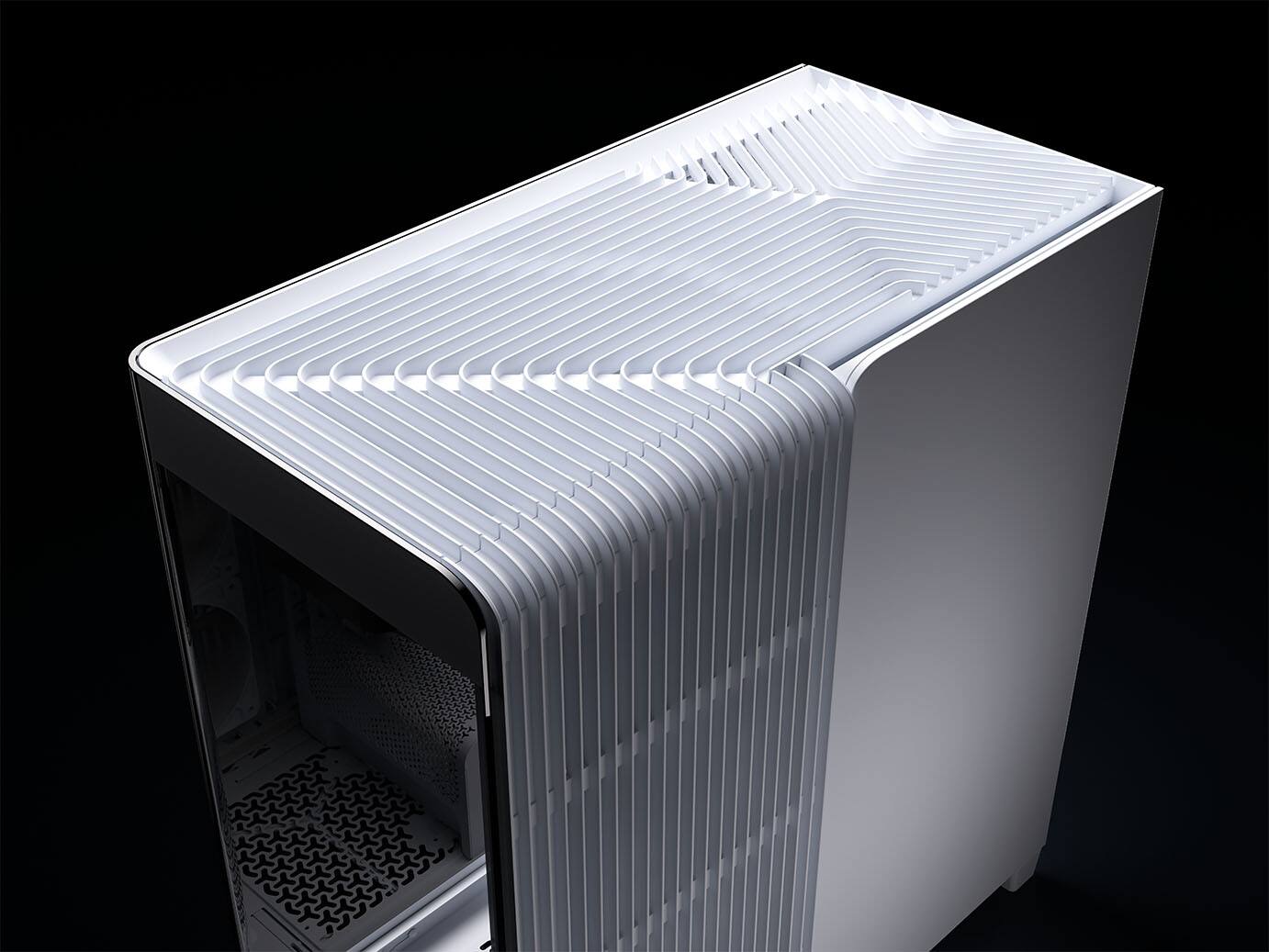

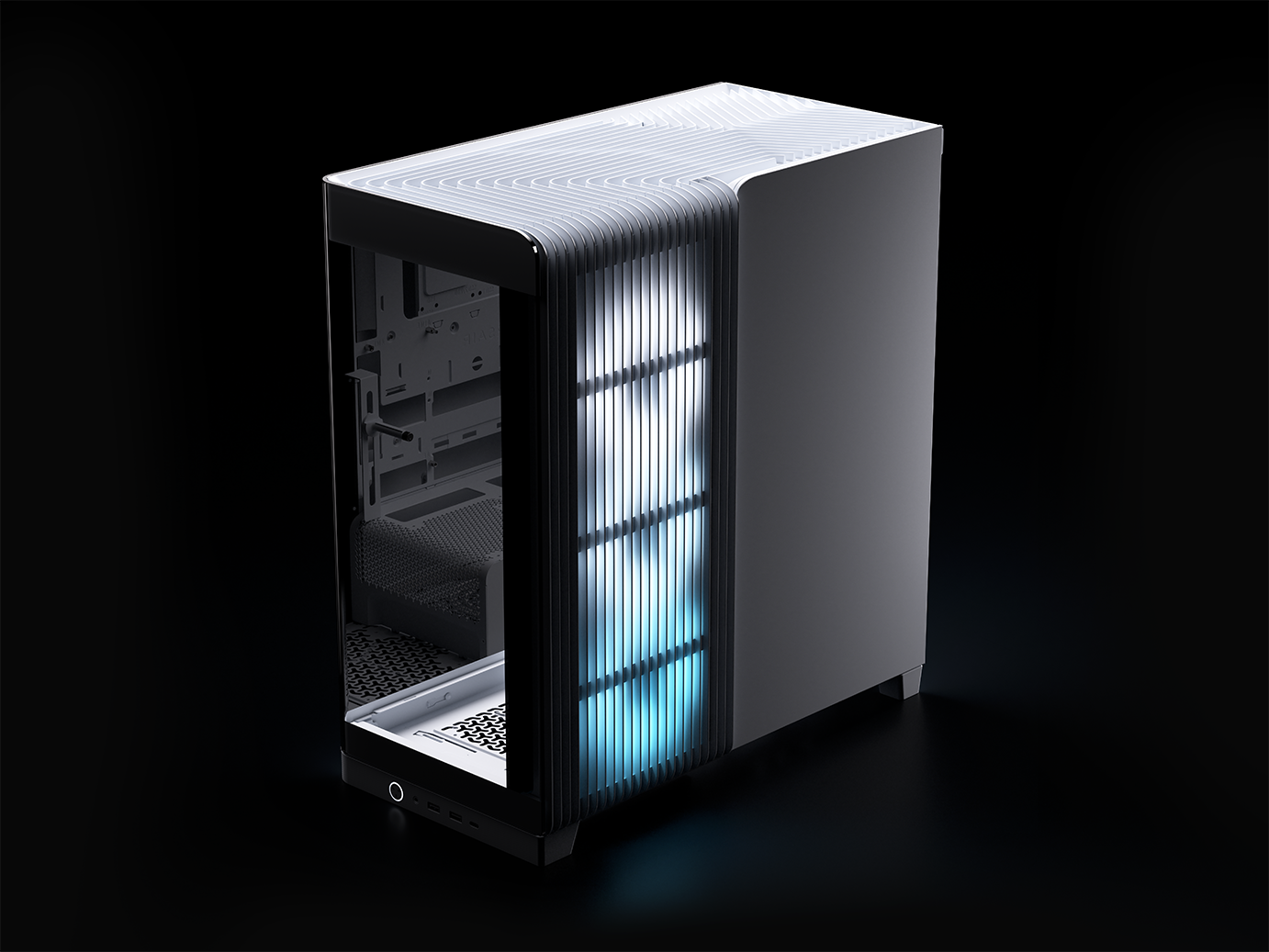

- Cascading Industrial Design: Clean lines cascade like a waterfall over the exterior of the chassis, offering generous openings for airflow and a unique look that sets it apart.

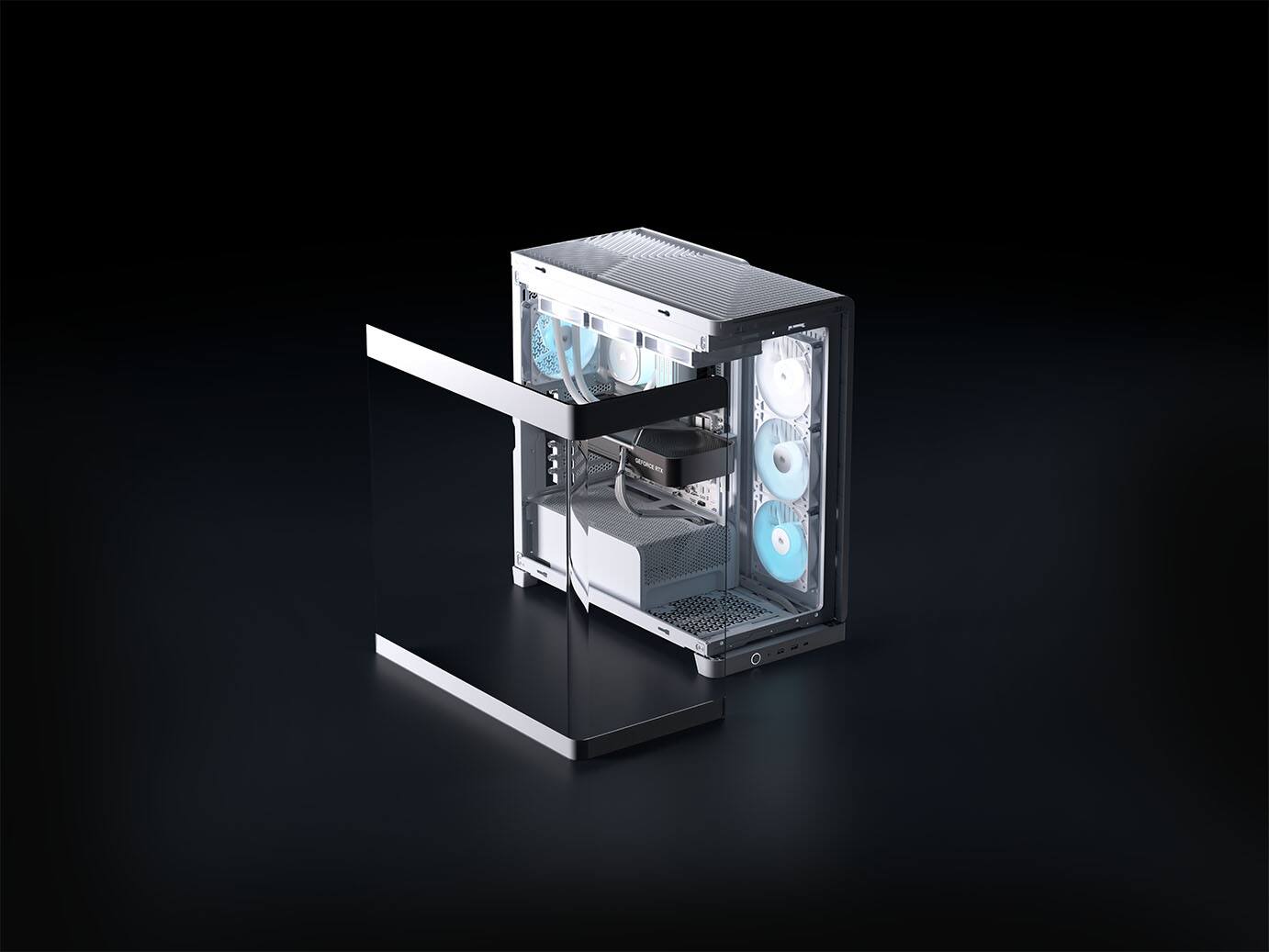

- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. You can upgrade the motherboard tray, change the side-mounted fans to a cable cover, or swap out the PSU shroud to a form-fitting design with vertical GPU mounting points. It’s a case that can change and grow with your needs (or just your mood).

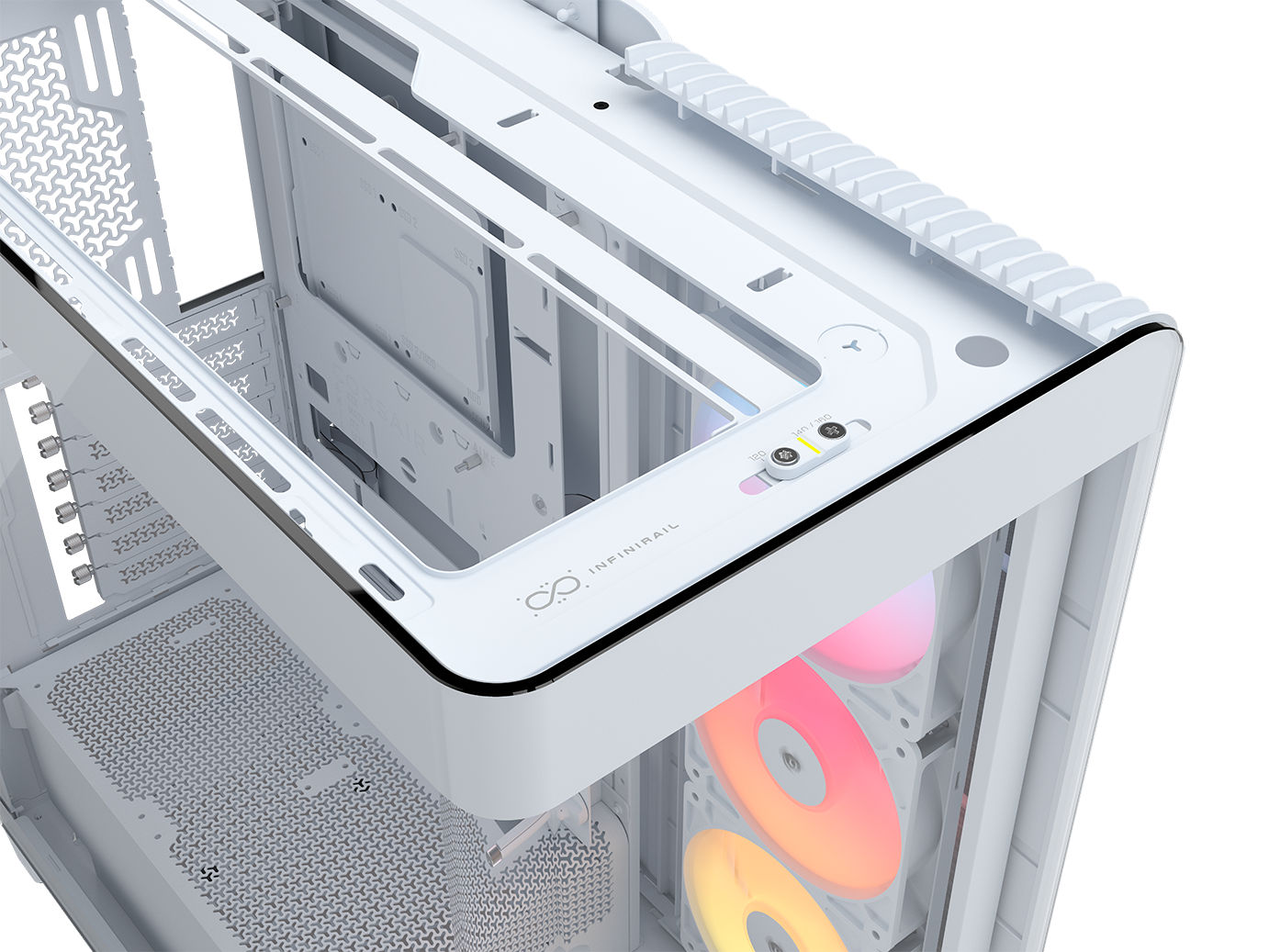

- CORSAIR InfiniRail™ Fan Mounting System: This steel multi-point mounting system offers unmatched flexibility in roof fan configurations. Simply slide the rail to mount 120mm or 140mm fans wherever you like, ensuring targeted airflow without fixed mounting constraints
- Reverse Connection Motherboard Support: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
- CORSAIR InfiniRail™ Mounting System: The steel multi-point mounting system offers flexibility on the roof fan mount locations, allowing 120mm or 140mm fans to target their airflow at the hottest components.
- Drives, Drives, Drives: Includes drive tray for a 3.5” hard drive or two 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cable storage.

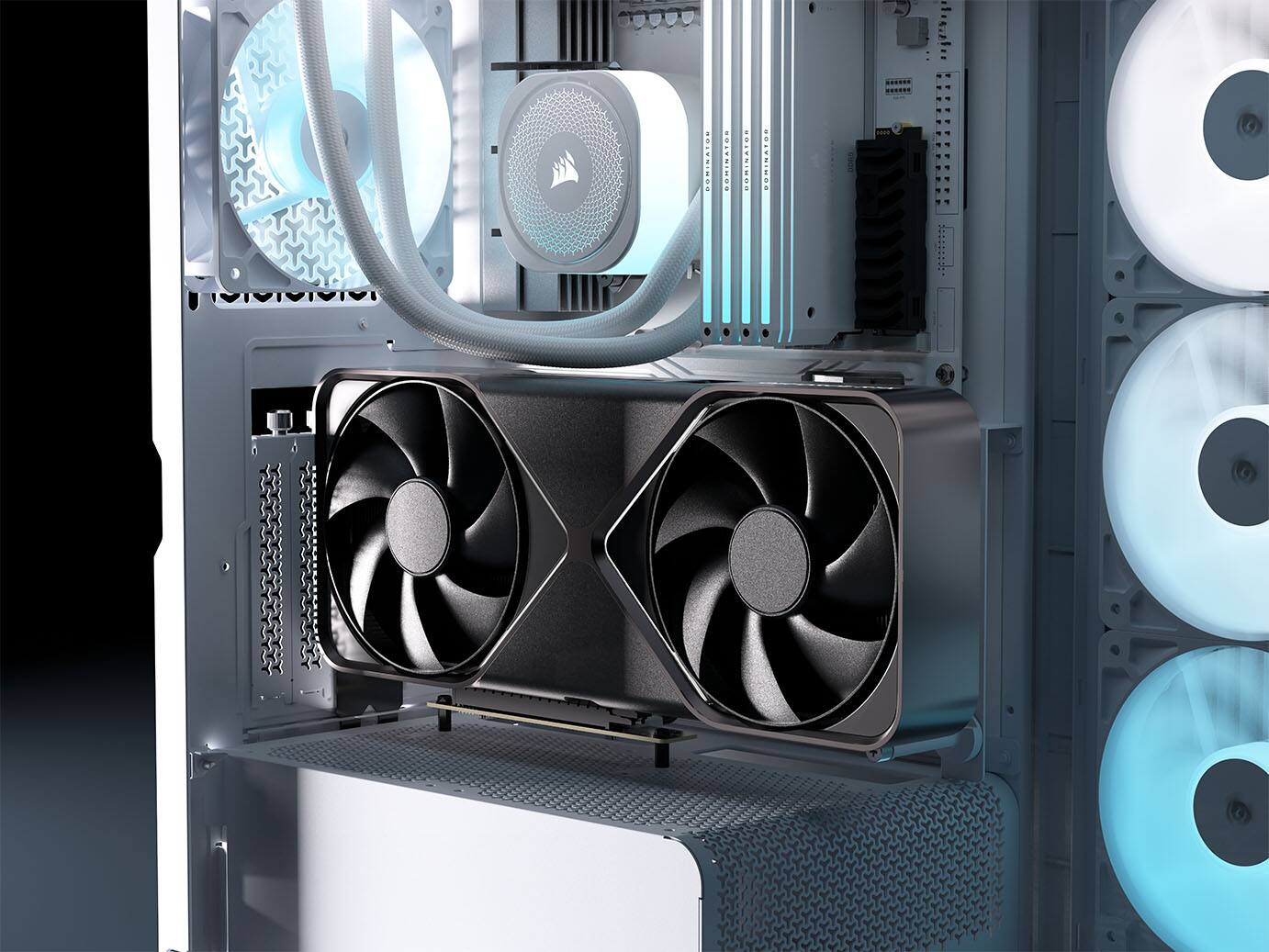

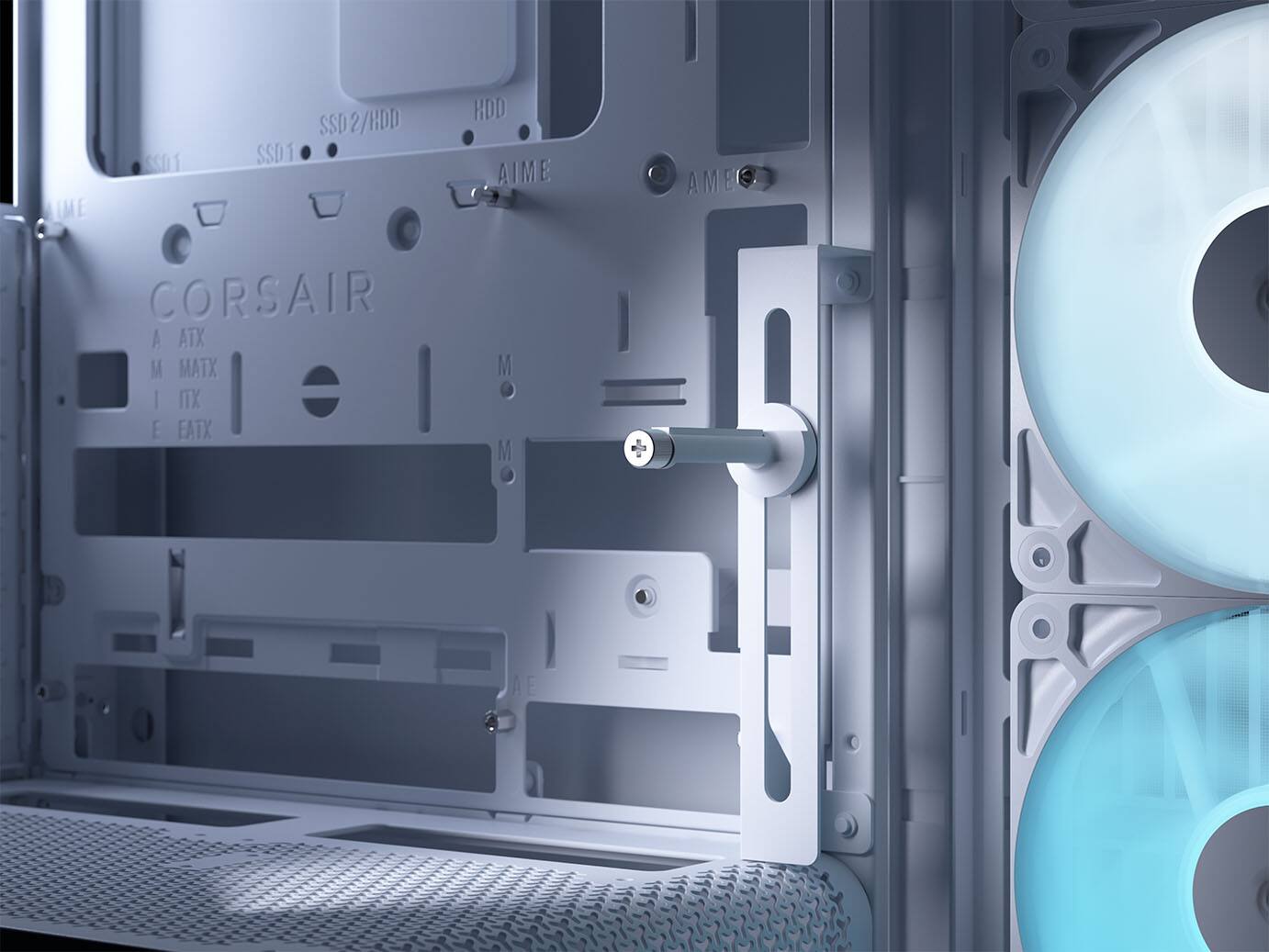

- Solid GPU Support: Modern graphics cards are bigger and heavier than ever, which is why it includes a GPU Anti-Sag stabilization arm.

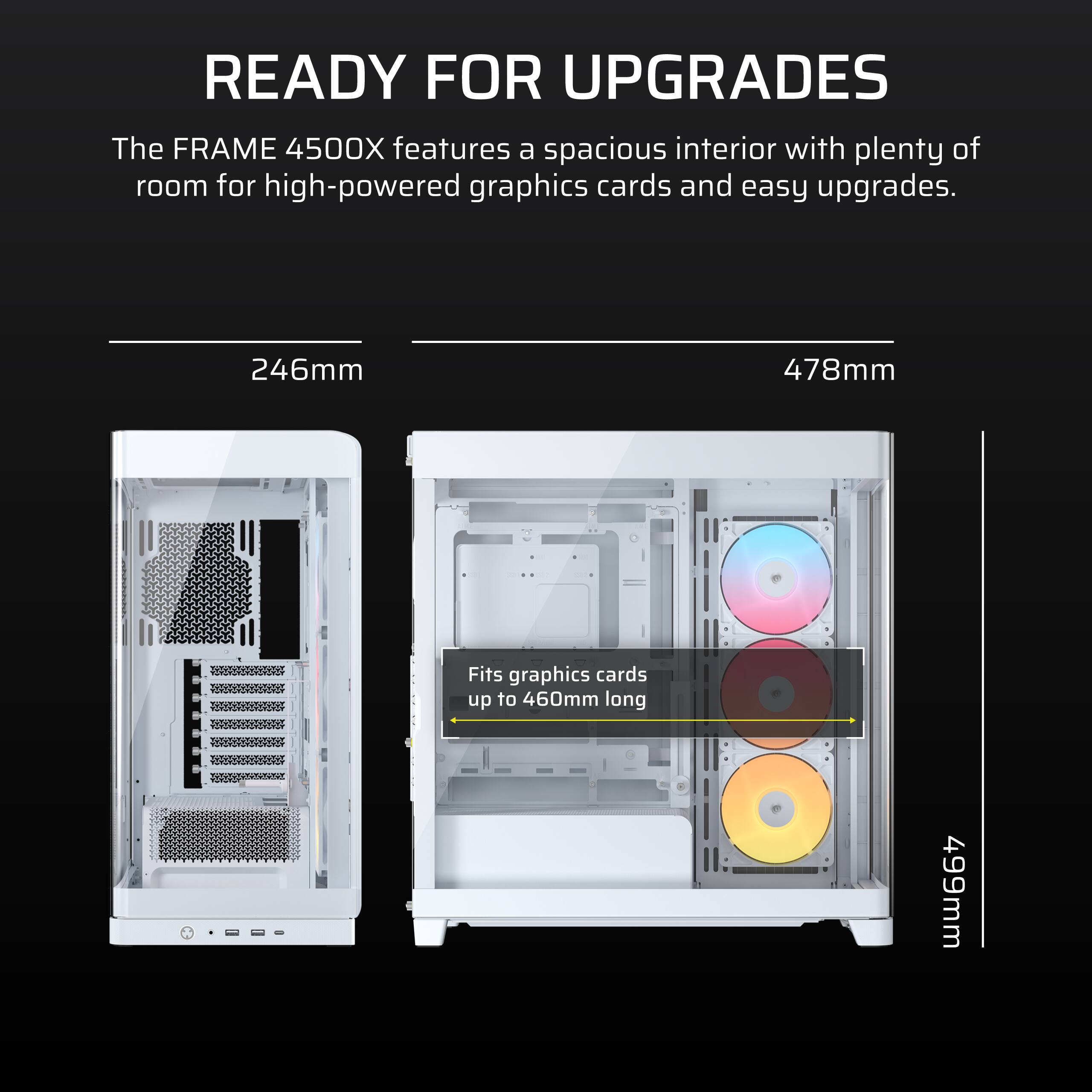

- Big Enough for Powerful GPUs: The FRAME 4500X is spacious enough for the most powerful GPUs and cooling components, but not so big as to hog all your desktop space.

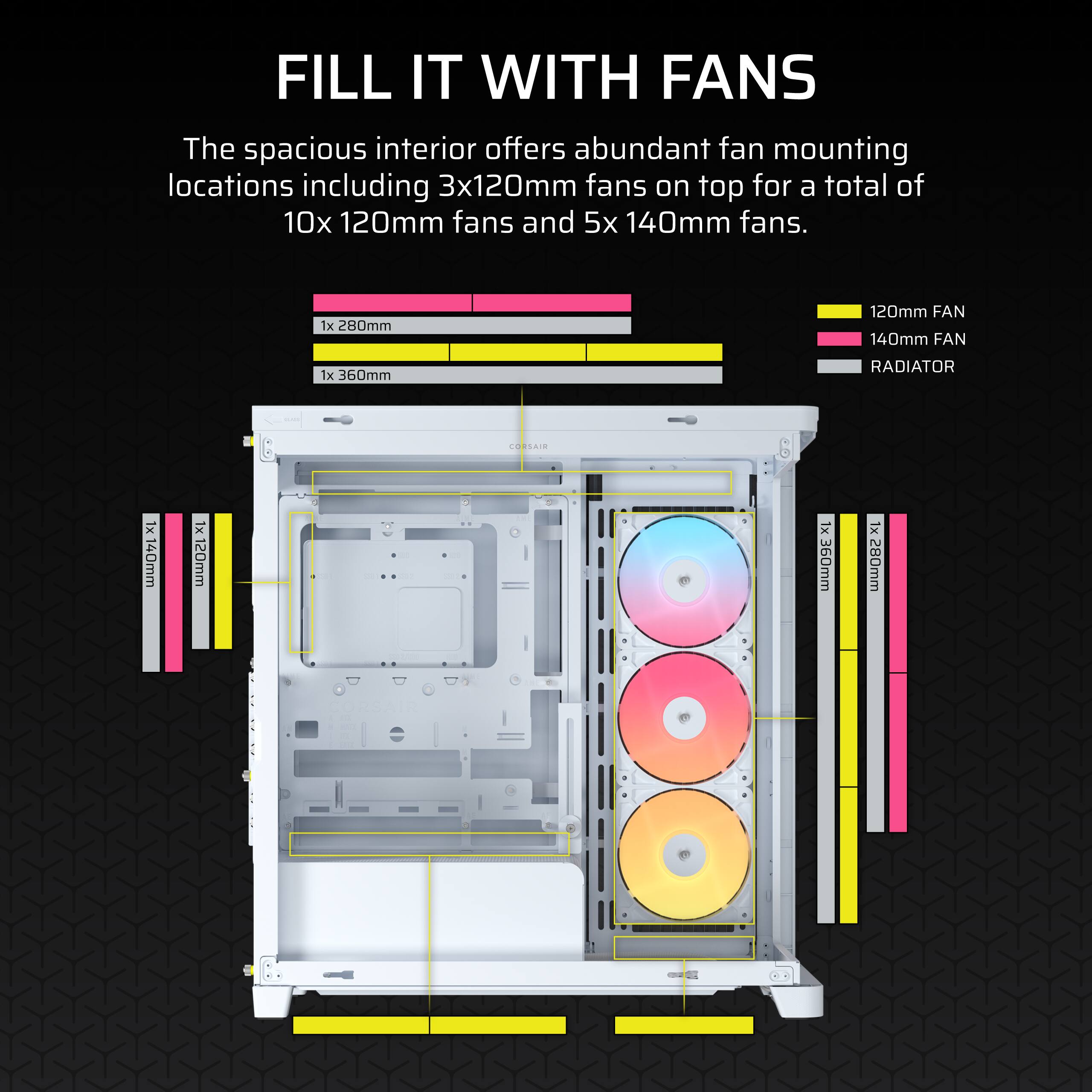

- Fill It With Fans: There is ample room for case fans with support for 10x 120mm fans, including three along the bottom of the chassis directing air towards the GPU. Up to 5x 140mm fans are supported as well for a near-silent build.
- Dual 360mm Radiator Support: Take your cooling to the next level with two mounting locations for 360mm radiators on the roof and side.
- Powerful RGB Fans Included: Choose from either iCUE LINK LX-R or ARGB RS-R reverse-rotor fans for powerful cooling that adds beautiful RGB lighting, right out of the box.
- Single-Piece Curved Glass Panel: The front and side panel are made from a single piece of glass, providing an unobstructed, wraparound view of a PC’s glorious hardware.
- Reverse-Rotor RGB Fans: The included side-mounted 120mm fans use a reverse-rotor design to blow cool air into the case while providing an unobstructed view of their dazzling RGB LEDs.
- Cascading Industrial Design: Clean lines cascade like a waterfall over the exterior of the chassis, offering generous openings for airflow and a unique look that sets it apart.
- FRAME Modular Case System: The revolutionary FRAME system gives new meaning to the word customization. You can upgrade the motherboard tray, change the side-mounted fans to a cable cover, or swap out the PSU shroud to a form-fitting design with vertical GPU mounting points. It’s a case that can change and grow with your needs (or just your mood).
- CORSAIR InfiniRail™ Fan Mounting System: This steel multi-point mounting system offers unmatched flexibility in roof fan configurations. Simply slide the rail to mount 120mm or 140mm fans wherever you like, ensuring targeted airflow without fixed mounting constraints
- Reverse Connection Motherboard Support: ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth validated with plenty of connector and cable cutouts and tie-downs to keep things tidy even where you can’t see them.
- CORSAIR InfiniRail™ Mounting System: The steel multi-point mounting system offers flexibility on the roof fan mount locations, allowing 120mm or 140mm fans to target their airflow at the hottest components.
- Drives, Drives, Drives: Includes drive tray for a 3.5” hard drive or two 2.5” SSDs, or they can be removed entirely to make room for custom liquid cooling components and cable storage.
- Solid GPU Support: Modern graphics cards are bigger and heavier than ever, which is why it includes a GPU Anti-Sag stabilization arm.
- Big Enough for Powerful GPUs: The FRAME 4500X is spacious enough for the most powerful GPUs and cooling components, but not so big as to hog all your desktop space.
- Fill It With Fans: There is ample room for case fans with support for 10x 120mm fans, including three along the bottom of the chassis directing air towards the GPU. Up to 5x 140mm fans are supported as well for a near-silent build.
- Dual 360mm Radiator Support: Take your cooling to the next level with two mounting locations for 360mm radiators on the roof and side.
- Powerful RGB Fans Included: Choose from either iCUE LINK LX-R or ARGB RS-R reverse-rotor fans for powerful cooling that adds beautiful RGB lighting, right out of the box.
Whats Included
- FRAME 4500X Case
- 3x RS120R ARGB Fans

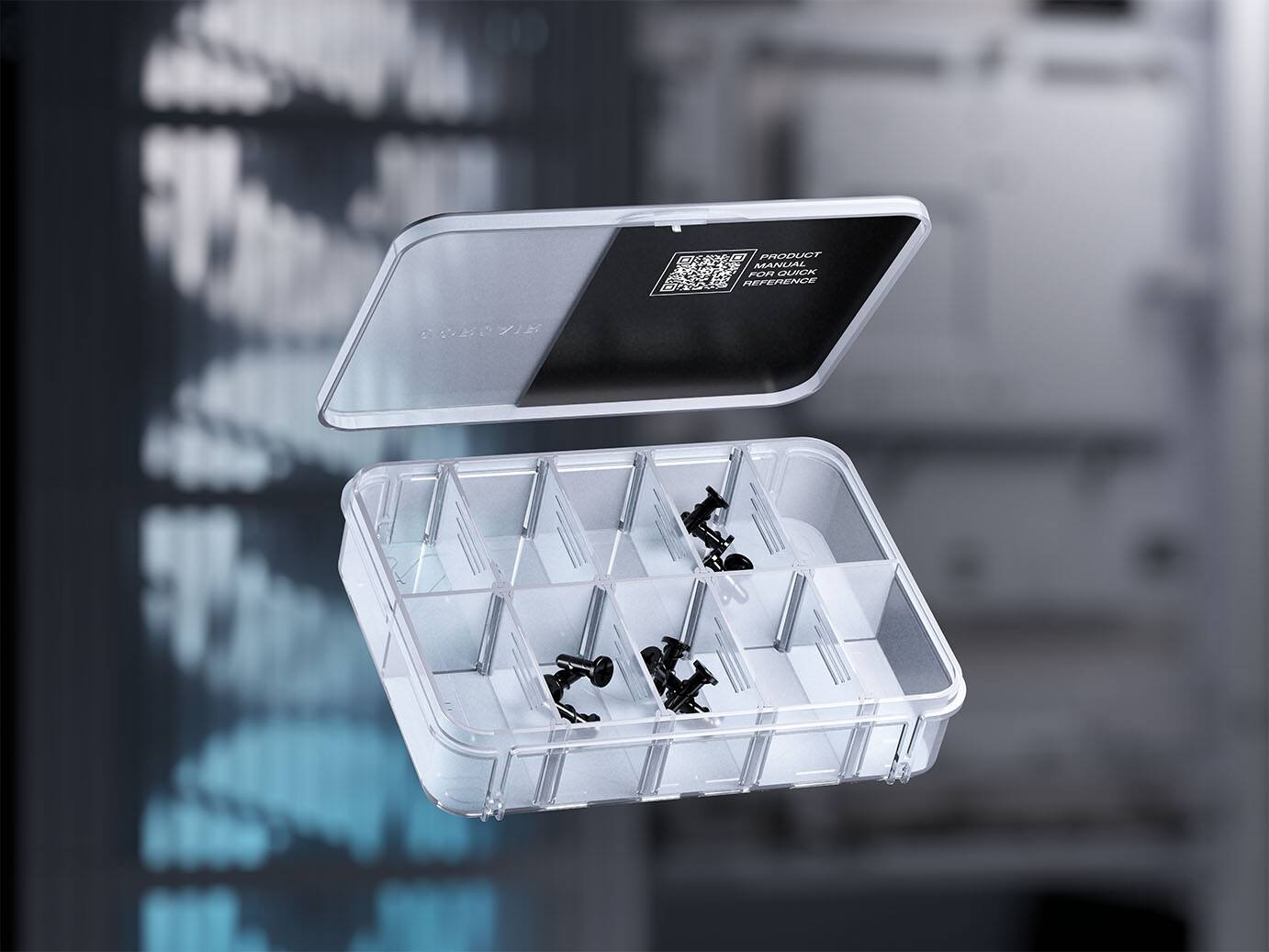

- Case Accessory Box
- FRAME 4500X Case
- 3x RS120R ARGB Fans
- Case Accessory Box
Q: What is the maximum GPU length supported by this case?
A: This case supports a maximum GPU length of 460 millimeters.
Q: Can I install a radiator on the side of this PC case?
A: Yes, you can install a 360mm, 280mm, or 240mm radiator on the side of this PC case.
Q: Does this PC case have a headphone jack?
A: Yes, this PC case includes a headphone jack.
Q: How many fans are included with this PC case?
A: This PC case includes three fans.
Q: Are there USB ports located on the front of this PC case?
A: Yes, the USB ports are located on the front of this PC case.
Q: What type of motherboard form factor does this case support?
A: This case supports a Mini-ITX motherboard form factor.
Q: Does this PC case require assembly?
A: Yes, this PC case requires assembly.
