CORSAIR - iCUE LINK LX120-R RGB 120mm PWM Reverse Blade Computer Case Expansion Fan - Black
Color
BlackRelated Item
Specifications
- Airflow Volume66.7 cubic feet per minuteCooling SystemAirFan Size120 millimetersFan Speed2400 revolutions per minuteNoise Level37.7 decibels adjustedNumber of Fans Included1
- Key Specs
- Airflow Volume: 66.7 cubic feet per minute
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2400 revolutions per minute
- Noise Level: 37.7 decibels adjusted
- Number of Fans Included: 1
- Lighting Type: RGB
- Product Height: 25 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- General
- Brand: CORSAIR
- Model Number: CO-9051049-WW
- Product Name: iCUE LINK LX120-R RGB 120mm PWM Reverse Blade Computer Case Expansion Fan
- Color: Black
- Cooling
- Airflow Volume: 66.7 cubic feet per minute
- Cooling Fan Type: Case
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Fan Size: 120 millimeters
- Fan Speed: 2400 revolutions per minute
- Noise Level: 37.7 decibels adjusted
- Number of Fans Included: 1
- Fan Life Expectation: 50000 hours
- Bearing Type: Magnetic Dome
- Features
- Lighting Type: RGB
- Customizable Lighting: true
- Power
- Power Consumption: 4.8 watts
- Dimensions
- Product Height: 25 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 120 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 120 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 5.92 ounces (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 5 years
- Warranty - Labor: 5 Years
- Other
- UPC: 840006688686
Add another CORSAIR LX120-R RGB 120mm PWM Reverse Fan to your iCUE LINK setup, featuring a reverse rotor design that keeps the RGB ring fully visible when used for intake. 18 RGB LEDs across dual light loops bring amazing lighting to your PC with the refreshingly simple setup of iCUE LINK. With PWM fan speeds up to 2,400 RPM, 5.53mm H2O static pressure, and 67 CFM airflow, the LX-R RGB has the cooling power to match its looks. Enjoy quieter operation and extended fan life thanks to CORSAIR Magnetic Dome bearings. The revolutionary iCUE LINK ecosystem connects all your components with fewer cables – including the ability to connect your fans together directly into a single seamless block.
- Reversed Rotor for Flawless Looks: Flip the script on your build with reversed rotor fans that ensure the RGB ring remains fully visible, even when mounted for intake.
- Stunning RGB Lighting with Dual Light Loops: 18 LEDs per fan spread across an inner and outer loop enable brilliant, customizable lighting that can be synchronized with all your iCUE RGB devices.
- Effective and Efficient Cooling: Deliver superb airflow to your system with precise PWM controlled speeds up to 2,400 RPM, pushing 67 CFM of air. An impressive 5.53mm H2O static pressure also gives the LX-R RGB the force it needs for mounting to radiators.
- LINK Your Fans Together: The included iCUE LINK bridge connectors can connect your fans directly to each other, creating a seamless bank of fans all connected to the iCUE LINK System Hub (sold separately) with just a single cable.
- Quiet Operation with Magnetic Dome Bearing: CORSAIR’s Magnetic Dome bearing is a refinement of the renowned magnetic levitation bearing, minimizing noise and reducing friction for greater longevity.
- One-Twist CORSAIR QuikTurn Screws: You’ll never want to go back to regular screws after installing a full set of fans in seconds. QuikTurn screws save both your precious time and your hands.
- Zero RPM Mode: Supports Zero RPM PWM signals to completely eliminate fan noise at low loads.
- Time Warp Lighting Mode: This eye-popping effect makes your fans appear to be frozen in place or even spin backwards, exclusive to iCUE LINK thanks to an individual MCU in each fan.
- Unite Your Setup: Create automated fan curves with powerful CORSAIR iCUE software, for intelligent cooling that responds to your system’s needs.
- Part of the iCUE LINK Ecosystem: iCUE LINK is the next leap forward in PC building, spanning across fans, coolers, PSUs, and more, letting you neatly chain all of these components together for clean cabling, less mess, and a faster build.
- Reversed Rotor for Flawless Looks: Flip the script on your build with reversed rotor fans that ensure the RGB ring remains fully visible, even when mounted for intake.
- Stunning RGB Lighting with Dual Light Loops: 18 LEDs per fan spread across an inner and outer loop enable brilliant, customizable lighting that can be synchronized with all your iCUE RGB devices.
- Effective and Efficient Cooling: Deliver superb airflow to your system with precise PWM controlled speeds up to 2,400 RPM, pushing 67 CFM of air. An impressive 5.53mm H2O static pressure also gives the LX-R RGB the force it needs for mounting to radiators.
- LINK Your Fans Together: The included iCUE LINK bridge connectors can connect your fans directly to each other, creating a seamless bank of fans all connected to the iCUE LINK System Hub (sold separately) with just a single cable.
- Quiet Operation with Magnetic Dome Bearing: CORSAIR’s Magnetic Dome bearing is a refinement of the renowned magnetic levitation bearing, minimizing noise and reducing friction for greater longevity.
- One-Twist CORSAIR QuikTurn Screws: You’ll never want to go back to regular screws after installing a full set of fans in seconds. QuikTurn screws save both your precious time and your hands.
- Zero RPM Mode: Supports Zero RPM PWM signals to completely eliminate fan noise at low loads.
- Time Warp Lighting Mode: This eye-popping effect makes your fans appear to be frozen in place or even spin backwards, exclusive to iCUE LINK thanks to an individual MCU in each fan.
- Unite Your Setup: Create automated fan curves with powerful CORSAIR iCUE software, for intelligent cooling that responds to your system’s needs.
- Part of the iCUE LINK Ecosystem: iCUE LINK is the next leap forward in PC building, spanning across fans, coolers, PSUs, and more, letting you neatly chain all of these components together for clean cabling, less mess, and a faster build.
Whats Included
- 1x LX120-R RGB Fan
- 1x Active Connector
- 1x Passive Connector
- 1x iCUE LINK Cable, 135mm, Slim-Slim Cable Head
- 4x QuikTurn Mounting Screws
- 1x LX120-R RGB Fan
- 1x Active Connector
- 1x Passive Connector
- 1x iCUE LINK Cable, 135mm, Slim-Slim Cable Head
- 4x QuikTurn Mounting Screws
Q: How much power does the fan consume?
A: The fan has a power consumption of 4.8 watts.
Q: What type of bearing does the fan use?
A: The fan uses Magnetic Dome bearings.
Q: What is the expected lifespan of the fan?
A: The fan life expectancy is 50,000 hours.
Q: Does the fan have customizable lighting?
A: This fan has customizable lighting.
Q: How many fans are included?
A: This product includes one fan.
Q: What is the maximum fan speed?
A: The fan speed for the iCUE LINK LX120-R RGB 120mm PWM Reverse Blade Computer Case Expansion Fan is up to 2,400 revolutions per minute.
Compare similar products
Add another CORSAIR LX120-R RGB 120mm PWM Reverse Fan to your iCUE LINK setup, featuring a reverse rotor design that keeps the RGB ring fully visible when used for intake. 18 RGB LEDs across dual light loops bring amazing lighting to your PC with the refreshingly simple setup of iCUE LINK. With PWM fan speeds up to 2,400 RPM, 5.53mm H2O static pressure, and 67 CFM airflow, the LX-R RGB has the cooling power to match its looks. Enjoy quieter operation and extended fan life thanks to CORSAIR Magnetic Dome bearings. The revolutionary iCUE LINK ecosystem connects all your components with fewer cables – including the ability to connect your fans together directly into a single seamless block.

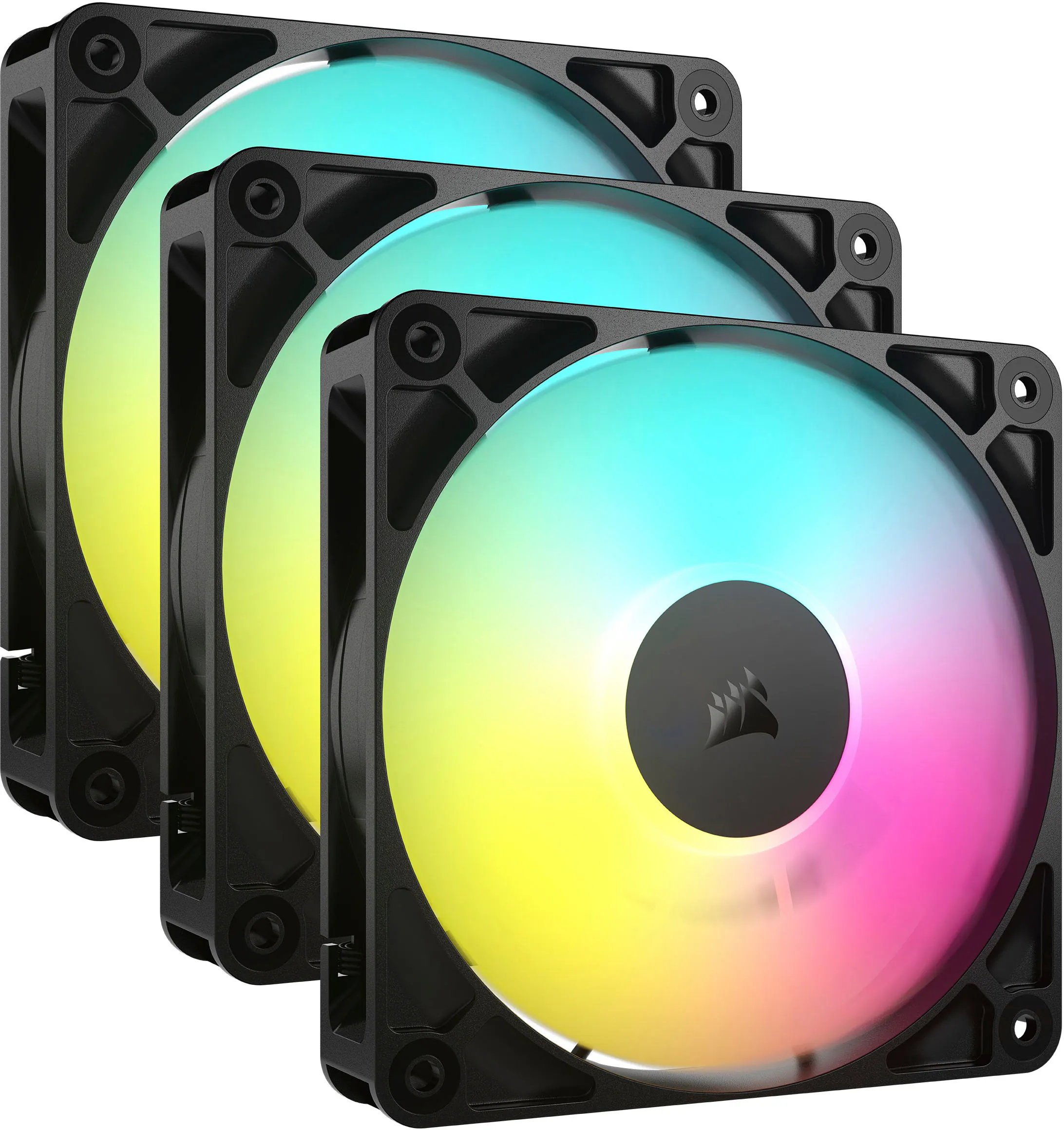

The CORSAIR RS120 ARGB 120mm PWM Fans Triple Pack gets your PC cooling setup off on the right foot with three efficient and reliable fans. Daisy-chained connectors let you link multiple fans together and control them all through just one 4-pin PWM and one +5V ARGB header on your motherboard. Enjoy fan speeds up to 2,100 RPM, with the static pressure to also serve as radiator fans. CORSAIR AirGuide technology with anti-vortex vanes directs airflow for concentrated, powerful cooling. Eight LEDs light up your build with simple +5V ARGB motherboard control. Magnetic Dome bearings ensure quieter operation and increased longevity, while Zero RPM mode offers silent operation at low loads.
