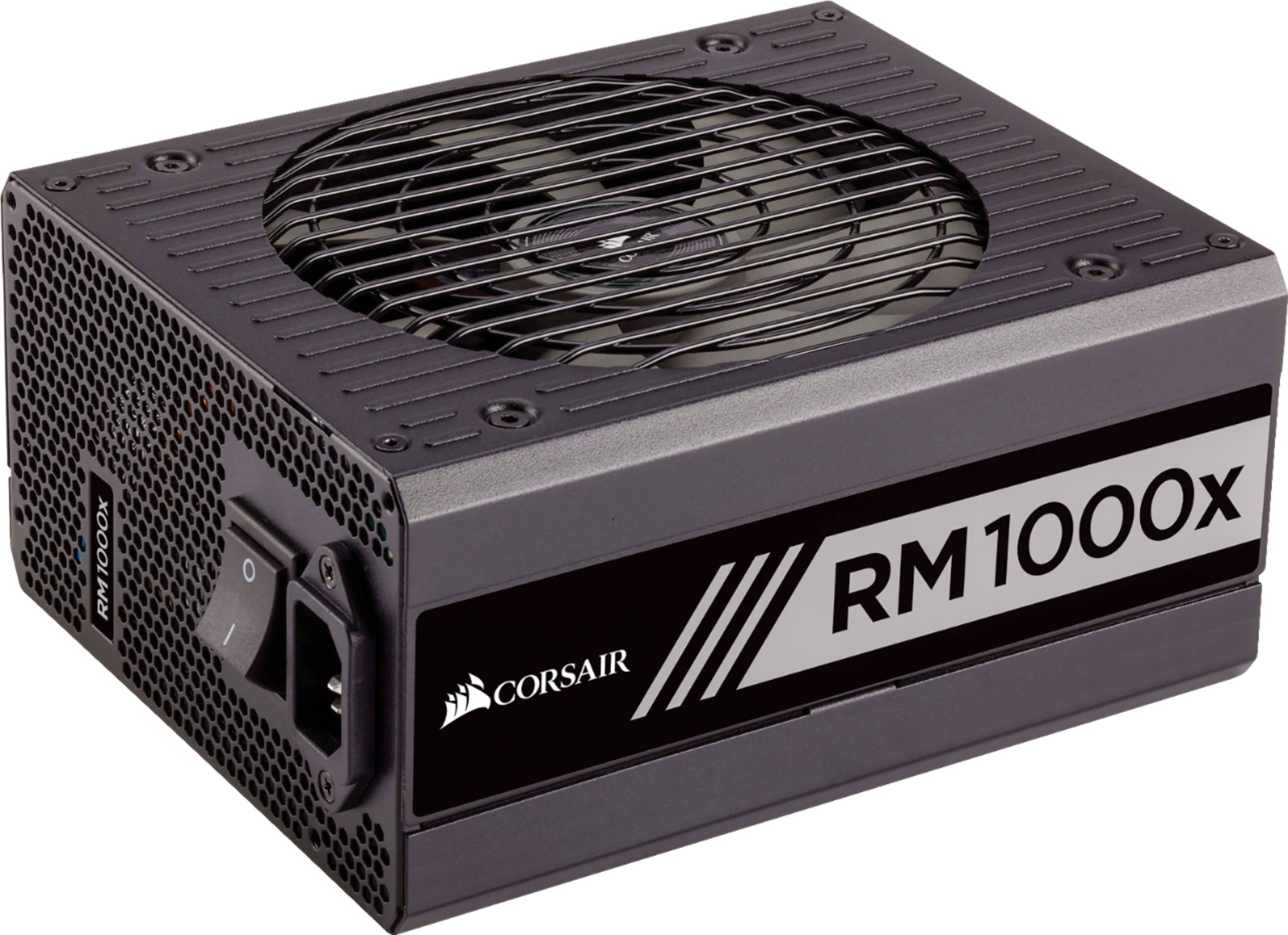

CORSAIR - RMx Series 1000W ATX12V 2.4/EPS12V 2.92 80 Plus Gold Modular Power Supply - Black
- Key Specs
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 12 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 11 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 180.34 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: CORSAIR
- Model Number: CP-9020094-NA
- Product Name: RMx Series 1000W ATX12V 2.4/EPS12V 2.92 80 Plus Gold Modular Power Supply
- Color: Black
- Power
- Wattage: 1000 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Gold (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Specification Compliance: ATX12V 2.4/ EPS12V 2.92
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Connectivity
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 8 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 12 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 11 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Dimensions
- Product Height: 86.36 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 180.34 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 70.7 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: Other
- Other
- UPC: 843591050906
Run your high-performance PC with this CORSAIR RMx power supply. It’s made with Japanese 105 degree C capacitors for solid durability, and its Zero RPM fan mode provides optimal cooling and quiet operation for low-to-medium loads. This 80 PLUS Gold-certified CORSAIR RMx power supply comes with a fully modular cable set for efficient, clutter-free installation.
- 1000W power supply: Delivers the power needed to run your PC.
- AC 100-240V input: With input 47-63Hz frequency for wide-ranging use.
- ATX12V 2.4 and EPS12V 2.92 compliance: Meets industry standards.
- 135mm temperature controlled fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
- Zero RPM Fan Mode: Allows for the fan to remain off at low to medium loads for virtually silent operation.
- Maximum safety to your critical system components: Provides overvoltage, overpower, undervoltage and short-circuit protection.
- 80 PLUS Gold Certification: Delivers 90% energy efficiency at real world load conditions.
- Single 12V rail: For optimal performance.
- Modular cable management: Allows you to use only the cables you need.
- 1000W power supply: Delivers the power needed to run your PC.
- AC 100-240V input: With input 47-63Hz frequency for wide-ranging use.
- ATX12V 2.4 and EPS12V 2.92 compliance: Meets industry standards.
- 135mm temperature controlled fan: Dissipates heat to help the power supply remain working at optimal temperature levels.
- Zero RPM Fan Mode: Allows for the fan to remain off at low to medium loads for virtually silent operation.
- Maximum safety to your critical system components: Provides overvoltage, overpower, undervoltage and short-circuit protection.
- 80 PLUS Gold Certification: Delivers 90% energy efficiency at real world load conditions.
- Single 12V rail: For optimal performance.
- Modular cable management: Allows you to use only the cables you need.
Whats Included
- CORSAIR RMx Series 1000W ATX12V 2.4/EPS12V 2.92 80 Plus Gold Modular Power Supply
- CORSAIR RMx Series 1000W ATX12V 2.4/EPS12V 2.92 80 Plus Gold Modular Power Supply
Q: Does this PSU have 12 pin CPU (8pin + 4pin)????
A: Yes you get two 4+4 cpu cables so you can hook that up no problem just use the full 4+4 cable in the big slot and split the other 4+4 it’s pretty easy snaps apart.
Q: Can this fit within a Dell inspiron 5680 without any modifications to the case
A: Yes. You’re going to have some trouble with cable management, but it will physically fit
Q: Will this fit a hp omen desktop. Model number 870 244
A: yes, it will fit in the hp omen that u have. I had the same one just the 750W one in my hp omen and it fit, this one has same specs but is just a tad bit longer.
Q: DOES THIS NEED TO BE CHARGED AND CAN i USE IT TO PLUG A CPAP IN FOR CAMPING
A: This power supply is exclusively for computers and requires an AC outlet to run. You might want to look into a generator if you need something for camping.
Q: Will the power supply fit in the Corsair 465x Rgb Case? Also is this a gold certified power supply?
A: It's sized to fit ATX cases and motherboards, so without researching the case, I'll hazard a yes. The RM1000x is 80 PLUS Gold certified.
Q: Can it fit in iCUE 220T RGB Tempered Glass Mid-Tower Smart Case — Black
A: The RM1000x is sized for ATX cases and motherboards, so if your case is ATX or larger, then yes.
