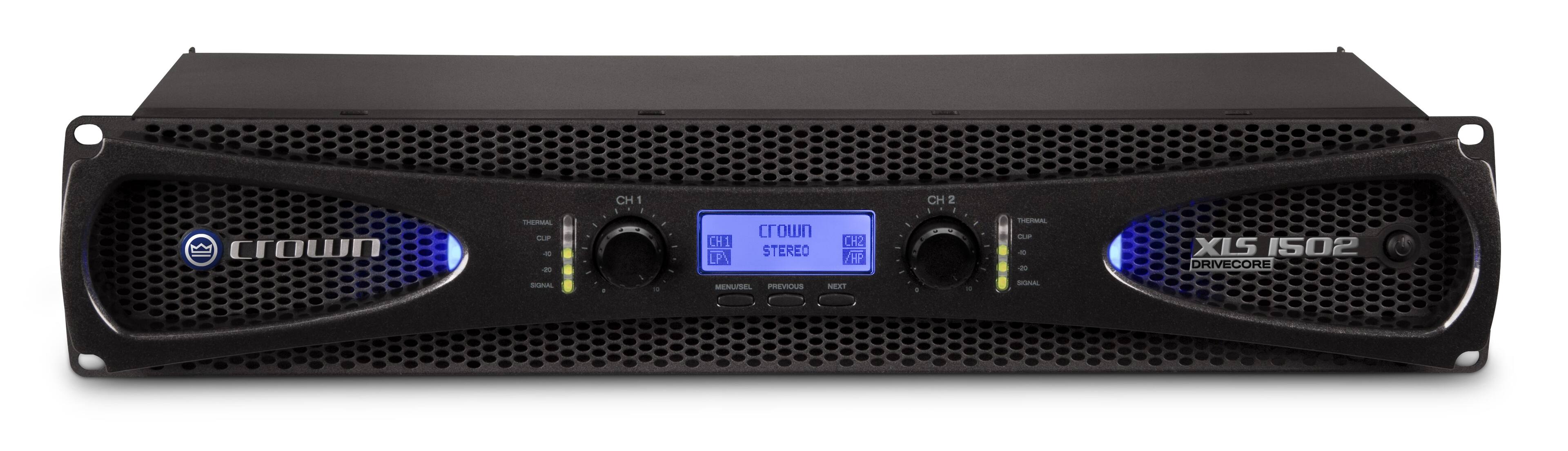

Crown - XLS 1502, Drivecore 2, Two-channel, 525W @ 4Ω Power Amplifier - Black
Crown - XLS 1502, Drivecore 2, Two-channel, 525W @ 4Ω Power Amplifier - Black
Related Item
Specifications
- Continuous Watts x Channel @ Ohms775W @ 2 Ohms; 525W @ 4 Ohms; 300W @ 8 Ohms; 1550W @4 Ohms Bridged; 1050W @ 8 Ohms BridgedNumber of Channels2Audio Only InputsBalanced XLR, Unbalanced RCANetwork Connector(s)No network connectors
- Key Specs
- Continuous Watts x Channel @ Ohms: 775W @ 2 Ohms; 525W @ 4 Ohms; 300W @ 8 Ohms; 1550W @4 Ohms Bridged; 1050W @ 8 Ohms Bridged
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Audio Only Inputs: Balanced XLR, Unbalanced RCA
- Network Connector(s): No network connectors
- General
- Brand: Crown
- Model Number: XLS1502
- Product Name: XLS 1502, Drivecore 2, Two-channel, 525W @ 4Ω Power Amplifier
- Color: Black
- Audio
- Continuous Watts x Channel @ Ohms: 775W @ 2 Ohms; 525W @ 4 Ohms; 300W @ 8 Ohms; 1550W @4 Ohms Bridged; 1050W @ 8 Ohms Bridged
- Number of Channels: 2 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.5 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Amplifier Type: Integrated amplifiers
- Signal-to-Noise Ratio (SNR): 103 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Inputs
- Audio Only Inputs: Balanced XLR, Unbalanced RCA
- Video Only Inputs: No video only inputs, No video only inputs, No video only inputs (The number and type of video signal only inputs the product has.)
- Network Connector(s): No network connectors
- Line-Level Inputs: false (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Outputs
- Speaker Connection Type: Binding posts, Neutrik Speakon
- Video Only Outputs: No video only outputs, No video only outputs, No video only outputs (The number and type of video signal only outputs the product has.)
- Features
- Fan Cooled: true
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Dimensions
- Product Height: 3.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.7 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 8.6 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 691991001000
The XLS DriveCore 2 Series has sleek look, large LCD display, and DSP with extended functionality. The XLS is ultra-efficient with Crown’s patented DriveCore technology and can drive 1550W at 4Ω bridged with tons of headroom guaranteeing a clean, undistorted signal straight to your speakers. The XLS DriveCore 2 assures that you will be heard as you deliver powerful, pure sound experiences for any venue.
- Class D Amp: Class D amp with Crown's ultra efficient DriveCore technology weighs less than 11 lb
- DSP capabilities: More control; has band pass filter per channe
- Selectable input sensitivity;: 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Increased lighting functionality: Turn off display or any/all LED indicators except clip and thermal to reduce distraction in dark venues
- Peakx Limiters: Provide maximum output while protecting your speakers
- Inputs: XLR, 1/4", RCA inputs provide flexibility
- Outputs: 2-speakON, 2-binding posts
- Integrated PureBand™ Crossover System: For better performance and control
- Cooling Fans: Efficient forced-air fans prevent excessive thermal buildup
- Class D Amp: Class D amp with Crown's ultra efficient DriveCore technology weighs less than 11 lb
- DSP capabilities: More control; has band pass filter per channe
- Selectable input sensitivity;: 1.4Vrms and .775Vrms options so that amp can be driven at full power
- Increased lighting functionality: Turn off display or any/all LED indicators except clip and thermal to reduce distraction in dark venues
- Peakx Limiters: Provide maximum output while protecting your speakers
- Inputs: XLR, 1/4", RCA inputs provide flexibility
- Outputs: 2-speakON, 2-binding posts
- Integrated PureBand™ Crossover System: For better performance and control
- Cooling Fans: Efficient forced-air fans prevent excessive thermal buildup
Whats Included
- XLS1502 Amplifier
- Power Cord
- XLS1502 Amplifier
- Power Cord
Product Manuals
Q: Can the amplifier be bridged?
A: This amplifier can be bridged.
Q: What is the signal-to-noise ratio of the amplifier?
A: The signal-to-noise ratio (SNR) of the amplifier is 103 decibels.
Q: What is the maximum frequency response of the amplifier?
A: The maximum frequency response is 20 kilohertz.
Q: Does the amplifier have network connectors?
A: This amplifier does not have network connectors.
Q: What is the power output of the amplifier at 4 ohms?
A: The power output of the amplifier at 4 ohms is 525 watts.
Q: What are the dimensions of the amplifier?
A: The amplifier is 19 inches wide, 3.5 inches tall, and 7.7 inches deep.
