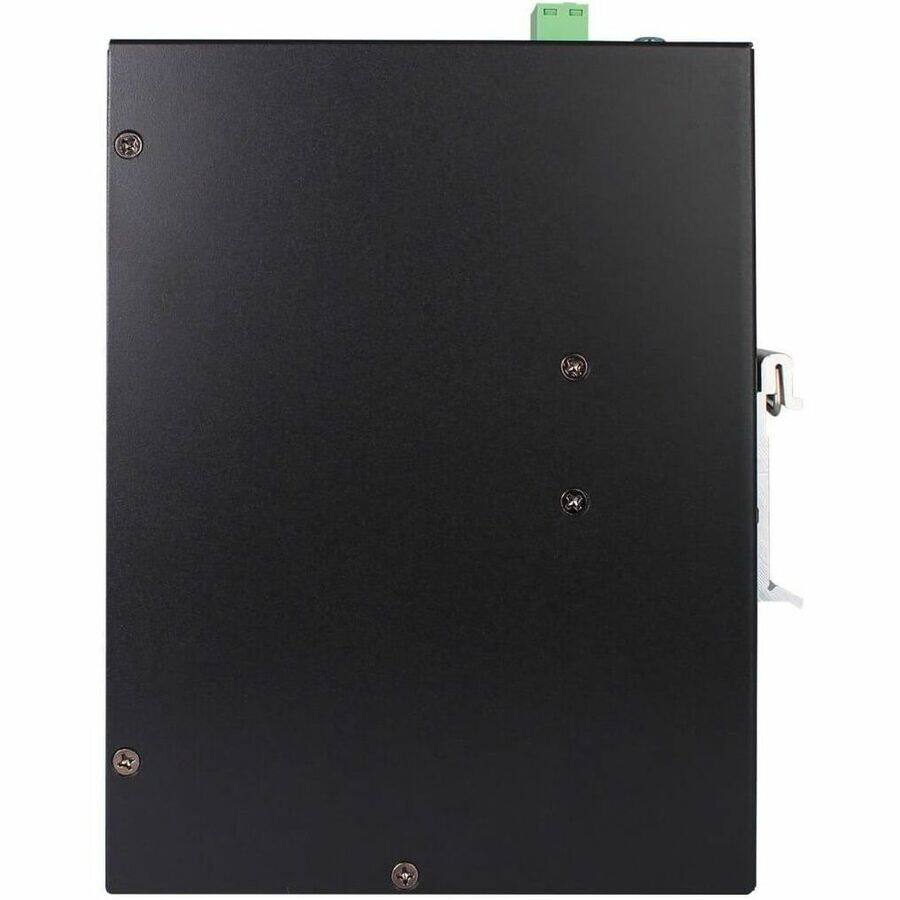

Tripp Lite - by Eaton 16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps DIN Mount - 16 Ports - Unknown
Tripp Lite - by Eaton 16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps DIN Mount - 16 Ports - Unknown
Related Item
Specifications
- Number of LAN Ports28
- Key Specs
- Number of LAN Ports: 28 (Number of devices able to be connected to the Local Area Network (LAN). LAN ports allow wired connections to other networking devices (wireless access points, range extenders, etc.) in order to share the internet connection received through a WAN port.)
- General
- Brand: Tripp Lite
- Product Name: Tripp Lite by Eaton 16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps DIN Mount - 16 Ports
- Color: Unknown
- Dimensions
- Product Height: 6.3 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 4.7 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 1.9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.29 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 year limited
- Warranty - Labor: 2 Year Limited Warranty
- Other
- UPC: 037332265852
Tripp Lite by Eaton 16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps DIN Mount - 16 Ports - Gigabit Ethernet - 10/100/1000Base-T - TAA Compliant - 2 Layer Supported - 16 W Power Consumption - Twisted Pair - DIN Rail Mountable - 3 Year Limited Warranty

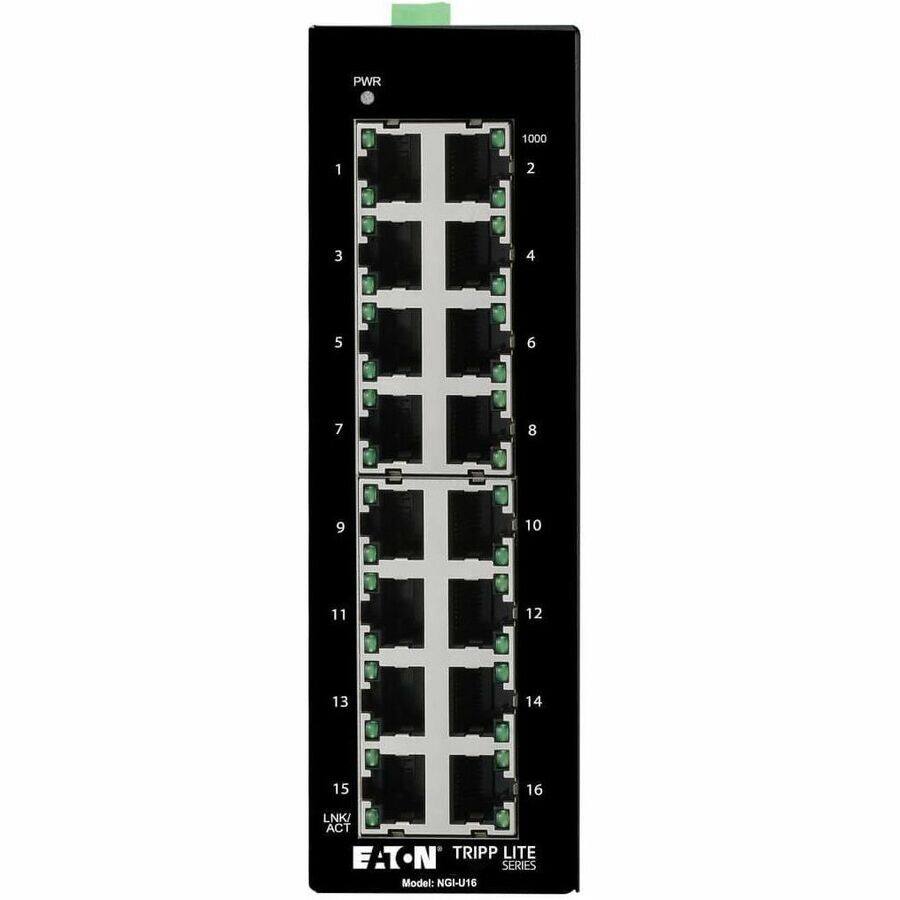

- 16-Port Unmanaged Gigabit Ethernet Switch Connects Your D...: This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
- Rugged Metal Housing Built to Last in Harsh Environments: The compact NGI-U16 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
- Unmanaged Switch Requires Little to No Configuration: Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.

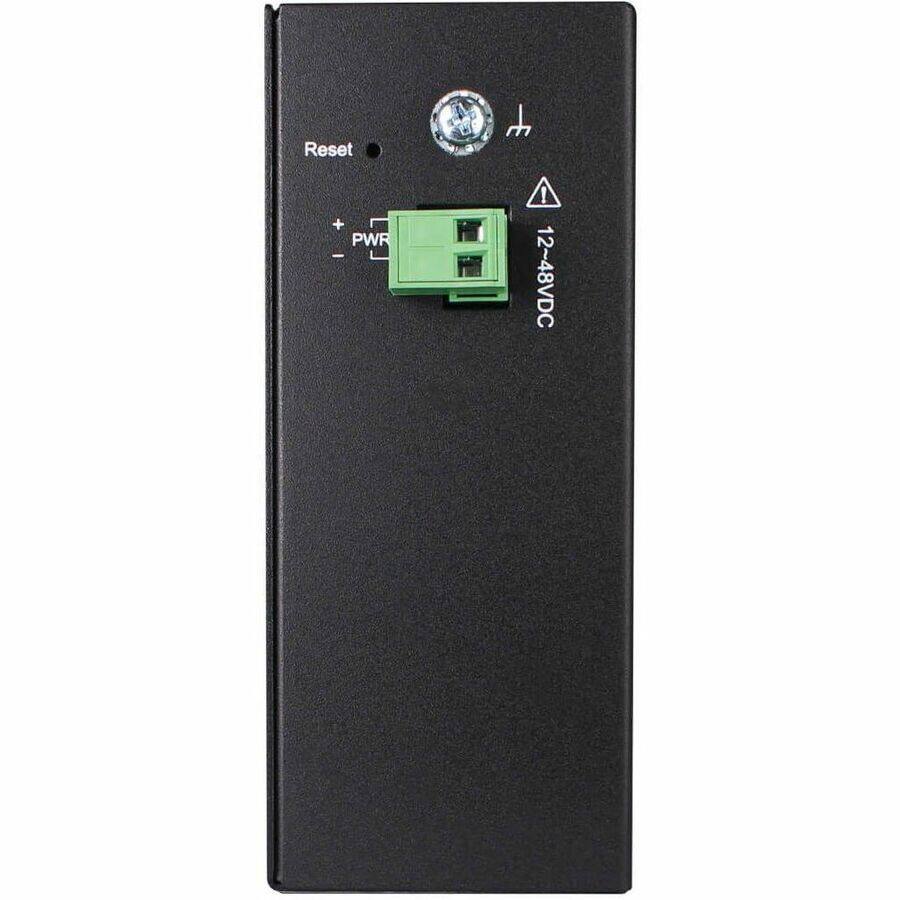

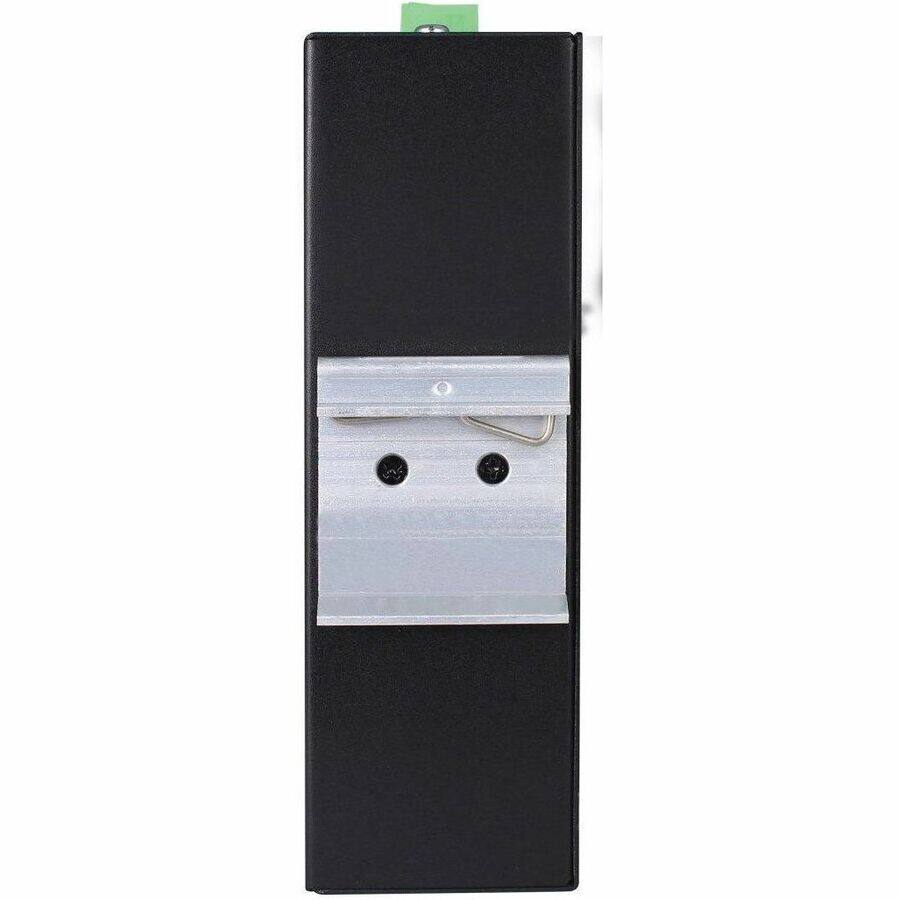

- Pre-Installed DIN Rail Clip Allows for Convenient Install...: The NGI-U16 may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12-48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.
- TAA-Compliant for GSA Schedule Purchases: The NGI-U16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
- 16-Port Unmanaged Gigabit Ethernet Switch Connects Your D...: This space-saving Tripp Lite switch transmits data over a Gigabit Ethernet network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data only to the devices designated to receive it, which improves the efficiency and potential throughput of the network.
- Rugged Metal Housing Built to Last in Harsh Environments: The compact NGI-U16 adds 10/100/1000 Mbps Gigabit Ethernet capacity to your industrial and commercial applications, such as factory floors, warehouse operations and other environments with space constraints and wide temperature ranges. The industrial-grade high-strength case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -40 degrees to 167 degrees Fahrenheit.
- Unmanaged Switch Requires Little to No Configuration: Quickly connect your network devices with little to no configuration. LEDs indicate when the switch is powered on and which Ethernet ports are showing activity. The NGI-U16 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. IEEE 802.3x flow control allows smooth transmission of large files.
- Pre-Installed DIN Rail Clip Allows for Convenient Install...: The NGI-U16 may be DIN mounted using the pre-installed rail clip, which mounts firmly to any standard 35 mm DIN rail. A 2-pin 12-48VDC terminal block supplies power input. Device power must be supplied by LPS (Limited Power Source) circuit.
- TAA-Compliant for GSA Schedule Purchases: The NGI-U16 is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Whats Included
- Intelligent L2 Network switch with PoE, Owner's Manual, Power Cord, Power Cord Clamp, Legs
- Intelligent L2 Network switch with PoE, Owner's Manual, Power Cord, Power Cord Clamp, Legs
