Eaton Tripp Lite Series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb (x3) 8-Fiber OM4 MTP/MPO (Male - Unknown
Eaton Tripp Lite Series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb (x3) 8-Fiber OM4 MTP/MPO (Male - Unknown
About This Item
- Key Specs
- Adapter Type: Wired
- General
- Brand: Tripp Lite
- Product Name: Eaton Tripp Lite Series 40/100Gb Breakout Cassette, 40Gb to 4 x 10Gb, 100Gb to 4 x 25Gb (x3) 8-Fiber OM4 MTP/MPO (Male
- Color: Unknown
- Dimensions
- Product Height: 4.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Length: 7.8 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 2.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 0.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: Lifetime
- Warranty - Labor: Lifetime
- Other
- UPC: 037332200327

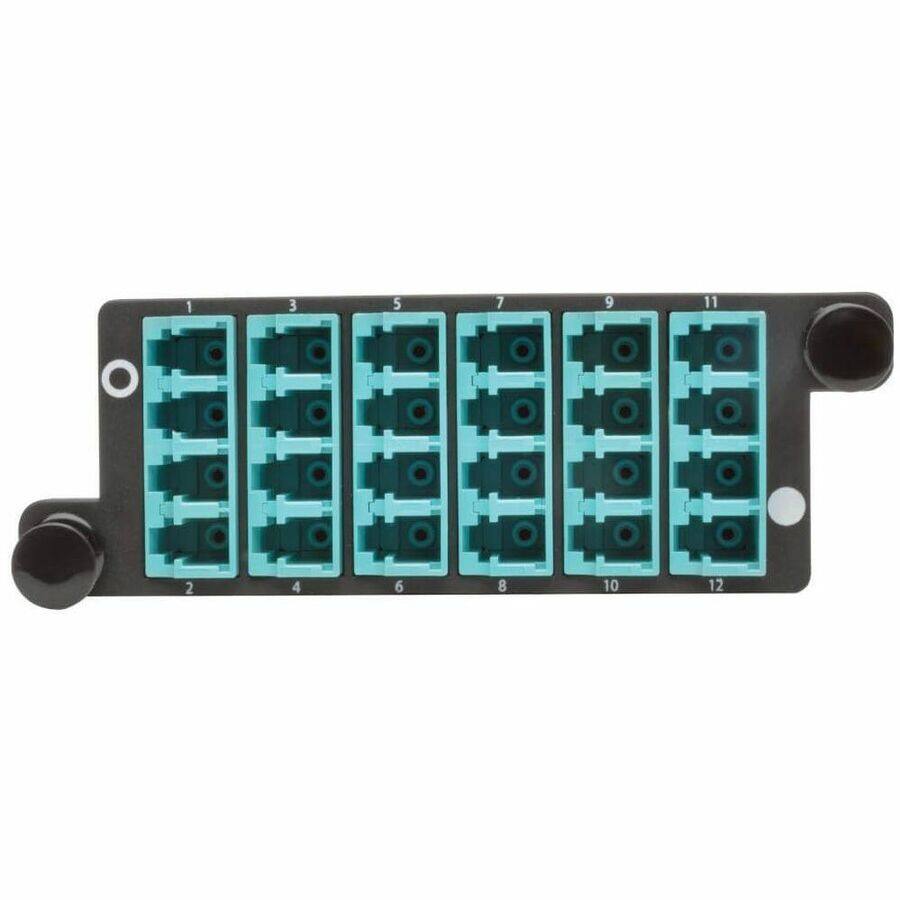

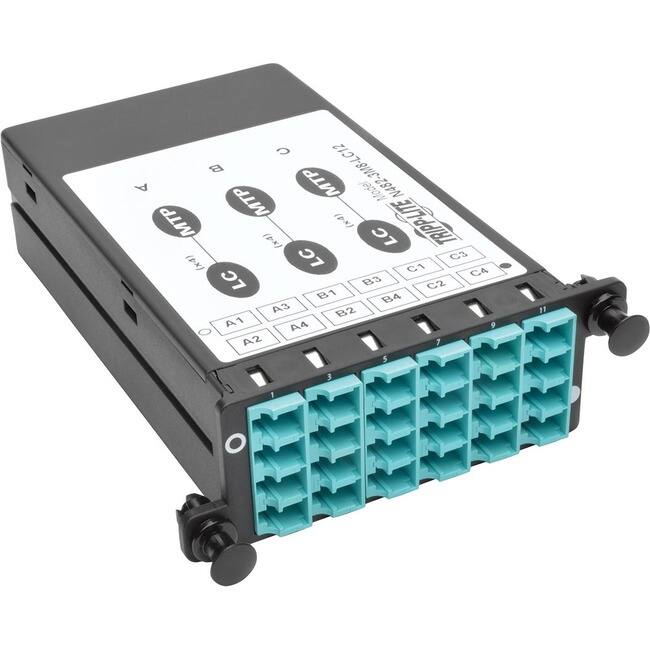

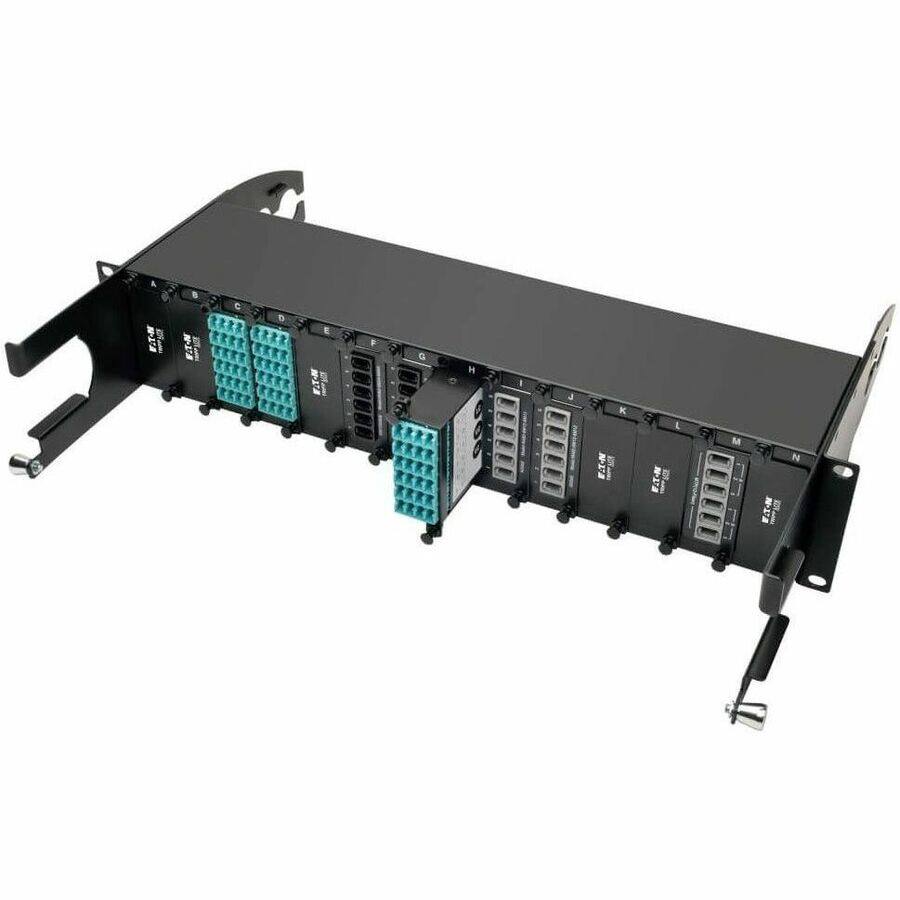

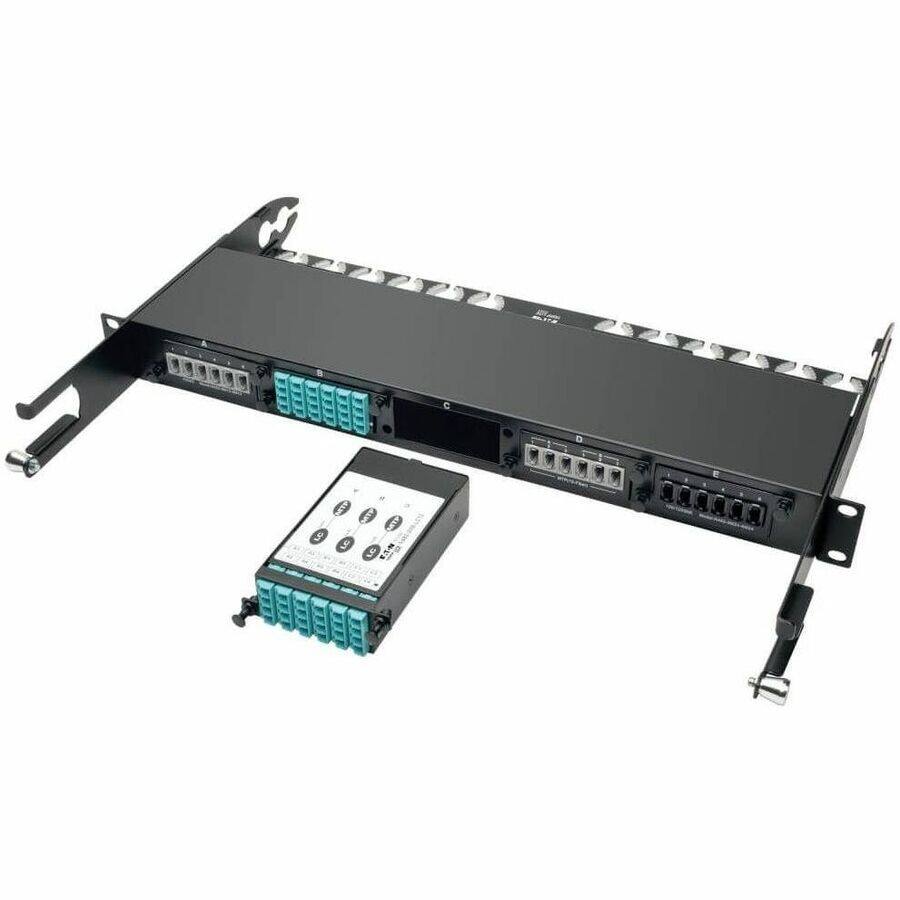

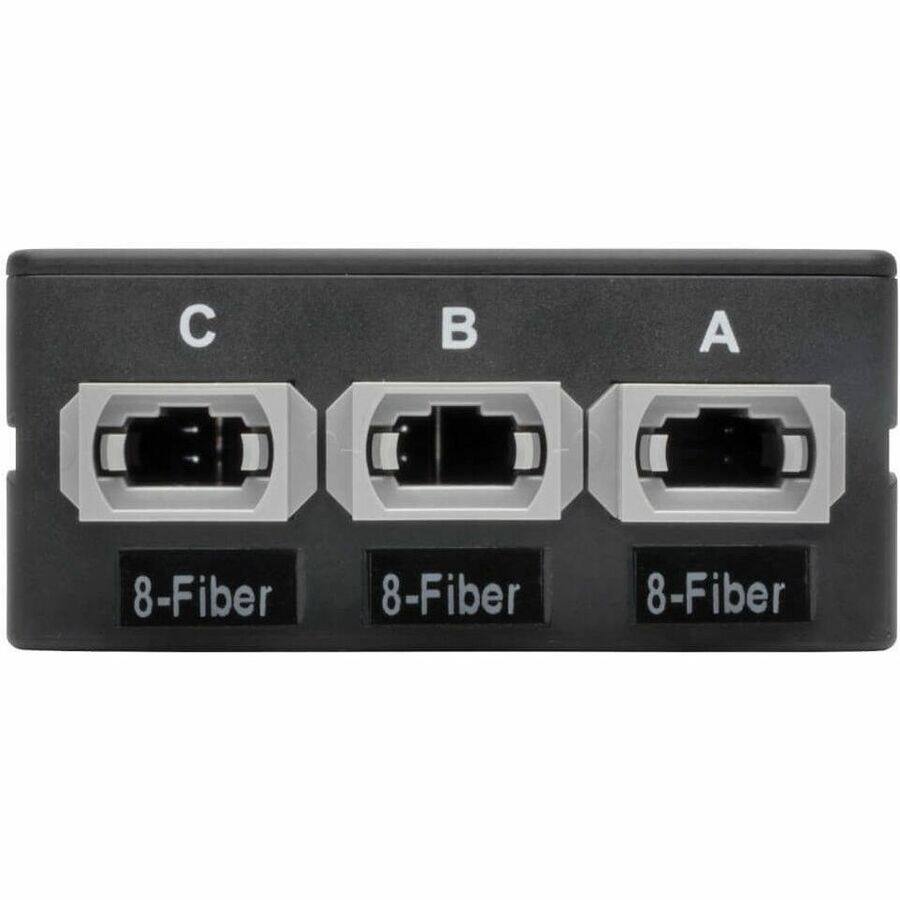

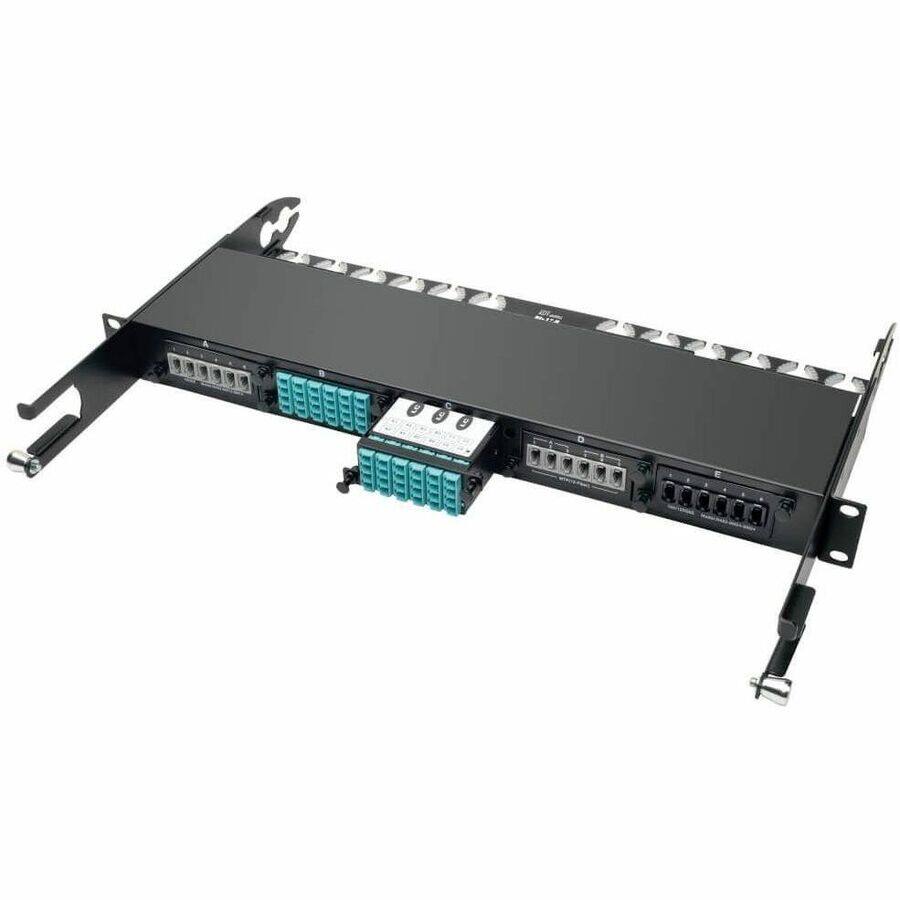

The N482-3M8-LC12 40 GB to 10 GB Breakout Cassette works in tandem with Tripp Lite's N482-01U or N482-02U chassis to connect 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections in high-density network applications. The cassette's modular design installs easily in the N482-01U and N482-02U chassis with no tools required. Just insert the cassette into the chassis, and snap in its retention clips to secure it. Plug LC patch cables, such as Tripp Lite's N820-01M-T cables, into the cassette using the cable's convenient push/pull tabs. MTP/MPO adapters are Type B key-up to key-up. Up to five N482-3M8-LC12 cassettes fit in the N482-01U 1U enclosure panel, and 14 cassettes fit in the N482-02U 2U chassis. Dust tabs protect unused ports from potential damage. The N482-3M8-LC12 complies with IEEE 802.3ae(10 GbE) and ANSI T11.2(Fibre Channel) requirements. Supports 40 GbE internally using OM4 fiber optic cable. Ideal for QSFP fabric switches that use eight out of 12 available MTP fibers for four-lane parallel optics to 40 GB, allowing all 12 LC duplex cassette ports to be used. Maximum insertion loss of 0.35 dB falls well under the IEEE 802.3ae maximum channel loss specification of With factory-terminated connectors that reduce time and labor, the N482-3M8-LC12 is made from only the finest materials to ensure fast installations and optimal performance. Features
- Elegant, Simple Solution for 40 GB to 10 GB LC Cable Conn...: High-density fiber cassette for use with Tripp Lite N482-01U and N482-02U fiber enclosure panels Connect up to 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections Ideal for use with QSFP fabric switches to support 4 lanes parallel to 40 GB Supports 40 GbE internally using OM4 fiber optic cable
- Simple Fiber Installations Save Time and Money: Easy installation with no tools required Type B MTP/MPO key-up to key-up adapters Install up to 14 cassettes in N482-02U 2U chassis Install up to 5 cassettes in N482-01U 1U chassis
- Easy to Modify, Upgrade or Expand Fiber Infrastructure by...: Complies with IEEE 802.3ae(10 GbE) and ANSI T11.2(Fibre Channel) requirements 0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of. Supports devices of varying speeds, including 10 GB and 40 GB network equipment
- Premium Construction for Optimal Performance: Factory-terminated connectors reduce time and labor Dust caps protect unused ports. More from the Manufacturer
- Elegant, Simple Solution for 40 GB to 10 GB LC Cable Conn...: High-density fiber cassette for use with Tripp Lite N482-01U and N482-02U fiber enclosure panels Connect up to 12 LC duplex fiber cables with three 8-fiber MTP/MPO connections Ideal for use with QSFP fabric switches to support 4 lanes parallel to 40 GB Supports 40 GbE internally using OM4 fiber optic cable
- Simple Fiber Installations Save Time and Money: Easy installation with no tools required Type B MTP/MPO key-up to key-up adapters Install up to 14 cassettes in N482-02U 2U chassis Install up to 5 cassettes in N482-01U 1U chassis
- Easy to Modify, Upgrade or Expand Fiber Infrastructure by...: Complies with IEEE 802.3ae(10 GbE) and ANSI T11.2(Fibre Channel) requirements 0.35 dB maximum insertion loss falls under IEEE 802.3ae maximum channel loss spec of. Supports devices of varying speeds, including 10 GB and 40 GB network equipment
- Premium Construction for Optimal Performance: Factory-terminated connectors reduce time and labor Dust caps protect unused ports. More from the Manufacturer
