ErgoAV - 46″ -100″ Low Profile Extend, Swivel & Fixed TV Mount Model ERMLX1-01B - Black
ErgoAV - 46″ -100″ Low Profile Extend, Swivel & Fixed TV Mount Model ERMLX1-01B - Black
Reviews coming soon
About This Item
- General
- Brand: ErgoAV
- Model Number: ERMLX1-01B
- Product Name: 46″ -100″ Low Profile Extend, Swivel & Fixed TV Mount Model ERMLX1-01B
- Color: Black
- Assembly Required: Partial
- Features
- Mount Profile: Low Profile (The view of the product when seen attached to a wall or surface.)
- Mount Style: Fixed, Swiveling, Arm
- Pan: ±10° (Angles to the left or right for customized viewing and/or accessibility.)
- Indoor or Outdoor Use: Indoor
- Mounts to: Cement, Wood, Brick (The material or substance the device can attach to.)
- Motorized: false
- Adjustable Height: false
- Cord Storage: false
- Number of Monitors Supported: 3
- Compatibility
- Maximum Weight Capacity: 225 pounds (The maximum load that can be supported by the product.)
- Compatibility: Mounts up to 115"
- Mount Location: Wall
- Maximum Television Size: 115 inches
- Minimum Television Size: 75 inches
- VESA Wall Mount Standard: 100mm x 100mm, 1000mm x 700mm (VESA wall mount standards refer to the spacing of screw holes built into a TV in order to fit with standard TV wall mounts. These standards are implemented into most TVs and monitors.)
- Dimensions
- Product Height: 34.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 52.1 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1.8 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Maximum Extension: 5.2 inches
- Product Weight: 20.5 pounds (The out of box weight of the item.)
- Minimum Mounted Distance from Wall to Television/Monitor: 1.8 inches (The minimum distance from the product to the wall as the product is mounted.)
- Included
- Hardware Included: true
- Material
- Mount Material: Metal
- Warranty
- Warranty - Parts: 5 year Limited
- Warranty - Labor: 5 Year Limited Parts Warranty
- Other
- UPC: 810082201697
The ERMLX1 is for Extra-large TVs and features extend, swivel low profile fixed TV mount that fits most TVs 75″–115″ with 225lbs weight capacity. Its low profile and has an extension functionality that allows for an increased tilting range and easy cable access. Swivel functionality helps reduce reflections and enhances the viewing experience. The level adjustment enables the TV to be adjusted post-installation for a better viewing experience. The unique latching mechanism allows the TV to be securely attached and removed from the wall plate quickly and easily. Horizontal shift allows the TV to be moved horizontally on the wall plate to allow optimal placement on the wall. The open wall plate accommodates outlets and low-voltage pass-through. Safety tested and UL certification ensure peace of mind. Please note: There is an optional extension kit the ERMLX1-EXTKIT that extends the mounts width to add TVs for a video wall.
- Universal VESA Design: Fits 75" to 115" TVs up to 225lbs. VESA Patter From 100x100 to 1150x850mm

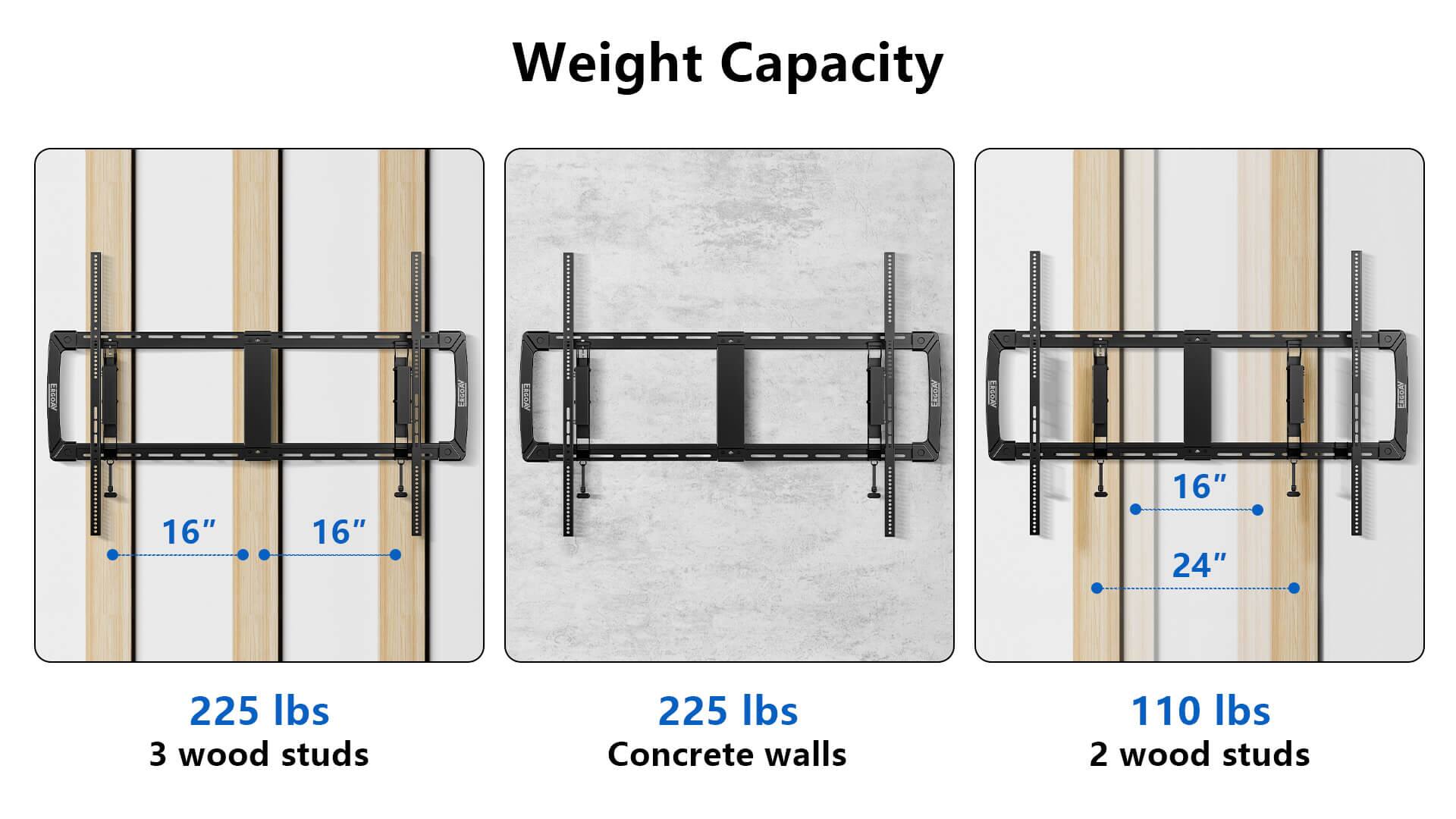

- Heavy Duty 2 and 3 Stud Design: This TV mount supports up to 225 lbs when installed on 3 wood studs.

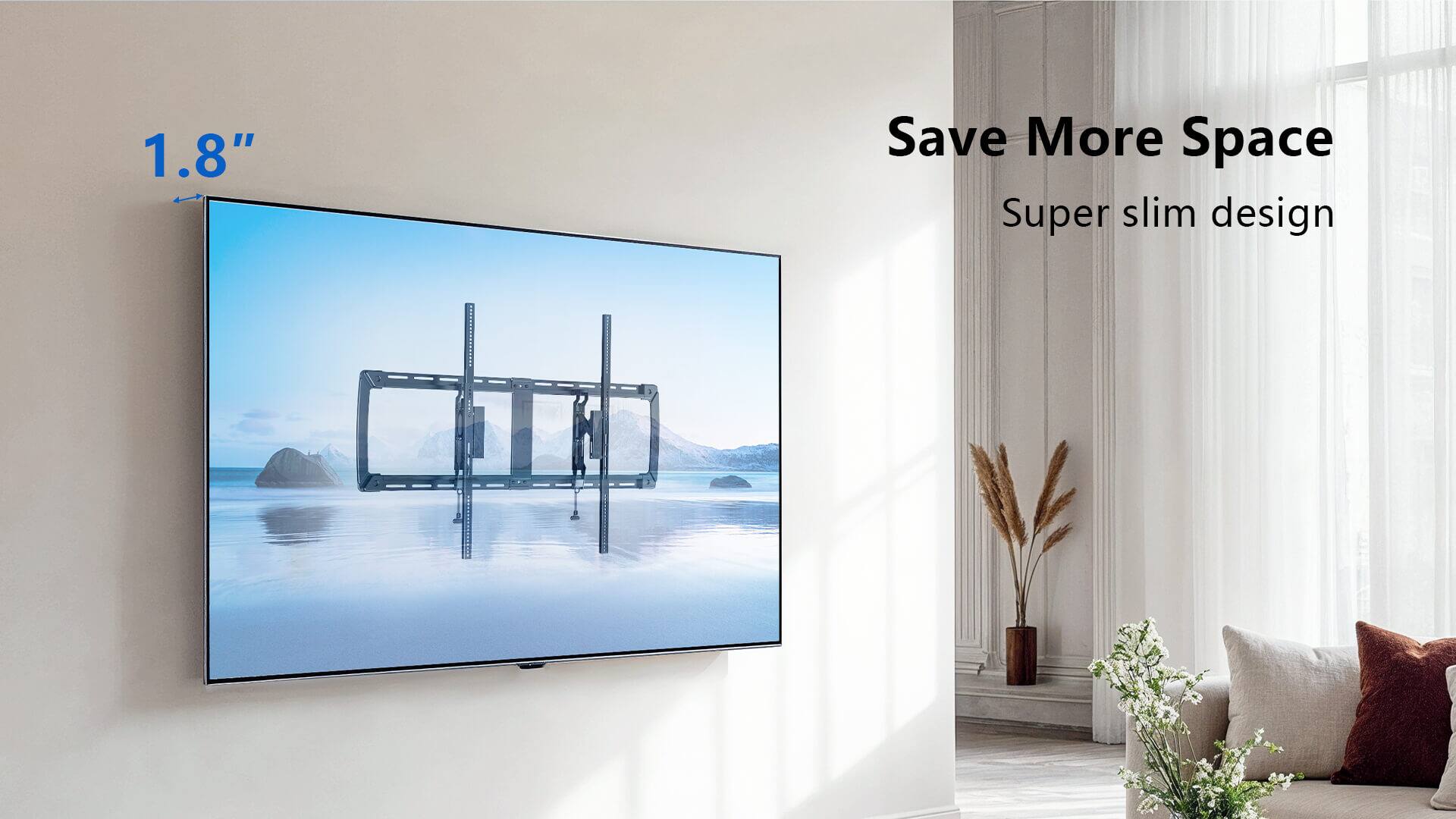

- Low Profile With Extension: Allows the TV to be easily extended 1.8″-5.2″ from the wall,

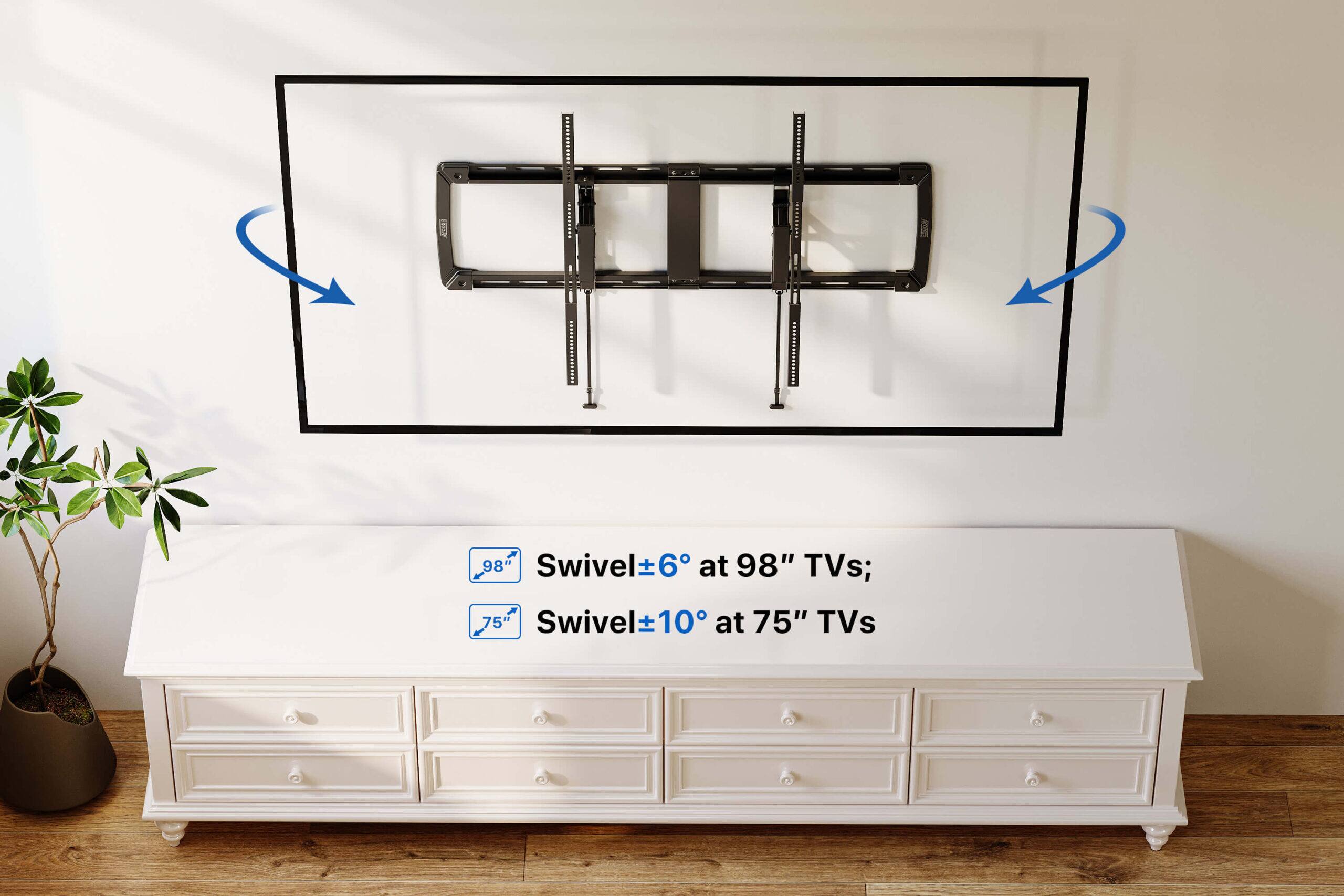

- Bult in Swivel: Swivel ±10°

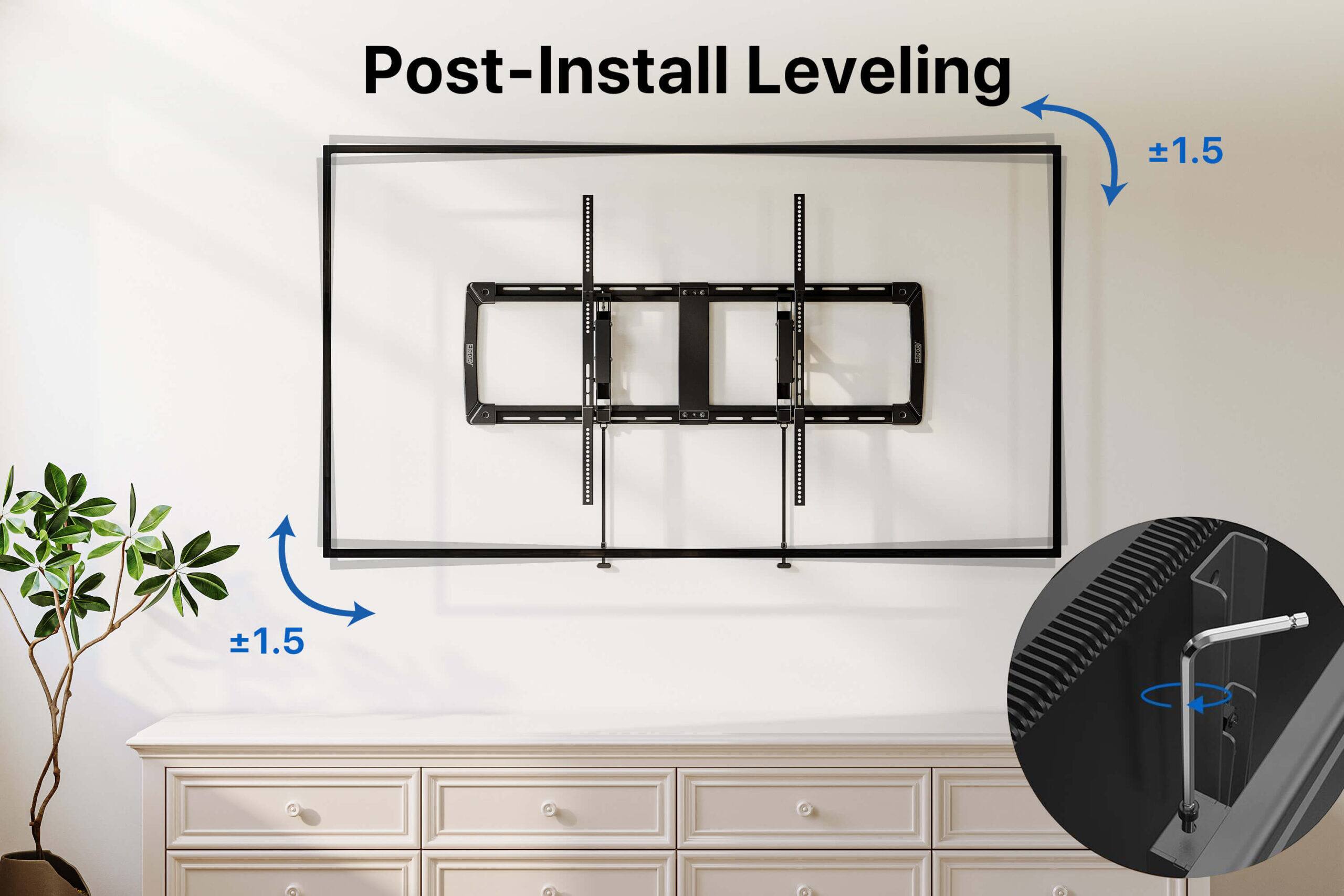

- Level Adjustment: ±2° allows the TV to be properly leveled after installation.
- Horizontal shift: Allows TV to be moved horizontally on wall plate to allow optimal placement on wall.

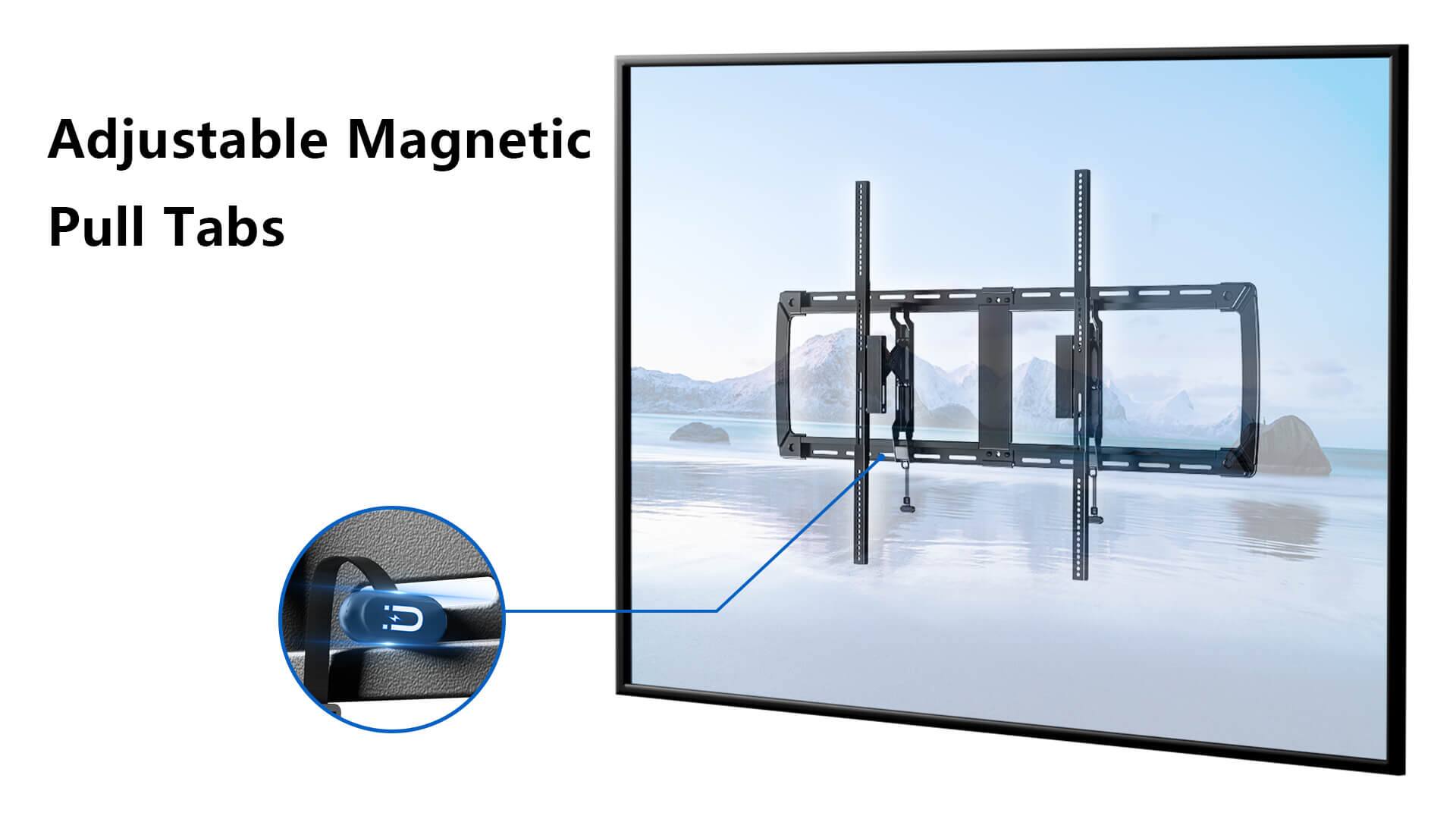

- Quick Release: Pull cord lock allows easy and reliable locking or unlocking of your TV

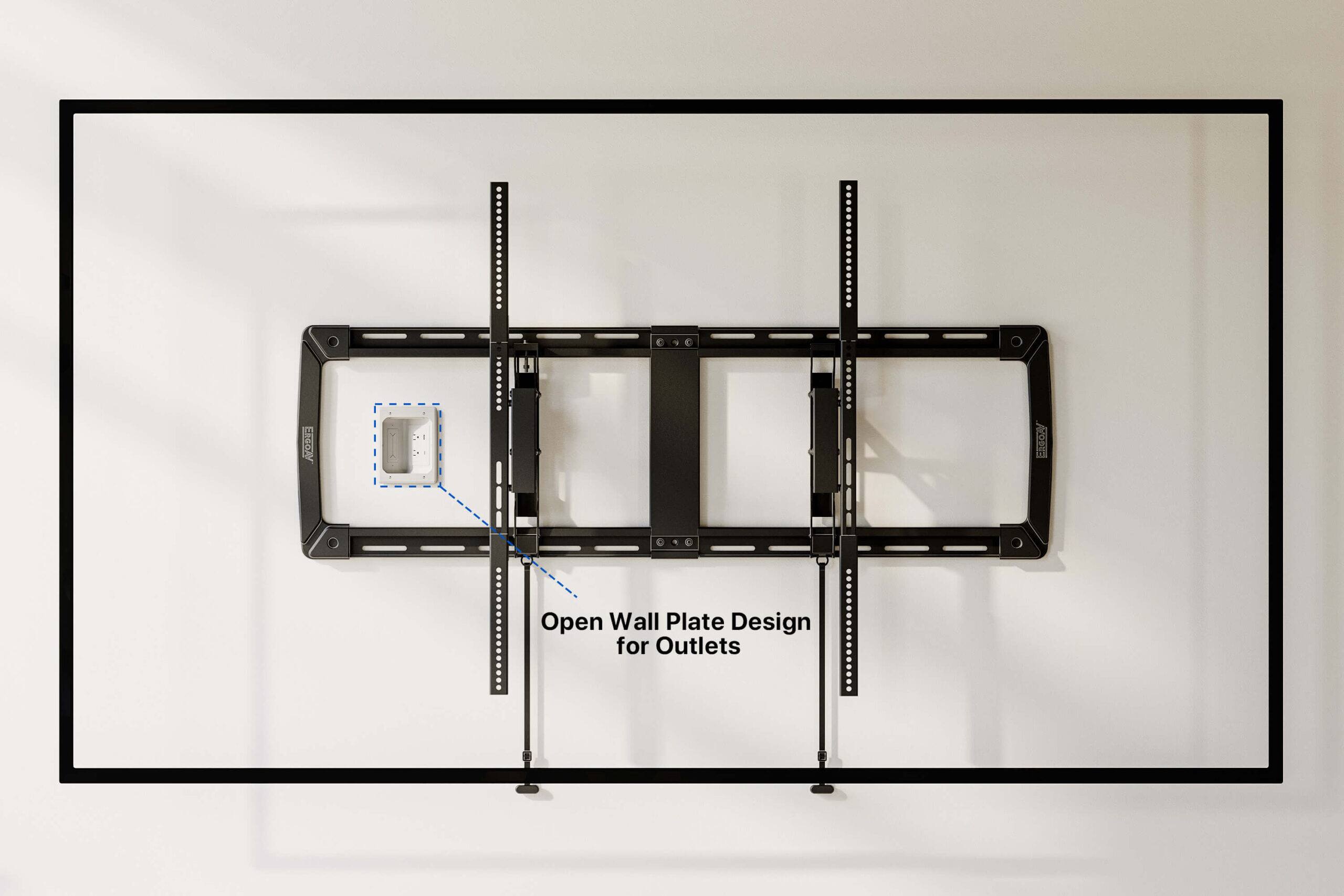

- Open wall plate design: Open wall plate design offers space for outlets.

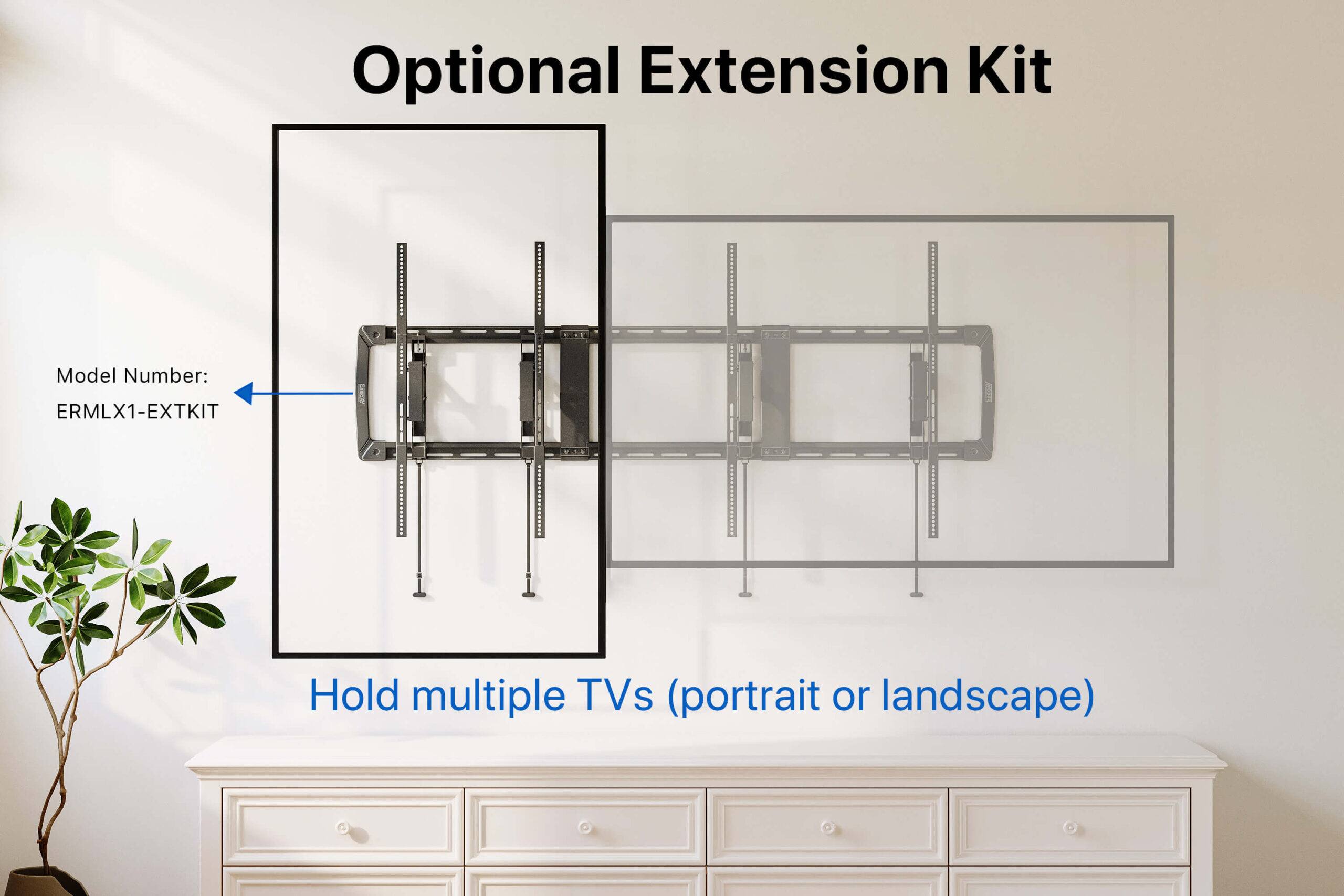

- Expansion Kit: Optional kits are available to add multiple TVs for TV walls, menu boards, etc. (see Model ERMLX1-EXTKIT)
- Hassle-Free Installation: This up to 115-inch tv wall mount includes a drilling template, installation manual, hardware to mount to wood studs, solid concrete, or concrete block walls. The tv mount is not designed to mount on drywall alone. Our U.S.-based support team is here to assist with installation or product selection.
Whats Included
- Mount
- Instruction Manual
- Template
- Installation / assembly hardware
Reviews
This product doesn't have any reviews yet.
