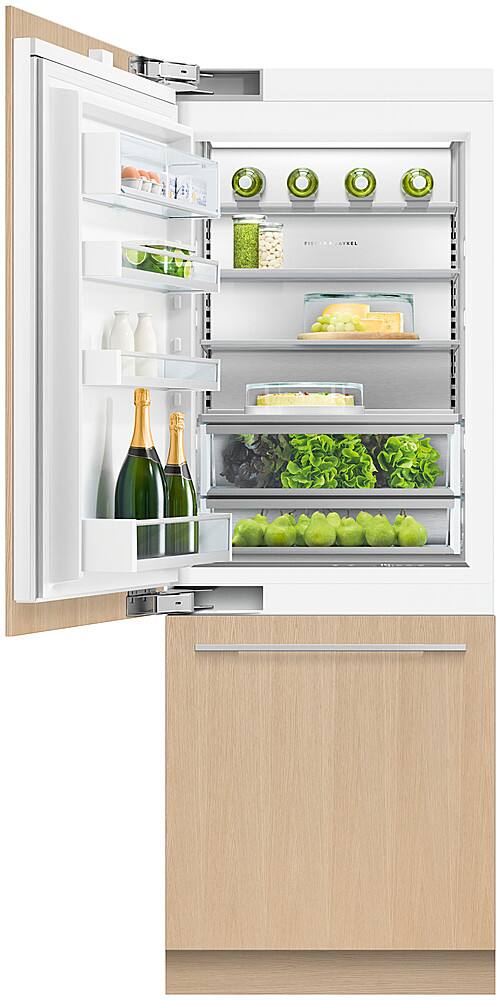

Fisher & Paykel - 30in. 12.1 cu.ft. Bottom-Freezer Built-In Column Refrigerator with Stainless Interior and Internal Ice and Water - Custom Panel Ready
Fisher & Paykel - 30in. 12.1 cu.ft. Bottom-Freezer Built-In Column Refrigerator with Stainless Interior and Internal Ice and Water - Custom Panel Ready
$610.00 delivery to
Delivery of this item is restricted to drop-off onlyRelated Item
Specifications
- Color FinishCustomProduct Height84 inchesProduct Width29.75 inchesHeight To Top Of Refrigerator (Without Hinges)84 inchesHeight To Top Of Door Hinge84 inchesDepth Without Handle24 inches
- Key Specs
- Color Finish: Custom
- Product Height: 84 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 84 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 84 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 5/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 15.9 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Fisher & Paykel
- Model Number: RS3084WLUK1
- Product Name: 30in. 12.1 cu.ft. Bottom-Freezer Built-In Column Refrigerator with Stainless Interior and Internal Ice and Water
- Color: Custom Panel Ready
- Color Finish: Custom
- Side Panel Color: Silver
- Dimensions
- Product Height: 84 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 84 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 84 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 24 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 25 5/8 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth With Door 90 Degrees Open: 56 3/4 inches (Measurement from the back of the product to its front, with the door open at a 90-degree angle.)
- Product Weight: 303.9 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 84 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 30 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Depth: 25 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Total Capacity: 15.9 cubic feet
- Refrigerator Capacity: 10.5 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 5.4 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Performance
- Minimum Operating Temperature: 61 degrees fahrenheit (The lowest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures less than the minimum can result in ineffective operation.)
- Maximum Operating Temperature: 100 degrees fahrenheit (The highest recommended ambient (surrounding) temperature in which the product can ideally operate stated by the manufacturer. Generally long-term exposure of the product to temperatures more than the maximum can result in ineffective operation.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)

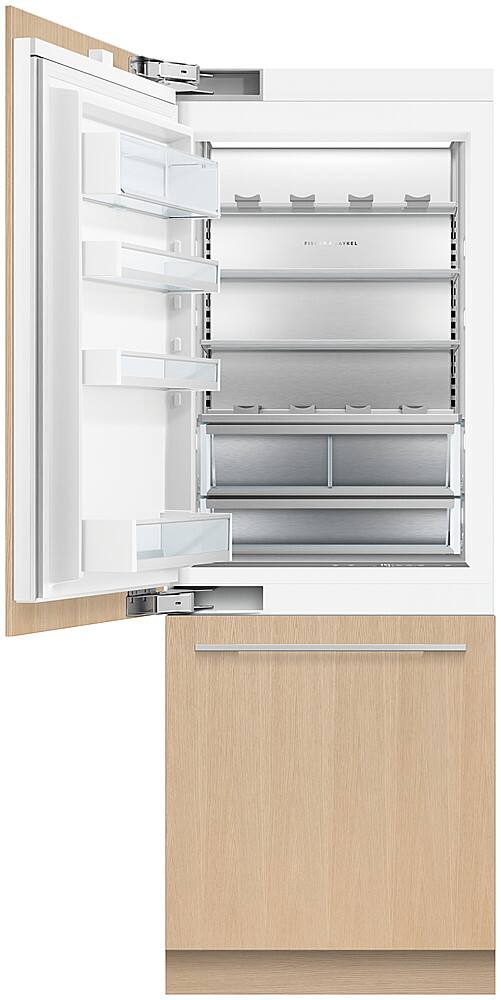

- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Dual Evaporation: true (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Sabbath Mode: true (This mode complies with the rules of Halakha and allows Shabbat-observant people to use the appliance on the Shabbat and other Jewish holidays.)
- Temperature Control Type: Touchpad
- Defrost Type: Frost free, Adaptive (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed left
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Secondary Ice Maker: No (This feature, often located within a pull-out freezer drawer, produces and stores ice in addition to the primary ice maker.)
- Ice Maker Location(s): Freezer
- Ice and Water Dispenser: Water only
- Ice and Water Dispenser Location: Internal
- Dispensed Water Type: Cold Water
- Dispenser Features: Filtration replacement light
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 4
- Refrigerator Shelf Style: Adjustable, Removable, Spill proof
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)

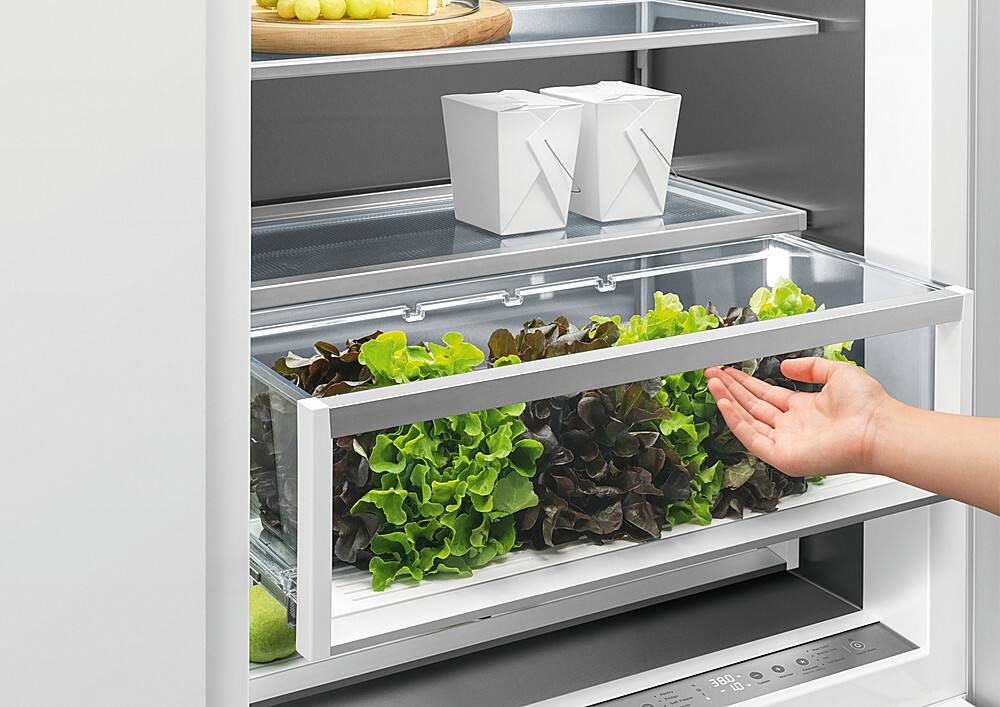

- Humidity-Controlled Crisper: true
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom

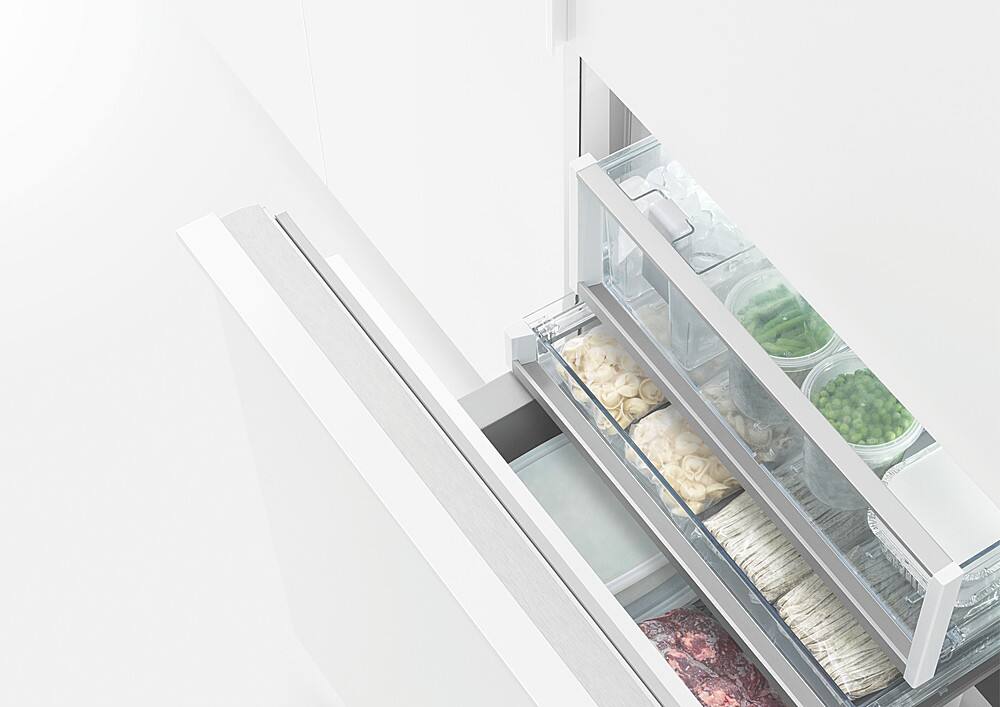

- Freezer Door Type: Pull Out Drawer
- Filter Info
- Water Filtration: true
- Water Filter Model Number: 842802 (The water filter model(s) recommended for use with the product.)
- Electrical Specification
- Amperage: 10 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Estimated Annual Electricity Use: 476 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Consortium for Energy Efficiency (CEE) Rating: Not Available
- Warranty
- Warranty - Parts: 2 Year Warranty
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 822843256860
A slim profile, perfect for compact kitchens, or pair it with other Integrated models for generous chilled and frozen storage. ActiveSmart Foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer. Customize with your own kitchen cabinetry or purchase our stainless steel door panel and handle accessories

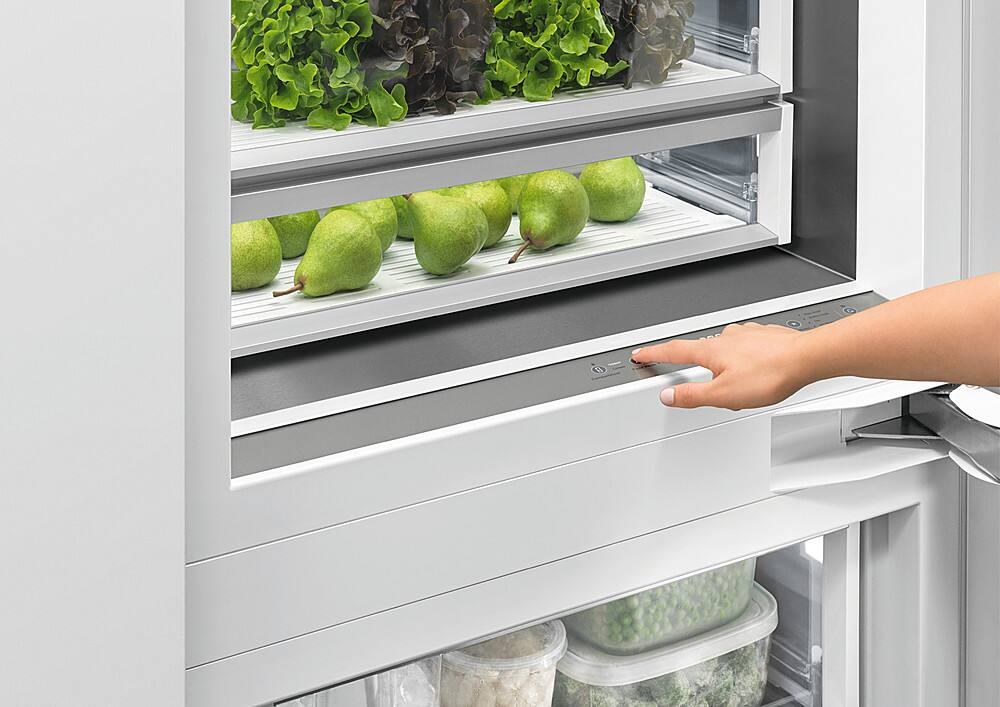

- Variable Temperature Zone: Create the perfect climate and store each type of food at optimal temperature and humidity with Variable Temperature Zone, reducing food waste due to spoiling. You have the choice of four food modes: Pantry, Fridge, Soft Freeze or Freezer
- ActiveSmart Foodcare: Technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer

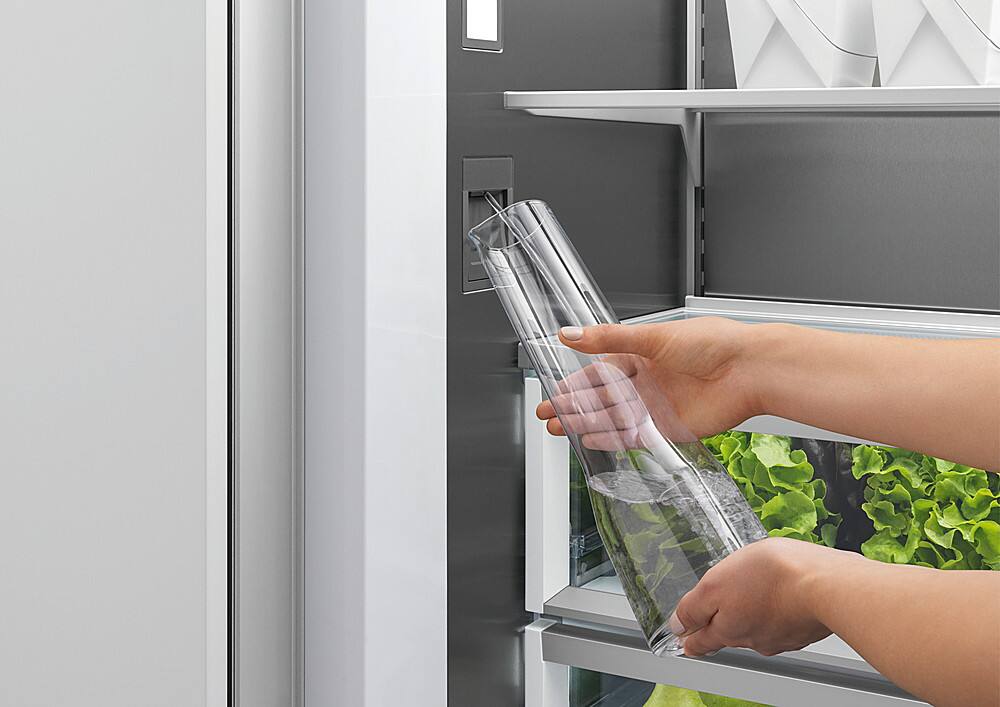

- Internal water dispenser and ice maker: Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior

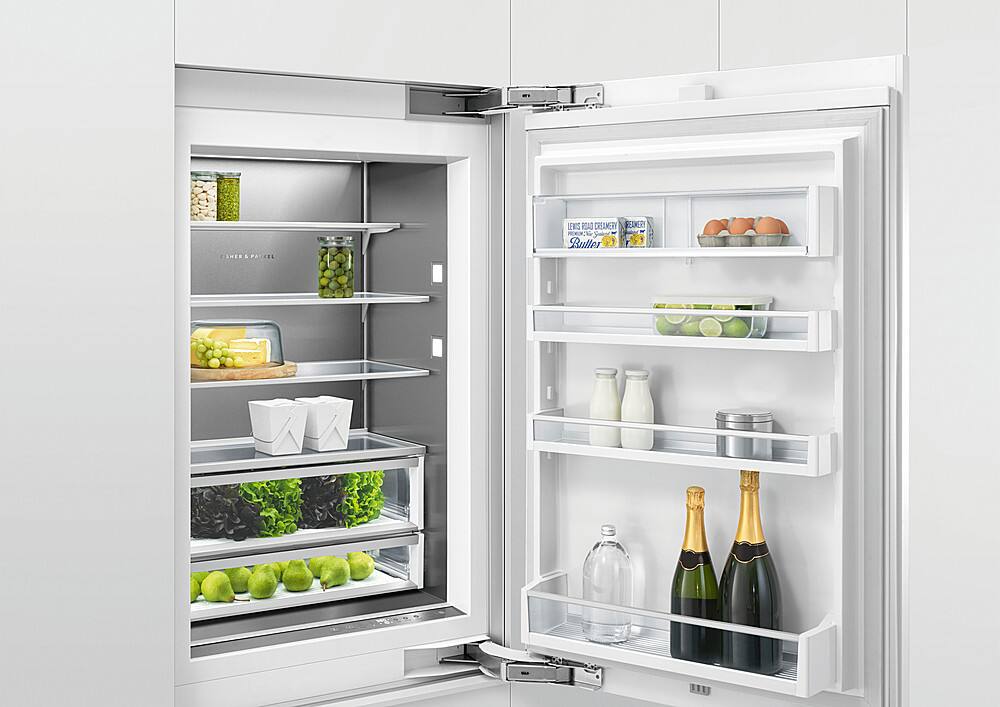

- Flexible storage: Designed to make it simple for you to store, access and remove food, this refrigerator includes LED-lit adjustable cantilevered shelving and full extension bins in the freezer

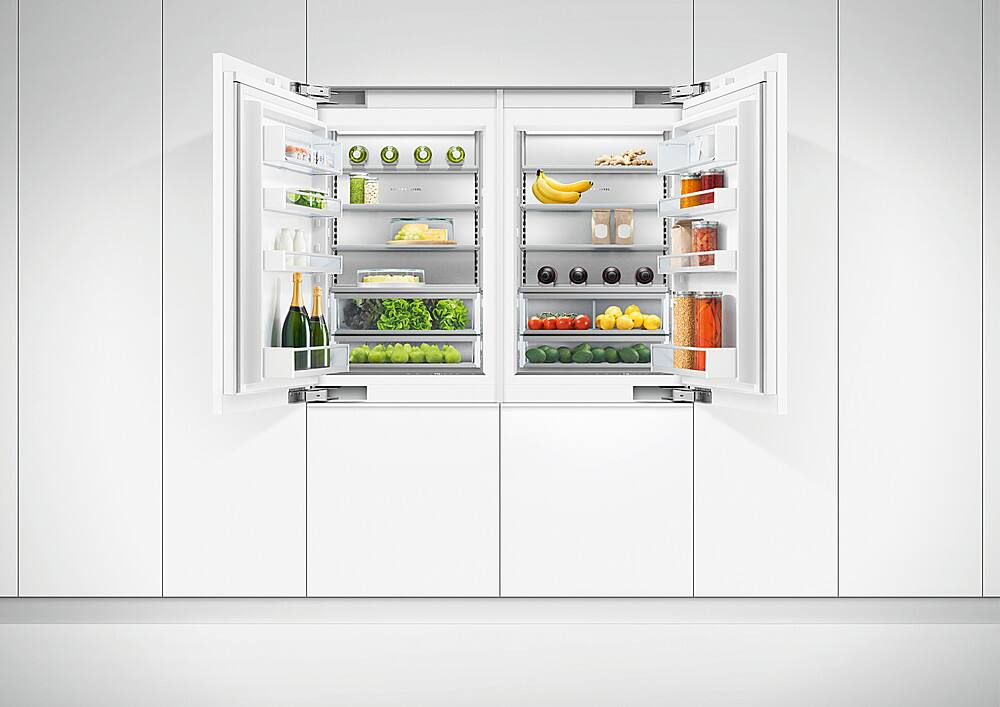

- Complementary design: Both the 24" and 30" Integrated Refrigerator Freezers can be installed separately or paired with a Column Refrigerator, Freezer or Wine Column
- Customize to Match: Customize with your own kitchen cabinetry and handles, or purchase our stainless steel door panel and handle options

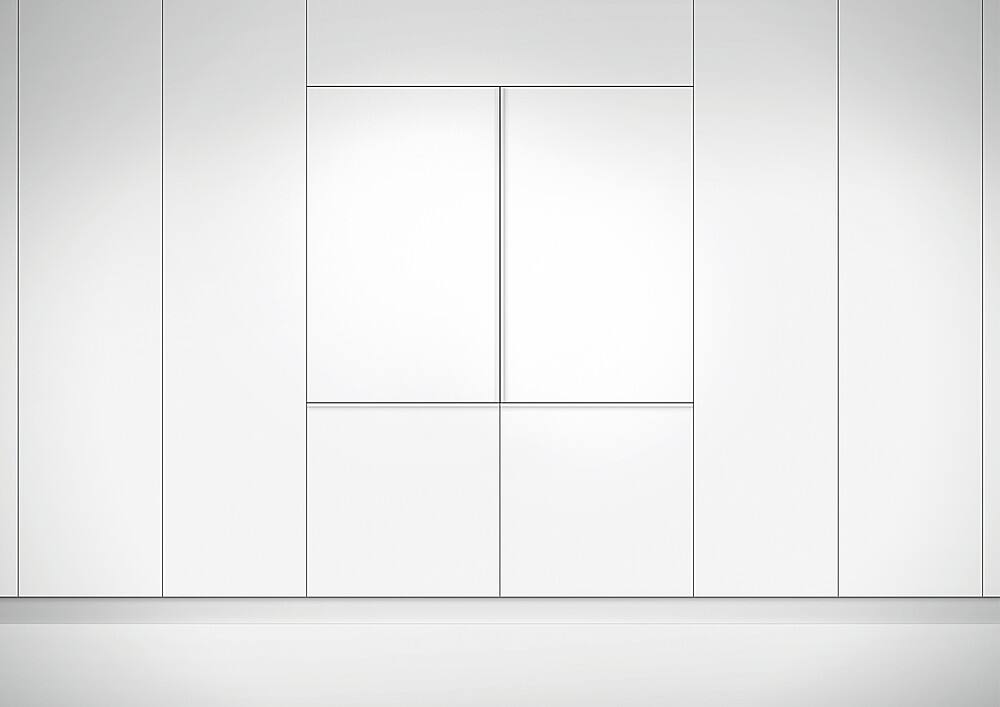

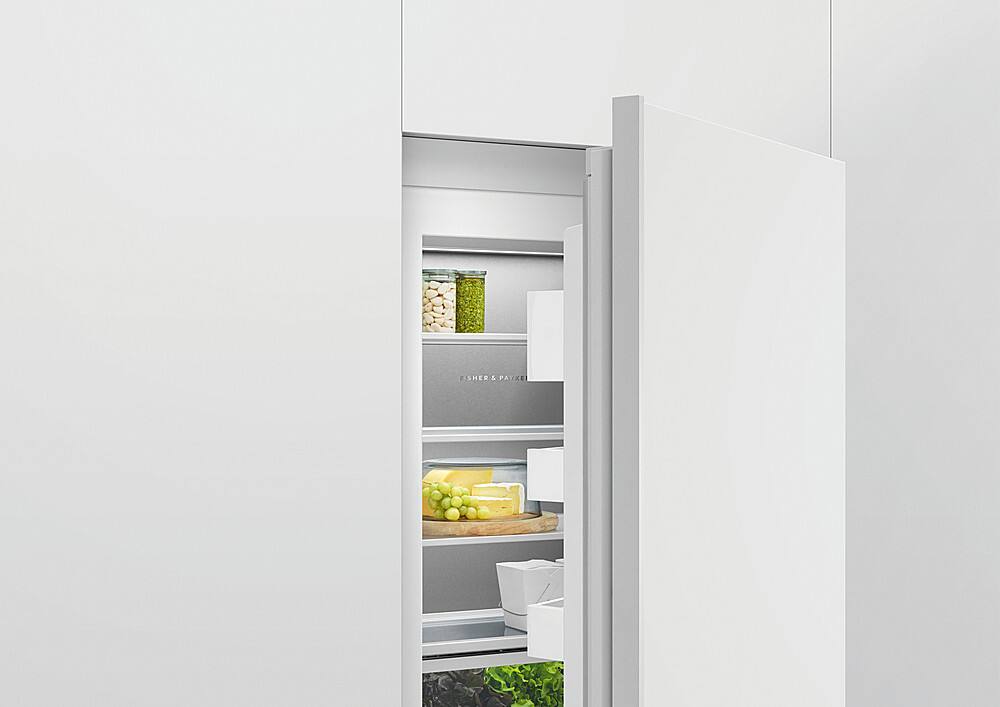

- Perfect fit: These models fit flush and have only ⅛” gaps around them with no visible hinges or grilles, our Integrated models can be seamlessly hidden behind your cabinetry for an understated and clean look with any kitchen layout

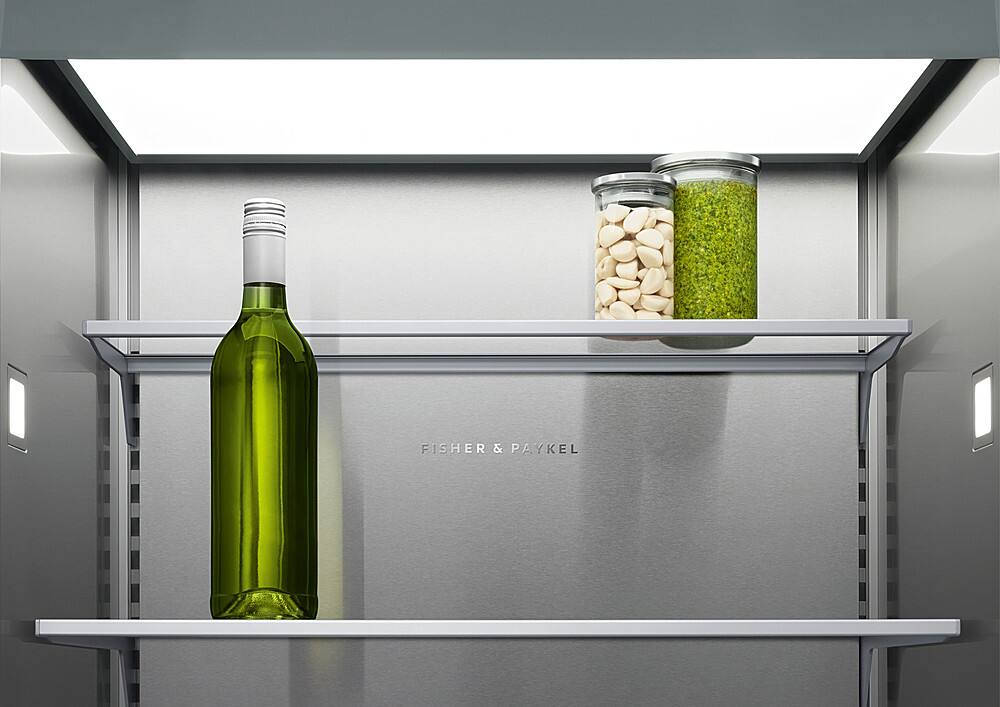

- Design quality: The premium design and finish includes a steel interior lining as well as full extension metal shelf runners for easy access, robust glass shelving and quality hinges designed for daily use
- Clever energy: With an Energy Star Most Efficient rating, your refrigerator adapts to daily use by cooling and defrosting only when neededm; this means it uses the energy it needs without compromising on food care
Whats Included
- Refrigerator, user manual
Product Manuals
Documents
- Energy_Guide_PDF
Q: How much space does the freezer compartment have?
A: The freezer compartment of the Fisher & Paykel 30in. 12.1 cu.ft. Bottom-Freezer Built-In Column Refrigerator has a capacity of 5 cubic feet. It consists of a top bin with a removable ice container and hygienic ice scoop, a mid tray for storing smaller food items, and a large bottom steel bin for storing multiple frozen food items or large food items.
Q: Where are the water dispenser and ice maker located in this refrigerator?
A: Both the water dispenser and ice maker are located inside this Integrated model, leaving an uninterrupted exterior. The water dispenser is located inside at the left side wall of the refrigerator compartment. To dispense water, gently press the dispensing pad with a glass or container.
Q: Does this refrigerator have an energy-saving feature?
A: Yes, this refrigerator has an energy-saving feature called "Clever energy". It adapts to daily use by cooling and defrosting only when needed, ensuring efficient energy consumption without compromising food preservation.
Q: Does this refrigerator have a water filter?
A: Yes, this refrigerator has a water filter. The water filter is located at the bottom front of the appliance and must be replaced every 6 months. Replacement filter cartridges can be purchased online from Fisher & Paykel.
Q: What is the total usable capacity of this refrigerator?
A: The total capacity of this refrigerator is 15.9 cubic feet. The refrigerator compartment has a capacity of 10.5 cubic feet, while the freezer compartment has a capacity of 5.4 cubic feet.
Q: Can this refrigerator be installed separately or paired with other appliances?
A: Yes, this Fisher & Paykel 30in. 12.1 cu.ft. Bottom-Freezer Built-In Column Refrigerator can be installed separately or paired with other appliances, such as a Column Refrigerator, Freezer, or Wine Column, to create a customized storage solution.
Q: What is the maximum temperature this refrigerator can operate at?
A: The maximum operating temperature of this Fisher & Paykel refrigerator is 100 degrees Fahrenheit. This information can be found in the "Maximum Operating Temperature" section of the product specifications.
Q: How much electricity does this refrigerator use per year?
A: The estimated annual electricity usage of this refrigerator is 476 kilowatt hours. This information can be found in the product specifications under the "Estimated Annual Electricity Use" section.
