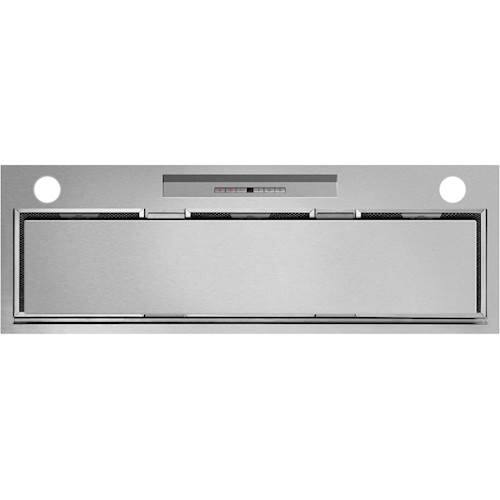

Fisher & Paykel - 36 inches - Externally Vented - Range Hood Insert - Brushed Stainless Steel

Model: HP36ILTX1
SKU: 5692807
This item is no longer available in new condition. See similar items below
  • Key Specs
    • Color Finish: Stainless steel
    • Product Height: 12 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Product Width: 32 7/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Exhaust Vent Location: Top
    • Vent Type: Ducted
    • Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
  • General
    • Brand: Fisher & Paykel
    • Model Number: HP36ILTX1
    • Product Name: Perimeter Insert 36" Externally Vented Range Hood
    • Color: Brushed Stainless Steel
    • Color Finish: Stainless steel
  • Dimensions
    • Product Height: 12 2/5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
    • Minimum Installation Height Above Cooktop: 30 inches
    • Product Width: 32 7/10 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
    • Product Depth: 11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
    • Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
    • Product Weight: 25 pounds (The out of box weight of the item.)
  • Cut-Out Dimensions
    • Cut-Out Width: 31 1/2 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
    • Cut-Out Depth: 10 1/8 inches (Minimum required depth of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
  • Features
    • Exhaust Vent Location: Top
    • Vent Type: Ducted
    • Vent Style: External (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
    • Range Hood Type: Insert
    • Number of Fan Speeds: 4
    • Control Type: Touch pad
    • Delay Shut-Off: true (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
    • Auto Fan Shut-Off: true
    • Damper Included: true
    • Integrated Light(s): true
    • Bulb Type Required: Halogen
    • Bulb(s) Included: true
    • Maximum Bulb Wattage: 50 watts
  • Performance
    • Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
    • Minimum Air Flow Capacity: 316 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
    • Maximum Operating Sound Level: 15 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
  • Filter Info
    • Filter Material: Aluminum
    • Dishwasher-Safe Filter: true
    • Removable Grease Filter: true
  • Electrical
    • Voltage: 120 volts (Amount of power needed to support an electrical current.)
  • Warranty
    • Warranty - Parts: 2 years
    • Warranty - Labor: 2 years
  • Other
    • UPC: 822843500871

Breathe easier with this Fisher & Paykel insert range hood. It installs into a decorative surround or inside cabinetry for discreet removal of smoke and odors, and it operates at only 48dBA for a quieter atmosphere. This Fisher & Paykel insert range hood is 11 inches deep and has a removable filter to make maintenance easy.

  • 600 cfm exhaust capacity: Quickly pull smoke and cooking odors out of the air.
  • 4 fan speed settings: Allow you to adjust ventilation to meet your needs.
  • Soft-touch buttons: Offer simple operation.
  • Dual halogen lights: Illuminate the cooktop below with bright or subtle lighting for better visibility while cooking.
  • Removable dishwasher-safe grease filters: For simple cleaning.
  • Brushed stainless steel finish: Offers a sleek, stylish look.
  • Designed to fit standard 6" round ductwork: For ease of installation.
  • Free delivery on appliance orders $399 and up: Built-in appliances require special installation, which is not included with delivery. Call 1-888-BEST BUY (1-888-237-8289) to find out more and to purchase installation.
  • Need more information?: See what's included with home delivery and installation.
Whats Included
  • Fisher & Paykel Perimeter Insert 36" Convertible Range Hood
  • Power connection box
  • 6" diameter Ducting adapter with back draft damper
  • Four 3/8" Self tapping screw
  • Owner's manual
