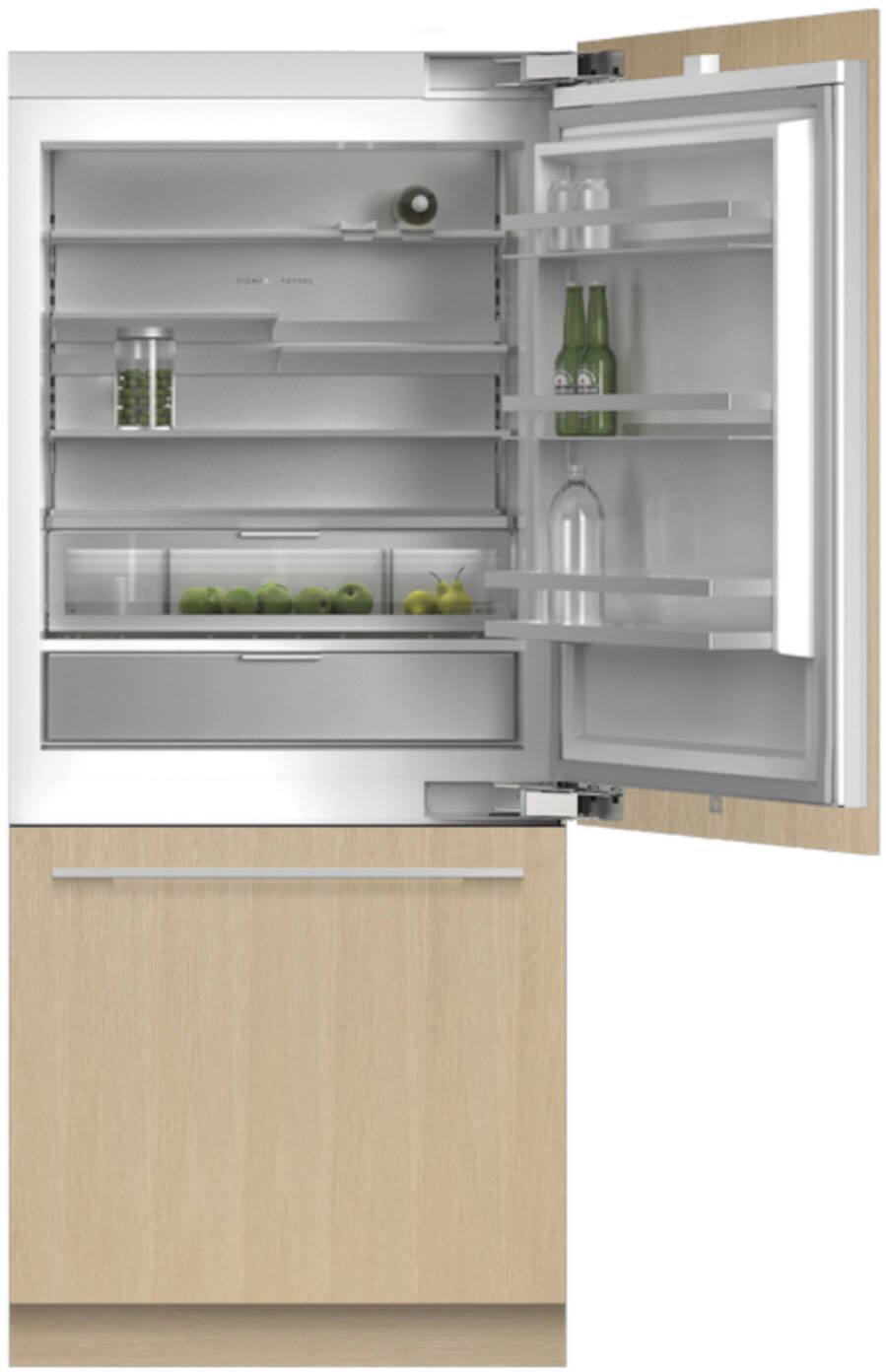

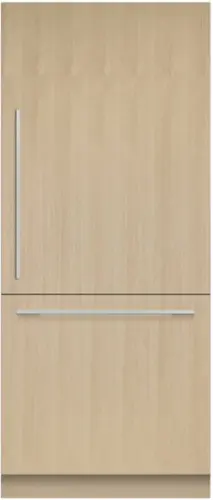

Fisher & Paykel - Series 36 19.2 cu ft Bottom Freezer Freestanding Refrigerator Right Hinge Panel Ready - Custom Panel Ready
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishCustomProduct Height84 inchesProduct Width35 3/4 inchesHeight To Top Of Refrigerator (Without Hinges)84 inchesHeight To Top Of Door Hinge82 inchesDepth Without Handle23.5 inches
- Key Specs
- Color Finish: Custom
- Product Height: 84 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 84 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 82 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Depth Without Handle: 23.5 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Total Capacity: 19.2 cubic feet
- Refrigerator Style: Bottom Freezer
- Lighting Type: LED
- Ice Maker: Yes
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- General
- Brand: Fisher & Paykel
- Model Number: RS3684WRUVK5
- Product Name: Series 36 19.2 cu ft Bottom Freezer Freestanding Refrigerator Right Hinge Panel Ready
- Color: Custom Panel Ready
- Color Finish: Custom
- Dimensions
- Product Height: 84 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 35 3/4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 24 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Height To Top Of Refrigerator (Without Hinges): 84 inches (Height from bottom of refrigerator to top of the door, without the top hinges.)
- Height To Top Of Door Hinge: 82 inches (Height from bottom of refrigerator to top of the door, including the top hinge.)
- Standardized Width: 36 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Counter Depth: true (The product case installs flush with the depth of standard kitchen counters to provide a built-in appearance.)
- Depth Without Handle: 23.5 inches (Measurement from the back of the product to its front (with door closed), not including handle.)
- Depth With Handle: 24 inches (Measurement from the back of the product to its front (with door closed), including the handle.)
- Depth Without Door: 22 inches (Measurement from the back of the product to its front, not including the door.)
- Product Weight: 450 pounds (The out of box weight of the item.)
- Capacity
- Total Capacity: 19.2 cubic feet
- Refrigerator Capacity: 12.2 cubic feet (Total amount of space within the refrigerator compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Freezer Capacity: 7 cubic feet (Total amount of space within the freezer compartment. Usable space may be reduced by shelves, cabinets, or other storage features.)
- Features
- Configuration: Built-in (The size, arrangement, and physical configuration of the product.)
- Panel Ready: true (Product is ready to be fit with a customized front panel that integrates with existing cabinetry and décor.)
- Refrigerator Style: Bottom Freezer
- Convertible Temperature Zone: false (Refrigerators with this feature include a separate compartment with independent temperature controls from the main product. These compartments offer a flexible space that allows you to change the temperature based on your additional storage needs. Whether it’s a place to chill beverages for an evening with friends, keep snacks cool, or even provide extra freezer space.)
- Garage Ready: false (Garage Ready appliances have been tested by the manufacturer to operate within a wider range of external temperatures than the average home environment, such as a garage which can fall below freezing or heat above 100 degrees Fahrenheit. Please refer to the manufacturer's documentation for detailed external operating temperature requirements.)
- Dual Evaporation: false (A cooling system that works to create a stable climate for the refrigerator and freezer separately. This ensures that each compartment is able to maintain a separate humidity and temperature level ideal for the respective stored items. Freezers tend to require lower humidity while refrigerators require higher humidity to keep foods fresher for longer.)
- Door-Open Alarm: true
- Temperature Control Type: Touchpad
- Display Type: LED
- Defrost Type: Adaptive (Ice build-up can reduce the appliance’s cooling capacity, making it work harder and consume more energy. Defrosting is necessary to maintain its efficiency and each type has its own advantages depending on user needs and preferences. Manual defrost appliances require unplugging to melt ice naturally, but offer more space, lower energy consumption, and lower cost without the internal heating element. Frost-free appliances regulate temperature to prevent ice build-up automatically. Automatic defrost systems use a timer to circulate heat and prevent ice accumulation, while adaptive defrost systems use sensors to determine the optimal times for heat circulation.)
- Reversible Door Hinge: false
- Hinge Setting: Fixed right
- Lighting Type: LED
- Ice & Water
- Ice Maker: Yes
- Ice Maker Location(s): Freezer
- Ice Dispenser Ice Form: Cubed
- Ice and Water Dispenser: Ice and water
- Ice and Water Dispenser Location: Internal
- Storage
- Number of External Doors/Drawers: 2
- Number of Refrigerator Shelves: 3
- Refrigerator Shelf Style: Spill proof, Removable
- Quick Access Door: false (A door-within-door that provides convenient access to your favorite food and drink items without opening the main door.)
- Humidity-Controlled Crisper: false
- Deli Meat Drawer: true (Designated storage for deli and other meats helps keep these items accessible and may reduce the risk of cross-contamination.)
- Refrigerator Shelf Material: Glass
- Freezer Info
- Freezer Compartment: true
- Freezer Location: Bottom
- Filter Info
- Water Filtration: false
- Electrical
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- ADA Compliant: false (Meets standards set by the Disabilities Act (ADA) Standards for Accessible Design)
- Consortium for Energy Efficiency (CEE) Rating: CEE Not Qualified
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Other
- UPC: 822843267569
Choose this roomy refrigerator with ice maker and internal water dispenser. Fits flush with your choice of cabinetry or our stainless steel panels. For optimal food care, the variable temperature drawer lets you change between three modes - chill, fridge or pantry. Spacious bottom freezer with full extension drawer gives easy access to frozen goods.
- Variable temperature drawer: When it comes to optimal food preservation, one temperature does not fit all. This variable temperature drawer gives you full control over the way you care for food. At the touch of a button, transform the bottom refrigerator drawer to chill, fridge, or pantry modes to best suit different types of food. Adjust the settings for everyday convenience, or switch modes to increase the chilling capacity, ideal for those special occasions.
- Clever Energy: This refrigerator adapts to daily use by cooling and defrosting only when needed. This means it uses the energy it needs without compromising on food care.
- Activesmart foodcare: ActiveSmart foodcare learns how you live. It’s technology which understands how you use your refrigerator and adjusts temperature, airflow and humidity inside to help keep food fresher for longer.
- Seamless integration: These models fit flush, with only 3mm gaps around them and no visible hinges or grilles. Our Integrated models can be seamlessly hidden behind your cabinetry, or you can purchase our stainless steel door panel.
- Flexible storage: Designed to make it simple for you to store, access and remove food, this large capacity refrigerator includes adjustable cantilevered shelving and full extension bins in the freezer.
- Internal water and ice dispenser: Both the water dispenser and ice maker are located inside this integrated model, ensuring an uninterrupted exterior that blends seamlessly with adjacent cabinetry. The slimline water dispenser is flush-fit to maximise internal storage space. It boasts a temperature-controlled flow and an angled delivery to catch any drips or spills.
- Design quality: The premium design and finish includes a steel interior lining as well as full extension metal shelf runners for easy access, robust glass shelving and drawers with quality hinges designed for daily use.
- Panel ready: Requires the installation of custom panels (not included)
Product Manuals
Q: What type of temperature control does the refrigerator have?
A: This refrigerator has touchpad temperature controls.
Q: What is the total capacity of the refrigerator?
A: The total capacity of the refrigerator is 19.2 cubic feet.
Q: Does the refrigerator have an ice maker?
A: This roomy refrigerator has an ice maker and an internal water dispenser.
Q: What is the freezer capacity?
A: The freezer capacity is 7 cubic feet.
