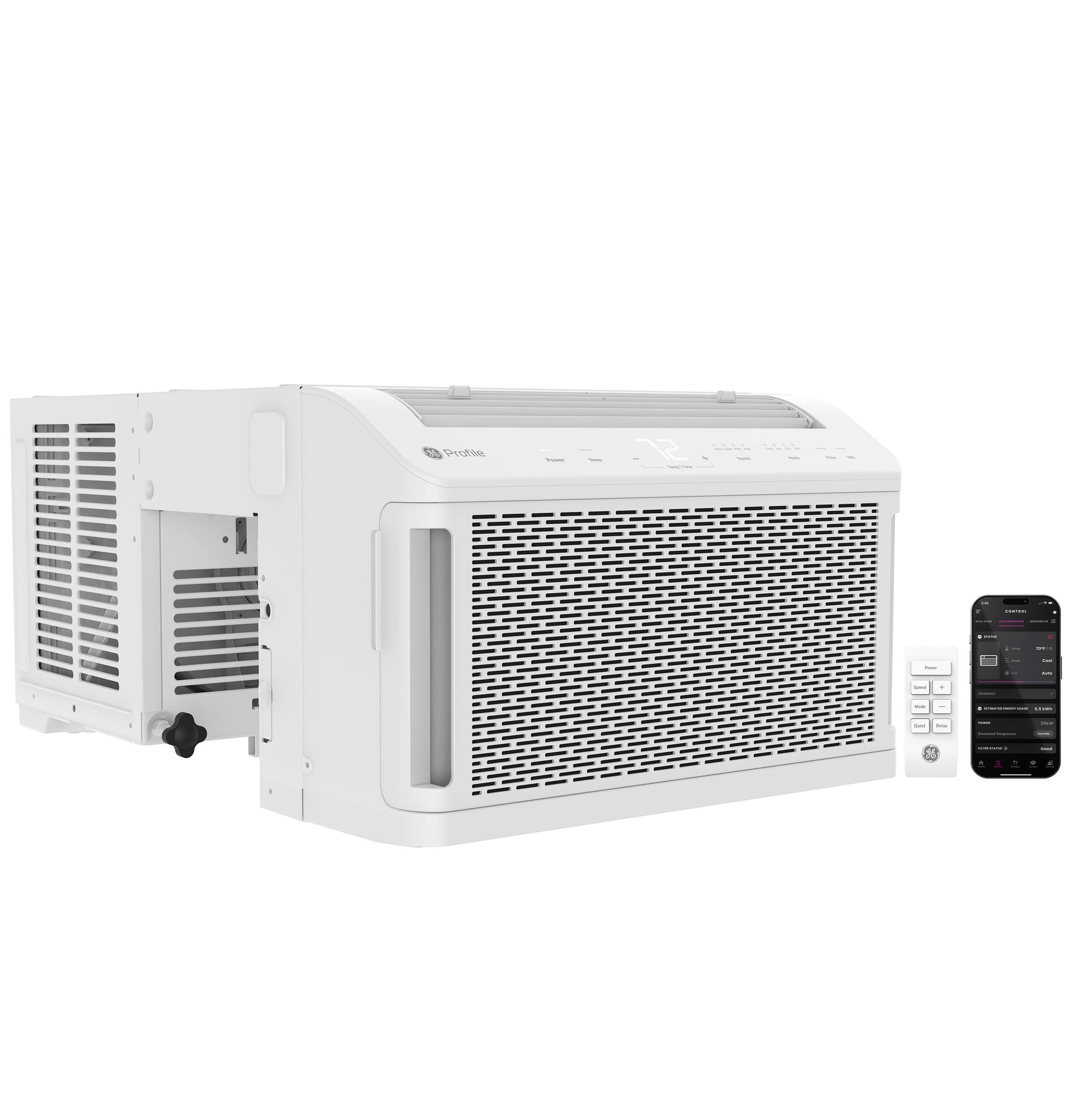

GE Profile - ClearView 450 Sq. Ft. 10,300 BTU Smart Ultra Quiet Window Air Conditioner - White
- Key Specs
- Recommended Room Size: 450 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 10300 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 4
- Number of Fan Speeds: 8
- Airflow Rate: 180 cubic feet per minute
- Remote Control: true
- Integrated Heater: false
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 14.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 14.6 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Window Mounting Kit Included: true
- Air Conditioner Type: Window
- General
- Brand: GE Profile
- Model Number: PHNT10CC
- Product Name: ClearView 450 Sq. Ft. 10,300 BTU Smart Ultra Quiet Window Air Conditioner
- Color: White
- Air Conditioner Type: Window
- Dimensions
- Minimum Window Opening Height: 13 inches
- Minimum Window Opening Width: 20 inches
- Maximum Window Opening Height: 40 inches
- Maximum Window Opening Width: 40 inches
- Product Height: 12 3/4 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 19 3/5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 28 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 80 pounds (The out of box weight of the item.)
- Cord Length: 72 inches
- BTU Rating
- Recommended Room Size: 450 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 10300 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Features
- Number of Cool Settings: 4
- Number of Fan Speeds: 8
- Airflow Rate: 180 cubic feet per minute
- Maximum Noise Level: 54 decibels adjusted
- Minimum Noise Level: 51 decibels adjusted
- Air Discharge: Top
- Air Direction/Circulation: 2-way
- Remote Control: true
- Control Type: Touchpad, Touchpad, Touchpad
- Integrated Heater: false
- Sleep Mode: false (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: true
- Auto Shut-Off: true (Feature automatically turns off the product.)
- Power
- Energy Efficiency Ratio: 14.7 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 14.6 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Amperage: 15 amperes (Strength of electrical current.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Compatibility
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Works With: Google Home, Amazon Alexa (Compatible with or able to be connected to other smart devices or applications.)
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Window Mounting Kit Included: true
- Warranty
- Warranty - Parts: 1-Year Replacement
- Warranty - Labor: 1 year limited
- Other
- UPC: 084691917977
As the Quietest Window Air Conditioner Brand in the United States*, GE Profile is dedicated to providing the right solutions for rooms of various sizes. Our Energy Star certified window air conditioners are designed to offer exceptional comfort with minimal noise, and our latest WiFi connected technology makes these products versatile and easy to use. The ClearView inverter 10300 BTU smart window air conditioner cools large rooms up to 450 square feet and sits over the windowsill to give you a full view to the outside and allow more natural light into your room. The easy and safe installation with no mounting bracket needed* (subject to local code approval) allows you to freely open and close the window with the unit installed. The industry exclusive flex-depth expands to fit walls between 4.5" to 13.75" thick, so you can customize your ClearView fit. Energy-efficient cooling with four modes and three fan speeds provide flexible and optimal home comfort. Integration with the SmartHQ app allows you to monitor, schedule, and control your connected air conditioner from anywhere, or check your energy usage and set-up geolocation. Use the electronic controls with included remote to easily to adjust and manage your settings. This AC installs in a double hung window with included window kit. Additional features like eco mode, power interruption restart, 24-hour on/off timer, and removable filter offer ease of use and maintenance. *Based on avg sound ratings by brand of 5K-24K BTU Window AC from publicly available info, compared to 74% of the product in the US WAC category per Traqline 9/21

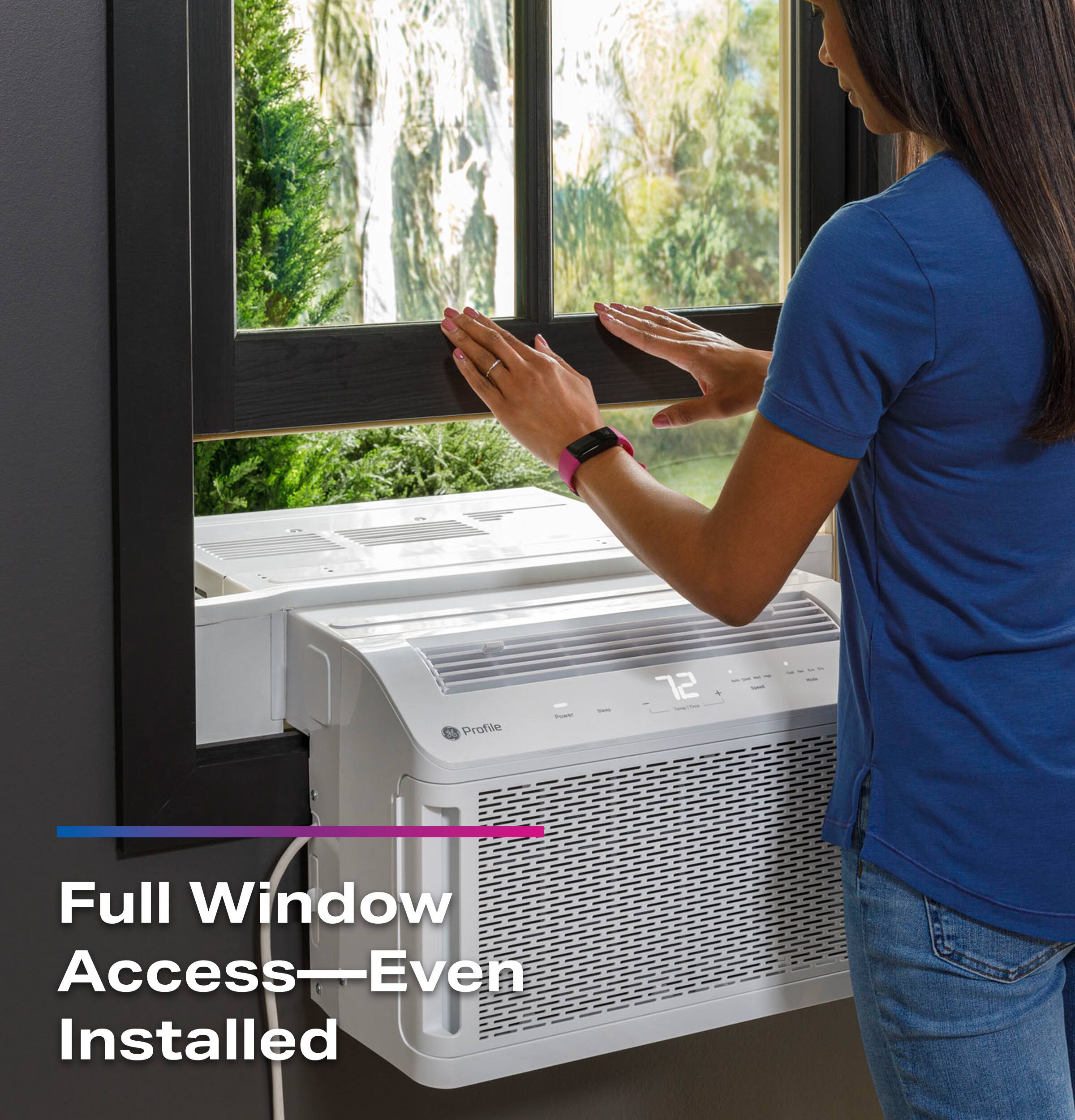

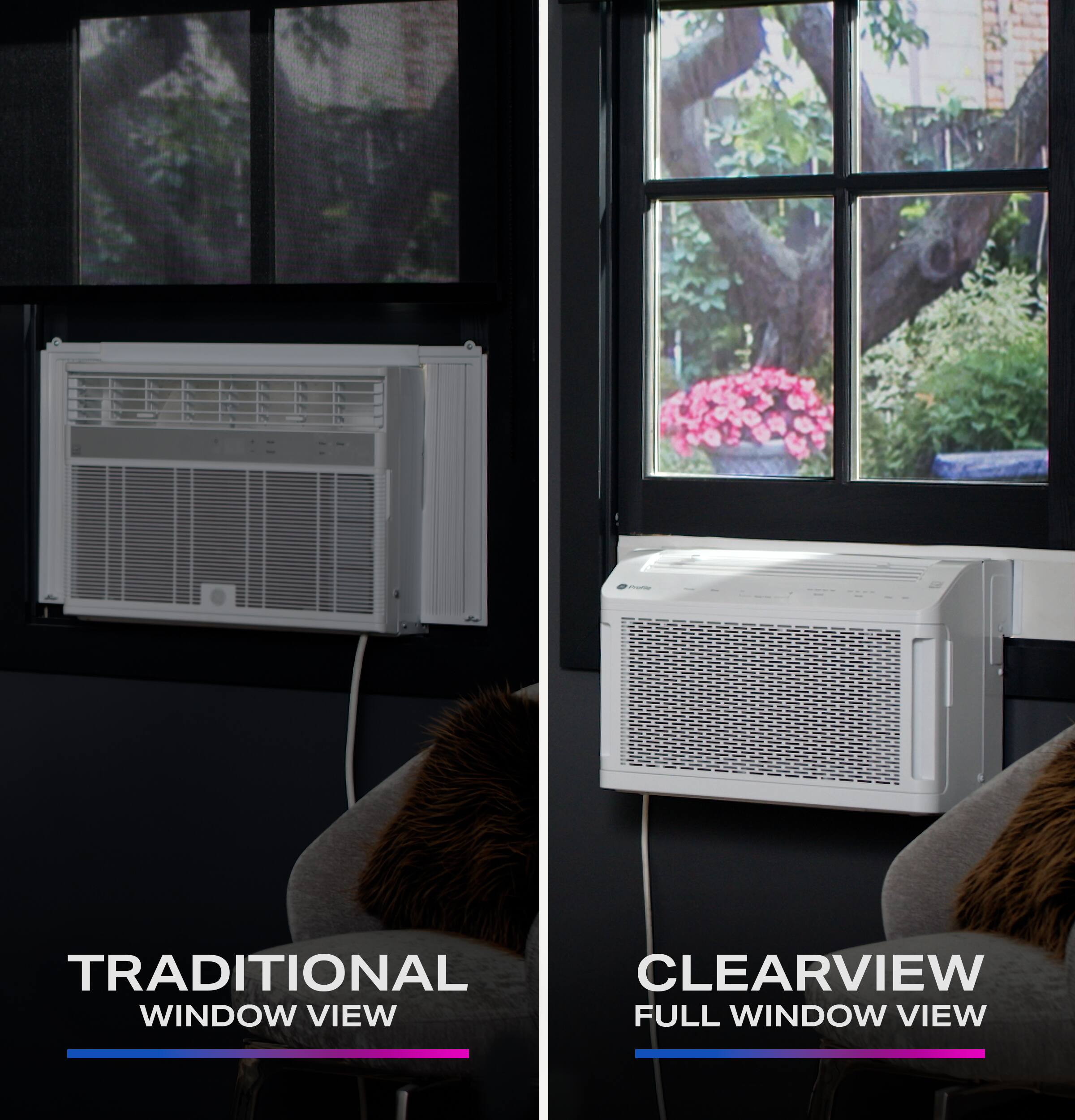

- Full window view: This GE Profile window air conditioner sits over the windowsill and is designed to maintain the full view through the window, allowing more natural light into the room.

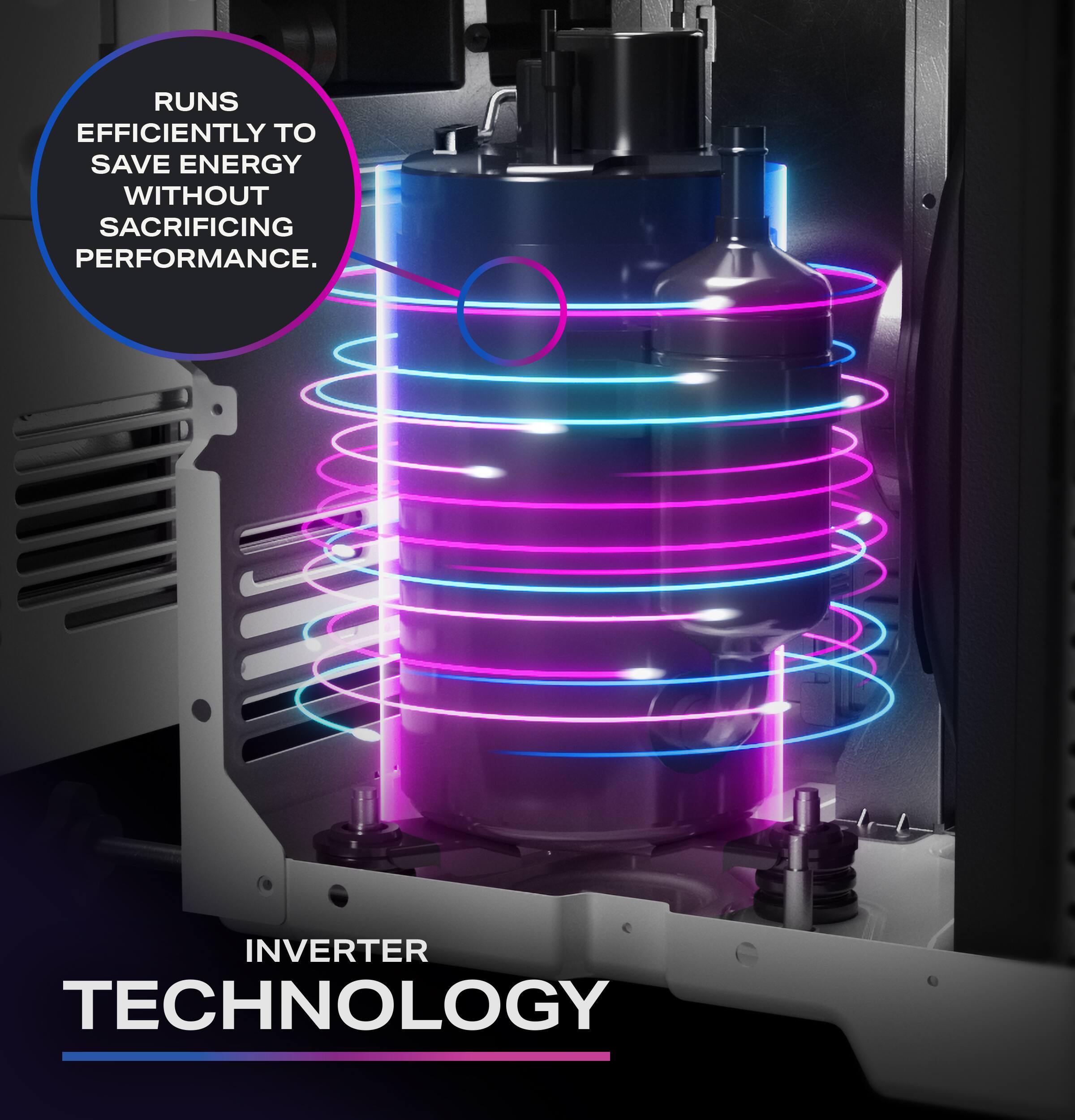

- Inverter technology: Senses the room temperature, then adapts, to run smoothly and continuously, instead of turning off and on
- Ultra quiet: This quiet air conditioner reaches sounds as low as 40 dB, underlining GE Profile's rating as the Quietest Window AC Brand. (Based on avg sound ratings by brand of 5K-24K BTU Window AC from publicly available info, compared to 74% of the product in the US WAC category per Traqline 9/21)

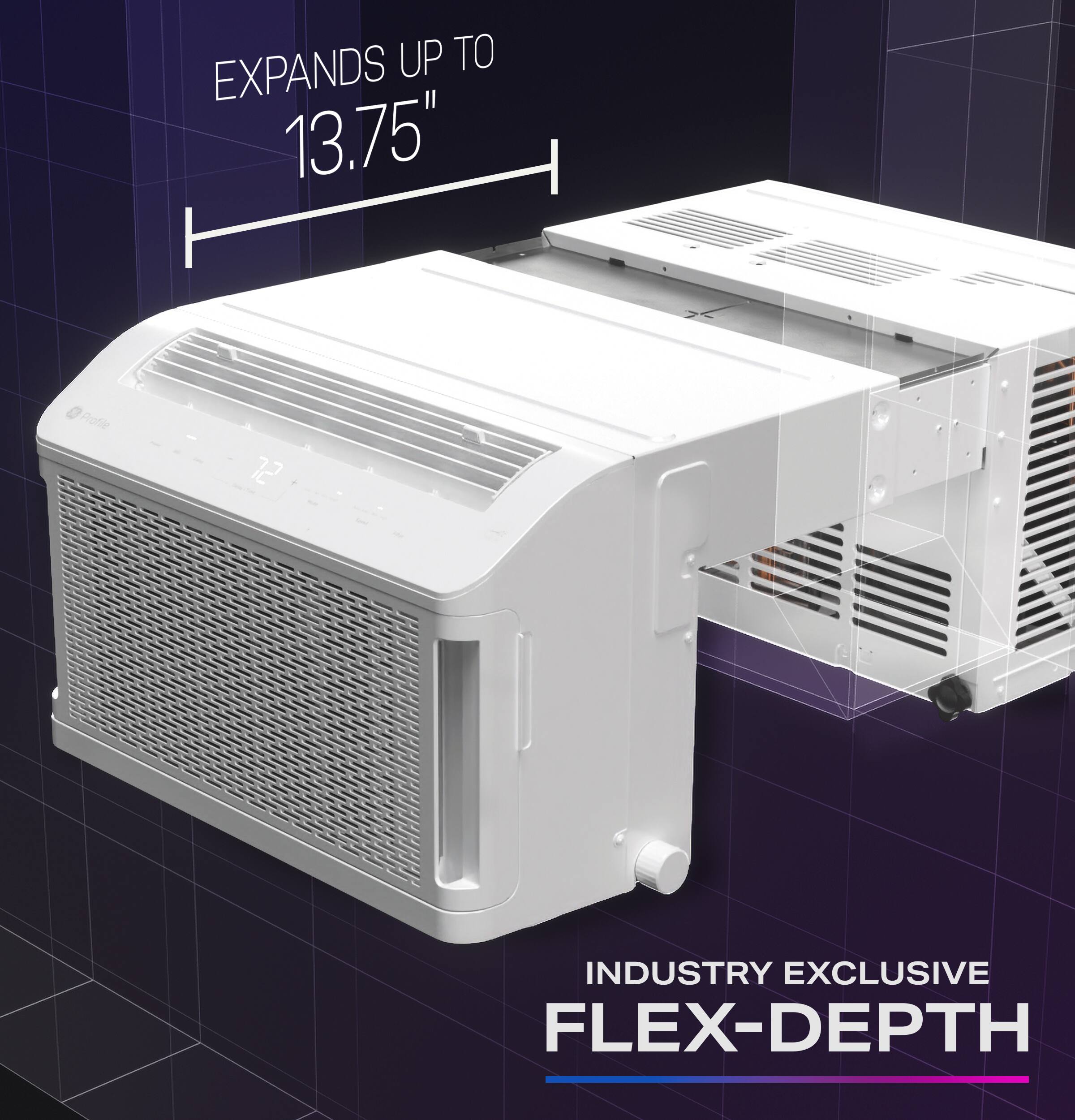

- Industry exclusive flex-depth: Engineered to expand to multiple positions, the flex-depth feature accommodates walls between 4.5" to 13.75" thick. The product comes in the closed position and can be expanded to custom fit your windowsill depth
- Operational window: The ClearView designs allows you to open and close the window freely with the unit installed, providing flexbility to let the fresh air in on a nice day
- Built-in WiFi: Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind.
- Voice control: Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant.
- Energy reporting: Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance.
- Geolocation: Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home.
- Maximum comfort cool: Four cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency.

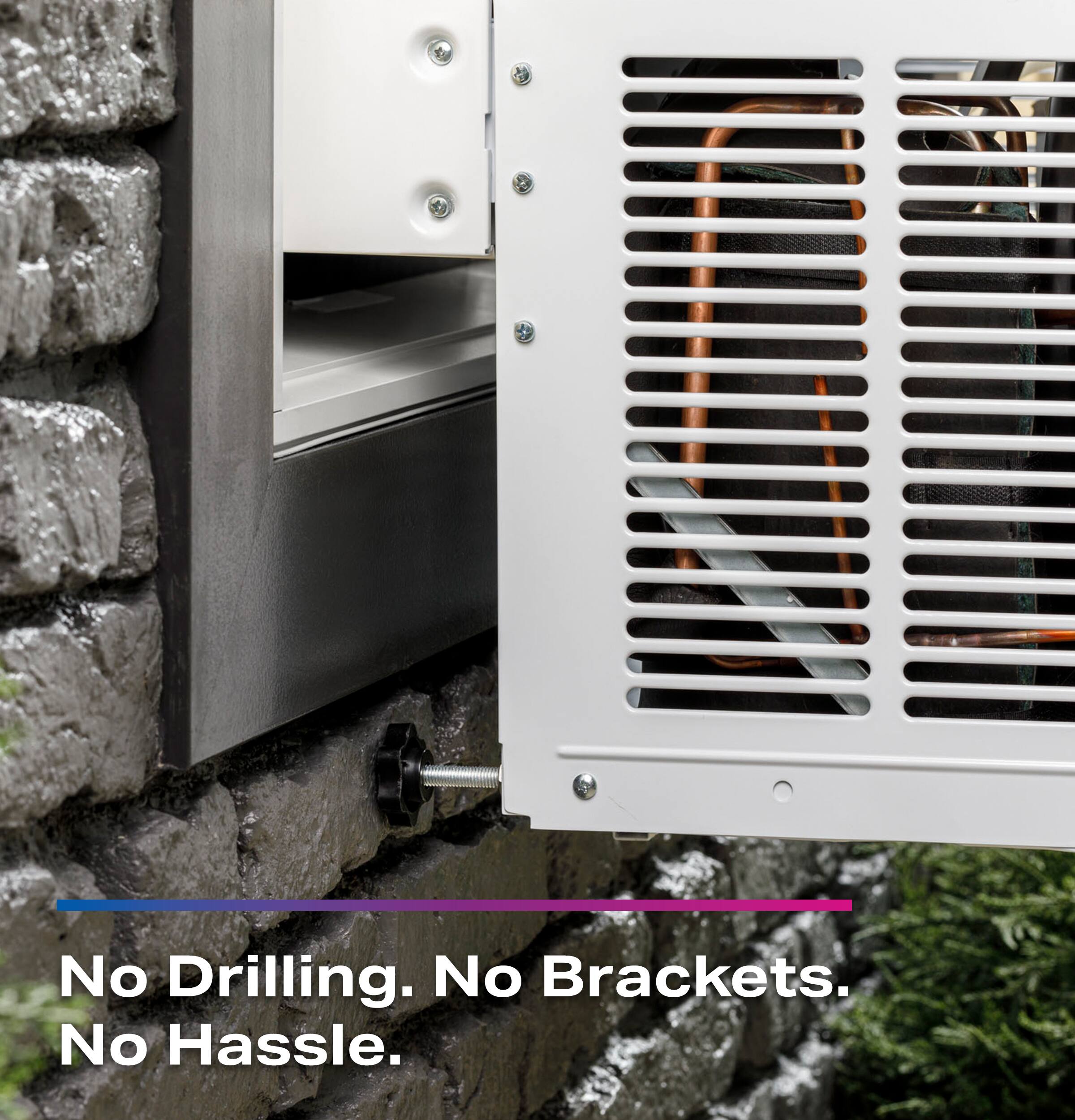

- Easy installation: This unit sits over the windowsill and is easy and safe to install in a double hung window with included installation kit.
- Filter reminder: Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best.
- Capacitive touch with remote: The capacitive touch screen controls are flush with the air conditioner and require less pressure to operate; or simply use the included remote for effortless control
- Cools medium rooms: 10,000 BTU cooling capacity offers maximum comfort in rooms up to 450 square feet.

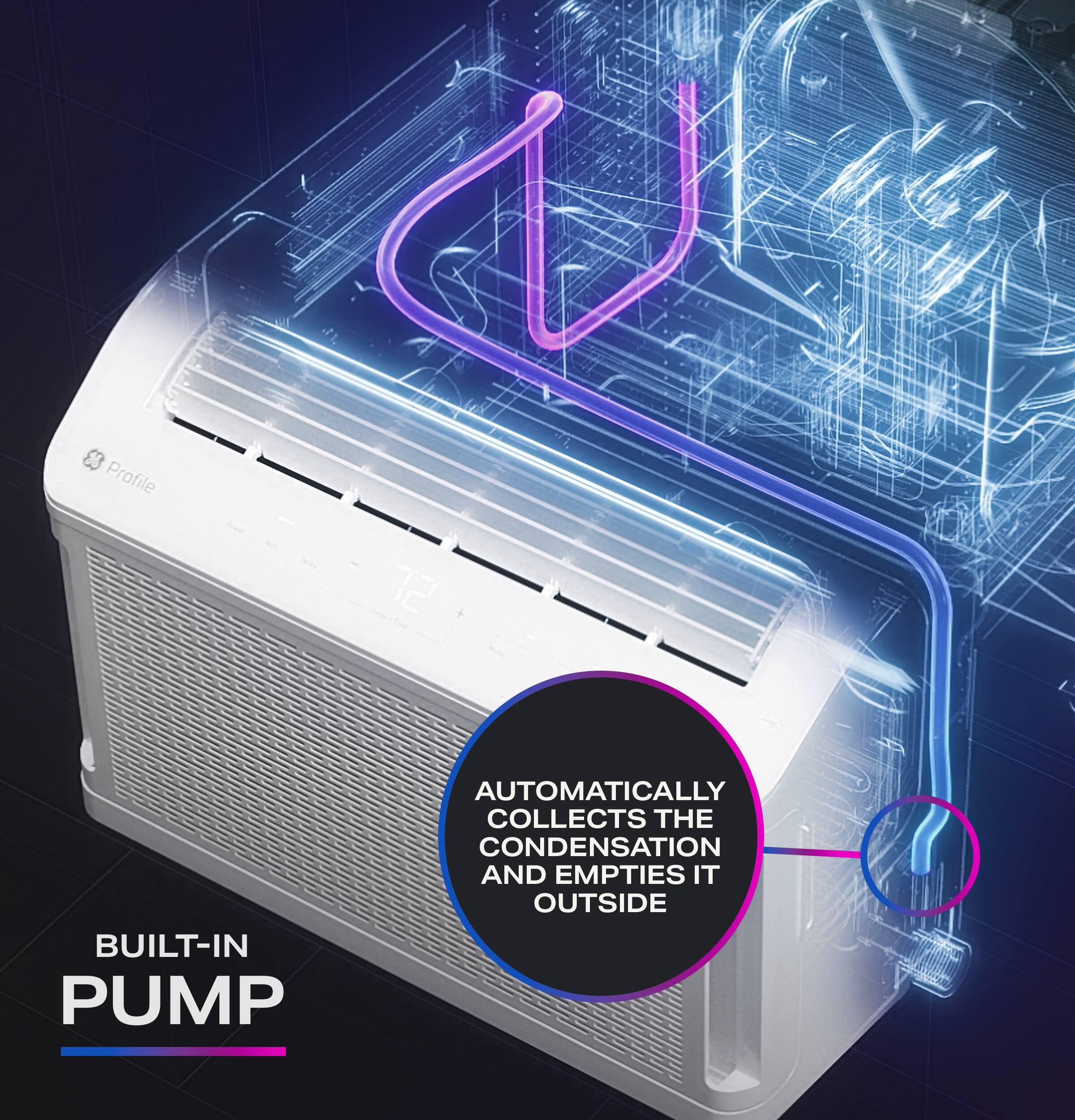

- Built-in pump: ClearView uses an advanced built-in pump system that collects the condensation from the indoor side then automatically transports the water through the unit to empty efficiently outside. Enjoy quiet, continuous cooling without the hassle of frequent draining.
- Full window view: This GE Profile window air conditioner sits over the windowsill and is designed to maintain the full view through the window, allowing more natural light into the room.
- Inverter technology: Senses the room temperature, then adapts, to run smoothly and continuously, instead of turning off and on
- Ultra quiet: This quiet air conditioner reaches sounds as low as 40 dB, underlining GE Profile's rating as the Quietest Window AC Brand. (Based on avg sound ratings by brand of 5K-24K BTU Window AC from publicly available info, compared to 74% of the product in the US WAC category per Traqline 9/21)
- Industry exclusive flex-depth: Engineered to expand to multiple positions, the flex-depth feature accommodates walls between 4.5" to 13.75" thick. The product comes in the closed position and can be expanded to custom fit your windowsill depth
- Operational window: The ClearView designs allows you to open and close the window freely with the unit installed, providing flexbility to let the fresh air in on a nice day
- Built-in WiFi: Use the SmartHQ app to control and monitor this WiFi enabled smart air conditioner from anywhere, giving you connected peace of mind.
- Voice control: Use voice commands to control the unit after connecting it to a smart speaker like Amazon Alexa or Google Assistant.
- Energy reporting: Monitor air conditioner energy consumption with reports that show how much you've used, so you can maximize savings and enjoy a truly connected performance.
- Geolocation: Geofence technology pinpoints your smartphone location then automatically adjusts the smart air conditioner settings for when you're home.
- Maximum comfort cool: Four cooling settings and fan speeds provide total flexibility with optimal home comfort and air conditioner efficiency.
- Easy installation: This unit sits over the windowsill and is easy and safe to install in a double hung window with included installation kit.
- Filter reminder: Get a filter change reminder when the filter needs cleaning, so you can keep the unit performing at its best.
- Capacitive touch with remote: The capacitive touch screen controls are flush with the air conditioner and require less pressure to operate; or simply use the included remote for effortless control
- Cools medium rooms: 10,000 BTU cooling capacity offers maximum comfort in rooms up to 450 square feet.
- Built-in pump: ClearView uses an advanced built-in pump system that collects the condensation from the indoor side then automatically transports the water through the unit to empty efficiently outside. Enjoy quiet, continuous cooling without the hassle of frequent draining.
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: Can I control this air conditioner with my voice?
A: Yes, you can control this air conditioner with voice commands after connecting it to a smart speaker like Amazon Alexa or Google Assistant.
Q: How quiet is this air conditioner?
A: This air conditioner is very quiet, with sound levels as low as 40 dB, contributing to GE Profile's recognition as the Quietest Window AC Brand.
Q: Does this air conditioner have a built-in pump?
A: Yes, the ClearView air conditioner features a built-in pump system that automatically removes condensation, ensuring quiet and efficient cooling without the need for frequent draining.
Q: What is the BTU cooling capacity of this air conditioner?
A: This air conditioner has a BTU cooling capacity of 10,300, making it suitable for rooms up to 450 square feet.
Q: Can I monitor the energy usage of this air conditioner?
A: Yes, you can monitor the energy consumption of this air conditioner using the energy reporting feature. It provides reports on your usage, helping you maximize savings.
Q: Does this air conditioner come with a remote control?
A: Yes, this air conditioner includes a remote control for convenient operation.
Q: Parents broke the installation part for AC do you sell the installation parts separately?
A: It depends on which part you need. If you're needing a replacement of the cut to size foam side panel, too bad. I accidentally cut mine too short, and GE won't sell replacement panels. Their installation kit only includes things like weatherstripping, not everything you need for installation. I called them and was essentially told the only way to get another foam panel is to buy another unit. All I can find is cheap alternatives that aren't as good.
A: The front of the PHNT10CC that hangs in the window is 8.45"; middle is 8"; rear is 11.4". -Don@GEAppliances
