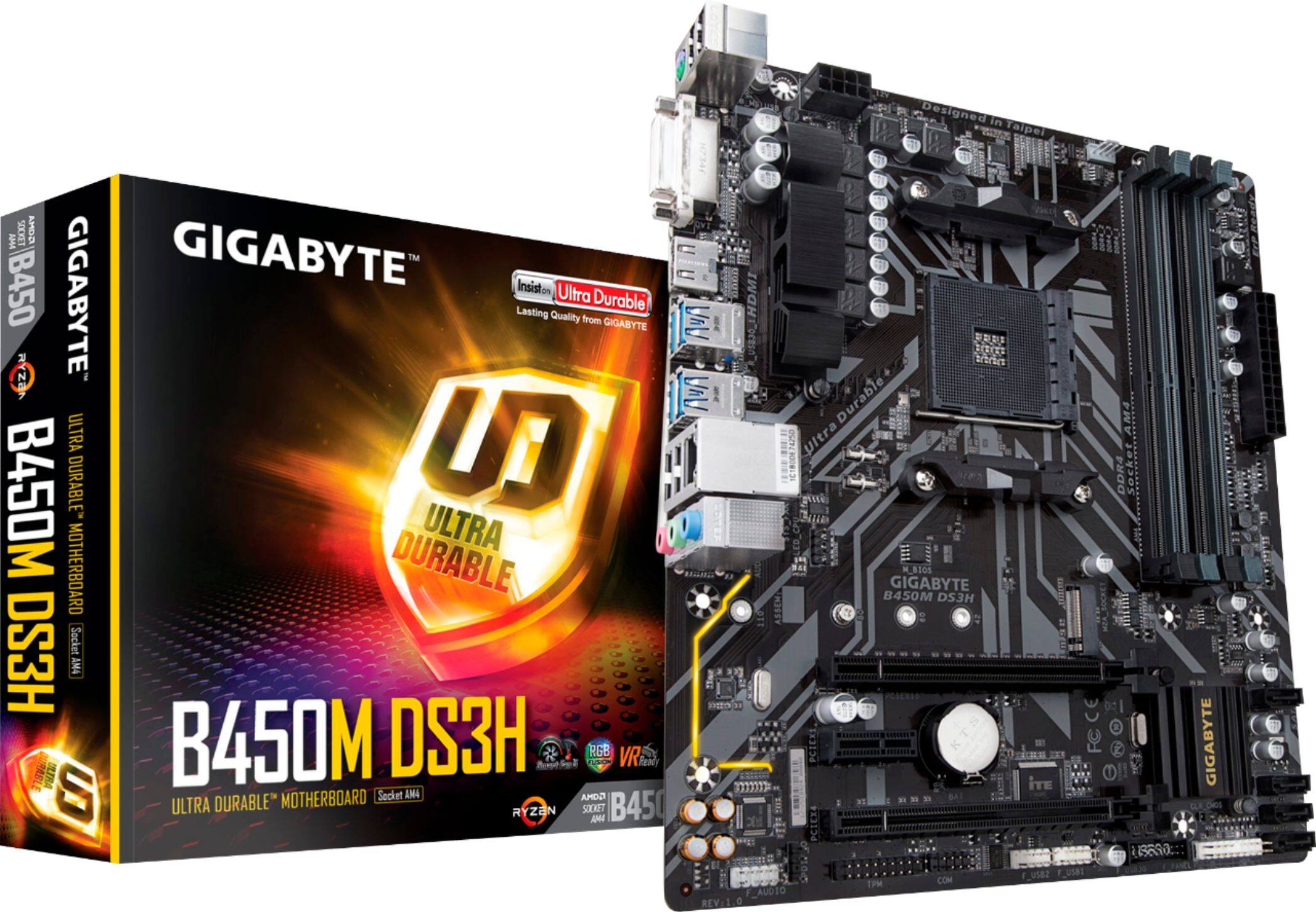

GIGABYTE - B450M DS3H (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
- Key Specs
- Chipset: AMD B450
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 64 gigabytes
- General
- Brand: GIGABYTE
- Model Number: B450M DS3H
- Product Name: B450M DS3H (Socket AM4) USB 3.1 Gen 1 AMD Motherboard with LED Lighting
- Compatibility
- Chipset: AMD B450
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM4 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 5 5000 Series, AMD Ryzen 7 5000 Series, AMD Ryzen 9 5000 Series, AMD G-Series
- Connectivity
- Power Connector: 24-pin main power connector, 8-pin ATX12V connector (The configuration of the connector as it connects the motherboard to a power supply unit.)
- Slot
- Number Of Memory Slots: 4
- Dimensions
- Product Length: 8.5 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Memory
- Maximum Memory Supported: 64 gigabytes
- Memory Slot Type: 288-pin DIMM
- Other
- UPC: 889523014196
Build a computer to meet your needs with this GIGABYTE motherboard. An AM4 socket supports select AMD Ryzen processors for speedy performance, while the four DIMM slots can handle up to 64GB of DDR4 RAM for simple upgrading. This GIGABYTE motherboard has three PCIe slots and support for AMD CrossFire, letting you install multiple graphics cards for high-resolution gaming.
- Supports AMD Ryzen processors: In an AM4 socket.
- Up to 3200MHz (OC) system speed: With an AMD B450 chipset for efficient operation.
- AMD CrossFireX and AMD Quad CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 1 PS/2 (mouse/keyboard), 1 audio line-in, 1 audio line-out, 1 microphone, 1 DVI-D, 1 HDMI, 4 USB 3.1 Gen 1 and 4 USB 2.0.
- Expansion capabilities: Include 1 PCI Express 3.0 x16, 1 PCI Express 2.0 x16, 1 PCI Express 2.0 x1.
- Supports AMD Ryzen processors: In an AM4 socket.
- Up to 3200MHz (OC) system speed: With an AMD B450 chipset for efficient operation.
- AMD CrossFireX and AMD Quad CrossFireX graphics support: Provides ultrarealistic image detail when gaming.
- Four 288-pin DDR4 SDRAM DIMM sockets: Support up to 64GB of system memory.
- Supports Realtek 8-channel audio: For an excellent sonic performance.
- Peripheral interfaces: Include 1 LAN (Gigabit Ethernet), 1 PS/2 (mouse/keyboard), 1 audio line-in, 1 audio line-out, 1 microphone, 1 DVI-D, 1 HDMI, 4 USB 3.1 Gen 1 and 4 USB 2.0.
- Expansion capabilities: Include 1 PCI Express 3.0 x16, 1 PCI Express 2.0 x16, 1 PCI Express 2.0 x1.
Whats Included
- Gigabyte B450M DS3H
- Software
- Gigabyte B450M DS3H
- Software
Product Manuals
Q: Does this motherboard ship with the latest BIOS update and support Ryzen 3rd gen out of the box?
A: Yes
A: The 3000 bios work with the 2000 AMD chips. So because it comes with the latest bios it will work for any AMD chip.
Q: Does the motherboard support AMD Athlon 3000 and how do I tell for future reference?
A: Yes, this motherboard does support the 3000, and you can tell by the pin configuration, or the “package”, as it’s called on the AMD website. AM4 is the default
Q: Will this motherboard support a Ryzen 5 1600AF?
A: Yeah Bc it’s a b450 motherboard, all b450 motherboards support the Ryzen 5 chipset series out of the box. The A320 Motherboards only support Ryzen 3 series Out of the box you’ll need to update the bios in order to support Ryzen 5 cpus
Q: Does this motherboard have a 3.5 audio jack?
A: It has a line in, line out, and microphone port which are all 3.5mm
Q: Can you hook up an aio cooler (nzxt x53) with this motherboard?
A: Hi Brian, Yes the cooler is fully compatible with our motherboard. You will have to make sure your PC chassis/tower supports a 240mm AIO (NZXT X53) Hope this helps! - John
