GIGABYTE - GeForce RTX 5060 OC Low Profile 8G Graphics Card, 8GB 128-bit GDDR7, PCIe 5.0, Supports up to 4 displays - Black
Hunkstar - Precision Screwdriver Sets, Magnetic Repair Tool Kit for iPhone, MacBook, Computer, Laptop, Tablet, PS, Xbox, Nintendo - 142 Piece with 120 BitsBlack Friday Deal$29.99$49.99
More Buying Options
Specifications
- GPU Base Clock Frequency2.497 gigahertzGPU Boost Clock Frequency2.512 gigahertzDisplayPort Ports2 x DisplayPort 2.1HDMI Ports1 x HDMI 2.1Maximum Resolution8K (4320p)Maximum Number of Displays Supported4
- Key Specs
- GPU Base Clock Frequency: 2.497 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.512 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Product Height: 36 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 69 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 182 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- General
- Brand: GIGABYTE
- Model Number: GV-N5060OC-8GL
- Product Name: GIGABYTE GeForce RTX 5060 OC Low Profile 8G Graphics Card, 8GB 128-bit GDDR7, PCIe 5.0, Supports up to 4 displays
- Color: Black
- GPU Chipset Manufacturer: NVIDIA
- Graphics Processing Unit (GPU): NVIDIA GeForce RTX 5060 (Often referred to as a graphics card, a graphics processing unit (GPU) is the electronic circuitry responsible for manipulating and processing computer graphics/images and accelerating video decoding. Ultimately, a powerful GPU will provide a boost for anything involving visuals, including games, graphic design, and video editing.)
- Year of Release: 2025
- Performance
- GPU Base Clock Frequency: 2.497 gigahertz (The minimum rate at which the graphics controller is guaranteed to operate.)
- GPU Boost Clock Frequency: 2.512 gigahertz (The maximum ideal rate at which the graphics controller is able to operate, typically only for a short period of time.)
- Cooling System: Fan (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
- Connectivity
- DisplayPort Ports: 2 x DisplayPort 2.1 (The number and type of DisplayPort outputs the product has.)
- HDMI Ports: 1 x HDMI 2.1 (The number and type of HDMI outputs the product has.)
- Display
- Maximum Resolution: 8K (4320p) (The highest display resolution that the graphics card(s) can support.)
- Maximum Number of Displays Supported: 4
- Advanced Graphics Rendering Technique(s): DLSS 4 (Deep Learning Super Sampling), Ray tracing (Imaging technology designed to improve graphics rendering.)
- Memory
- GPU Video Memory (RAM): 8 gigabytes (Random-access memory (RAM) is a GPU’s, or graphics cards, short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the GPU can handle large amounts of information at one time. For example, larger amounts of RAM for gaming or video editing increases performance.)
- GPU Video Memory Type (RAM): GDDR7 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- GPU Video Memory Base Clock Frequency (RAM): 28 gigahertz
- Compatibility
- Slot Size: 2-slot (A graphics card only requires one PCIe/PCI slot for connection to the motherboard but, depending on size, may block other slots. The slot size listed by the manufacturer is therefore not an exact measurement of the card's size but an indication of how much clearance will be available after it is installed.)
- PCI Express Version: PCI Express 5.0
- Operating System Compatibility: Windows
- Power
- Total Graphics Power: 145 watts
- Recommended Power Supply: 450 watts
- Dimensions
- Product Height: 36 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 69 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 182 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.73 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 889523050699
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5060 OC Low Profile 8G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 5060 OC Low Profile 8G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 8 GB of GDDR7 memory.
- Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 5060 graphics processing unit (GPU).
- Video Memory: 8GB GDDR7.
- Interface Compatibility: PCI Express 5.0.
- NVIDIA GeForce Technology: NVIDIA Blackwell architecture and DLSS 4.
- HDMI And Display Port Outputs: HDMI x 1, DP x 3.
- Series: NVIDIA GeForce "Blackwell" RTX 50-series.
- Low Profile 2.0 Slot Design: At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.
- Thermal Solution: Features server-grade thermal conductive gel, innovative Hawk fans with alternative spinning 3D active fans.
- Graphics Processing Unit (GPU)/Clock Speed: Powered by the NVIDIA GeForce RTX 5060 graphics processing unit (GPU).
- Video Memory: 8GB GDDR7.
- Interface Compatibility: PCI Express 5.0.
- NVIDIA GeForce Technology: NVIDIA Blackwell architecture and DLSS 4.
- HDMI And Display Port Outputs: HDMI x 1, DP x 3.
- Series: NVIDIA GeForce "Blackwell" RTX 50-series.
- Low Profile 2.0 Slot Design: At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs.
- Thermal Solution: Features server-grade thermal conductive gel, innovative Hawk fans with alternative spinning 3D active fans.
Whats Included
- GIGABYTE GeForce RTX 5060 OC Low Profile 8G GDDR7 PCI Express 5.0 Graphics Card
- User Manual Quick Guide
- Low Profile Bracket
- GIGABYTE GeForce RTX 5060 OC Low Profile 8G GDDR7 PCI Express 5.0 Graphics Card
- User Manual Quick Guide
- Low Profile Bracket
Q: What is the recommended power supply for this card?
A: The recommended power supply is 450 watts.
Q: Are there HDMI outputs on this graphics card?
A: Yes, there is one HDMI output on this graphics card.
Q: Does this graphics card have DLSS 4 support?
A: Yes, this graphics card supports DLSS 4.
Q: What is the boost clock frequency of the GPU?
A: The GPU boost clock frequency is 2.512 gigahertz.
Q: How many displays does this graphics card support?
A: This graphics card supports up to four displays.
Q: What type of memory does the video card have?
A: The video card has 8GB of GDDR7 memory.
Q: Does this graphics card use PCI Express 5.0?
A: Yes, this graphics card uses PCI Express 5.0.
Q: Does this card use pci power or does it require a separate psu?
A: Needs a single(1) 8-Pin connector from power supply.
Compare similar products
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5060 OC Low Profile 8G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 5060 OC Low Profile 8G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 8 GB of GDDR7 memory.
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 16G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 5060 Ti WINDFORCE OC 16G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 16 GB of GDDR7 memory.
Ahead of its time, ahead of the game is the GIGABYTE GeForce RTX 5050 OC Low Profile 8G Graphics Cards. Powered by NVIDIA's new RTX architecture, the GIGABYTE GeForce RTX 5050 OC Low Profile 8G brings stunning visuals, amazingly fast frame rates, and AI acceleration to games and creative applications with its enhanced RT Cores and Tensor Cores, along with a staggering 8GB 128-bit GDDR6 memory.
Experience Primal performance with the Prime GeForce RTX 5060 OC Edition, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling .
| Pros for GIGABYTE - GeForce RTX 5060 OC Low Profile 8G Graphics Card, 8GB 128-bit GDDR7, PCIe 5.0, Supports up to 4 displays - Black | |||
|---|---|---|---|
| Size | Performance, Temperature | There were no pros for this product— | Graphics Performance |
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Hopes for 130w RTX PRO 4000 24GB sff variant
Decent performing Low Profile Gaming GPU Surprisingly quiet for the little fans dissipating 140w Really makes me wish Gigabyte would apply same cooling and power delivery to RTX Pro Blackwell 4000 24GB SFF (Even if only 130W tdp to match non-sff 4000 Blackwell) Would still be quiet and be a very compact and GPU-power dense GB203 with more than just PCIe slot power.
Posted by MarianoM
- Rated 5 out of 5 stars

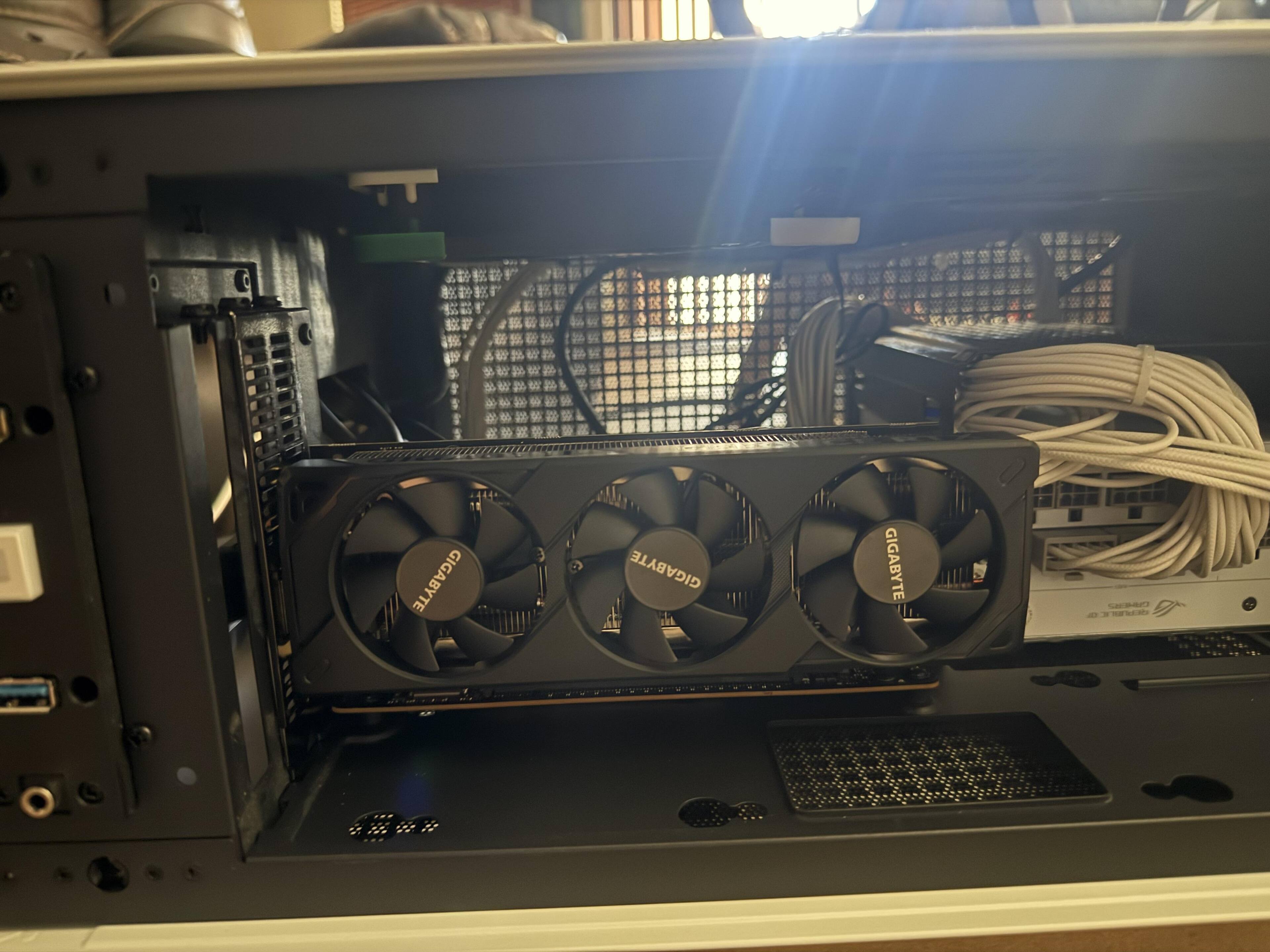

Amazing for the size
look, we get it... 8gb vram and the 5060 lacks the RAW power of bigger gpus. but this thing is tiny. it runs on a single pci cable, and fits into your old family pc. you can beef up the GPU performance of really any system with this thing so long as they have asingle power cable.
Posted by Beau
- Rated 5 out of 5 stars
Mini GPU - 3 fans cool mini video card
The Gigabyte 5060 small form factor looks just like its bigger brothers except shrunk down. Cute.
Posted by LaBrother
