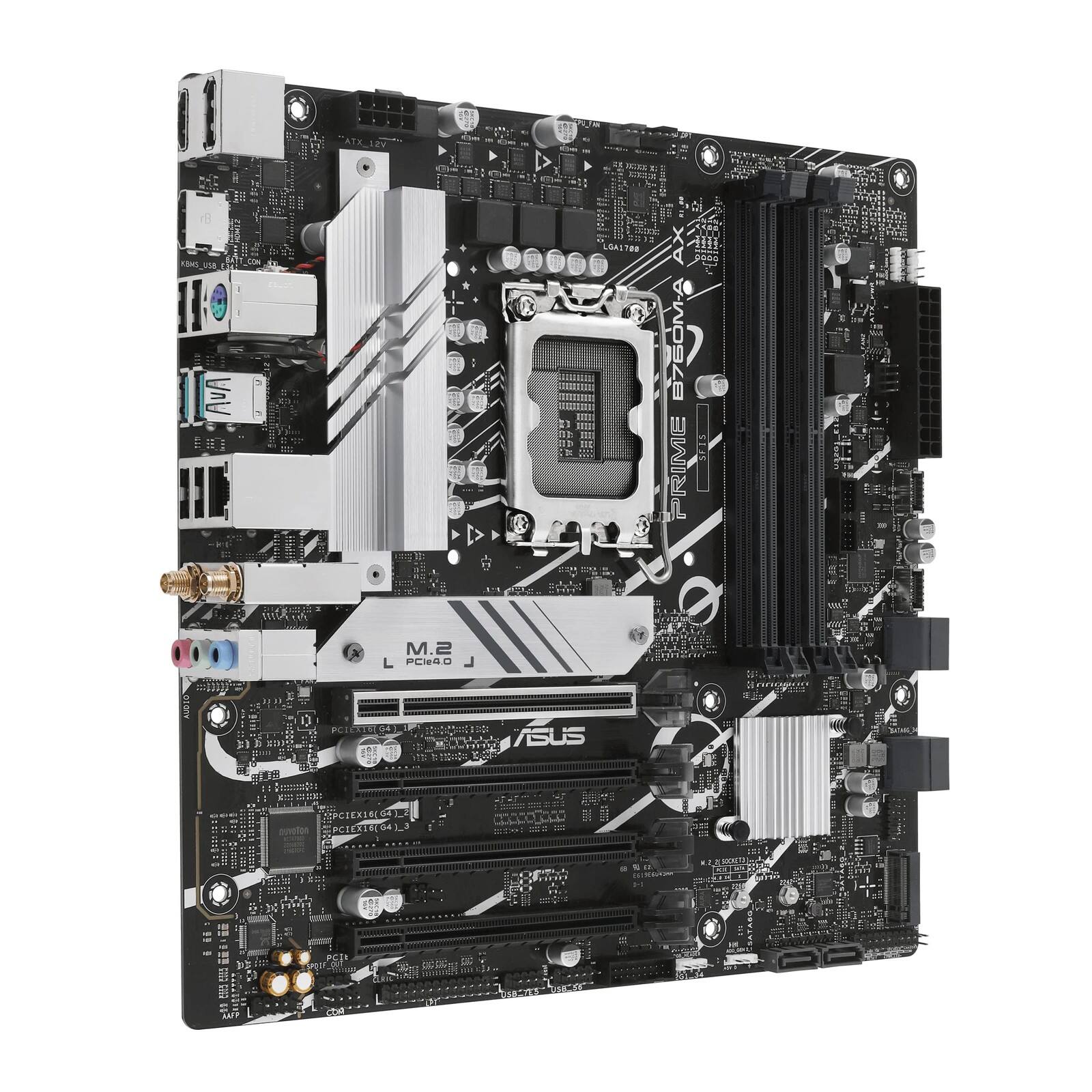

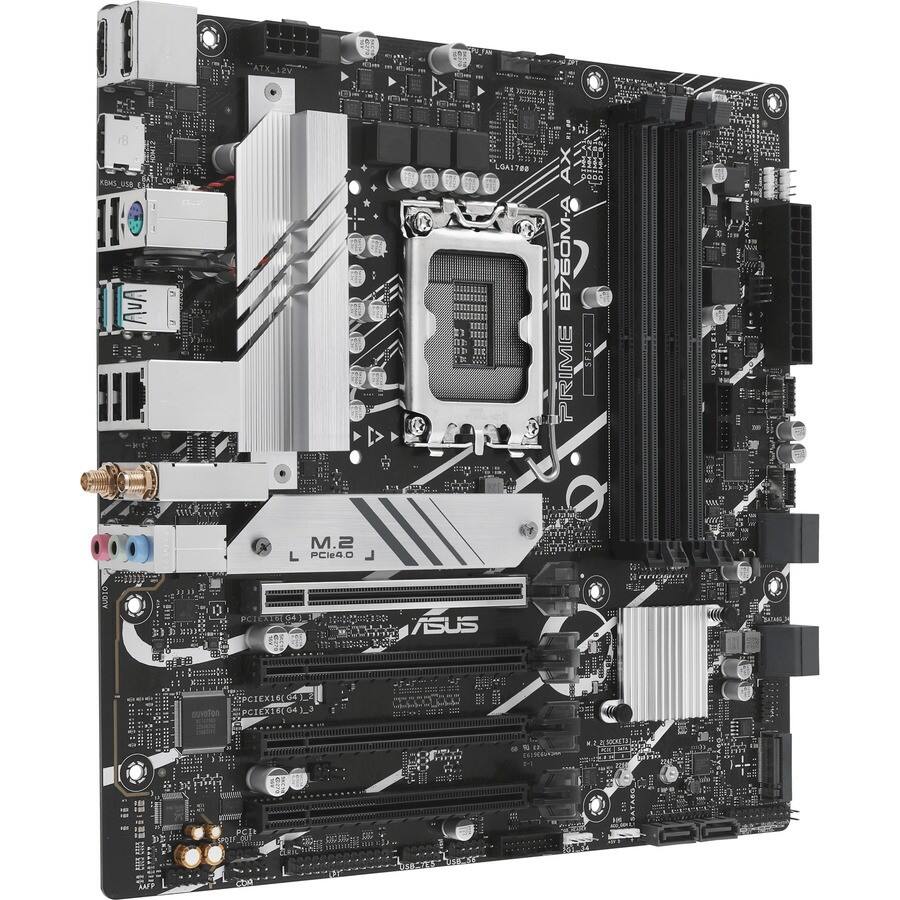

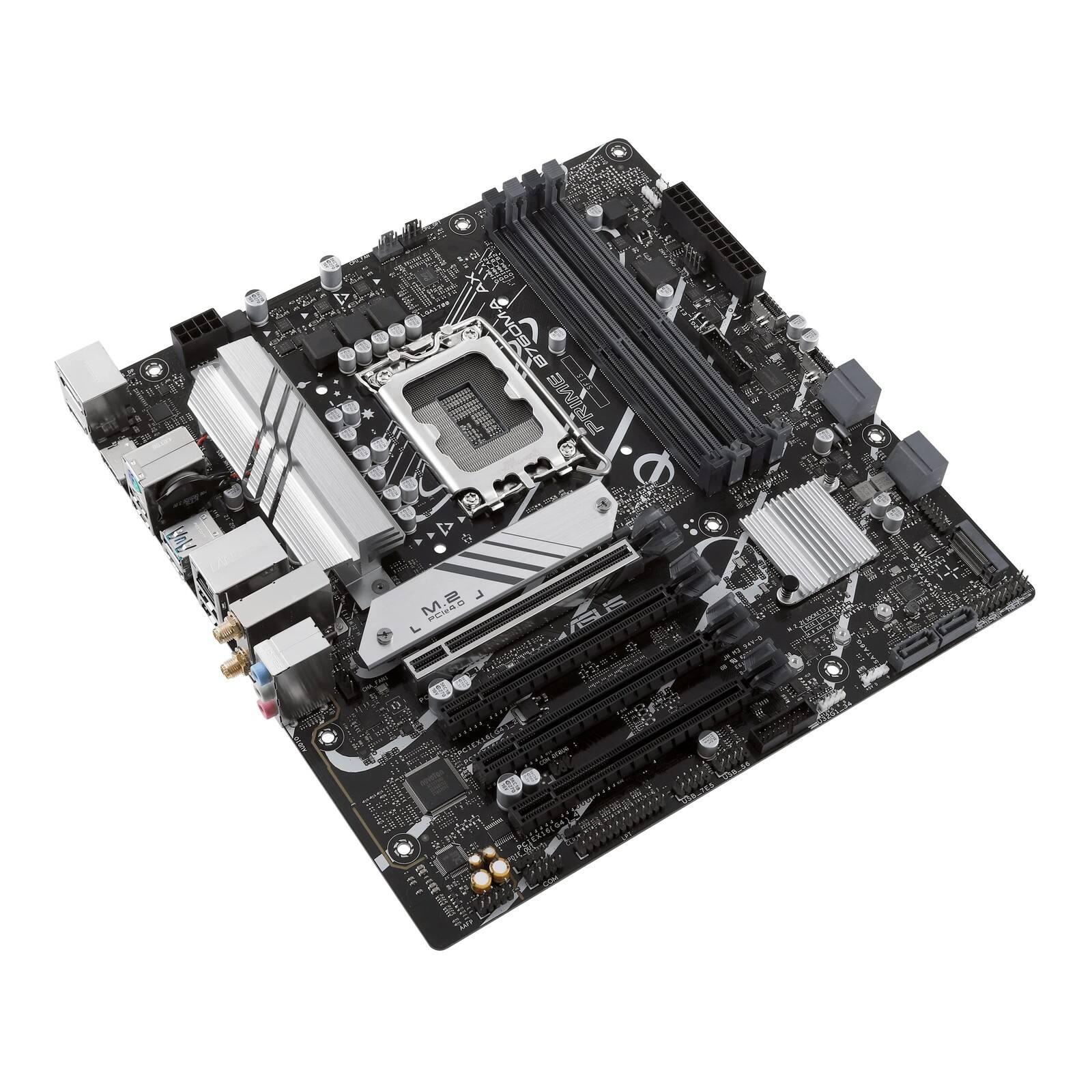

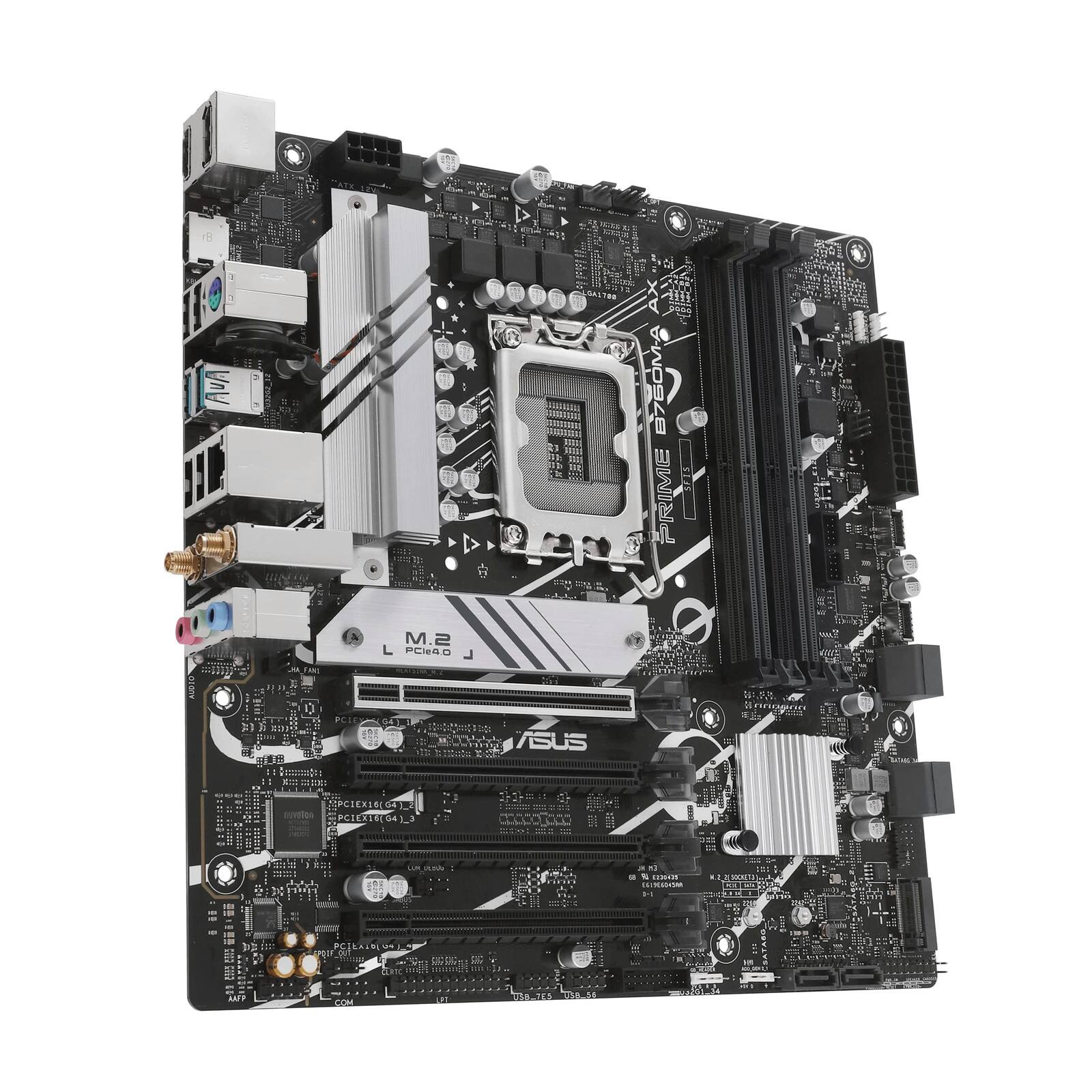

ASUS - PRIME B760M-A AX Desktop Motherboard
FREE shipping to
Related Item
Specifications
- ChipsetIntel B760Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 6Number Of Memory Slots4Maximum Memory Supported128 gigabytes
- Key Specs
- Chipset: Intel B760
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: ASUS
- Product Name: PRIME B760M-A AX Desktop Motherboard
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Pentium Gold
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 4
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-C 3.2, 4 x USB-A 3.2, 4 x USB-A 2.0 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 9.6 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 2.0 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 128 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 197105079007
The PRIME B760M-A AX Desktop Motherboard is engineered to unleash the full potential of 12th and 13th Gen Intel Core processors. It offers robust power design, comprehensive cooling solutions, and intelligent tuning options, providing users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
- Processor Compatibility: Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors with Intel Turbo Boost Technology 2.0 and 3.0.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 128GB of DDR5 memory at speeds up to 7200MHz (OC).
- Expansion Slots: Features 1 PCIe 4.0 x16 slot, 1 PCIe 4.0 x16 slot (x4 mode), and 2 PCIe 4.0 x16 slots (x1 mode).

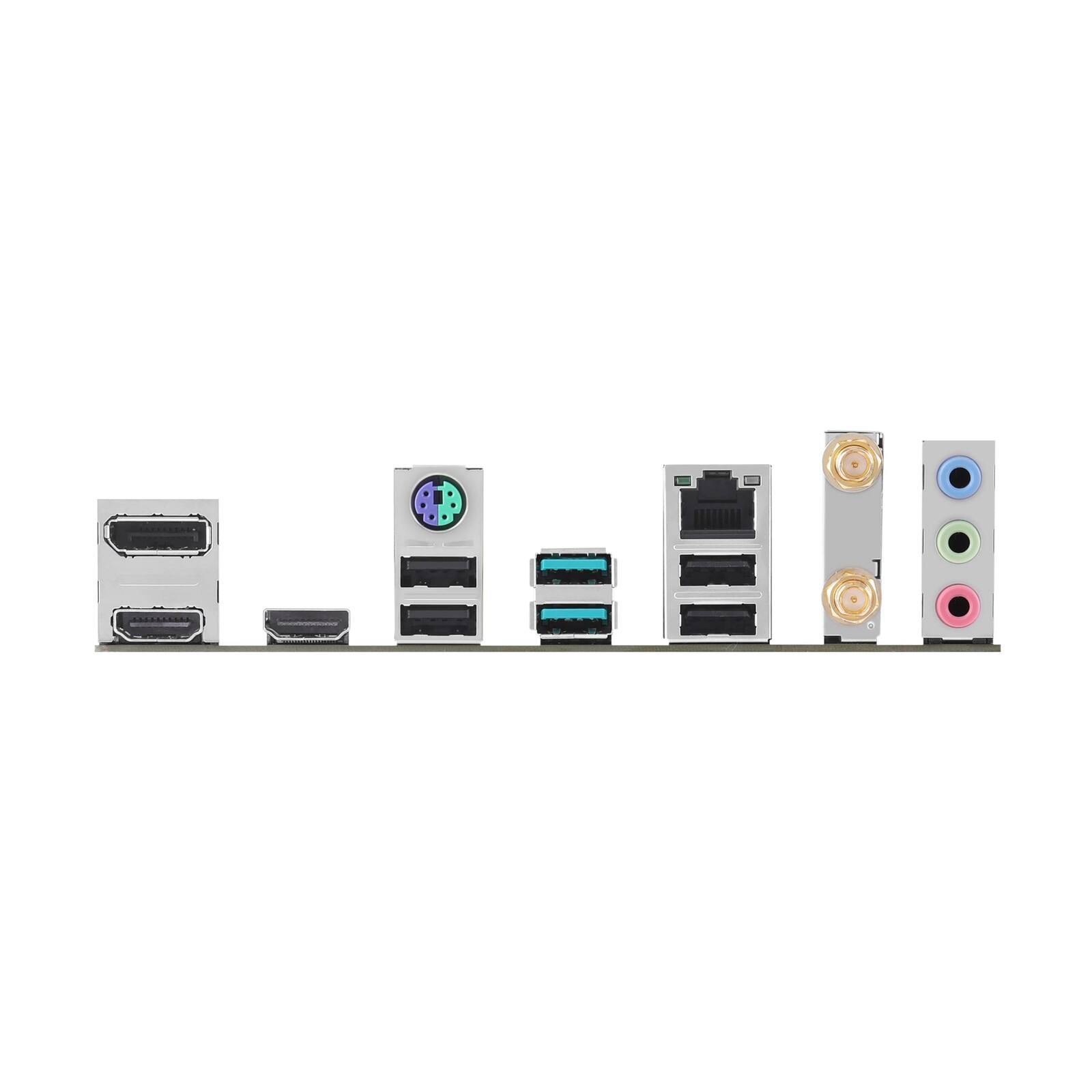

- Connectivity Options: Includes 2 USB 3.2 Gen 2 Type-A ports, 4 USB 2.0 ports, 1 USB 3.2 Gen 1 Type-C port, 2 HDMI ports, 1 DisplayPort, and Realtek 2.5Gb Ethernet.
- Wireless Capabilities: Offers Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for enhanced wireless connectivity.
- Processor Compatibility: Supports 12th and 13th Gen Intel Core, Pentium Gold, and Celeron processors with Intel Turbo Boost Technology 2.0 and 3.0.
- Memory Support: Equipped with 4 DIMM slots, supporting up to 128GB of DDR5 memory at speeds up to 7200MHz (OC).
- Expansion Slots: Features 1 PCIe 4.0 x16 slot, 1 PCIe 4.0 x16 slot (x4 mode), and 2 PCIe 4.0 x16 slots (x1 mode).
- Connectivity Options: Includes 2 USB 3.2 Gen 2 Type-A ports, 4 USB 2.0 ports, 1 USB 3.2 Gen 1 Type-C port, 2 HDMI ports, 1 DisplayPort, and Realtek 2.5Gb Ethernet.
- Wireless Capabilities: Offers Wi-Fi 6 (802.11ax) and Bluetooth 5.2 for enhanced wireless connectivity.
