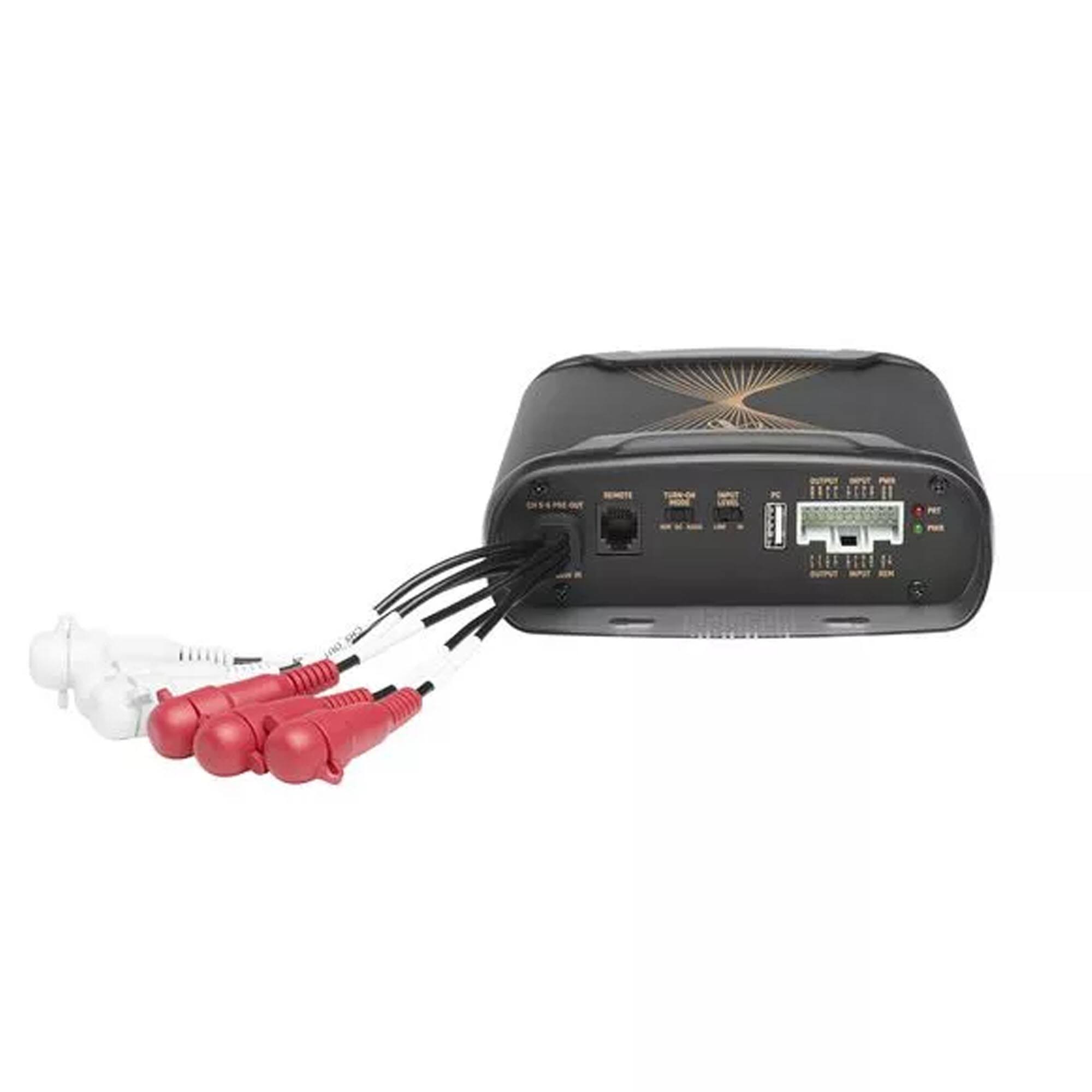

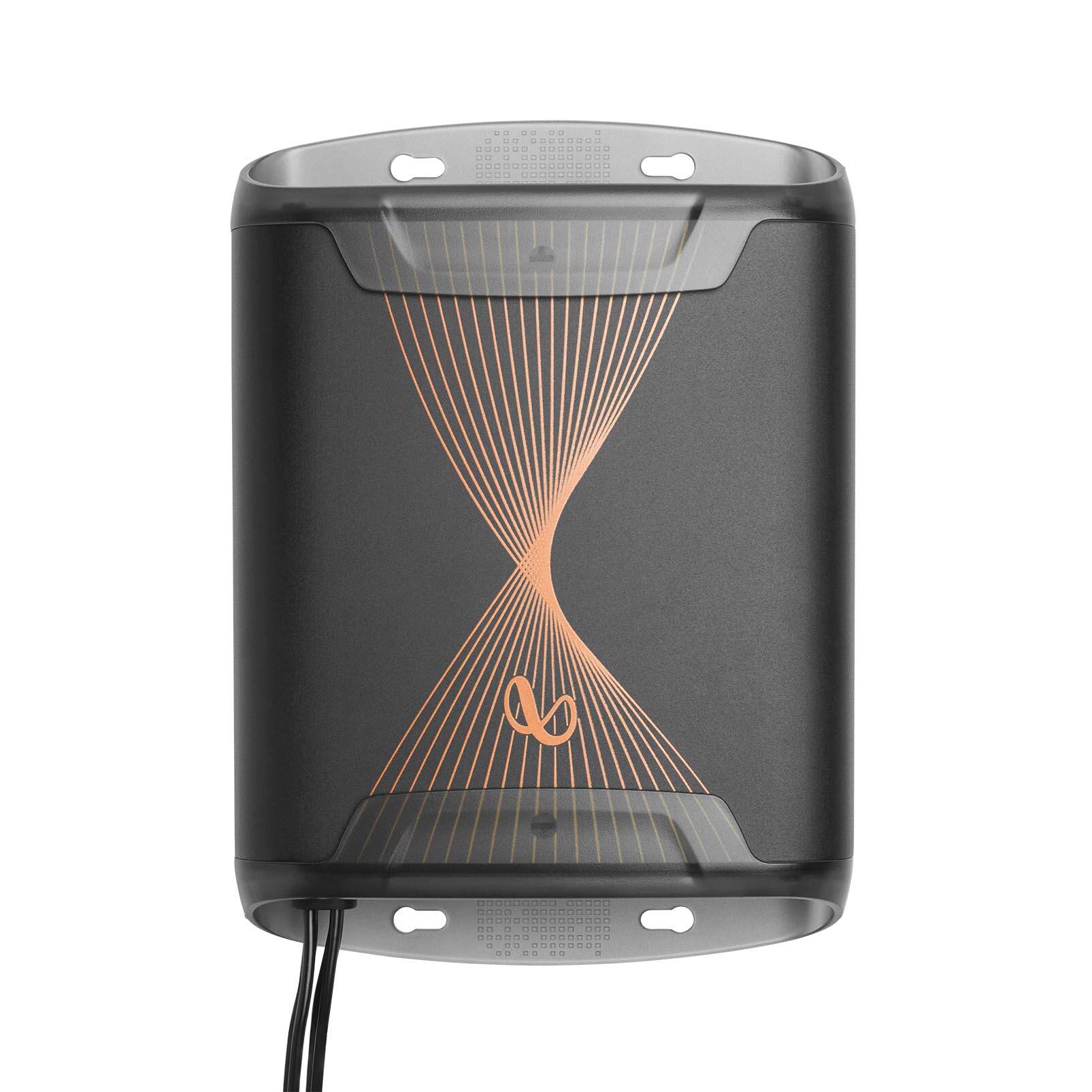

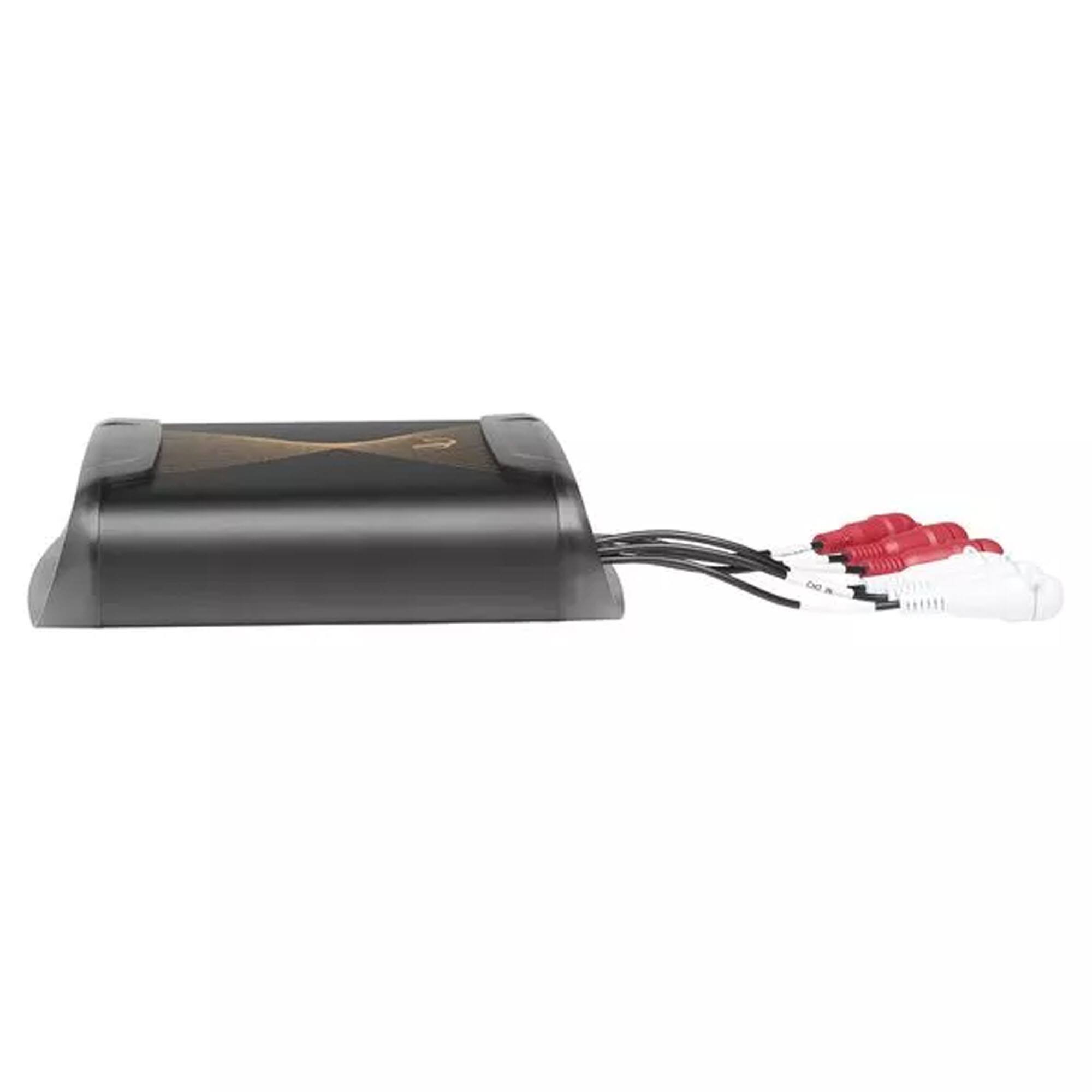

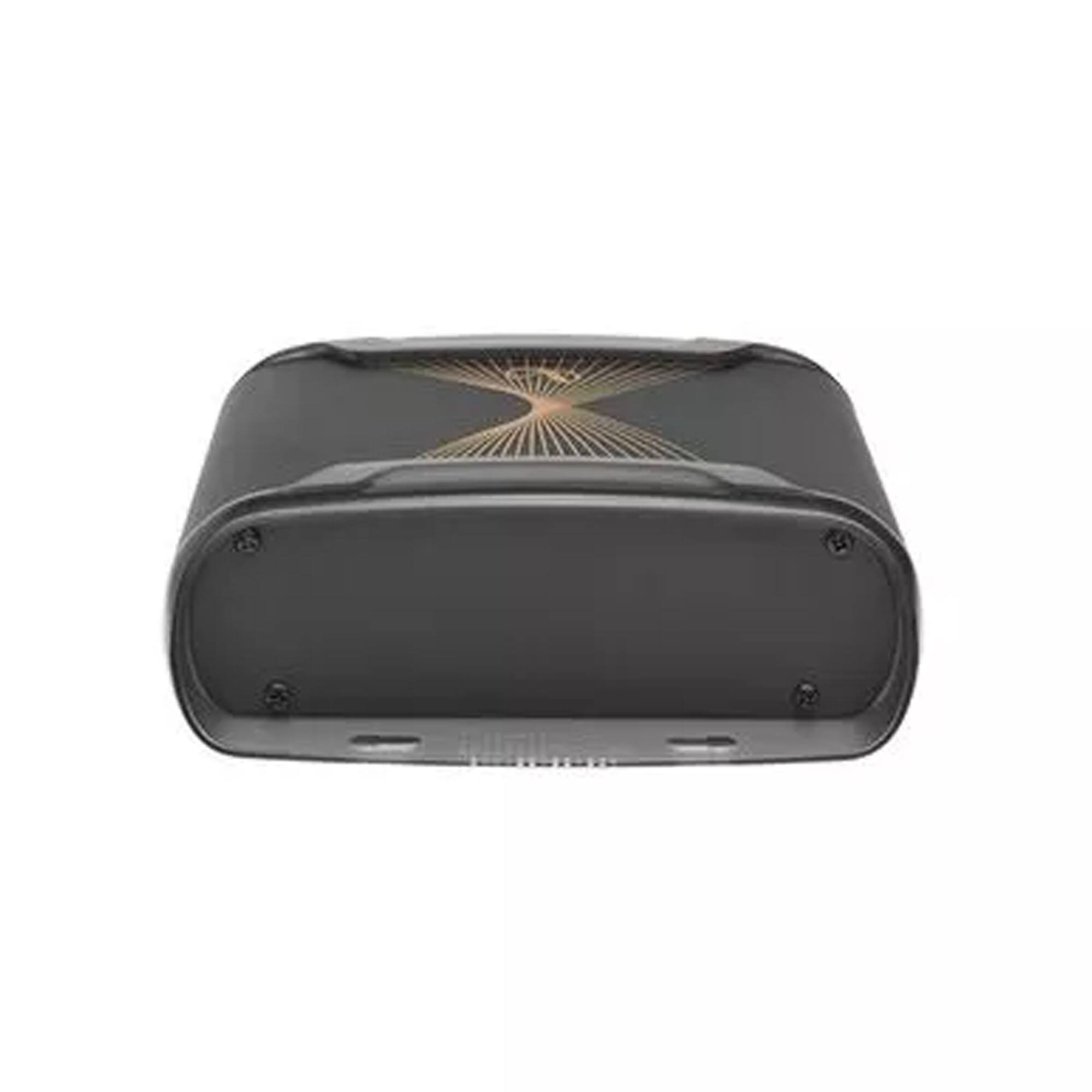

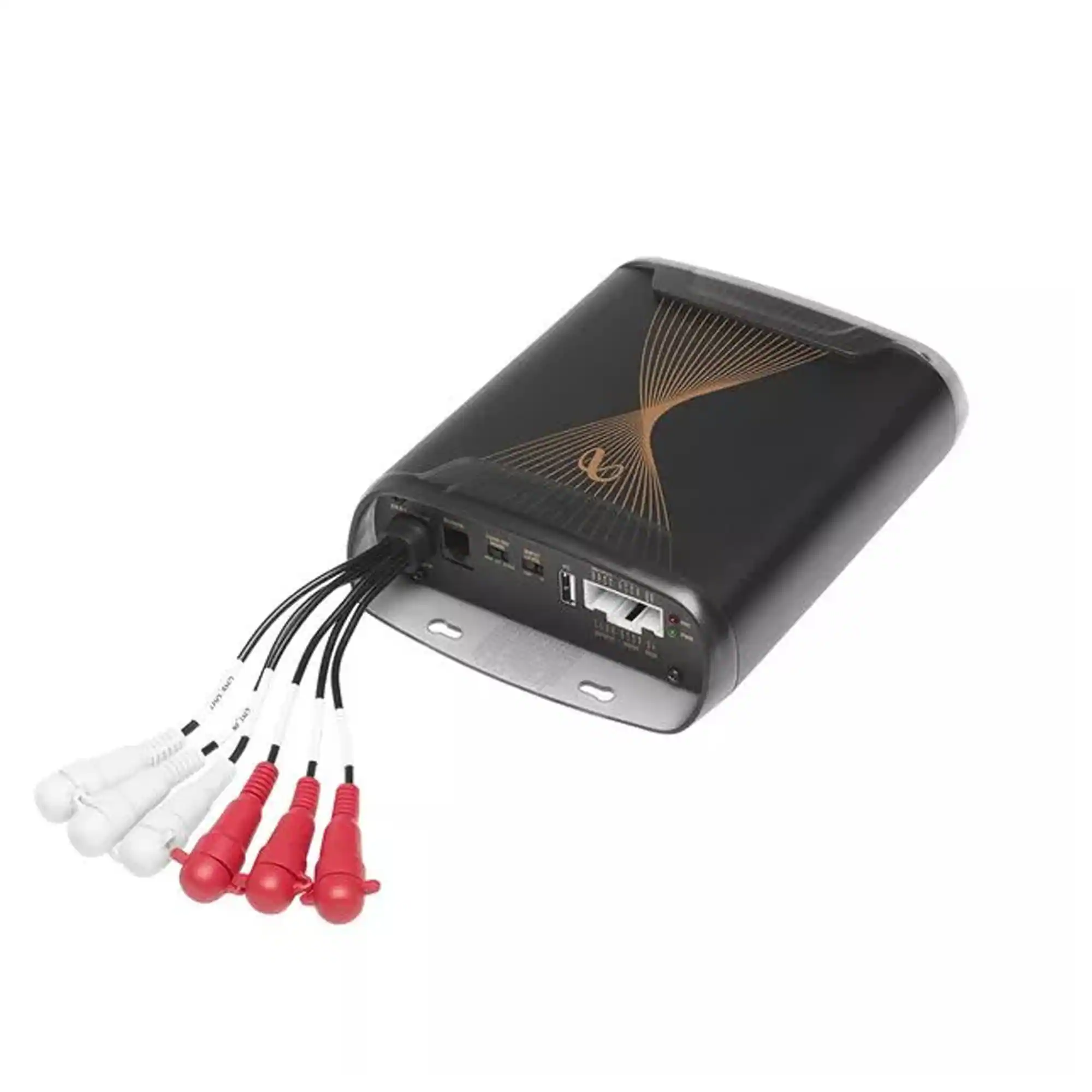

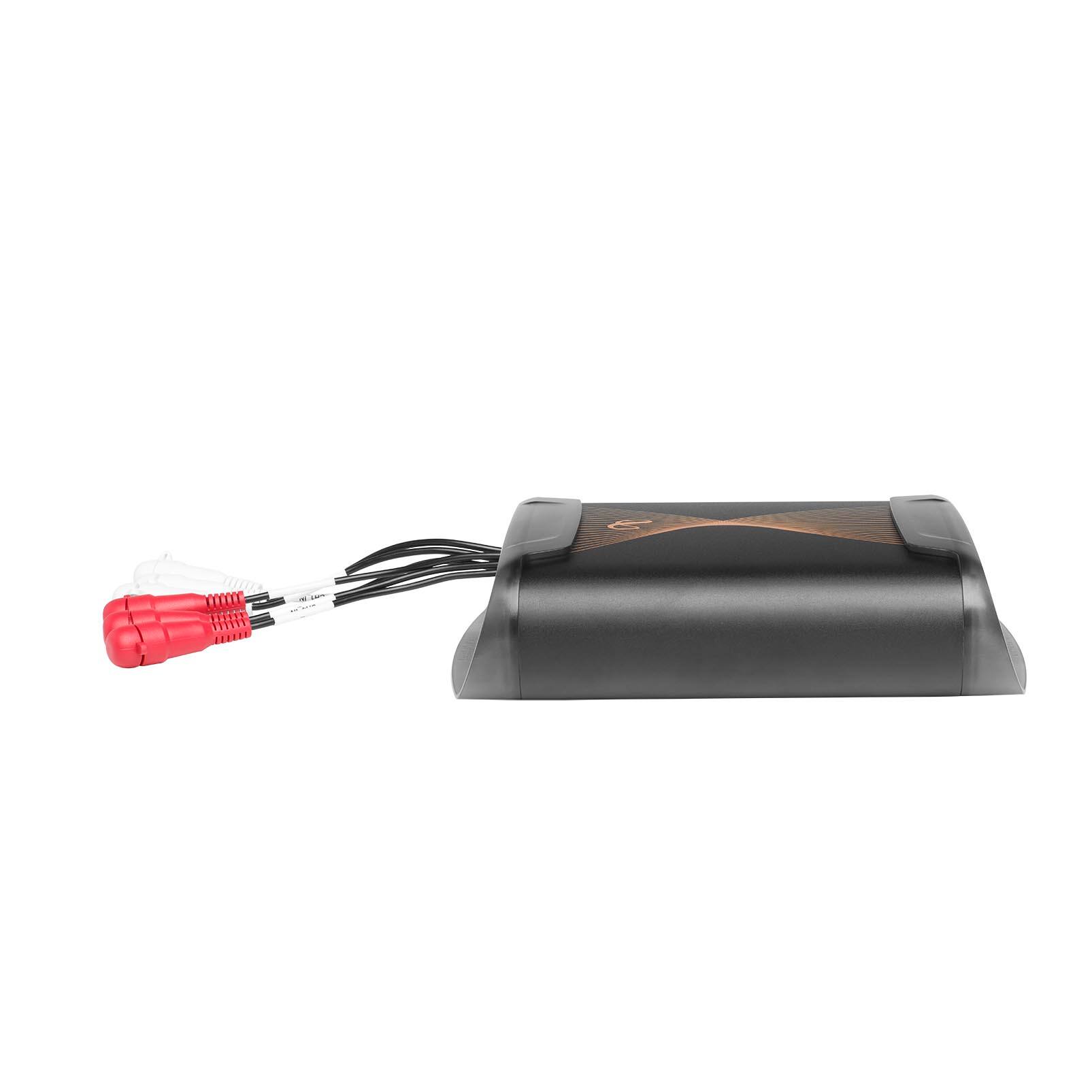

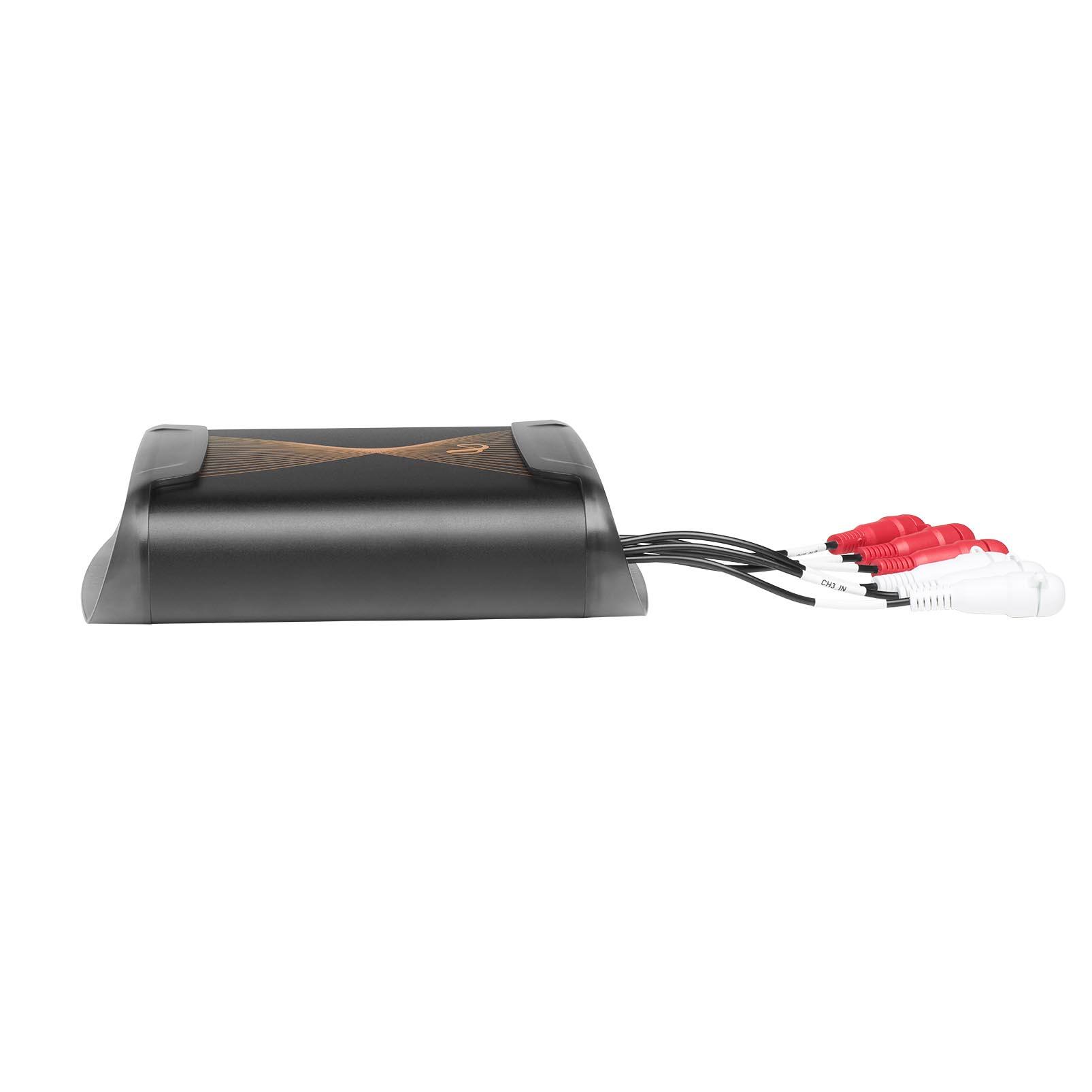

Infinity - INFDSP4425AM 4-Channel Class A/B Amplifier Design, with 2-Channel Pre-Amp Outputs & Digital Signal Processing - Black/Gray
Infinity - INFDSP4425AM 4-Channel Class A/B Amplifier Design, with 2-Channel Pre-Amp Outputs & Digital Signal Processing - Black/Gray
Specifications
- Amplifier ClassDNumber Of Channels4Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: Infinity
- Model Number: INFDSP4425AM
- Product Name: Infinity INFDSP4425AM 4-Channel Class A/B Amplifier Design, with 2-Channel Pre-Amp Outputs & Digital Signal Processing
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 140 watts
- Total Power Handling Maximum: 280 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 18.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 8.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 14.000 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 050667376628
Infinity DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 4-channel audio inputs, 4-channel powered audio outputs, 2-channel pre-amp outputs, easy to use tuning interface and detailed tuning capabilities to satisfy any enthusiast. With a USB connection to access the tuning interface using a windows PC, you can control fully variable crossovers, selectable 0-to-48dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input to output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted and abilty to save up to 10 presets. Small footprint, All-In-One Class A/B Amplifier with DSP Control - Infinity DSP Amplifier has everything you need to create a professional sound quality audio system with the ability to mount your amplifier in tight spaces. Everything You Need to Get Started - Infinity DSP Amplifier has everything you need to create an audio system, or expand your existing one, plus the ability to add more power by using it as a line driver when you are ready for your next power upgrade. Versatile Connectivity - Balanced differential inputs to provide you with best sound quality & noise rejection, and accepts RCA or speaker-level inputs so it will integrate into almost any system. Plus, all wire connections are conveniently labeled to make installation a cinch. Convenient Bass Control - Wired remote control (sold separately) allows for quick adjustment of low frqequency output with -30 to +6dB adjustment directly from the driver's seat. Conformal Coated PCB - Your Infinity DSP Amplifier is engineered to withstand harsh conditions present in a wide variety of applications, using conformal coated circuit boards to ensure flawless power delivery, year after year.
- Key Feature: Max Power: 200W Peak
- Key Feature: RMS Power Output @ 4 Ohms: 25W x 4, <10% THD+N
- Key Feature: Full-Range Pre-Amp Outputs: 2-Channel
- Key Feature: Selectable EQ Adjustment: Parametric or Graphic
- Key Feature: Signal-to-Noise Ratio: >80dB @ 4 Ohms
Whats Included
- Infinity INFDSP4425AM 4-Channel Class A/B Amplifier Design, with 2-Channel Pre-Amp Outputs & Digital Signal Processing
