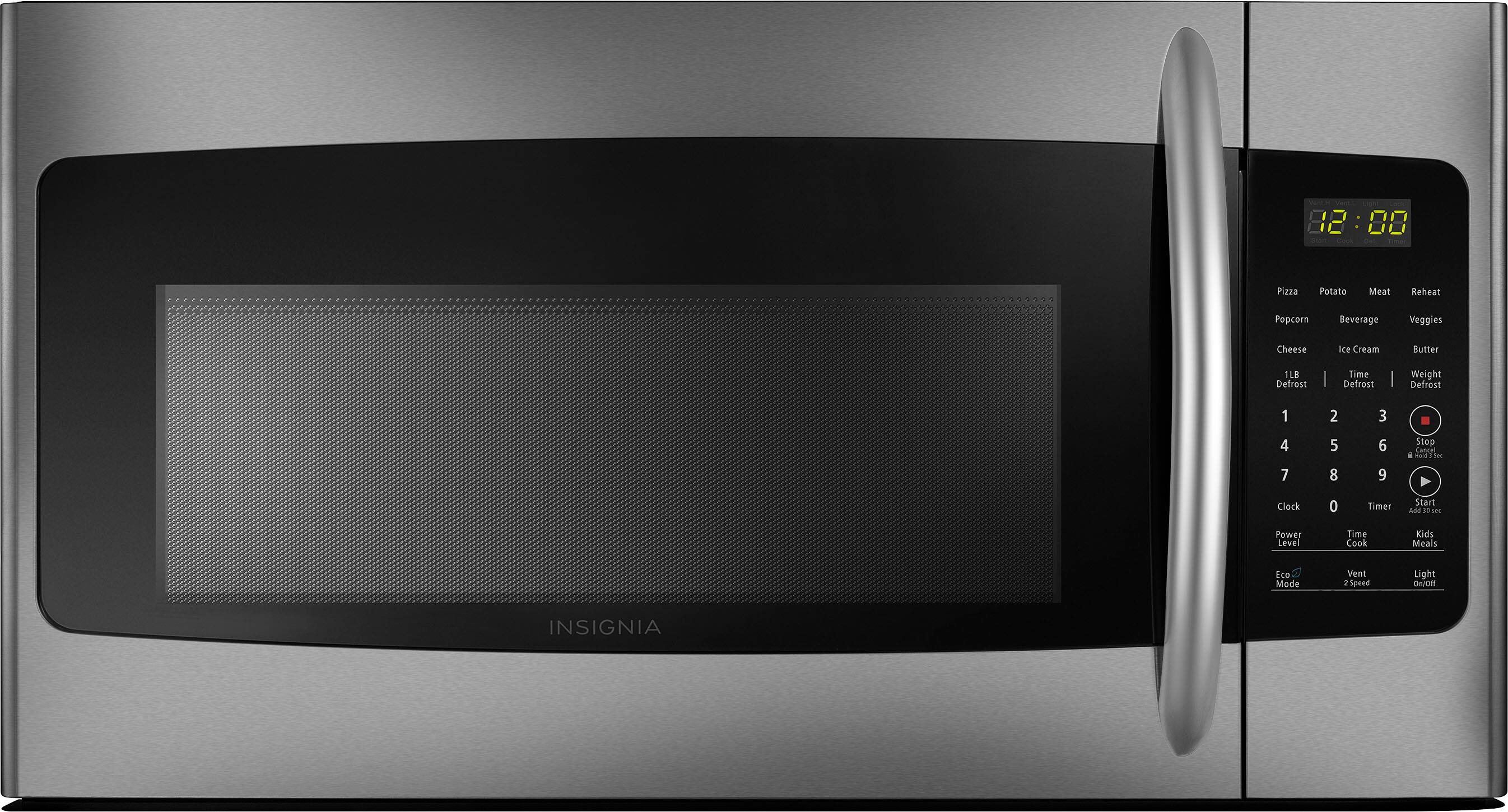

Insignia™ - 1.6 Cu. Ft. Over-the-Range Microwave - Stainless Steel
- Key Specs
- Color Finish: Stainless steel
- Product Height: 17 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Turntable Diameter: 12 7/16 inches
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Wattage: 950 watts (Measurement of electrical power.)
- General
- Brand: Insignia™
- Model Number: NS-OTR16SS8Q
- Product Name: 1.6 Cu. Ft. Over-the-Range Microwave
- Color: Stainless Steel
- Color Finish: Stainless steel
- Dimensions
- Product Height: 17 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 30 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 18 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 55.1 pounds (The out of box weight of the item.)
- Cut-Out Dimensions
- Cut-Out Height: 17 3/4 inches (Minimum required height of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Cut-Out Width: 11 1/16 inches (Minimum required width of the installation location for a standard installation of the product. This measurement will help you determine if the appliance will fit into the desired space and have the clearance necessary for proper operational use. Please refer to the manufacturer’s installation documentation for detailed measurement requirements.)
- Capacity
- Capacity: 1.6 cubic feet
- Microwave Size: Full-size
- Connectivity
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Features
- Microwave Type: Over-the-range (Each microwave style has its own benefits. Built-in, over-the-range, and drawer style microwaves help save counter space. Over-the-range microwaves also provide necessary ventilation in place of a range hood. Countertop microwaves allow versatility in placement and do not require professional installation.)
- Fingerprint Resistant: false
- Timer: true
- Child Lock: true (Setting that allows appliance to be temporarily locked to prevent use.)
- Turntable: true (Rotating plate within the microwave cooking cavity that helps foods cook more evenly.)
- Removable Turntable: true
- Turntable Diameter: 12 7/16 inches
- Interior Light(s): true
- Cooktop Lighting: true (A light that illuminates the cooktop below.)
- Nightlight: true
- Controls
- Control Type: Button
- Sensor Cook: false (This feature uses sensors to detect steam and moisture levels emitted from cooking food to adjust cook time and power level accordingly.)
- Display Type: LED
- Number of Preset Programs: 10
- Number of Fan Speeds: 2
- Number of Power Levels: 10
- Turntable On/Off Option: false
- Functions
- Oven Cooking Modes: Defrost
- Oven Preset Settings: Other
- Filter Info
- Filter Type: Charcoal
- Removable Filter: true
- Ventilation
- Vent Style: Recirculating (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Exhaust Vent Location: Top, Rear
- Electrical Specification
- Amperage: 13.5 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Wattage: 950 watts (Measurement of electrical power.)
- Power Consumption: 1500 watts
- Certifications Listings & Approvals
- CEE Qualified: false (Rated by the Consortium for Energy Efficiency.)
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Chemical Disclosures: This product contains: iron, copper, silica dust, crystalline, in the form of quartz or cristobalite and diboron trioxide. For more information about PFAS or chemicals in this product, visit: https://www.bestbuy.com/ChemicalDisclosure Este producto contiene: hierro, cobre, polvo de sílice, cristalino, en forma de cuarzo o cristobalite y trióxido de diboro. Para más información sobre PFAS o sustancias químicas en este producto, visite: https://www.bestbuy.com/ChemicalDisclosure (The disclosure of Per- and Polyfluorinated Substances (PFAS) and/or other chemicals.)
- Warranty
- Warranty - Parts: 1 Year
- Warranty - Labor: 1 Year
- Other
- UPC: 600603216183
Give your kitchen the upgrade it needs with the appliances it deserves. The Insignia NS-OTR16SS8Q 1.6 Cu. Ft. Over-the-Range Microwave has 950W of power and a 1.6 cu. ft. interior that makes it perfect to cook or reheat meals for the entire family. Ten auto-cook settings and power levels, a defrost setting and a two-speed exhaust fan grant ideal heating for any type of dish and occasion. Control it all with a simple and straight-forward digital LED display and pre-labeled buttons. A removable 12.4 in. glass turntable ensures that your food is evenly heated and makes cleaning the inside of the microwave easy. Offering a modern design, this Insignia over-the-range microwave does all this and saves you counter space while adding an expensive feel and touch to your kitchen décor.
- 1.6 cu. ft. interior: Cook or reheat large meals with a spacious interior.
- Over-the-range design: Saves you countertop space and adds a modern look to your kitchen.
- Two-speed exhaust fan: Vents through the top, back or recirculates to ensure an even cook.
- 10 auto-cook settings: Pre-labeled buttons allow you to easily heat your favorite foods in minimal time.
- 30-second express cooking: Heat your food with one simple button press or use to add cook time.
- Removable 12.4-inch (31.5 cm) glass turntable: Automatically rotates to evenly heat food and provides easy cleaning.
- 10 power levels: Heat your foods to perfection.
- 950 watts of power: Quickly cook or reheat meat, vegetables, pasta and more at the touch of a button.
- Task lighting: Illuminates your stovetop to help you multitask.
- Digital LED display with buttons: Easy to operate and control.
- Defrost setting: Quickly thaws frozen items when you need them.
- Lock function: Keeps your children safe.
- Energy saving (eco) mode: Conserves electricity and saves you money.
- 1.6 cu. ft. interior: Cook or reheat large meals with a spacious interior.
- Over-the-range design: Saves you countertop space and adds a modern look to your kitchen.
- Two-speed exhaust fan: Vents through the top, back or recirculates to ensure an even cook.
- 10 auto-cook settings: Pre-labeled buttons allow you to easily heat your favorite foods in minimal time.
- 30-second express cooking: Heat your food with one simple button press or use to add cook time.
- Removable 12.4-inch (31.5 cm) glass turntable: Automatically rotates to evenly heat food and provides easy cleaning.
- 10 power levels: Heat your foods to perfection.
- 950 watts of power: Quickly cook or reheat meat, vegetables, pasta and more at the touch of a button.
- Task lighting: Illuminates your stovetop to help you multitask.
- Digital LED display with buttons: Easy to operate and control.
- Defrost setting: Quickly thaws frozen items when you need them.
- Lock function: Keeps your children safe.
- Energy saving (eco) mode: Conserves electricity and saves you money.
Whats Included
- Insignia 1.6 Cu. Ft. Over-the-Range Microwave
- Turntable (with ring)
- Oven rack
- Installation hardware
- Grease filter
- Exhaust damper
- Installation Guide
- User Guide
- Insignia 1.6 Cu. Ft. Over-the-Range Microwave
- Turntable (with ring)
- Oven rack
- Installation hardware
- Grease filter
- Exhaust damper
- Installation Guide
- User Guide
A: Mine is not really an answer BUT my doorlatch broke also. I've been looking EVERYWHERE for a replacement. Can't find it. So I have a 2 year old microwave that is useless because I can't find a $12.00 part and we have to go spend even more money.
A: Hello Topher. This model is available to order for delivery or store fulfillment. But if you are referring to a different model but has a similar features to this one, kindly contact us so we can check if that model of yours has an available parts that are ready to purchase through our part store supplier. Mary II Insignia Products Customer Support II https://www.insigniaproducts.com/
Q: What is the CFM? It is not shown in the specs.
A: Your reply is not helpful at all. Why are you explaning CFM to me. I already know it and hence asked you the question. I checked the manual and it does not say it there too. Insignia is a Best buy brand. Isn't it? You must find out the CFM from Insignia and let the customer know.
A: Hi Elaine! Thank you for reaching out to us regarding the missing cord for your Insignia™ 1.6 Cu. Ft. Over-the-Range Microwave. We apologize for any inconvenience this may have caused. The cord for the microwave should have been included in the box at the time of purchase. If you are unable to locate the cord, please contact our customer service team for further assistance. They can help you locate a replacement cord or process an exchange for you in-store. Your satisfaction is important to us, and we want to ensure that you are able to fully enjoy your new microwave. Please don't hesitate to reach out to us for any further assistance. Thank you for choosing our product. JC | Insignia Support https://www.bestbuy.com/site/insignia-1-6-cu-ft-over-the-range-microwave-stainless-steel/5896400.p?skuId=5896400
Q: does this unit have a 0 clearance door?
A: undefined
Q: What is the CFM of the vent fan?
A: undefined
