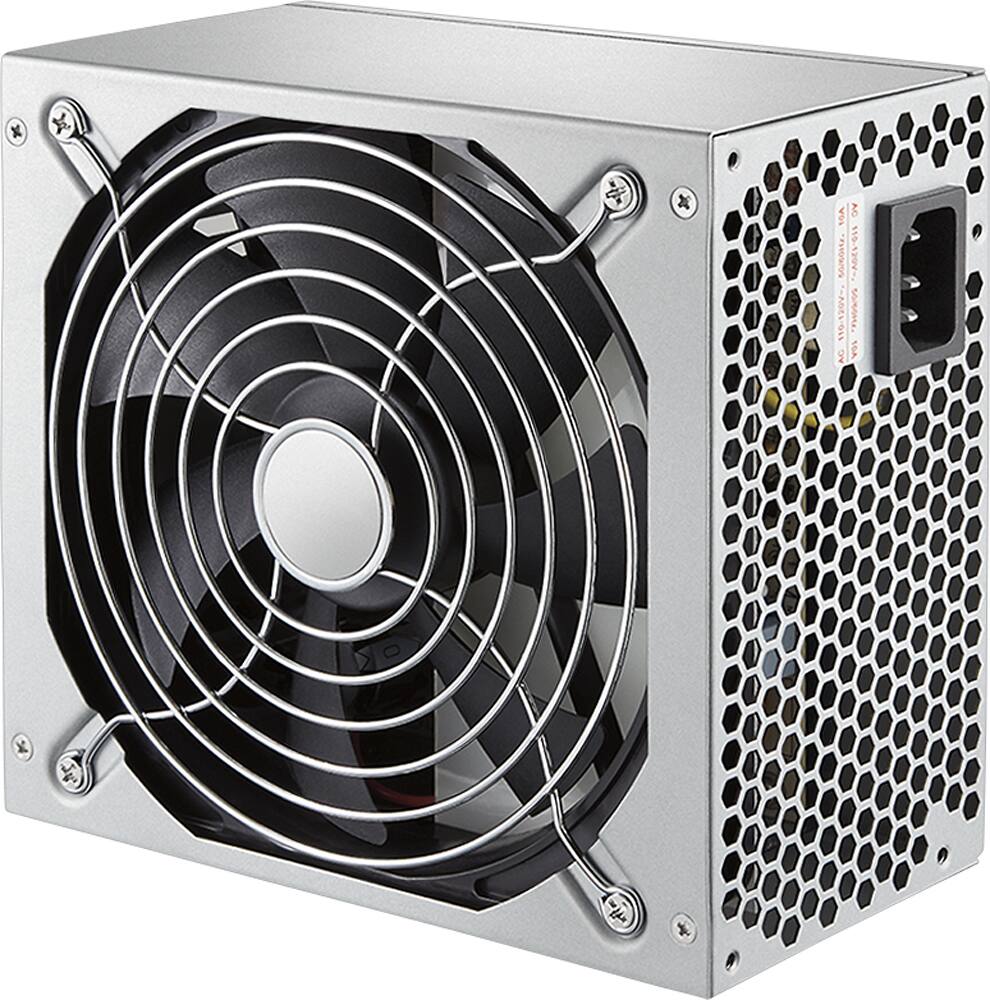

Insignia™ - 520W ATX Power Supply - Silver
Model: NS-PCW5250
SKU: 5610116
This item is no longer available in new condition. See similar items below
- Key Specs
- Wattage: 520 watts (Measurement of electrical power.)
- Modular: Non-modular
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Product Length: 160.02 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- General
- Brand: Insignia™
- Model Number: NS-PCW5250
- Product Name: 520W ATX Power Supply
- Color: Silver
- Power
- Wattage: 520 watts (Measurement of electrical power.)
- Modular: Non-modular
- Specification Compliance: ATX 12V V2.31
- Overload Protection: false (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
- Cord Length: 6.3 feet
- Connectivity
- ATX Connector: 1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: 1 (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: 2 (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: 4 (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Dimensions
- Product Height: 86.36 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 149.86 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 160.02 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 64 ounces (The out of box weight of the item.)
- Cooling
- Cooling Fan Type: low-noise cooling fan
- Other
- UPC: 600603163449
Power your computer with this Insignia™ NS-PCW5250 power supply, which features 520W of output power for enhanced performance and a 140mm low-noise cooling fan to help ensure efficient operation.
- 520W power supply: To power your computer.
- Supports Intel® and AMD dual-core and multicore CPUs: For wide-ranging use.
- ATX 12V v2.31 compliance: Meets industry standards.
- 140mm low-noise cooling fan: Helps maintain a safe temperature level.
- Dual +12V outputs: Work seamlessly with your computer.
- 4+4-pin +12V CPU connector: Simplifies installation.
- 6+2-pin PCI Express connector: Allows use with a variety of GPUs.
- Built-in protection circuit (OVP, OLP, SCP): Along with line input fuse protection to help keep your computer protected.
- 520W power supply: To power your computer.
- Supports Intel® and AMD dual-core and multicore CPUs: For wide-ranging use.
- ATX 12V v2.31 compliance: Meets industry standards.
- 140mm low-noise cooling fan: Helps maintain a safe temperature level.
- Dual +12V outputs: Work seamlessly with your computer.
- 4+4-pin +12V CPU connector: Simplifies installation.
- 6+2-pin PCI Express connector: Allows use with a variety of GPUs.
- Built-in protection circuit (OVP, OLP, SCP): Along with line input fuse protection to help keep your computer protected.
Whats Included
- Insignia™ 520W ATX Power Supply
- Owner's manual
- Power cable
- Insignia™ 520W ATX Power Supply
- Owner's manual
- Power cable
Q: How many amps do the two 12v rails pull?
A: I didn't find specifics for this but per the ATX specs, you should expect around 14.5A on R1 and 13.5 on R2 at max load.
Q: Can this go into an HP p7-1070t?
A: Check your specs as to size and power needed. Open computer case and look at your power supply label on side has wattage listed. Measure size then check size listed for this power supply and you can see if it would fit.
A: go to the store.
Q: Will this support a gpu with both a 6-pin and an 8-pin gpu (a GTX 580 for example)?
A: Yes it will. You have 2 - 6+2 hook ups.
