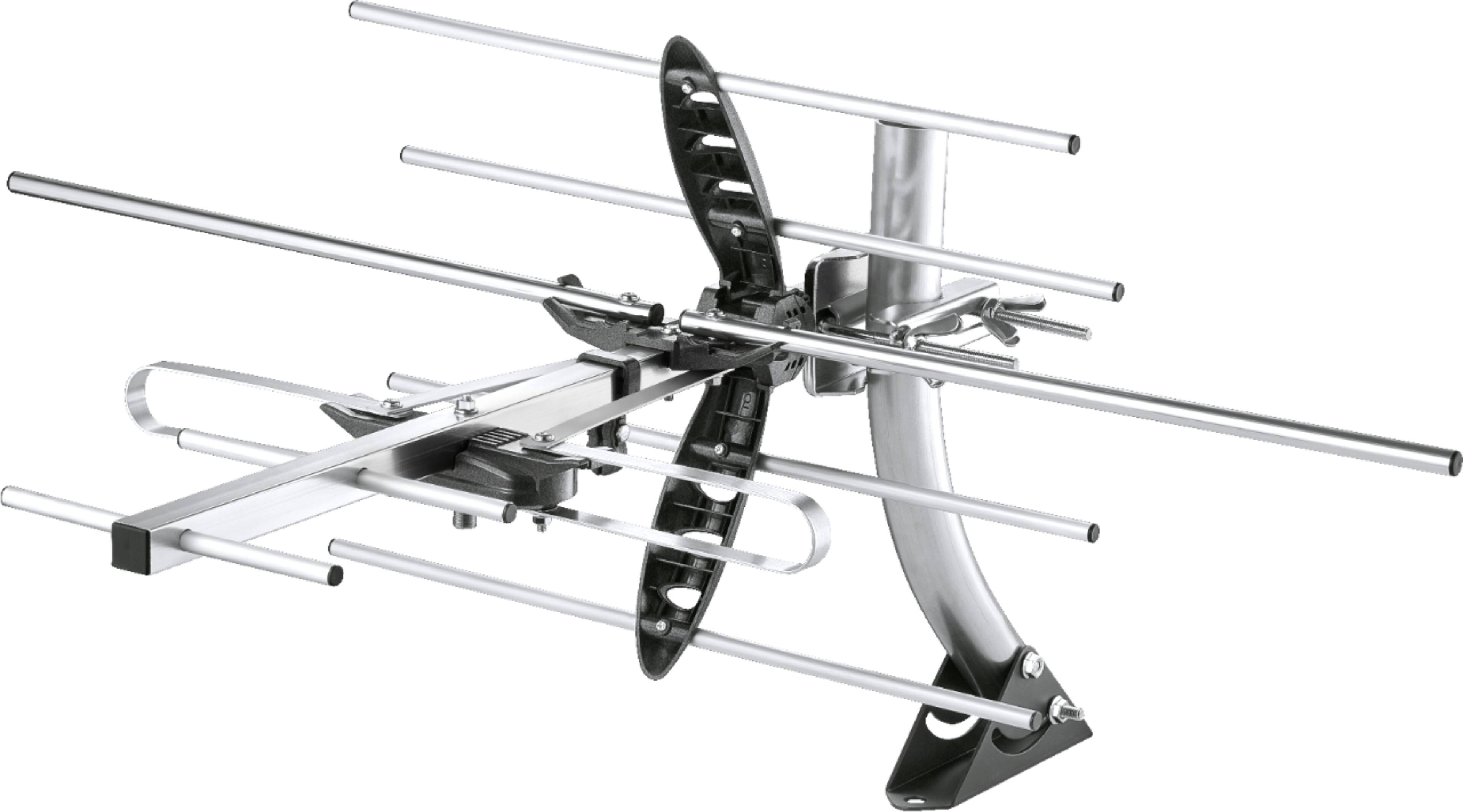

Insignia™ - Outdoor High Gain Yagi Antenna - Gray
- Key Specs
- Indoor or Outdoor Use: Outdoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Maximum Operating Range: 49.7 miles
- Amplified Reception: true (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- General
- Brand: Insignia™
- Model Number: NS-ANT30DA
- Product Name: Outdoor High Gain Yagi Antenna
- Color: Gray
- Design
- Indoor or Outdoor Use: Outdoor Antenna (Indicates the appropriate environment product was designed to be used in.)
- Performance
- Maximum Operating Range: 49.7 miles
- Channel Reception: Other
- Frequency: N/A (A measurement of the electromagnetic radio waves a device emits.)
- Impedance: 75 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Amplified Reception: true (A powered antenna is able to pull signals from a greater distance, enabling better reception.)
- Parental Controls: false (Allows user to block unwanted content, signals, channels, networks, etc. from being received or accessed.)
- Product Type: TV antenna
- Connectivity
- Compatibility: Universal
- Dimensions
- Product Height: 28.6 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 21.4 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 10.98 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.2 pounds (The out of box weight of the item.)
- Included
- Coaxial Cable Included: true
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 600603218224
Watch your favorite television shows with this Insignia high gain outdoor antenna. Its 50-mile range is ideal for urban or suburban neighborhoods for generating a clear picture, and its ultrasensitive design helps pull in weak signals. This Insignia high gain outdoor antenna comes with a versatile mounting pole for easy installation.
- Antenna: Intended for outdoor usage.
- 75 ohms impedance: Helps ensure efficient performance.
- Up to 49.7-mile reception range: Ensures a clean, clear signal.
- Designed for outdoor use: For optimal placement.
- Antenna: Intended for outdoor usage.
- 75 ohms impedance: Helps ensure efficient performance.
- Up to 49.7-mile reception range: Ensures a clean, clear signal.
- Designed for outdoor use: For optimal placement.
Whats Included
- Insignia Outdoor High Gain Yagi Antenna
- Insignia Outdoor High Gain Yagi Antenna
Product Manuals
Q: Does this antenna pick up both VHF HI & LOW bands?
A: AntennaPurchaser provided an erroneous and misleading answer to this question - and BestBuy has rated it the best answer! All TV broadcasts are now digital, but they can be broadcast on Low-VHF, Hi-VHF, or UHF. It is true the labelled channel you tune to isn't necessarily the actual broadcast channel, but that goes both ways. In the Dallas area where I live, ABC broadcasts on channel 8 (Hi-VHF) and the labelled channel is 8. NBC broadcasts on Channel 41 but the labelled channel is 5. Most stations broadcast on UHF now, so antennas available are optimized for UHF. Even though an antenna my claim to receive Lo and Hi VHF as well as UHF, the antenna gain in VHF is less than half the gain in UHF - say, 3.6 dB vs. 7.6 dB. I'm 35 miles away from the broadcast antennas; UHF reception is very good but VHF (ABC) is marginal. I have a Clearstream 4Max for UHF and a Clearstream 5 for VHF, both attic mounted, with a Winegard 200A amplifier.
Q: Can you hook two of these antennas together that are pointed in different directions ?
A: Yes you can. Use a 2 way coax splitter “backwards” to combine the signal from the 2 antennas. Hope this helps!
A: No it doesn’t have a amplifier. I bought this because is better then any powered amplified indoor antenna. I’m sure you can boost the signal if you add a powered amplifier. I know that Channel Master sells things to clean the signal and amplify the signal. But for me this is all I needed without anything else and it works fine. Note : if you look up online which way to point your antenna, base on you location zip code . That will help you find the best possible position for your area. We get about 54 channels . I also bought a Channel Master Stream + , which works great and maybe I’ll try a Tablo Duel or Quad, that would be my next choice. Good luck and I hope this helps.
Q: How would you connect it to the TV? Bluetooth or by using a cable?
A: Cable only. F-type screw in connection
Q: Does it also work for FM reception?
A: FM frequency is 88 to 108 MHz, this antenna supports VHF Range: 174-230 MHz & UHF Range: 470-862 MHz. Not that it will reject FM signals, so you'd probably see an improvement in reception verses what is internal to a FM receiver, but not ideal if that is your only interest.
A: You need to buy coaxial cable and attach it from the antenna to the back of your tv. You will have to make a hole on an outside wall to route the cable to the tv unless you already have existing cable running throughout the house.
Q: Is this a multi directional antenna?
A: No, It seems to be very uni-directional.
Q: Does this work for both VHS and UHF frequencies?
A: Yes, this picks up both frequencies. Also, even though this is supposed to be a directional antennae, I am picking up stations that are probably 150 degrees from the direction that the antennae is pointing. The antennae is pointed toward an array of towers towards Miami, and also picks up signals (with clarity) from Palm Beach to the rear. I highly recommend this product
