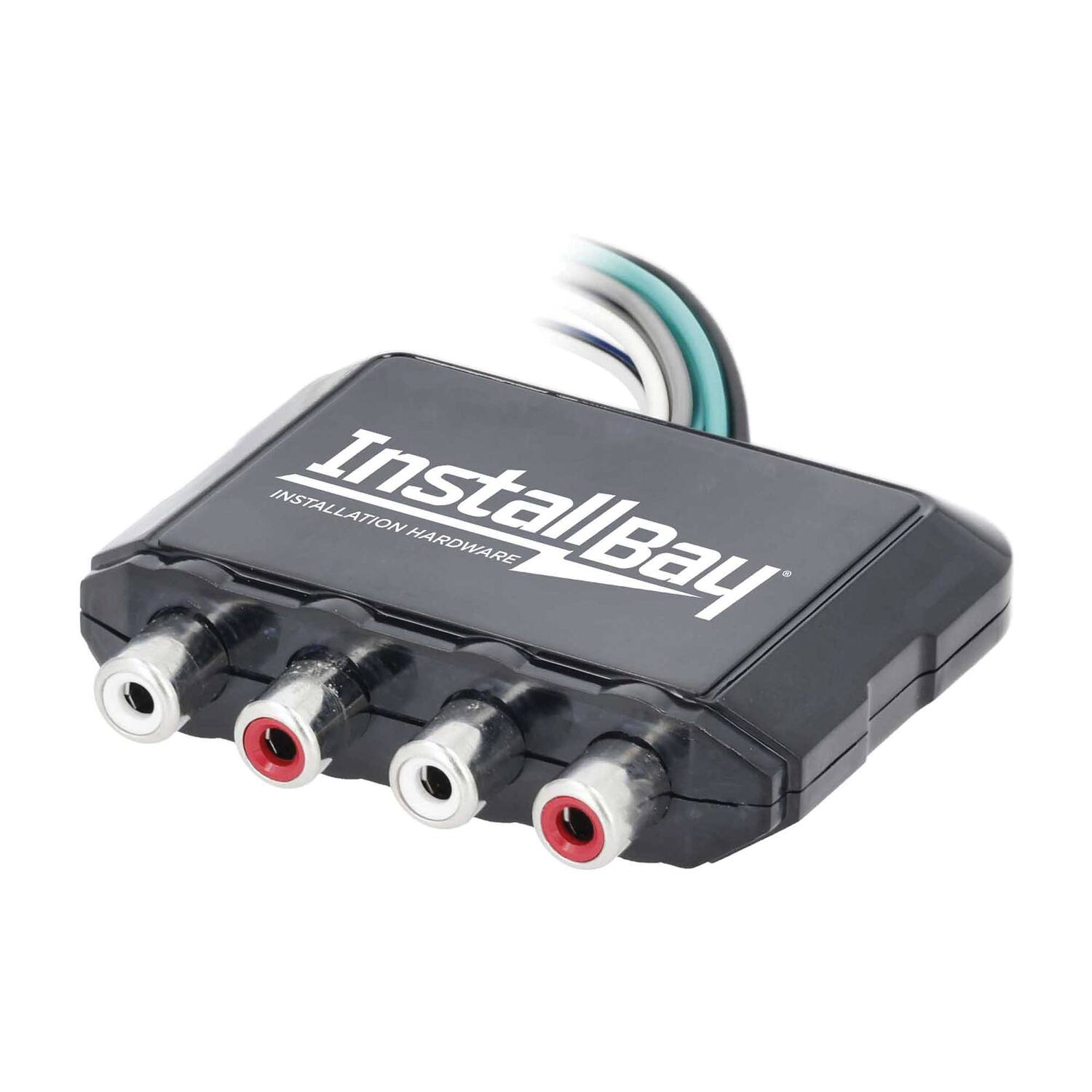

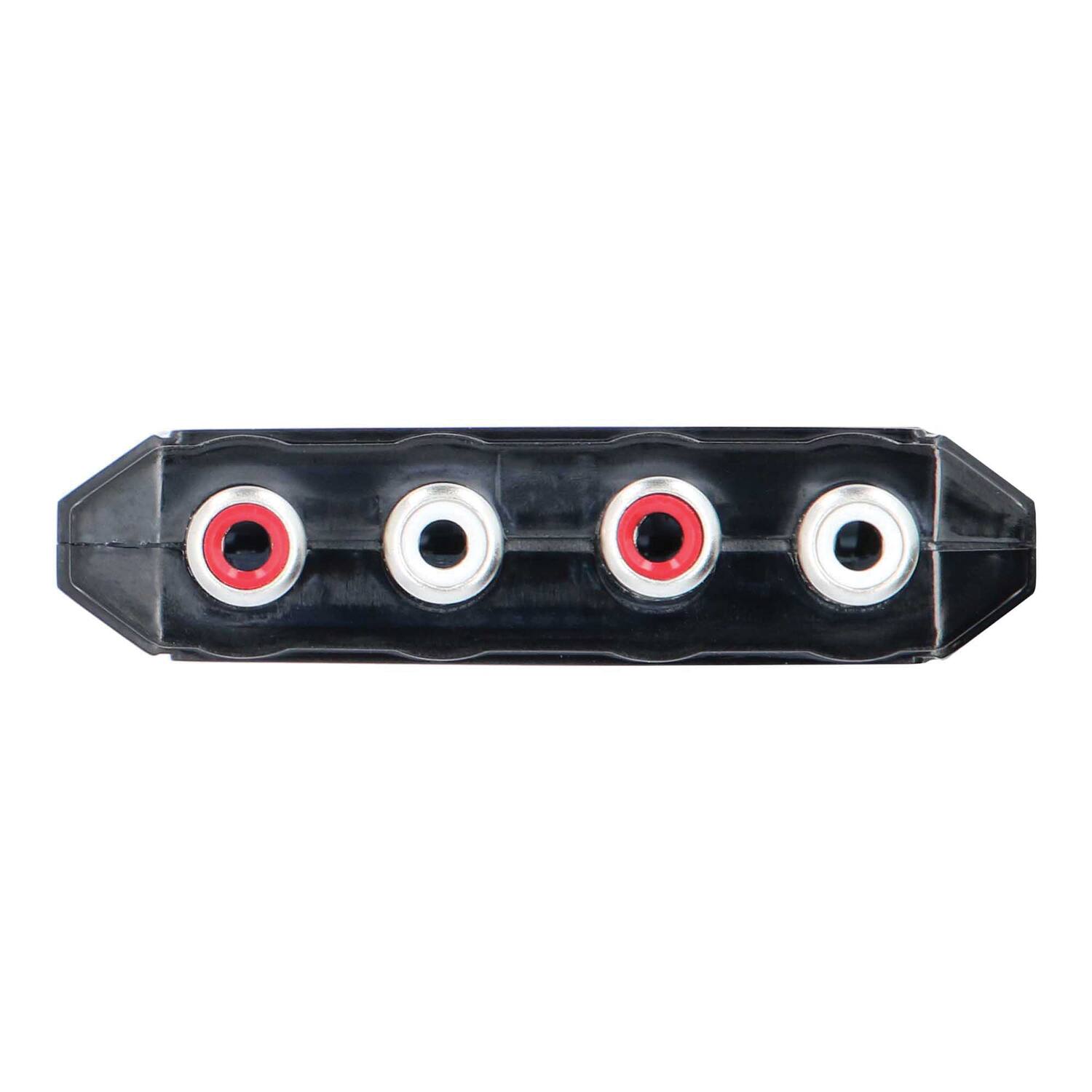

Install Bay - Ibmloc4 4-channel 80-watt Micro Line Output Converter, Ibmloc4
FREE shipping to
Specifications
- Remote StartNoKeyless EntryNoUnlimited Transmitter RangeNo2-Way PagingNo
- Key Specs
- Remote Start: false
- Keyless Entry: false
- Unlimited Transmitter Range: false (Indicates whether the device is able to transmit data over any range, typically via connection to a cellular network.)
- 2-Way Paging: false
- General
- Brand: Install Bay
- Product Name: Install Bay Ibmloc4 4-channel 80-watt Micro Line Output Converter, Ibmloc4
- Dimensions
- Product Height: 0.25 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 3.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.25 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 0.15 pounds (The out of box weight of the item.)
- Features
- Siren Included: false
- Warranty
- Warranty - Parts: 30 DAY
- Warranty - Labor: 30 DAY
- Other
- UPC: 086429434534
Add an amplifier to nearly any radio with The Install Bay(R) 4-channel Micro Line Output Converter. Experience all the highs and lows of your original audio without distortion at any volume level. Unlike traditional LOCs, the IBMLOC4 is designed without inductors to deliver a flat 20 Hz to 20 kHz frequency response at all volume levels. Using your factory speaker wires, this innovative micro LOC automatically converts the speaker signal into both an RCA signal and a 100-mA 12-volt remote wire using DC offset. Powerful enough to turn on multiple amplifiers, the 12-volt remote wire delivers plenty of power without requiring a switched 12-volt power source. This compact LOC accepts up to 80 watts (20 volts) of input signal and delivers up to 10-volt output signal. The OEM smart radios in today's vehicles have a built-in protection circuit that will shut off one or more channels if the load on the OEM radio exceeds a specific impedance range. Our LOC features a built-in 60-ohm load resister for those OE radios.
- Compact design: Super compact size (2.77 in x 0.05 in x 2.48 in) makes installation easy in tight spaces
- Wide frequency range: Delivers flat 20 Hz to 20 kHz frequency response at all volume levels for clear, undistorted sound
- High power handling: Accepts up to 80 watts of input signal and outputs up to 10 volts for powerful audio conversion
- 12-volt remote output: Provides 12 volts with LED indicator to remotely turn on amplifiers without extra power source
- Built-in load resistor: Includes a 60-ohm load to prevent OEM smart radio shutdowns and ensure uninterrupted audio playback
- Compact design: Super compact size (2.77 in x 0.05 in x 2.48 in) makes installation easy in tight spaces
- Wide frequency range: Delivers flat 20 Hz to 20 kHz frequency response at all volume levels for clear, undistorted sound
- High power handling: Accepts up to 80 watts of input signal and outputs up to 10 volts for powerful audio conversion
- 12-volt remote output: Provides 12 volts with LED indicator to remotely turn on amplifiers without extra power source
- Built-in load resistor: Includes a 60-ohm load to prevent OEM smart radio shutdowns and ensure uninterrupted audio playback
Whats Included
- 1
- 1
Compare similar products
Add an amplifier to nearly any radio with The Install Bay(R) 4-channel Micro Line Output Converter. Experience all the highs and lows of your original audio without distortion at any volume level. Unlike traditional LOCs, the IBMLOC4 is designed without inductors to deliver a flat 20 Hz to 20 kHz frequency response at all volume levels. Using your factory speaker wires, this innovative micro LOC automatically converts the speaker signal into both an RCA signal and a 100-mA 12-volt remote wire using DC offset. Powerful enough to turn on multiple amplifiers, the 12-volt remote wire delivers plenty of power without requiring a switched 12-volt power source. This compact LOC accepts up to 80 watts (20 volts) of input signal and delivers up to 10-volt output signal. The OEM smart radios in today's vehicles have a built-in protection circuit that will shut off one or more channels if the load on the OEM radio exceeds a specific impedance range. Our LOC features a built-in 60-ohm load resister for those OE radios.
