J-Tech Digital - 1080P 60Hz HDMI Extender Balun Over Ethernet w/ Daisy Chain Function (400ft.) - Black
J-Tech Digital - 1080P 60Hz HDMI Extender Balun Over Ethernet w/ Daisy Chain Function (400ft.) - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-EXIP400L
- Product Name: J-Tech Digital 1080P 60Hz HDMI Extender Balun Over Ethernet w/ Daisy Chain Function (400ft.)
- Color: Black
- Features
- Maximum Video Resolution: 1080p (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 1080p (Full HD) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false

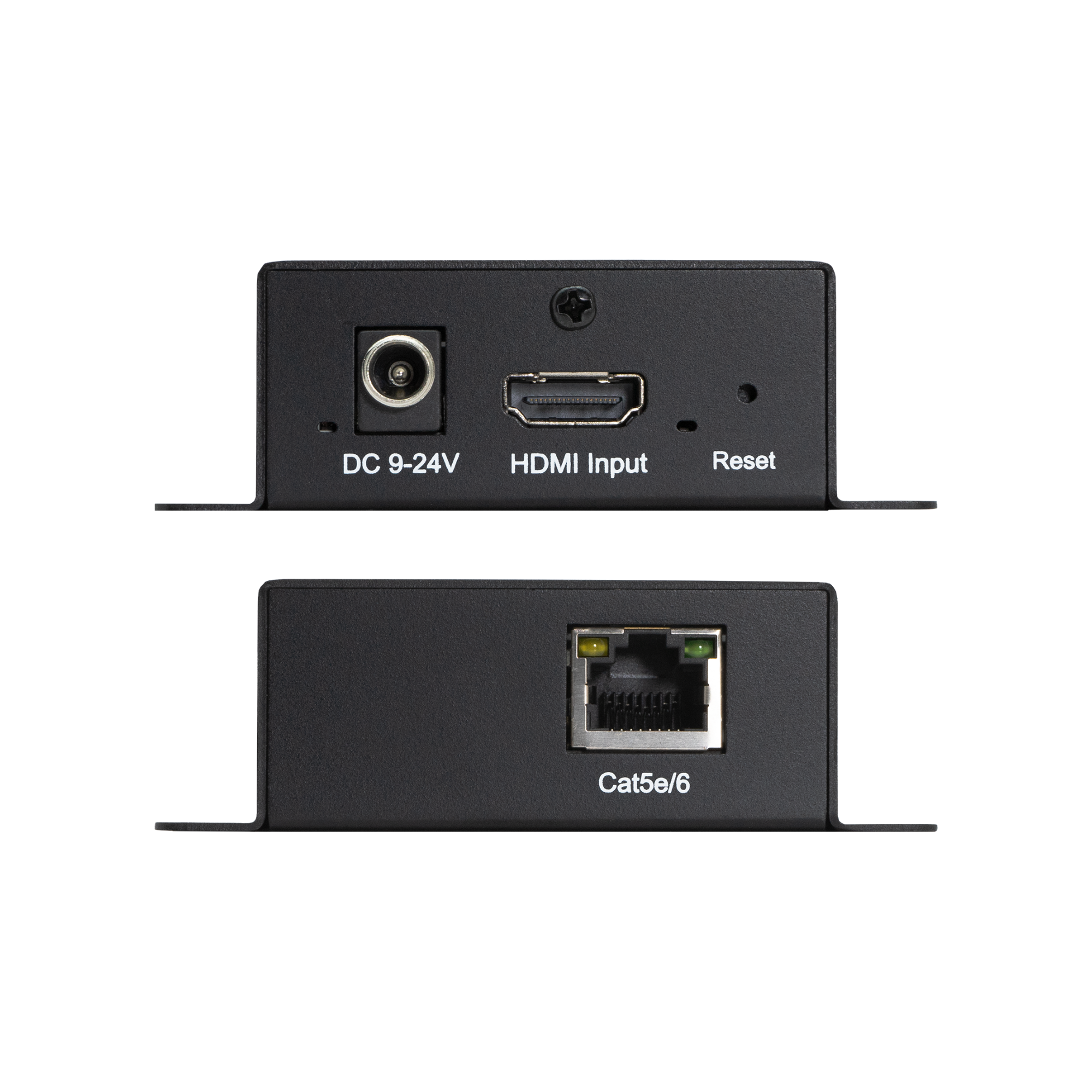

- Input(s): 1 x HDMI

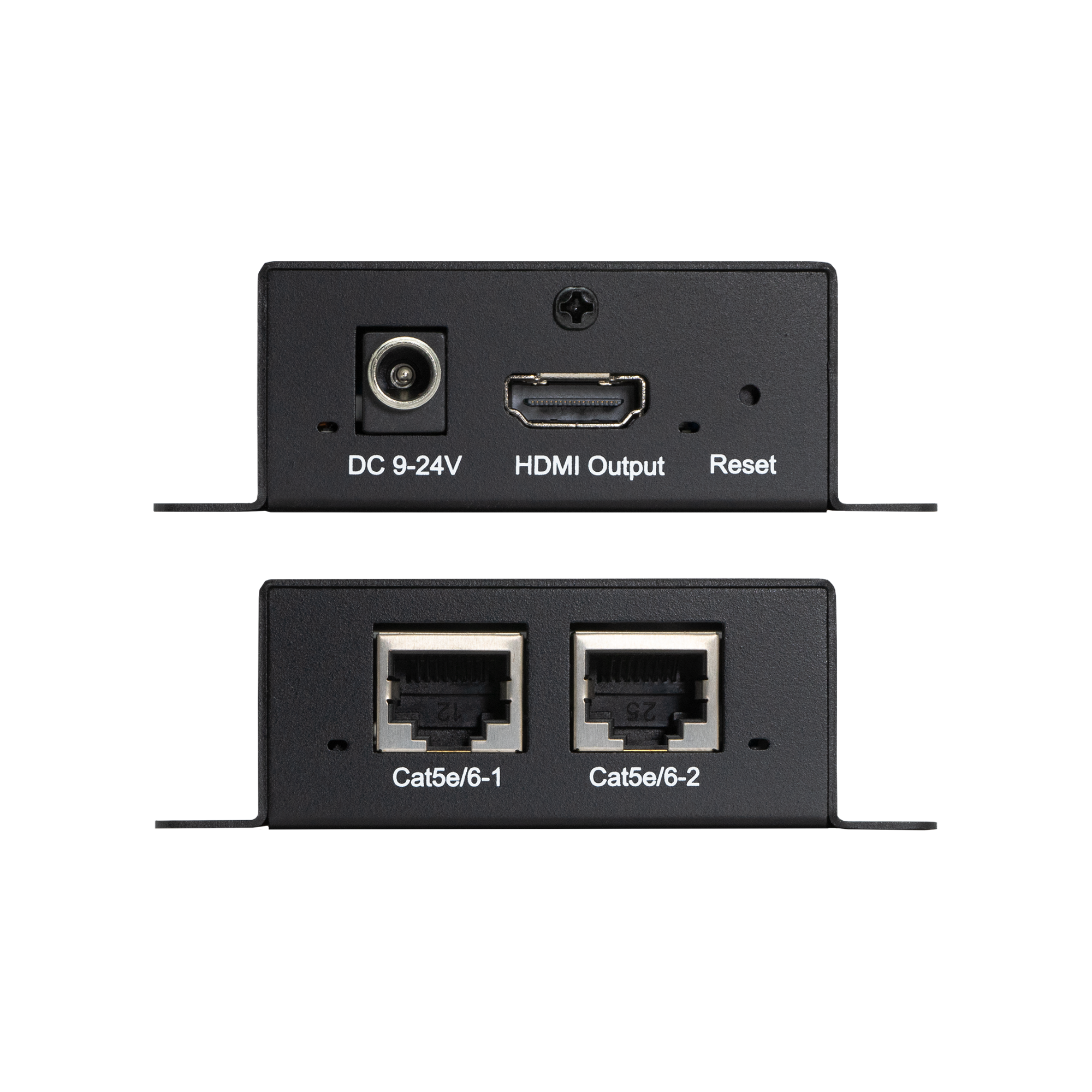

- Output(s): 1 x HDMI
- Maximum Transmission Range: 400 feet

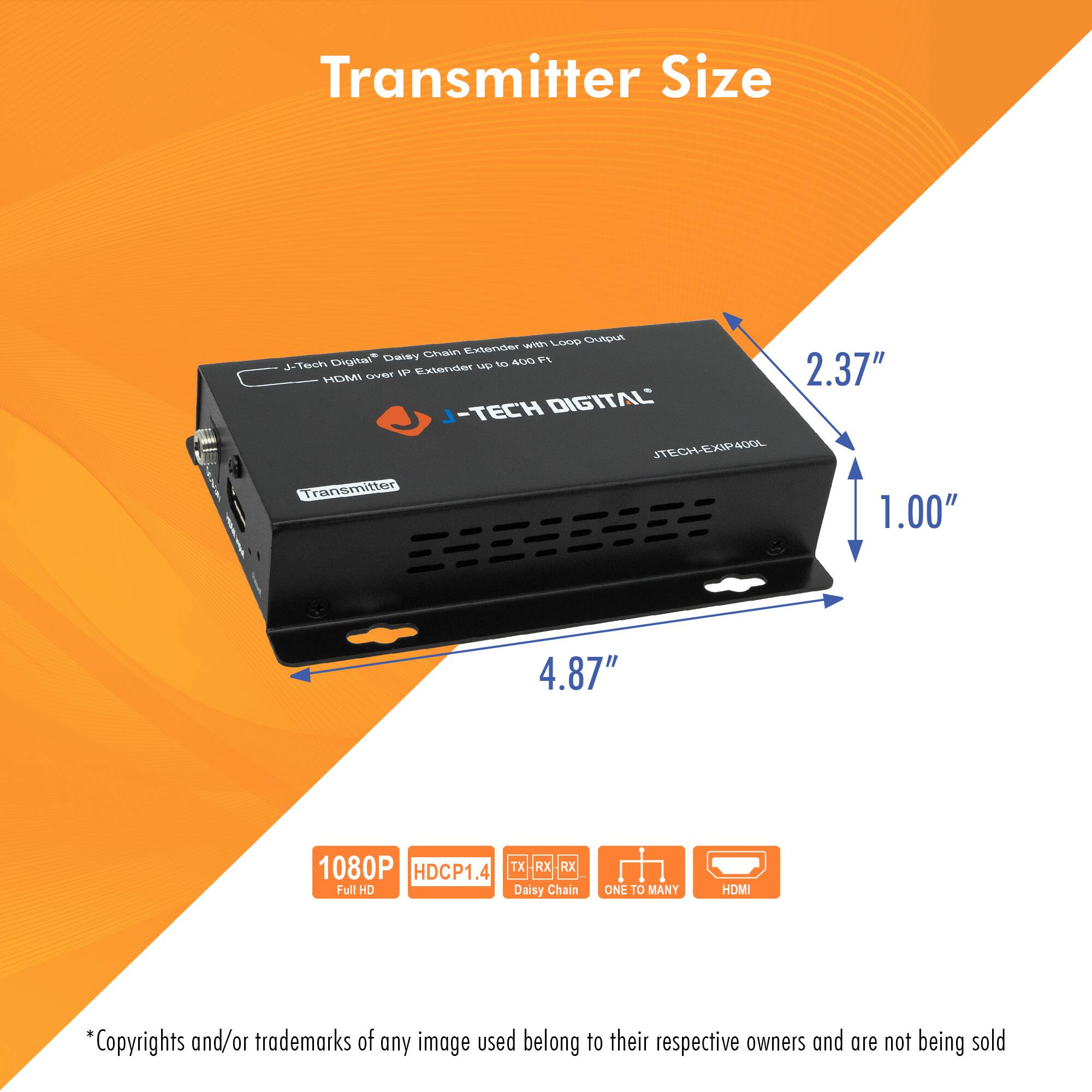

- Dimensions
- Product Height: 1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.87 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.37 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 850001567701
J-Tech Digital is proud to introduce their latest iteration in HDMI over IP technology, the JTECH-EXIP400L HDMI Extender over TCP/IP with Daisy Chain capabilities. Typical AV over IP installations require multiple Ethernets runs to meet or “homerun” at a centralized equipment rack. With the JTECH-EXIP400L, those additional runs all the way back to the equipment rack are no longer needed for sharing one source signal. Users have the ability to daisy chain one receiver to another via Ethernet to share the source signal from the transmitter. Now, instead of running an additional Ethernet cable back to your equipment rack for each receiver, users can simply make a much shorter Ethernet run from one receiver to another. This daisy chain method saves users on Ethernet cable costs, simplifies installation and reduces the number of break points in your AV over IP installation.

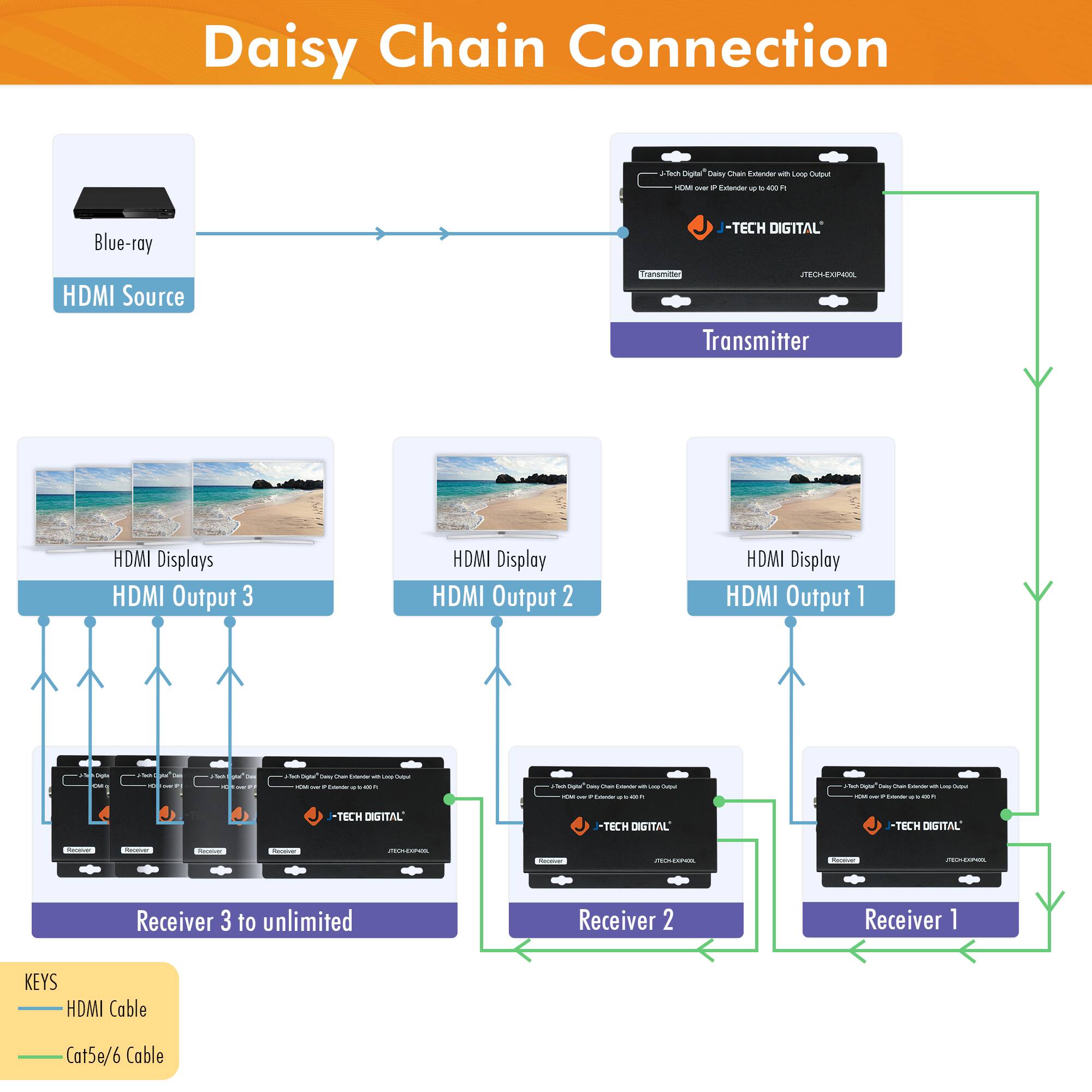

- Daisy Chain Unlimited Receivers: Transmit a single HDMI source to an endless number of displays via cascading daisy chain Ethernet connections. Connect one transmitter to an unlimited number of receivers in series via Cat5e/6 Ethernet cable

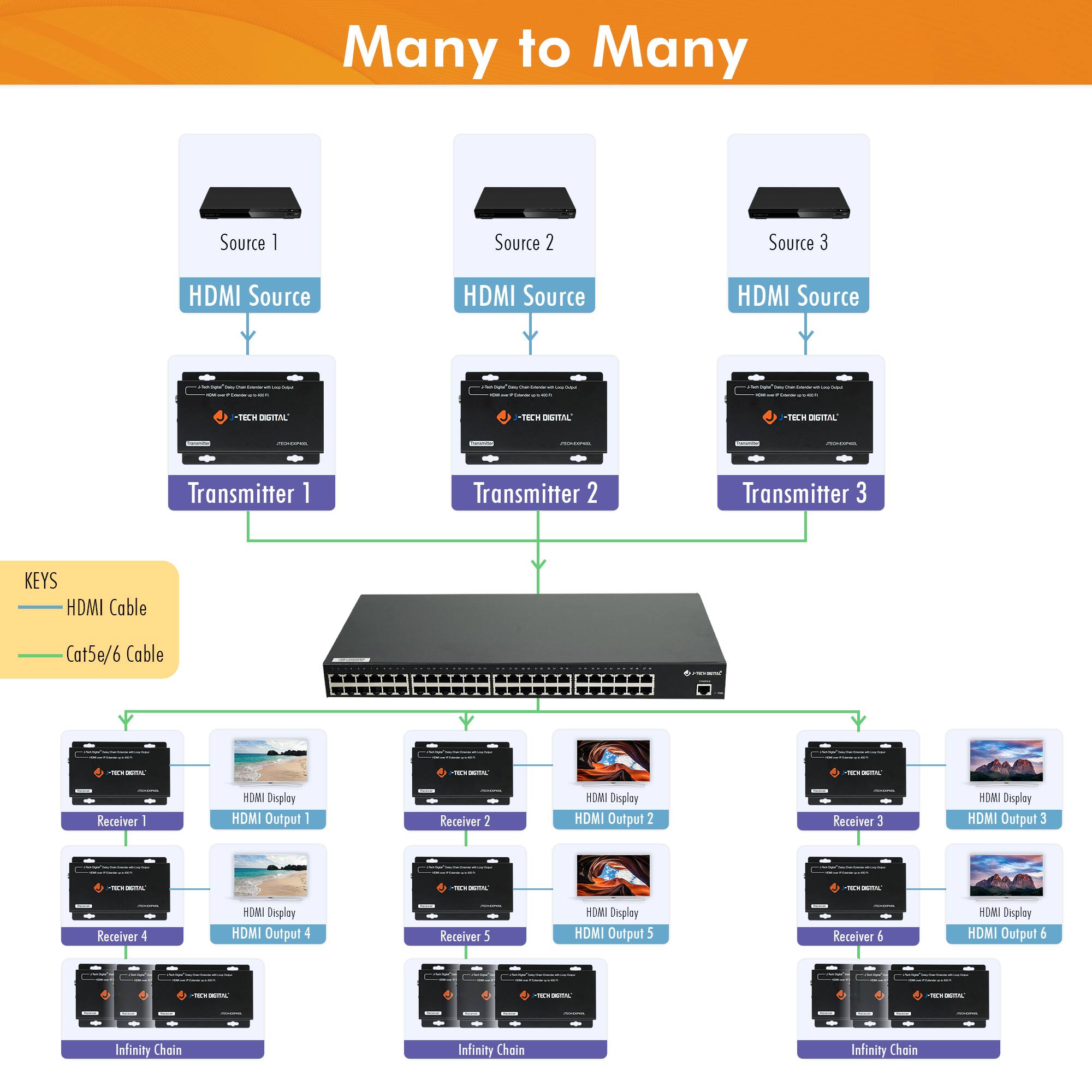

- HDMI Audio & Video over IP: Transmit HDMI Audio & Video over TCP/IP Networks with ease. AV over IP technology allows users to interconnect AV throughout a facility, building, or across an entire corporate or university campus (VLAN & Broadcast Needed)

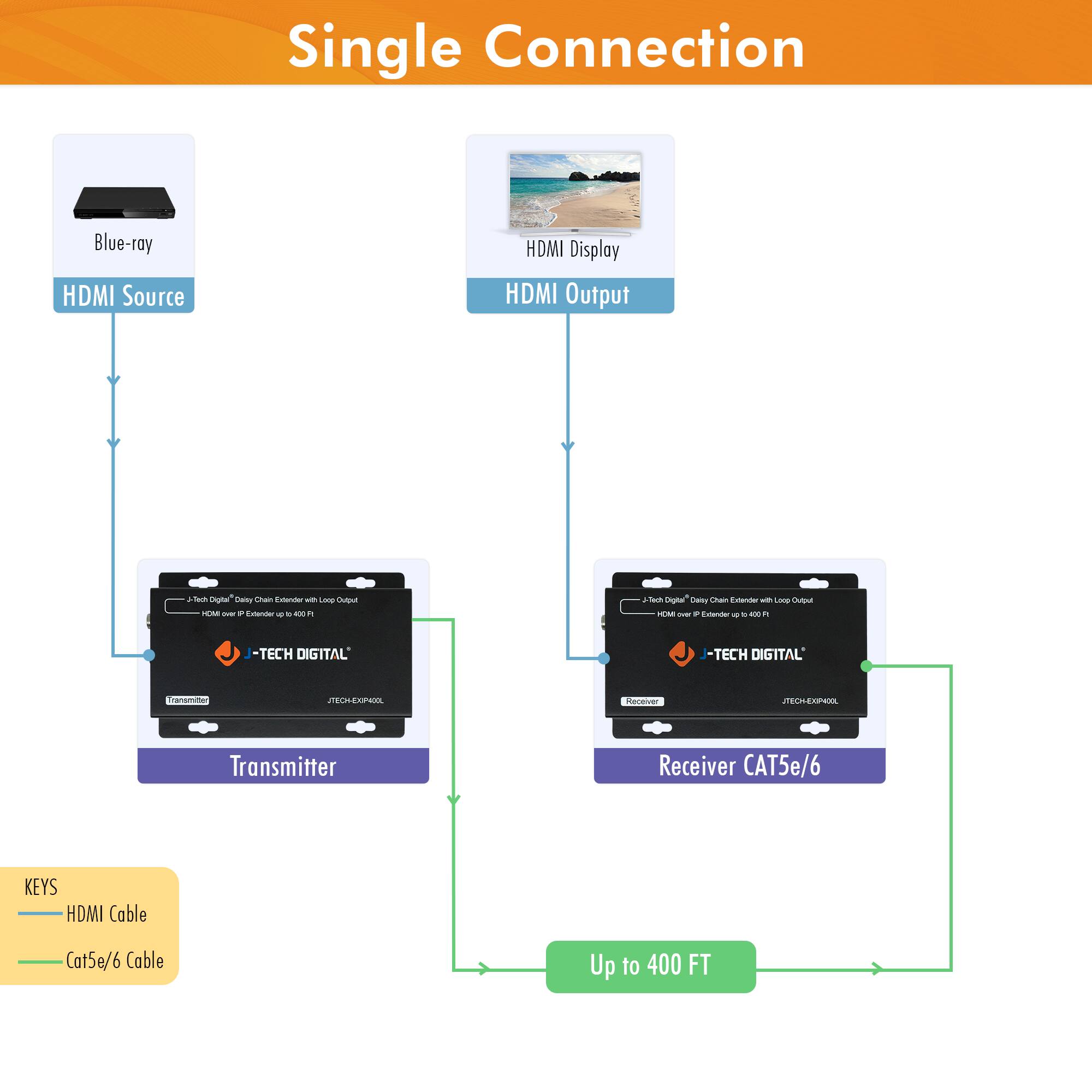

- Transmit up to 400Ft: Avoid using long unreliable HDMI cables and extend 1080p signals up to 400 feet (120 meters) over solid copper Cat5e/6 IEEE568B Ethernet cable. Add additional receivers and daisy chain your signal to multiple displays
- Easy Installation: Faster and more reliable installs with simple plug & play installation instructions. Simplify integration with straightforward plug & play network switch compatibility. Extended input power voltage range (9VDC – 24VDC) provides flexibility in various applications to suit your needs
- Daisy Chain Unlimited Receivers: Transmit a single HDMI source to an endless number of displays via cascading daisy chain Ethernet connections. Connect one transmitter to an unlimited number of receivers in series via Cat5e/6 Ethernet cable
- HDMI Audio & Video over IP: Transmit HDMI Audio & Video over TCP/IP Networks with ease. AV over IP technology allows users to interconnect AV throughout a facility, building, or across an entire corporate or university campus (VLAN & Broadcast Needed)
- Transmit up to 400Ft: Avoid using long unreliable HDMI cables and extend 1080p signals up to 400 feet (120 meters) over solid copper Cat5e/6 IEEE568B Ethernet cable. Add additional receivers and daisy chain your signal to multiple displays
- Easy Installation: Faster and more reliable installs with simple plug & play installation instructions. Simplify integration with straightforward plug & play network switch compatibility. Extended input power voltage range (9VDC – 24VDC) provides flexibility in various applications to suit your needs
Whats Included

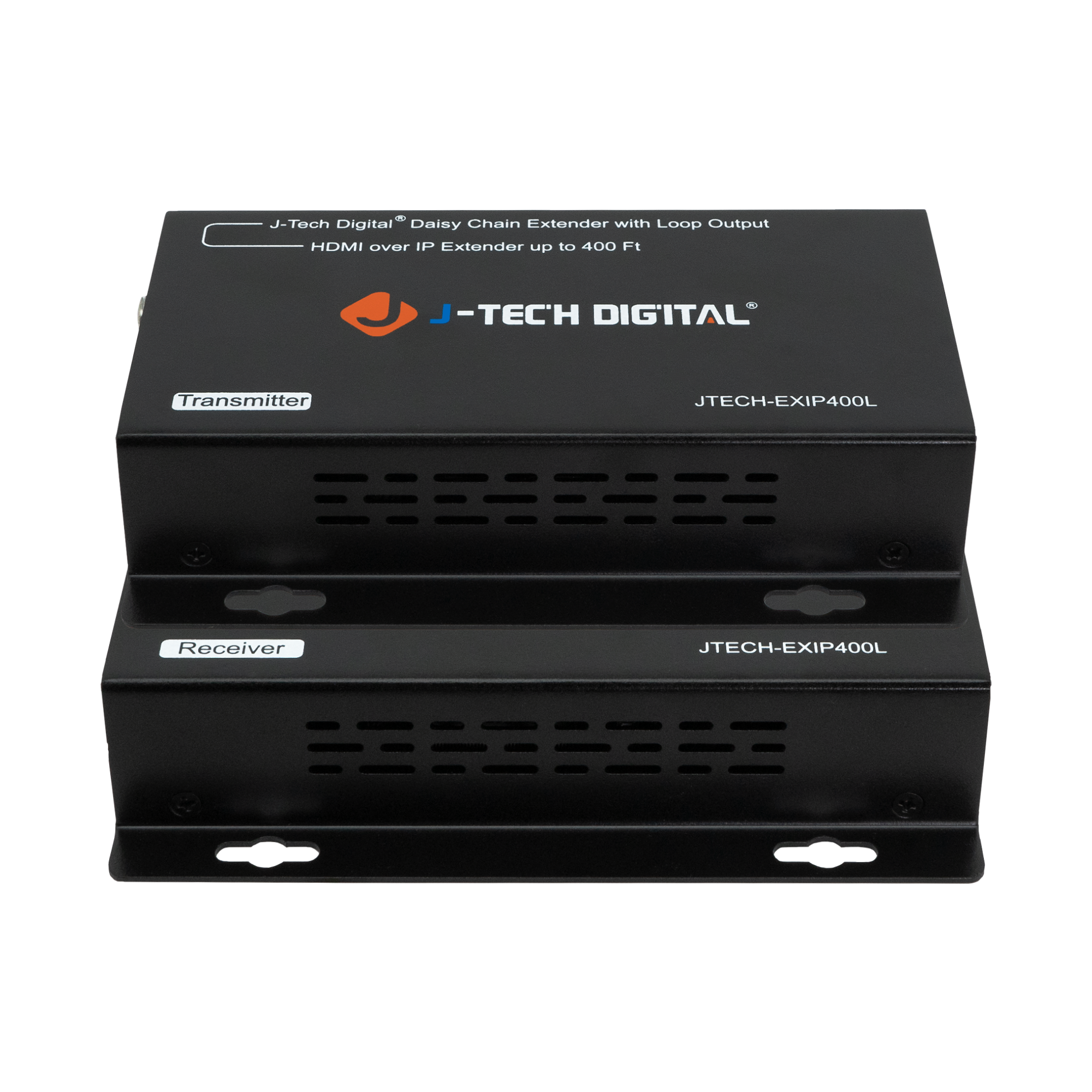

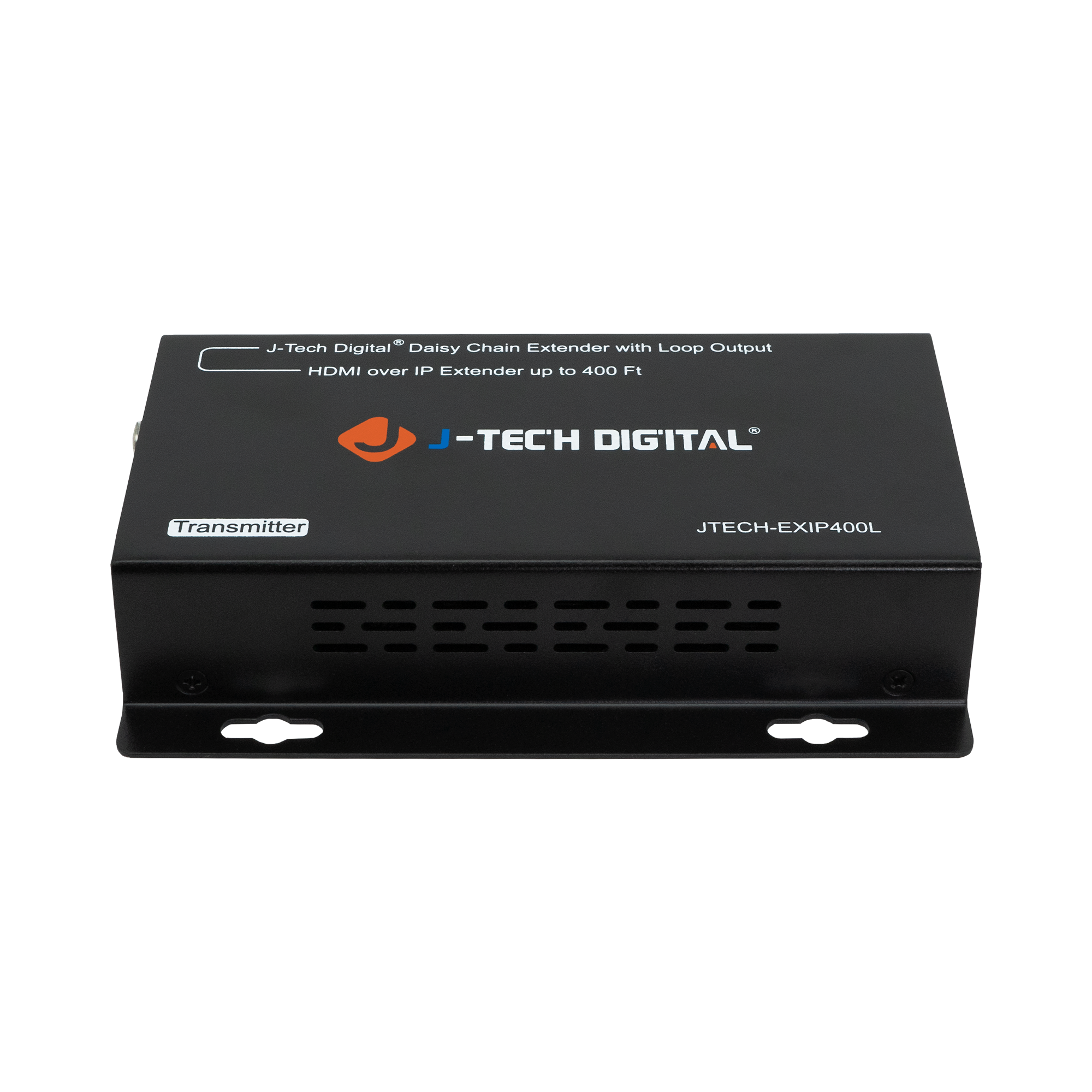

- Transmitter, Receiver, Power Adapters, User Manual
- Transmitter, Receiver, Power Adapters, User Manual
Product Manuals
Reviews
This product doesn't have any reviews yet.
