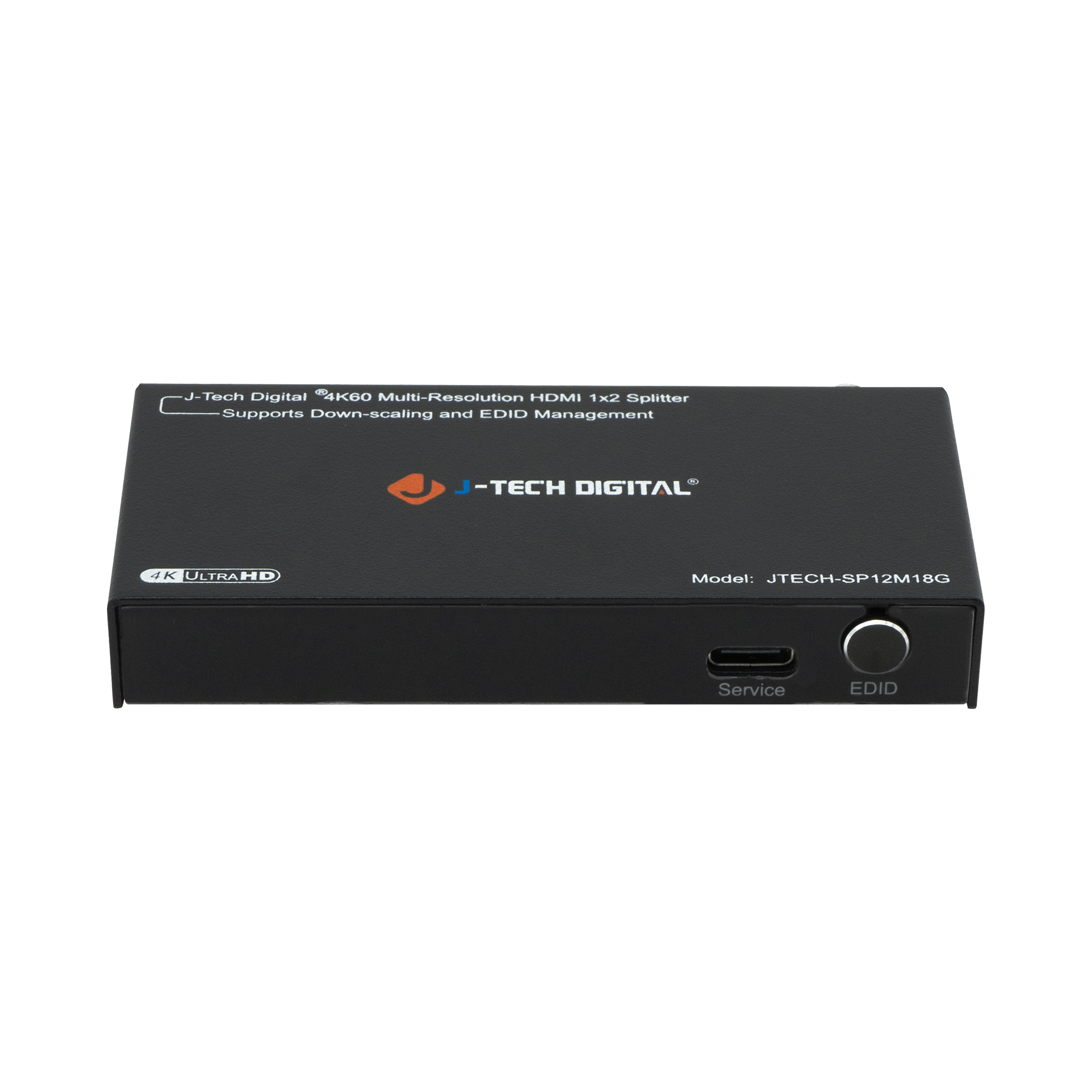

J-Tech Digital - 4K 60Hz 1x2 HDMI Splitter with 4K to 1080P Downscaling - Black
J-Tech Digital - 4K 60Hz 1x2 HDMI Splitter with 4K to 1080P Downscaling - Black
- General
- Brand: J-Tech Digital
- Model Number: JTECH-SP12M18G
- Product Name: J-Tech Digital 4K 60Hz 1x2 HDMI Splitter with 4K to 1080P Downscaling
- Color: Black
- Distribution Amplifier Type: Component
- Features
- Built-in Scaler: true (Samples an input signal and scales it up or down to an appropriate resolution and timing suitable for the output device. It may also convert an input signal to a different format compatible for the output.)
- Indicator Lights: true
- Number Of Inputs: 1
- Number of Outputs: 2
- Connectivity
- Input(s): HDMI
- Output(s): HDMI
- Compatibility
- Maximum Supported Resolution: 3840 x 2160 (4K)
- Surround Sound Supported: Dolby Atmos, Dolby Audio, Dolby Digital, Dolby Digital Plus (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Dimensions
- Product Height: 1.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058922106

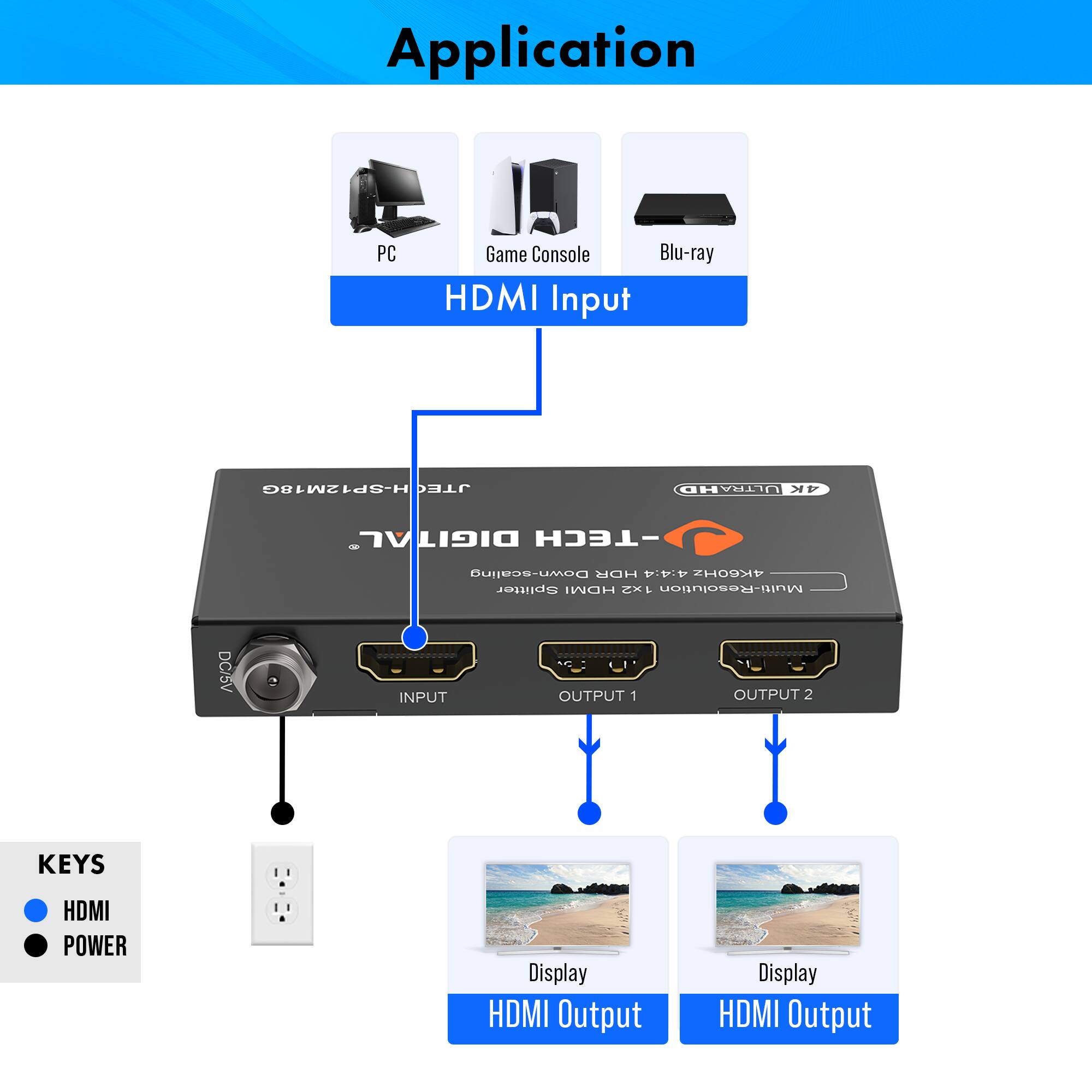

The JTECH-SP12M18G is a 1 In 2 Out – 1x2 HDMI splitter that allows you to distribute a signal from one HDMI source to two displays simultaneously, mirroring the source on both screens. Supporting up to 4K@60Hz resolution with HDMI 2.0 and HDCP 2.2 compliance, it delivers stunning visual quality while remaining compatible with 1080P FHD. Its 4K-to-1080P downscaling feature enables seamless integration of mixed displays, letting you send 4K signals to a 4K screen and 1080P to a 1080P display at the same time. Equipped with three EDID settings—auto, copy, and downscale—it resolves compatibility issues effortlessly and supports both compressed and uncompressed digital audio formats.

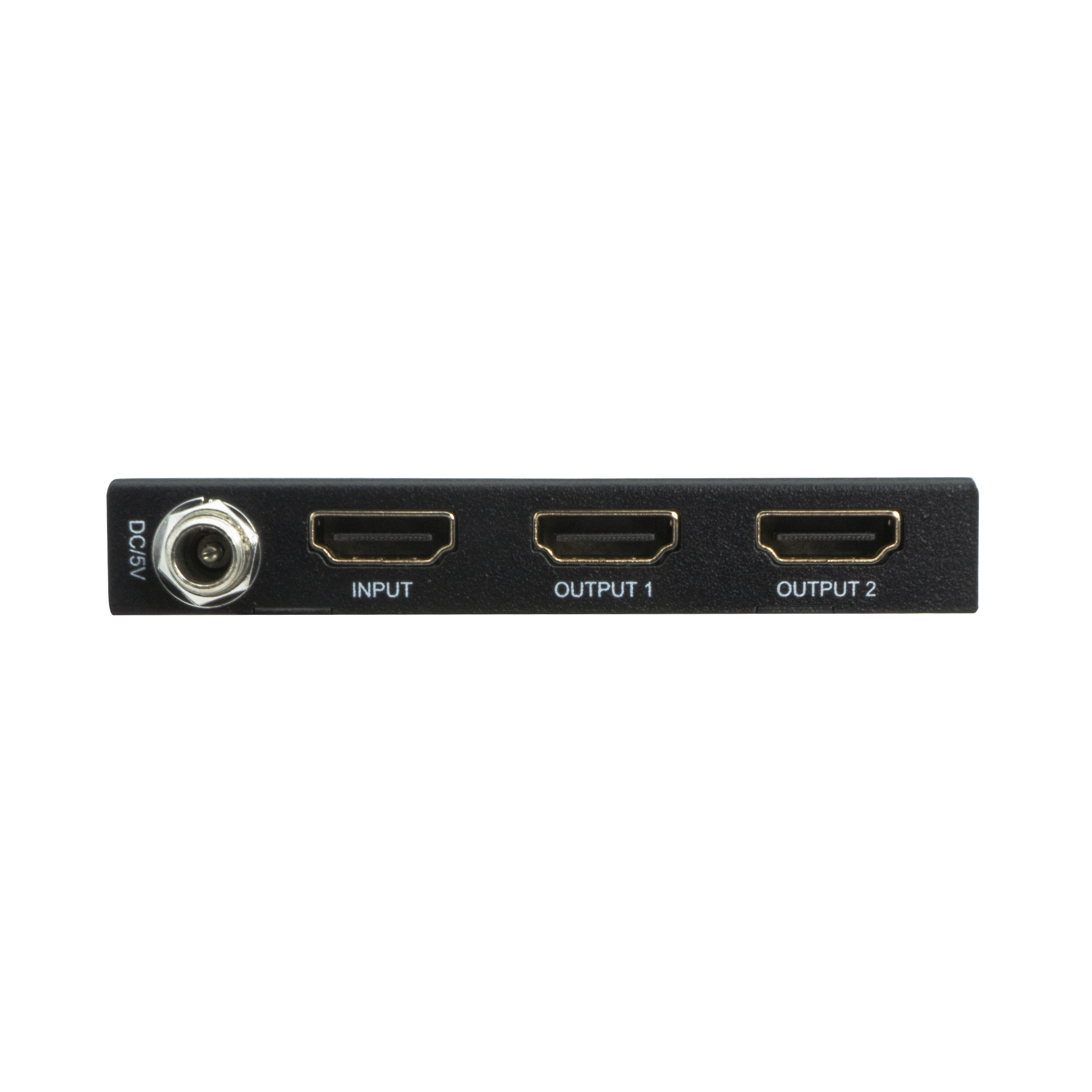

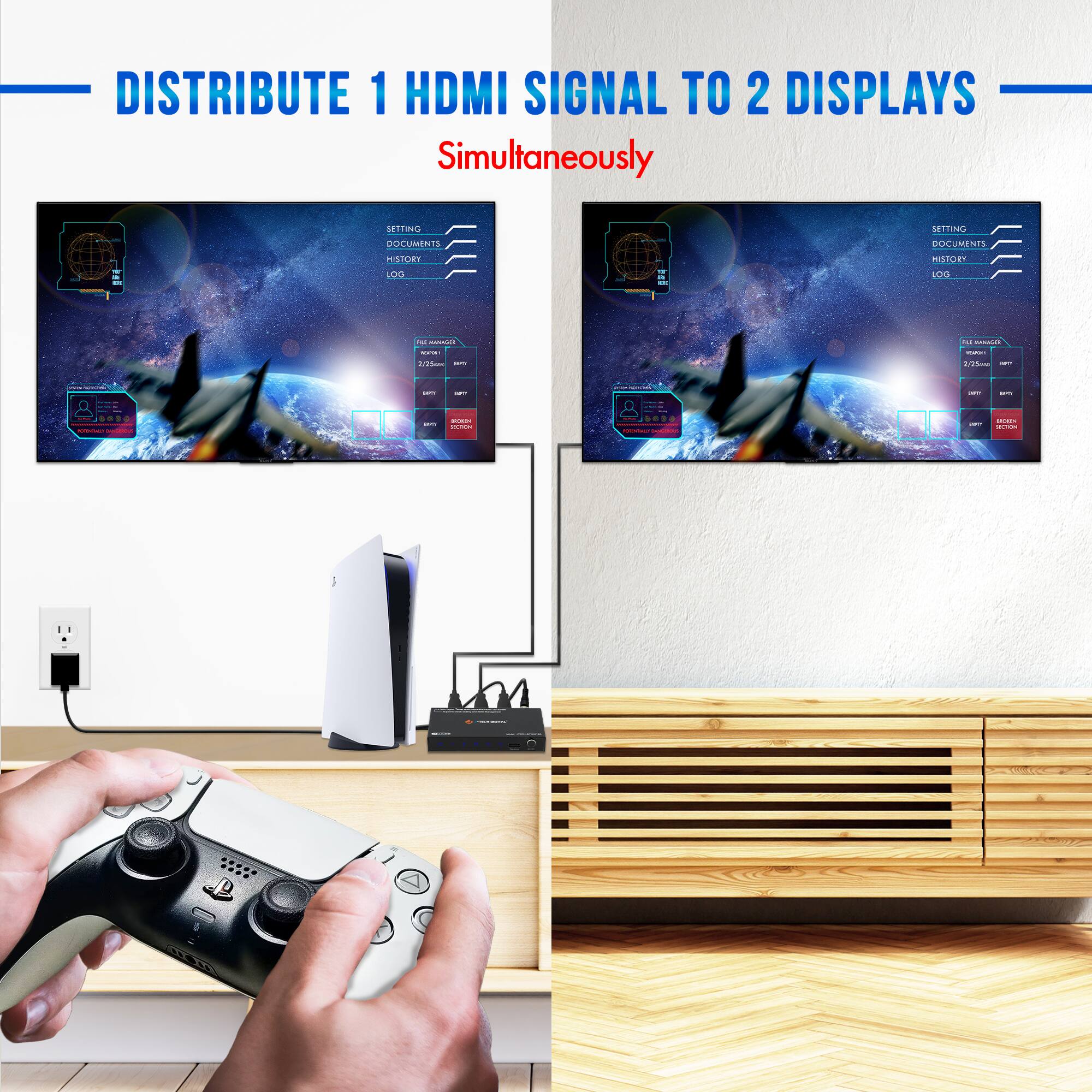

- Distribute 1 Source to 2 Displays: This 1x2 4K HDMI splitter helps distribute signal from 1 HDMI source device to 2 displays simultaneously. Please note that this splitter only duplicates/mirrors the source signal on both displays, and does not extend the display.
- Supports Up To 4K@60Hz Resolution: Enjoy all the features that HDMI 2.0 standard and HDCP 2.2 compliance have to offer. This HDMI splitter supports up to 4K@60Hz 4:4:4 resolution, and is backwards compatible with 1080P FHD resolutions as well.
- Features 4K to 1080P Downscaling: Easily mix and match displays within your setup by using the downscaling function. Downscale 4K signals to 1080P to send 4K signal to your 4K display while simultaneously sending that same signal to your 1080P display. Please note that this HDMI splitter does not downscale 4K or 1080P to 720P resolution, and does not downscale HDR metadata.
- 3 EDID Settings & Digital Audio Format Support: Features EDID auto, copy, and downscaling settings to help resolve source and display incompatibility issues. This HDMI splitter supports both compressed and uncompressed digital audio formats.
- Distribute 1 Source to 2 Displays: This 1x2 4K HDMI splitter helps distribute signal from 1 HDMI source device to 2 displays simultaneously. Please note that this splitter only duplicates/mirrors the source signal on both displays, and does not extend the display.
- Supports Up To 4K@60Hz Resolution: Enjoy all the features that HDMI 2.0 standard and HDCP 2.2 compliance have to offer. This HDMI splitter supports up to 4K@60Hz 4:4:4 resolution, and is backwards compatible with 1080P FHD resolutions as well.
- Features 4K to 1080P Downscaling: Easily mix and match displays within your setup by using the downscaling function. Downscale 4K signals to 1080P to send 4K signal to your 4K display while simultaneously sending that same signal to your 1080P display. Please note that this HDMI splitter does not downscale 4K or 1080P to 720P resolution, and does not downscale HDR metadata.
- 3 EDID Settings & Digital Audio Format Support: Features EDID auto, copy, and downscaling settings to help resolve source and display incompatibility issues. This HDMI splitter supports both compressed and uncompressed digital audio formats.

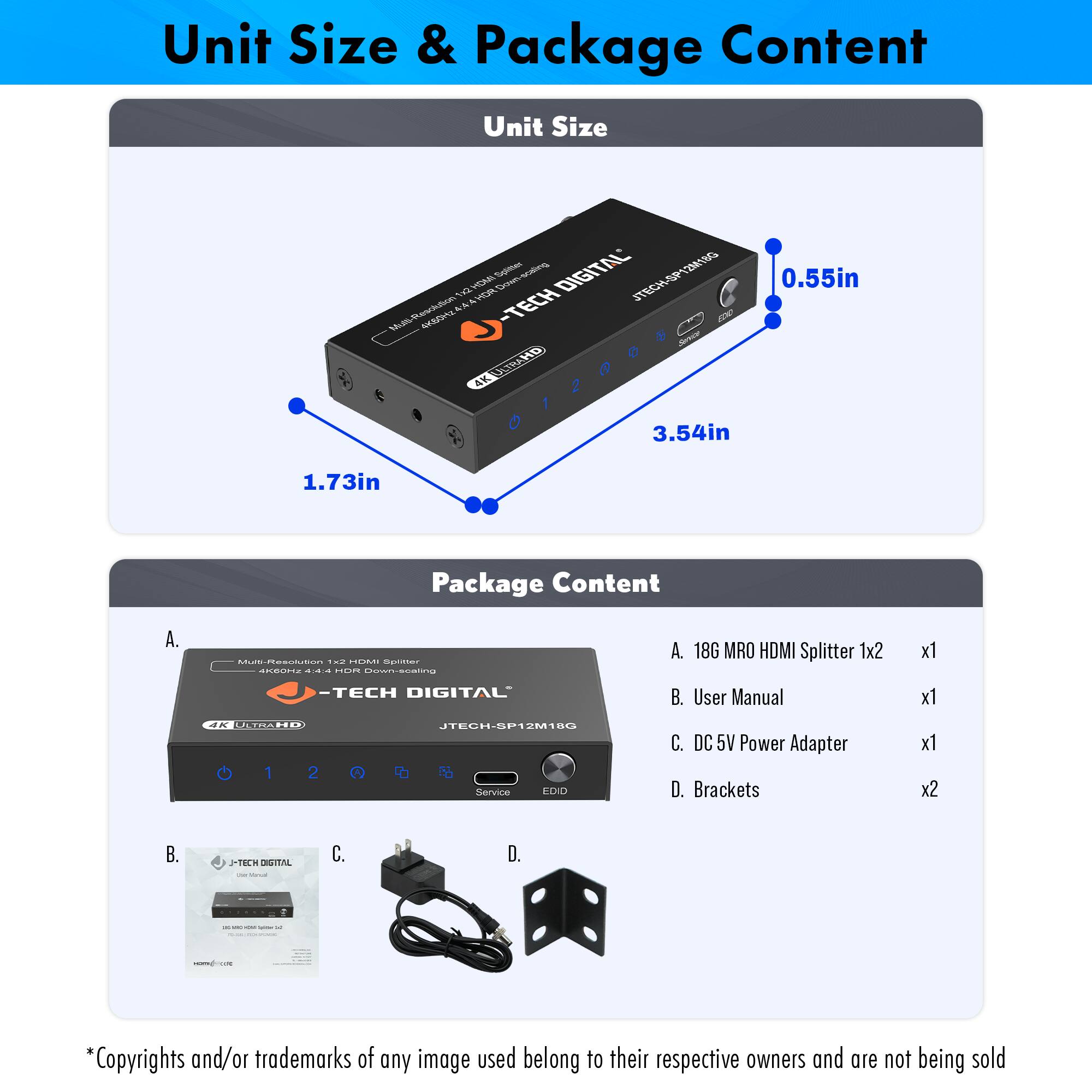

Whats Included
- HDMI Splitter, Power Adapter, Mounting Ears, User Manual
- HDMI Splitter, Power Adapter, Mounting Ears, User Manual
