J-Tech Digital - 4K 60Hz (4:2:0) 2x2 Video Wall Controller, Seamless HDMI Matrix, Multiviewer - Black
$7.99 shipping to
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-VWM04
- Product Name: J-Tech Digital 4K 60Hz (4:2:0) 2x2 Video Wall Controller, Seamless HDMI Matrix, Multiviewer
- Color: Black
- Features
- Selector Switch Box Type: HDMI Switch
- Powered: true
- Indicator Lights: true
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Surround Sound Supported: Dolby Audio, Dolby Digital (Surround sound systems use multiple audio channels and speakers to create an immersive sound experience for the listener. There are also various proprietary technologies that imitate this kind of sound via a device's built-in speakers or soundbar.)
- Connectivity

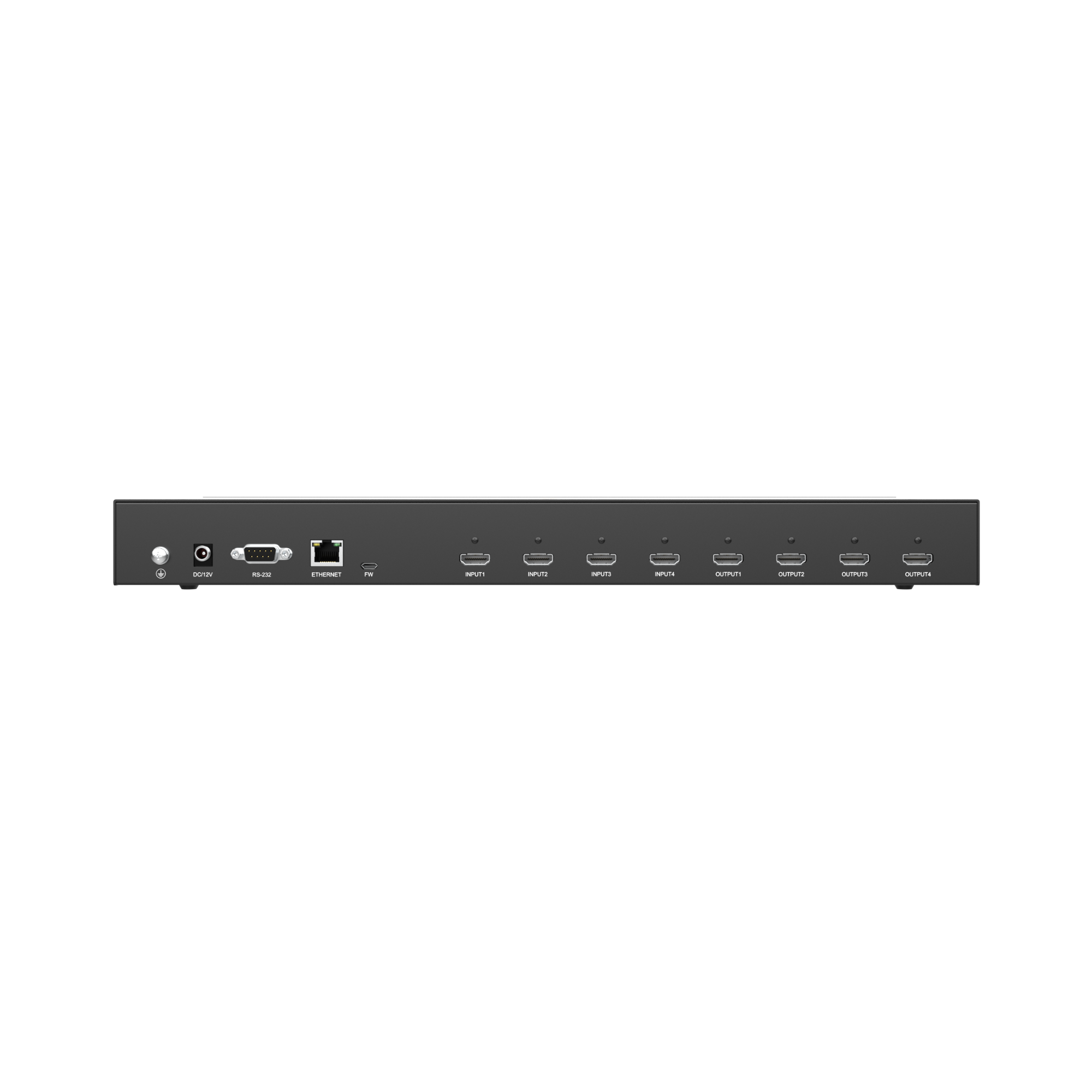

- Input(s): 4 x HDMI
- Number of Inputs: 4
- Output(s): 4 x HDMI
- Number of Outputs: 4
- Network Connector(s): 1 x LAN, 1 x RS-232
- Dimensions

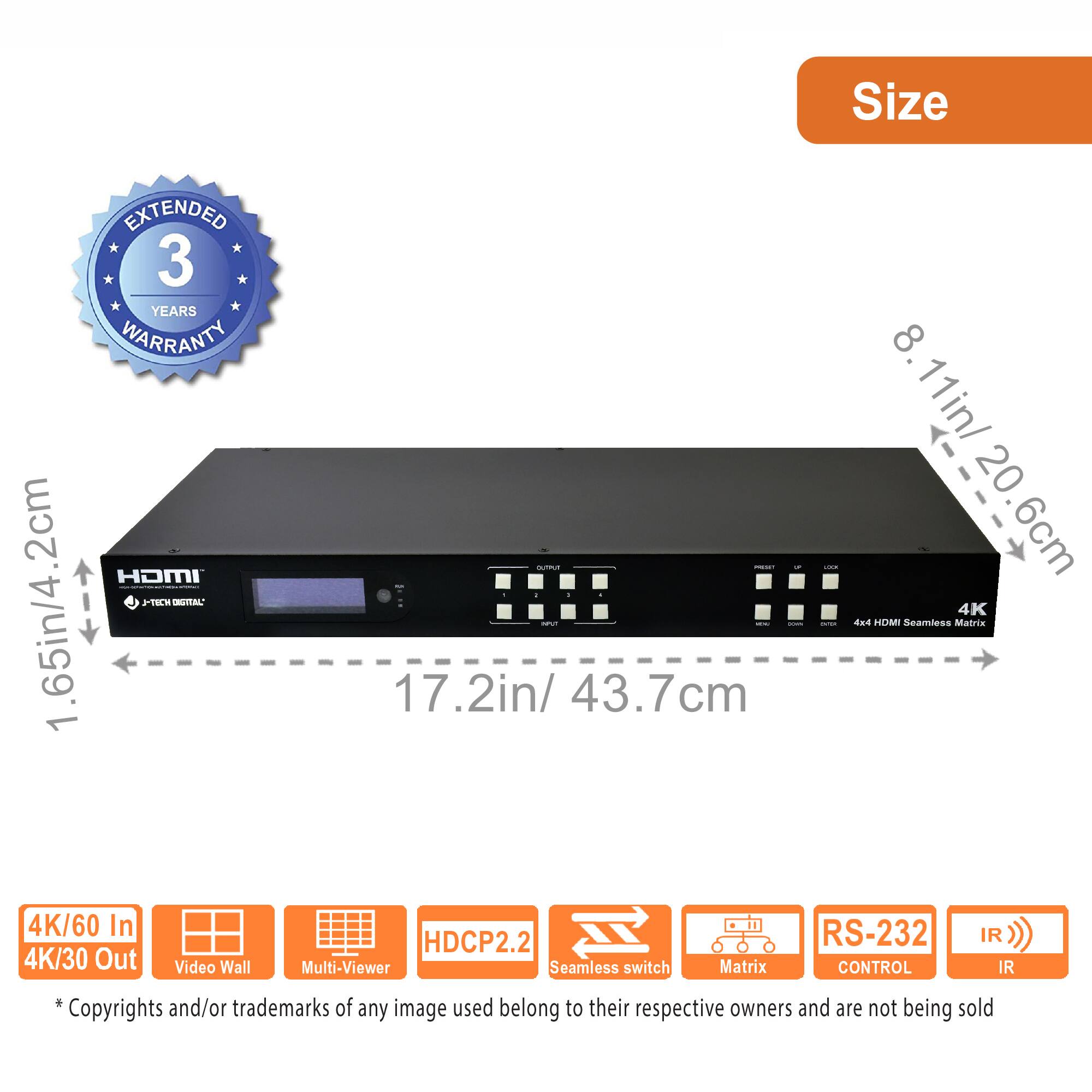

- Product Height: 1.65 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 17.2 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 850001567756
The JTECH-VWM04 is a 4-input, 4-output, seamless switching matrix, video wall controller and multiviewer device all rolled into one. While in matrix mode, seamlessly route any of your 4 available input signals to any combination of outputs without delay or picture loss. Want to view more than one signal on your single display at a time? No problem. Engage the multiviewer function on your output port and choose from 5 different multiviewer layouts, including 2x2, 1x3L, 1x3U, 1x4 & 4x1. Reinvent your interior space by taking advantage of the video wall function and have any source signal stretched across all 4 output displays. Arrange your output displays in up to 10 different video wall configurations, including 2x2, 1x4 and 4x1. 10 different video wall configurations means the user gets the exact style and creative expression they desire.
- Up To 4K@60Hz 4:2:0 Resolution Support: Features 4K@60Hz input signal and 4K@30Hz output. Upscale or downscale your output resolution to 4K 30HZ/ 1080P / 720P / 2560 x 1440 / 1920 x 1200 / 1360 x 768
- Video Wall Controller: HDMI outputs allow user to create 10 different video wall configurations including 2×2, 1×4 and 4×1. Rotate function allows the user to flip any output image 180°

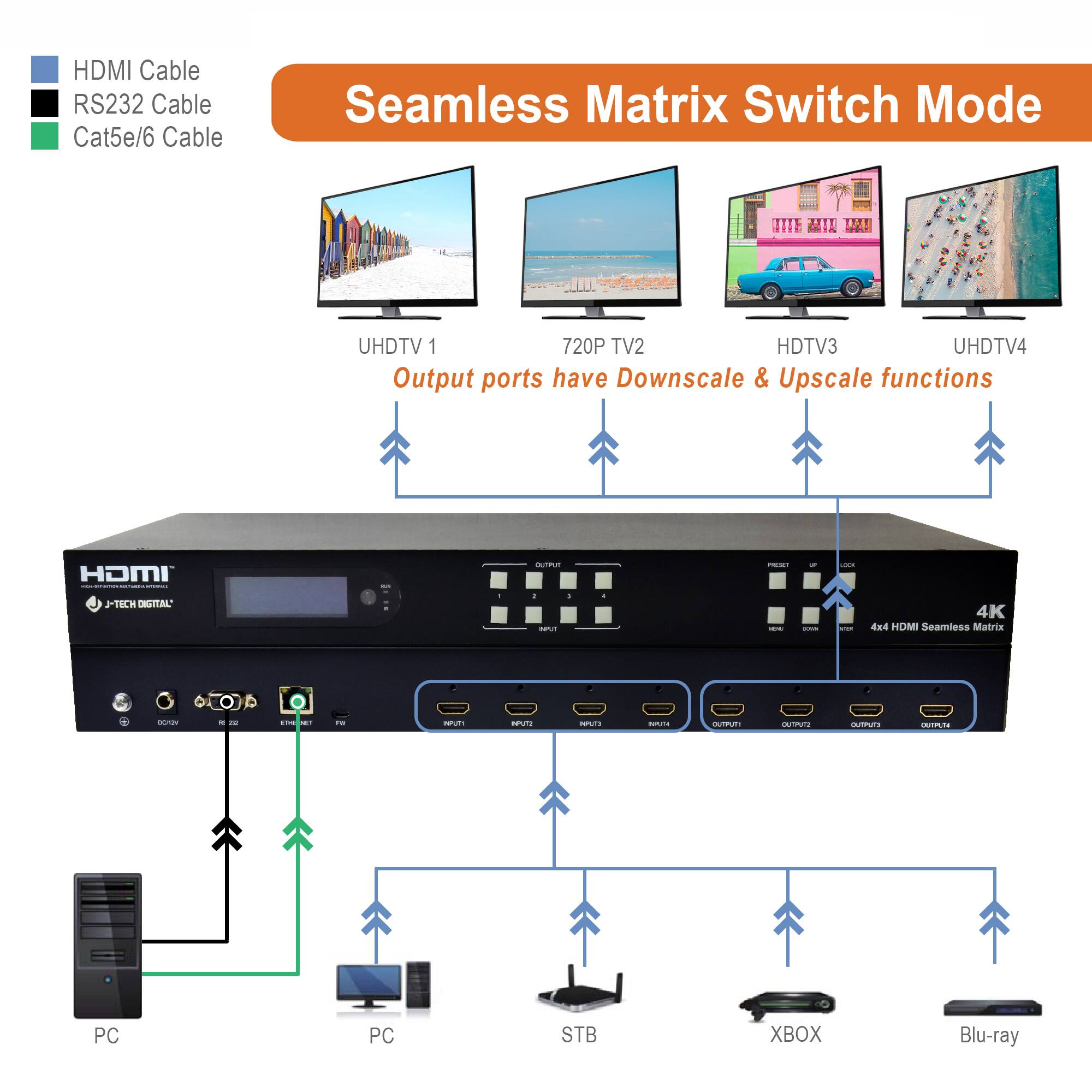

- Seamless Matrix Function: Route any 4 4k@60Hz 4:2:0 input signals to any combination of 4 output displays seamlessly with no switching delay or picture loss

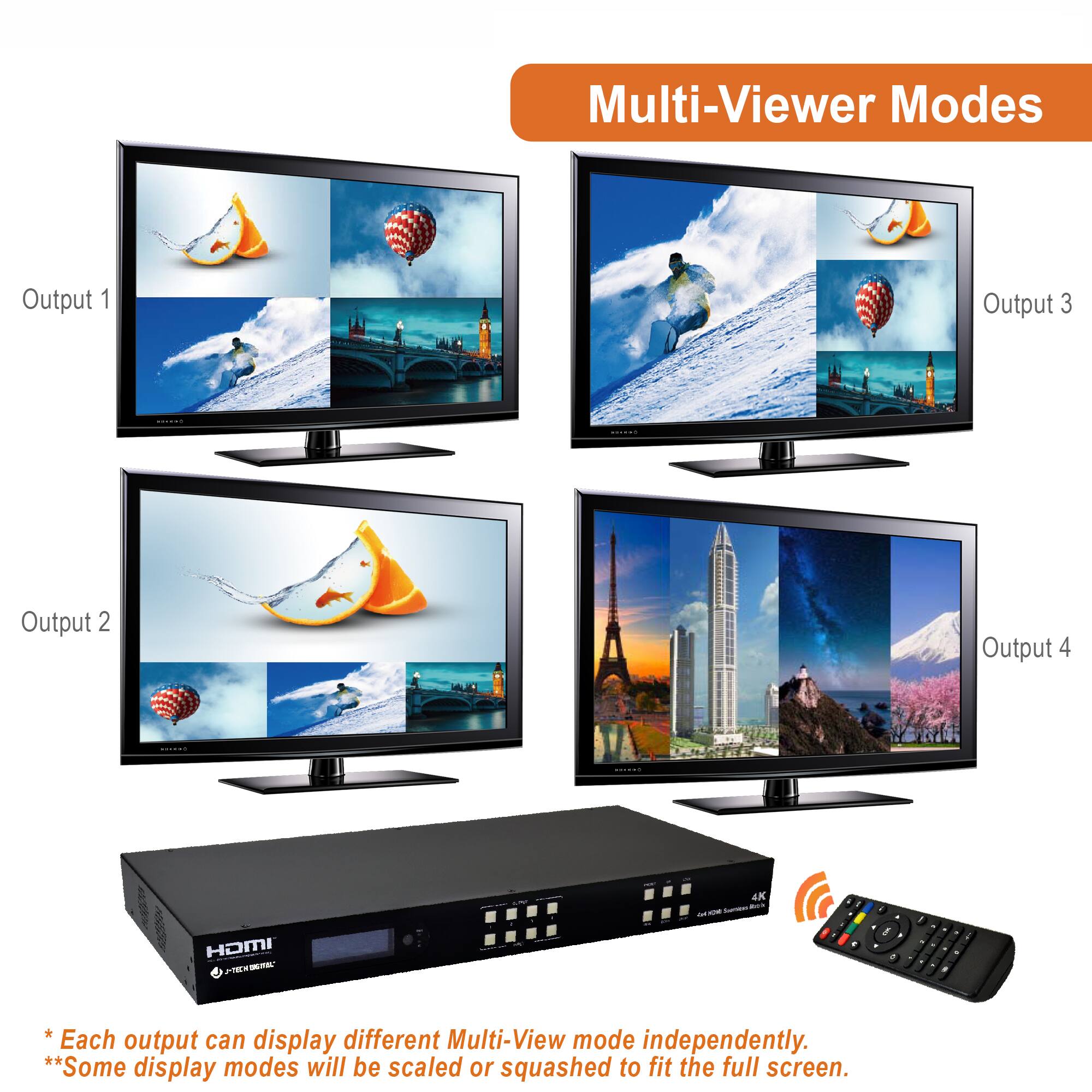

- Multi-viewer Function: Each HDMI output can choose from 5 different multiviewer presets allowing the end user to view all 4 source signals on one screen (2×2, 1x3L, 1x3U, 1×4, 4×1)
- Up To 4K@60Hz 4:2:0 Resolution Support: Features 4K@60Hz input signal and 4K@30Hz output. Upscale or downscale your output resolution to 4K 30HZ/ 1080P / 720P / 2560 x 1440 / 1920 x 1200 / 1360 x 768
- Video Wall Controller: HDMI outputs allow user to create 10 different video wall configurations including 2×2, 1×4 and 4×1. Rotate function allows the user to flip any output image 180°
- Seamless Matrix Function: Route any 4 4k@60Hz 4:2:0 input signals to any combination of 4 output displays seamlessly with no switching delay or picture loss
- Multi-viewer Function: Each HDMI output can choose from 5 different multiviewer presets allowing the end user to view all 4 source signals on one screen (2×2, 1x3L, 1x3U, 1×4, 4×1)
Whats Included
- Main Unit, Remote Control, Power Adapter, Mounting Ears, User Manual CD
- Main Unit, Remote Control, Power Adapter, Mounting Ears, User Manual CD
