J-Tech Digital - 4K 60Hz Input HDMI H.264 IPTV Encoder For Livestream Broadcast - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-ENCH4
- Product Name: J-Tech Digital - 4K 60Hz Input HDMI H.264 IPTV Encoder For Livestream Broadcast
- Color: Black
- Connectivity
- Input(s): HDMI
- Output(s): Ethernet
- Features
- Signal Conversion: Video
- Powered: true
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 766150280470
The JTECH-ENCH4 HDMI Livestream Encoder delivers professional-grade H.264/H.265 streaming with support for 4K@60Hz HDMI input and 1080p@60Hz output. Stream up to one main and three substreams simultaneously with low-latency, high-quality audio and video. Compatible with major protocols including RTMP/RTMPS, HLS, FLV, TS, MP4, RTSP, UDP, SRT, and TRTC, it integrates easily with YouTube, OBS, and more. Customize your stream with logo/text overlays (OSD) and adjust bitrate, FPS, and visuals via the remote web GUI. Featuring MPEG1 Audio Layer 2, CBR/VBR (32 Kbps–32 Mbps), and advanced image controls, the JTECH-ENCH4 is ideal for live events, education, worship, and professional broadcasting.
- Ultra-HD HDMI Video Input: This HDMI H.264 H.265 IPTV encoder supports up to 4K@60Hz HDMI input and 1080P@60Hz output. Allows for 1 main stream and 3 substreams to be ran simultaneously. Please note that the substreams will feature a lower resolution than the main stream.

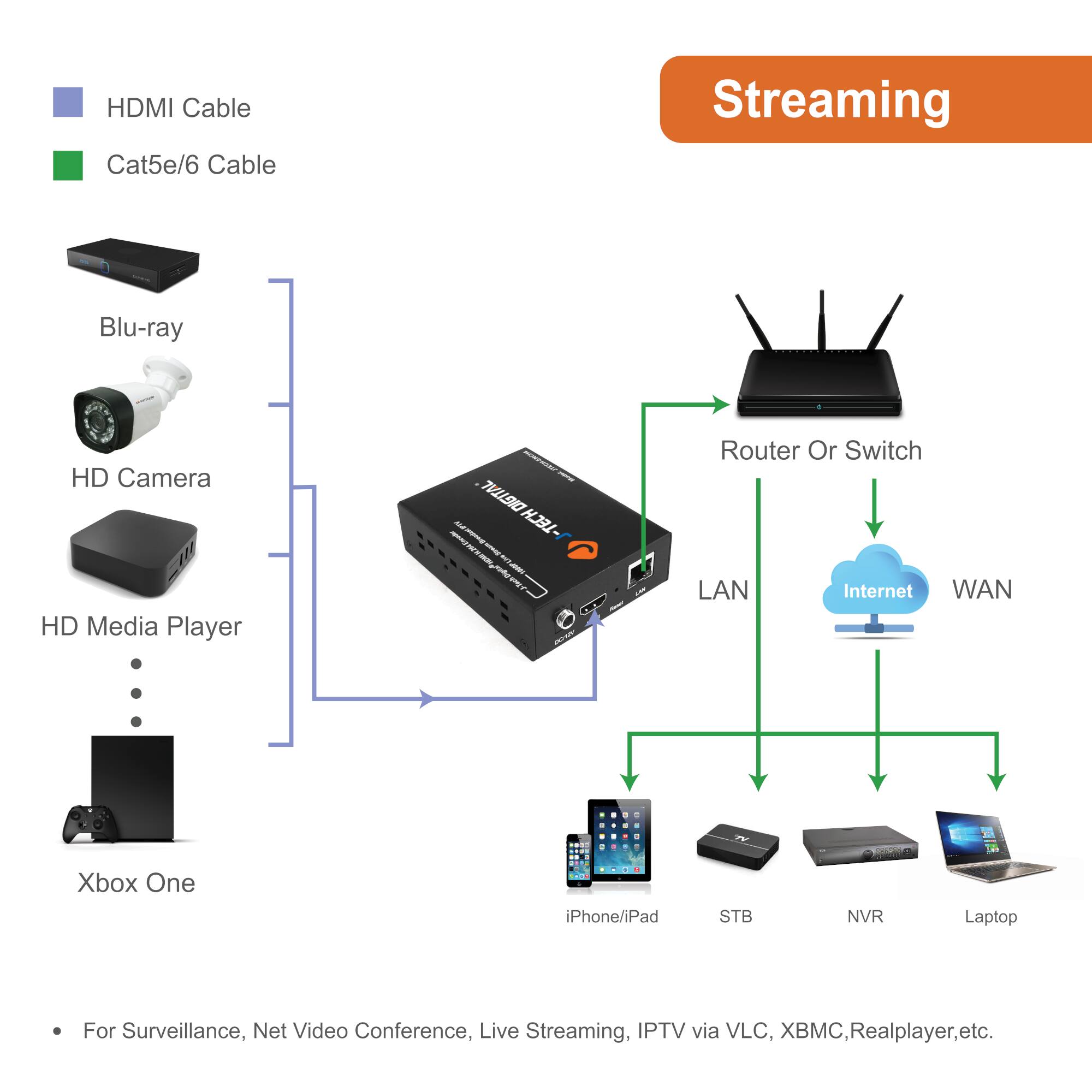

- H.264 / H.265 Encoding: HDMI signal is converted to H.264 or H.265, and transmitted through standard TCP/IP (internet / LAN). Optimized for low-latency, high-bitrate audio/video transmission, and high-quality streaming.

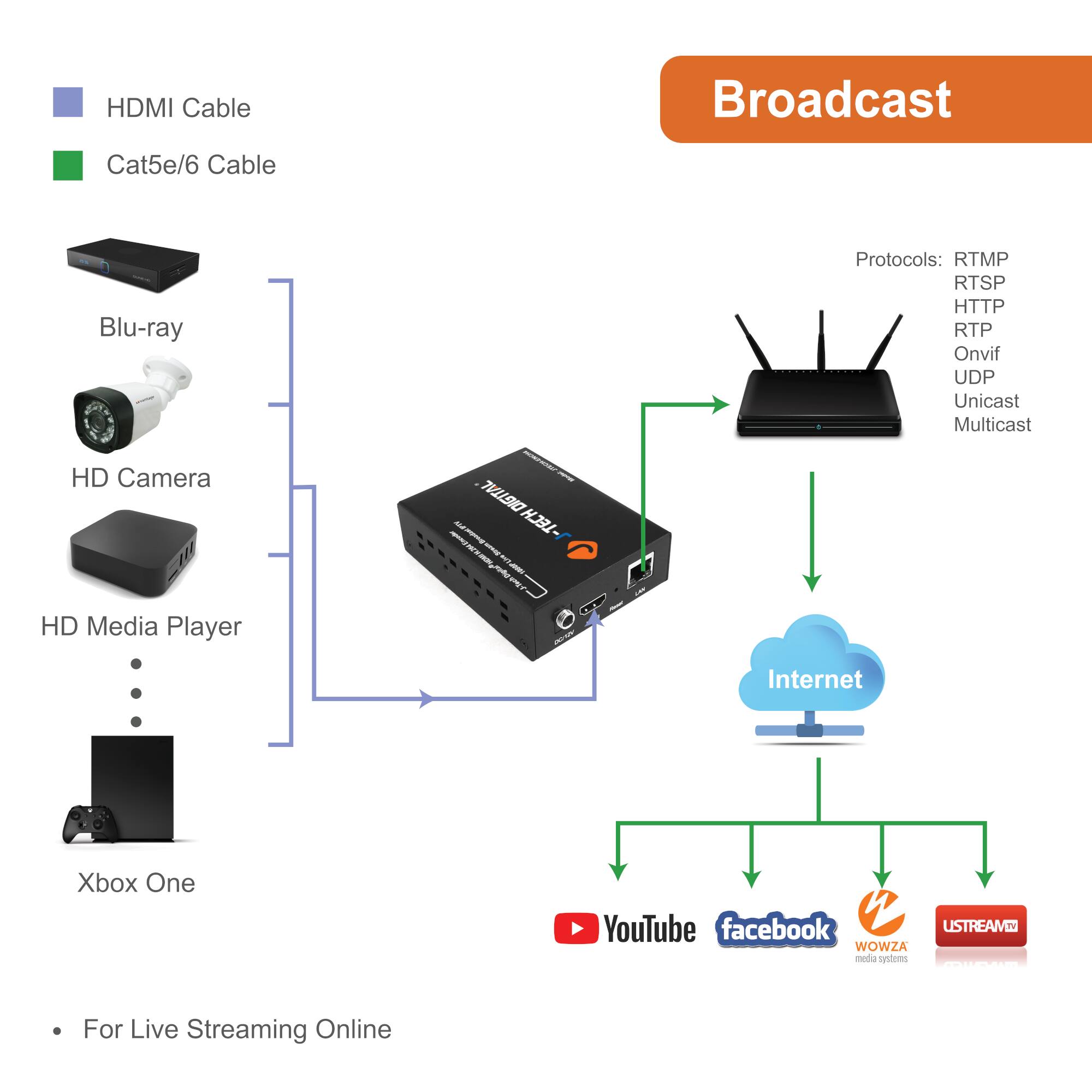

- Multi-Protocol Streaming Support: Broad compatibility with RTMP/RTMPS, HLS, FLV, TS, MP4, RTSP, UDP, SRT, TRTC and more. Compatible with VLC Player. Just enter “http://[Encoder’s IP address]/0.ts” and play a video stream using VLC player.

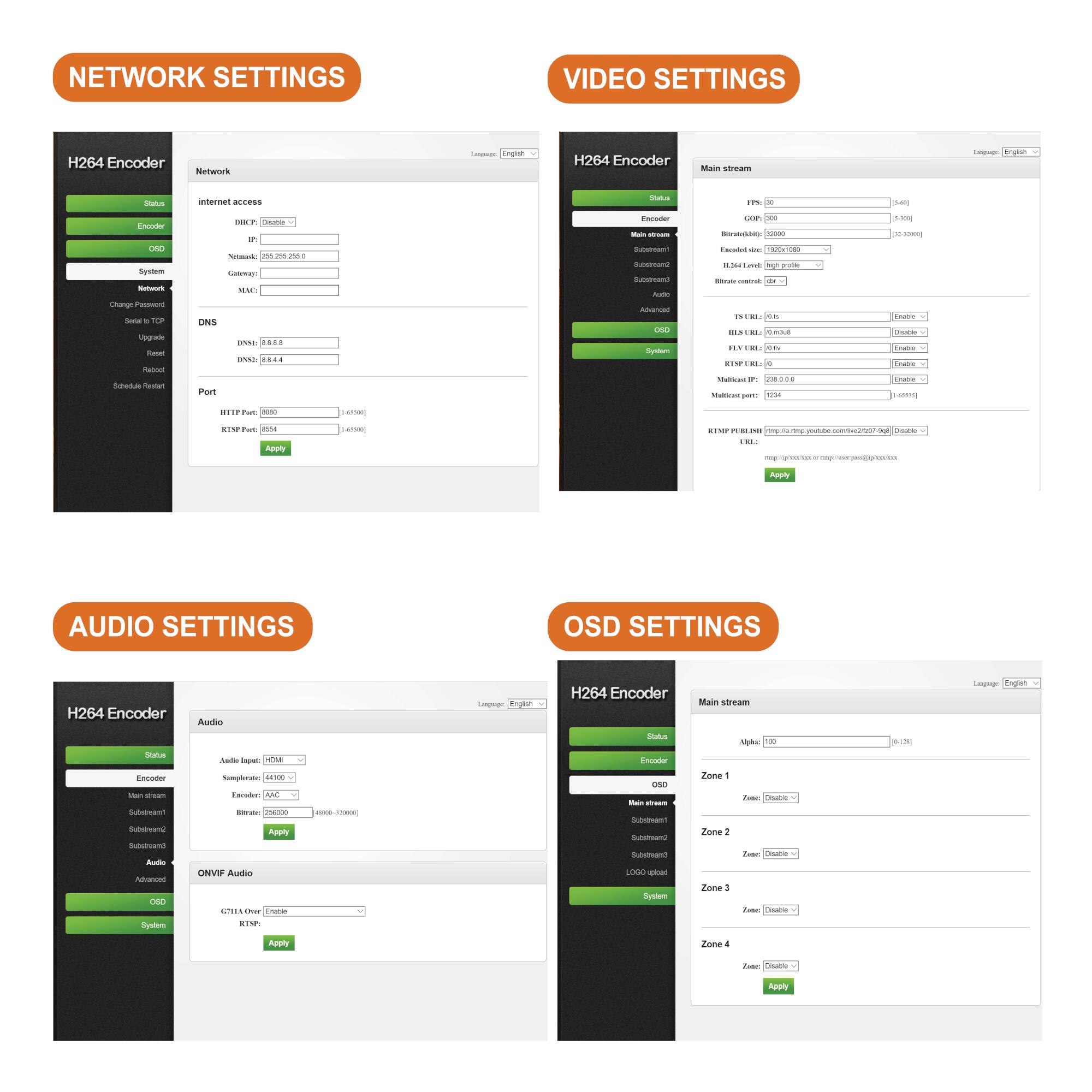

- Audio/Video Control & Customization: Add text or logos (OSD) to your video stream for branded output. Adjust bitrate, FPS, and IP settings remotely via the web GUI. Fine-tune your visuals with flip, rotate, crop, contrast, and brightness controls, plus MPEG1 Audio Layer 2 and CBR/VBR (32 Kbps–32 Mbps) rate management.
- Remote Control: Built-in web server gives you the power to modify settings such as IP address, bit rate, and fps
- Ultra-HD HDMI Video Input: This HDMI H.264 H.265 IPTV encoder supports up to 4K@60Hz HDMI input and 1080P@60Hz output. Allows for 1 main stream and 3 substreams to be ran simultaneously. Please note that the substreams will feature a lower resolution than the main stream.
- H.264 / H.265 Encoding: HDMI signal is converted to H.264 or H.265, and transmitted through standard TCP/IP (internet / LAN). Optimized for low-latency, high-bitrate audio/video transmission, and high-quality streaming.
- Multi-Protocol Streaming Support: Broad compatibility with RTMP/RTMPS, HLS, FLV, TS, MP4, RTSP, UDP, SRT, TRTC and more. Compatible with VLC Player. Just enter “http://[Encoder’s IP address]/0.ts” and play a video stream using VLC player.
- Audio/Video Control & Customization: Add text or logos (OSD) to your video stream for branded output. Adjust bitrate, FPS, and IP settings remotely via the web GUI. Fine-tune your visuals with flip, rotate, crop, contrast, and brightness controls, plus MPEG1 Audio Layer 2 and CBR/VBR (32 Kbps–32 Mbps) rate management.
- Remote Control: Built-in web server gives you the power to modify settings such as IP address, bit rate, and fps

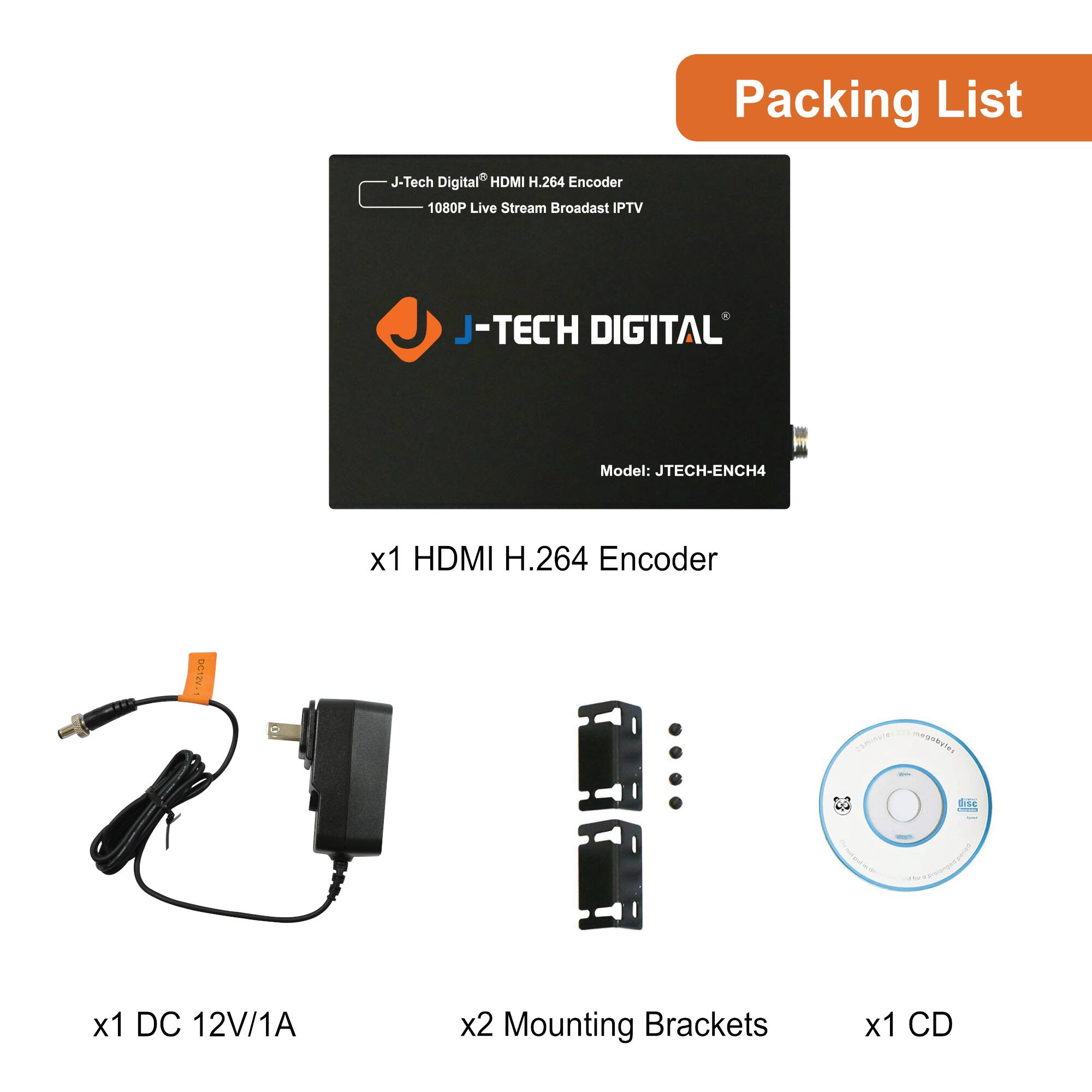

Whats Included
- Encoder, Power Adapter, User Manual
- Encoder, Power Adapter, User Manual
