J-Tech Digital - 4K 60Hz Wall Plate HDMI Extender Over Ethernet with HDMI/USB-C Inputs and USB-C Charging Port - Black & White
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-EXW30
- Product Name: J-Tech Digital 4K 60Hz Wall Plate HDMI Extender Over Ethernet with HDMI/USB-C Inputs and USB-C Charging Port
- Color: Black & White
- Features
- Maximum Video Resolution: 2160p (4K) (Maximum resolution refers to the highest number of pixels that a screen can process and display. Higher resolution signals produce more detailed video.)
- Maximum Supported Resolution (Video Passthrough): 2160p (4K) @ 60 Hz (The highest video resolution supported by the device for passing through video to another device.)
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 164 feet
- Dimensions
- Product Height: 4.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 2.75 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.39 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058921246
The JTECH-EXW30 wall plate extender can help extend your HDMI or USB-C input signals up to 164ft. over a single Cat5e/6/7 ethernet cable. It also supports up to 4K 60Hz resolution, along with digital audio formats which makes it a great solution for church installs, media rooms, bars/restaurants, conference rooms etc. The JTECH-EXW30 also features power over cable from receiver to transmitter, and a USB-C charging port so that you can charge your source device while using it as an input. US one-gang enclosure for Decora-style wall plate opening makes it convenient to install and use.
- Long Distance Signal Transmission: Easily extend your HDMI or USB-C input signal up to 164ft. over a single Cat5e/6/7 cable. Extend 4K 60Hz up to 115ft. and 4K 24Hz up to 164ft. Supports HDMI 2.0 and HDCP 2.2, along with support for digital audio formats

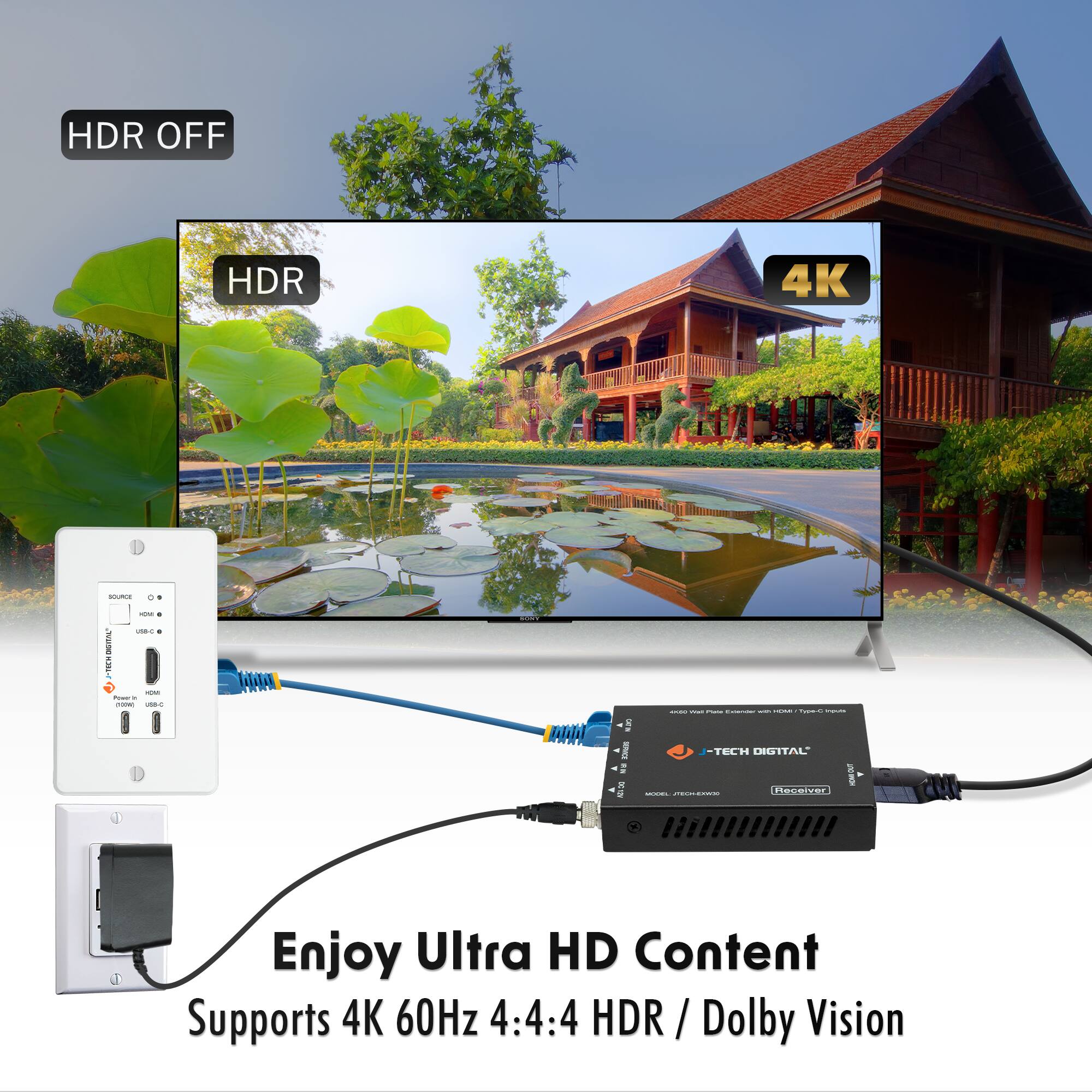

- Up to 4K 60Hz Resolution w/ HDR / Dolby Vision: Enjoy your 4K UHD media content with up to 60Hz refresh rate for a crystal clear and smooth motion picture. Support for HDR and Dolby Vision helps bring your content to life in its highest quality for display

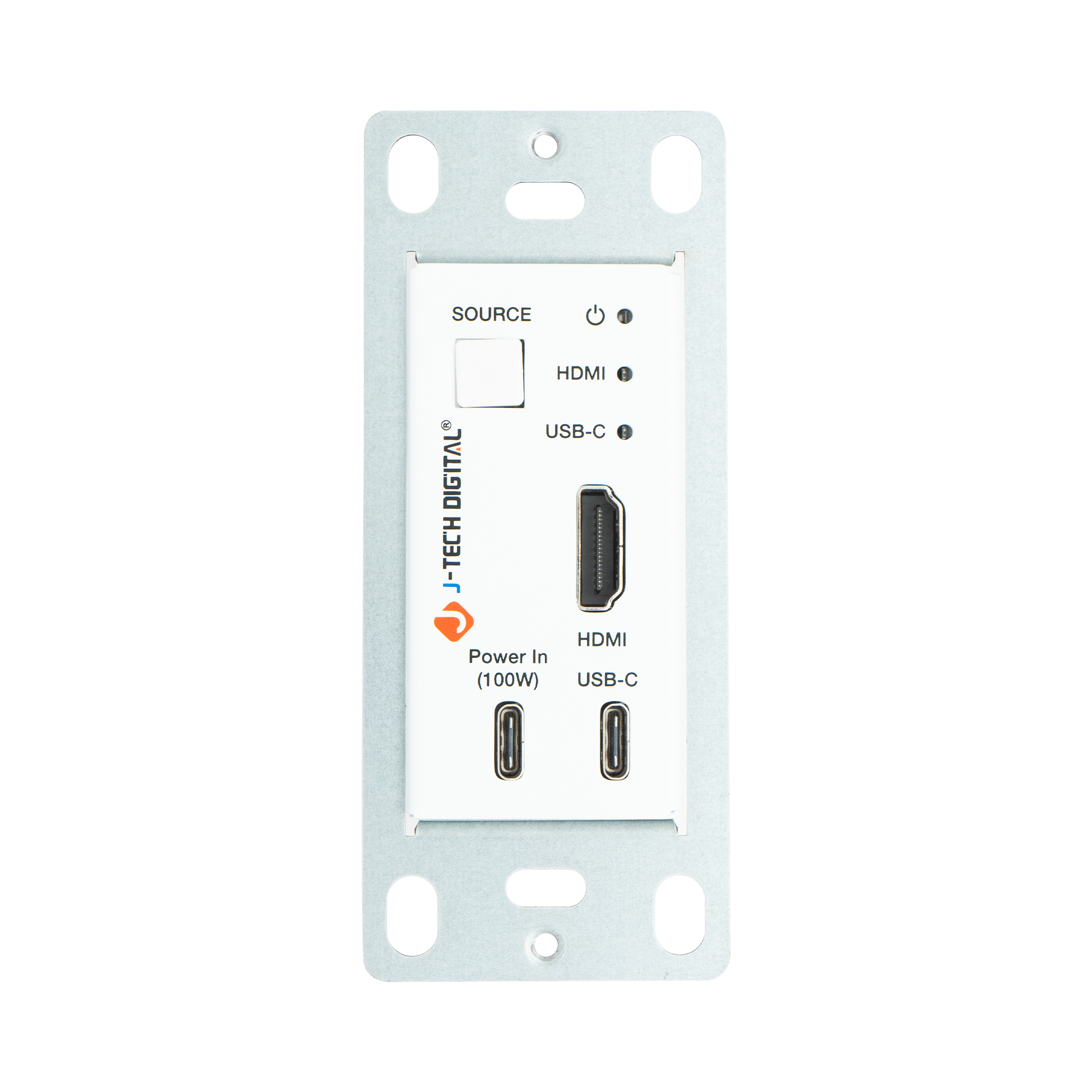

- HDMI / USB-C Inputs & USB-C Charging Port: Features HDMI and USB-C input ports for flexible device connectivity. The USB-C input port also charges your connected source device so that you don’t have to worry about running out of battery! (Note: To charge your USB-C input device while using it as a source, connect the “Power In” USB-C port on the transmitter to a wall outlet)

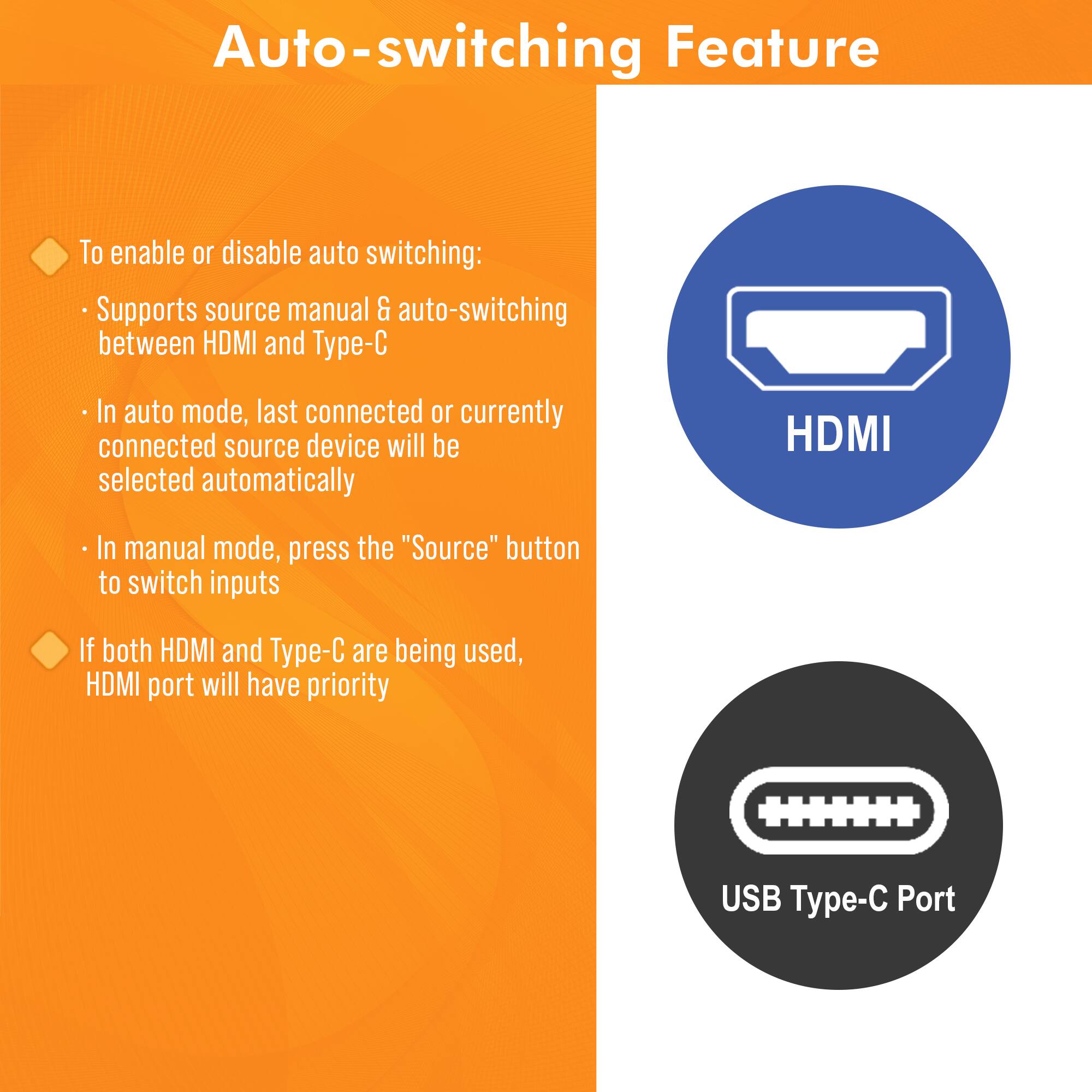

- Features PoC / IR Control / Source Auto-Switch: Power the wall plate transmitter via the receiver unit over Ethernet for convenient install. PoC only works from receiver to transmitter. One way IR control allows you to control your source while near the receiver unit. Supports manual and auto switching between HDMI & USB-C input ports
- Long Distance Signal Transmission: Easily extend your HDMI or USB-C input signal up to 164ft. over a single Cat5e/6/7 cable. Extend 4K 60Hz up to 115ft. and 4K 24Hz up to 164ft. Supports HDMI 2.0 and HDCP 2.2, along with support for digital audio formats
- Up to 4K 60Hz Resolution w/ HDR / Dolby Vision: Enjoy your 4K UHD media content with up to 60Hz refresh rate for a crystal clear and smooth motion picture. Support for HDR and Dolby Vision helps bring your content to life in its highest quality for display
- HDMI / USB-C Inputs & USB-C Charging Port: Features HDMI and USB-C input ports for flexible device connectivity. The USB-C input port also charges your connected source device so that you don’t have to worry about running out of battery! (Note: To charge your USB-C input device while using it as a source, connect the “Power In” USB-C port on the transmitter to a wall outlet)
- Features PoC / IR Control / Source Auto-Switch: Power the wall plate transmitter via the receiver unit over Ethernet for convenient install. PoC only works from receiver to transmitter. One way IR control allows you to control your source while near the receiver unit. Supports manual and auto switching between HDMI & USB-C input ports

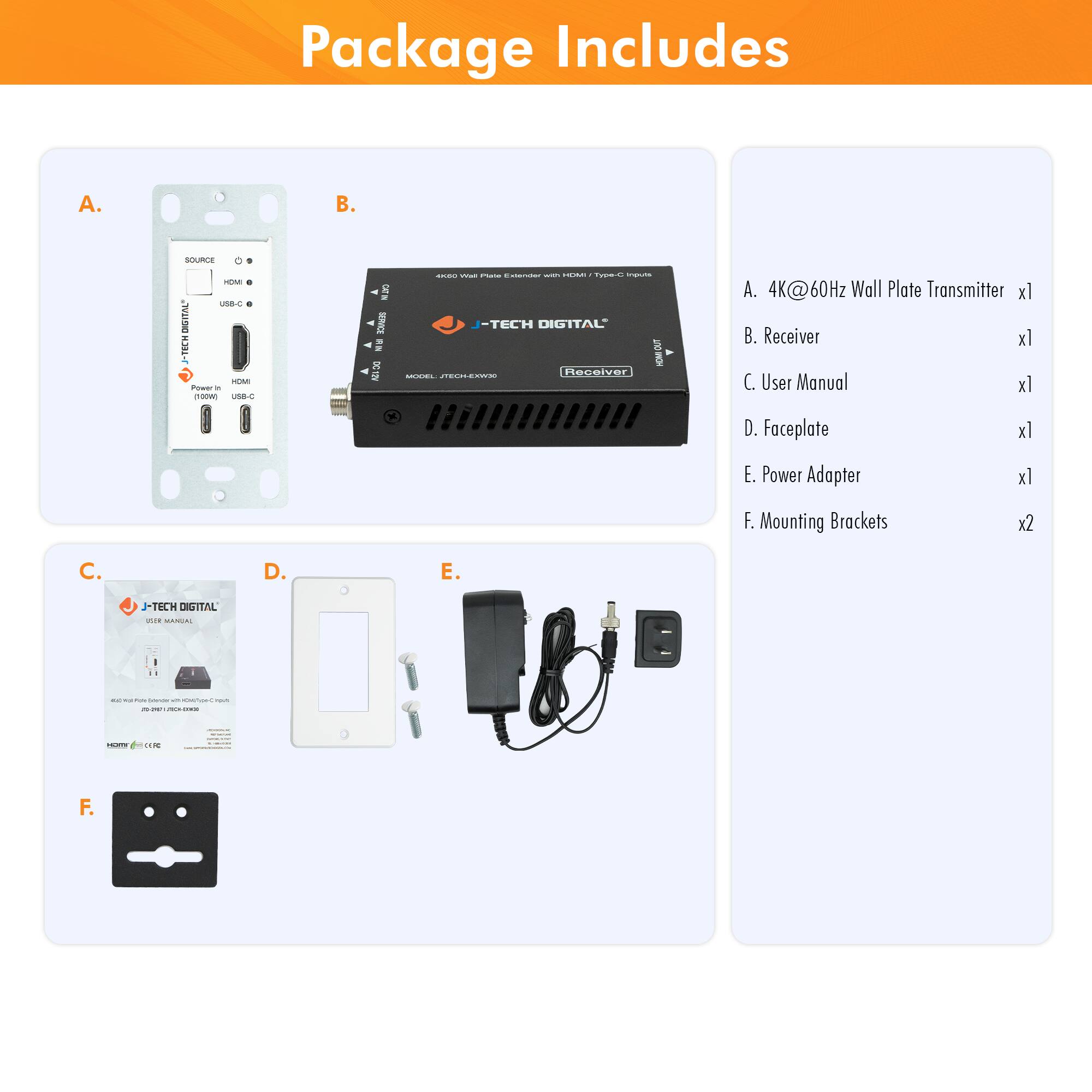

Whats Included
- Transmitter, Receiver, Power Adapter, User Manual, Mounting Kit
- Transmitter, Receiver, Power Adapter, User Manual, Mounting Kit
