J-Tech Digital - HDMI-ARC and SPDIF Optical Audio Extender over Ethernet CAT5e/6 (492ft) - Black
Related Item
About This Item
- General
- Brand: J-Tech Digital
- Model Number: JTECH-AET-AS
- Product Name: J-Tech Digital HDMI-ARC and SPDIF Optical Audio Extender over Ethernet CAT5e/6 (492ft)
- Color: Black
- Features
- Powered: true
- Connectivity
- Wireless: false
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Maximum Transmission Range: 492 feet
- Dimensions
- Product Height: 2.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.5 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.5 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 810058921888
JTECH-AET1000 is the digital audio extender perfect for those with elaborate or intricate home theater/entertainment systems. This device will allow you to take the optical or coaxial audio output of any source device and transmit it up to 990’ away from the source, using a Cat5e/6/7 cable. Power up your system with more sound… 2 separate sound systems can receive audio simultaneously by utilizing both audio outputs. Don’t settle for mess and clutter. Power both the Transmitter (TX) and the Receiver (RX) with just 1 power adapter. The receiver is powered from the transmitter’s power adapter with power traveling over the ethernet cable.

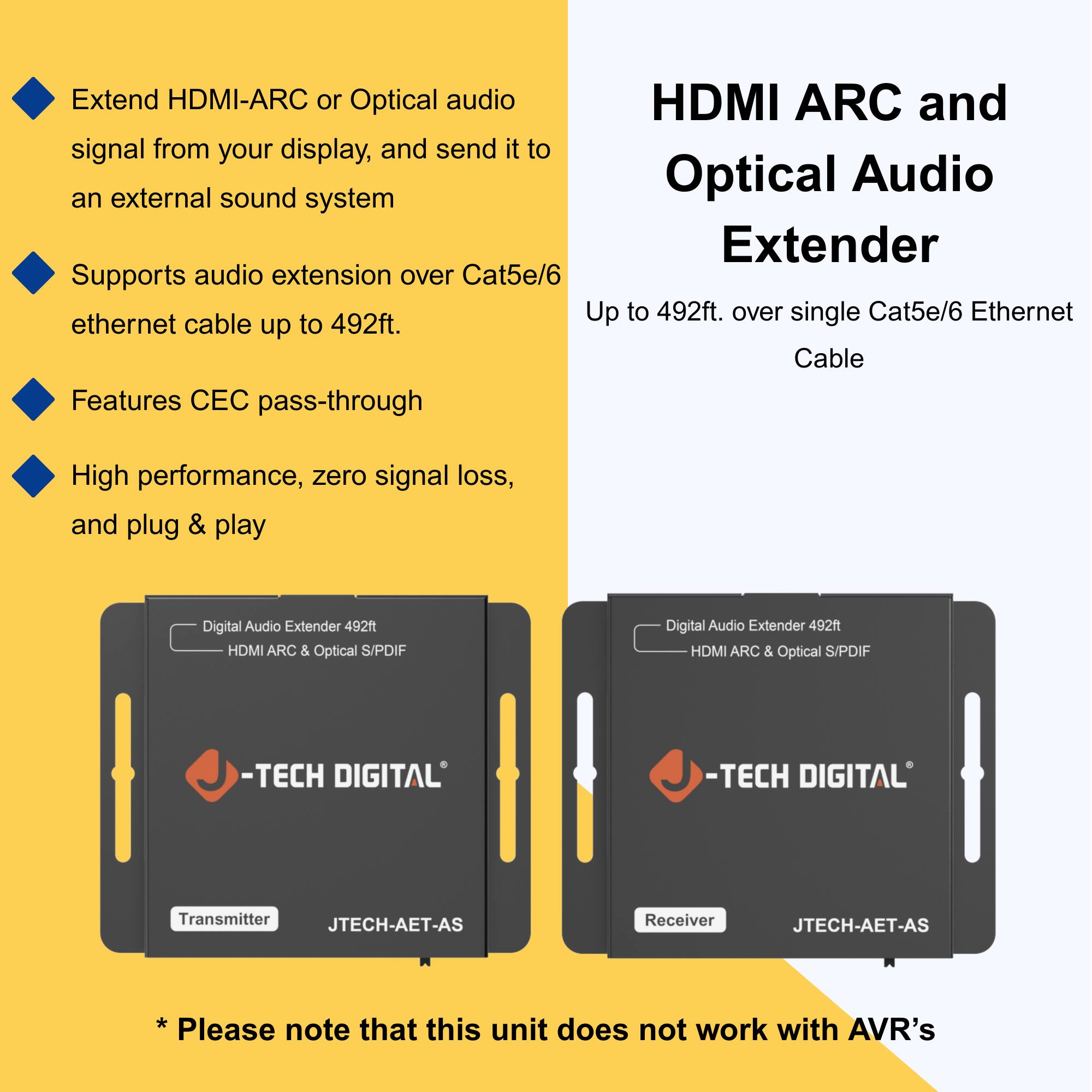

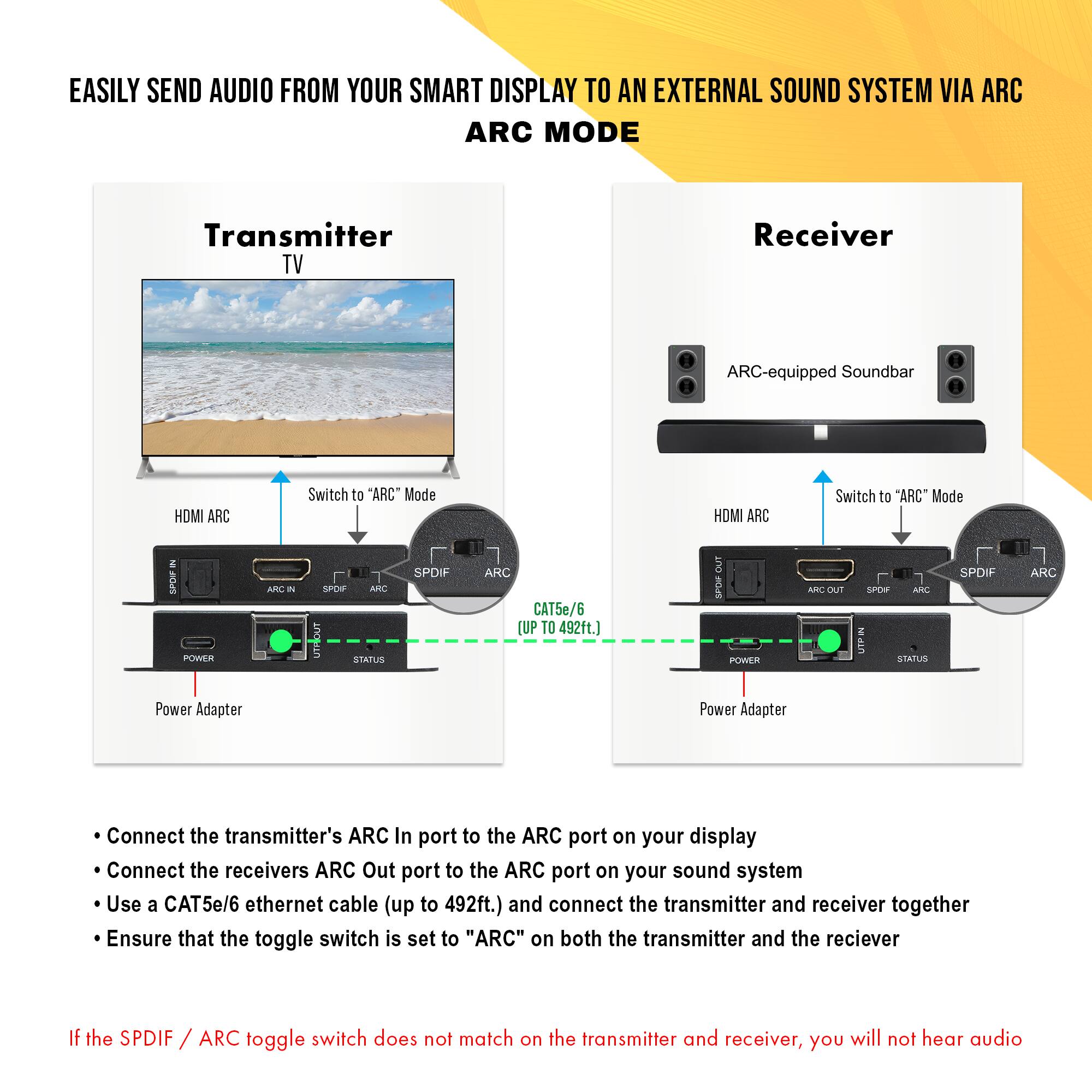

- HDMI-ARC or SPDIF Optical Extender: Extend your digital audio signal (HDMI-ARC or SPDIF Optical) from a display to an external sound system up to 492ft. over a single CAT5e/6 ethernet cable
- Ensure Correct Settings: This audio extender allows you to extend either HDMI-ARC orSPDIF Optical signal; does not support simultaneous function
- Supports CEC Pass-Through: Enjoy the benefits of CEC pass-through that helps enable the transmission for HDMI ARC function. Please be aware that this is an audio extender only, and does not pass through any video signal
- Quick & Easy Installation: Setup is quick and easy. Simply power up the transmitter and receiver using the USB power cable and wall wart included in the box, and take advantage of either extending HDMI-ARC or SPDIF Optical digital audio signal to your favorite sound system
Whats Included

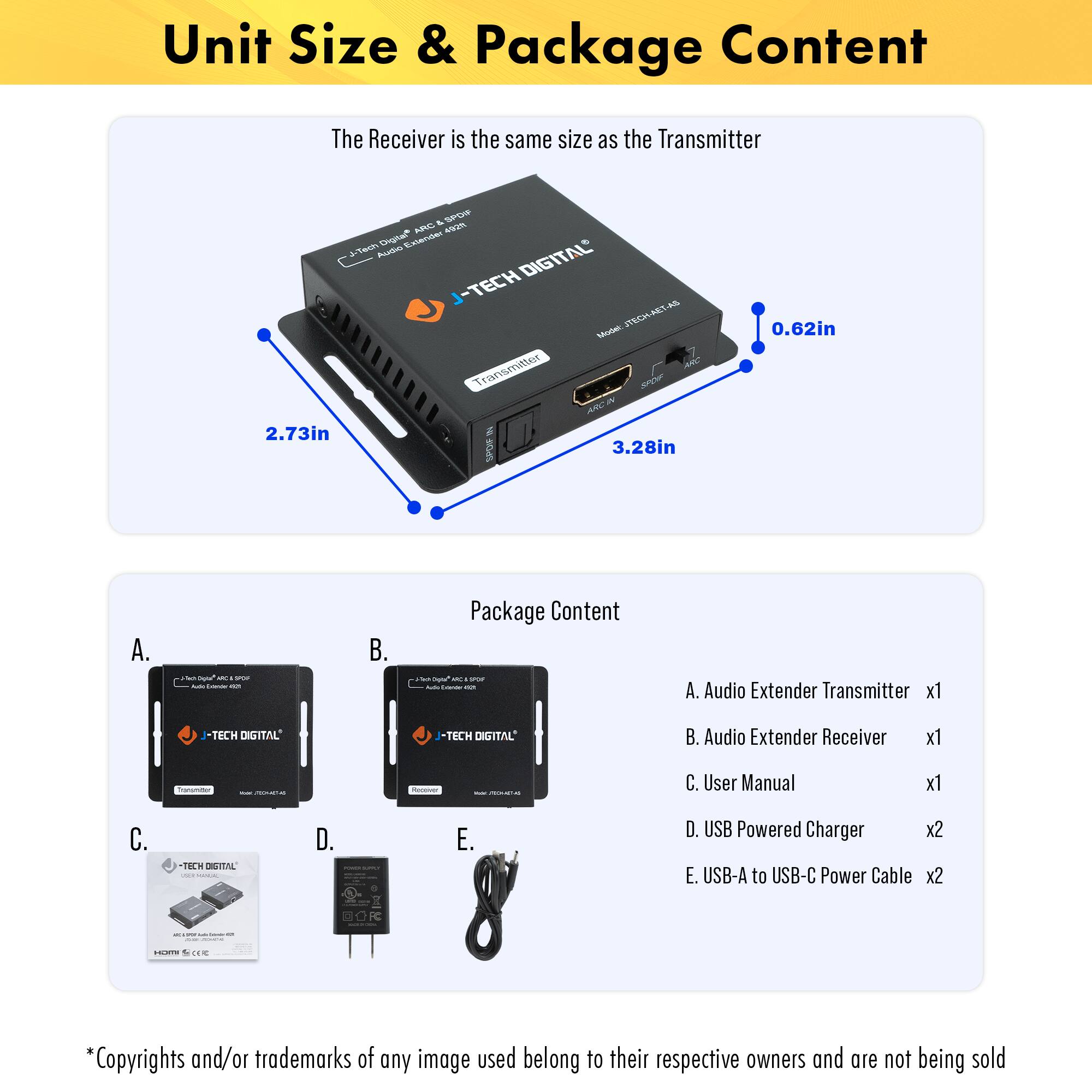

- Transmitter, Receiver, USB Power Cable, USB Wall Adapter, User Manual
