JBL - STAGEGT80021AM 2 Channel, 80W x 2 Amplifier - Black/Gray
Related Item
Specifications
- Amplifier ClassDNumber Of Channels2Bass BoostVariable
- Key Specs
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- General
- Brand: JBL
- Model Number: STAGEGT80021
- Product Name: JBL STAGEGT80021AM 2 Channel, 80W x 2 Amplifier
- Color: Black/Gray
- Audio Power
- Total Power Handling RMS: 400 watts
- Total Power Handling Maximum: 800 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Dimensions
- Product Height: 4.000 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.000 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.000 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 10.0 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-Year Manufacturer Warranty
- Warranty - Labor: None
- Other
- UPC: 050036406499

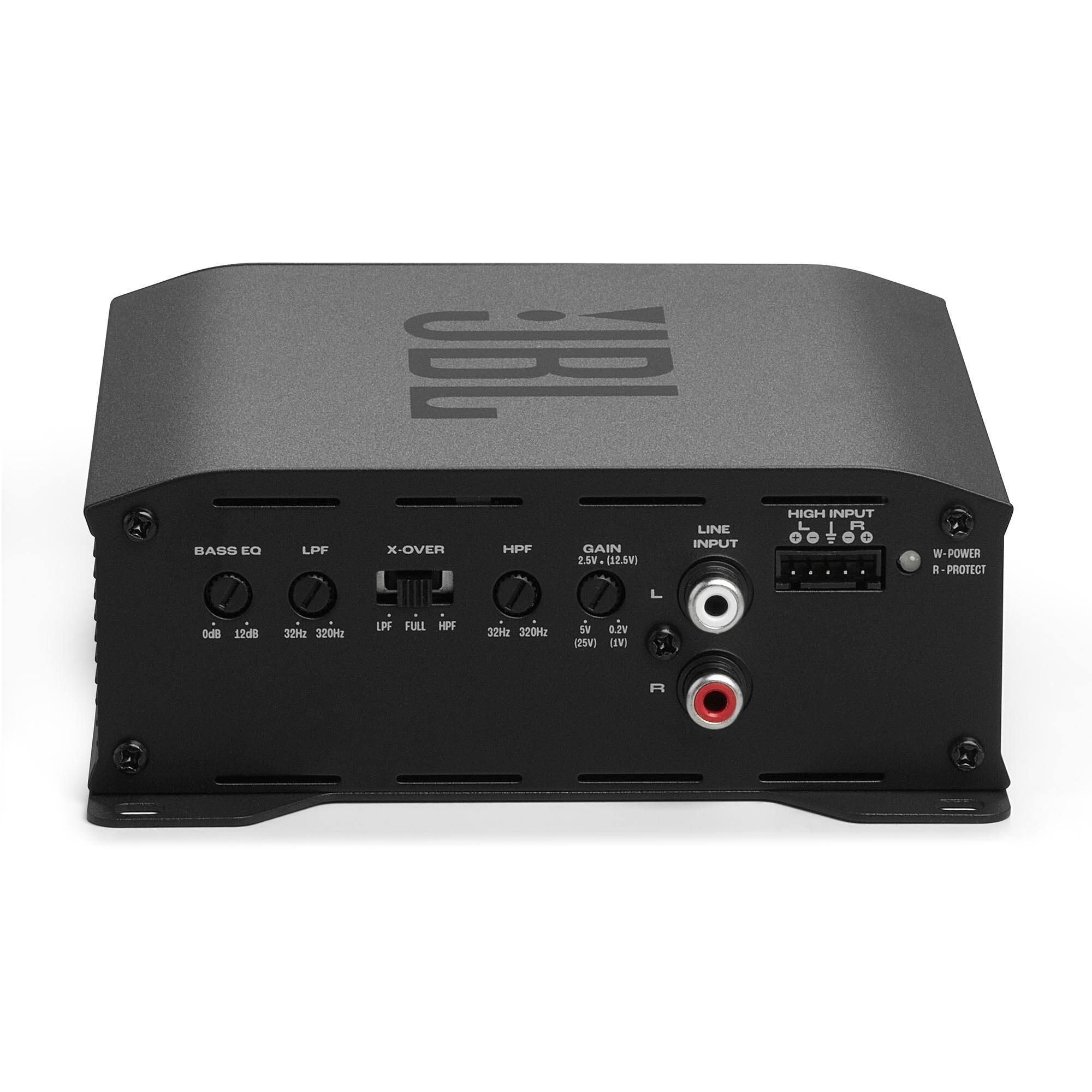

Power you will feel at your core. The JBL STAGE GT series high-performance Class-D amplifiers are available in four-channel, two-channel, and mono-channel models, designed to meet a variety of system configurations. Featuring advanced engineering capabilities, these amplifiers optimize performance for the ultimate listening experience. The JBL STAGE GT amplifiers are easily installed and remarkably reliable. The compact amplifiers are equipped with user controls, including a bass EQ as well as HPF and LPF crossover controls, allowing you to tailor the sound to suit the characteristics of your vehicle. Features • Great Performance at an Affordable Price • Compact Footprint • Full On-Board Protection • Start/Stop Compatible • Wide Input Sensitivity Range • Adjustable Bass EQ • OEM Load Detect Compatible • Crossover Controls • Immersive Sound Experience • JBL Industrial Design Technical Specifications • Max Power: 800W peak • Power Output: 260Wrms x 1 @ Bridged 4 ohms full range • Power Output: 130Wrms x 2 @ 2 ohms full range • Power Output: 80Wrms x 2 @ 4 ohms full range • Frequency Response: 20Hz - 20kHz±1dB • THD+N@ROP: 1% • Input Sensitivity LOW: 0.2V - 5V, HIGH: 1V - 25V • High/Low Pass Filter, Variable: 32Hz - 320Hz • Bass EQ@45Hz: 0 - 12dB Variable • Protection: DCP, OVP, UVP, OCP, OTP • Operating Voltage: 9V - 16V • Fuse Rating: 25A What’s in the Box 1x Amplifier 2x Spare Fuse 1x High-level Input Cable 4x Mounting Screw with Washer 2x Allen Key 2x JBL Stickers 1x QR Code Owners Manual 1x Safety Sheet
- Key Feature: Great Performance at an Affordable Price - JBL STAGE GT Amplifiers provide true JBL performance at an affordable price while having the features you need to properly fine tune and optimize you audio system performance.
- Key Feature: Compact Footprint - JBL STAGE GT Amplifiers have everything you need to create a quality audio system with the flexibility of mounting it in tight spaces.
- Key Feature: Full On-Board Protection - JBL STAGE GT Amplifiers are engineered with on-board circuitry to protect them from shorts, overheating, overvoltage and undervoltage.
- Key Feature: Start/Stop Compatible - JBL STAGE GT Amplifiers seamlessly integrate with vehicles featuring start/stop engines, ensuring consistent audio performance no matter where your journey leads you.
- Key Feature: Wide Input Sensitivity Range - Including speaker-level inputs from 1Vrms to 25Vrms, and low-level inputs from 200mVrms to 5Vrms let JBL STAGE GT Amplifiers integrate with almost any audio input
Whats Included
- JBL STAGEGT80021AM 2 Channel, 80W x 2 Amplifier
