JCPower Audio Systems - RMINI-Series 1000 Watt Compact 4-Channel Amplifier - Black
Reviews coming soon
Specifications
- Continuous Watts x Channel @ Ohms185 Watts x 4 @ 4 ohms, 290 Watts x 4 @ 2 ohms, 580 x 2 @ 4 ohms bridgedAmplifier ClassDNumber Of Channels4Bass BoostNoneBridgeableYesLow-Pass CrossoverVariable
- Key Specs
- Continuous Watts x Channel @ Ohms: 185 Watts x 4 @ 4 ohms, 290 Watts x 4 @ 2 ohms, 580 x 2 @ 4 ohms bridged
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: JCPower Audio Systems
- Model Number: RMINI-1000.4Dv2
- Product Name: RMINI-Series 1000 Watt Compact 4-Channel Amplifier
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 185 Watts x 4 @ 4 ohms, 290 Watts x 4 @ 2 ohms, 580 x 2 @ 4 ohms bridged
- Total Power Handling Maximum: 1000 watts
- Amplifier Class: D (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Maximum Frequency Response: 20 kilohertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The maximum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Total Harmonic Distortion: 0.3 percent (Measurement of the harmonic sound distortion. The lower the percentage, the cleaner the sound.)
- Signal-to-Noise Ratio (SNR): 90 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Remote Control Included: No
- Marine: false
- Fan Cooled: true
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: false (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Dimensions
- Product Height: 1.7 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 9 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 4.4 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Other
- UPC: 618528024233

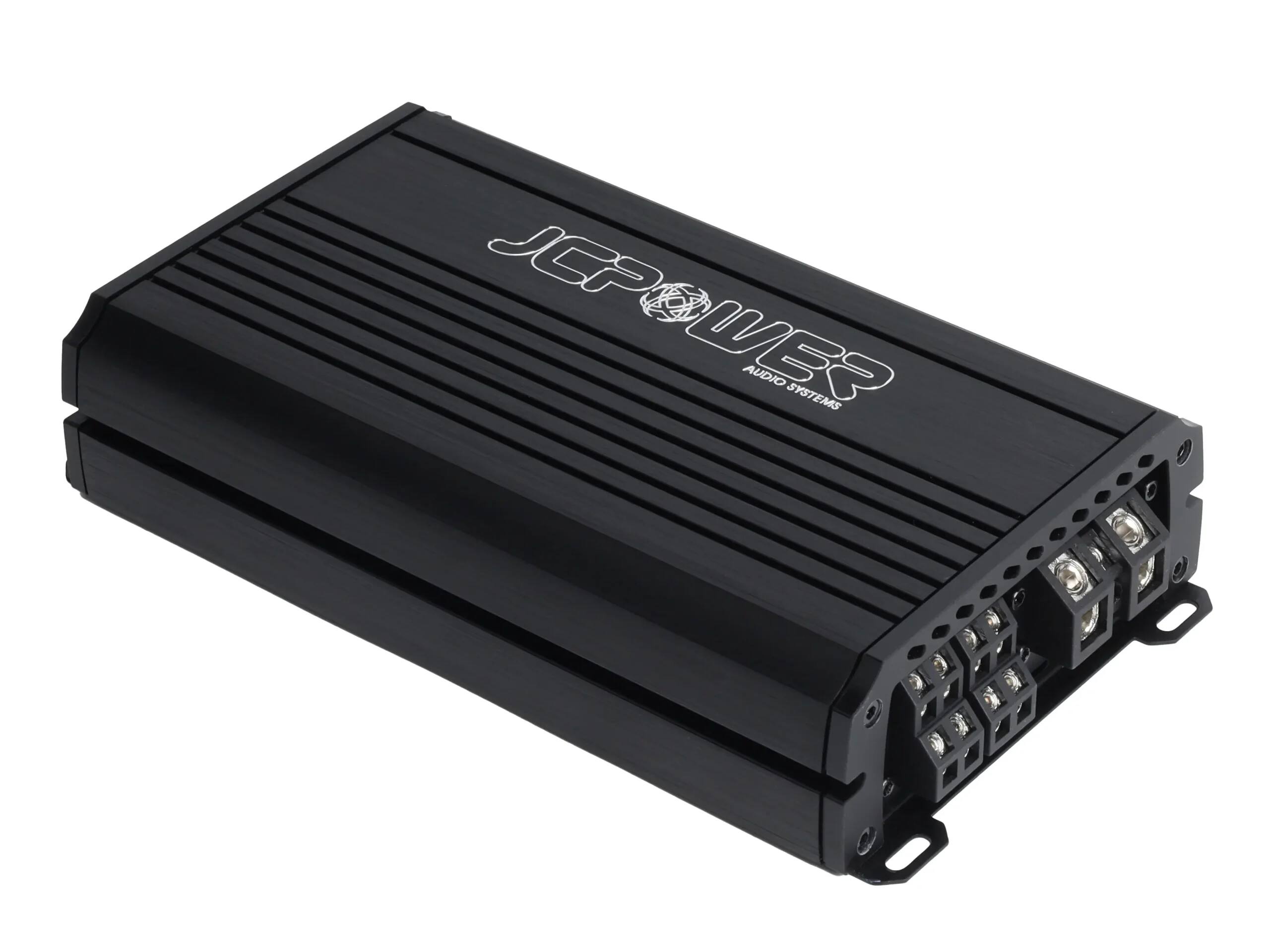

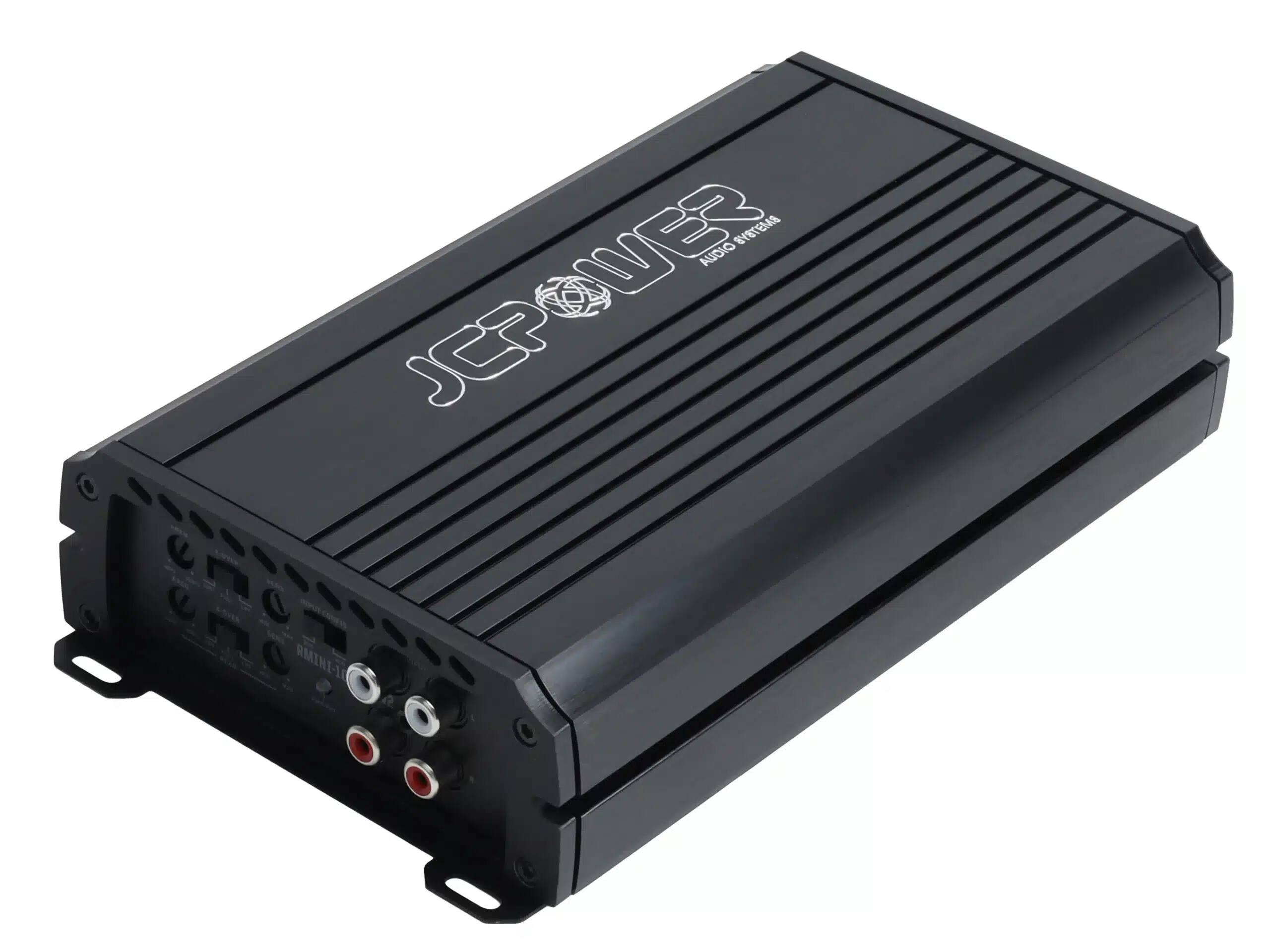

The JCPower RMINI-1000.4Dv2 4 channel amplifier takes your car audio experience to the ultimate level. This compact Class D amplifier now delivers a phenomenal increase in power and sound quality, making it the ideal choice for driving the most demanding car speakers and pro audio setups.
- Extreme High-Powered Performance: This high-output amplifier delivers up to 290W RMS per channel at 2 ohms and 580W RMS x 2 when bridged, providing exceptional headroom and clean, distortion-free performance for demanding speakers.
- Compact Design for Space-Saving Installations: With a compact 8.9″ × 5.0″ × 1.86″ footprint, this 4-channel amplifier is easy to install in tight spaces for discreet mounting under seats or behind panels without sacrificing performance.
- Engineered for Demanding Speakers: This amplifier is built to power high-output and pro audio speakers, delivering the clean power and headroom needed for RP-Series and RPN-Series components to perform at their best

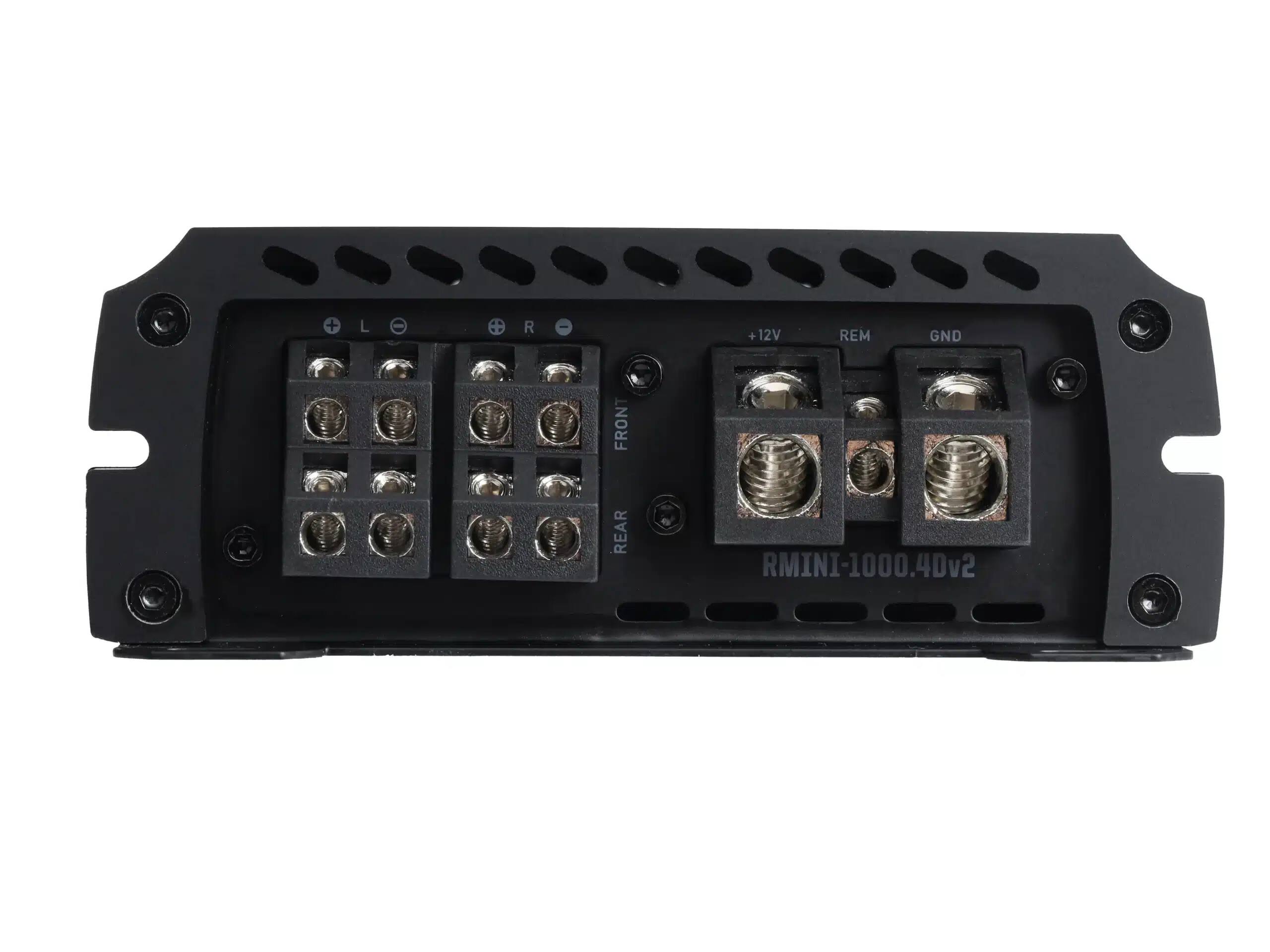

- Key Features: The amplifier features high-level inputs for easy factory integration, low-level RCA inputs for aftermarket head units, and variable high-pass and low-pass filters for precise speaker tuning and optimal sound quality.
Whats Included
- RMINI-1000.4Dv2 4-Channel Amplifier, Mounting Screws
