JVC - 10.1” Wireless Android Auto & Apple CarPlay DM Receiver with OEM Integration and iDatalink Maestro Required - Black
Specifications
- App CompatibleYesMobile Device SyncingAndroid Auto, Apple CarPlayBluetooth EnabledYesSteering Wheel Control CompatibleYesTuner Type(s)AM/FM, Satellite Ready, HDCD PlayerNo
- Key Specs
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Device Syncing: Android Auto, Apple CarPlay
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): AM/FM, Satellite Ready, HD
- CD Player: false
- Screen Size: 10 inches (Size of the screen, measured diagonally from corner to corner.)
- Selectable Color Illumination: true
- Works With: Siri, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- General
- Brand: JVC
- Model Number: KW-Z1000AW
- Product Name: 10.1” Wireless Android Auto & Apple CarPlay DM Receiver with OEM Integration and iDatalink Maestro Required
- Color: Black
- Audio
- Watts Per Channel: 50 watts
- RMS Power: 29 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Preamp Outputs: Front, Rear, Subwoofer
- Preamp Output Level: 4 volts
- Compatibility
- Mount Style: Double DIN
- Shortened Depth: true (A depth typically less than 80% less of the standard car stereo or head unit depth of 7".)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Device Syncing: Android Auto, Apple CarPlay
- Mobile Operating System Compatibility: Apple iOS, Android
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Rear Facing Inputs: HDMI, Composite video, USB-C
- Number of Camera Inputs: 4
- Steering Wheel Control Compatible: true
- Original Equipment Manufacturer (OEM) Integration: iDatalink Maestro RR, iDatalink Maestro RR2 (The aftermarket solution for linking to the Original Equipment Manufacturer’s (OEM) hardware or software, sometimes requiring an additional interface.)
- Works With: Siri, Google Assistant (Compatible with or able to be connected to other smart devices or applications.)
- Tuner
- Tuner Type(s): AM/FM, Satellite Ready, HD
- Number Of Station Presets: 20
- Satellite Radio: SiriusXM Ready
- Receivers With HD Radio: true
- Players
- CD Player: false
- DVD Player: false
- Features
- USB Device Charging: true
- Hands-Free Calling: true
- External Microphone: Included
- Remote Control Included: false
- Marine: false
- EQ Presets: true
- Display
- Screen Size: 10 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Type: LCD
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Touch Screen Type: Capacitive
- Display Color: Variable
- Selectable Color Illumination: true
- Faceplate Style: Fixed
- Dimensions
- Product Height: 7 1/8 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 10 5/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 1 9/16 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 2.4 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 046838504754

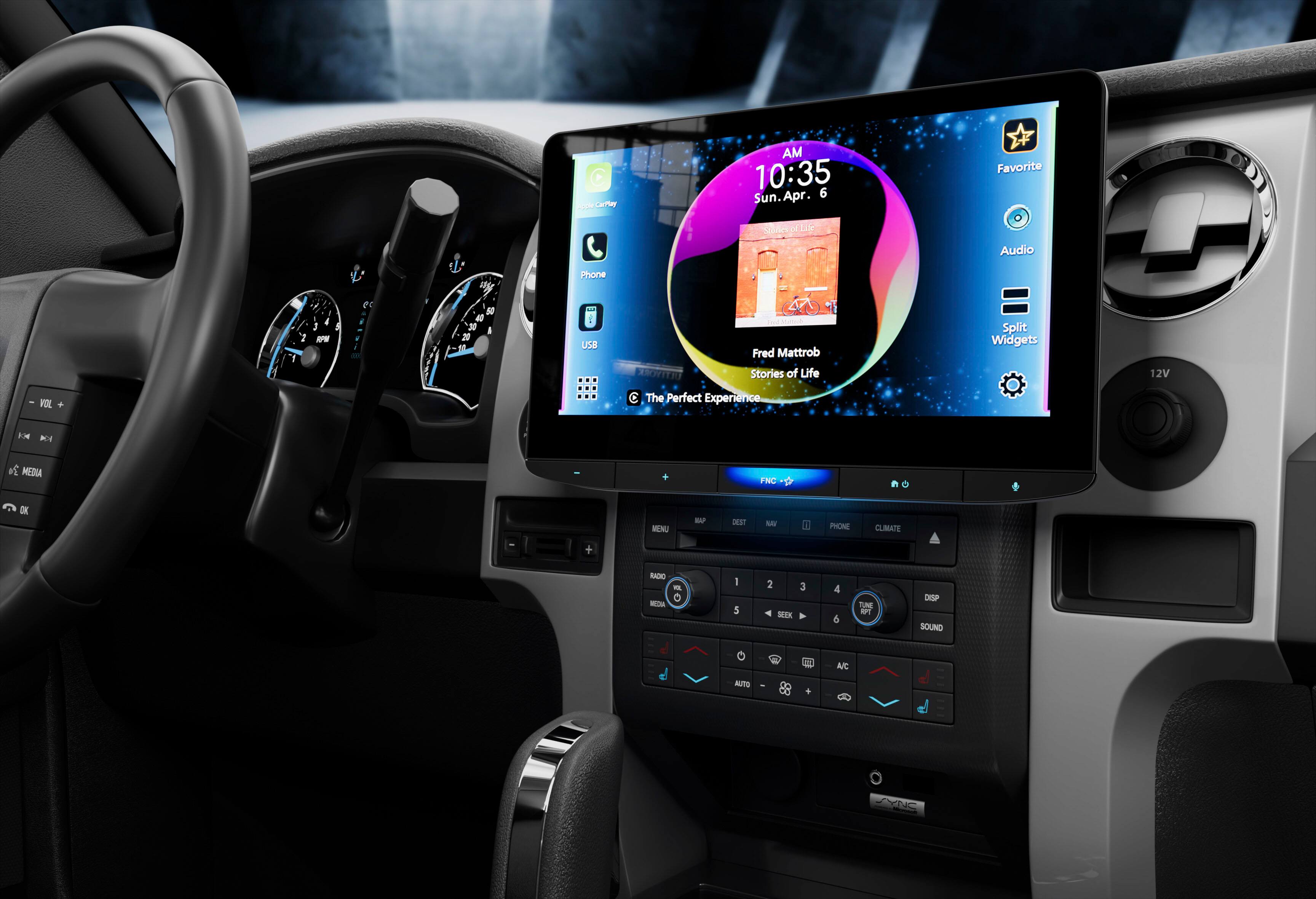

The JVC KW-Z1000AW 10.1” Full HD Direct Replacement Digital Media Receiver transforms your vehicle’s factory dash into a high-tech command center. Featuring a floating 10.1” Full HD display, wireless smartphone connectivity, and full OEM integration, it’s designed as a direct replacement for factory screens originally sized 4”, 5”, 7”, or 8.4”—including select Ford, Jeep, Dodge, GM, and Nissan/Infiniti vehicles. This isn’t just a screen swap; the KW-Z1000AW uses a modular design to mount cleanly in place of the original screen, while the electronics hide behind the dash. When paired with the iDatalink Maestro interface and a vehicle-specific harness (sold separately), it retains OEM features like steering wheel controls, climate display, and vehicle menus. The 1280 x 720 capacitive touchscreen offers sharp resolution and fast response, with tilt and depth adjustment to match any dash layout. Wireless Apple CarPlay and Android Auto provide access to maps, music, calls, messages, and voice assistants—no cables required, though wired connections are supported. Stay aware of your surroundings with up to four camera inputs (rear, front, and side), compatible with HD cameras for sharper visibility. Built-in HD Radio delivers crystal-clear digital quality with access to HD-only subchannels. HDMI and USB Type-C inputs allow for phone mirroring, external video streaming, faster charging, and high-res audio playback. SiriusXM 360L compatibility (with SXV300 tuner, sold separately) offers personalized channels, on-demand content, and improved recommendations. Bluetooth supports hands-free calling and streaming with dual-phone pairing. High-res FLAC, WAV, and DSD playback, combined with a 13-band EQ, time alignment, and JVC’s K2 audio processing, ensures premium sound customization. Compatible vehicles include Ford (F-150, Explorer, Fusion), Chevy/GMC (Silverado, Sierra, Tahoe, Acadia), Jeep/Dodge/Chrysler (Grand Cherokee, Charger, 300), and Nissan/Infiniti (Pathfinder, QX60, QX80). See the full application guide for details. The KW-Z1000AW delivers modern smartphone features, better safety, and big-screen performance while preserving the OEM feel you actually like—making it the ultimate upgrade for vehicles that deserve better tech.
- OEM Fit for Factory Dash Integration: Designed for select vehicles with 4"–8.4" factory screens, this 10.1” screen installs with a flush fit and integrates with factory dash systems.
- iDatalink Maestro Required for OEM Installation: Additional purchases are necessary for installation of this product. iDatalink Maestro RR, iDatalink Maestro APX install kit specific to your vehicle and iDatalink KEN1 Harness (All sold separately).

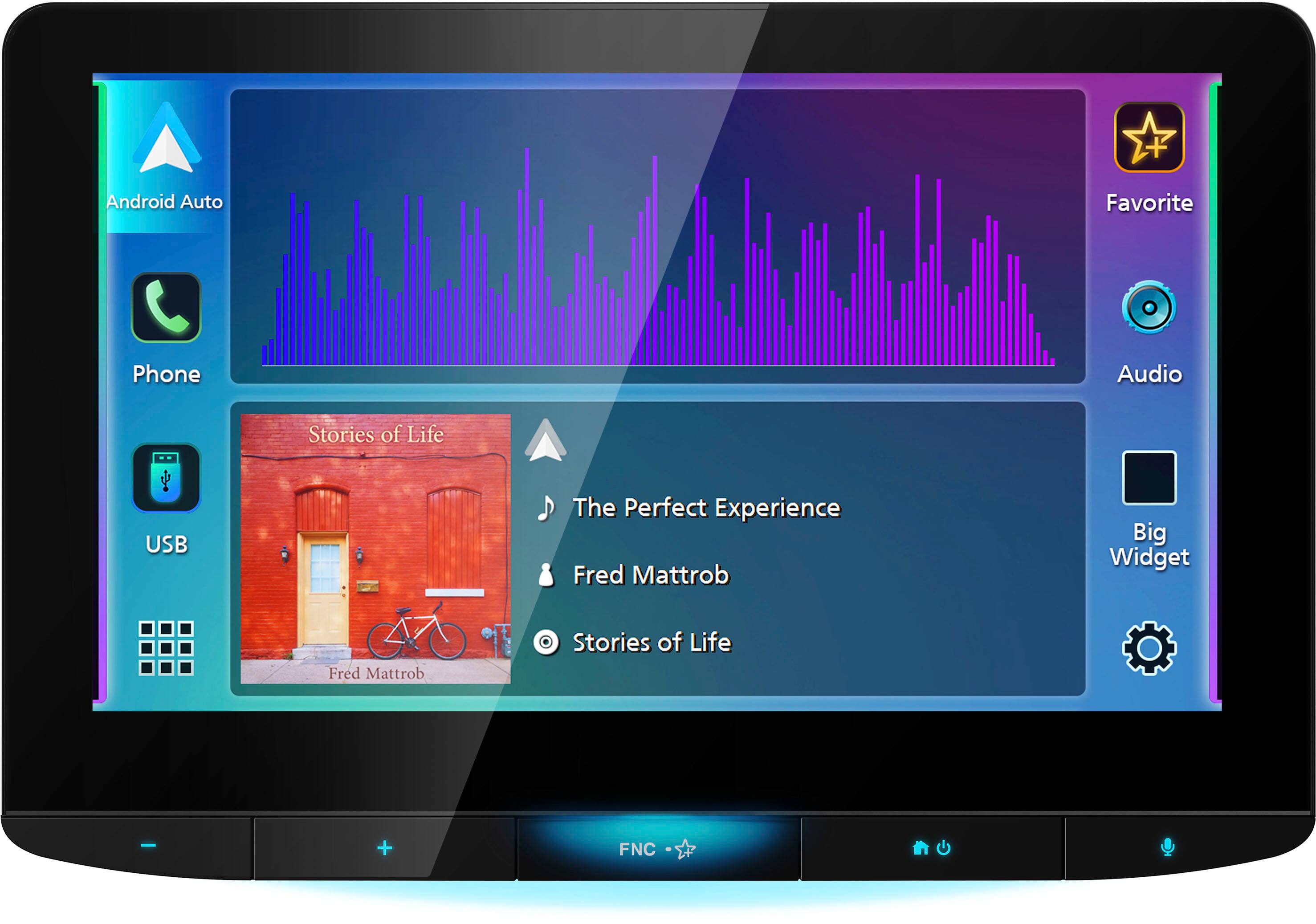

- 10.1” Full HD Floating Touchscreen: Enjoy a large 1280 x 720 high-resolution display with tilt and depth adjustment for optimal viewing in any vehicle.
- Wireless Apple CarPlay & Android Auto: Wirelessly access apps, maps, calls, messages, and more from your smartphone, or connect via USB-C if preferred.
- Four Camera Inputs with HD Support: Connect up to four cameras (rear, front, and blind spots). Compatible with HD-quality cameras for crystal-clear views.
- Built-in HD Radio Tuner: Hear AM/FM broadcasts in digital quality and access HD-only channels at no extra cost.
- HDMI Input for Smartphone Mirroring: Mirror compatible smartphones or connect external video sources using the rear HDMI input (video playback only while parked).
- USB Type-C with High-Res Audio Support: Charge devices faster and enjoy playback of high-resolution music files like FLAC, WAV, and DSD.
- SiriusXM 360L Ready: Compatible with the SXV300 tuner (sold separately) for access to SiriusXM 360L on-demand content and personalized stations.
- Advanced Sound Tuning Tools: Tune your system with a 13-band EQ, time alignment, high-voltage preouts, and JVC K2 sound enhancement.
- OEM Fit for Factory Dash Integration: Designed for select vehicles with 4"–8.4" factory screens, this 10.1” screen installs with a flush fit and integrates with factory dash systems.
- iDatalink Maestro Required for OEM Installation: Additional purchases are necessary for installation of this product. iDatalink Maestro RR, iDatalink Maestro APX install kit specific to your vehicle and iDatalink KEN1 Harness (All sold separately).
- 10.1” Full HD Floating Touchscreen: Enjoy a large 1280 x 720 high-resolution display with tilt and depth adjustment for optimal viewing in any vehicle.
- Wireless Apple CarPlay & Android Auto: Wirelessly access apps, maps, calls, messages, and more from your smartphone, or connect via USB-C if preferred.
- Four Camera Inputs with HD Support: Connect up to four cameras (rear, front, and blind spots). Compatible with HD-quality cameras for crystal-clear views.
- Built-in HD Radio Tuner: Hear AM/FM broadcasts in digital quality and access HD-only channels at no extra cost.
- HDMI Input for Smartphone Mirroring: Mirror compatible smartphones or connect external video sources using the rear HDMI input (video playback only while parked).
- USB Type-C with High-Res Audio Support: Charge devices faster and enjoy playback of high-resolution music files like FLAC, WAV, and DSD.
- SiriusXM 360L Ready: Compatible with the SXV300 tuner (sold separately) for access to SiriusXM 360L on-demand content and personalized stations.
- Advanced Sound Tuning Tools: Tune your system with a 13-band EQ, time alignment, high-voltage preouts, and JVC K2 sound enhancement.
Whats Included
- 10.1" Touchscreen monitor, Source unit (15A fuse)
- Vehicle Interface Modual
- Display Link Cable
- Warranty Card
- Instruction Manual
- 10.1" Touchscreen monitor, Source unit (15A fuse)
- Vehicle Interface Modual
- Display Link Cable
- Warranty Card
- Instruction Manual
Product Manuals
Disclaimers
- The JVC KW-Z1000AW must be installed by Best Buy to ensure proper functionality and fitment. This unit requires the iDatalink Maestro RR or RR2 interface module, the iDatalink Maestro APX vehicle-specific harness, and the KEN-1 connection cable (all sold separately) to retain factory features. Vehicle compatibility should be confirmed prior to installation.
- The JVC KW-Z1000AW must be installed by Best Buy to ensure proper functionality and fitment. This unit requires the iDatalink Maestro RR or RR2 interface module, the iDatalink Maestro APX vehicle-specific harness, and the KEN-1 connection cable (all sold separately) to retain factory features. Vehicle compatibility should be confirmed prior to installation.
