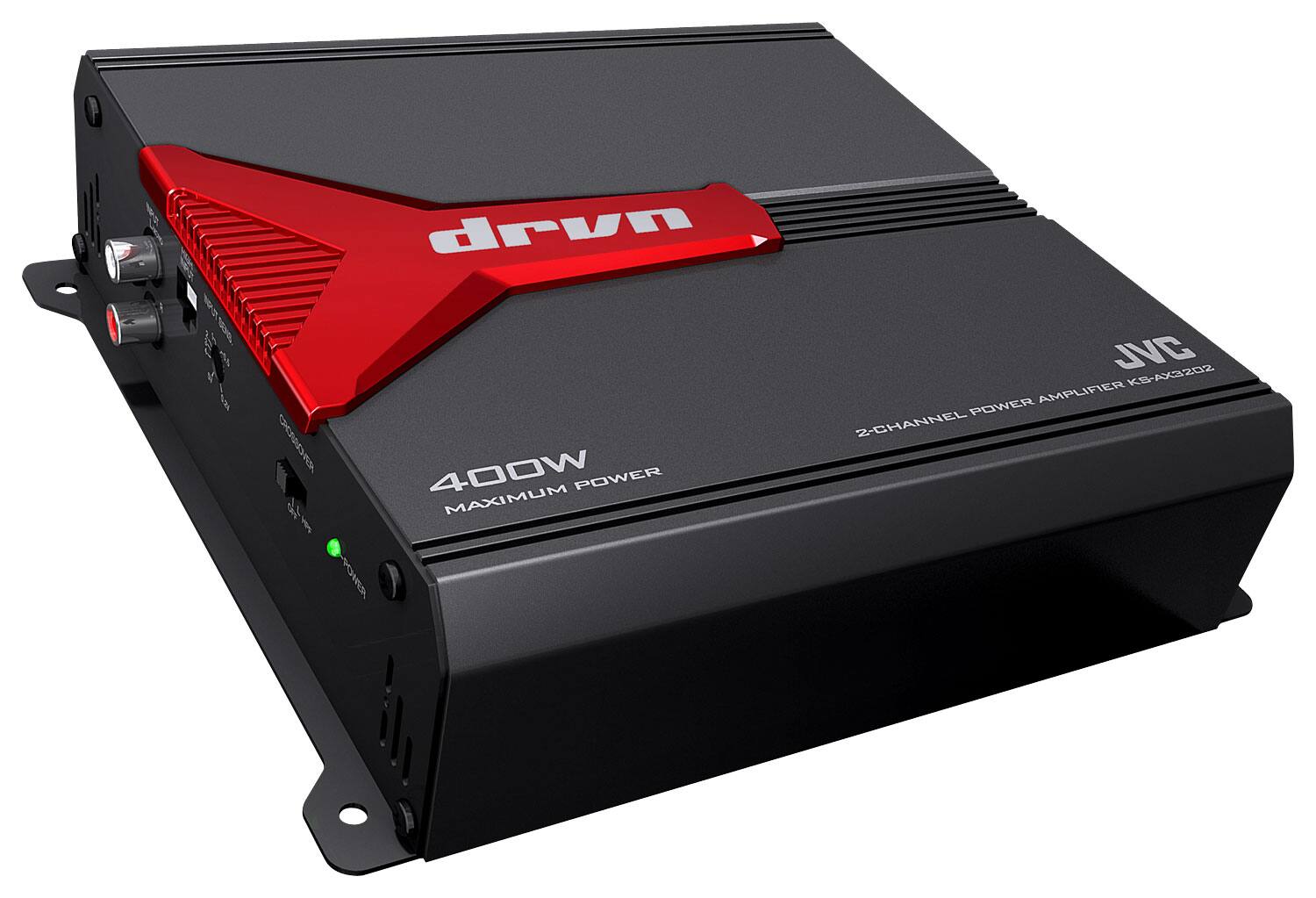

JVC - DRVN 400W Class AB Bridgeable Multichannel MOSFET Amplifier - Black/Red
Model: KSAX3202
SKU: 8818279
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 65W x 2 x 4 ohms, 90W x 2 x 2 ohms, 180W x 1 x 4 ohms
- Maximum Watts x Channel @ Ohms: 400W (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 2
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- General
- Brand: JVC
- Model Number: KSAX3202
- Product Name: DRVN 400W Class AB Bridgeable Multichannel MOSFET Amplifier
- Color: Black/Red
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 65W x 2 x 4 ohms, 90W x 2 x 2 ohms, 180W x 1 x 4 ohms
- Maximum Watts x Channel @ Ohms: 400W (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 2
- Bass Boost: None (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- MOSFET Power Supply: true (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Dimensions
- Product Height: 2.13 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.38 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 8.13 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.3 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 046838066672
Enhance your vehicle's sound system with this JVC DRVN KSAX3202 multichannel amplifier, which delivers up to 400W maximum power for robust audio. The Class AB circuitry and MOSFET power supply offer reliable performance.
- 400W maximum power output: 65W x 2 @ 4 ohms (RMS), 90W x 2 @ 2 ohms (RMS), 180W x 1 @ 4 ohms (RMS bridged).
- Class AB circuitry: Ensures reliable power handling.
- MOSFET power supply: Provides efficient performance.
- 400W maximum power output: 65W x 2 @ 4 ohms (RMS), 90W x 2 @ 2 ohms (RMS), 180W x 1 @ 4 ohms (RMS bridged).
- Class AB circuitry: Ensures reliable power handling.
- MOSFET power supply: Provides efficient performance.
Whats Included
- JVC DRVN 400W Class AB Bridgeable Multichannel MOSFET Amplifier
- Owner's manual
- JVC DRVN 400W Class AB Bridgeable Multichannel MOSFET Amplifier
- Owner's manual
