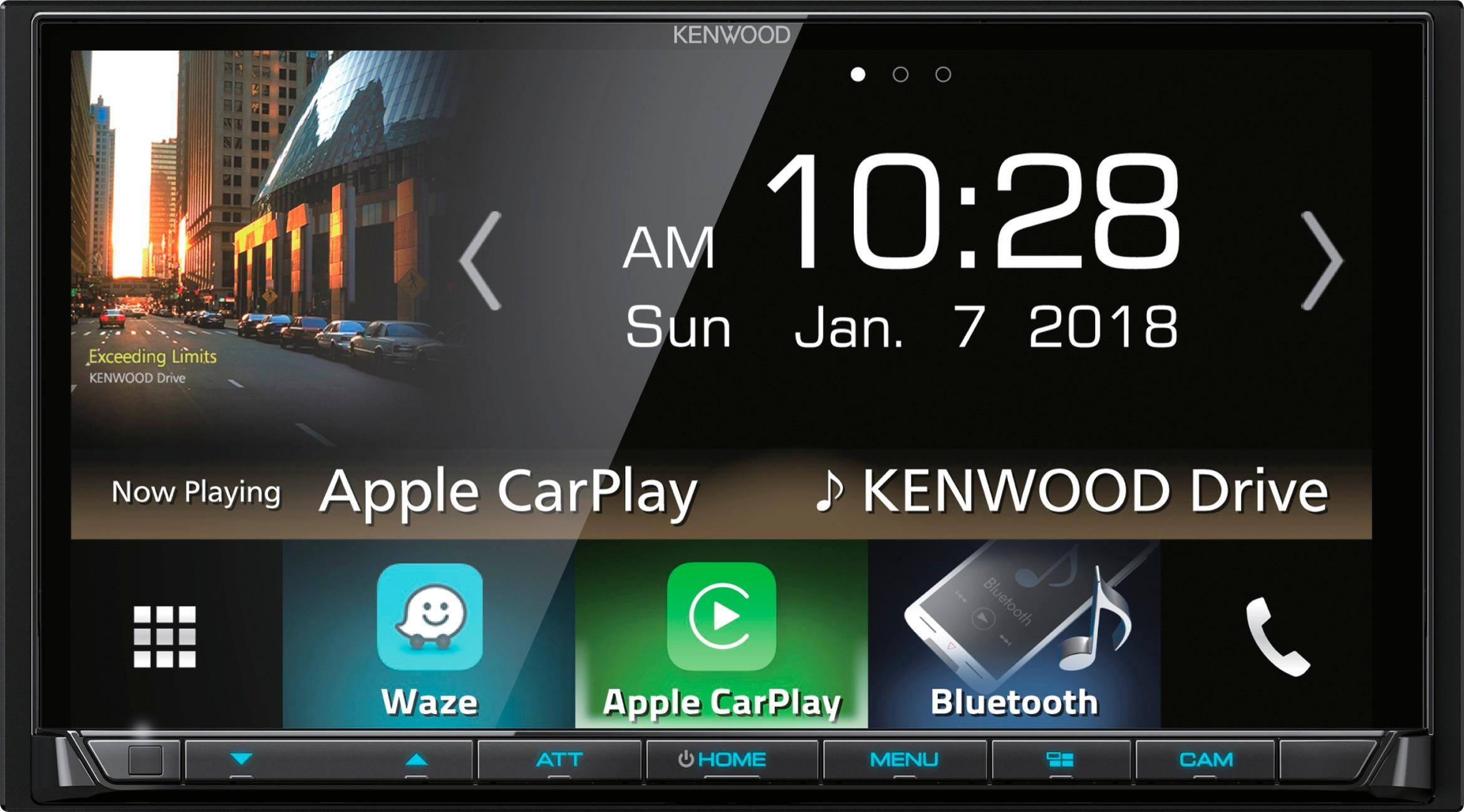

Kenwood - 7" - Built-in Bluetooth - In-Dash Digital Media Receiver - Black
- Key Specs
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Steering Wheel Control Compatible: true
- Tuner Type(s): AM/FM, Satellite Ready
- CD Player: false
- Screen Size: 6.95 inches (Size of the screen, measured diagonally from corner to corner.)
- Selectable Color Illumination: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- General
- Brand: Kenwood
- Model Number: DMX7705S
- Product Name: 7" - Built-in Bluetooth - In-Dash Digital Media Receiver
- Color: Black
- Audio
- Watts Per Channel: 50 watts
- RMS Power: 22 watts (The maximum amount of continuous power the device is able to handle.)
- Number Of Channels: 4
- Preamp Outputs: Front
- Preamp Output Level: 4 volts
- Compatibility
- Mount Style: Double DIN
- Shortened Depth: false (A depth typically less than 80% less of the standard car stereo or head unit depth of 7".)
- App Compatible: true (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Mobile Operating System Compatibility: Apple iOS, Android
- Bluetooth Enabled: true (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Front Facing Inputs: USB
- Rear Facing Inputs: USB
- Number of Camera Inputs: 2
- Steering Wheel Control Compatible: true
- Voice Assistant Built-in: No (A digital assistant built into the device that uses voice commands to answer questions and control smart devices.)
- Tuner
- Tuner Type(s): AM/FM, Satellite Ready
- Number Of Station Presets: 24
- Satellite Radio: No
- Receivers With HD Radio: false
- Players
- CD Player: false
- DVD Player: false
- Features
- USB Device Charging: true
- Hands-Free Calling: true
- Number of Calling Presets: 8
- Built-In Microphone: false
- External Microphone: Included
- Remote Control Included: false
- Marine: false
- EQ Presets: true
- Display
- Screen Size: 6.95 inches (Size of the screen, measured diagonally from corner to corner.)
- Screen Type: LED
- Touch Screen: true (Touch-screen devices make navigating more intuitive. Using a touch-screen display, you can do things such as tap to select, hold and drag to move items, swipe to scroll, and pinch to zoom.)
- Touch Screen Type: Resistive
- Display Color: Variable
- Selectable Color Illumination: true
- Faceplate Style: Fixed
- Dimensions
- Product Height: 4.4375 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.1875 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 6.125 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.75 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1 year
- Warranty - Labor: 1 year
- Other
- UPC: 019048221773
Geek Squad® installation is strongly recommended for this product. Please visit your local Best Buy store for details.
- MPEG-1, MPEG-2, WAV, WMA, AAC and other playback formats: Offer versatile listening options.
- Tap into your device's music library: Bluetooth connectivity and USB port allow you to connect your device and play music.
- You're ready for Satellite Radio: Features the control and display functionality to support SiriusXM Satellite Radio. Tuner and subscription required for activation (not included).
- Tune in to your favorite radio stations: The AM/FM tuner can be preset to 20 different stations (5 AM, 15 FM).
- 13-band digital graphic equalizer with 2-way active crossover: For custom sound.
- Manage music, settings and functions using the touch screen: Clearly displays information.
- Connect your receiver to devices and speakers: Use the USB port to connect your device. It also has composite video/audio input, composite video/audio output and camera connector.
Whats Included
- Kenwood 7" - Built-in Bluetooth - In-Dash Digital Media Receiver
Q: On the DMX7705S, how do you make the gauge reader work on head unit
A: In order to see data from car like tire pressure, ac controls, etc you would need to integrate iDataLink adapter (3rd party accessory)
Q: can i bring up gps from my iphoneon this unit
A: Yes, you can mirror Apple Maps or the Waze app from your phone to the touchscreen. It will read the directions to you if you are streaming audio from your phone.
A: Yes, additional things such as a harness kit which could range from $10-$100. In assuming with a basic Nissan it’d be towards the cheaper end like my Hyundai Elantra was! Also little wire adaptors also need to be purchased... When I bought my radio unit it costs about $430 (after tax) and about $70 for the wires and harness. A Best Buy worker would help you to figure this all out for your specific car if you go in and ask! They’re very helpful as I just went through this process. (They did order the wrong harness at first for me so that was a pain...but other than that it was perfect!)
A: No, it's not waterproof.
Q: Does this device work with the iPhone X series phone and will I still have access to OnStar?
A: It does work my iPhone XS Max without a problem at all. I have Onstar in my vehicle but not sure if it is activated since I don’t use it. There are two USB plugins for this that I had installed through the dash. It charges both iPhone X’s Attached to it but aappke CarPlay prioritizes the first phone plugged into it rather than a particular USB. It also has dual Bluetooth as well which I haven’t really tested out since able to operate and charge through USB. Works great.
Q: Will she fit a 2005 Dodge Magnum
A: Yes, it would fit a 2005 Dodge Magnum.
A: Kenwood has the CMOS-230 that would go well with this unit.
A: I’ve been told that they have problems with their internal memory I’ve given up on mine after investing almost $2000 into it with the purchase (1500) and the install and the repairs ..
