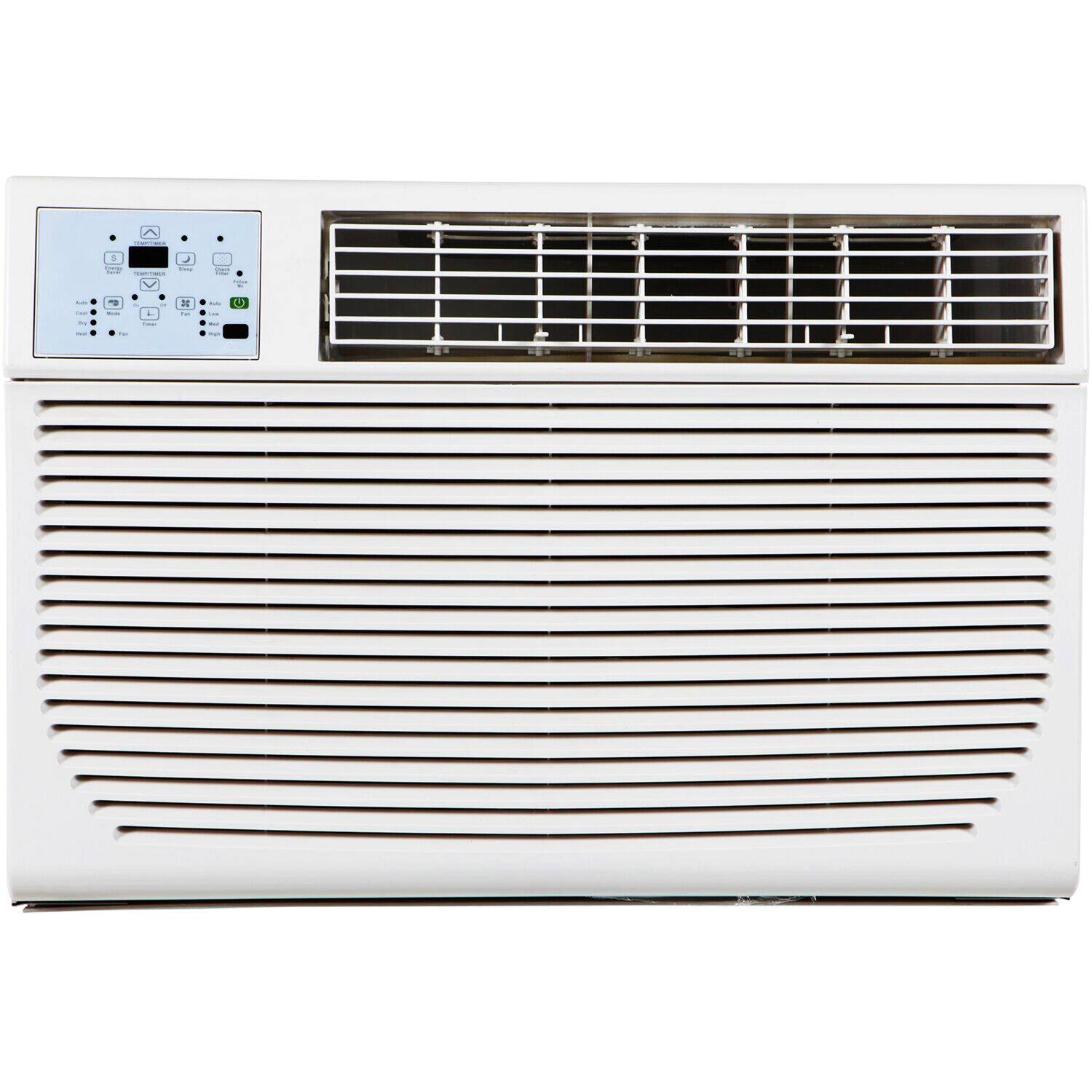

Keystone - 550 Sq. Ft. 12,000 BTU Window Air Conditioner and 11,000 BTU Heater - White
Model: KSTHW12A
SKU: 6354622
This item is no longer available in new condition. See similar items below
- Key Specs
- Recommended Room Size: 550 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 12000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- Number of Cool Settings: 4
- Number of Fan Speeds: 3
- Airflow Rate: 279 cubic feet per minute
- Remote Control: false
- Integrated Heater: true
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: false
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Energy Efficiency Ratio: 10.9 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 10.9 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Window Mounting Kit Included: false
- Air Conditioner Type: Window
- General
- Brand: Keystone
- Model Number: KSTHW12A
- Product Name: 550 Sq. Ft. 12,000 BTU Window Air Conditioner and 11,000 BTU Heater
- Color: White
- Air Conditioner Type: Window
- Dimensions
- Minimum Window Opening Height: 16.5 inches
- Minimum Window Opening Width: 26.9 inches
- Maximum Window Opening Height: 16.5 inches
- Maximum Window Opening Width: 36 inches
- Product Height: 16.1 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 22.6 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 23 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 84 pounds (The out of box weight of the item.)
- Cord Length: 7 inches
- BTU Rating
- Recommended Room Size: 550 square feet (The recommended area size in which the product is designed to operate and produce optimal results, such as the desired heating or cooling. Generally, running a unit too big or too small for the space will result in ineffective operation and wasted energy.)
- BTU Cooling Rating: 12000 british thermal units (The amount of BTUs (British Thermal Units) per hour the unit uses to cool the air, also known as cooling capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to cool. For example, a 5,000 BTU capacity works optimally for a 150 square foot room. In general, an oversized unit will not effectively remove humidity, and an undersized unit will not cool the space efficiently.)
- BTU Heat Rating: 11000 british thermal units (The number of BTUs (British Thermal Units) per hour the unit produces to heat the air, also known as heating capacity. For best results, the capacity of the unit should be based on the size of the area it is intended to heat. The recommended capacity depends on several factors such as climate and level of insulation, but generally ranges from 30-60 BTUs per square foot.)
- Features
- Number of Cool Settings: 4
- Number of Fan Speeds: 3
- Airflow Rate: 279 cubic feet per minute
- Maximum Noise Level: 60.9 decibels adjusted
- Minimum Noise Level: 54.7 decibels adjusted
- Air Direction/Circulation: 4-way
- Moisture Removal Capacity: 2.5 pints per day (The amount of moisture removed from the air over 24 hours. The suggested moisture removal capacity is based on a room's square footage and how damp it is. For example, a 30-pint capacity unit typically works for rooms up to 1,500 square feet.)
- Remote Control: false
- Control Type: Button
- Display Type: LED
- Integrated Heater: true
- Filter Indicator Light(s): true
- Filter Type: Washable, Mesh
- Sleep Mode: true (Enabling this mode sets the unit to first reach the desired temperature, then gradually increase the temperature over a period of time until it reaches a new set temperature, typically several degrees higher than the initial cool setting. This mode helps save energy while keeping the room comfortable.)
- Timer: false
- Auto Shut-Off: false (Feature automatically turns off the product.)
- Power
- Energy Efficiency Ratio: 10.9 (The ratio of output BTUs (British Thermal Units) to input electrical energy (watts) at a given operating point. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Combined Energy Efficiency Ratio (CEER): 10.9 (The standard used to measure energy efficiency in window and room air conditioners by the Department of Energy (DOE) as of June of 2014. CEER measures the ratio of output BTUs (British Thermal Units) to input electrical energy (watts) in standby mode and while the unit is operating. Generally, the higher the number, the more efficient the unit. Though higher efficiency units are typically more expensive upfront, they may offset the price in energy costs over time.)
- Voltage Requirement: 230
- Amperage: 15.2 amperes (Strength of electrical current.)
- Estimated Annual Electricity Use: 11 kilowatt hours (Predicted amount of electricity needed to operate the product under average conditions for one year.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: true (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Compatibility
- App Compatible: false (The product can be connected to a program or software application on a mobile device, which then receives collected data from the product.)
- Wireless Connectivity: None (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Included
- Window Mounting Kit Included: false
- Other
- UPC: 192487119532
With reliable air conditioning, Keystone produces consistent cooling to keep you comfortable, even on the hottest days. Whether installed in a window or through-the-wall, this 12,000 BTU / 11,000 BTU supplemental heating capacity window and wall air conditioning unit can effectively cool rooms up to 550 square feet with dehumidification up to 2.5 pints per hour to remove moisture from the air. Perfect for smaller-sized living spaces like apartments, dorm rooms, sheds, and much more. The unit features a unique remote with a thermostat built in to sense the temperature of the room, displays it on the remote's LCD screen, and sends a signal to your AC unit every 3 minutes for accurate cooling. Money saving features include energy saver mode, sleep mode, and a programmable 24-hour timer. You'll know when it's time to easily remove and clean the mesh filter with the Check Filter alert.
- Reliable Heat & Cool: Our powerful 12,000 BTU cooling capacity / 1,000 BTU supplemental heating capacity wall unit can efficiently provide comfort all year long for your living room, garage, multiple rooms on the same floor - any large space up to 550 Sq.Ft.
- All in One Unit: Enjoy powerful cooling, supplemental heating, dehumidification up to 2.5 pints per hour, and fan circulation all in one compact unit with on-board electronic controls, 3 fan speeds, sleep function, and a programmable 24-hour on/off timer.
- Smart Remote Control: The I Sense remote control takes the temperature of the room you are in, displays it on the remote's LCD screen and sends a signal to your AC unit every 3 minutes for accurate cooling, no matter where you are in your home.
- Powerful Cooling on a Budget: Our AC will give your electric bill a break by using the 'Energy Saver' or Sleep' mode. These smart features automatically program your unit to use less energy while providing the same amount of comfort.
- Space Saving Design: Save your floor space with this window-mounted air conditioner. Window installation kit included. Minimum window height: 16.5 inches, window width dimensions: 26.8" minimum / 36" maximum
- 4-way air direction control: Enables you to achieve optimal circulation.
- ENERGY STAR certified: Eco-friendly design reduces energy usage.
- Reliable Heat & Cool: Our powerful 12,000 BTU cooling capacity / 1,000 BTU supplemental heating capacity wall unit can efficiently provide comfort all year long for your living room, garage, multiple rooms on the same floor - any large space up to 550 Sq.Ft.
- All in One Unit: Enjoy powerful cooling, supplemental heating, dehumidification up to 2.5 pints per hour, and fan circulation all in one compact unit with on-board electronic controls, 3 fan speeds, sleep function, and a programmable 24-hour on/off timer.
- Smart Remote Control: The I Sense remote control takes the temperature of the room you are in, displays it on the remote's LCD screen and sends a signal to your AC unit every 3 minutes for accurate cooling, no matter where you are in your home.
- Powerful Cooling on a Budget: Our AC will give your electric bill a break by using the 'Energy Saver' or Sleep' mode. These smart features automatically program your unit to use less energy while providing the same amount of comfort.
- Space Saving Design: Save your floor space with this window-mounted air conditioner. Window installation kit included. Minimum window height: 16.5 inches, window width dimensions: 26.8" minimum / 36" maximum
- 4-way air direction control: Enables you to achieve optimal circulation.
- ENERGY STAR certified: Eco-friendly design reduces energy usage.
Whats Included
- air conditioner
- remote
- 2 AAA batteries
- mesh filter
- window install kit
- manual
- warranty
- air conditioner
- remote
- 2 AAA batteries
- mesh filter
- window install kit
- manual
- warranty
Product Manuals
Documents
- Energy_Guide_PDF
- Energy_Guide_PDF
Q: are you kidding 7 inch cord
A: I think it's a misprint, mine is just short of 6 feet.
A: What you're describing is single phase 220 volts. Yes that is what this unit runs on.
Q: Does this unit come with a remote? At Lowe’s it says it does. Thanks.
A: Yes, this model does include a remote.
Q: Do you have it available now in a location in San Antonio?
A: undefined
Q: Hi this unit does run on 115 120 I hope
A: This will not run 115, this is for 220V.
Q: Is the heater function a heat pump or resistance coils?
A: While I cannot give you a 100% certified accurate answer, just know that for this price you can be pretty sure it is resistance heating. All of the window units that I have seen in this price range use this method of heating. Pricier units may have a heat pump.
