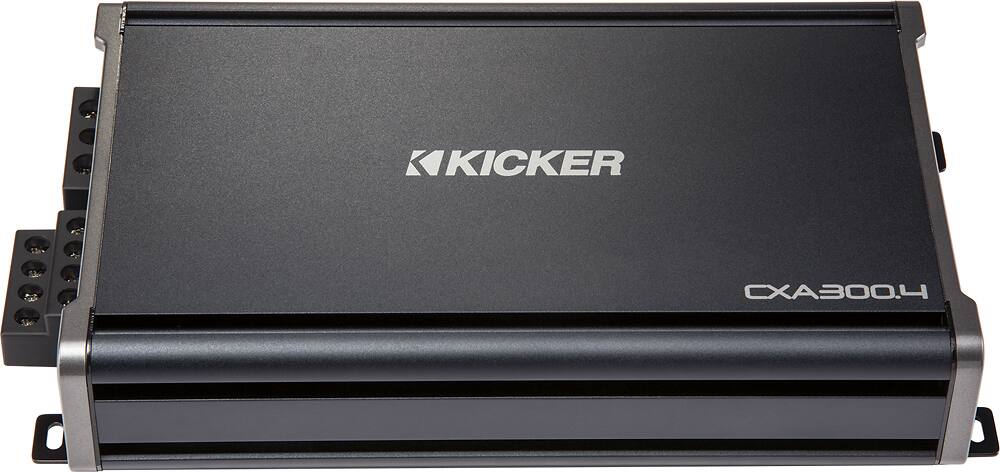

KICKER - CX Series CXA3004 600W Class AB Bridgeable Multichannel Amplifier with Built-In Crossovers - Black
Model: 43CXA3004
SKU: 4781700
This item is no longer available in new condition. See similar items below
- Key Specs
- Continuous Watts x Channel @ Ohms: 75 x 4
- Maximum Watts x Channel @ Ohms: 75W x 4 @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Number Of Channels: 4
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- General
- Brand: KICKER
- Model Number: 43CXA3004
- Product Name: CX Series CXA3004 600W Class AB Bridgeable Multichannel Amplifier with Built-In Crossovers
- Color: Black
- Mounting Hardware Included: true
- Audio Power
- Continuous Watts x Channel @ Ohms: 75 x 4
- Maximum Watts x Channel @ Ohms: 75W x 4 @ 2 ohms (This is the maximum load the speaker, subwoofer or amp can drive.)
- Amplifier Class: AB (An amplifier's mode of operation, specifically the conditions in which its electrical current flows for the duration of an audio signal, determines its class. Each class has its strengths and weaknesses when it comes to power efficiency, levels of crossover distortion, and overall sound quality.)
- Audio
- Number Of Channels: 4
- Minimum Frequency Response: 20 hertz (Describes the maximum range of frequencies or musical tones a product can reproduce, from very low tones to very high treble tones. The minimum frequency or musical tone the speaker can reproduce. High treble tones have higher frequencies while low tones and deep bass have lower frequencies.)
- Signal-to-Noise Ratio (SNR): 95 decibels (The ratio of the desired signal's strength to the level of background noise. A ratio higher than 1:1, which equates to greater than 0 decibels, indicates more signal than noise.)
- Bass Boost: Variable (Circuitry that boosts the bass response of the amplifier, improving audio reproduction enhancing the sound of low frequencies. Fixed boost means the level of bass response is preset, whereas variable boost allows the user to make adjustments.)
- Features
- Bridgeable: true (Bridging an amplifier increases the power it supplies to the speaker(s).)
- Low-Pass Crossover: Variable (Devices with this function allow only audio frequencies below a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- High-Pass Crossover: Variable (Devices with this function allow only audio frequencies above a chosen cut-off frequency to pass through to a speaker or sound system. A device may have a cut-off frequency predetermined by its manufacturer (fixed), multiple cut-off frequency options to choose from (selectable), or have the capability for the frequency to be configured by the user (variable).)
- MOSFET Power Supply: false (A specific type of power supply with the advantages of high switching speed and efficiency at low voltages.)
- Bluetooth Enabled: false (The device is capable of communicating with another device via Bluetooth, provided they are within the required range of each other. A Bluetooth-enabled device must also be the same Bluetooth version or higher than the accessory it is intended to pair with.)
- Marine: false
- Fan Cooled: false
- Input
- Line-Level Inputs: true (Also referred to as low-level inputs. Enables the amplifier to receive a sound signal from another device via RCA cables.)
- Speaker-Level Inputs: true (Also referred to as high-level inputs. Enables the amplifier to receive a sound signal from another device that does not have RCA, or low-level, inputs.)
- Output
- Preamp Outputs: false
- Dimensions
- Product Height: 2.38 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 12.44 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.19 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 5.8 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years limited
- Other
- UPC: 713034075950
Kicker CX Series CXA3004 Amplifier: Boost your vehicle's sound system for your next road trip with this amp's adjustable KickEQ, which offers simple sonic customization. FIT (Fail-Safe Integration Technology) accepts output from a wide range of audio sources.
Geek Squad® Installation Recommended
Visit your local Best Buy store for more information.
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 600W maximum power @ 2 ohms (150 x 4): Plus up to 300W maximum power @ 4 ohms (75 x 4) to deliver powerful audio. Up to 300W (150 x 2) maximum power @ 4 ohms bridged.
- 50-200Hz low-pass-filter and high-pass-filter crossovers with 12dB per octave: Ensure flexible operation.
- Adjustable KickEQ bass boost: Lets you easily adjust the bass level from 0dB to 12dB @ 40Hz for robust sound.
- FIT (Fail-Safe Integration Technology) lab-grade, balanced differential inputs: Accept output from a wide range of audio sources and provide optimal noise rejection to ensure high-quality sound. Optimized circuit layout offers clear audio.
- Speaker-level and RCA line-level inputs: Offer flexible connectivity.
- DC offset and 12V remote auto turn-on modes: For versatile use.
- Compact design: Enables vertical mounting for simple installation in areas where space is limited. Ideal for use with Kicker CS speakers and CompD and CompS subwoofers (not included).
- Geek Squad® installation: is strongly recommended for this product. Please visit your local Best Buy store for details.
- Handles up to 600W maximum power @ 2 ohms (150 x 4): Plus up to 300W maximum power @ 4 ohms (75 x 4) to deliver powerful audio. Up to 300W (150 x 2) maximum power @ 4 ohms bridged.
- 50-200Hz low-pass-filter and high-pass-filter crossovers with 12dB per octave: Ensure flexible operation.
- Adjustable KickEQ bass boost: Lets you easily adjust the bass level from 0dB to 12dB @ 40Hz for robust sound.
- FIT (Fail-Safe Integration Technology) lab-grade, balanced differential inputs: Accept output from a wide range of audio sources and provide optimal noise rejection to ensure high-quality sound. Optimized circuit layout offers clear audio.
- Speaker-level and RCA line-level inputs: Offer flexible connectivity.
- DC offset and 12V remote auto turn-on modes: For versatile use.
- Compact design: Enables vertical mounting for simple installation in areas where space is limited. Ideal for use with Kicker CS speakers and CompD and CompS subwoofers (not included).
Whats Included
- Kicker CX Series CXA3004 600W Class AB Bridgeable Multichannel Amplifier with Built-In Crossovers
- Mounting hardware
- Owner's manual
- Kicker CX Series CXA3004 600W Class AB Bridgeable Multichannel Amplifier with Built-In Crossovers
- Mounting hardware
- Owner's manual
Q: why dose these amps dont have fans
A: Honestly mine doesn't get hot so I assume it didn't require one.
Q: Is this a good amp to push a compR 10" woofer?
A: Im running a total of 5 speakers.two tweets up front,two mids and one 10 inch sub
Q: What is this Amp's dimensions? Would like to install on a street glide if possible.
A: This product dimensions is 2.38 in. H x 12.44 in. W x 7.19 in. D.
Q: Can it work on my Acura TL 2005 speakers?
A: Sure The only risk is that you might blow your speakers. Just dont set it too high
Q: could this power 4 Alpine R-S69.2 speakers?
A: Yes easily I have mine hooked up to four kicker six by nines
Q: Is this good enough to power the compr 12 sub?
A: I think this type of amp is best suited for less punchy speakers. I believe you a need a class D type for a subwoofer.
Q: Would this be suitable for a 10” CompC
A: I'm running 2 comp 10s on this amp
Q: What size amp kit will I need for this item
A: This is what I put on my Firebird.
