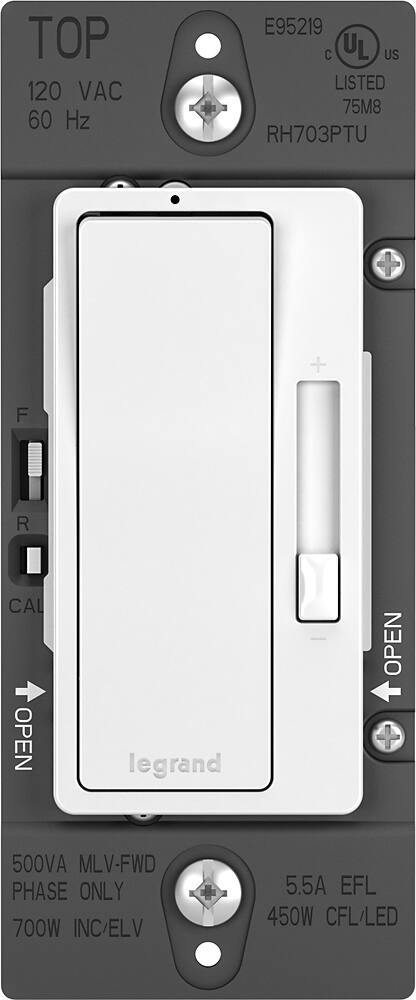

Legrand - Tru-Universal Dimmer Switch - White, Light Almond, Ivory

Name: Legrand - Tru-Universal Dimmer Switch - White, Light Almond, Ivory
Brand: Legrand
SKU: 4397229

Model: H703PTUBTCCCV6

SKU: 4397229

(0 reviews)

This item is no longer available in new condition. See similar items below

Key Specs
- Switch Wiring Configuration: 3-way
- Indoor or Outdoor Use: Indoor
- Locator Light: false
- Installation Type: Replacement
General
- Brand: Legrand
- Model Number: H703PTUBTCCCV6
- Product Name: Tru-Universal Dimmer Switch
- Color: White, Light Almond, Ivory
Power
- Switch Wiring Configuration: 3-way
- Switch Type: Dimmer
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Number Of Switches: 1
Features
- Indoor or Outdoor Use: Indoor
- Locator Light: false
- Wall Plate Included: true
Compatibility
- Installation Type: Replacement
Dimensions
- Product Height: 2.5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1.25 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 1.5 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.2 pounds (The out of box weight of the item.)
Warranty
- Warranty - Parts: Lifetime
- Warranty - Labor: Lifetime
Other
- UPC: 785007053241

Set the mood in your home with this Legrand/Pass & Seymour H703PTUBTCCCV6 dimmer switch, which is compatible with a variety of light bulbs, including magnetic low-voltage and electronic low-voltage options. Three faceplates in different colors suit your décor.

Controls up to 450W using CFL and LED bulbs: Along with up to 700W incandescent and halogen bulbs for wide-ranging use.
Also controls magnetic low-voltage and electronic low voltage bulbs: Offers up to a 700W capacity for flexibility.
Self-calibrating design: For easy use.
3 faceplates included: Choose the best color option to match for your home.
Controls up to 450W using CFL and LED bulbs: Along with up to 700W incandescent and halogen bulbs for wide-ranging use.
Also controls magnetic low-voltage and electronic low voltage bulbs: Offers up to a 700W capacity for flexibility.
Self-calibrating design: For easy use.
3 faceplates included: Choose the best color option to match for your home.

Whats Included

Tru-Universal Dimmer
3 face plates
Tru-Universal Dimmer
3 face plates

Rated 3 out of 5 stars
Good quality, but wouldn't buy another
Great build quality, but I'm not a huge fan of the auto calibration feature because the lights don't dim as much as I'd like for them to. You can manually override it, but it resets back to auto calibration if there's a power outage. Also, in a couple of the fixtures that I have this hooked up to, the LED lights that I have flicker when it's on about 1/2 power. I wouldn't buy this again and would opt for a Lutron instead.
Posted 8 years ago by embj13
Rated 5 out of 5 stars
The gold standard of Decora dimmers
I can't recommend these switches enough, their only caveat being that they require a neutral connection in addition to the hot, ground and load connections. For the tentative/amateur electrician, attaching one more wire to complete the job might be a (seeming) challenge, but for anyone who's done any real amount of electrical work it's just as easy to attach as any other device out there. Where there's a difference is that the switch just FEELS expensive. The dimmer doesn't move without first slowly engaging, and then confidently moves across it's range. It's surprising, but spending a few bucks makes all the difference in terms of what a luxurious house can literally, tangibly feel like. Big fan of Legrand and Pass now and ended up replacing ALL the relevant dimmer switches with these.
Posted 8 years ago by NeilK
Rated 3 out of 5 stars
Some problems
I bought a house a few months ago and I bought 5 of these dimmer switches to replace regular conventional switches. So far I have replaced 3 switches and only one of the 1 switches didn't work as advertised. I believe it had to do with the Altair light that I bought. It said that it could be used with a dimmer switch but in the fine print its finicky which dimmer switches it can be used with. For the price is great but I'm still on the fence if I would recommend this product but I say yes for the value.
Posted 8 years ago by knicks7763
