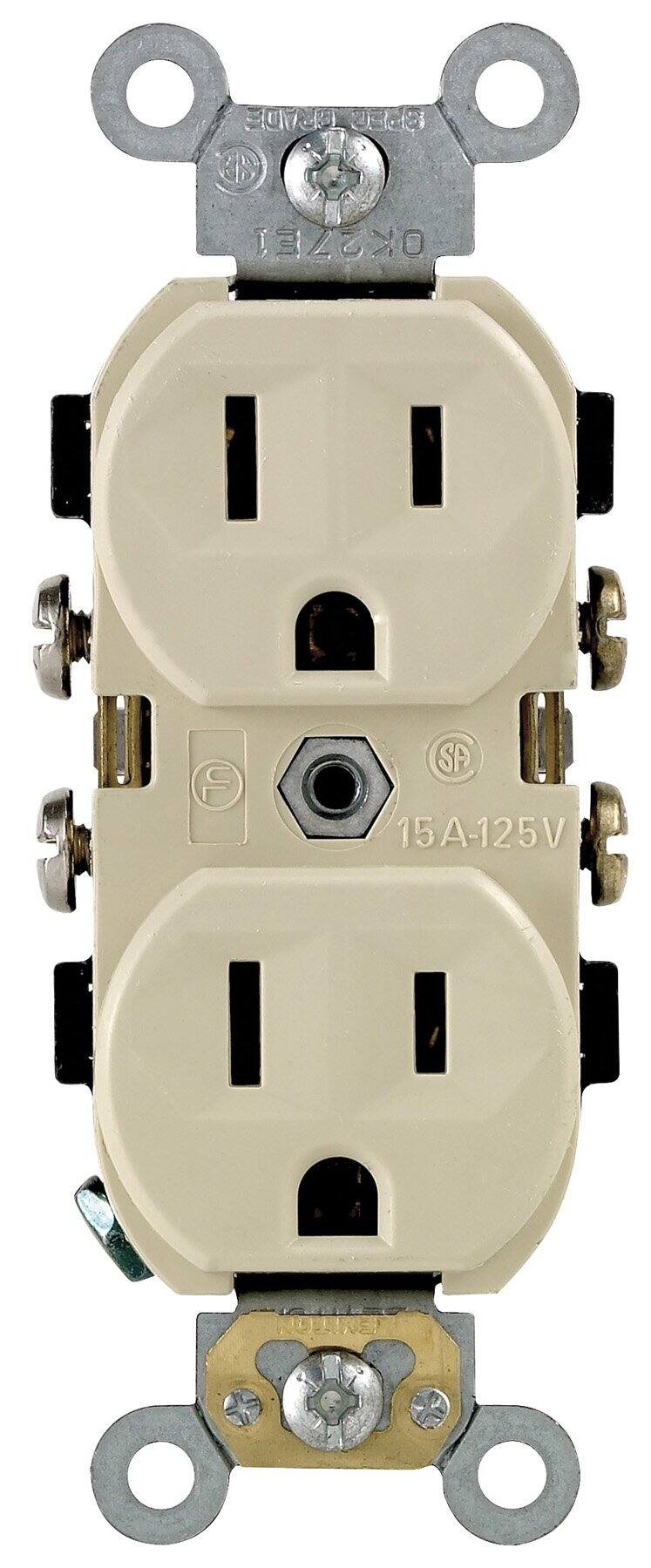

Leviton - 5014-ISP 15 Amp 125 Volt Duplex Receptacle, 2-Pole 3-Wire, Commercial Grade - Ivory
Leviton - 5014-ISP 15 Amp 125 Volt Duplex Receptacle, 2-Pole 3-Wire, Commercial Grade - Ivory
About This Item
- Key Specs
- Amperage: 15 amperes (Strength of electrical current.)
- Indoor or Outdoor Use: Indoor
- General
- Brand: Leviton
- Model Number: 8141706
- Product Name: 5014-ISP 15 Amp 125 Volt Duplex Receptacle, 2-Pole 3-Wire, Commercial Grade
- Color: Ivory
- Power
- Amperage: 15 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Outlet Type: Duplex
- Number Of Outlets: 1
- NEMA Configuration: 5-15R | 5-20R
- Features
- Indoor or Outdoor Use: Indoor
- Material: Brass
- Dimensions
- Product Height: 1.399999998572 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 1.899999998062 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 4.299999995614 inches (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 0.15 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: '§[warranty_description]'
- Warranty - Labor: '§[warranty_description]'
- Other
- UPC: 078477790182
Commercial-grade 15 amp, 125 volt duplex receptacle with 2-pole, 3-wire configuration. Features heavy-duty brass power contacts for maximum conductivity and plug retention, large-head terminal screws backed out and staked to accept No. 10 copper or copper-clad wire, a heavy-gauge rust-resistant steel mounting strap, shallow design for maximum wiring room in the box, and washer-type break-off plaster ears for flush alignment. Compact dimensions: 4.3 inches L x 1.9 inches W x 1.4 inches H; weight 0.15 pounds. NEMA configuration: 5-15R and 5-20R. Material: brass.
- Large-Head Terminal Screws: Large-head terminal screws are backed out and staked to accept No. 10 copper or copper-clad wire for secure terminations.
- Heavy-Duty Brass Power Contacts: Heavy-duty brass power contacts provide excellent conductivity and strong plug retention for reliable performance.
- Heavy-Gauge Rust-Resistant Mounting Strap: Heavy-gauge, rust-resistant steel mounting strap ensures durable, stable installation and long-term corrosion resistance.
- Shallow Design for Maximum Wiring Room: Shallow profile increases available wiring space inside the electrical box, simplifying installation in tight spaces.
- Break-Off Plaster Ears for Flush Alignment: Washer-type break-off plaster ears allow adjustable mounting for the best flush alignment with wall surfaces.
