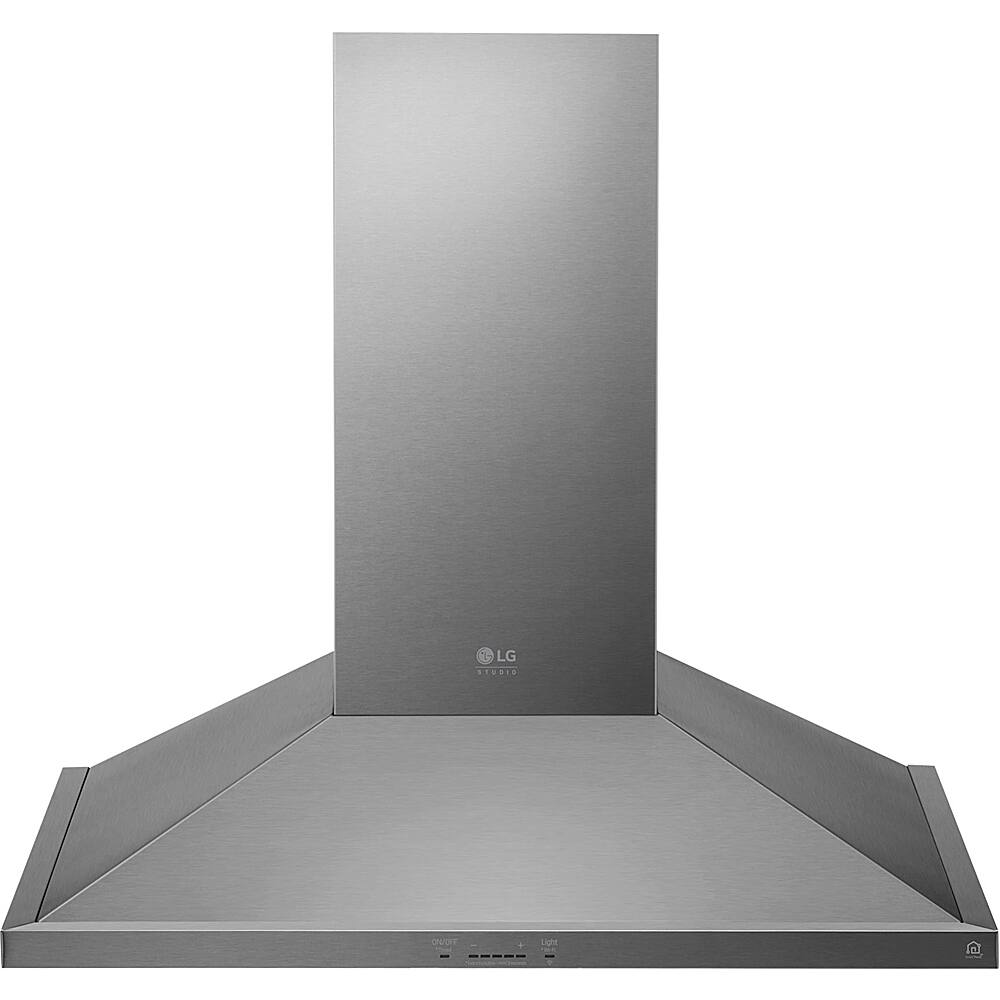

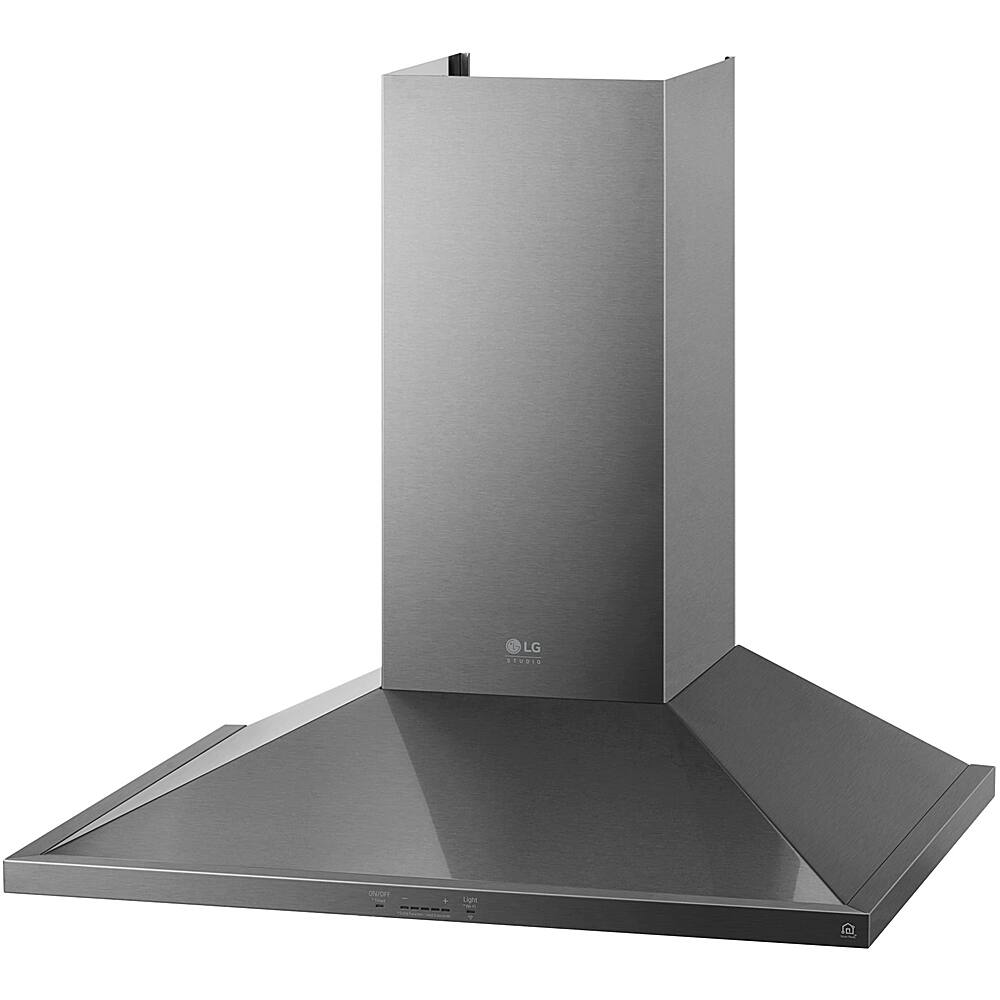

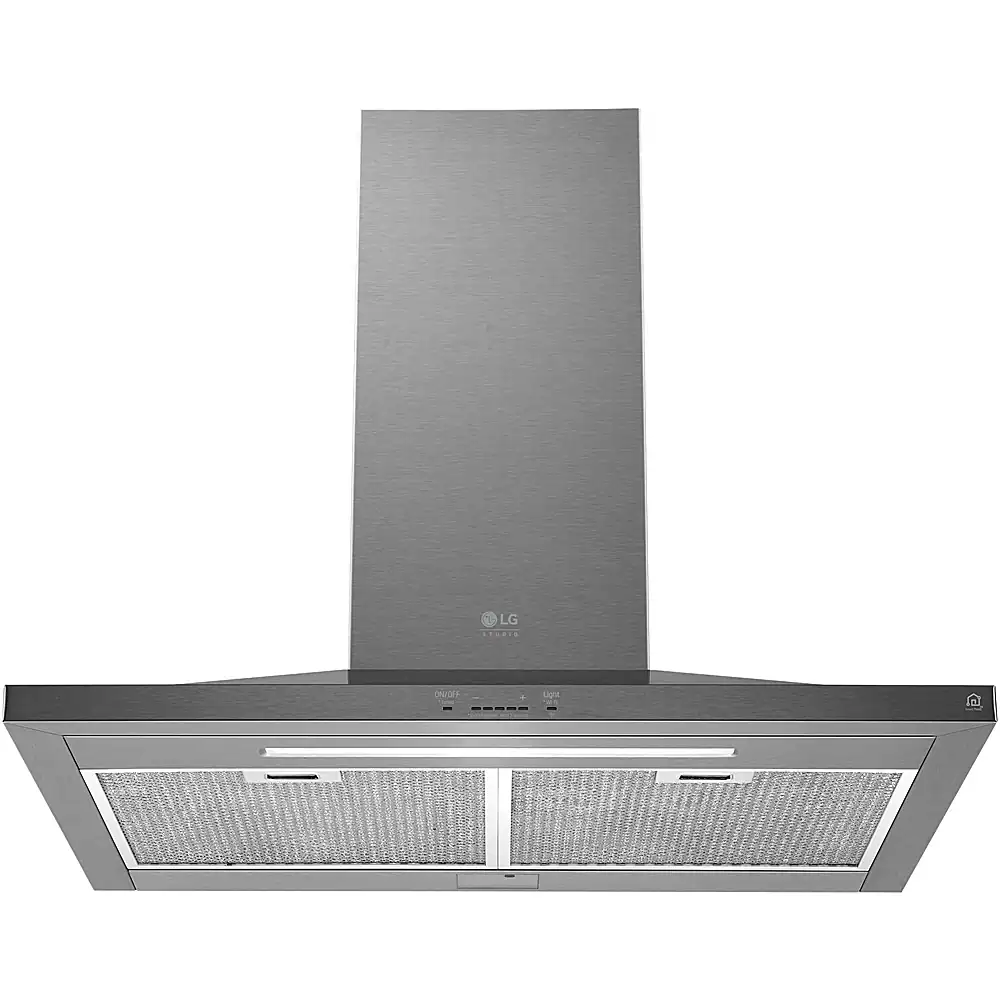

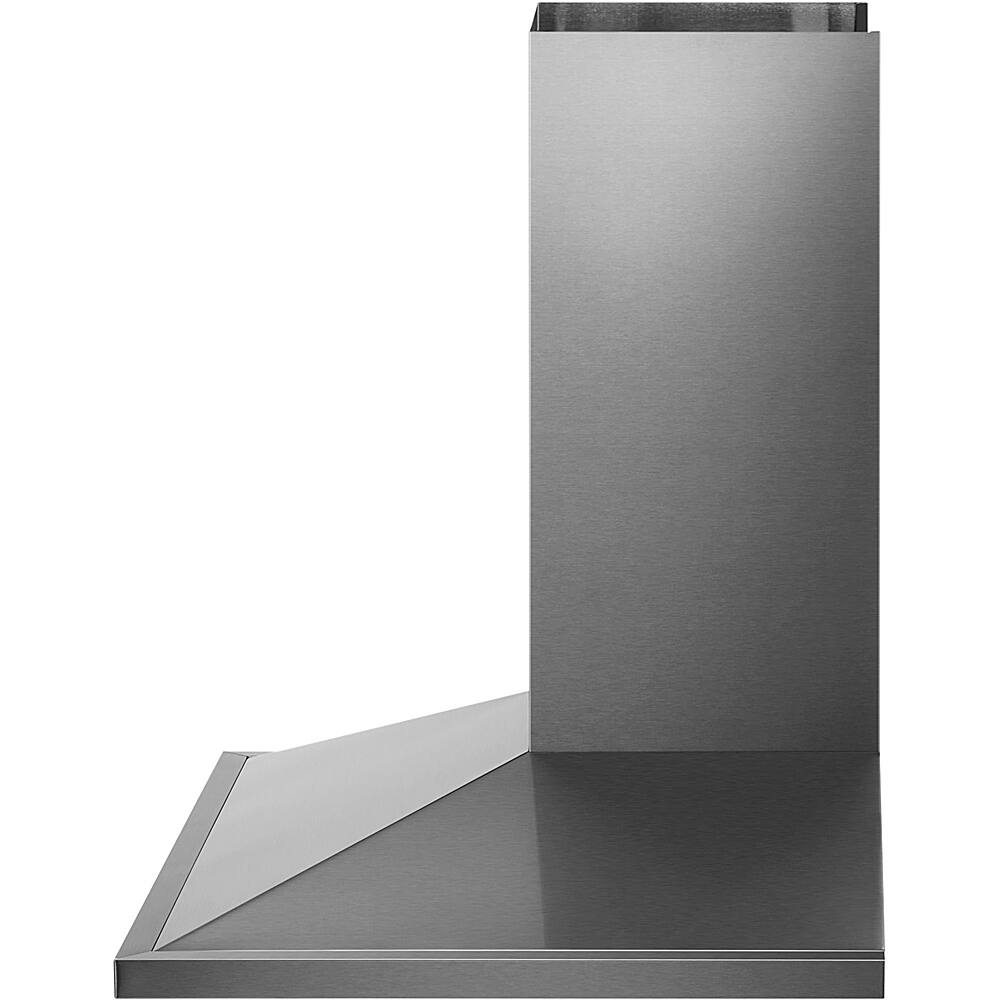

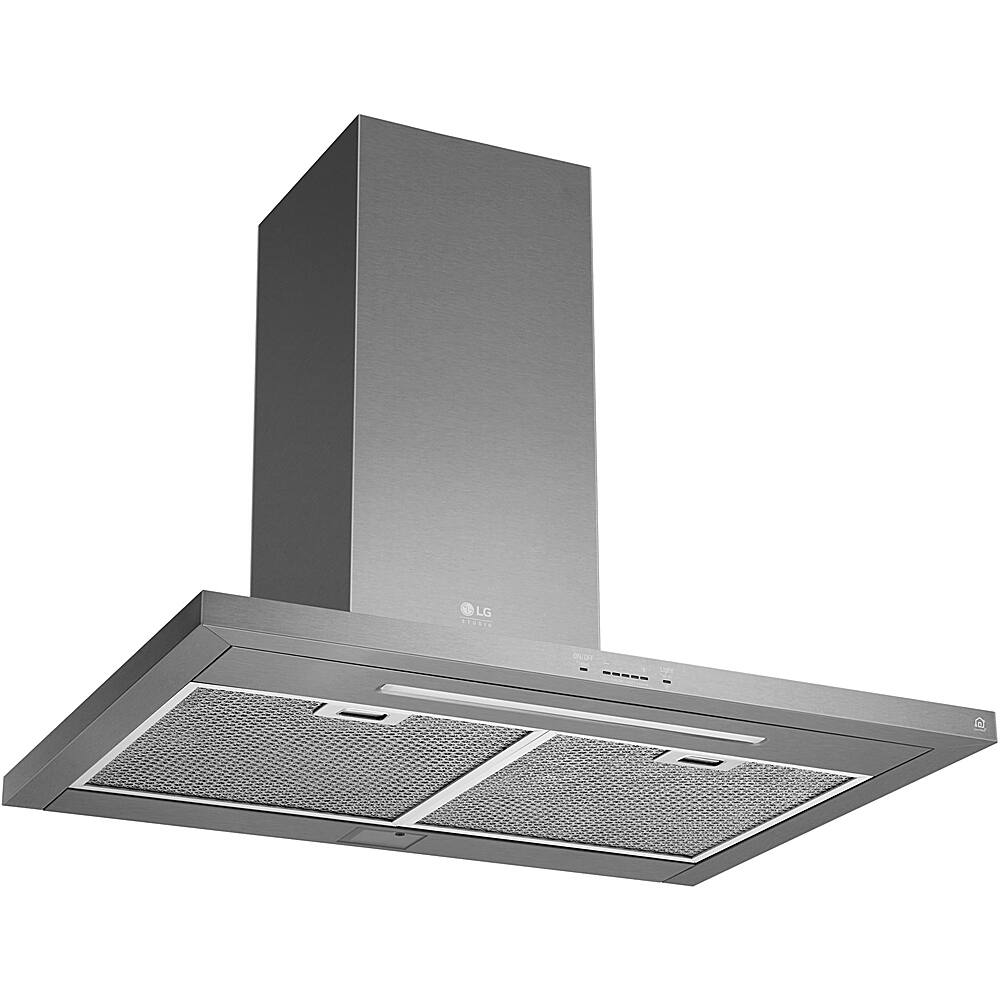

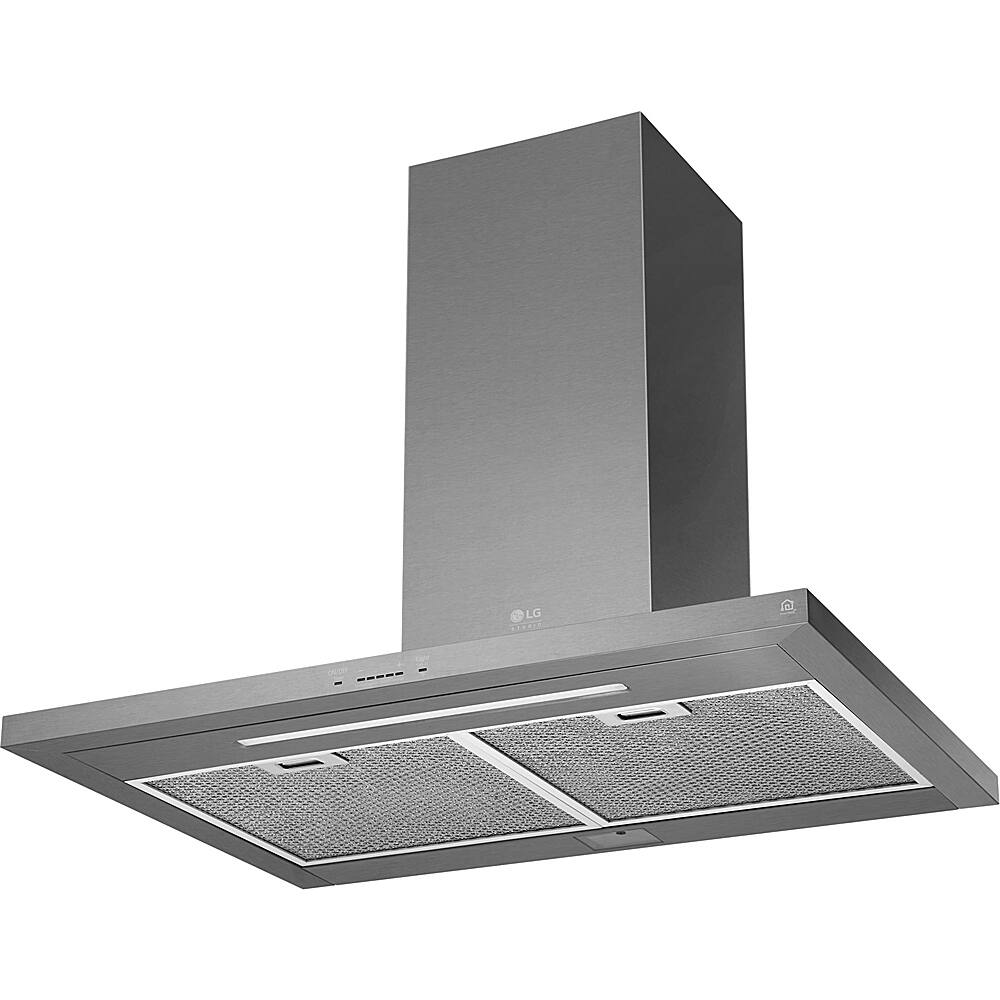

LG STUDIO - 30 inches - Convertible - Wall Range Hood - Stainless Steel
Color
Stainless SteelDelivery to
Need-haul away?
- We’ll haul away your old item and make sure it’s properly and safely recycled.
- We can also move it to another location in your home if the path is clear of obstructions.
- We can’t remove doors from your home (or a product) to make an item fit through a doorway
- Relocated appliances will not be connected to utilities
Related Item
Specifications
- Color FinishStainless steelProduct Height48 1/2 inchesProduct Width29 15/16 inchesProduct Depth22 inchesExhaust Vent LocationTopVent TypeDucted, Ductless
- Key Specs
- Color Finish: Stainless steel
- Product Height: 48 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- General
- Brand: LG
- Model Number: LSHD3080ST
- Product Name: STUDIO 30" Convertible Smart Range Hood
- Color: Stainless Steel
- Color Finish: Stainless steel
- Vendor Collection: LG STUDIO (Part of a line of different product types, like kitchen appliances.)
- Dimensions
- Product Height: 48 1/2 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Minimum Installation Height Above Cooktop: 26 inches
- Maximum Installation Height Above Cooktop: 34 inches
- Product Width: 29 15/16 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 22 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Standardized Width: 30 inches (An approximated measurement (exact width may differ slightly) determined by the manufacturer in accordance with industry standards. Standardized sizes are intended to assist consumers when purchasing appliances and planning for installation.)
- Product Weight: 35.1 pounds (The out of box weight of the item.)
- Duct Shape: Round
- Round Duct Diameter: 6 inches
- Features
- Exhaust Vent Location: Top
- Vent Type: Ducted, Ductless
- Vent Style: Convertible (External vents pull air from the room and move it directly outside through a dedicated duct system. Recirculating vents pull the air through a filter so that it can be cleaned before being recycled back into the room. Convertible vents can be reconfigured from external ventilation to recirculating via installation of certain parts.)
- Range Hood Type: Wall
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Number of Fan Speeds: 5
- Temperature Sensor: false (Integrated sensor adjusts ventilation power as needed to accommodate high temperatures.)
- Control Type: Touch pad
- Delay Shut-Off: false (Use this feature after cooking to continue ventilating any fumes or odors. When time's up, the operation automatically shuts off.)
- Auto Fan Shut-Off: false
- Damper Included: false
- Integrated Light(s): true
- Number of Lights: 1
- Number of Light Levels: 2
- Bulb Type Required: LED
- Bulb(s) Included: true
- Maximum Bulb Wattage: 9 watts
- Performance
- Maximum Air Flow Capacity: 600 cubic feet per minute (Maximum amount of air that the appliance can ventilate at its highest setting.)
- Minimum Air Flow Capacity: 200 cubic feet per minute (Minimum amount of air that the appliance will ventilate at its lowest setting.)
- Maximum Operating Sound Level: 1 sones (The perceived intensity of the operating sound produced by the product at its highest setting. The higher the sone rating, the louder the noise level.)
- Minimum Operating Sound Level: 6 sones (The perceived intensity of the operating sound produced by the product at its lowest setting. The higher the sone rating, the louder the noise level.)
- Filter Info
- Filter Material: Other
- Dishwasher-Safe Filter: true
- Removable Grease Filter: true
- Number of Filters: 2
- Electrical Specification
- Amperage: 4 amperes (Strength of electrical current.)
- Voltage: 120 volts (Amount of power needed to support an electrical current.)
- Certifications Listings & Approvals
- Product Safety Certifications and Standard(s): UL Listed (Lists the applicable certifications and/or standards, as stated by the manufacturer, in which the product has met the requirements for the assurance of quality and safety.)
- Warranty
- Warranty - Parts: 2 years
- Warranty - Labor: 2 years
- Other
- UPC: 048231339841
Smoke, grease and cooking odors have no place in your kitchen. But neither do bulky hood vents that overpower your design sensibilities. LG STUDIO wall-mounted hood vents offer a streamlined, low-profile look that occupies minimal visual space, paired with a professional-grade 600 CFM blower that delivers ultimate air movement. The theme of powerful performance and refined style continues, with dual level LED lighting that brilliantly illuminates the cooktop surface and sophisticated, touch controls. Available in 30” and 36” widths in elegant black stainless steel; classic stainless steel finish.
- Powerful 600 CFM blower: When your mouthwatering meal leaves an equally impressive scent trail, the LG STUDIO hood vent offers superior ventilation to quickly neutralize smoke, grease and cooking odors.

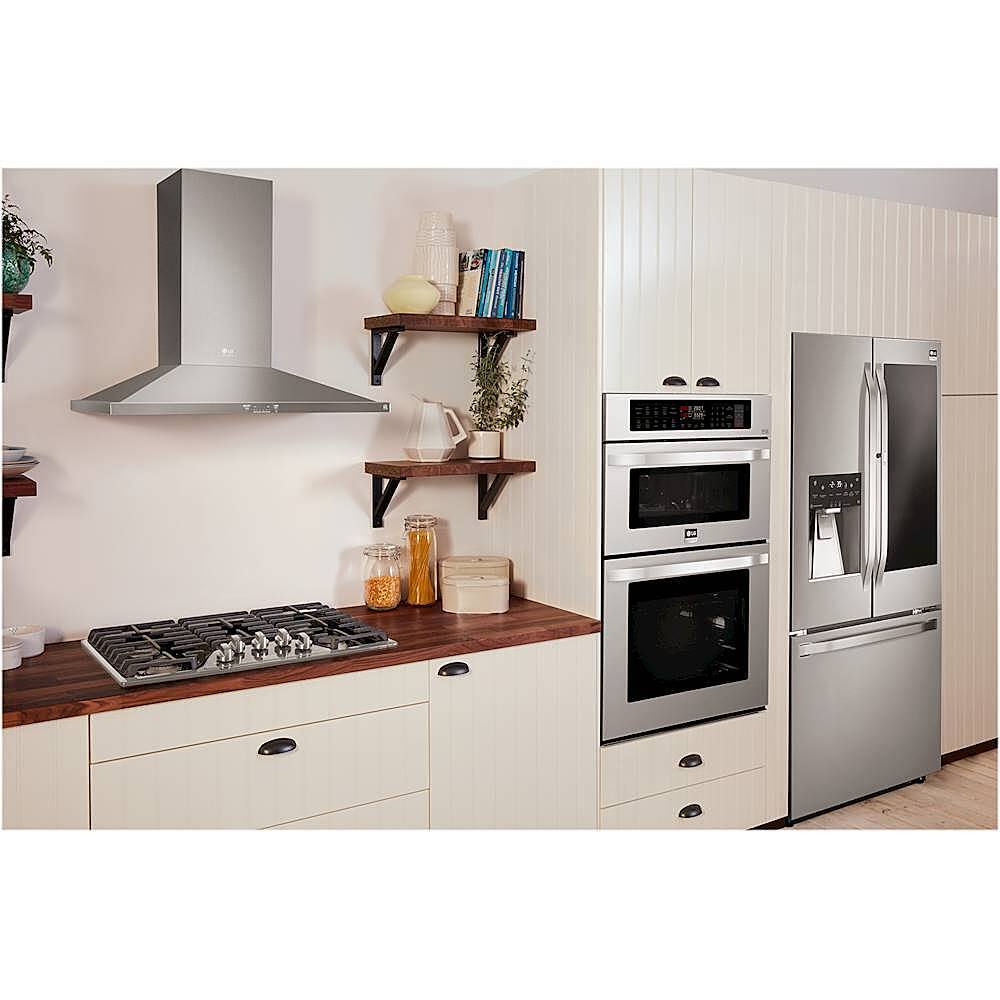

- Design and style: The streamlined styling of the sleek chimney-style hood vent offers plenty of design appeal for 30” and 36” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profile appearance while enjoying the high-tech power behind the hood.
- LG ThinQ Technology: The ThinQ app offers control and convenience to help you simplify life and enjoy the comforts of home. Control the hood remotely or sync it with a smart LG range or cooktop to auto-activate the fan and light when the cooktop is in use. Plus, access Smart Diagnosis, customer support, and more.

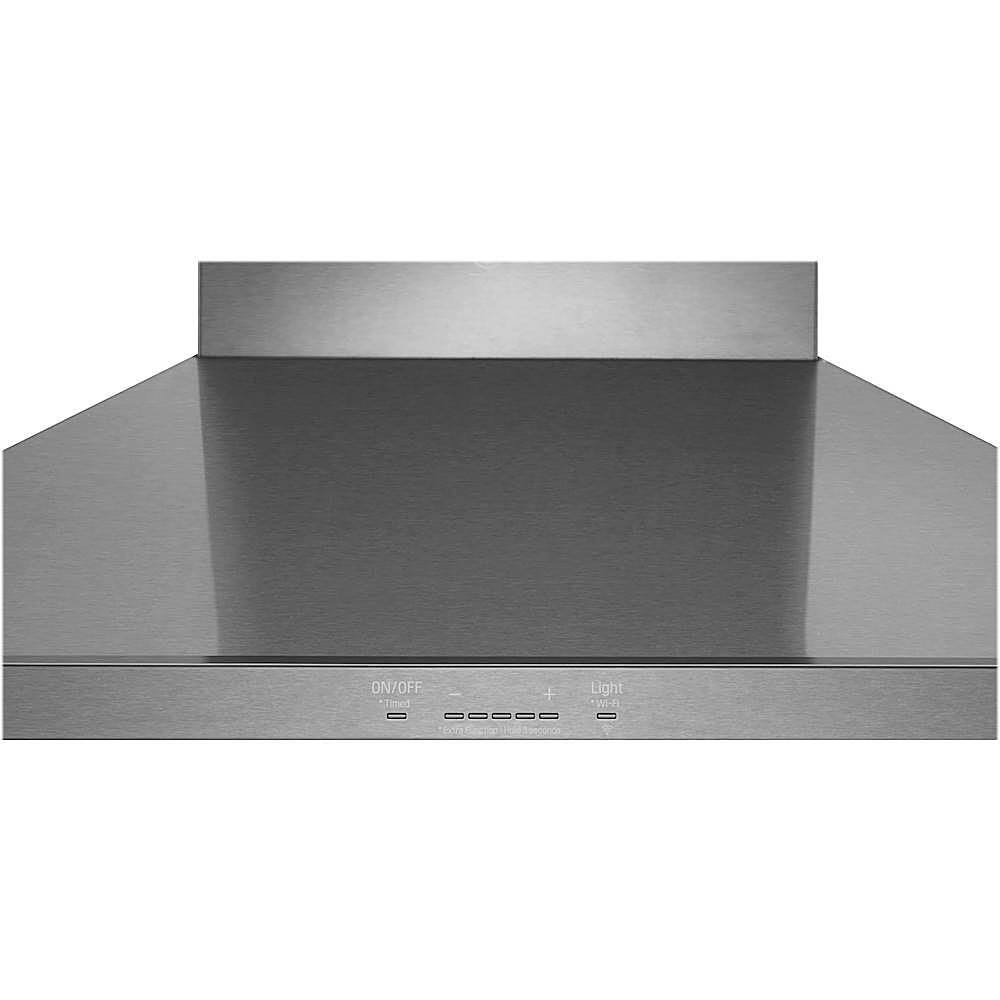

- 5 Speed IR touch controls: Seamlessly integrated into the hood with no cumbersome knobs to turn, the touch pads give you complete control over 5 fan speeds, delay-off function, auto reminders and Airflow Control Technology.
- 5" low-profile body: The streamlined styling of the sleek chimney-style hood vent offers plenty of design appeal for 30” and 36” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profile appearance while enjoying the high-tech power behind the hood.

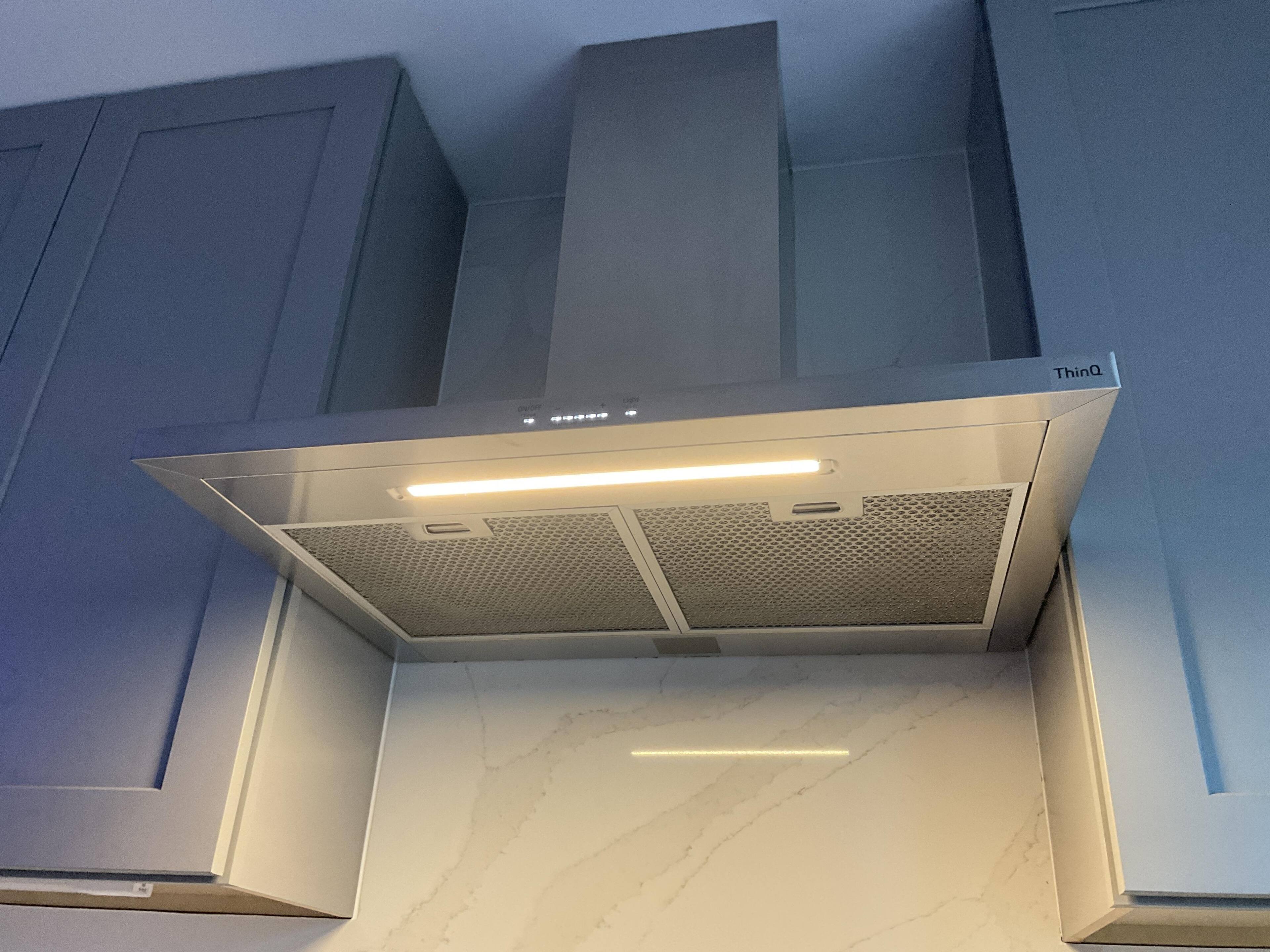

- Dual level LED lighting: Proper lighting is an essential tool in any cook’s ideal workspace and can mean the difference between a successful sauté and an epicurean fail.

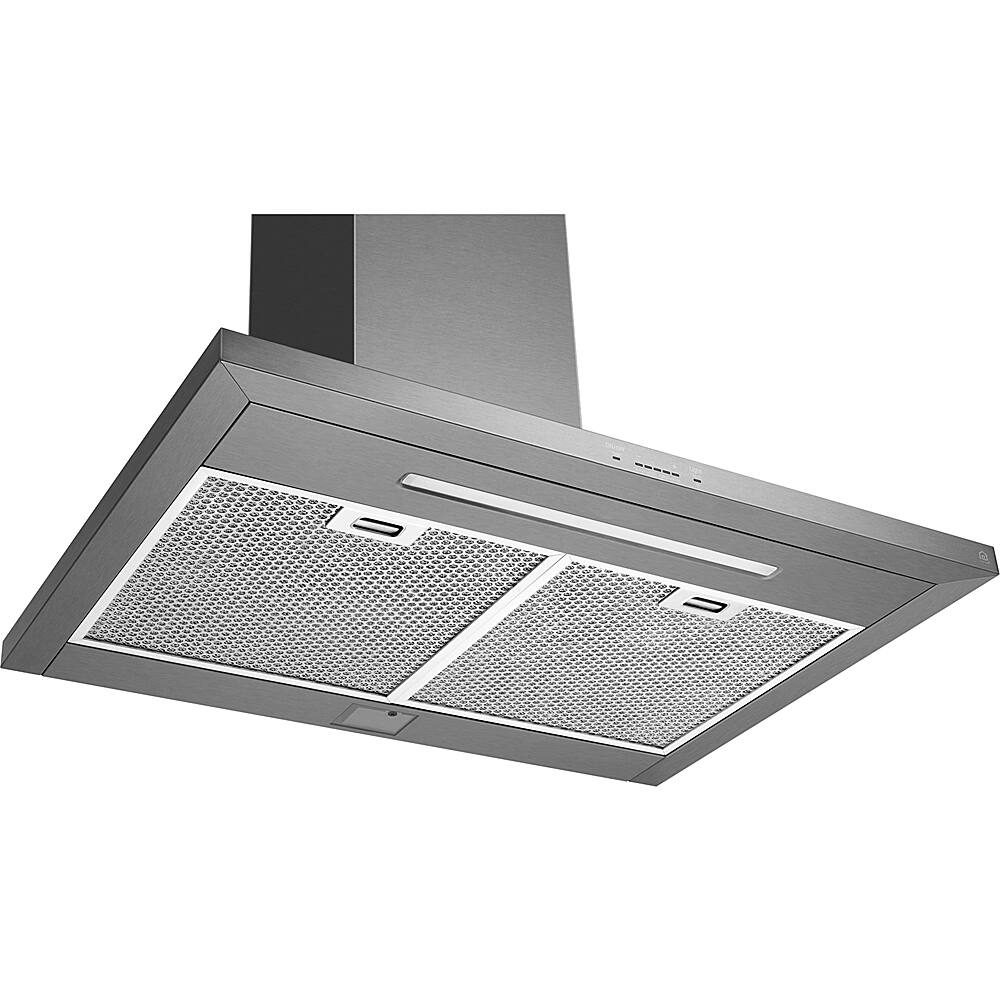

- Mesh filter: All cooks can agree that one of the less glamorous aspects of cooking is the cleanup.
- Eliminate worry over lingering cooking odors by accessing hood vent functions remotely. Monitor and control air movement, operate LED lights, and even turn the vent fan on and off from your Android or iOS device using the LG SmartThinQ app.: 2-year limited warranty on all parts and labor
- Powerful 600 CFM blower: When your mouthwatering meal leaves an equally impressive scent trail, the LG STUDIO hood vent offers superior ventilation to quickly neutralize smoke, grease and cooking odors.
- Design and style: The streamlined styling of the sleek chimney-style hood vent offers plenty of design appeal for 30” and 36” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profile appearance while enjoying the high-tech power behind the hood.
- LG ThinQ Technology: The ThinQ app offers control and convenience to help you simplify life and enjoy the comforts of home. Control the hood remotely or sync it with a smart LG range or cooktop to auto-activate the fan and light when the cooktop is in use. Plus, access Smart Diagnosis, customer support, and more.
- 5 Speed IR touch controls: Seamlessly integrated into the hood with no cumbersome knobs to turn, the touch pads give you complete control over 5 fan speeds, delay-off function, auto reminders and Airflow Control Technology.
- 5" low-profile body: The streamlined styling of the sleek chimney-style hood vent offers plenty of design appeal for 30” and 36” spaces without distracting from your overall kitchen aesthetic. Cooks can delight in the low-profile appearance while enjoying the high-tech power behind the hood.
- Dual level LED lighting: Proper lighting is an essential tool in any cook’s ideal workspace and can mean the difference between a successful sauté and an epicurean fail.
- Mesh filter: All cooks can agree that one of the less glamorous aspects of cooking is the cleanup.
- Eliminate worry over lingering cooking odors by accessing hood vent functions remotely. Monitor and control air movement, operate LED lights, and even turn the vent fan on and off from your Android or iOS device using the LG SmartThinQ app.: 2-year limited warranty on all parts and labor
Whats Included
- LG STUDIO 30" Convertible Range Hood
- LG STUDIO 30" Convertible Range Hood
A: If using the LG STUDIO 30'' Wall Mount Chimney Hood, Model # LSHD3080ST in recirculating mode, you will have to secure the air diverter plate onto the wall before installing duct work & duct covers. You will also need to install charcoal filters and brackets. The air diverter is already in the hood & the duct cover bracket & duct cover are included accessories and the charcoal filters have to be purchased separately. The brackets for those are pre-installed...^IFV
Q: Can an adapter be purchased to fit it to a vaulted ceiling?
A: Hi there, Sica. Thank you for reaching out with your question about the LSHD3080ST Range Hood. We understand that modifying your range hood for a vaulted ceiling is an important consideration. The LSHD3080ST does not come with a specific adapter for installation on a vaulted ceiling. However, depending on your setup, it’s possible that a compatible adapter can be purchased separately from third-party suppliers to help with installation. We recommend checking with your local dealer or contacting a professional installer for guidance on the best adapter option for your vaulted ceiling. https://www.lg.com/us/cooking-appliances/lg-lshd3080st-range-hood#pdp_specs For further assistance, or if you need help finding the right installation accessories, feel free to send us a private message on Social Media @LGUSSupport. We’re happy to help! —Renzo
A: Hi, There! To install the LG Studio 30" Convertible Range Hood (Model: LSHD3080ST) in recirculating mode, you will need the following: - Air diverter plate: Secure the air diverter plate onto the wall before installing ductwork and duct covers - Charcoal filters: Purchase and install charcoal filters for effective re-circulation - Brackets: Install brackets for the charcoal filters The air diverter plate is already included with the range hood, while the charcoal filters and brackets need to be purchased separately. Ensure that you have the appropriate recirculation kit and follow the installation instructions provided by LG for proper setup. ^James.
Q: Can the wifi feature be disabled or turned off?
A: I never activated mine so as near as I can tell if it doesn't have access to your WiFi, that feature is not on.
Q: Will this hood turn on automatically if paired with a LG WiFi capable range?
A: No, the Wi-fi connectivity allows you to communicate with the appliance using a smartphone via the The LG SmartThinQ application. It allows you to set and monitor various options on the hood and one screen. ^Daphane
A: Yes the exhaust will match the brushed stainless
Q: What color temperature is the led light? Ie 3000k warm white, 5000k cool white etc
A: I am sorry, the factory did not provide a specification for the LED Strip Light. Please seek help in the LG Community Forum, https://lgcommunity.us.com. The LG Community Forum is a great resource for getting help from other LG customers. ^Daphane
A: The LG STUDIO 30" Convertible Range Hood - Stainless Steel, Model # LSHD3080ST has a minimum hood height of 27" when ducted with a minimum ceiling height of 89" (7' 5"), a minimum hood height of 31" when recirculated with a minimum ceiling height of 93" (7' 9") and a maximum hood height of 48 1/2" with a minimum ceiling height of 118" (9' 10")...^IFV
Compare similar products
Smoke, grease and cooking odors have no place in your kitchen. But neither do bulky hood vents that overpower your design sensibilities. LG STUDIO wall-mounted hood vents offer a streamlined, low-profile look that occupies minimal visual space, paired with a professional-grade 600 CFM blower that delivers ultimate air movement. The theme of powerful performance and refined style continues, with dual level LED lighting that brilliantly illuminates the cooktop surface and sophisticated, touch controls. Available in 30” and 36” widths in elegant black stainless steel; classic stainless steel finish.
The Samsung range hood keeps the kitchen air fresh. The powerful ventilation circulates air to remove odors quickly, while LED lights illuminate the cooktop, providing brighter and more energy-efficient lighting. How to Measure for a New Appliance A little measuring now can help you avoid delivery headaches later.
Smoke, grease and cooking odors have no place in your kitchen. But neither do bulky hood vents that overpower your design sensibilities. LG STUDIO wall-mounted hood vents offer a streamlined, low-profile look that occupies minimal visual space, paired with a professional-grade 600 CFM blower that delivers ultimate air movement. The theme of powerful performance and refined style continues, with dual level LED lighting that brilliantly illuminates the cooktop surface and sophisticated, touch controls. Available in 30” and 36” widths in elegant black stainless steel; classic stainless steel finish.
Smoke, grease, and cooking odors have no place in your kitchen. But neither do bulky hood vents that overpower your design sensibilities. LG wall-mounted hood vents offer a streamlined, low-profile look that occupies minimal visual space, paired with a professional-grade 600 cfm blower that delivers ultimate air movement. The theme of powerful performance and refined style continues with dual-level LED lighting, which brilliantly illuminates the cooktop surface, and sophisticated touch controls.
| Pros for LG STUDIO - 30 inches - Convertible - Wall Range Hood - Stainless Steel | |||
|---|---|---|---|
| Design, Overall Performance | Design, Appearance, Look, Noise Level, Installation | Design | There were no pros for this product— |
| Cons for LG STUDIO - 30 inches - Convertible - Wall Range Hood - Stainless Steel | |||
| There were no cons for this product— | Recirculating Kit | There were no cons for this product— | There were no cons for this product— |
Specs
Reviews

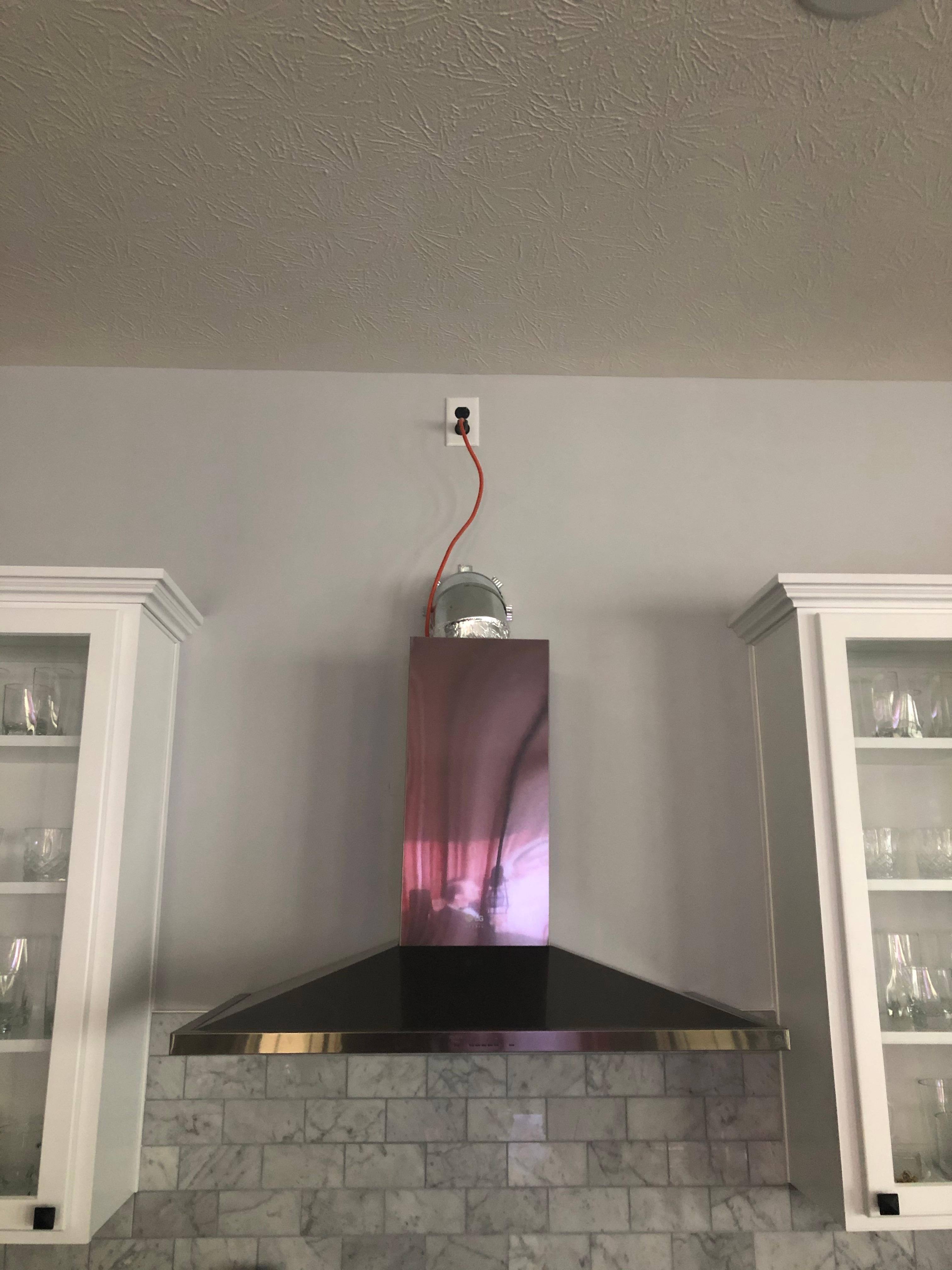

Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 4 out of 5 stars
Love LG but this took a long time to receive
Pros Beautiful finish Sleek design Was able to install without hiring someone Looks great matched with our other LG black stainless kitchen appliances Delivered with a high quality protective covering to keep it damage free during transit Cons Took 4 months to be delivered Instruction manual is Absolute garbage Had to wire my own power cord Protective covering is very time consuming and difficult to take off. Make sure you completely remove it before you install the hood. Don’t make the same mistake I did! Learning how to anchor screws through tile into drywall (no studs) was the biggest challenge. Had to purchase additional screws and anchors to hang.
This review is from LG STUDIO - 30 inches - Convertible - Wall Range Hood - Black Stainless Steel
Posted by Blake
- Rated 5 out of 5 stars
No complaints here!
Just got this couple of months ago as a package with multiple other major appliances so far so good no complaints
Posted by RobertCN
- Rated 2 out of 5 stars
Love/Hate Relationship, But mostly hate.
Love the look, but hate the support that comes with this LG piece. Hired a qualified installer, but it was still an absolute nightmare to install. Instructions were noticeably incorrect (outdated information, wrong pictures and specs). Calling support was painful. Pertinent components were missing and the best they could do was ship the pieces 10 days later and to the wrong address. As for value, the product is simply too pricey for the headache you'll endure at installation. Again, I didn't even do the installation myself and I needed therapy after this one. LG, you're lucky you're pretty.
This review is from LG STUDIO - 30 inches - Convertible - Wall Range Hood - Black Stainless Steel
Posted by Kitkat7867
