Memphis Car Audio - Memphis Audio MX800.4 Powersports 800 Watts 4-Channel Amplifier - Black/Gray
Reviews coming soon
About this product

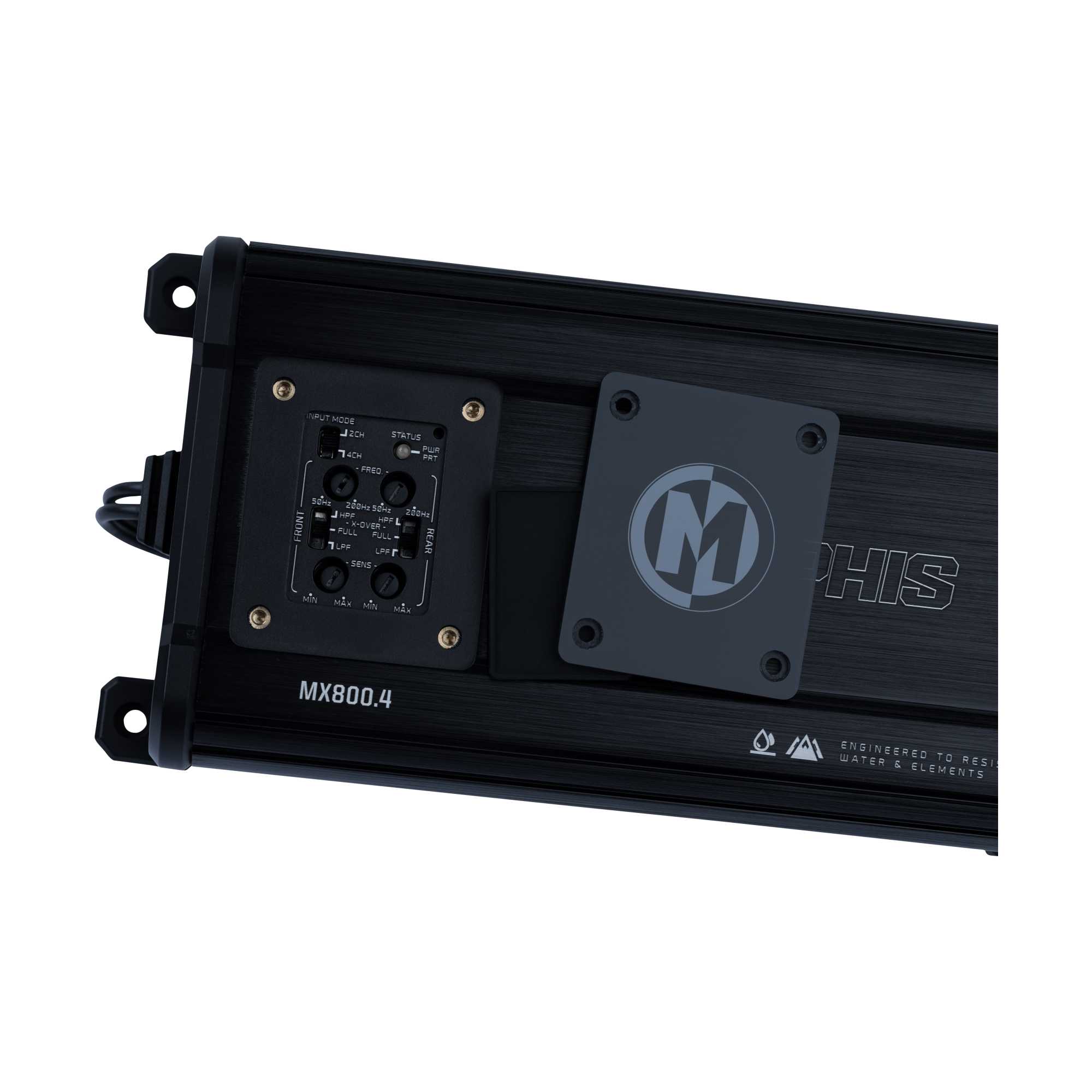

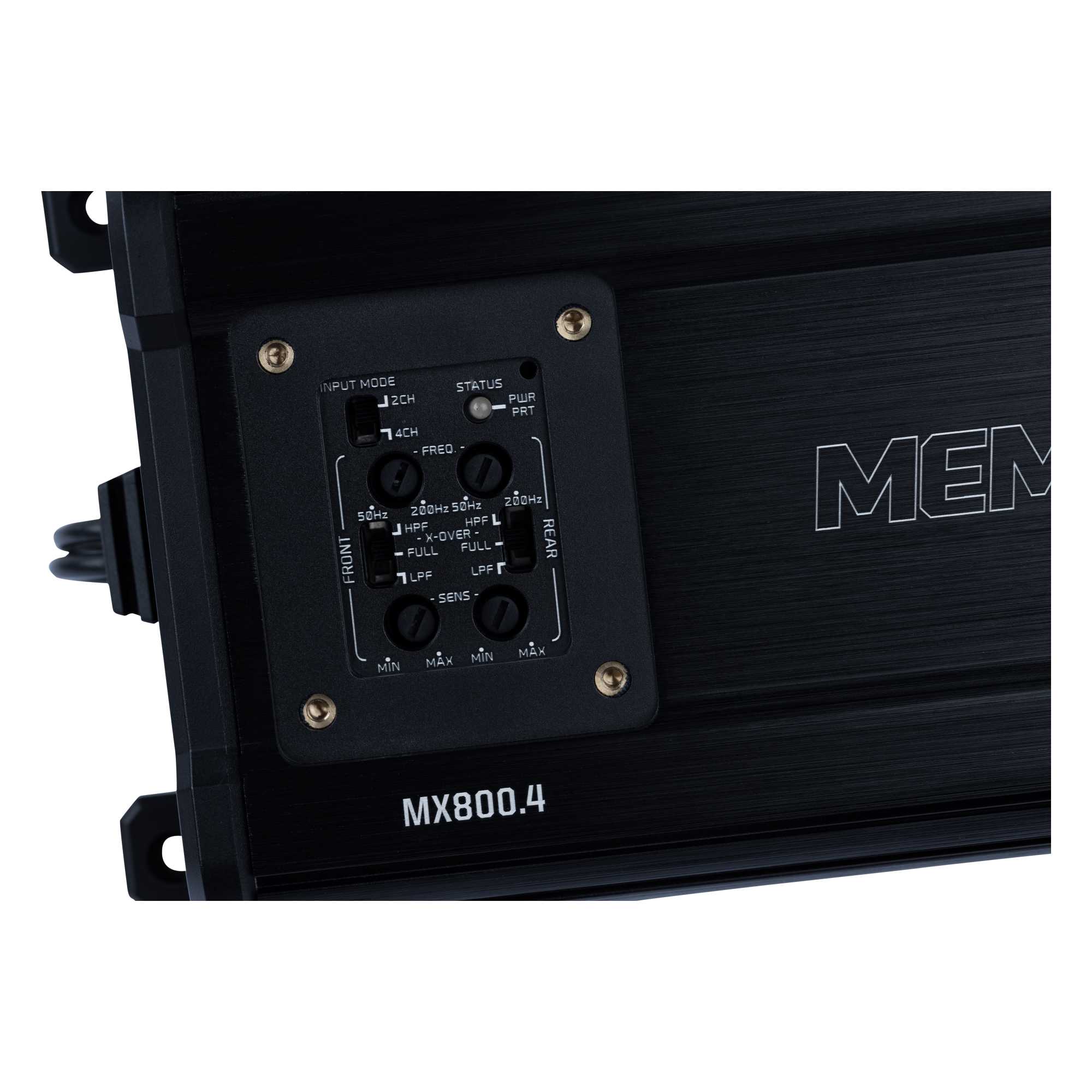

Memphis MX powersports amplifiers were designed with powersports at their core. These IP66 rated compact amplifiers provide massive power in a small package making them the perfect fit for most limited space side by side audio systems. The conformal coated boards and water resistant plugs make sure these amplifiers will continue to crank out big power in the any weather. A top mounted water resistant cover protects the easy access top mounted controllers making tuning simple even in tight spaces. Features: Compact design Conformal coated board IP66 rated water & element resistant Top mounted controls Sealed connectors High/low input 2/4 Input Switch (MX800.4 MX400.4) Specifications: RMS POWER 4Ω: 125 x 4 RMS POWER 2Ω: 200 x 4 BRIDGED/MONO POWER 4Ω: 400x 2 THD% 4Ω: <1% FREQ RESPONSE: 10HZ – 20kHz DIMENSIONS L x W x H: 8.35 x 4.35 x 1.75 INPUT RANGE 300mV: 9.7V AMP KIT: 8GKIT
Features
Key Feature
Compact design
Key Feature
Conformal coated board
Key Feature
IP66 rated water & element resistant
Key Feature
Top mounted controls
Key Feature
Sealed connectors
Specifications
- Amplifier ClassDNumber Of Channels4Bass BoostVariable
Reviews
This product doesn't have any reviews yet.
Compare similar products

Memphis MX powersports amplifiers were designed with powersports at their core. These IP66 rated compact amplifiers provide massive power in a small package making them the perfect fit for most limited space side by side audio systems. The conformal coated boards and water resistant plugs make sure these amplifiers will continue to crank out big power in the any weather. A top mounted water resistant cover protects the easy access top mounted controllers making tuning simple even in tight spaces. Features: Compact design Conformal coated board IP66 rated water & element resistant Top mounted controls Sealed connectors High/low input 2/4 Input Switch (MX800.4 MX400.4) Specifications: RMS POWER 4Ω: 125 x 4 RMS POWER 2Ω: 200 x 4 BRIDGED/MONO POWER 4Ω: 400x 2 THD% 4Ω: <1% FREQ RESPONSE: 10HZ – 20kHz DIMENSIONS L x W x H: 8.35 x 4.35 x 1.75 INPUT RANGE 300mV: 9.7V AMP KIT: 8GKIT

The Pioneer GM-DX874 four-channel amplifier delivers 100 watts RMS at 4 ohms to each of your front and rear speakers for powerful music. CTA-2006 compliant, this highly efficient Class D technology provides impressive, high-quality power in a compact chassis. The frequency response extends up to 50,000 Hz, supporting crystal-clear Hi-Res Audio Certified playback. The GM-DX874 uses high-grade electronic components and gold-plated RCA connections to ensure maximum performance. You can configure your amplifier into 3-channel mode (4 ohm loads) to create a strong front soundstage (2x 75 watts RMS) with tight bass from the bridged subwoofer (1x 300 watts RMS). The speaker-level inputs allow you to install this amp in a factory system without RCA connections. Built-in high-pass and low-pass filters let you optimize the sound for your vehicle's interior. A wired bass control remote also lets you easily control the amount of bass from the subwoofer output (SW).

Memphis Audio MJP800.4 4-Channel 800 Watt Amplifier - 200 Watts RMS x 4 at 2-Ohm — Features: Extruded aluminum Heatsink; 12dB/octave butterworth crossovers; Variable crossovers; 3 EQ boost settings - 0, 6, 12dB; Strap-able mono block amps. Specifications: RMS Power/CH @ 4: 125x4; RMS Power/CH @ 2: 200x4; RMS Power/CH @ 1: na; RMS Power/Bridge 4 Ohms: 400x2; THD: 80dB; Frequency Response ± 0.5dB: 10Hz – 25kHz; Crossover Frequency (HPF): 50-250kHz; Crossover Frequency (LPF): 50-250Hz; Subsonic: na; Dimensions (in): 7.5 x 2 x 8.7"; Input Range: 400mV - 7.5V LOW LEVEL, 3V-20V HIGH LEVEL; Crossover slope: 12db crossovers.

Power Reference amplifiers are the durable, reliable and powerful workhorse of the Memphis line. These amplifiers provide impressive power and performance. The single sided terminal design allows for convenient and easy wire routing to your amplifier for a clean installation. The top mounted control panel can easily be accessed for adjustments to dial in the perfect performance from your Power Reference amplifier. Power Reference 5-Channel amplifiers are designed to deliver impressive power to your entire audio system. If you need an amplifier that feed impressive power to your sub and speakers, the PRX800.5V is an ideal solution. Features - • Extruded aluminum heatsink • Signal sensing auto turn on • Top mounted controls • 12dB/octave butterworth crossovers • LED light strip • 1Ω Stable (MONO) • Remote bass knob (MONO & PRX800.5V) • Hi/Low selectable inputs Specifications - • RMS Power 4Ω: 70 x 4 + 200 x 1 • RMS Power 2Ω: 100 x 4 + 400 x 1 • Bridged Mono @4Ω: 200 x 2 + 400 x 1 @ 2Ω • THD % 4Ω: <1% • Frequency Response: 10Hz – 36kHz / 13Hz – 300Hz • Dimensions (in): 13.07 x 7.3 x 2 • Rcmd. Amp Kit: 4GKIT
| Pros for Memphis Car Audio - Memphis Audio MX800.4 Powersports 800 Watts 4-Channel Amplifier - Black/Gray | |||
|---|---|---|---|
| There were no pros for this product— | Overall Performance, Power, Installation Ease, Size, Connectivity | There were no pros for this product— | There were no pros for this product— |
| Cons for Memphis Car Audio - Memphis Audio MX800.4 Powersports 800 Watts 4-Channel Amplifier - Black/Gray | |||
| There were no cons for this product— | Noise Level, Heat Dissipation | There were no cons for this product— | There were no cons for this product— |
