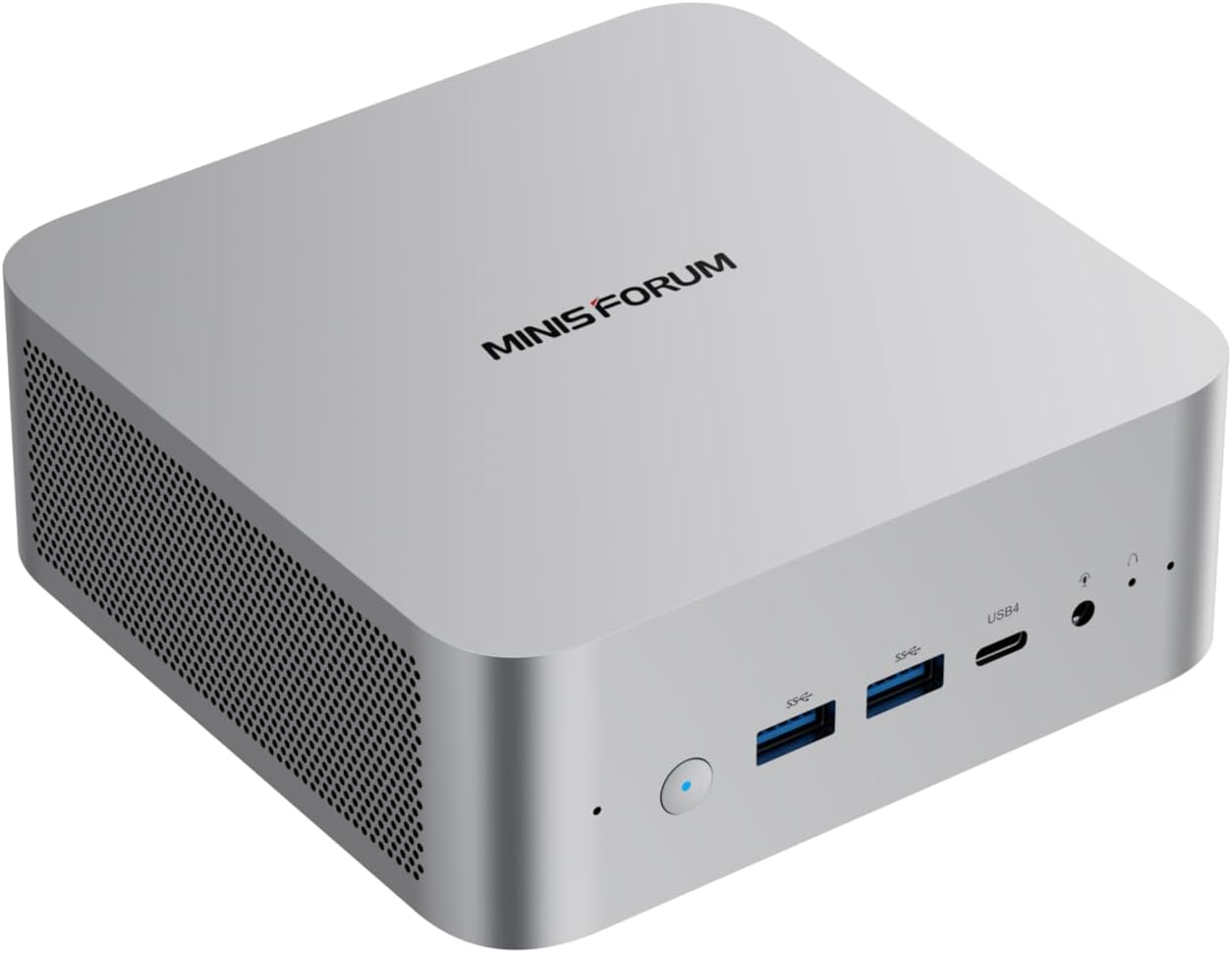

Minisforum - AI X1 Mini PC, AMD Ryzen 7 255, 16GB RAM, 1TB SSD, OCuLink Support - Silver
Reviews coming soon
Related Item
Highlights
- Key Specs
- Processor Model: AMD Ryzen 7 1000 Series (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: AMD Radeon 780M (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Brand: Minisforum
- Model Number: X1-255-16
- Product Name: AI X1 Mini PC, AMD Ryzen 7 255, 16GB RAM, 1TB SSD, OCuLink Support
- Color: Silver
- Year of Release: 2025
- Processor
- Processor Brand: AMD
- Processor Model: AMD Ryzen 7 1000 Series (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: Ryzen 7 255
- Processor Model Year of Release: 2025 (The year the processor model was initially available for sale or built into a computer.)
- CPU Boost Clock Frequency: 4.9 gigahertz (Actual central processing unit (CPU) speed may vary by device configuration and design. The maximum rate at which the processor is able to execute tasks, typically only used for a short period of time as needed. This rate may temporarily boost the processor's performance, but may result in overheating, shutdown, or damage to equipment if sustained.)
- Number of CPU Cores: 8-core (A core, or "brain" of a CPU, allows it to receive and execute instructions. Each core can work independently or together to perform parallel operations.)
- Number of CPU Threads: 16 (Generally, the more threads, the faster and more responsive the operating system.)
- CPU Cache Memory Level: L3
- L3 Cache: 16 megabytes (Cache memory, also called CPU memory, is random-access memory (RAM) that a computer microprocessor can access more quickly than it can access regular RAM. This memory is typically integrated directly with the CPU chip or placed on a separate chip that has a separate bus interconnect with the CPU.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- Solid State Drive Capacity: 1000 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Solid State Drive Interface: NVMe (Connects the solid state drive to the host system. PCI and SATA interfaces are the most common; PCI interfaces are typically faster, but SATA interfaces are compatible with a wider range of systems.)
- Memory
- System Memory (RAM): 16 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- System Memory RAM Speed: 5600 megahertz (How fast the information-storing hardware operates. The faster the RAM, the faster memory can be transferred to other system components. Ultimately, faster RAM improves operational efficiency.)
- Number Of Memory Slots: 2
- System Memory RAM Expandable To: 64 gigabytes (Adding more random-access memory (RAM) to a computer speeds up performance and improves efficiency. Upgrades to memory are limited by the number of expansion slots for additional RAM and existing RAM installed on the device.)
- Graphics
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: AMD Radeon
- Graphics: AMD Radeon 780M (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Compatibility
- Operating System: Windows 11 Pro (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Connectivity
- Display Connector(s): 1 x HDMI 2.1, 1 x DisplayPort 2.0, Display connection via USB port (The number and type of connectors used to connect to an external display.)
- Number of HDMI Outputs (Total): 1
- Number of DisplayPort Outputs (Total): 1
- USB Ports: 2 x USB-A 3.2, 1 x USB-A 2.0, 2 x USB-C 4 (The number and type of USB ports the product has.)
- Number of USB Ports (Total): 5
- Number of USB-A Charging Ports: 3
- Number of USB-C Charging Ports: 2
- Microphone Input: true (The device features an input for connecting an external microphone.)
- Wireless Connectivity: Wi-Fi, Bluetooth (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Ethernet Ports: 1
- Expansion
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Features
- Size: Mini
- Dimensions
- Product Height: 5.03 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 4.96 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 2.05 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 1.43 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: false
- Mouse Included: false
- Warranty
- Warranty - Parts: 1 year limited
- Warranty - Labor: 1 year limited
- Other
- UPC: 4897118837514
The Minisforum AI X1‑255 Mini PC delivers cutting‑edge performance in a compact, modern design, powered by the AMD Ryzen 7 255 processor with 8 cores, 16 threads, and boost speeds up to 4.9GHz. Paired with Radeon 780M graphics, it handles heavy multitasking, HD media editing, and light gaming with ease. With 16GB of high‑speed DDR5 RAM and a 1TB PCIe 4.0 SSD (expandable up to 4TB) it offers exceptional responsiveness and storage flexibility for demanding workflows. Its versatile display options include HDMI 2.1, DP 1.4, and dual USB4 ports, supporting up to 8K@60Hz and four simultaneous screens, plus eGPU expansion via OCuLink. Quiet, efficient cooling ensures stable 65W performance under load, while next‑gen connectivity like Wi‑Fi 7, Bluetooth 5.4, 2.5G LAN, and USB4 PD input/output makes the AI X1‑255 an ideal choice for creators, professionals, and power users who need speed, flexibility, and reliability.
- Zen 4 Multithreaded Power: AMD Ryzen 7 255 with 8 cores, 16 threads, 16MB L3 cache, and Radeon 780M graphics delivers smooth performance for office work, media editing, and light gaming
- Ultra‑Fast Memory & Storage: 16GB DDR5‑5600 RAM and dual PCIe 4.0 SSD slots provide rapid responsiveness, with support for up to 64GB RAM and 4TB total storage
- Versatile Display & Expansion: HDMI 2.1, DP 1.4, and dual USB4 ports support up to 8K@60Hz and 4K@120Hz across four screens, plus eGPU expansion via OCuLink
- Quiet, Efficient Cooling: Large silent fan and heat‑pipe system maintain stable 65W output with noise levels under 45dB—even during heavy workloads
- Next‑Gen Connectivity: Wi‑Fi 7, Bluetooth 5.4, 2.5G LAN, and flexible USB4 PD input/output options keep you powered and connected across any setup
Whats Included
- AI X1 Mini PC, Power Adapter, HDMI Cable, User Manual
