Minisforum - MS-01 Mini PC - Intel Core i9-12900H - 32GB Memory - 1TB SSD - Black
FREE shipping to
Related Item
Highlights
- Key Specs
- Processor Model: Intel 12th Generation Core i9 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- System Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- Graphics: Intel Iris Xe Graphics (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- General
- Brand: Minisforum
- Model Number: MS-01-0S1290
- Product Name: MINISFORUM - MS-01 Mini PC - Intel Core i9-12900H - 32GB Memory - 1TB SSD
- Color: Black
- Year of Release: 2024
- Processor
- Processor Brand: AMD
- Processor Model: Intel 12th Generation Core i9 (Your computer's processor is like its brain. Working in combination with system memory, the power of the processor determines the complexity of software you can run, how many programs you can have open at the same time, and how fast those programs will run. Most computers feature an AMD, Intel or Snapdragon processor.)
- Processor Model Number: 12900H
- Processor Model Year of Release: 2022 (The year the processor model was initially available for sale or built into a computer.)
- Storage
- Storage Type: SSD
- Total Storage Capacity: 1000 gigabytes
- Solid State Drive Capacity: 1000 gigabytes (The amount of data that can be stored on the device's solid state drive (SSD). SSD is a flash-based storage with faster speeds than a hard disk drive (HDD).)
- Memory
- System Memory (RAM): 32 gigabytes (Random-access memory (RAM) is a computing device's short-term data storage, which allows active information to be accessed quickly. The size and type of RAM determines how efficiently the device can handle large amounts of information at one time. For example, gaming or video editing requires more RAM for optimal performance.)
- Type of Memory (RAM): DDR5 (Each type of RAM delivers a different level of speed, bandwidth, energy efficiency and performance.)
- Graphics
- Graphics Type: Integrated (Dedicated graphics uses a separate graphics card for processing video images. Because it does not use memory from the system's RAM, there is no extra burden on the CPU and graphics are processed more efficiently. Integrated graphics shares system RAM to process video images.)
- GPU Brand: Intel
- Graphics: Intel Iris Xe Graphics (Often referred to as a "graphics processing unit" (GPU), this device is responsible for displaying image content and decoding/encoding video content in programs and games.)
- Compatibility
- Operating System: Windows 11 Pro (The operating system manages all software and hardware, including files, memory and connected devices. Most importantly, it lets you interact with your device and your programs in a visual way; otherwise, you'd be typing computer code to get anything done.)
- Connectivity
- Number of HDMI Outputs (Total): 2
- Number of DisplayPort Outputs (Total): 3
- Number of USB Ports (Total): 4
- Number of USB-A Charging Ports: 2
- Number of USB-C Charging Ports: 2
- Number Of Ethernet Ports: 0
- Features
- Size: Mini
- Dimensions
- Product Height: 1.89 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 7.44 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 7.72 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 3.13 pounds (The out of box weight of the item.)
- Certifications Listings & Approvals
- ENERGY STAR Certified: false (Devices carrying the ENERGY STAR service mark, such as computer products and peripherals, kitchen appliances, and other products, generally use 20% to 30% less energy than required by federal standards.)
- Included
- Optical Drive Type: None (An optical disk drive (ODD) uses a laser light to read data from or write data to an optical disc. These discs include CDs, DVDs, and Blu-ray Discs. This allows you to play music or watch movies using prerecorded discs.)
- Keyboard Included: false
- Mouse Included: false
- Warranty
- Warranty - Parts: 2 years limited
- Warranty - Labor: 2 Years Limited
- Other
- UPC: 4897118831932
The MS-01 is a mini desktop computer built for extreme performance and professional workloads. It's powered by a high-end Intel 12th Gen Core i9 processor, delivering elite speed for demanding tasks like gaming, 3D rendering, and video editing. For expandability, it features a PCIe 4.0 x16 slot for adding a powerful external GPU and supports massive enterprise-class storage, with room for multiple high-speed SSDs and a total capacity of up to 24TB. It also includes advanced Intel vPRO technology for hardware-level security and is equipped with ultra-fast 10Gbps fiber optic network ports plus dual 2.5G Ethernet ports for unparalleled connectivity, making it ideal for a secure, high-speed network environment.
- High-Performance Processing: Driven by the Intel® 12th Gen Core™ i9-12900H processor, featuring 14 cores, 20 threads, and turbo speeds up to 5.0 GHz. This delivers exceptional power for intensive workloads, from complex simulations to multimedia creation, while integrated Intel® Iris® Xe graphics ensures a smooth visual experience.
- Advanced Expansion & Bandwidth: Equipped with a full-length PCIe 4.0 x16 slot for adding high-performance graphics cards, network adapters, or storage controllers. An additional PCIe 4.0 x8 slot offers compatibility with professional-grade hardware like the NVIDIA RTX A2000. Coupled with support for DDR5 memory, this system ensures blistering data transfer speeds and optimal performance for demanding applications like 3D rendering and 4K video editing.
- Enterprise-Class Storage Solutions: Achieve unparalleled storage capacity and flexibility. Support for up to three M.2 NVMe SSDs (including 22110 form factors) and one U.2 NVMe SSD enables a massive maximum configuration of 24TB. With support for RAID 0 (performance) and RAID 1 (data redundancy), the MS-01 is built for critical data tasks, ensuring both speed and security.
- Enhanced Security with Intel vPro®: Benefit from enterprise-level management and security features. Intel vPro® technology provides hardware-rooted protection, advanced threat detection, and remote management capabilities, safeguarding your data against sophisticated threats and simplifying IT administration.

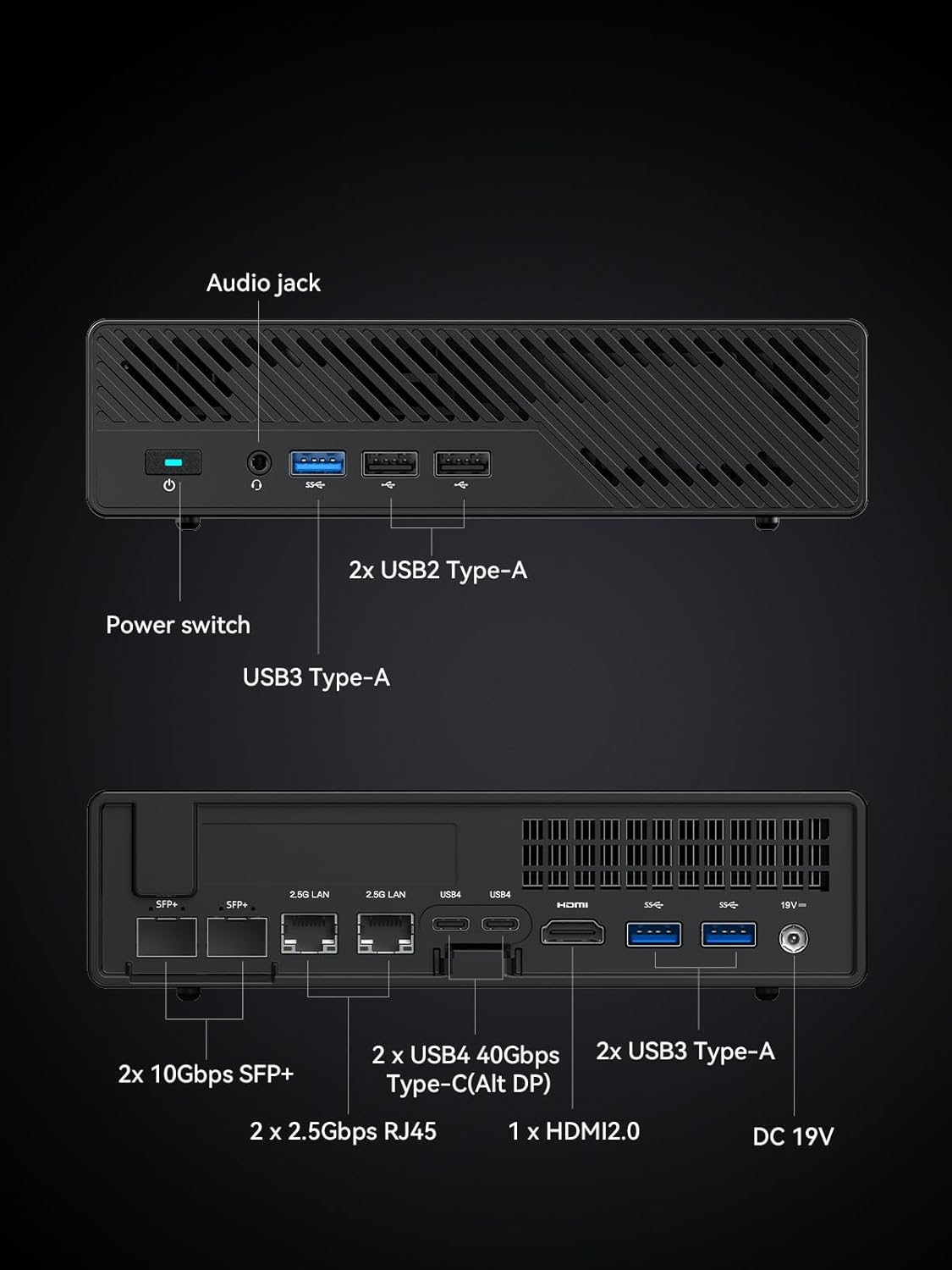

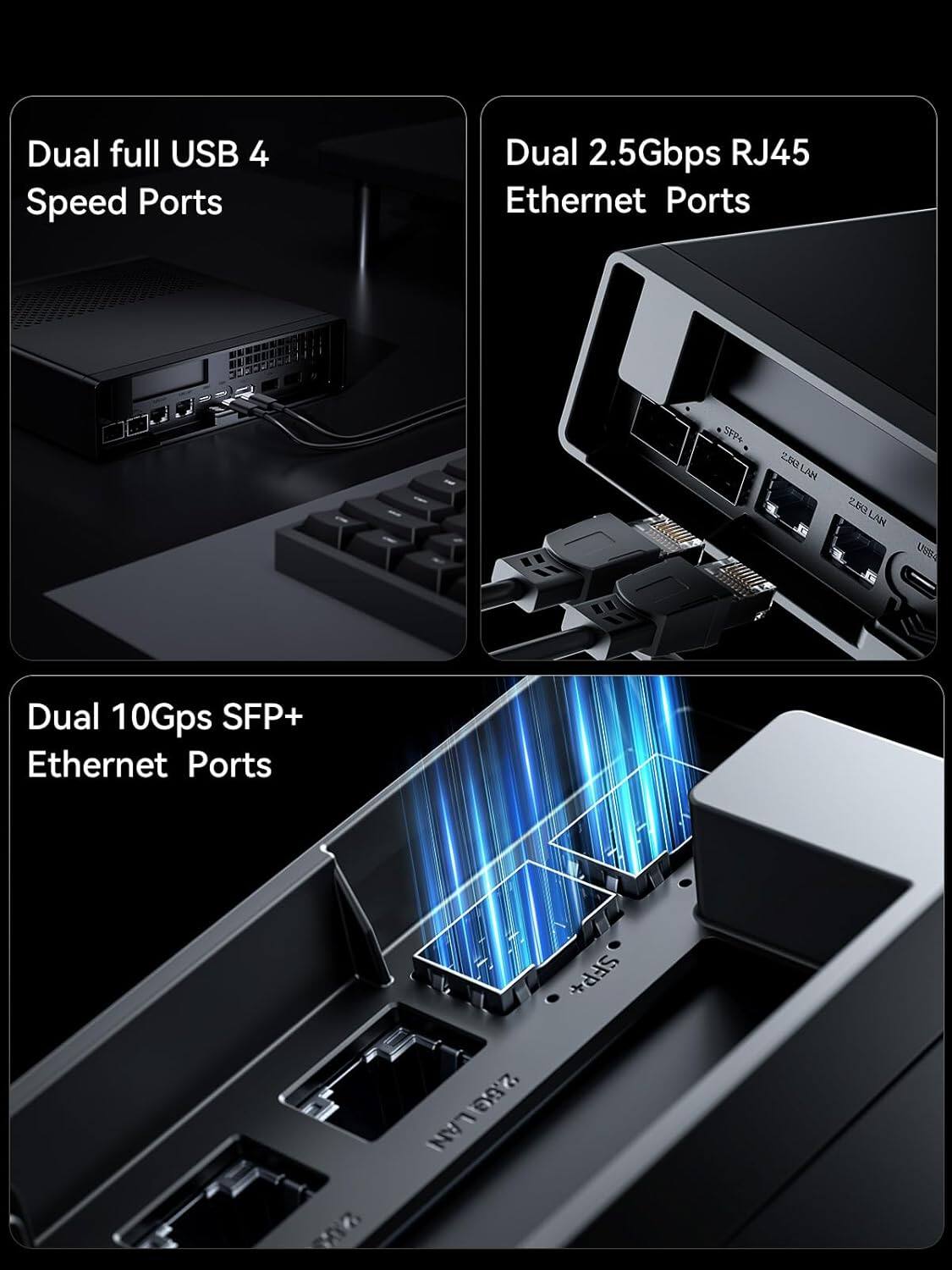

- Ultra-Fast, Dual-Purpose Networking: Built for the modern network, the MS-01 features two 10G SFP+ fiber ports for ultra-secure, high-bandwidth connections ideal for server, NAS, or backbone applications, alongside two 2.5G RJ45 Ethernet ports for versatile wired connectivity. This combination offers unmatched network flexibility and speed, far surpassing standard gigabit Ethernet.
- High-Performance Processing: Driven by the Intel® 12th Gen Core™ i9-12900H processor, featuring 14 cores, 20 threads, and turbo speeds up to 5.0 GHz. This delivers exceptional power for intensive workloads, from complex simulations to multimedia creation, while integrated Intel® Iris® Xe graphics ensures a smooth visual experience.
- Advanced Expansion & Bandwidth: Equipped with a full-length PCIe 4.0 x16 slot for adding high-performance graphics cards, network adapters, or storage controllers. An additional PCIe 4.0 x8 slot offers compatibility with professional-grade hardware like the NVIDIA RTX A2000. Coupled with support for DDR5 memory, this system ensures blistering data transfer speeds and optimal performance for demanding applications like 3D rendering and 4K video editing.
- Enterprise-Class Storage Solutions: Achieve unparalleled storage capacity and flexibility. Support for up to three M.2 NVMe SSDs (including 22110 form factors) and one U.2 NVMe SSD enables a massive maximum configuration of 24TB. With support for RAID 0 (performance) and RAID 1 (data redundancy), the MS-01 is built for critical data tasks, ensuring both speed and security.
- Enhanced Security with Intel vPro®: Benefit from enterprise-level management and security features. Intel vPro® technology provides hardware-rooted protection, advanced threat detection, and remote management capabilities, safeguarding your data against sophisticated threats and simplifying IT administration.
- Ultra-Fast, Dual-Purpose Networking: Built for the modern network, the MS-01 features two 10G SFP+ fiber ports for ultra-secure, high-bandwidth connections ideal for server, NAS, or backbone applications, alongside two 2.5G RJ45 Ethernet ports for versatile wired connectivity. This combination offers unmatched network flexibility and speed, far surpassing standard gigabit Ethernet.
Whats Included
- Mini PC, Power Cable, HDMI Cable, U.2 to M.2 adapter, SSD Cooling Fan, Instruction Manual
- Mini PC, Power Cable, HDMI Cable, U.2 to M.2 adapter, SSD Cooling Fan, Instruction Manual
A: Hi, thanks for reaching out! The MS‑01 has Bluetooth and Wi‑Fi support and comes with two 10Gbps SFP+ LAN ports, two 2.5Gbps RJ45 LAN ports, and two USB4 ports, providing a total maximum Ethernet throughput of 65Gbps.
Compare similar products
The MS-01 is a mini desktop computer built for extreme performance and professional workloads. It's powered by a high-end Intel 12th Gen Core i9 processor, delivering elite speed for demanding tasks like gaming, 3D rendering, and video editing. For expandability, it features a PCIe 4.0 x16 slot for adding a powerful external GPU and supports massive enterprise-class storage, with room for multiple high-speed SSDs and a total capacity of up to 24TB. It also includes advanced Intel vPRO technology for hardware-level security and is equipped with ultra-fast 10Gbps fiber optic network ports plus dual 2.5G Ethernet ports for unparalleled connectivity, making it ideal for a secure, high-speed network environment.
The far mightier, way tinier Mac mini is 5 by 5 inches of pure power. Built for Apple Intelligence.Redesigned around Apple silicon to unleash the full speed and capabilities of the spectacular M4 chip. With ports at your convenience, on the front and back.
The MINISFORUM UN1250 Mini Desktop PC packs powerful productivity into a compact design, featuring an Intel Core i5-1250P processor (12 cores/16 threads, up to 4.4GHz) with Iris Xe Graphics for smooth multitasking and demanding workloads. It supports triple 4K displays via HDMI, DisplayPort, and USB, along with WiFi 6E, Bluetooth 5.3, and multiple USB ports for seamless connectivity. With 16GB DDR4 RAM, a 512GB PCIe 4.0 SSD (expandable up to 2TB with 2.5" SATA), and AV1 decoding for enhanced visuals, it’s ideal for office, home, and business use. Built for 24/7 reliability with efficient cooling and low power consumption, it also comes with a 2-year warranty for peace of mind.
The Cubi NUC is the perfect solution for confined spaces, adeptly handling a wide range of tasks from basic computing to multimedia streaming and multitasking, all while maintaining a compact size. The Cubi NUC Series seamlessly blends business-centric design with environmental responsibility, reflecting MSI's dedication to sustainability. By using green materials, such as PCR (Post-Consumer Recycled) plastic, these products not only ensure durability but also contribute to a greener world.The Cubi NUC Series represents sustainable value and enhanced productivity.
| Pros for Minisforum - MS-01 Mini PC - Intel Core i9-12900H - 32GB Memory - 1TB SSD - Black | |||
|---|---|---|---|
| There were no pros for this product— | Noise Level, Performance, Size, Speed, Portability | There were no pros for this product— | Noise Level, Connectivity, Overall Performance, RAM |
| Cons for Minisforum - MS-01 Mini PC - Intel Core i9-12900H - 32GB Memory - 1TB SSD - Black | |||
| There were no cons for this product— | Storage Capacity, Connectivity, Port Selection | There were no cons for this product— | Processor Speed |
