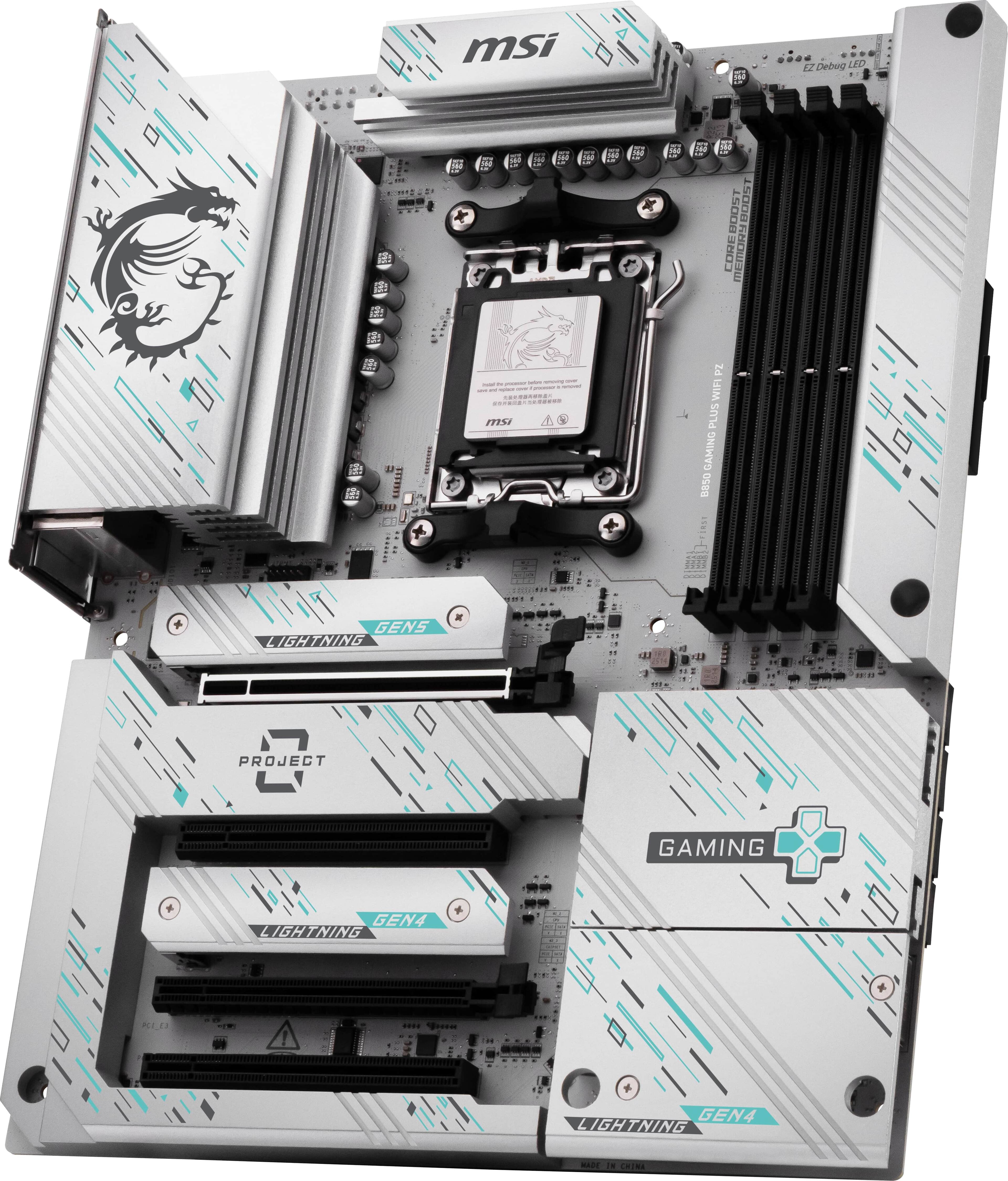

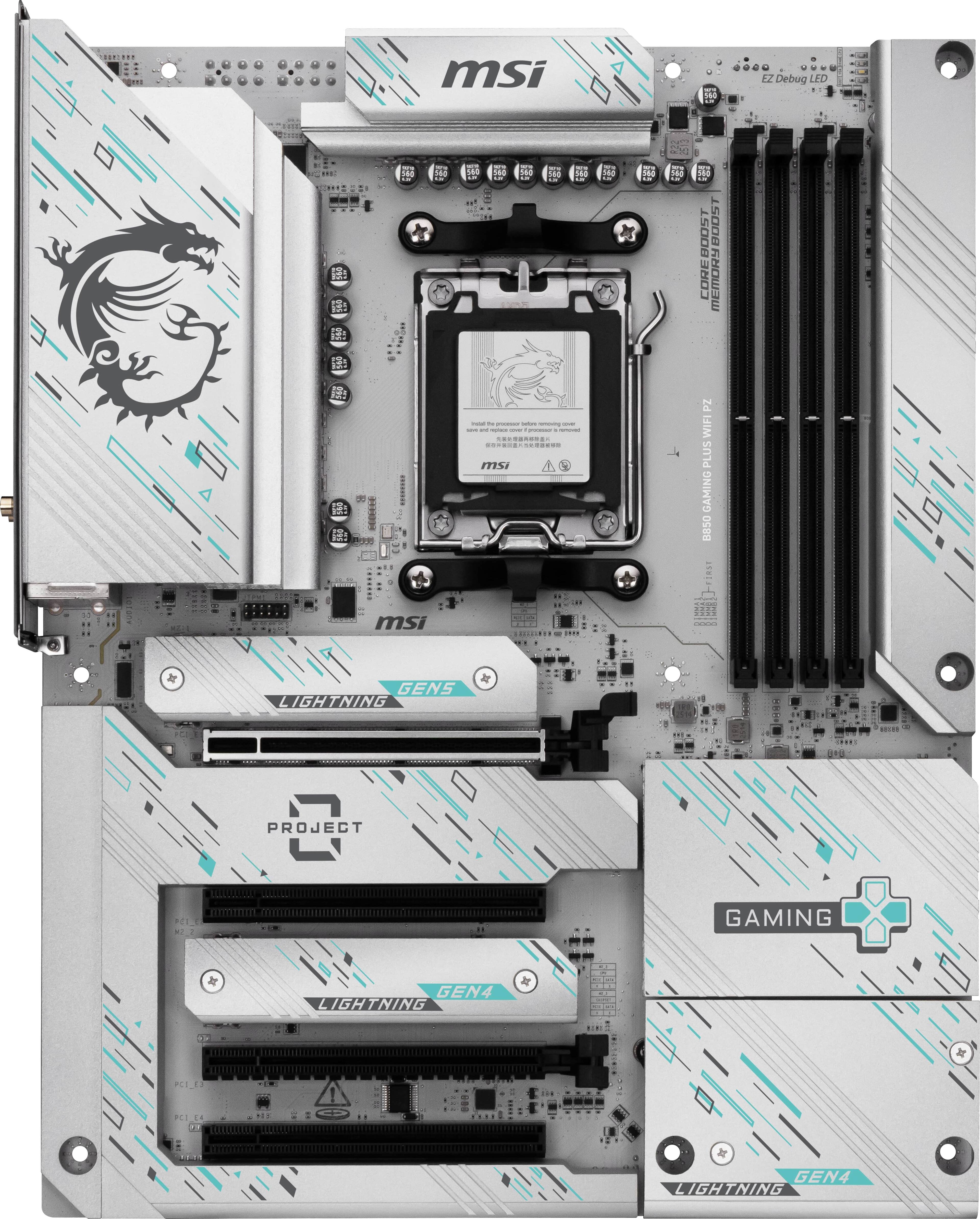

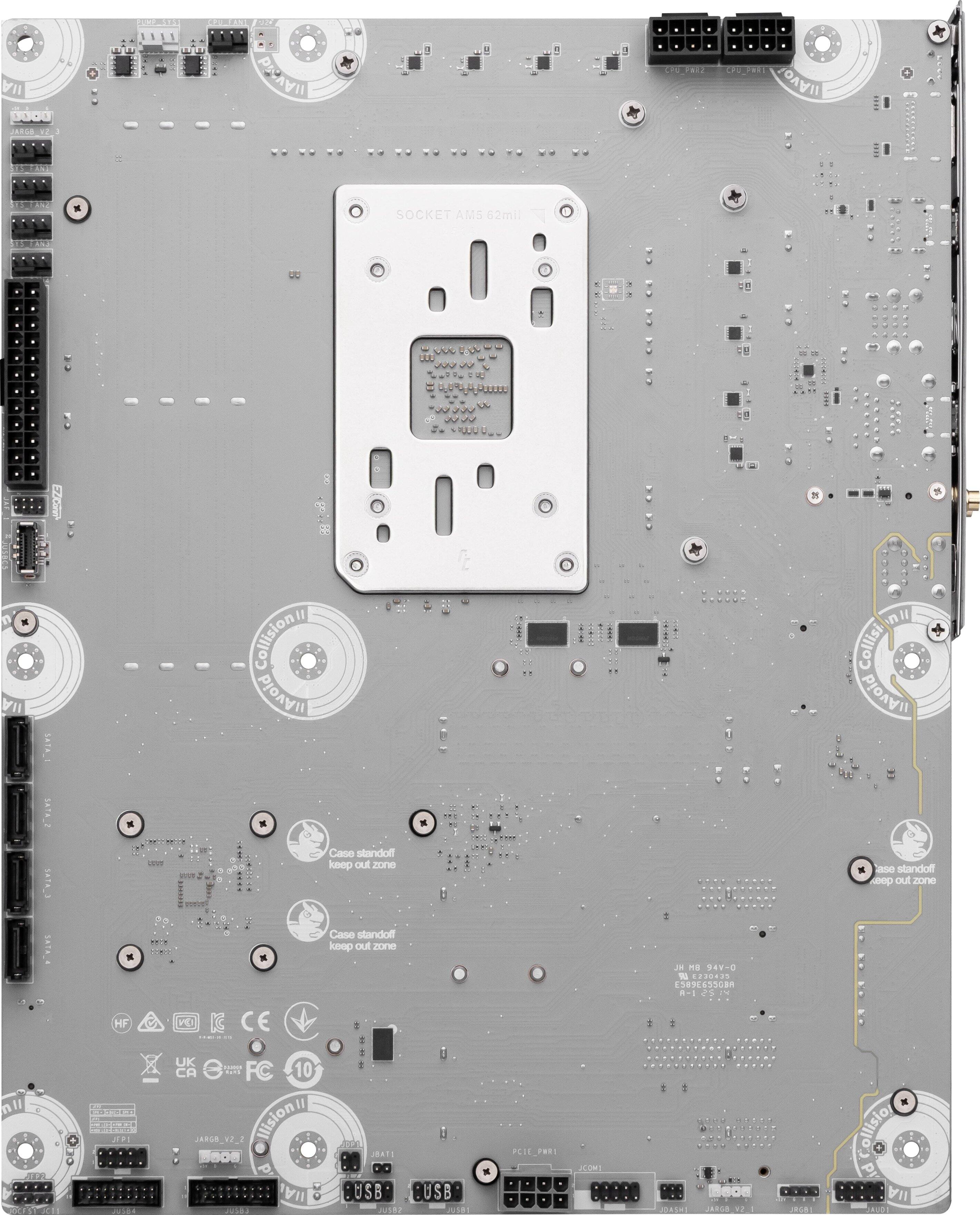

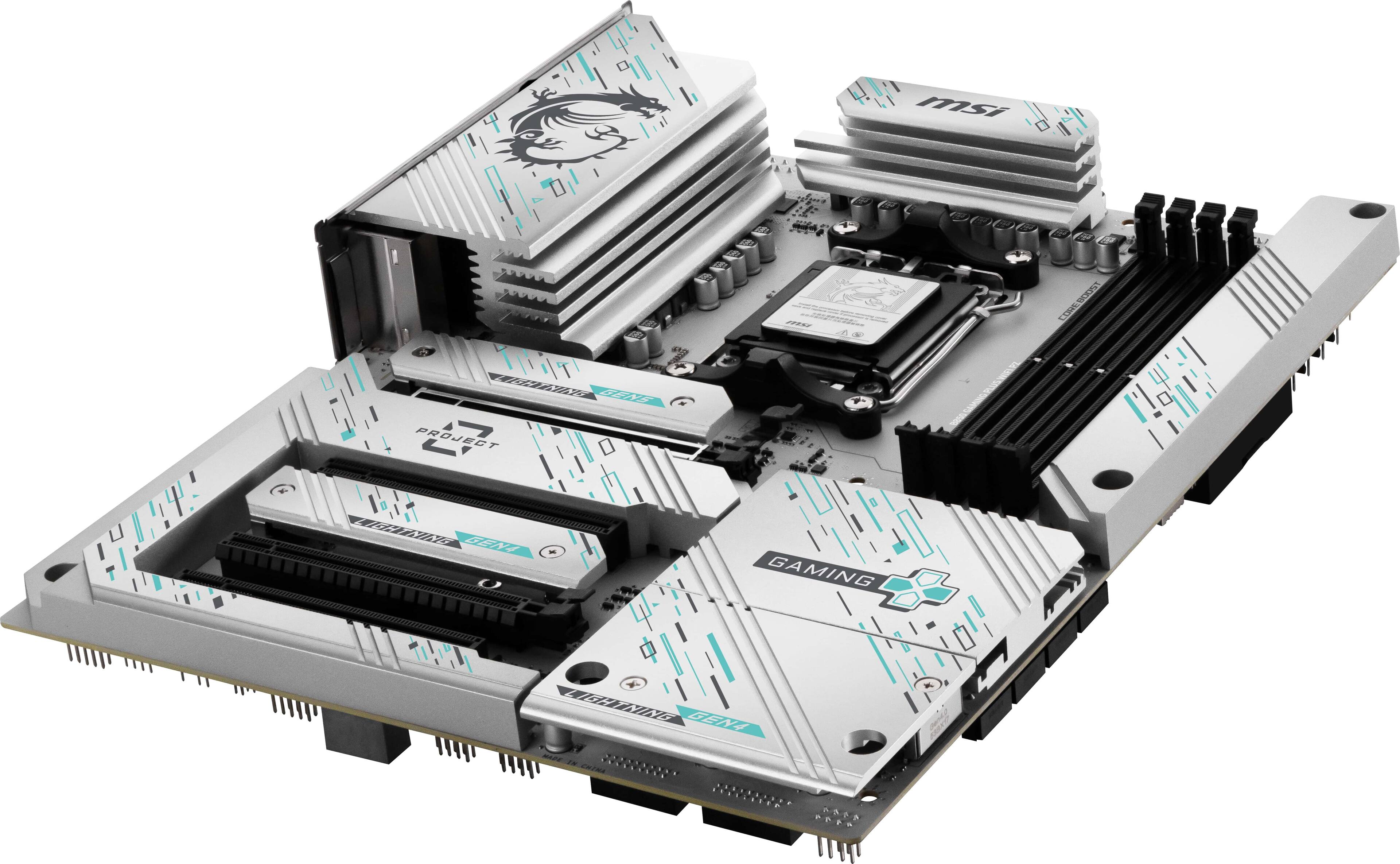

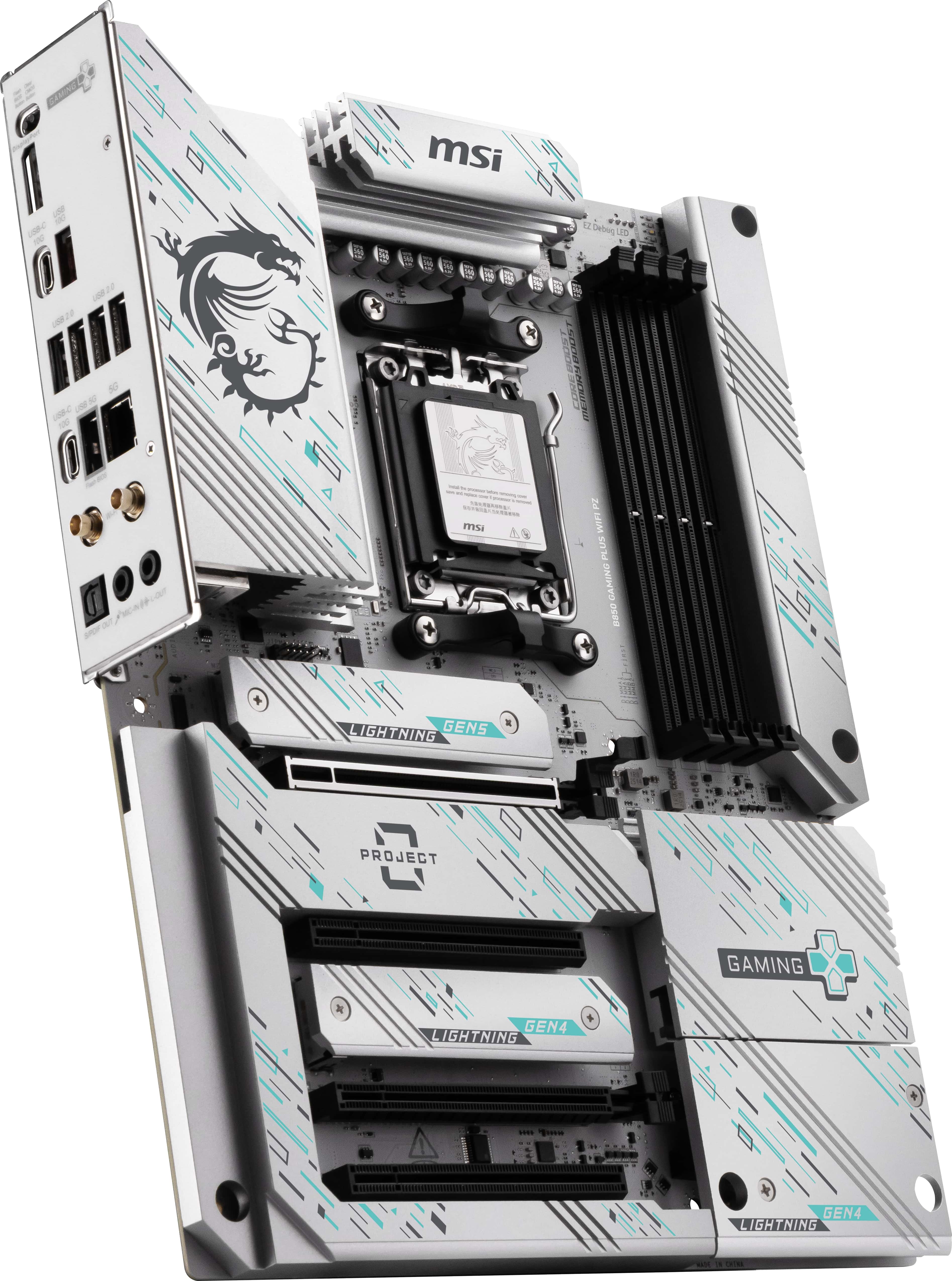

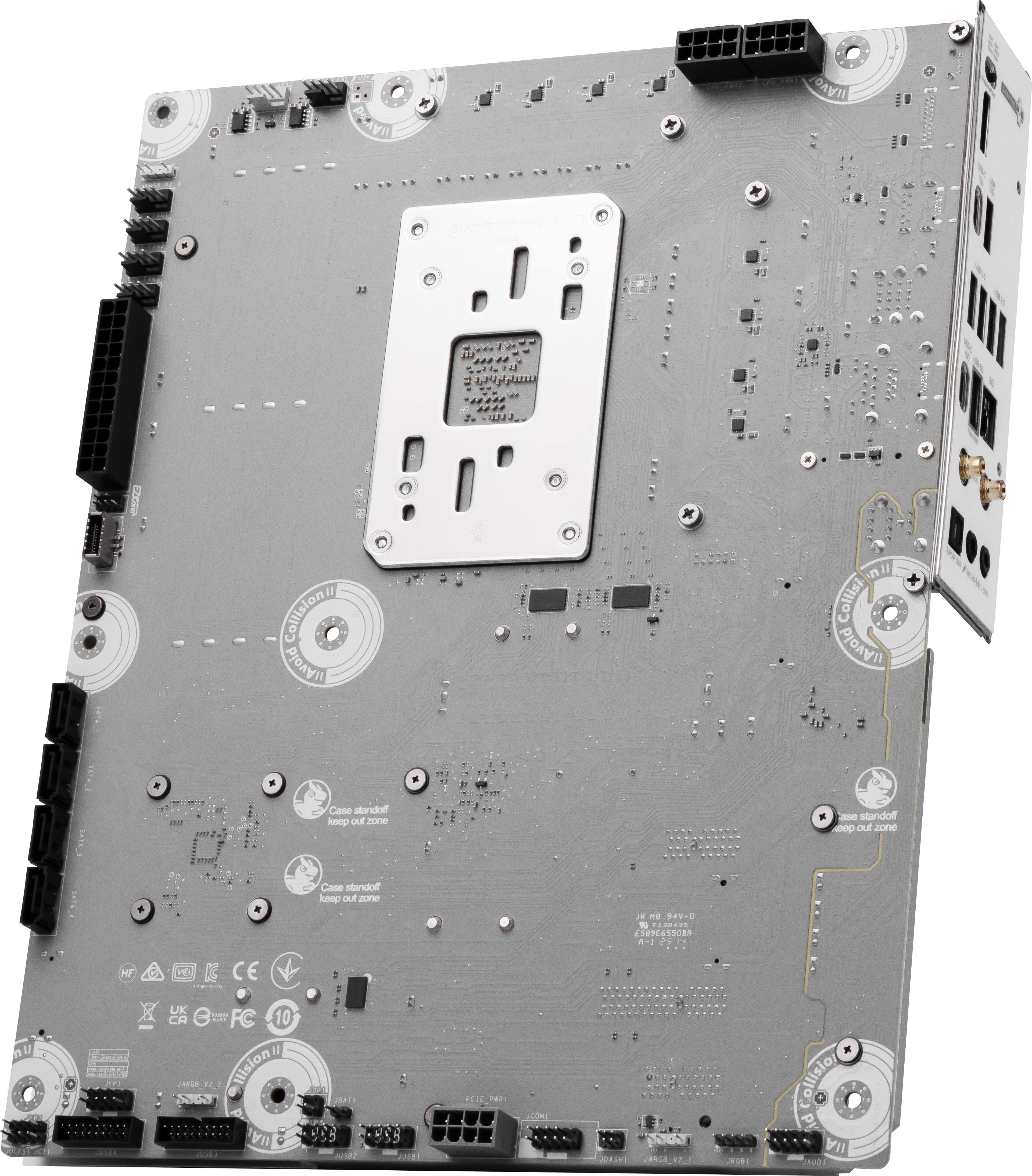

MSI - B850 GAMING PLUS WIFI PZ (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Gray White/Matt
Key Accessories:
- Thermaltake - Smart BM3 80+ Bronze PCIE Gen 5 ATX 3.0 850W Semi-Modular Power Supply - Black$99.99
More Buying Options from Best Buy and Marketplace sellers
Related Item
Specifications
- ChipsetAMD B850Form FactorATXProcessor SocketSocket AM5 (LGA 1718)Wireless Networking StandardWi-Fi 7Number Of Memory Slots4Maximum Memory Supported256 gigabytes
- Key Specs
- Chipset: AMD B850
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: B850 GAMING PLUS WIFI PZ
- Product Name: B850 GAMING PLUS WIFI PZ (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard
- Color: Gray White/Matt
- Year of Release: 2025
- Compatibility
- Chipset: AMD B850
- Chipset Compatibility: AMD
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD Ryzen 9 9000 Series, AMD Ryzen 9 7000 Series, AMD Ryzen 7 9000 Series, AMD Ryzen 7 8000 Series, AMD Ryzen 7 7000 Series
- Slot
- Number of M.2 Slots: 4 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of PCI-E x4 Slots: 1
- Number Of PCI-E x1 Slots: 2
- Number Of Memory Slots: 4
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 7 (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: BE (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports
- USB Ports: 8 x USB-A 2.0, 1 x USB-A 3.2, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 304.8 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 243.8 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 54.72 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 256 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 4x DDR5 UDIMM, Maximum Memory Capacity 256GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142433553
MSI B850 GAMING PLUS WIFI PZ takes all the essential elements of the AMD Ryzen 9000/7000 series processors and combines them with game-ready features and proven durability.
- Processor compatibility: Supports AMD Ryzen 9000/7000 Series Desktop Processor
- Speed (memory speed supported): 4x DDR5 UDIMM, Maximum Memory Capacity 256GB. Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s.
- Graphics: Integrated Graphics Processor
- DDR5 memory: 4 DIMMs, Duel Channel DDR5 8200+MHZ (OC)
- Audio: 8-Channel (7.1) HD Audio with Audio Boost
Product Manuals
Q: How many memory slots are available on this motherboard?
A: There are four memory slots available on this motherboard.
Q: Are there audio enhancements included with this motherboard?
A: Yes, this motherboard features 8-Channel HD Audio with Audio Boost.
Q: Does this motherboard have built-in wireless connectivity?
A: Yes, this motherboard has Bluetooth and Wi-Fi 7 for wireless connectivity.
Q: What is the maximum memory speed supported by this motherboard?
A: This motherboard supports memory speeds of DDR5 8200 - 5600 (OC) MT/s.
Q: What series of desktop processors does this motherboard support?
A: This motherboard supports AMD Ryzen 9000/7000 Series Desktop Processors.
Q: What type of memory does this motherboard support?
A: This motherboard supports DDR5 memory.
Q: How much memory can this motherboard support?
A: This motherboard can support a maximum memory capacity of 256GB.
