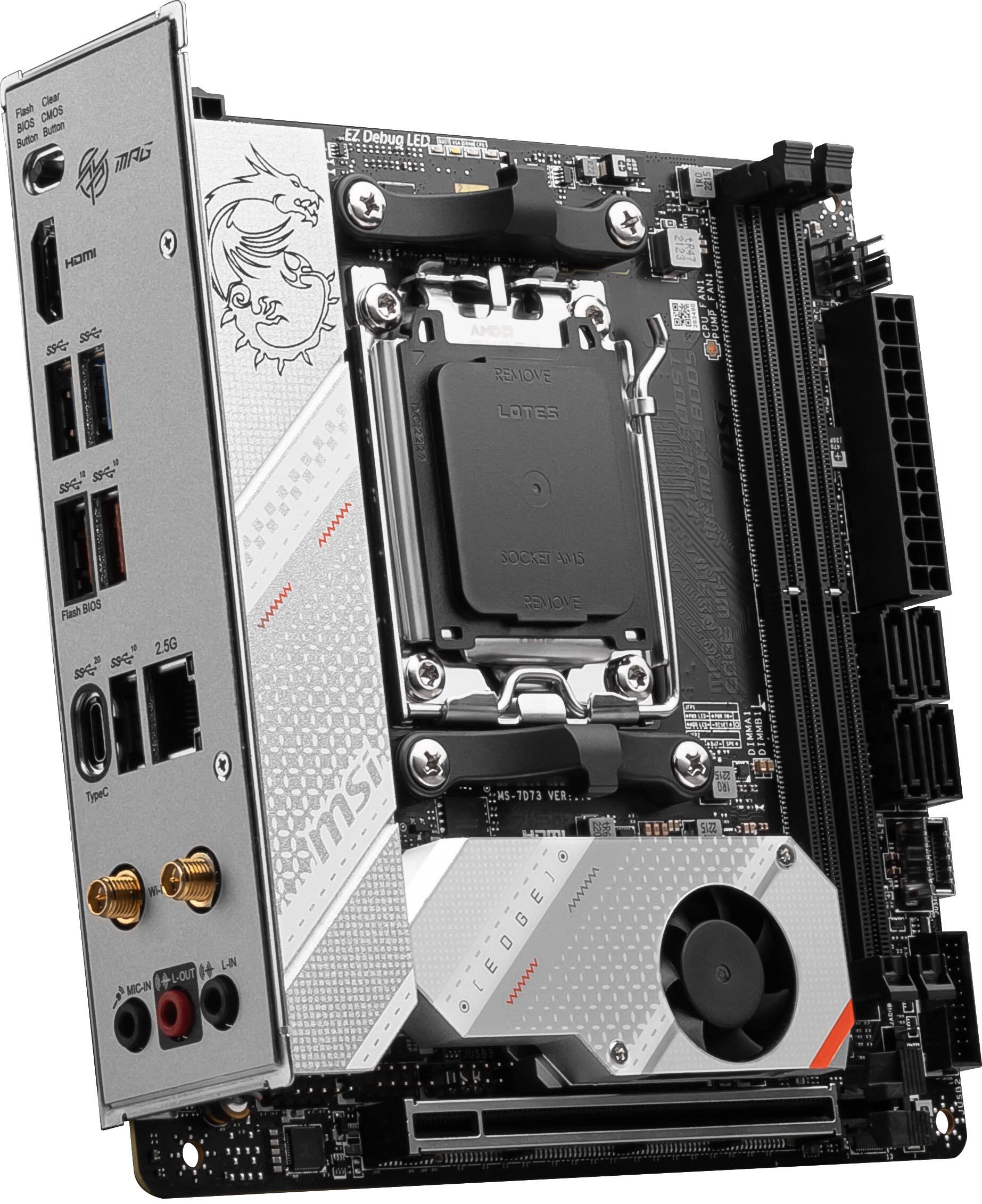

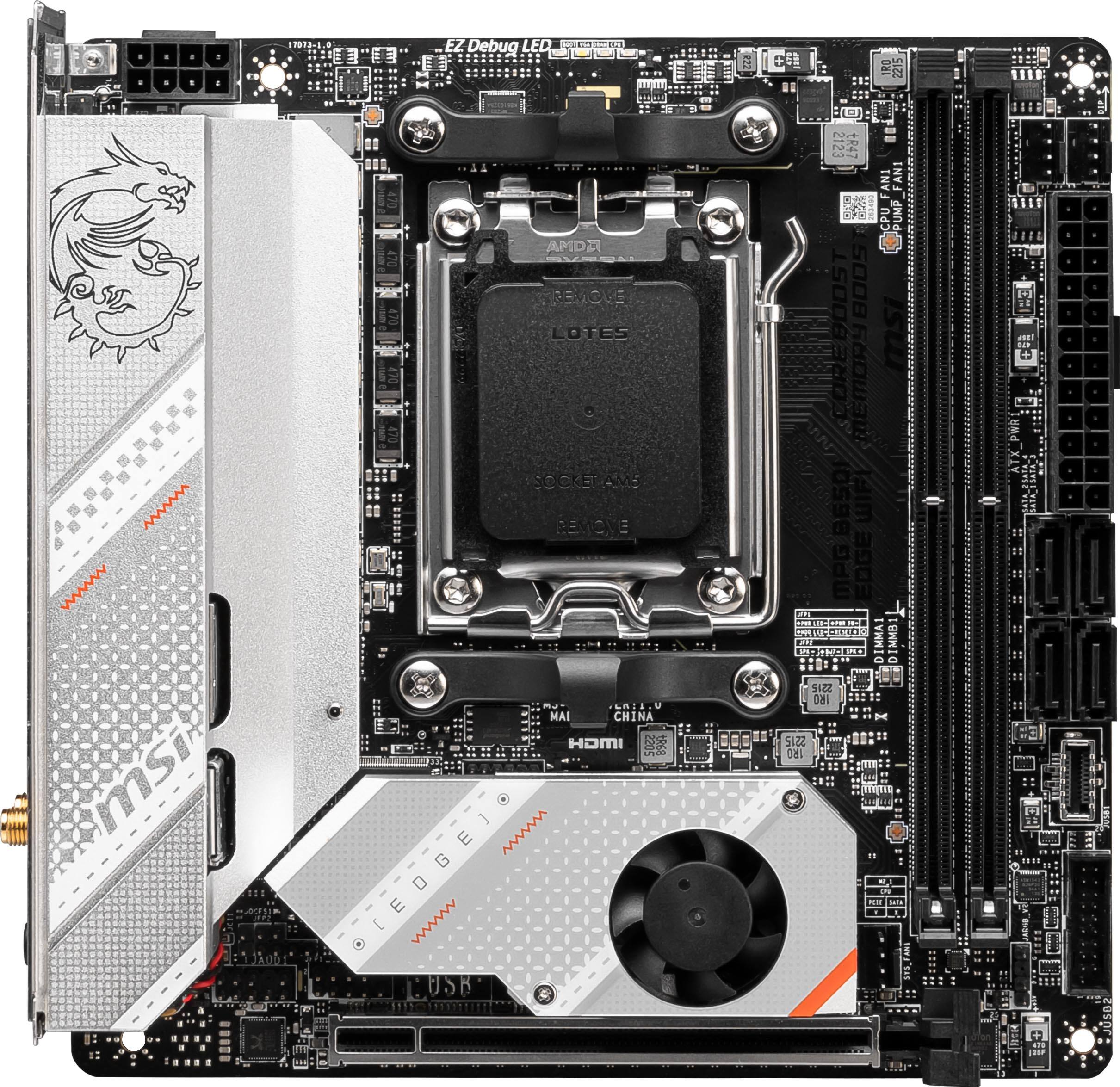

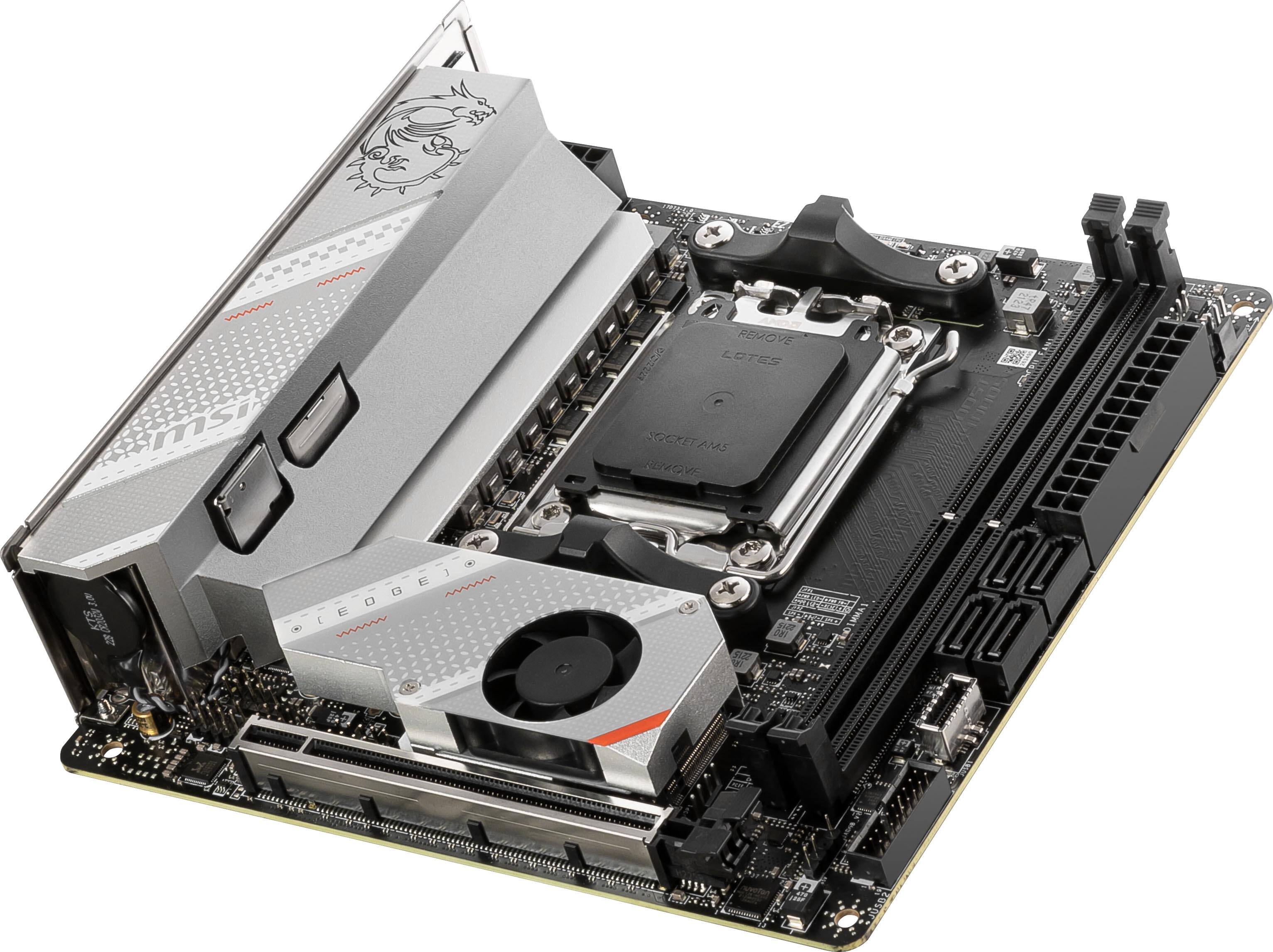

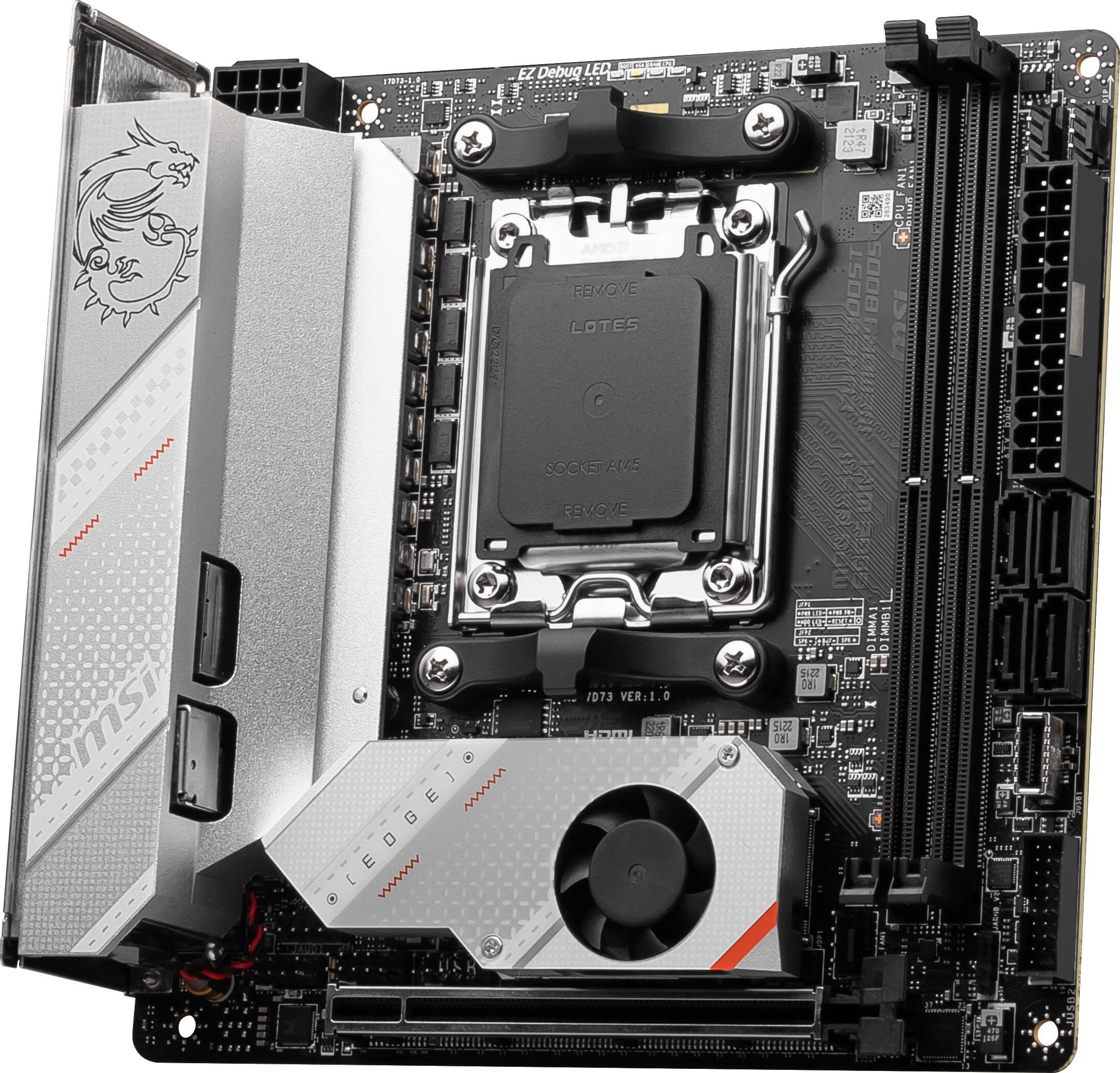

MSI - MPG B650I EDGE WIFI (Socket AM5) AMD B650 Mini-ATX DDR5 Wi-Fi 6E Motherboard - Black
FREE shipping to
ASUS - ROG Strix B850-F GAMING WIFI (Socket AM5) AMD B850 ATX DDR5 Wi-Fi 7 Motherboard - Black$281.99$299.99
More Buying Options
Related Item
Specifications
- ChipsetAMD B650Form FactorMini-ATXProcessor SocketSocket AM5 (LGA 1718)Number of PCI-E Slots1Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots2
- Key Specs
- Chipset: AMD B650
- Form Factor: Mini-ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Number of PCI-E Slots: 1 (How many peripheral component interconnect express slots are available.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 96 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Model Number: MPG B650I EDGE WIFI
- Product Name: MPG B650I EDGE WIFI (Socket AM5) AMD B650 Mini-ATX DDR5 Wi-Fi 6E Motherboard
- Color: Black
- Compatibility
- Chipset: AMD B650
- Chipset Compatibility: AMD
- Form Factor: Mini-ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket AM5 (LGA 1718) (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: AMD, AMD Ryzen 9 7000 Series, AMD Ryzen 7 7000 Series, AMD Ryzen 5 7000 Series
- Operating System Compatibility: Windows 10, Windows 11 Home, Windows 11 Pro
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number of PCI-E Slots: 1 (How many peripheral component interconnect express slots are available.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 2
- Connectivity
- SATA Connector: 4x SATA 6G (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Wireless Standard: AX (The wireless networking protocol used by the device. Each iteration of the protocol is based on the 802.11 standard developed by the Institute of Electrical and Electronics Engineers (IEEE) Standards Association. Denoted by letters following 802.11 (802.11a, 802.11ac, etc.), each version, published in alphabetical order, encompasses all previous versions.)
- Ports

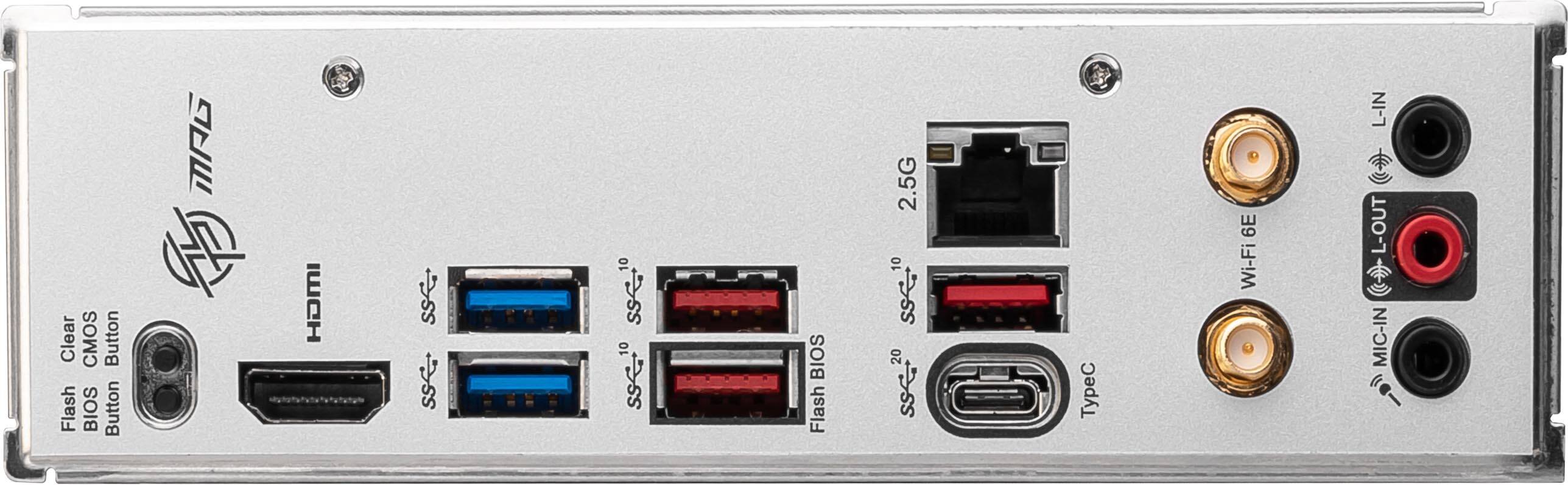

- USB Ports: 7 x USB-A 3.2, 2 x USB-A 2.0, 2 x USB-C 3.2 (The number and type of USB ports the product has.)
- Audio Ports: 1x Front Audio (JAUD)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 169.93 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 169.93 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 16 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 96 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: DIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 2x DDR5, Maximum Memory Capacity 96GB (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 5 (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Other
- UPC: 824142301029
The MPG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
- Supports AMD Ryzen 7 and Ryzen processors: In an AM5 socket.
- DDR5 (memory speed supported): 2x DDR5, Maximum Memory Capacity 64GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Graphics: 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 4K 120Hz
- Audio: Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio
- Expansion slot: 1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- Storage: 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
- Intel Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports AMD Ryzen 7 and Ryzen processors: In an AM5 socket.
- DDR5 (memory speed supported): 2x DDR5, Maximum Memory Capacity 64GB Memory Support DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Graphics: 1x HDMI Support HDMI 2.1 with FRL, maximum resolution of 4K 120Hz
- Audio: Realtek ALC4080 Codec 7.1-Channel USB High Performance Audio
- Expansion slot: 1x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- Storage: 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
- Intel Wi-Fi 6E: The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands Supports 802.11 a/ b/ g/ n/ ac/ ax
Product Manuals
Compare similar products
The MPG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MPG B850I EDGE TI WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, and the latest PCIe 5.0 compatibility, Supplemental PCIe Power, and this is the best white theme X870 ITX motherboard for AMD Ryzen 9000 series processors.
The B650I Lightning WiFi is a Mini ITX motherboard designed for AMD Socket AM5 Ryzen processors, supporting dual-channel DDR5 memory up to 7200+ MHz (OC) with a maximum capacity of 128GB. It features 1 PCIe 4.0 x16 slot, 2 SATA3 ports, and 2 M.2 slots (1 Blazing M.2 PCIe Gen5x4 and 1 Hyper M.2 PCIe Gen4x4). Connectivity options include multiple USB ports, 2.5 Gigabit LAN, and Wi-Fi 6E with Bluetooth 5.2 support.
The B850M GAMING X WIFI6E supports AM5 Processors and features unparalleled performance. GIGABYTE B850 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
Specs
Reviews
Customer Images
The vast majority of our reviews come from verified purchases. Reviews from customers may include My Best Buy members, employees, and Tech Insider Network members (as tagged). Select reviewers may receive discounted products, promotional considerations or entries into drawings for honest, helpful reviews.
- Rated 5 out of 5 stars
Not disappointed
Sturdy construction, quality materials. Software-wise, it's got a VERY handy hardware monitoring tool (MSI Center) and a user-friendly BIOS interface. Plenty of connectivity even though it's a mini-ITX small form factor. The build quality and color scheme helped me pick it over the alternatives with similar functionalities. The only MINOR issue for me is an apparent lack of support for SATA m.2 SSDs, but it works just as expected with NVMes. Not disappointed.
This review is from MSI - MPG B650I EDGE WIFI (Socket AM5) AMD B650 Mini-ATX DDR5 Wi-Fi 6E Motherboard - Black
Posted by
- Rated 5 out of 5 stars
Hreta itx motherboard
This motherboard has everything i would need on a mini it motherboard. I would recommend this to everyone
This review is from MSI - MPG B650I EDGE WIFI (Socket AM5) AMD B650 Mini-ATX DDR5 Wi-Fi 6E Motherboard - Black
Posted by FelixT
- Rated 5 out of 5 stars
Perfect AMD5 motherboard for SFF builds
Coming off of an ASUS X570-I WiFi edge motherboard with my old AMD4 PC build, this motherboard is a perfect pair for AMD5 builds. Especially when taking into consideration that I upgraded my CPU, GPU, RAM and SSD’s for this build. Additionally, the size of it works perfectly with SFF builds as I put this into a Fractal Terra and a RTX 4080 FE. If this is something that you’re doing, you can’t go wrong with this motherboard.
This review is from MSI - MPG B650I EDGE WIFI (Socket AM5) AMD B650 Mini-ATX DDR5 Wi-Fi 6E Motherboard - Black
Posted by ItsPabloBruh
