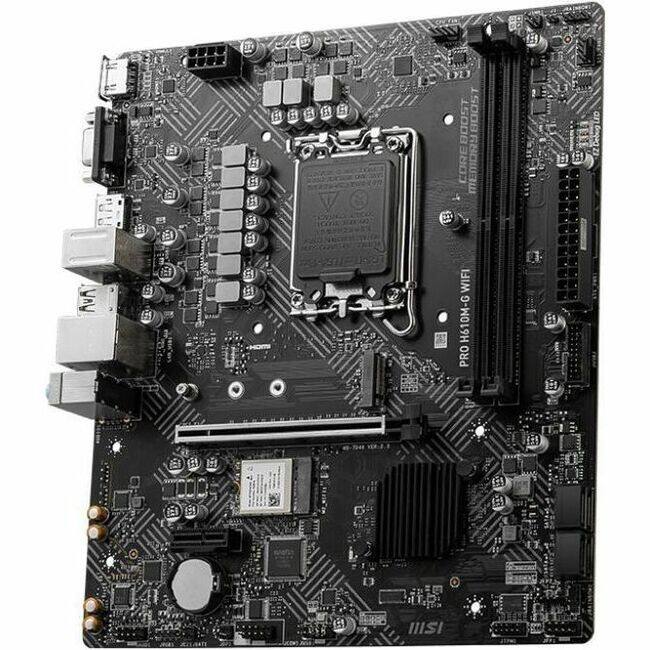

MSI - PRO H610M-G WIFI Gaming Desktop Motherboard
More Buying Options
Specifications
- ChipsetIntel H610Form FactormicroATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots2Maximum Memory Supported96 gigabytes
- Key Specs
- Chipset: Intel H610
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 2
- Maximum Memory Supported: 96 gigabytes
- Memory Type Supported: DDR5 SDRAM
- General
- Brand: MSI
- Product Name: PRO H610M-G WIFI Gaming Desktop Motherboard
- Compatibility
- Chipset: Intel H610
- Chipset Compatibility: Intel
- Form Factor: microATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Pentium Gold
- Slot
- Number of M.2 Slots: 1 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 2
- Connectivity
- Wireless Connectivity: Bluetooth, Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports
- USB Ports: 1 x USB-A 2.0, 1 x USB-A 3.0, 1 x USB-A 3.1, 1 x USB-A 3.2, 1 x USB-C 2.0, 1 x USB-C 3.0, 1 x USB-C 3.1, 1 x USB-C 3.2 (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 9.6 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 8.3 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 1.76 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 96 gigabytes
- Memory Type Supported: DDR5 SDRAM
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: 5600 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: 3 years
- Warranty - Labor: 3 years
- Other
- UPC: 824142368473
The PRO H610M-G WIFI Gaming Desktop Motherboard is designed to support Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors. It offers up to 96GB of DDR5 memory with speeds up to 5600 MHz. The motherboard includes one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for expansion. Connectivity options feature Wi-Fi 6E and Bluetooth 5.3. Display outputs include HDMI 2.1, DisplayPort 1.4, and VGA ports.
- Processor Support: Compatible with Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors.
- Memory Capacity: Supports up to 96GB of DDR5 memory, with speeds up to 5600 MHz.
- Expansion Slots: Equipped with one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for expansion.
- Connectivity: Features Wi-Fi 6E and Bluetooth 5.3 for advanced wireless connectivity.

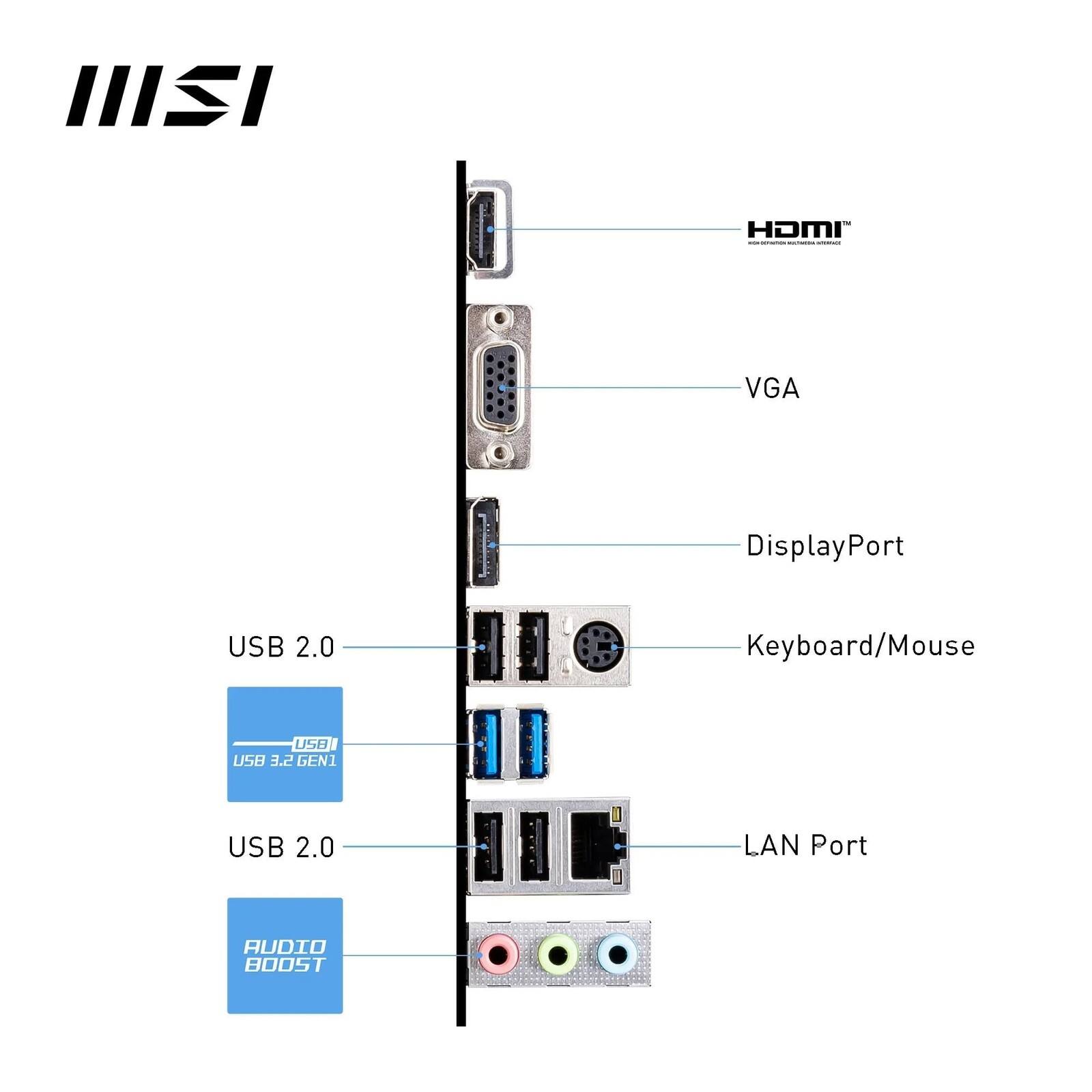

- Display Outputs: Includes HDMI 2.1, DisplayPort 1.4, and VGA ports for versatile display options.
Compare similar products
The PRO H610M-G WIFI Gaming Desktop Motherboard is designed to support Intel Core 14th, 13th, and 12th Gen processors, as well as Intel Pentium Gold and Celeron processors. It offers up to 96GB of DDR5 memory with speeds up to 5600 MHz. The motherboard includes one PCIe 4.0 x16 slot and one PCIe 3.0 x1 slot for expansion. Connectivity options feature Wi-Fi 6E and Bluetooth 5.3. Display outputs include HDMI 2.1, DisplayPort 1.4, and VGA ports.
The PRO Z890-S WIFI WHITE Gaming Desktop Motherboard is engineered for high-performance computing, featuring support for Intel Core Ultra Processors (Series 2) with Socket LGA-1851. It accommodates up to 256 GB of DDR5 memory across 4 DIMM slots, with speeds ranging from 4800 MHz to 8600 MHz, including overclocked configurations. The motherboard includes 4 PCI Express x16 slots, one of which is PCIe 5.0 x16, and offers 3 M.2 slots alongside 4 SATA 6G ports for flexible storage options. Networking capabilities include Wi-Fi 7 and Bluetooth 5.4, along with a 2.5Gbps LAN port. Additional features comprise Thunderbolt 4 connectivity, multiple USB ports, and support for RAID configurations.
A new era is here. The B650 AORUS ELITE AX supports AM5 Processors and features and unparalleled performance. GIGABYTE B650 motherboards come with upgraded power design, high grade storage standards, and outstanding connectivity that enables you to optimize your performance.
Set the foundation of your next business PC build with the robust MSI PRO B760M-P DDR4 LGA 1700 Micro-ATX Motherboard. Designed to leverage the power of 12th and 13th Gen Intel CPUs, the PRO enhances system performance suitable for operating multiple programs with speed and reliability. Intel's LGA 1700 socket rests at the heart of the PRO, allowing you to install a variety of 12th and 13th Gen processors to match your needs. Four DDR4 RAM slots allow you to install up to 128GB of memory to enhance multitasking and render speeds. Four SATA III and two M.2 PCIe SSD interfaces can support a wide range of storage drives that allow quicker data transfer speeds. Connect an array of graphics and utility cards with one PCIe 4.0 x16 and two PCIe x1 expansion slots. Between back-panel connections and internal headers, you get several USB-A 2.0, 3.2 Gen 1, and 3.2 Gen 2 ports designed for devices such as keyboards and mice as well as resource-demanding devices like audio interfaces. You can connect to your network to download important assets with a single Gigabit Ethernet port.
| Pros for MSI - PRO H610M-G WIFI Gaming Desktop Motherboard | |||
|---|---|---|---|
| There were no pros for this product— | There were no pros for this product— | Overall Performance, BIOS, Ease of use, Price, Wi-Fi | There were no pros for this product— |
| Cons for MSI - PRO H610M-G WIFI Gaming Desktop Motherboard | |||
| There were no cons for this product— | There were no cons for this product— | Firmware, Manual | There were no cons for this product— |
Specs
Reviews
This product doesn't have any reviews yet.
