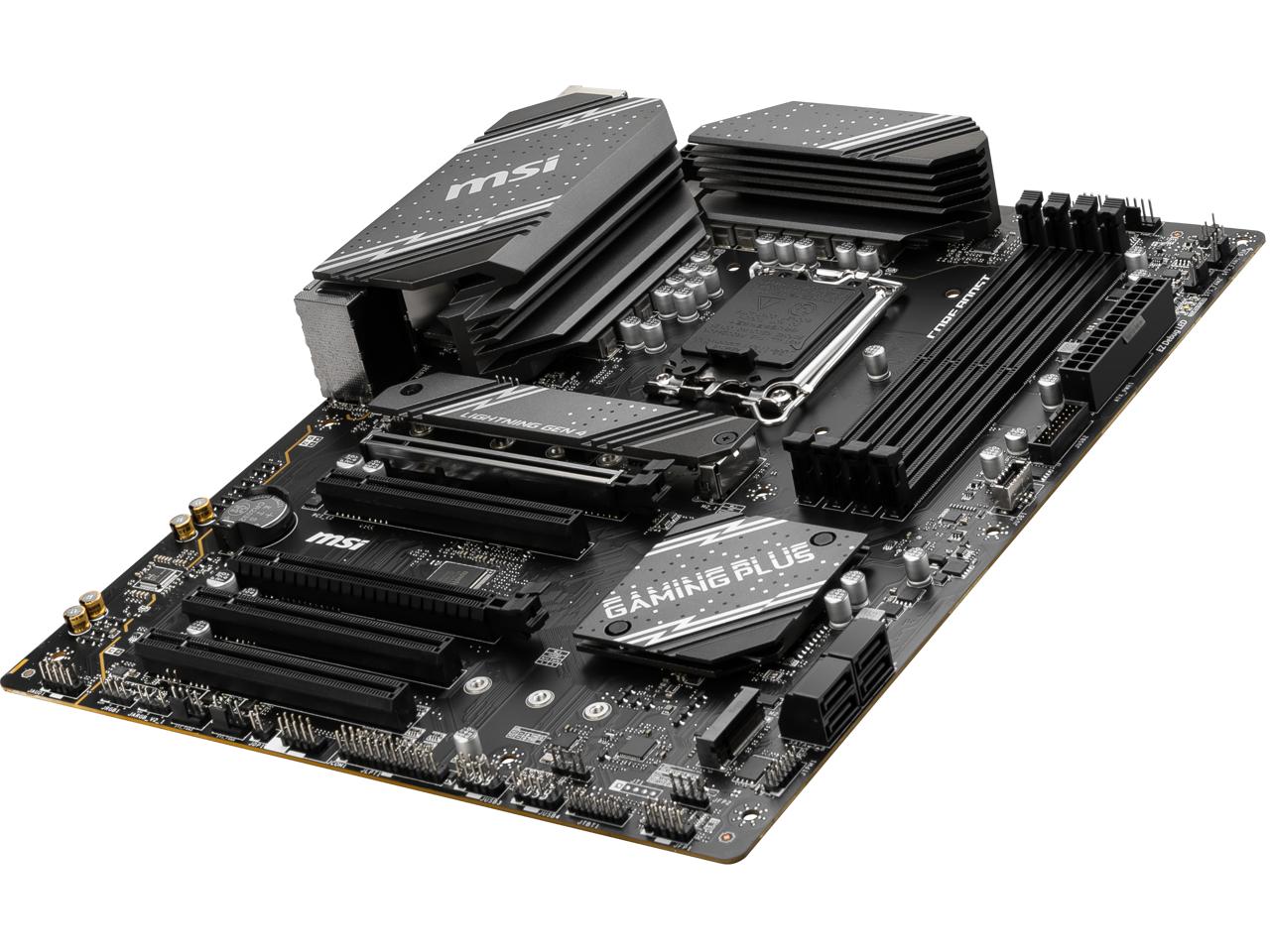

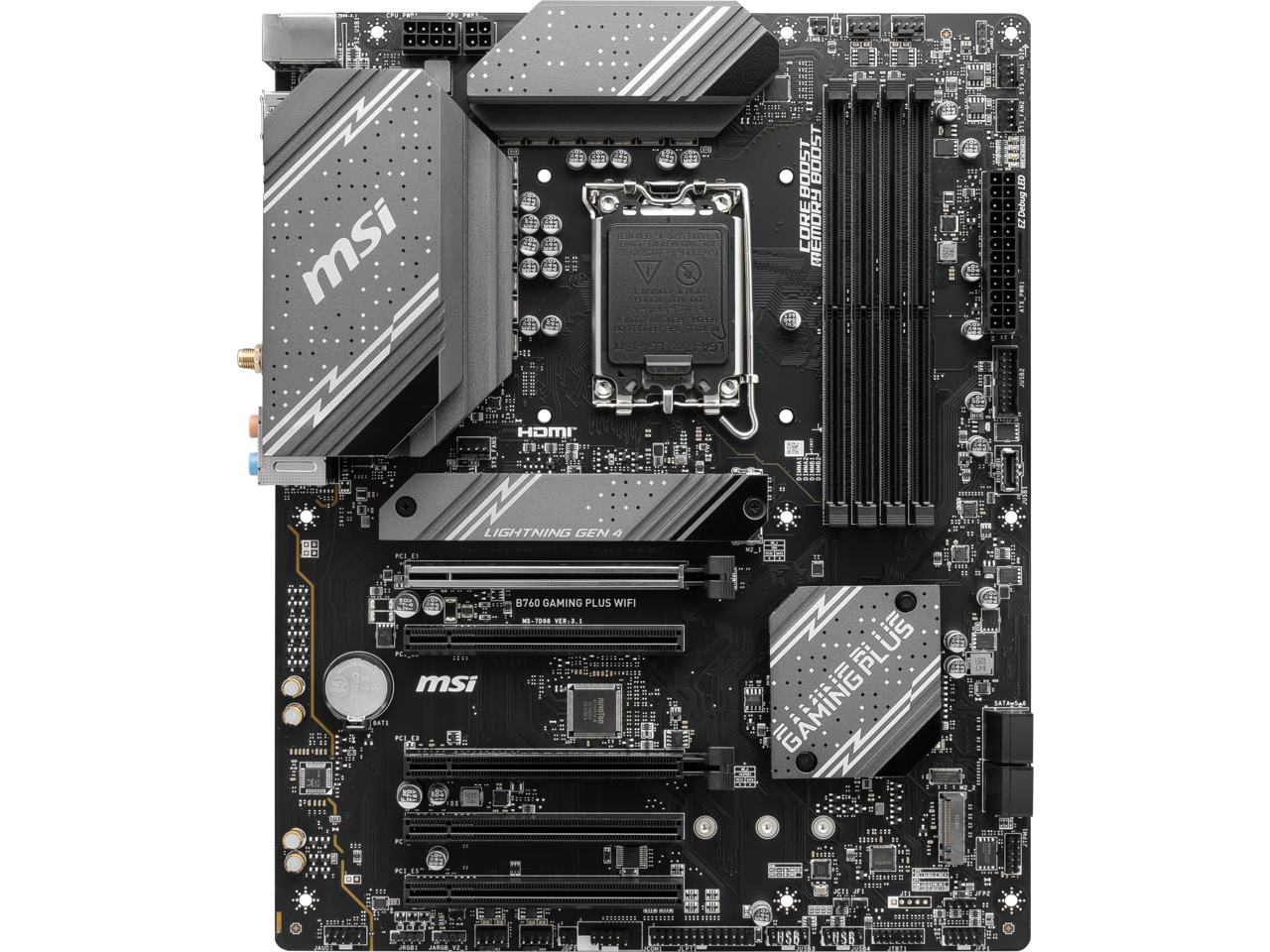

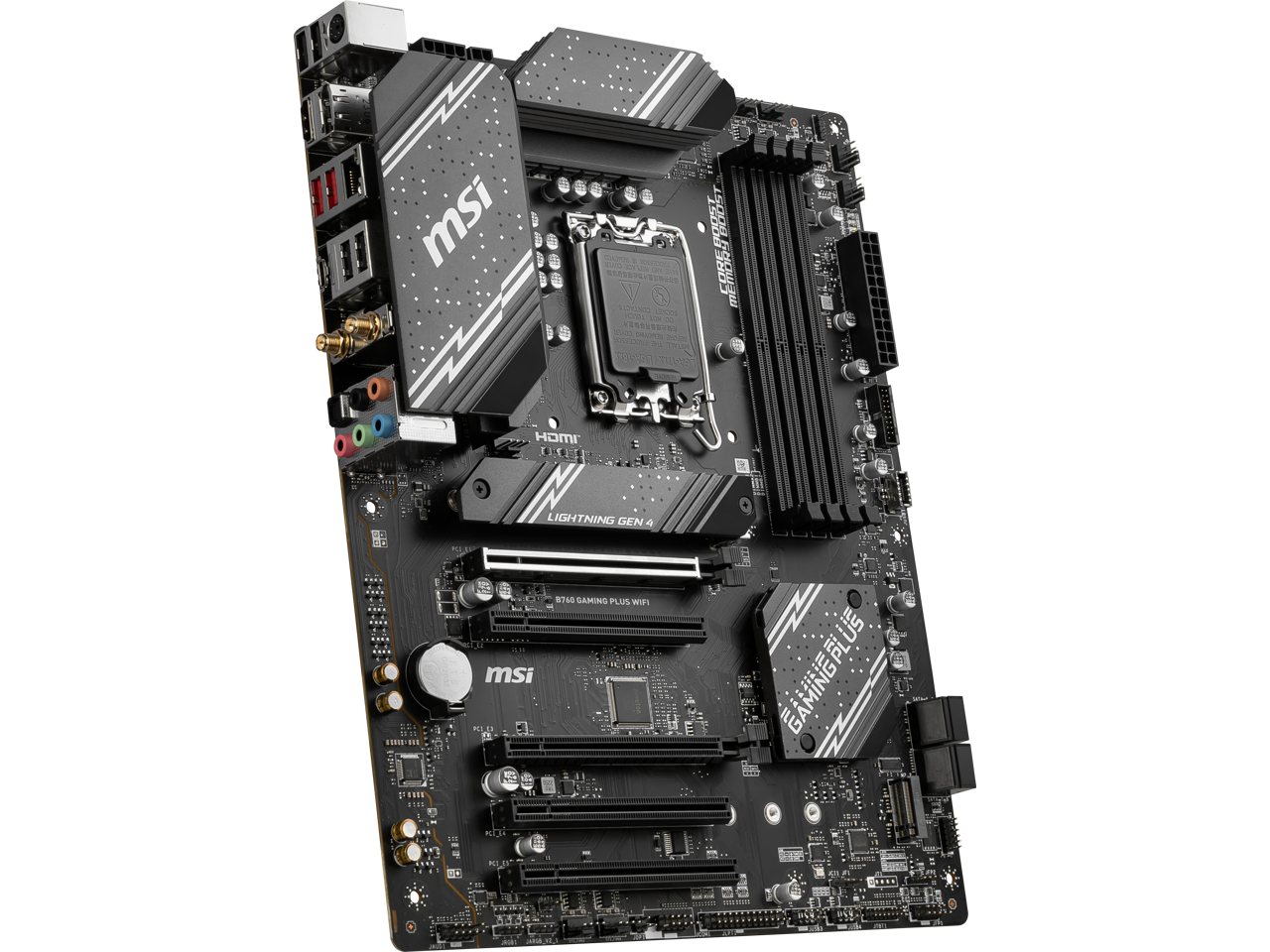

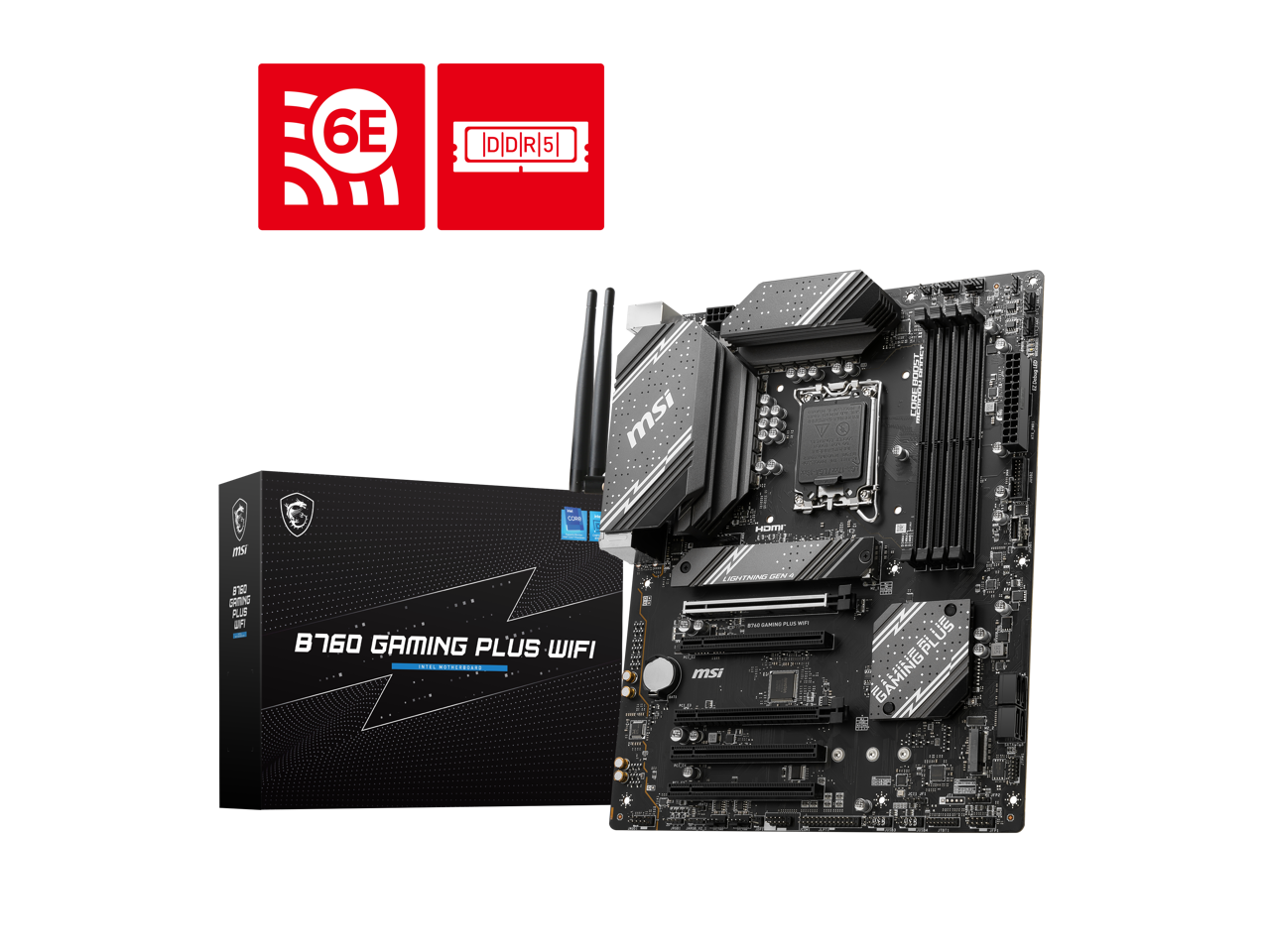

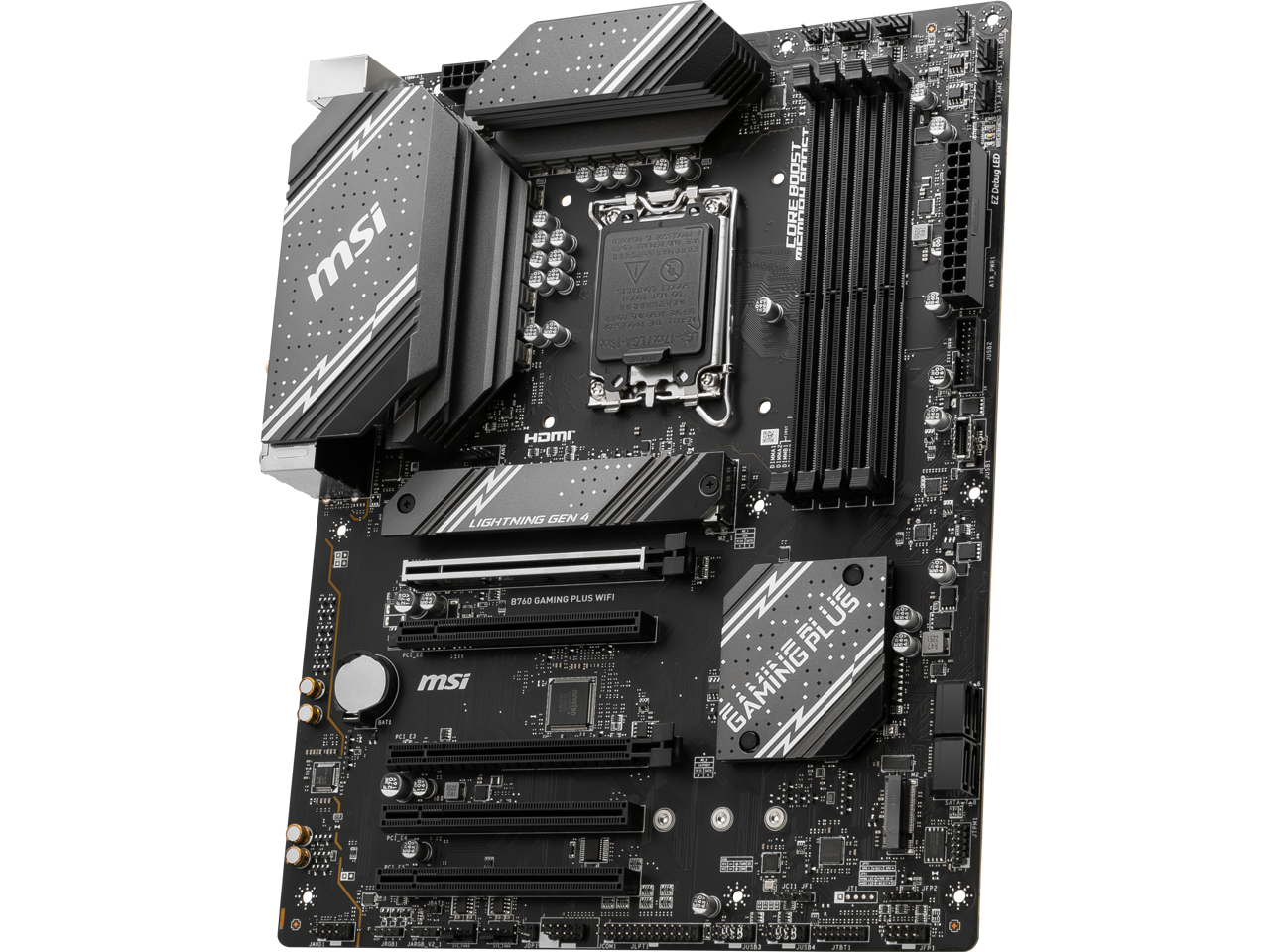

MSI - B760 GAMING PLUS WIFI LGA 1700 DDR5 ATX - SATA 6Gbps, Wi-Fi 6E, PCIe 4.0
SKU: 11061905
$211.99
Save $15.00
Comp. Value: $227.58
or
Finance OptionsView your offers
Availability
FREE shipping to
Sold & shipped by
(224)
CORSAIR - RMe Series RM850e 80 PLUS Gold Fully Modular Low-Noise ATX 3.1 and PCIE 5.1 Power Supply - White$154.99
More Buying Options
Related Item
SponsoredASUS - ROG MAXIMUS Z890 HERO (Socket LGA 1851) Intel Z890 ATX DDR5 Wi-Fi 7 Motherboard - Black
Winter Sale Deal
$399.99
Specifications
- ChipsetIntel B760Form FactorATXProcessor SocketSocket LGA 1700Wireless Networking StandardWi-Fi 6ENumber Of Memory Slots4Maximum Memory Supported192.0 gigabytes
- Key Specs
- Chipset: Intel B760
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Number Of Memory Slots: 4
- Maximum Memory Supported: 192.0 gigabytes
- Memory Type Supported: DDR5
- General
- Brand: MSI
- Product Name: MSI B760 GAMING PLUS WIFI LGA 1700 DDR5 ATX - SATA 6Gbps, Wi-Fi 6E, PCIe 4.0
- Compatibility
- Chipset: Intel B760
- Chipset Compatibility: Intel
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Processor Socket: Socket LGA 1700 (Type of pin configuration that connects a CPU to a computer’s motherboard.)
- Processor Compatibility: Intel Celeron, Intel Pentium Gold
- Slot
- Number of M.2 Slots: 2 (This interface is most commonly used for high-speed solid state drives (SSDs), and is often used in laptops due to its small size.)
- Number Of PCI-E x16 Slots: 1
- Number Of Memory Slots: 4
- Connectivity
- Wireless Connectivity: Wi-Fi (The manner in which a device sends data to another device over a short distance without the use of wires or cables.)
- Wireless Networking Standard: Wi-Fi 6E (The wireless networking standard used by the device. Each iteration of the standard developed by the Wi-Fi Alliance corresponds to an existing IEEE 802.11 protocol; for example, standard 802.11ac (or AC) is termed Wi-Fi 5. Refers specifically to the standard the device is designed to use, but ultimately determines product interoperability and backward compatibility including previous versions.)
- Ports

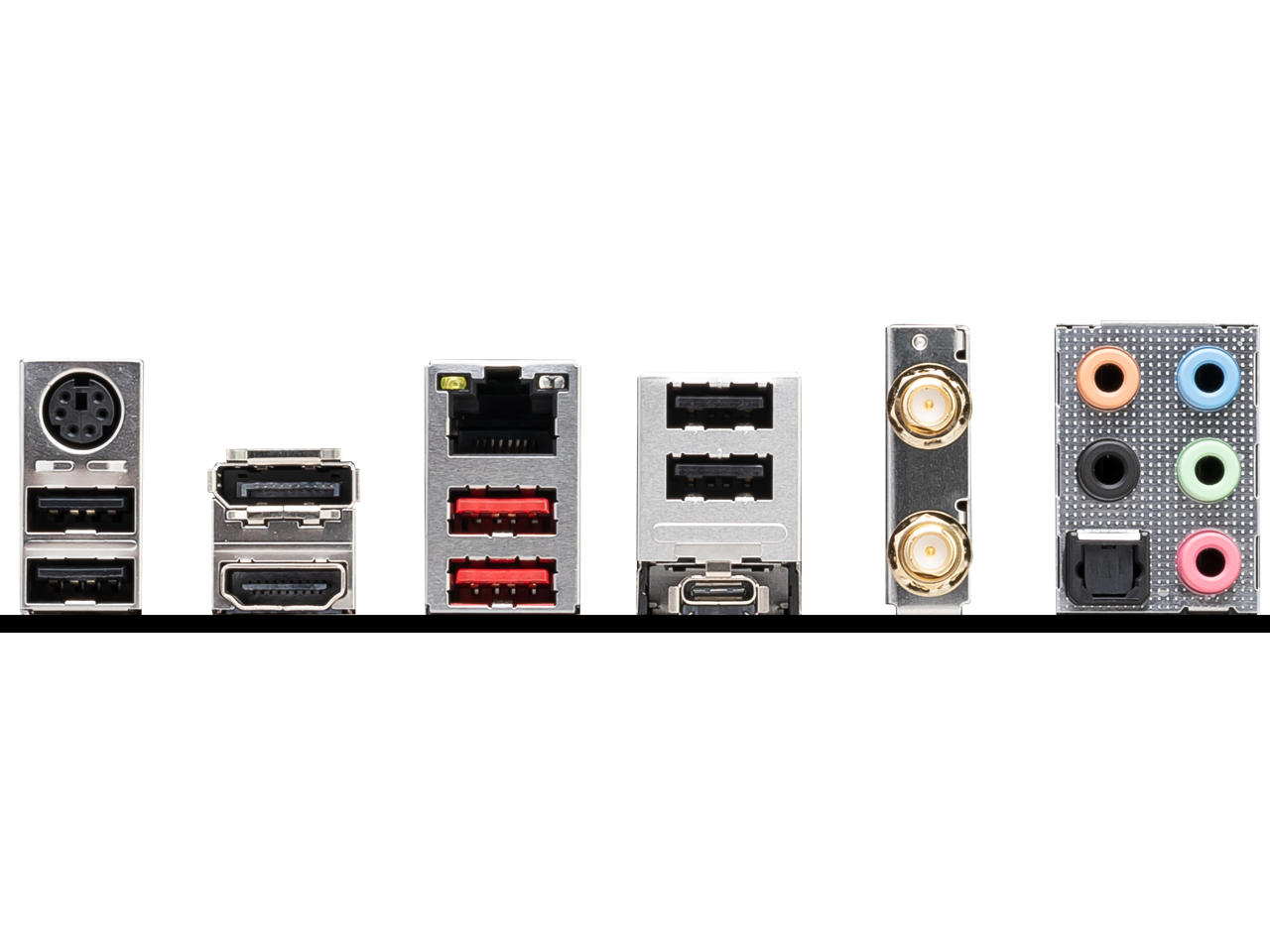

- USB Ports: 1 x USB-C, 6 x USB-A (The number and type of USB ports the product has.)
- Number of Audio Channels: 7.1 (The number of discrete channels of sound output. This can be a single number or multiple numbers separated by decimal(s). The first number is the primary, horizontally directed audio channels. The number after the first decimal, if applicable, is the number of subwoofer outputs or channels. The number after the second decimal, if applicable, is the number of height or atmospheric channels designed to immerse the listener by producing overhead sound effects.)
- Dimensions
- Product Length: 345.95 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Width: 269.24 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Weight: 80.0 ounces (The out of box weight of the item.)
- Memory
- Maximum Memory Supported: 192.0 gigabytes
- Memory Type Supported: DDR5
- Memory Format Supported: UDIMM (Memory module size that will fit with the device.)
- Memory Speeds Supported: DDR5 (The RAM's bandwidth rating supported by the device. The number refers to transfer speed. For example, 12800 would indicate that the memory has a theoretical bandwidth of 12,800 megabytes per second (MBs). The higher the number, the faster the speed.)
- Memory Slot Type: 288-pin DIMM
- Features
- RAID Support: RAID 0, RAID 1, RAID 10 (RAID 1+0) (A Redundant Array of Independent Disks (RAID) includes a collection of separate disks that your computer recognizes as one disk unit. Each configuration offers a different level of mirroring, striping and read/write speeds.)
- Warranty
- Warranty - Parts: Limited Warranty period (parts): 1095 days
- Warranty - Labor: Limited Warranty period (labor): 1095 days
- Other
- UPC: 824142319420
MSI B760 GAMING PLUS WIFI LGA 1700 (280) DDR5 ATX Motherboards - Intel, SATA 6Gbps, Wi-Fi 6E, Bluetooth 5.3, 7.1 HD Audio, PCIe 4.0 x16, 2.5G LAN
- BIOS update required for 14th Gen Intel processors: BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
- Supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Enhanced DDR5 performance with MSI Memory Boost: Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Gen4 PCIe and M.2 for up to 64GB/s transfer speed: Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Extended heatsink for high-end processor performance: Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- BIOS update required for 14th Gen Intel processors: BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
- Supports 12th/13th Gen Intel Core, Pentium Gold, and Celeron: Supports 12th/ 13th Gen Intel Core Processors, Pentium Gold and Celeron Processors
- Enhanced DDR5 performance with MSI Memory Boost: Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Gen4 PCIe and M.2 for up to 64GB/s transfer speed: Lightning Gen4 Solution: The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
- Extended heatsink for high-end processor performance: Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
