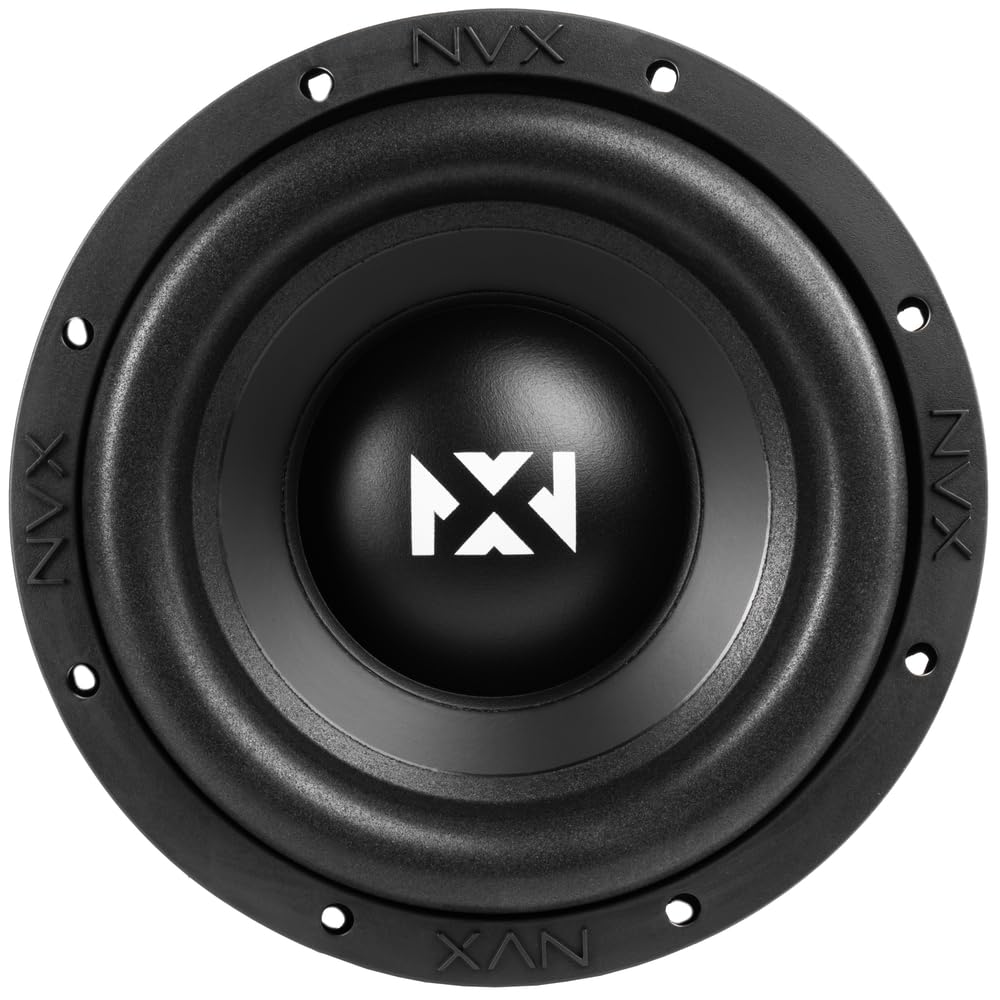

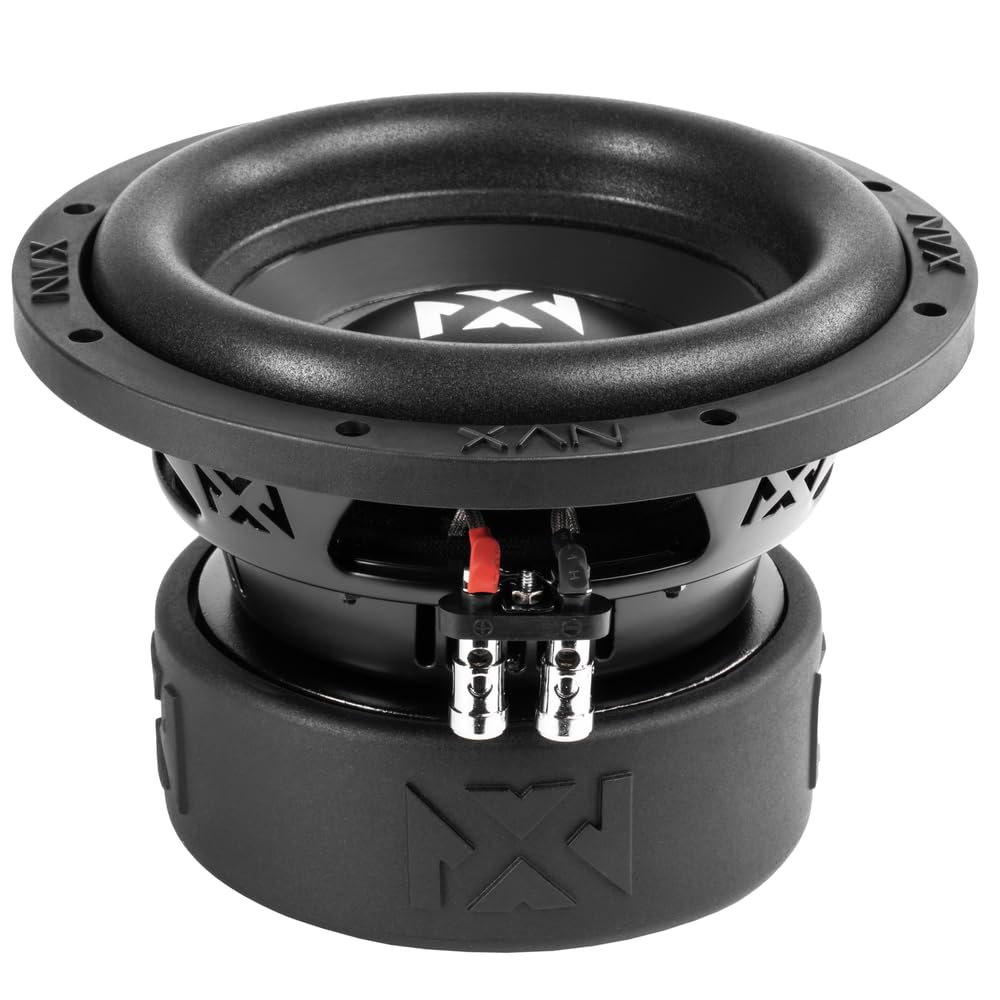

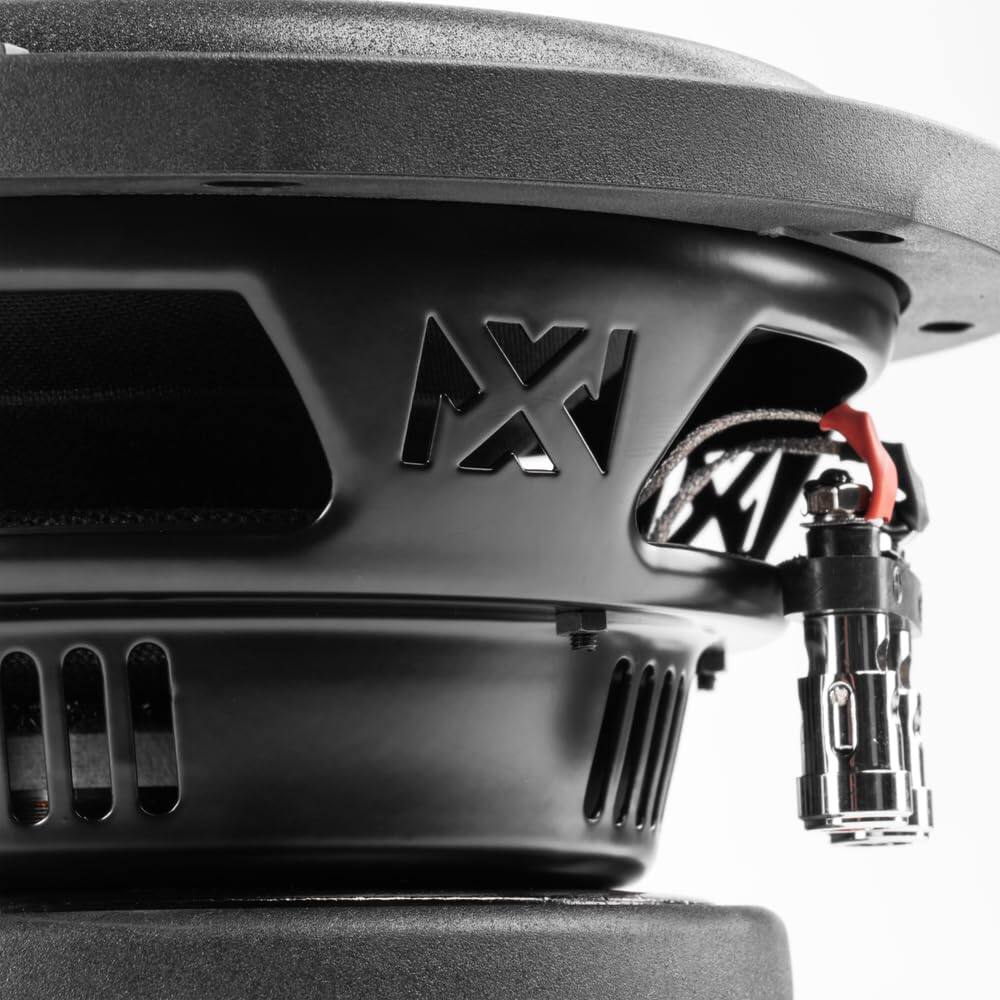

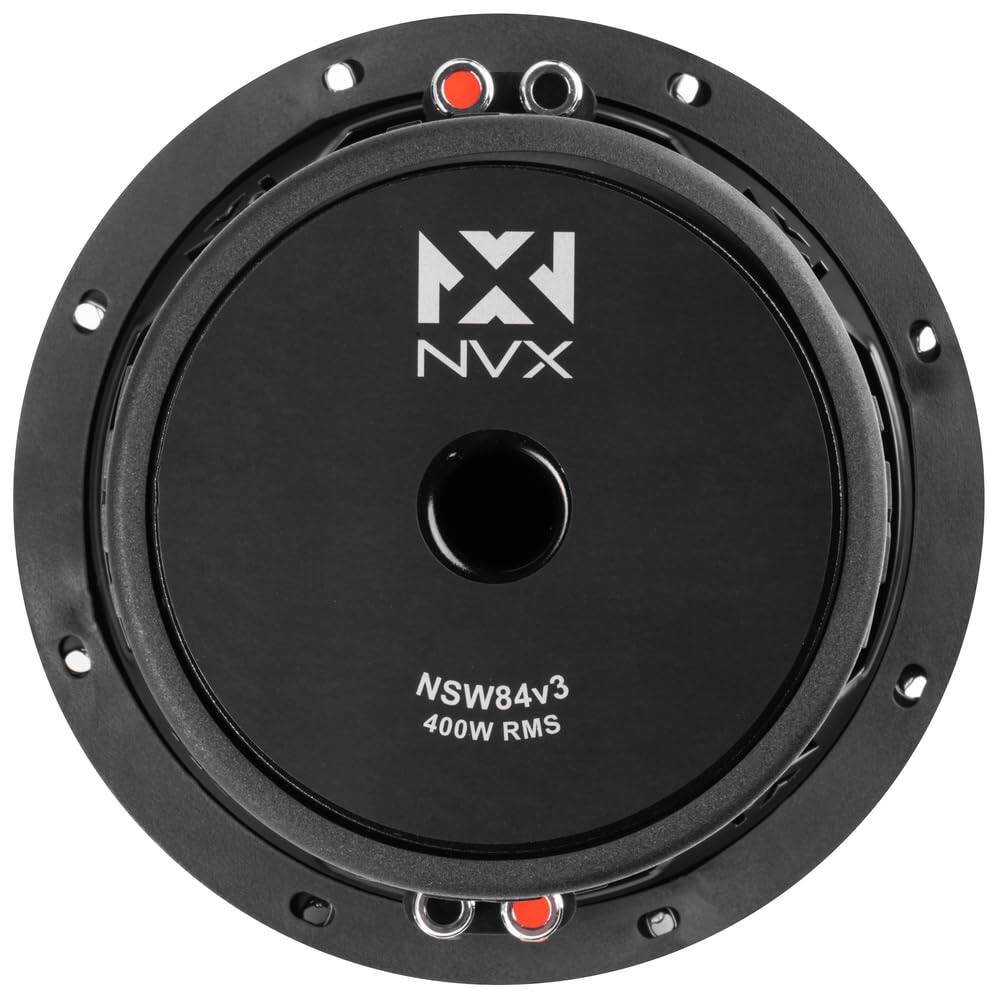

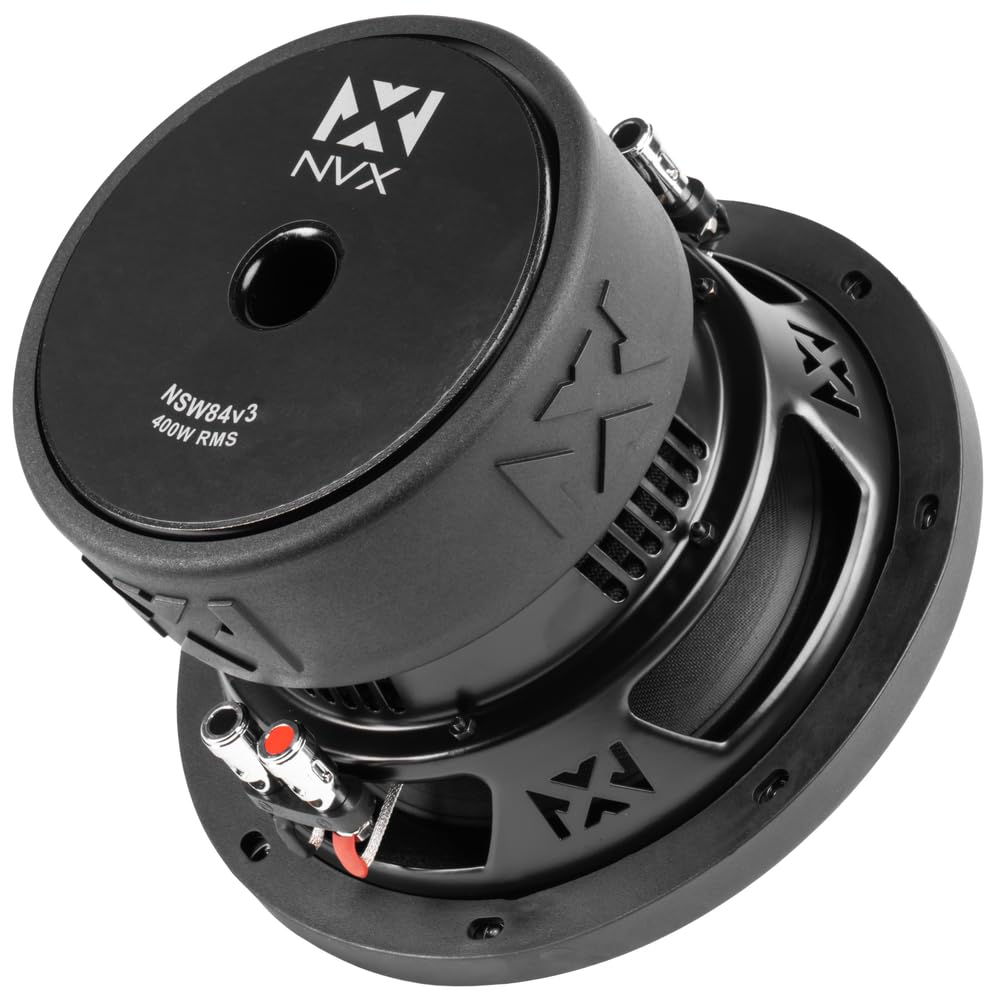

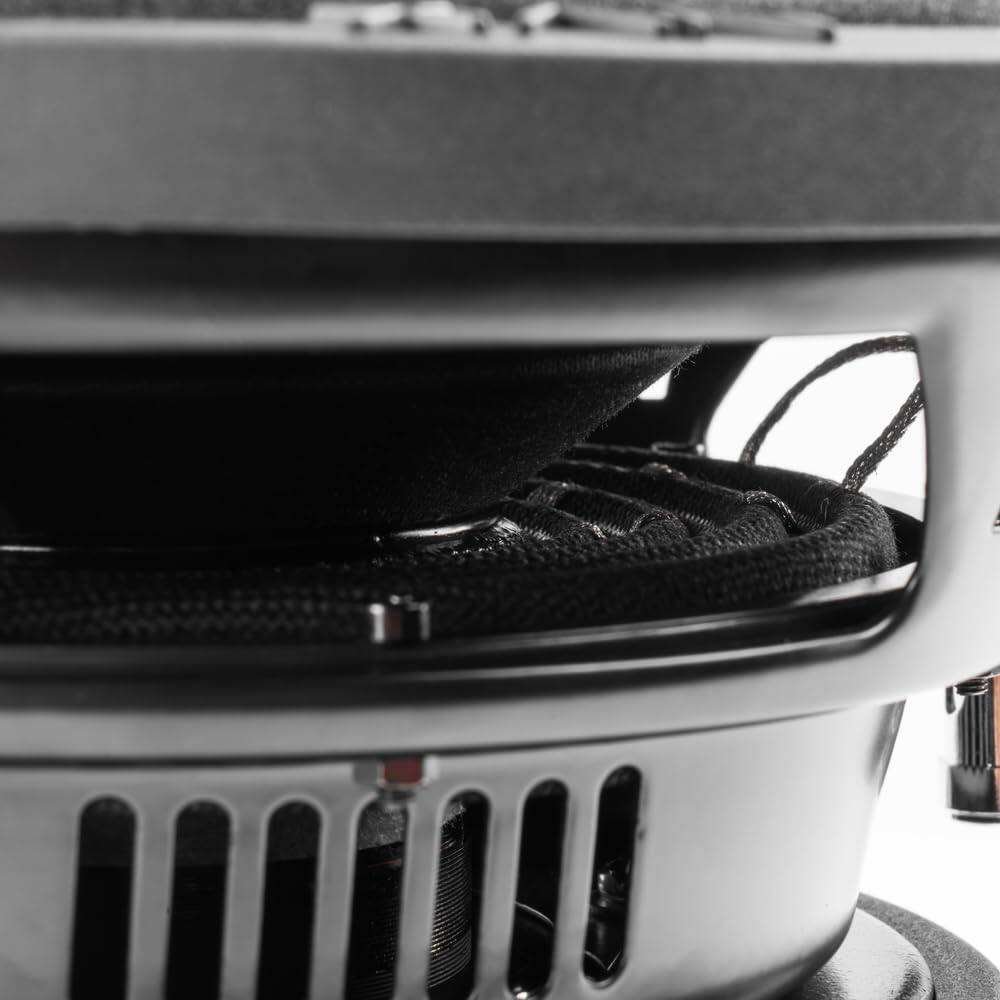

NVX - NSW84v3 800W Peak (400W RMS) N-Series v3 8in Dual 4-Ohm Car Subwoofer
NVX - NSW84v3 800W Peak (400W RMS) N-Series v3 8in Dual 4-Ohm Car Subwoofer
Woofer Size
8"Specifications
- RMS Power400 wattsPeak Power Handling800 wattsImpedance4 ohmsWoofer Size8"
- Key Specs
- RMS Power: 400 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 800 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Woofer Size: 8"
- General
- Brand: NVX
- Model Number: nsw84v3
- Product Name: NSW84v3 800W Peak (400W RMS) N-Series v3 8in Dual 4-Ohm Car Subwoofer
- Number of Subwoofers Included: 1
- Audio Power
- RMS Power: 400 watts (The maximum amount of continuous power the device is able to handle.)
- Peak Power Handling: 800 watts (The maximum amount of power an electronic device, like a speaker, can handle without damage. This refers to short bursts of power, while root mean square (RMS) power handling indicates the amount of continuous power a device can sustain. Higher levels of distortion can also occur at peak power levels when the device is powered beyond its recommended usage.)
- Audio
- Impedance: 4 ohms (Describes the resistance of an electric signal throughout the system. Devices with low impedance require less power to deliver optimal signals but are more at risk for damage from overloading. Higher impedance requires more power but is more protected from overload damage.)
- Features
- Marine: false
- Dimensions
- Woofer Size: 8"
- Product Height: 5 inches (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 11 inches (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Depth: 11 inches (The out of box depth of the item. Depth is measured as the distance from the front of the item to the back as it would be primarily used or placed.)
- Product Weight: 12.56 pounds (The out of box weight of the item.)
- Warranty
- Warranty - Parts: 1-year Manufacturer's Warranty
- Warranty - Labor: 1-year Manufacturer's Warranty
- Other
- UPC: 810021845494
Product Details: 8" Dual 4 ohm N-Series Subwoofer. Power Handling: . Peak: 800 watts. RMS: 400 watts. 10. 5 mm Xmax. Enhanced Pressed Paper Cone. High-Roll Foam Surround. Stamped Steel Vented Basket with NVX Punched Logo. 2. 0" High Temperature Copper Voice coil with Aluminum Former. Progressive Roll Single-layer Spider with Integrated Tinsel Leads. Optimized High-Velocity Pole Vent. 90 oz. Double Stacked Ferrite Magnet with Protective Rubber boot. Frequency Response: 20 - 200 Hz. Resonance Frequency (Fs): 41. 45 Hz. Sensitivity: 85 dB. Recommended ported box volume: . 75 cubic feet. Top-mount depth: 4. 98". Cutout diameter: 7. 12". CTA-2031 Compliant. Authorized Internet Dealer. 1-year Manufacturer's Warranty. Priced Individually. NVX NSW84V3
- Powerful Sound Output: Delivers up to 800 watts peak and 400 watts RMS for deep, resonant bass, ideal for any car audio system upgrade.
- Superior Build Quality: Features an enhanced pressed paper cone and high-roll foam surround for accurate, distortion-free sound reproduction.
- Durable & Heat-Resistant Design: Equipped with a 2.0" high-temperature aluminum voice coil and a vented stamped steel basket with NVX punched logo, ensuring long-lasting performance and improved cooling.
- Precision Engineering: Includes a 90 oz. double-stacked ferrite magnet with a protective rubber boot and an optimized high-velocity pole vent for maximum cooling and efficiency.
- Dual 4-Ohm Impedance: Offers flexibility in wiring configurations, allowing for custom setups while delivering a wide frequency response of 20 - 200 Hz and a sensitivity of 85 dB for exceptional bass clarity and punch.
- Powerful Sound Output: Delivers up to 800 watts peak and 400 watts RMS for deep, resonant bass, ideal for any car audio system upgrade.
- Superior Build Quality: Features an enhanced pressed paper cone and high-roll foam surround for accurate, distortion-free sound reproduction.
- Durable & Heat-Resistant Design: Equipped with a 2.0" high-temperature aluminum voice coil and a vented stamped steel basket with NVX punched logo, ensuring long-lasting performance and improved cooling.
- Precision Engineering: Includes a 90 oz. double-stacked ferrite magnet with a protective rubber boot and an optimized high-velocity pole vent for maximum cooling and efficiency.
- Dual 4-Ohm Impedance: Offers flexibility in wiring configurations, allowing for custom setups while delivering a wide frequency response of 20 - 200 Hz and a sensitivity of 85 dB for exceptional bass clarity and punch.
Whats Included
- 1
- 1
