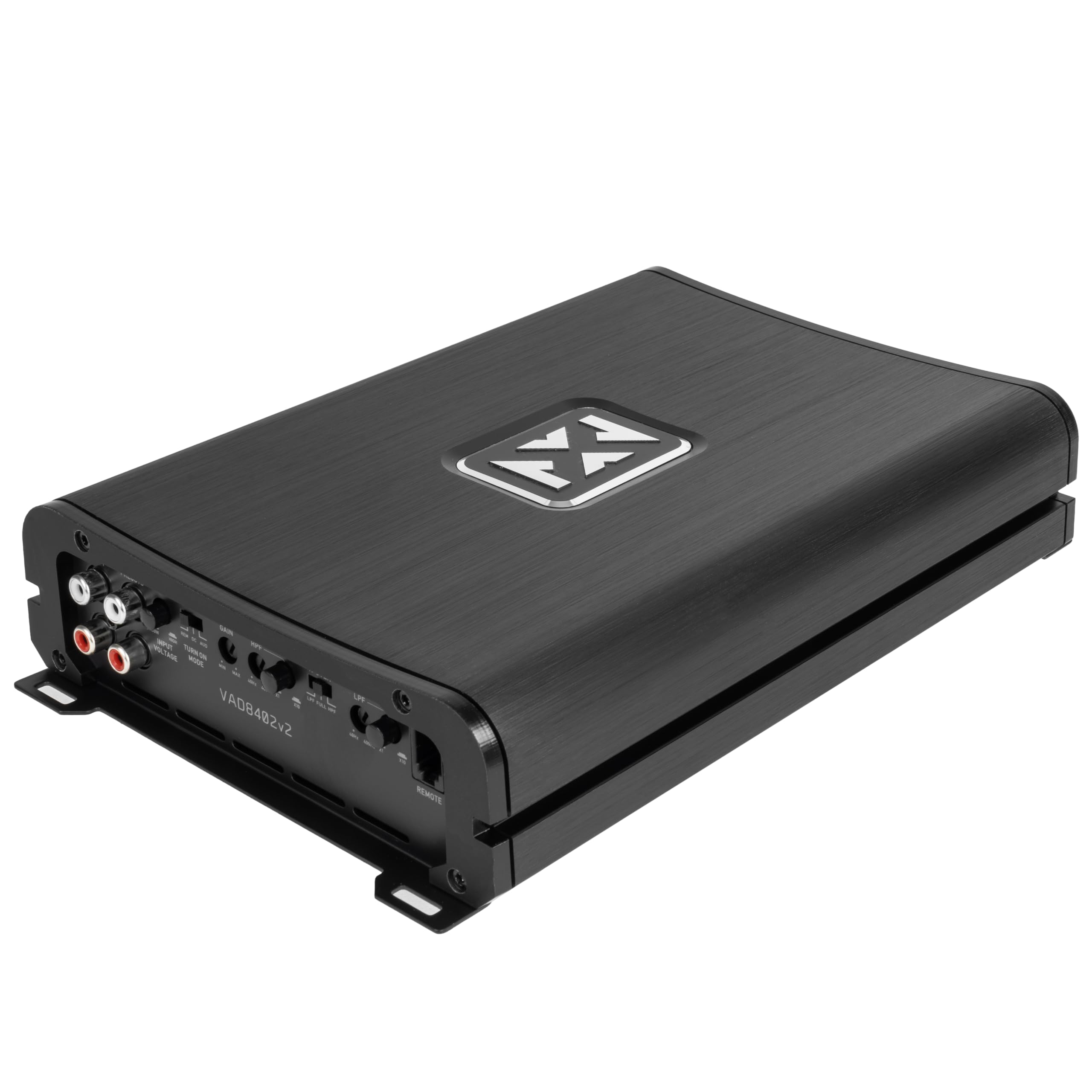

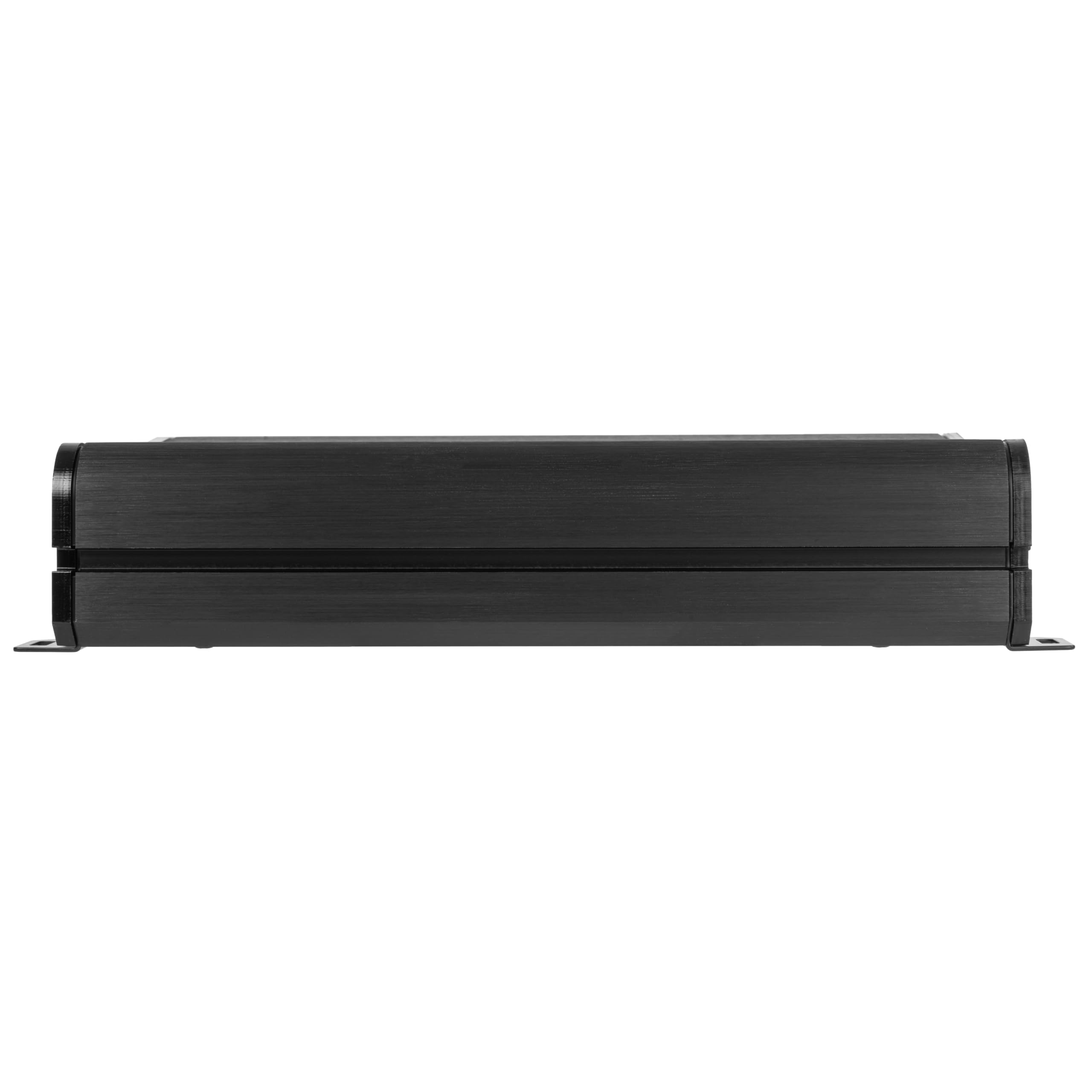

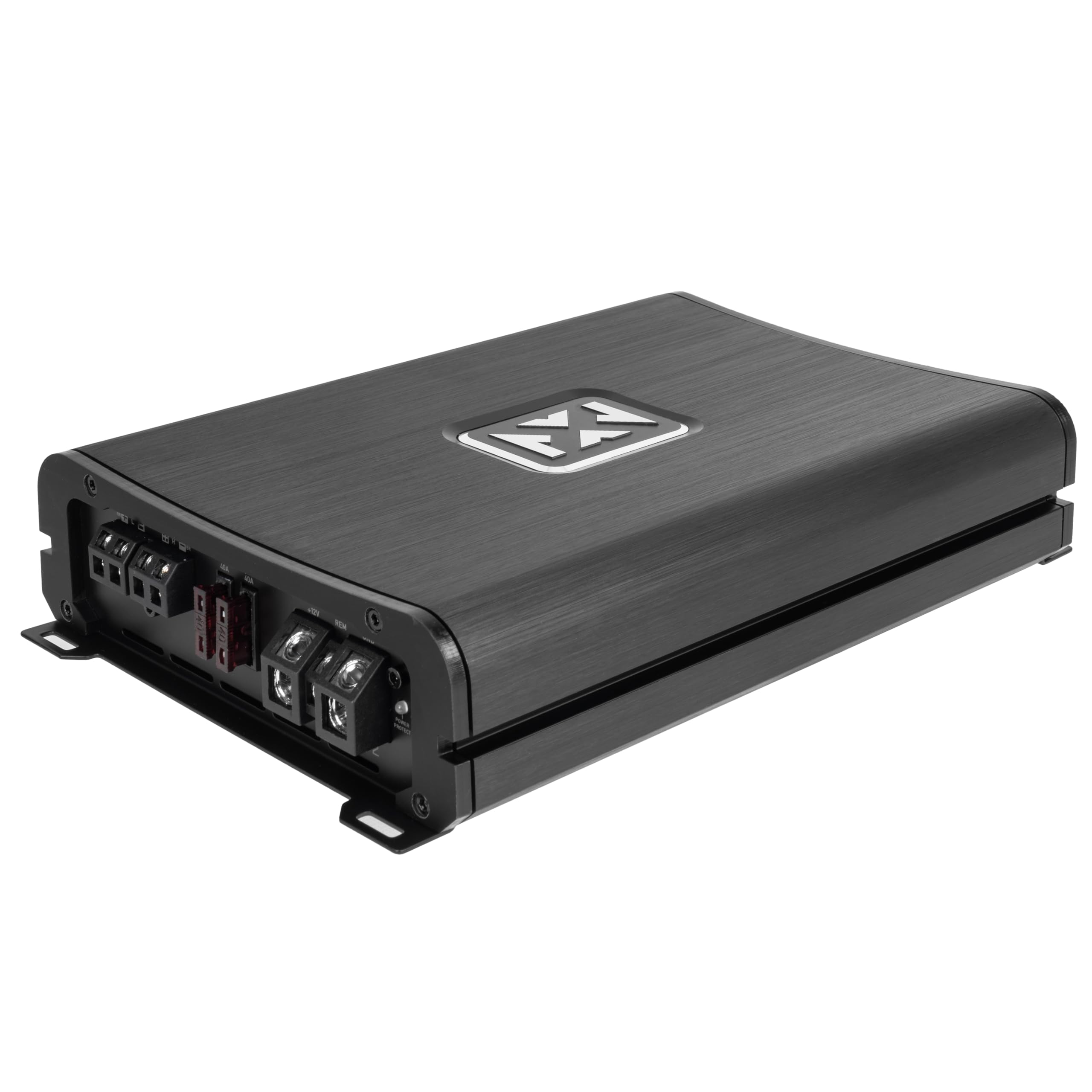

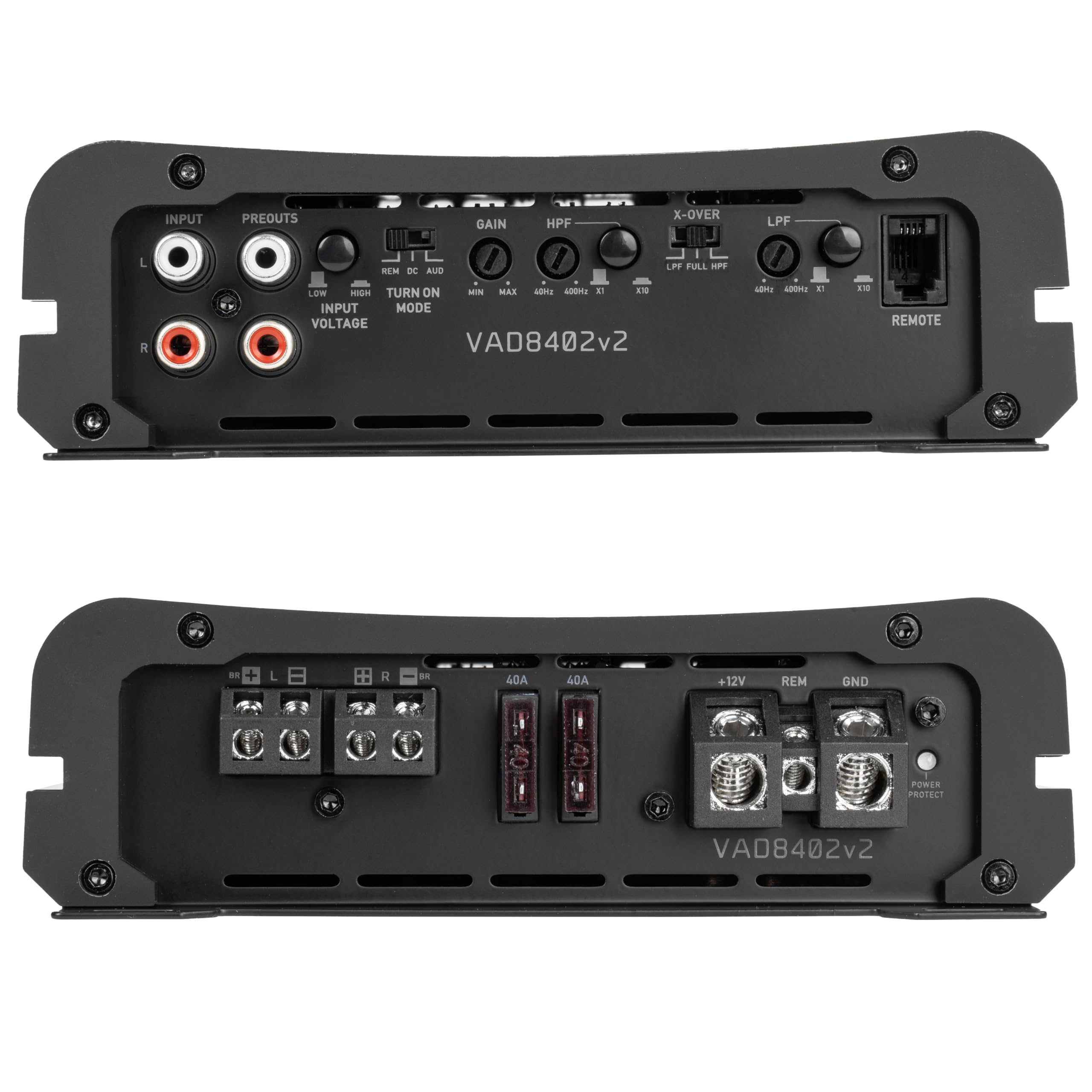

NVX - VAD8402 v2 2-Channel Class D Amplifier 1680W Peak, 840W RMS, 2/4-ohm Stable, Bass Boost, for Car/Marine/UTV/Motorcycle

The Vega Series Amplifiers have solidified their place as the backbone of the Cerwin-Vega Mobile brand, delivering unrivaled performance in a sleek, compact package. Don’t be deceived by their streamlined design—these amplifiers pack a punch with monstrous power output to drive your system to its fullest potential. Specifications POWER RATING RMS Power (2Ω): 250W x 2 RMS Power (4Ω): 150W x 2 Bridged (Mono 4Ω): 500W x 1 POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-17.0V (DC) Idle Current: (0.7A) DISTORTION THD 4 (1KHz @4Ω): 0.05% S/N Ratio (A weighted @1W): -85 dBA S/N Ratio (A weighted @FP): -101.1 dBA INPUT SENSITIVITY Low Input Level: 200mV-10.0V High Input Level: 200mV-10.0V INPUT IMPEDANCE Low Input Level: 20 KΩ High Input Level: 20 KΩ OUTPUT STAGE Output Impedance: 0.0297Ω Damping Factor (50Hz @ 4Ω): >250 Bandwidth (-3dB): 10Hz-35KHz CROSSOVER (-12/-24 dB/Oct) Variable High-Pass: 40Hz-400Hz Variable Low-Pass: 40Hz-400Hz FUSE RATINGS ATC: 25A DIMENSIONS L x W x H: 7.7”x 4.02”x 1.4” (195.6mm x 102mm x 36mm) FEATURES Full Range Class D IR Chipset DirectFET Power Mosfet Output Stage SMD Technology on 4-Layer PCB Board Water Resistant Conformal PCB Board Coating 1-year Manufacturer's Warranty Marine Grade Certified RMS Power Handling: 300W x 2 @ 2 Ohms 200W x 2 @ 4 Ohms Bridged: 600W x 1 @ 4 Ohms High-Power Full-Range Digital Class D Advanced Technology IR Chipset Surface Mount Component Technology Conformal-Coated IPX Certified 4-Layer Black PCB Remote REM/DC/VOX Turn On Trigger Variable/Switchable Crossovers On Multi-Channel Models Uniform Heatsink Chassis Size/Dimensions Compact Universal All-Weather Application Remote Level Control Included

Introducing the NVX VAD10001, a powerhouse of a monoblock amplifier delivering 1000W RMS Class D performance for car, marine, and powersports applications. With a peak power of 2000 watts, this amplifier ensures a commanding audio experience. The RMS power ratings offer versatility, with 420W x 1 chan. at 4 ohms, 760W x 1 chan. at 2 ohms, and a formidable 1000W x 1 chan. at 1 ohm. The included Bass Remote enhances control with a variable bass boost of 0 - +12 dB @ 45 Hz, allowing users to fine-tune their bass output effortlessly. What sets the VAD10001 apart is its Marine Certification, featuring a conformally coated, marine-grade circuit board that ensures durability, making it suitable for installation in nearly any application. Elevate your audio experience with the NVX VAD10001, a monoblock amplifier that combines power, precision, and marine-grade reliability, making it an ideal choice for subwoofer applications in diverse environments. Upgrade your setup and immerse yourself in superior bass quality with this high-performance amplifier.

Experience superior audio performance in a compact package with the NVX VADM2v2 600W RMS V-Series Micro Full-Range Class D 2-Channel Amplifier. Designed for car, marine, and powersports applications, this amplifier delivers an impressive 200 watts x 2 channels at 4 ohms, 300 watts x 2 channels at 2 ohms, and 600 watts x 1 channel when bridged at 4 ohms, providing you with the flexibility and power you need to drive your audio system. Engineered with cutting-edge Micro Class D technology, the NVX VADM2v2 maintains a highly efficient, compact form factor, measuring just 6.49" L x 3.3" W x 1.48" H. Its small footprint makes it an ideal choice for installations where space is limited, such as in cars, boats, ATVs, or UTVs, without compromising on power or audio quality. Built to handle the elements, this amplifier features a conformally coated, marine-grade circuit board, ensuring durability and protection against moisture, salt, and other environmental factors. Whether you're cruising the open water or navigating rough terrain, the NVX VADM2v2 will deliver reliable, long-lasting performance. Equipped with 4-way protection circuitry to safeguard your system from thermal, overload, speaker short, and DC offset issues, the amplifier also features balanced differential inputs to eliminate unwanted noise picked up by signal cables. The inclusion of speaker-level inputs makes it compatible with both aftermarket and factory audio systems, ensuring easy integration into any setup. For those who demand full control over their sound, the NVX VADM2v2 offers selectable crossover modes—FULL, HPF (High Pass Filter), and LPF (Low Pass Filter)—along with variable high-pass (40 - 400 Hz) and low-pass (40 - 400 Hz) filters. This allows for precise tuning of your system’s audio output, ensuring optimal performance across all listening environments. Unlock powerful and precise sound with the NVX VADM2v2—a high-performance amplifier that combines rugged durability, compact design, and advanced features to elevate your audio experience, no matter where your adventures take you.
