NZXT - C - 1500W ATX 3.1 80 Plus Platinum Fully Modular Power Supply Low-Noise - Black

Name: NZXT - C - 1500W ATX 3.1 80 Plus Platinum Fully Modular Power Supply Low-Noise - Black
Brand: NZXT
SKU: 6586157
Rating: 5 (5 reviews)

Model: PA-5P1BB-US

SKU: 6586157

This item is no longer available in new condition. See similar items below

Key Specs
- Wattage: 1500 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum, Cybenetics Titanium (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- ATX Connector: ATX12V v3.1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- PCIe Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: EPS12V v2.92 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
General
- Brand: NZXT
- Model Number: PA-5P1BB-US
- Product Name: C - 1500W ATX 3.1 80 Plus Platinum Fully Modular Power Supply Low-Noise
- Color: Black
Power
- Wattage: 1500 watts (Measurement of electrical power.)
- Modular: Fully modular
- Energy Efficiency: 80 PLUS Platinum, Cybenetics Titanium (Computer and server power supplies with the 80 PLUS certification are tested for operating efficiency at 10, 20, 50, and 100% of rated load. If a product tests at least 80% efficient, it qualifies for the base level 80 PLUS certification. Bronze, Silver, Gold, Platinum, and Titanium level certifications are given to products with even higher efficiency ratings.)
- Overload Protection: true (Features intended to protect the product from damage and overheating caused by overload.)
- Power Cord Included: true (Connects your product to an electrical outlet, allowing for immediate use (provided that other installation requirements are met).)
Connectivity
- ATX Connector: ATX12V v3.1 (The configuration of the connector as it connects a computer power supply unit to an ATX motherboard.)
- Floppy Connector: No (The configuration of the connector as it connects a computer power supply unit to a floppy disk drive.)
- PCIe Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a PCIe (Peripheral Component Interconnect Express) motherboard interface.)
- Peripheral Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a peripheral component such as a motherboard, video card, lighting, etc.)
- SATA Connector: Yes (The configuration of the connector as it connects a computer power supply unit to a SATA-based drive.)
- EPS12V Connector: EPS12V v2.92 (The configuration of the connector as it connects a computer power supply unit to a EPS12V motherboard interface.)
- PCI Express Version: PCI Express 5.0
- Form Factor: ATX (The size, arrangement, and physical configuration of the product.)
Dimensions
- Product Height: 86 millimeters (The out of box height of the item. Height is measured as the vertical distance from the bottom of the item to the top as it would be primarily used or placed.)
- Product Width: 150 millimeters (The out of box width of the item. Width is measured as the horizontal distance from one side of the item to the other as it would be primarily used or placed.)
- Product Length: 160 millimeters (The out of box length of the item. Length is measured as the longest dimension of the item.)
- Product Weight: 172.8424138 ounces (The out of box weight of the item.)
Cooling
- Cooling System: Air (A computer's CPU generates heat while operating and requires a cooling system to keep internal components functioning properly. Air cooling uses fans to draw in cool air and exhaust hot air, while liquid cooling uses coolant-filled tubes and water blocks to regulate internal temperature more efficiently.)
Warranty
- Warranty - Parts: 10 years
- Warranty - Labor: 10 years
Other
- UPC: 810074843720

Achieve peak PC performance with the NZXT C1500 Platinum PSU, offering continuous, digitally-controlled power with outstanding efficiency and precise regulation.

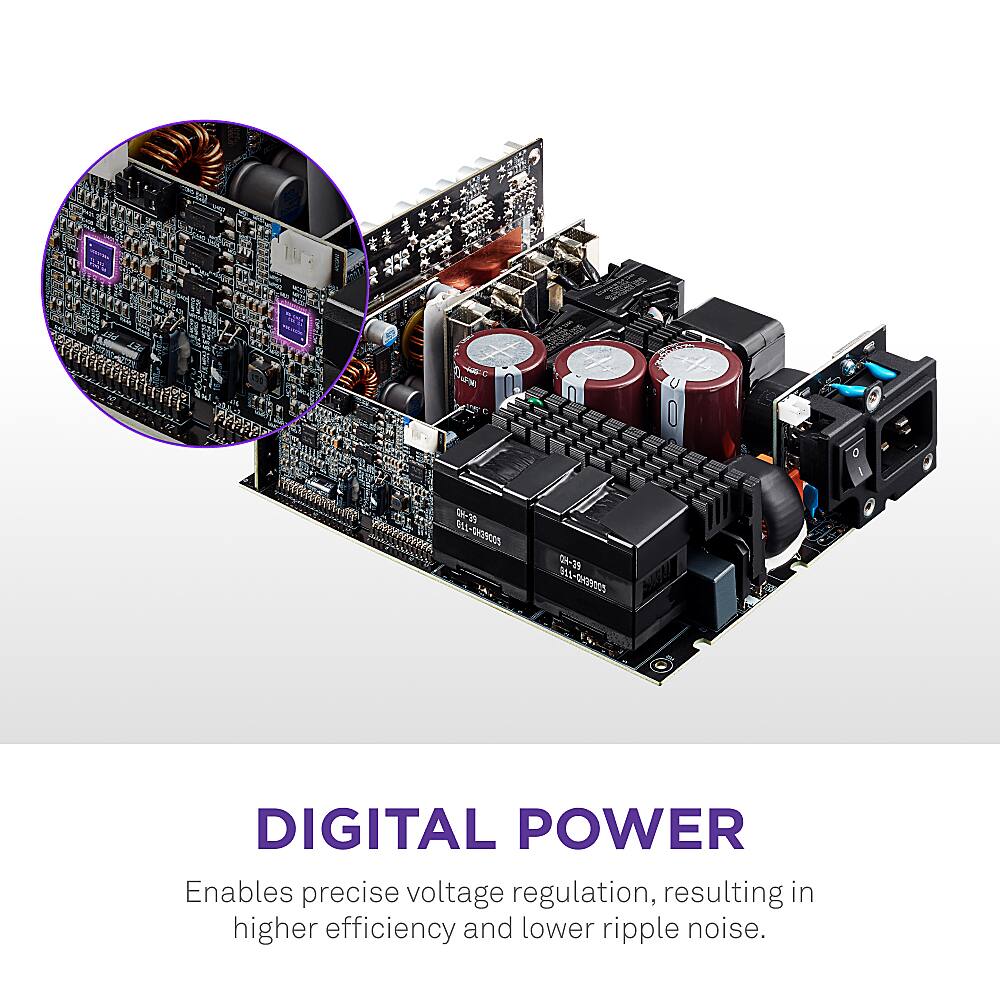

Digital Difference: Digital power enables precise voltage regulation, higher efficiency, lower ripple noise, and zero coil whine compared to analog. Protection mechanisms trigger immediately to prevent component damage. C1500 Platinum supports continuous power delivery of 1500 watts across the 100 to 240 voltage range.

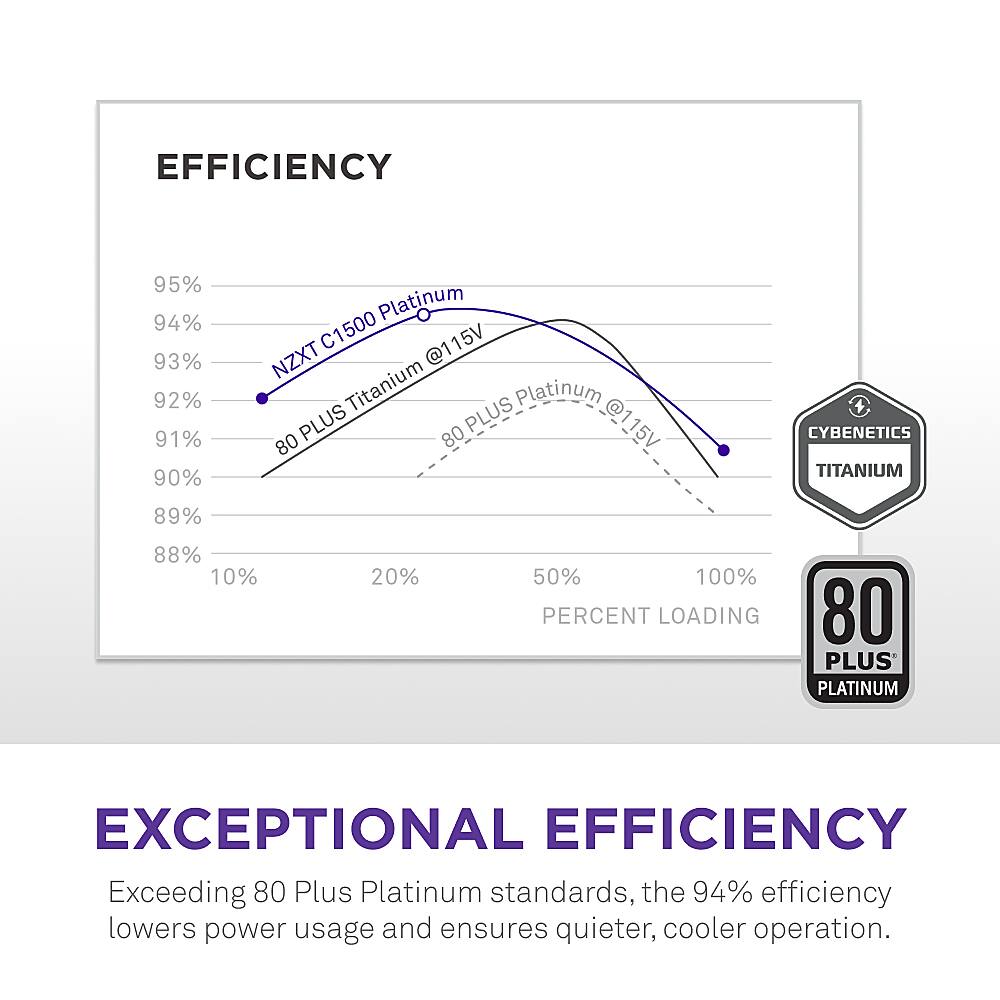

Peak Platinum Performance: Exceeding 80 Plus Platinum standards, the C1500 delivers an exceptional efficiency of 94%. This outstanding performance reduces overall power consumption, resulting in lower monthly bills and cooler, quieter operation.
Maximum Performance: C1500 Platinum houses a 140mm magnetic levitation fan, superior to a fluid dynamic bearing fan with higher performance, better dust resistance, lower noise level, and longer lifespan.

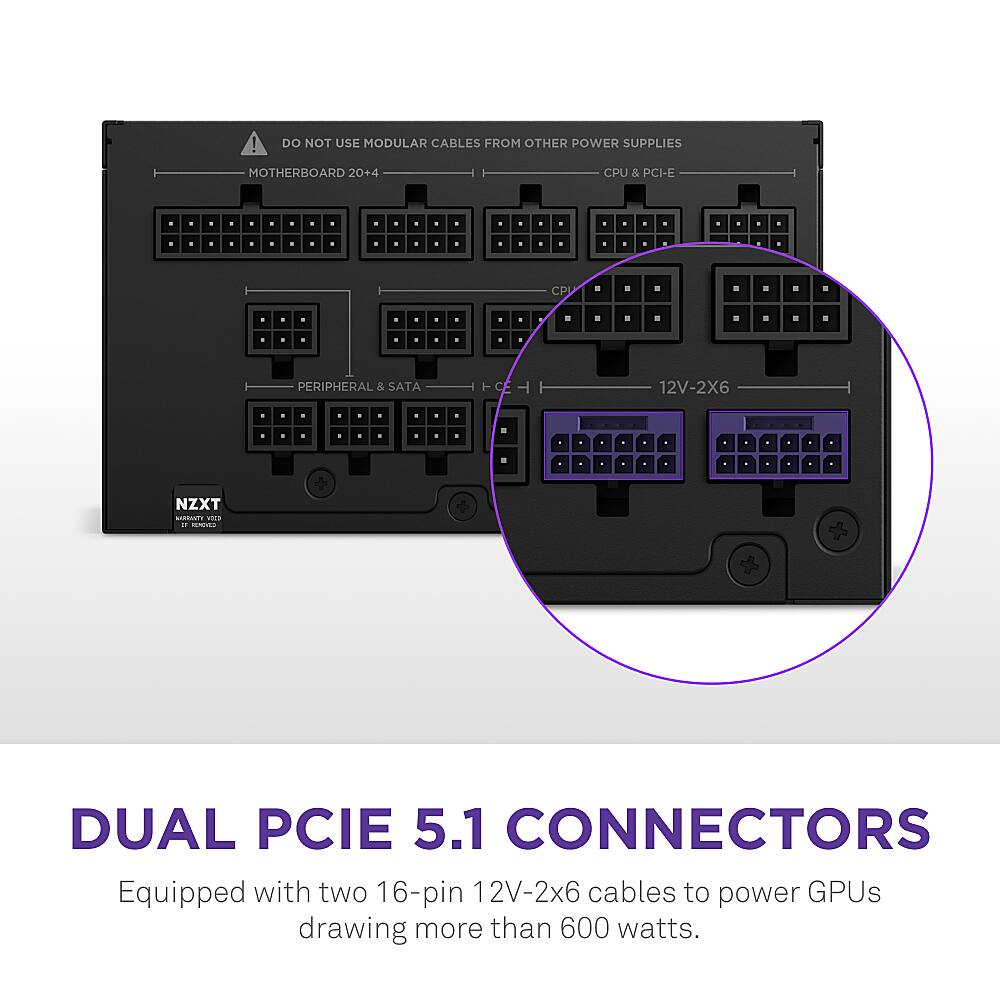

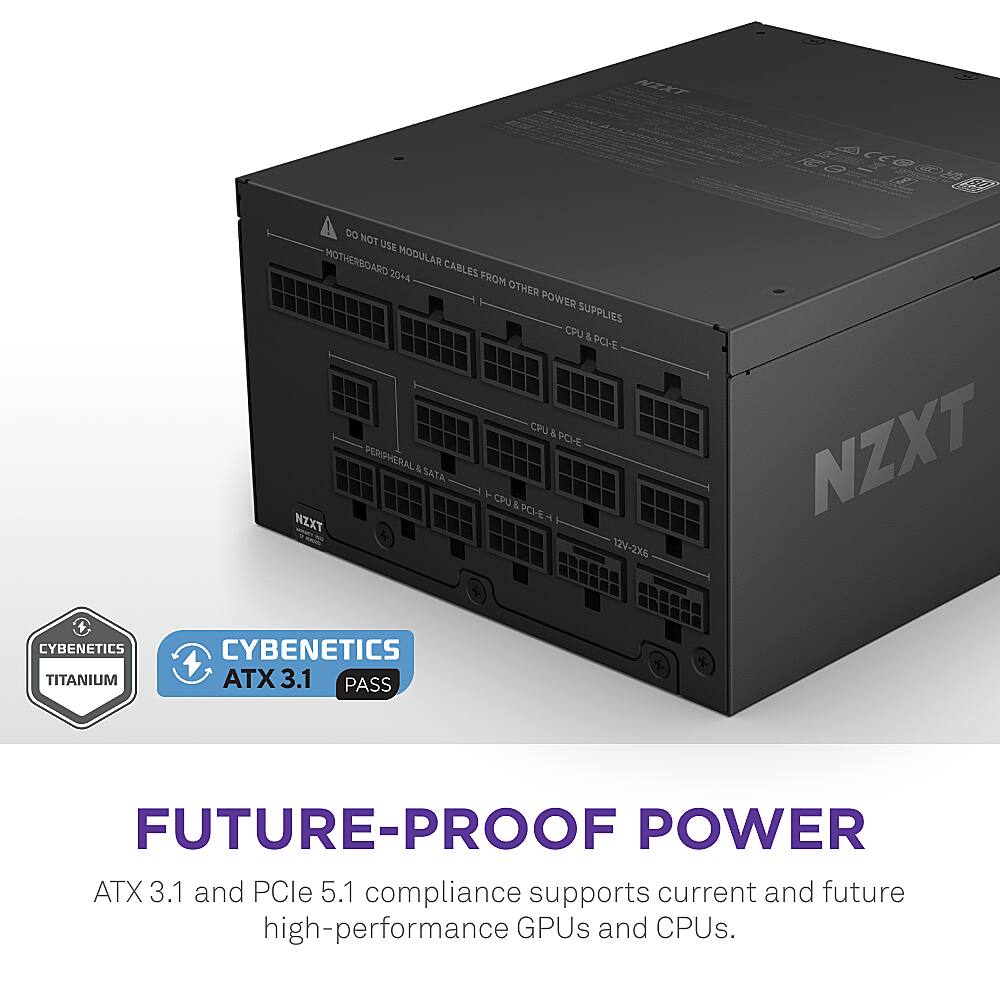

ATX 3.1 Standard: Compliant with ATX 3.1, C1500 Platinum supports up to 2x total power and 3x GPU power excursions, making it future-proof for high-performance components. Dual PCIe 5.1 12V-2x6 connectors handle over 600 watts of draw each, accommodating demanding NVIDIA GPUs. The native 16-pin cables enable safe power delivery while optimizing cable routing space.
Digital Difference: Digital power enables precise voltage regulation, higher efficiency, lower ripple noise, and zero coil whine compared to analog. Protection mechanisms trigger immediately to prevent component damage. C1500 Platinum supports continuous power delivery of 1500 watts across the 100 to 240 voltage range.
Peak Platinum Performance: Exceeding 80 Plus Platinum standards, the C1500 delivers an exceptional efficiency of 94%. This outstanding performance reduces overall power consumption, resulting in lower monthly bills and cooler, quieter operation.
Maximum Performance: C1500 Platinum houses a 140mm magnetic levitation fan, superior to a fluid dynamic bearing fan with higher performance, better dust resistance, lower noise level, and longer lifespan.
ATX 3.1 Standard: Compliant with ATX 3.1, C1500 Platinum supports up to 2x total power and 3x GPU power excursions, making it future-proof for high-performance components. Dual PCIe 5.1 12V-2x6 connectors handle over 600 watts of draw each, accommodating demanding NVIDIA GPUs. The native 16-pin cables enable safe power delivery while optimizing cable routing space.
