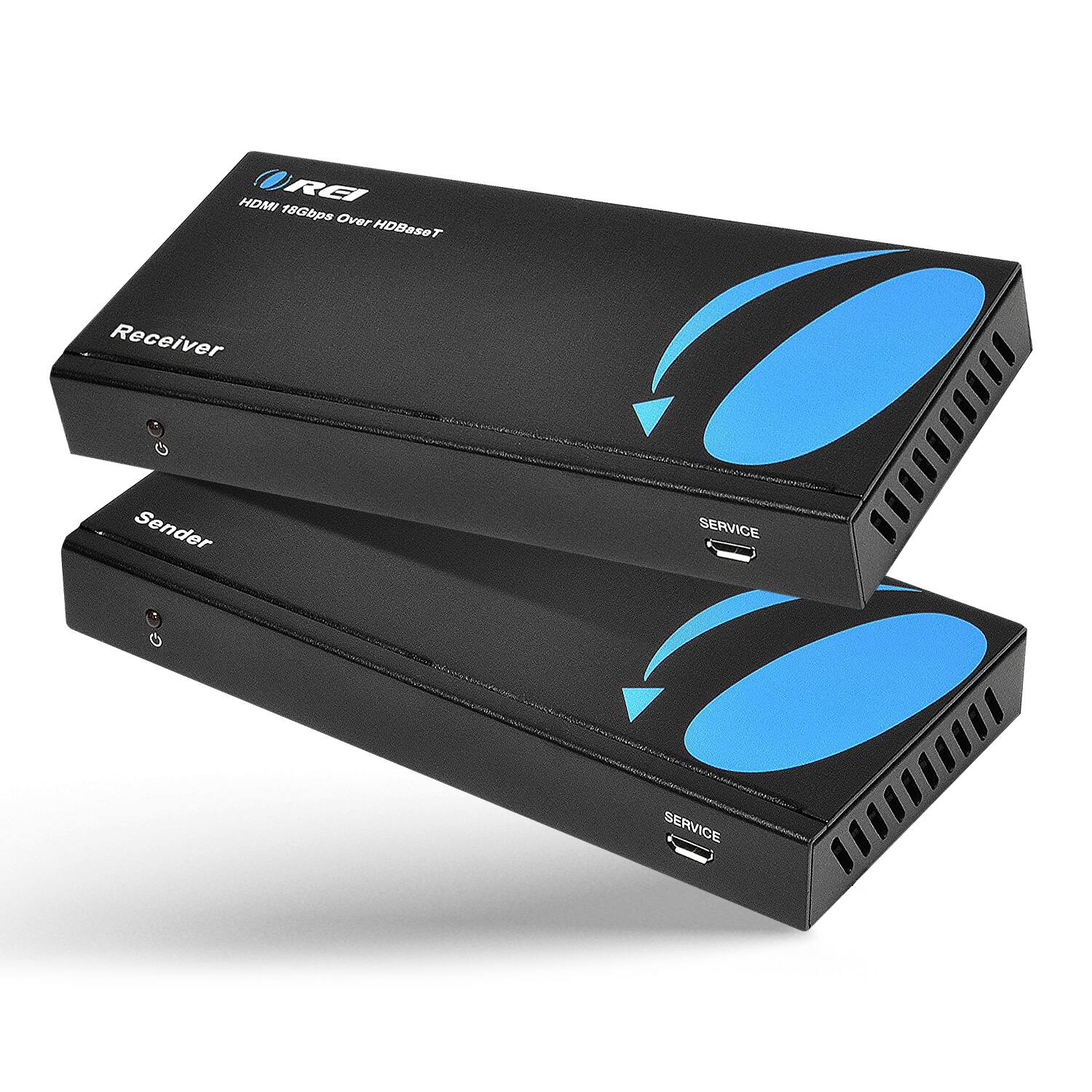

Orei - 4K HDBaseT HDM Extender (Loop) - 230ft (cat6)-EX-230UHD - Black
Reviews coming soon
About this product

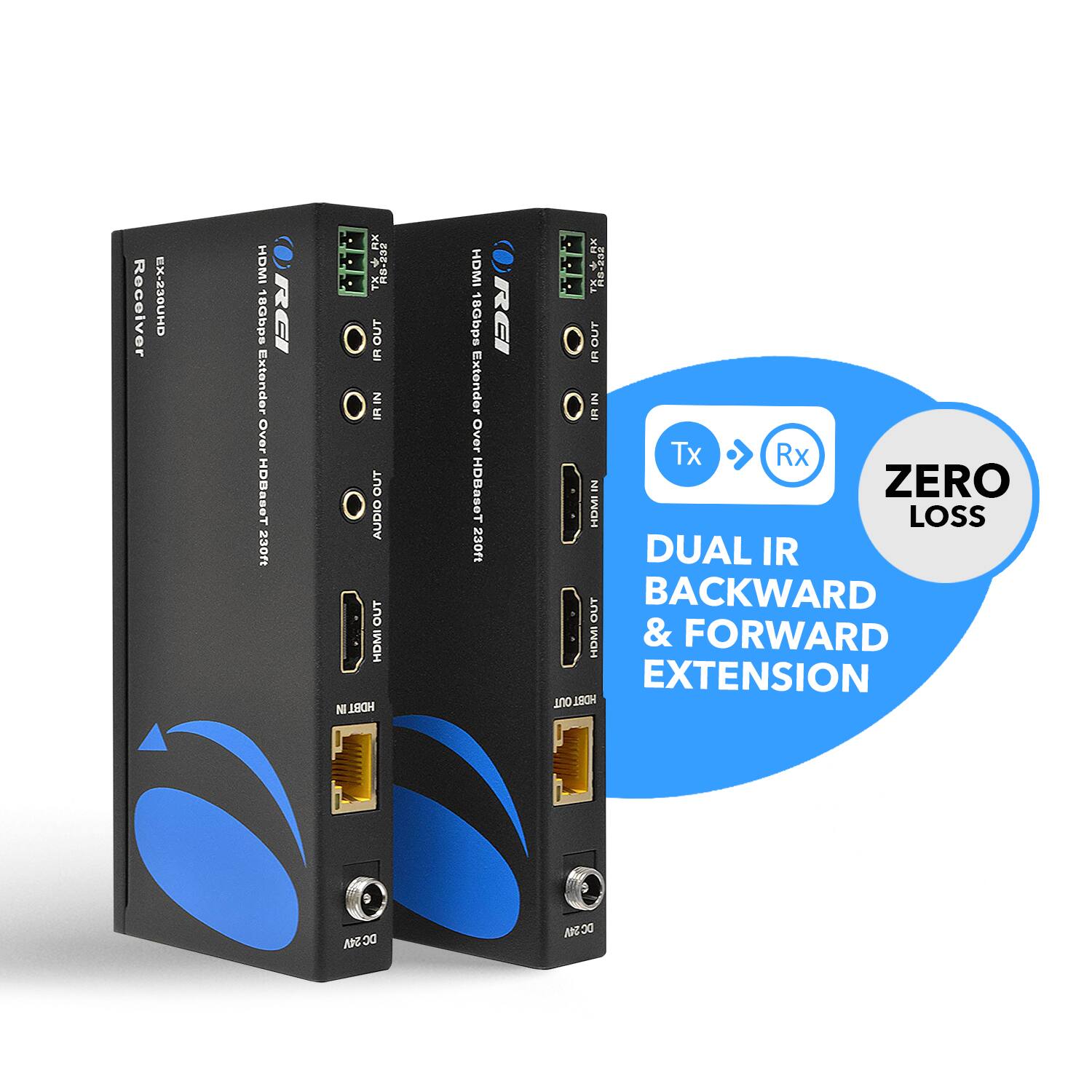

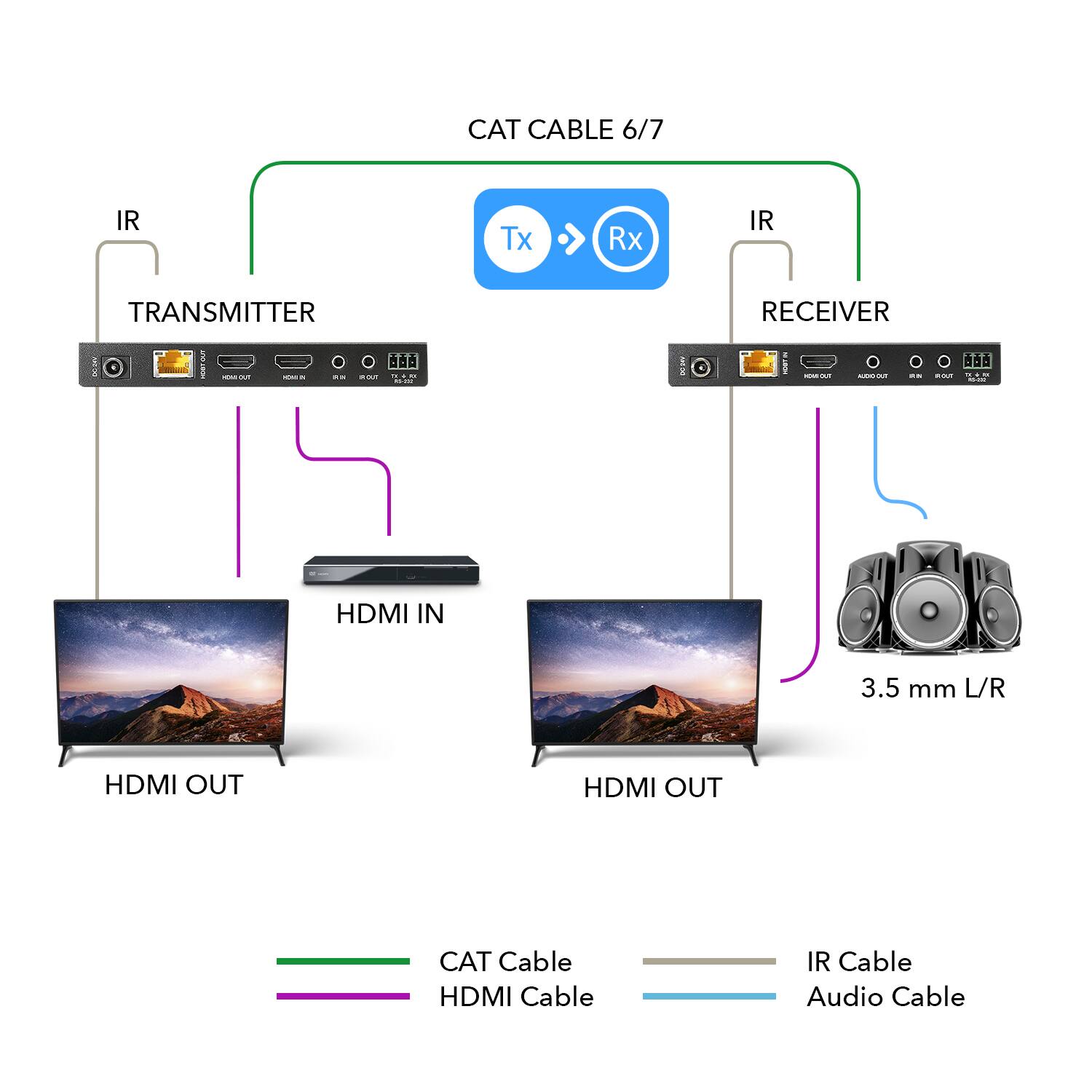

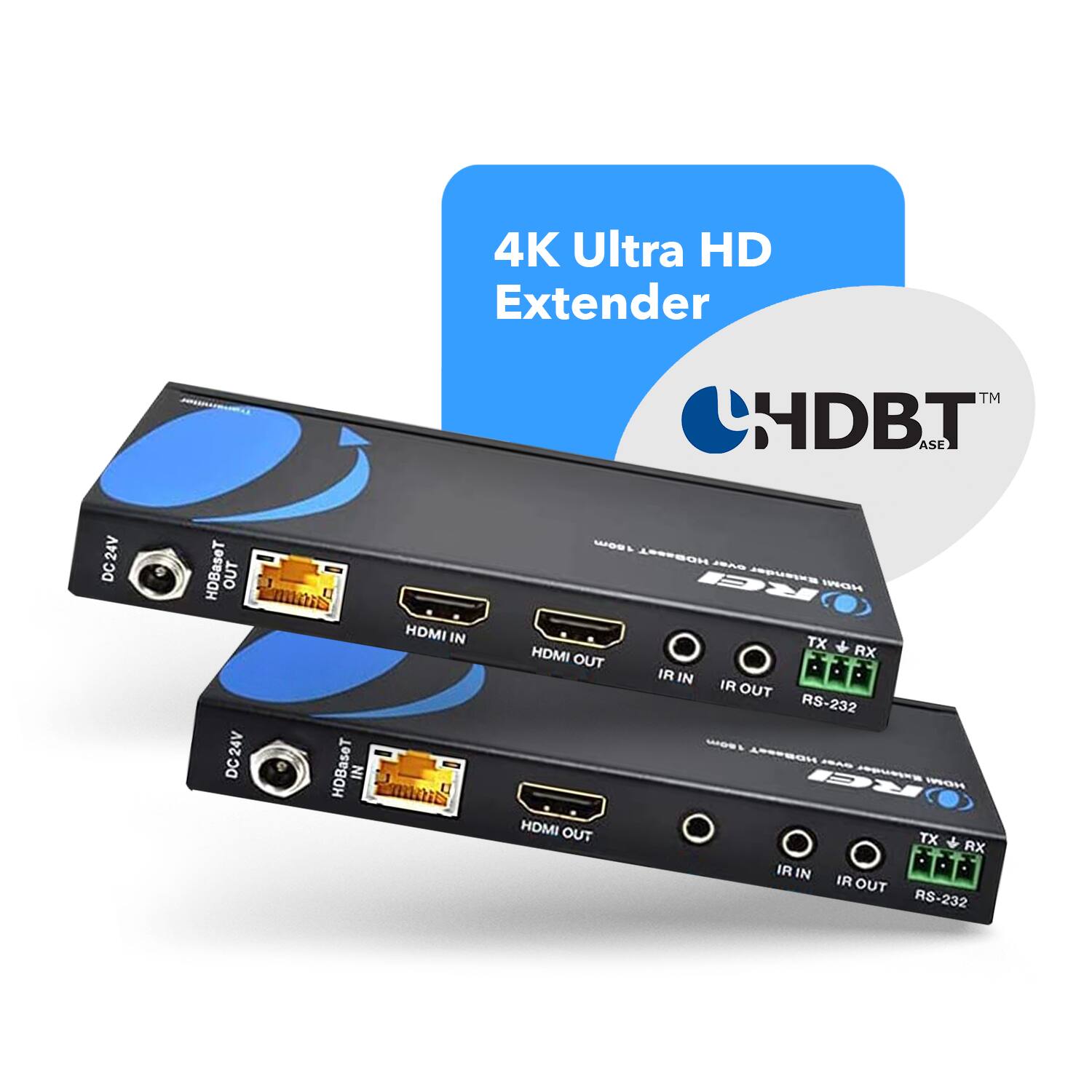

The EX-230UHD is an HDMI extender that transmits media signals to a display up to 230 feet away. Supporting video resolutions up to 4K@60Hz and 2K@60Hz, it is HDMI 2.0b and HDCP 2.2 compliant. It supports 18Gbps video bandwidth. It can extend media signals to one display up to 230 feet at 1080p@60Hz and up to 131 feet at 4K@60Hz using a CAT 6/7 cable. The transmitter includes an HDMI loop output, allowing you to connect a display next to the source. The EX-230UHD also features bi-directional IR functionality, RS-232 pass-through, and Power over Cable (PoC) technology, which means the entire setup requires only one power adapter. It is ideal for both residential and commercial setups.
Features
4K HDBaseT HDMI Extender over Cat6/7 up to 230 feet
Video resolutions up to 4K@60Hz and 2K@60Hz

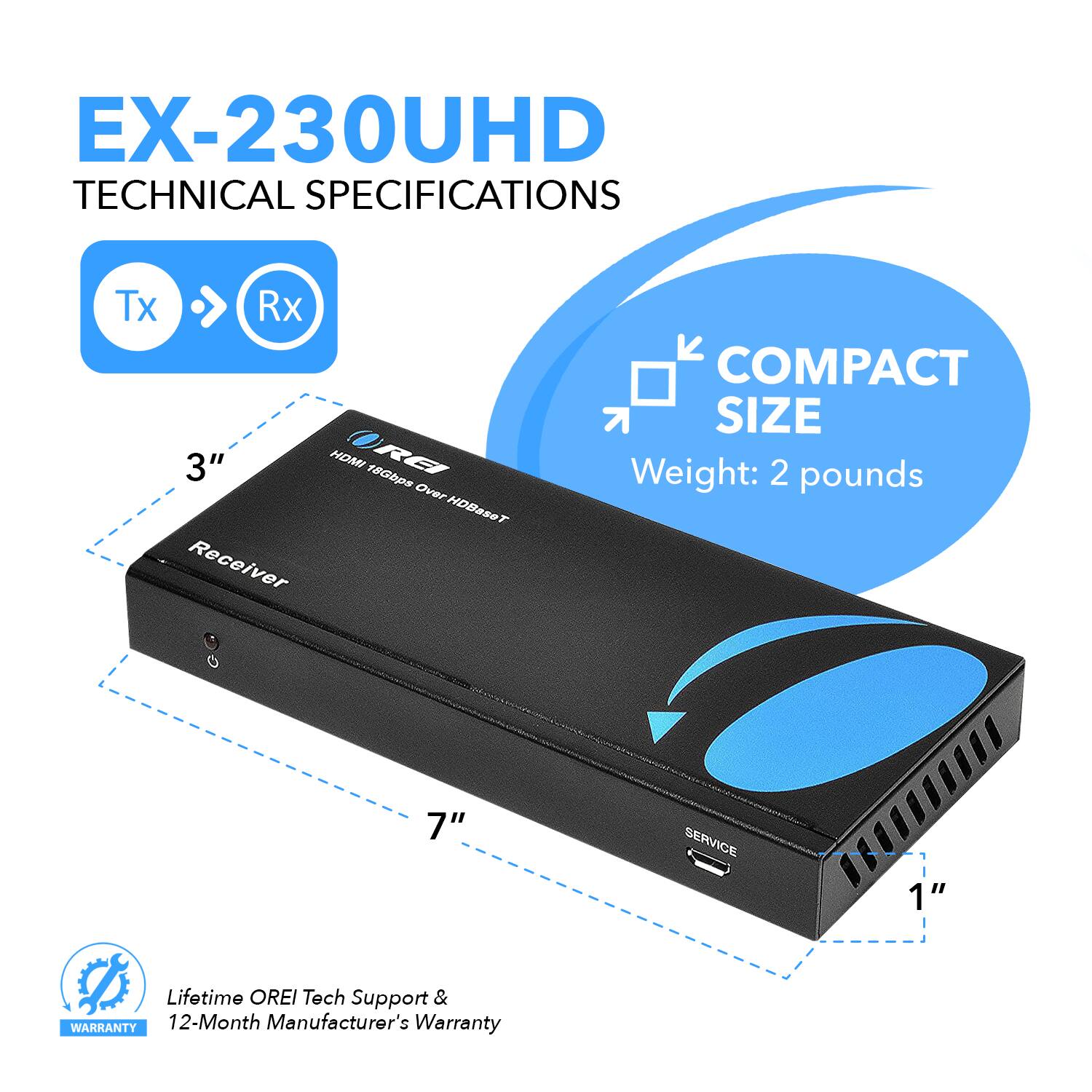

Specifications
- BrandOreiModel NumberEX-230UHDProduct Name4K HDBaseT HDM Extender (Loop) - 230ft (cat6)-EX-230UHDColorBlackInput(s)1 x HDMIOutput(s)1 x HDBaseT
Reviews
This product doesn't have any reviews yet.
Compare similar products

The EX-230UHD is an HDMI extender that transmits media signals to a display up to 230 feet away. Supporting video resolutions up to 4K@60Hz and 2K@60Hz, it is HDMI 2.0b and HDCP 2.2 compliant. It supports 18Gbps video bandwidth. It can extend media signals to one display up to 230 feet at 1080p@60Hz and up to 131 feet at 4K@60Hz using a CAT 6/7 cable. The transmitter includes an HDMI loop output, allowing you to connect a display next to the source. The EX-230UHD also features bi-directional IR functionality, RS-232 pass-through, and Power over Cable (PoC) technology, which means the entire setup requires only one power adapter. It is ideal for both residential and commercial setups.

The JTECH-EX230V2 HDMI ethernet extender allows users to extend their 4K HDMI A/V signal up to 230ft. over a single Cat5e/6 cable to a remote display with ease. Users can also utilize the local HDMI loop-out port on the transmitter to monitor their source via a local display. With support for HDR, there is no signal loss or latency, and the small and compact design, paired with the power over cable (PoC) function, enables the units to be hidden out of sight easily. Power is only required on the transmitter side, and the receiver gets its power via the connected ethernet cable.

The UHD-EXB400-KVM is a KVM extender that can extend USB and HDMI signals up to 394 feet at 4K@60Hz and 492 Feet at 1080P@60Hz. It is HDMI 2.0b and HDCP 2.2 compliant, supporting video resolutions up to 4K@60Hz 4:4:4, with an 18Gbps video bandwidth, and HDR and Dolby Vision pass-through. The transmitter features a USB-B port to connect the host, while the receiver has 2 USB ports for USB devices. This device features bi-directional IR, Power over Cable (PoC), and USB KVM signal pass-through, providing control convenience and simplifying setup. Compact design and easy installation requiring no additional drivers. Ideal for both personal and commercial use, this extender can be used for home theaters, office setups, remote workstation management, and much more.

The JVAW53PRO Wireless Display HDMI Extender Pro includes a transmitter and receiver kit. It can send a high definition video and audio signal to an HDMI enabled TV set, projector or LCD PC monitor display device with receiver distance up to 100 meters and nearly zero latency. Users can extend other HDMI sources, including DVD players, Blu-ray players, PCs, notebooks and gaming machines (ex. Sony PS5, Nintendo Switch 2). The JVAW53PRO is fully HDCP compliant via HDMI, supporting resolutions up to 1080p and stereo digital audio. The extender also supports the transfer of IR remote control signals to the receiver side.
