Orei - 4K@60Hz DisplayPort Extender (Loop) - 10km (Fiber-Optic) - (DP-FO10-KVM) - Black
Related Item
About This Item
- General
- Brand: Orei
- Model Number: DP-FO10-KVM
- Product Name: OREI 4K@60Hz DisplayPort Extender (Loop) - 10km (Fiber-Optic) - (DP-FO10-KVM)
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Warranty
- Warranty - Parts: 1 Year Warranty
- Other
- UPC: 810162900854

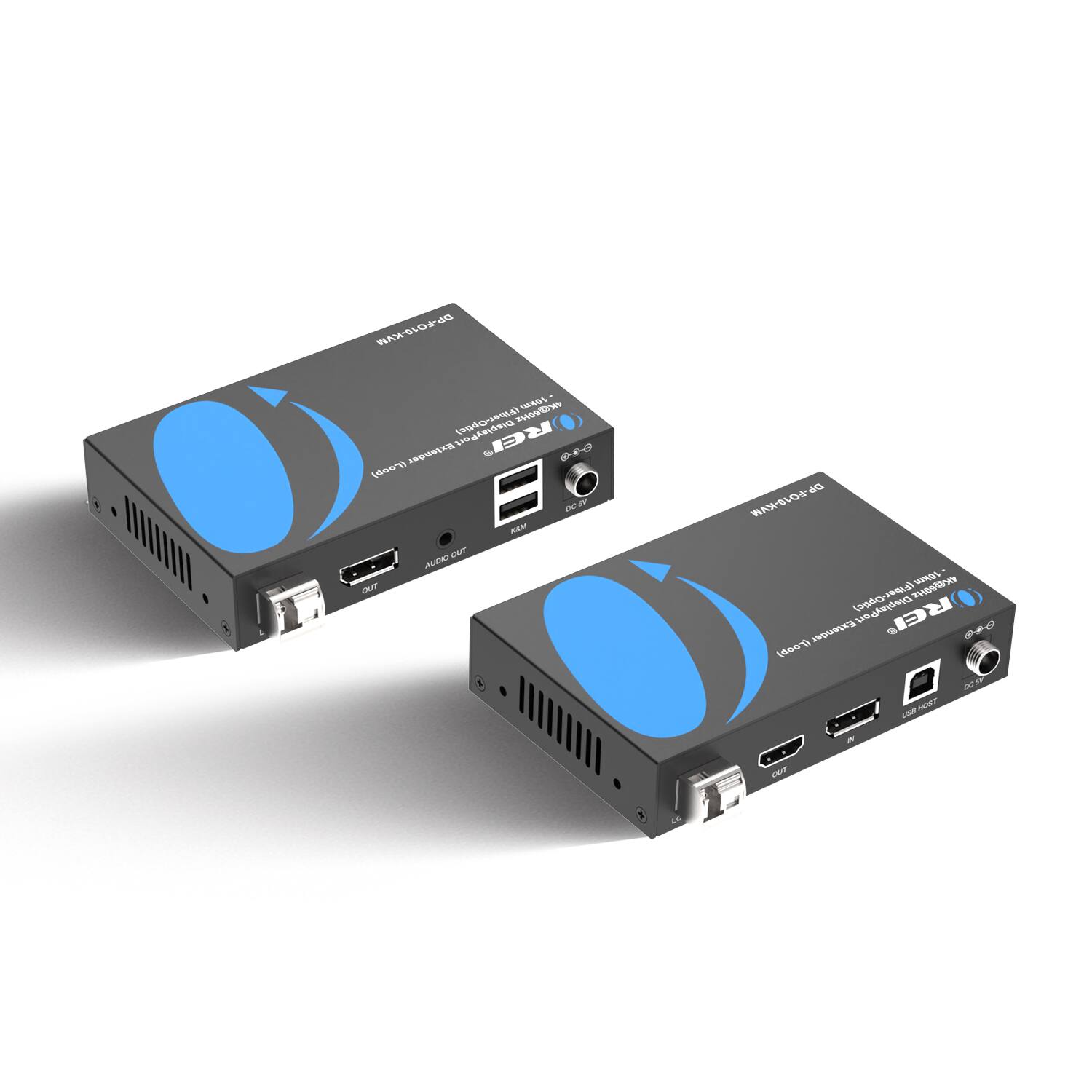

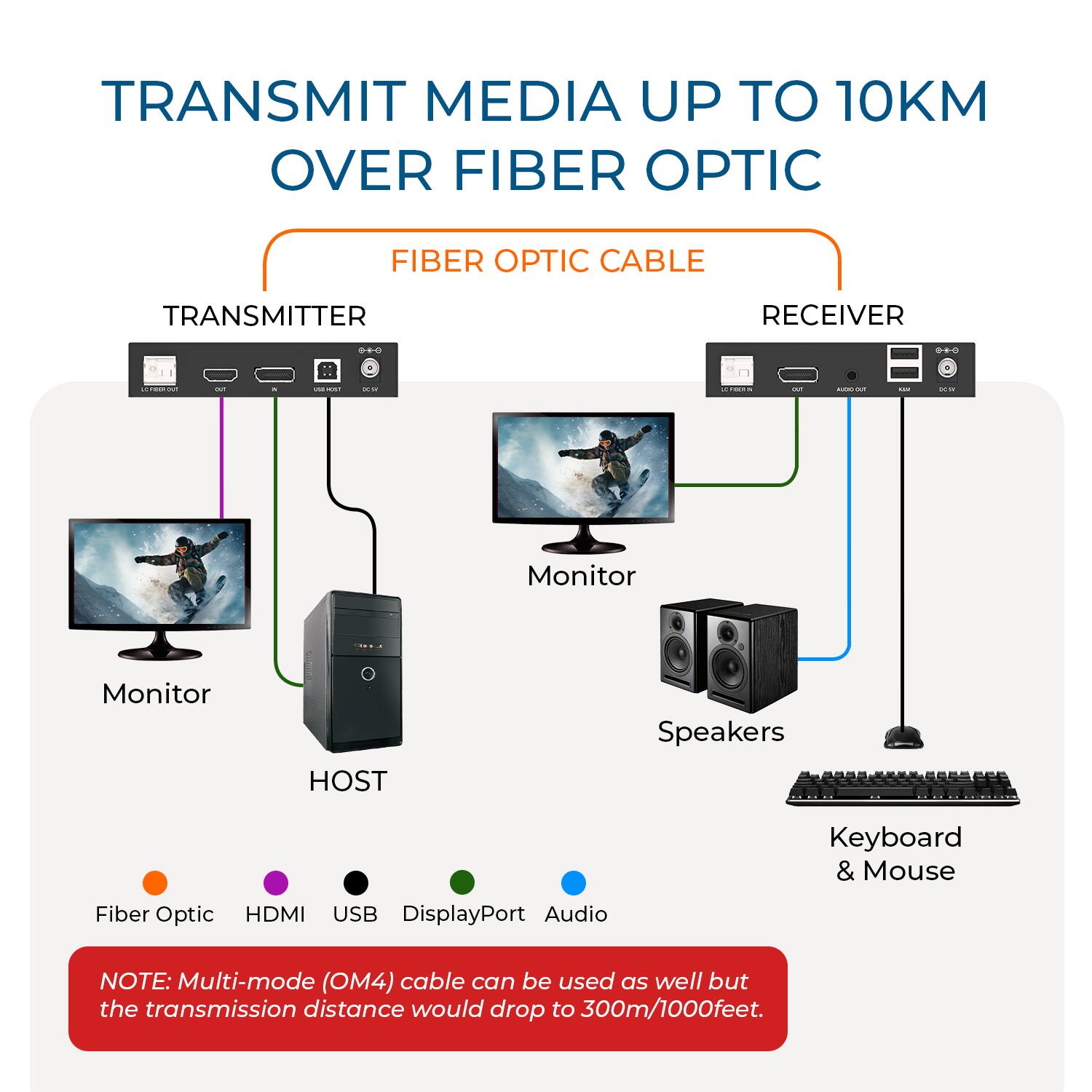

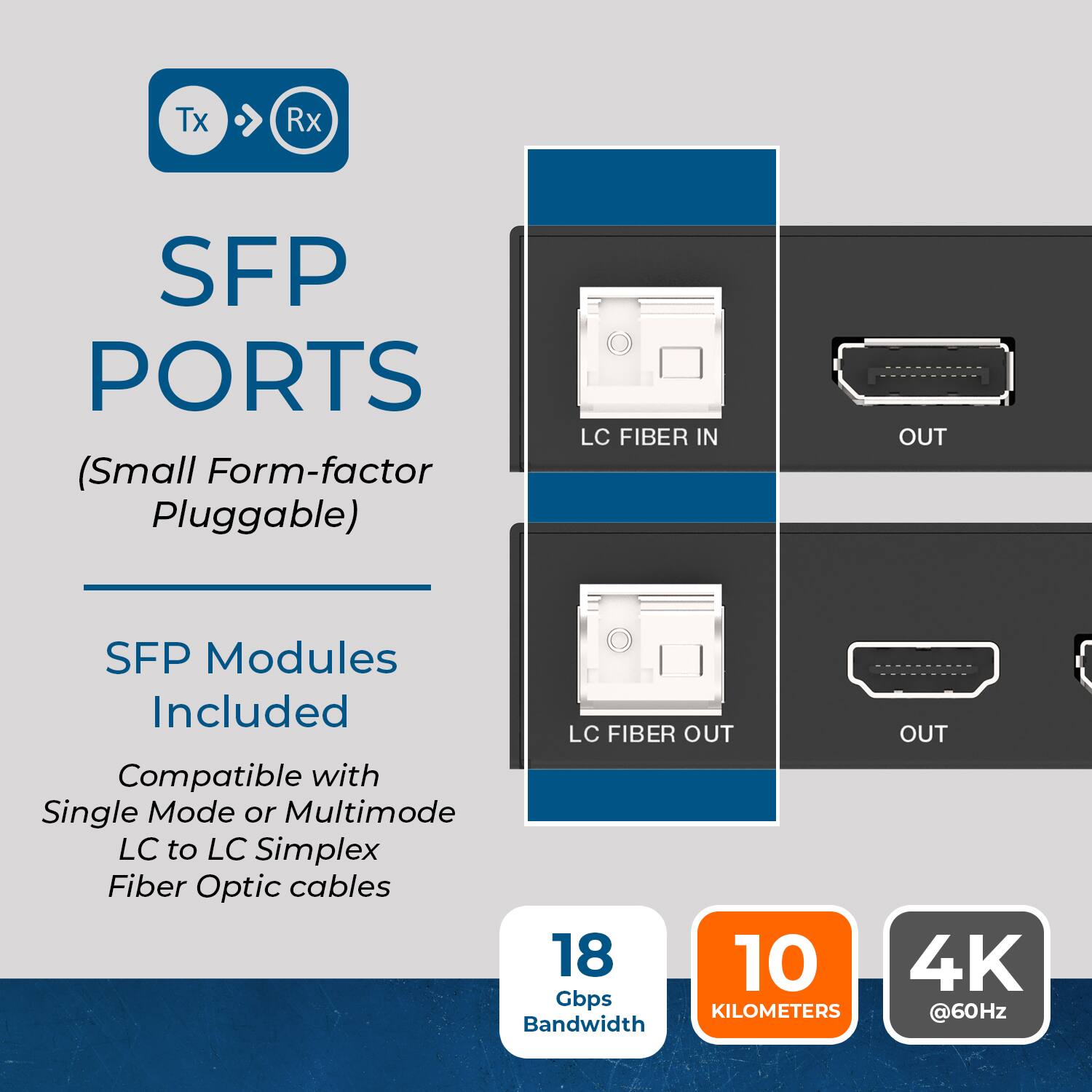

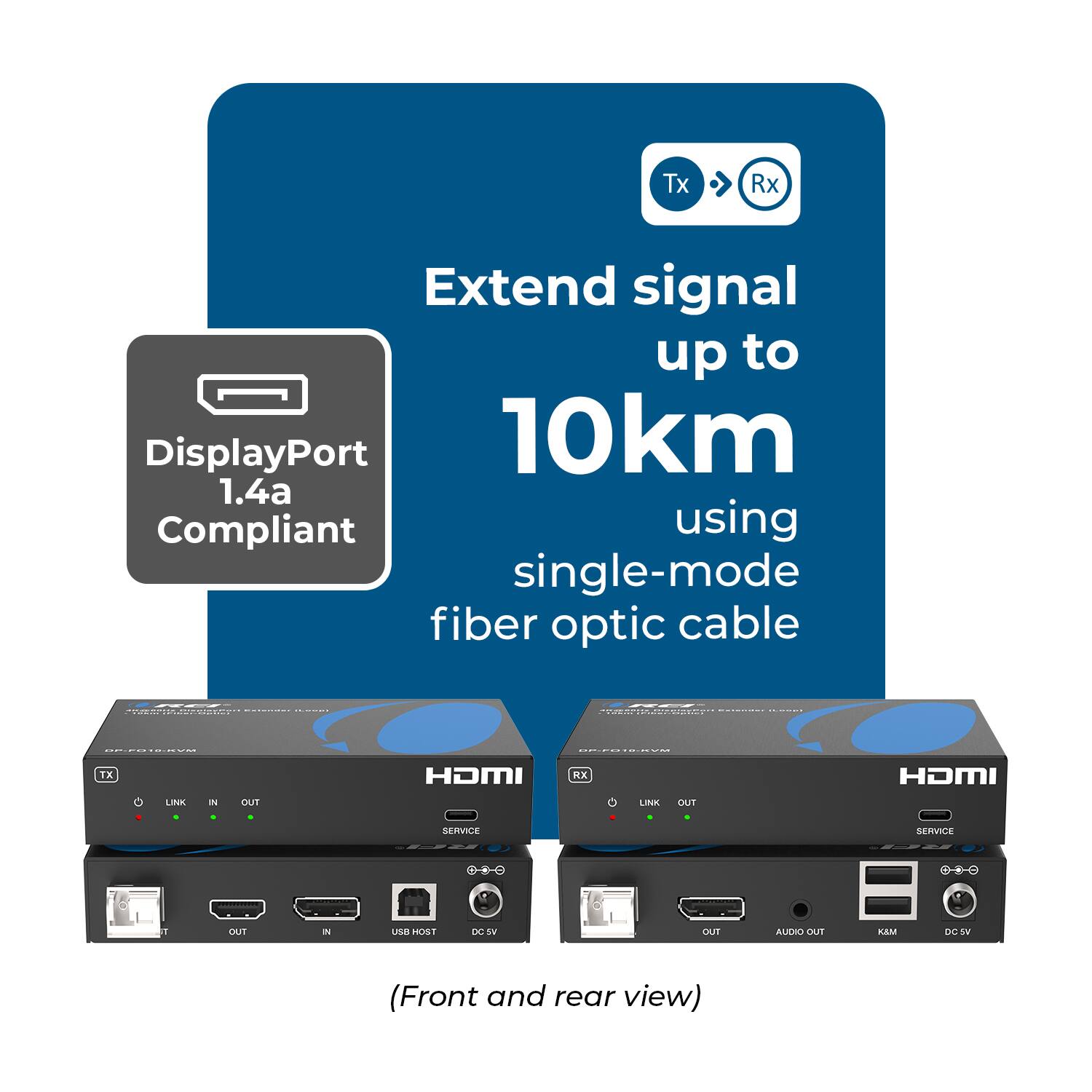

DP-FO10-KVM is a high-performance DisplayPort over fiber optic extender, designed for ultra-long-distance, lossless AV transmission. Supporting DisplayPort 1.4a and HDCP up to version 2.3, it delivers crystal-clear video at resolutions up to 4K@60Hz 4:4:4 with full HDR support. Using single-mode fiber, it extends signals up to 10km, while optional SFP modules allow multi-mode fiber extension up to 300m over OM4. Equipped with an HDMI™ loop output on the transmitter for local monitoring and audio de-embedding on the receiver, the system ensures versatile integration into professional AV setups. Built-in USB 1.1 KVM support enables remote control of a PC from the Receiver end using a keyboard and mouse. Engineered with strong anti-interference capability, high security, compact design, and lightweight construction, the DP-FO10-KVM is ideal for mission-critical applications, control rooms, and high-end AV environments requiring stable, long-distance DisplayPort signal delivery.
- DisplayPort 1.4a Compliant: Ensures compatibility with modern DP devices and formats.
- HDCP 2.3 Support: Works seamlessly with protected content.
- High Video Bandwidth: Supports HBR3, HBR2, HBR, and RBR rates (8.1 / 5.4 / 2.7 / 1.62Gbps)
- 4K@50/60Hz 4:4:4 Video: Transmits ultra-clear, uncompressed video over long distances
- Flexible Resolution Support: Works with any VESA standard resolution.
