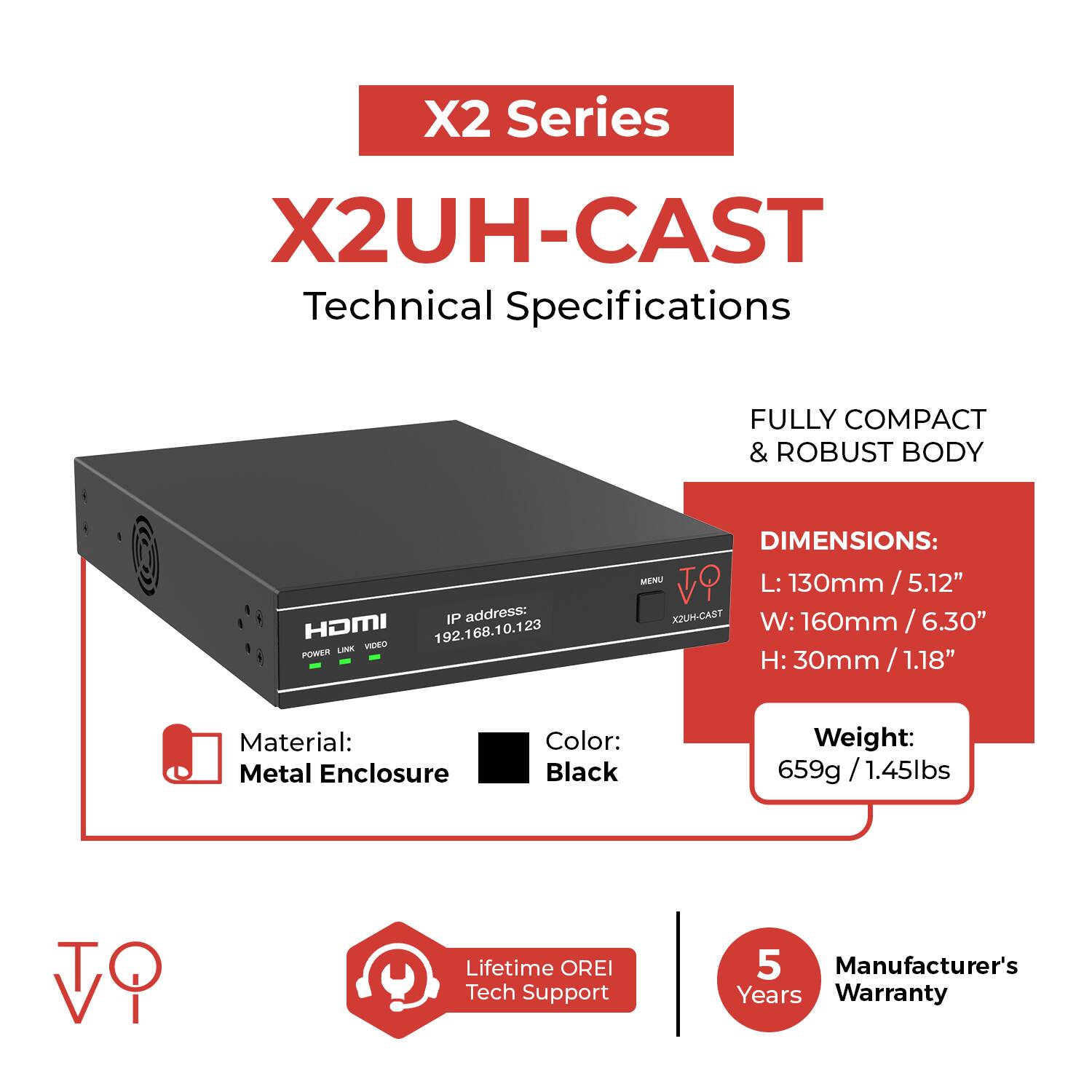

Orei - ToVi X2 Series (4K) Network Video Streamer - (X2UH-CAST) - Black
Orei - ToVi X2 Series (4K) Network Video Streamer - (X2UH-CAST) - Black
FREE shipping to
Related Item
About This Item
- General
- Brand: Orei
- Model Number: X2UH-CAST

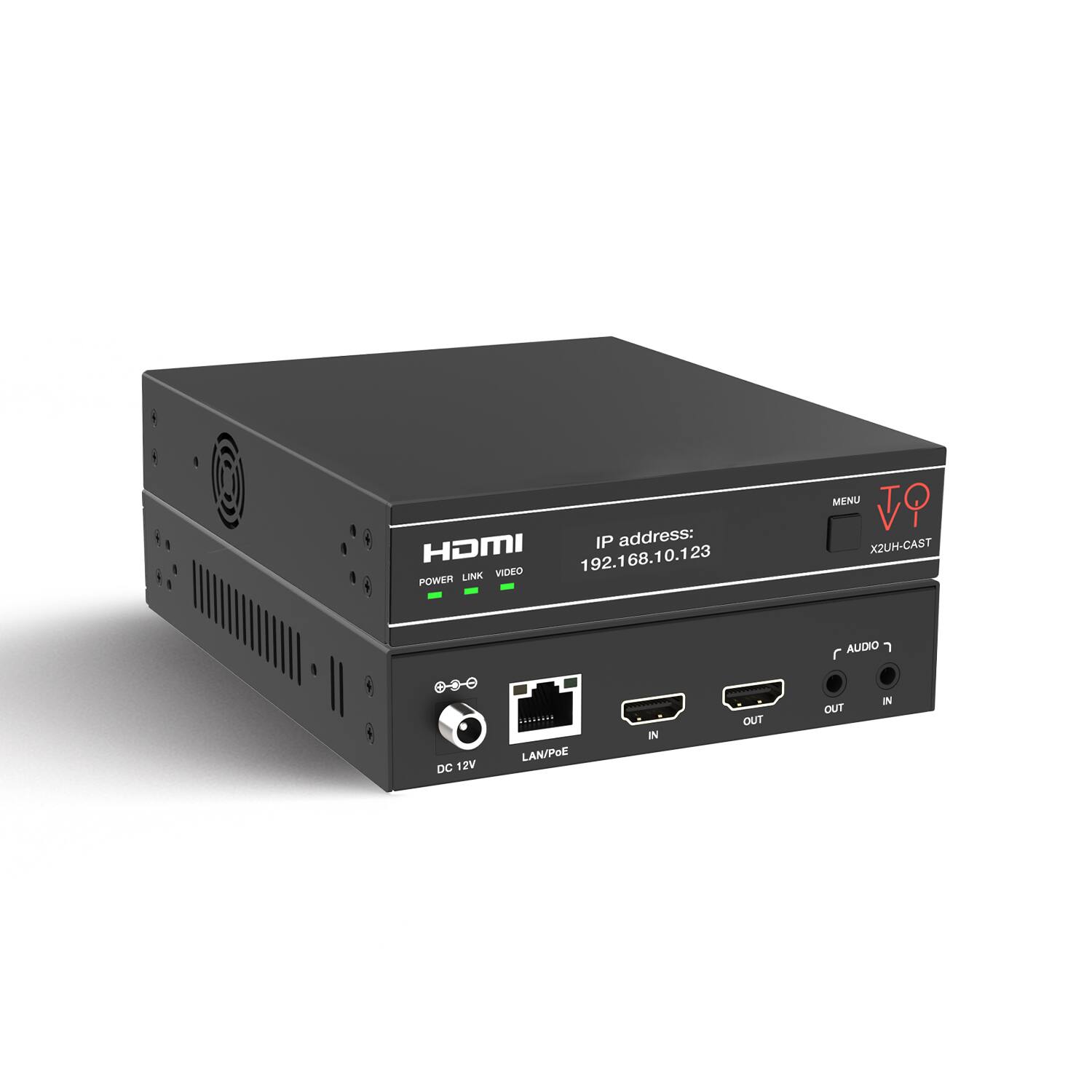

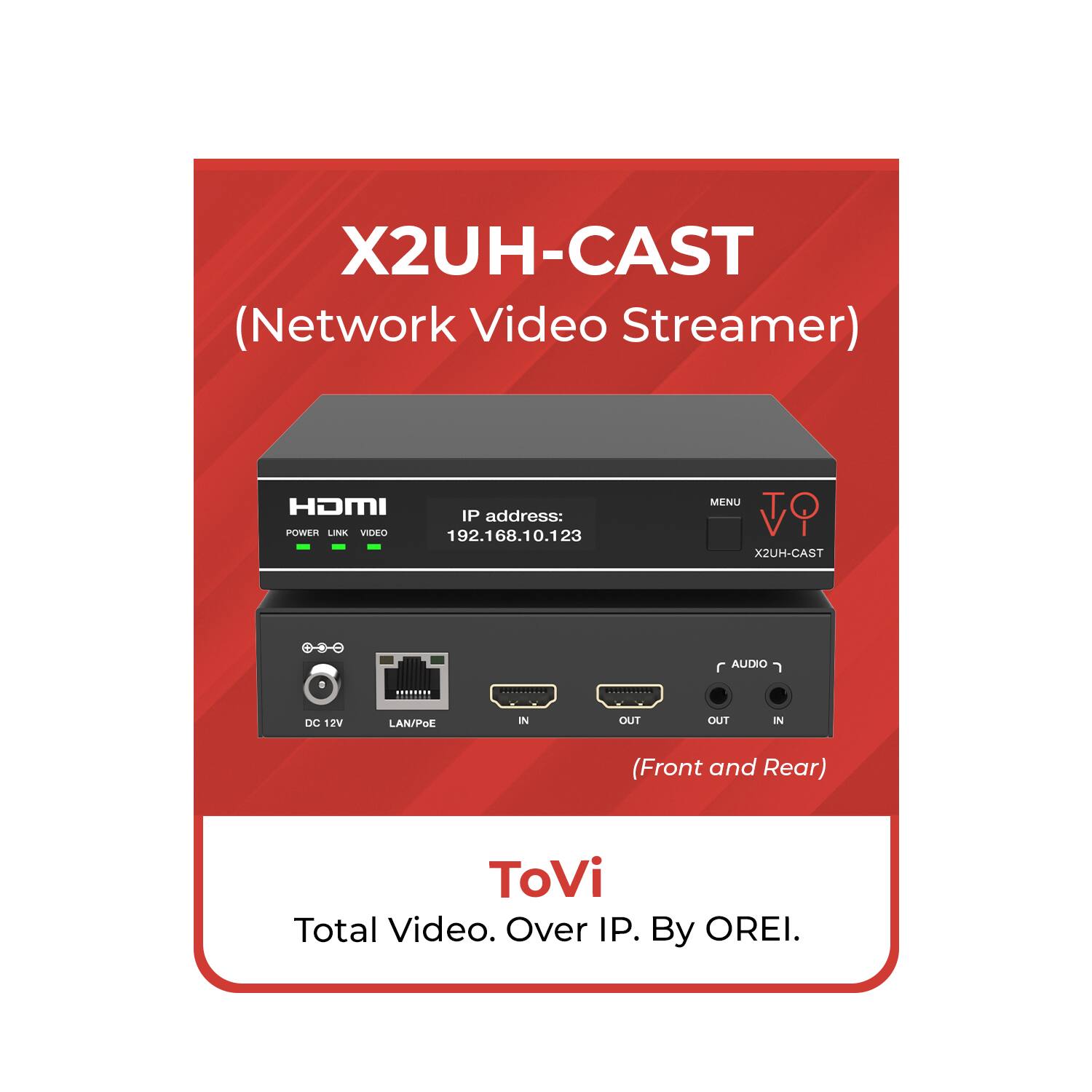

- Product Name: ToVi X2 Series (4K) Network Video Streamer - (X2UH-CAST)
- Color: Black
- Connectivity
- Input(s): 1 x HDMI
- Output(s): 1 x HDMI
- Warranty
- Warranty - Parts: 1 Year Warranty
- Other
- UPC: 810162901141

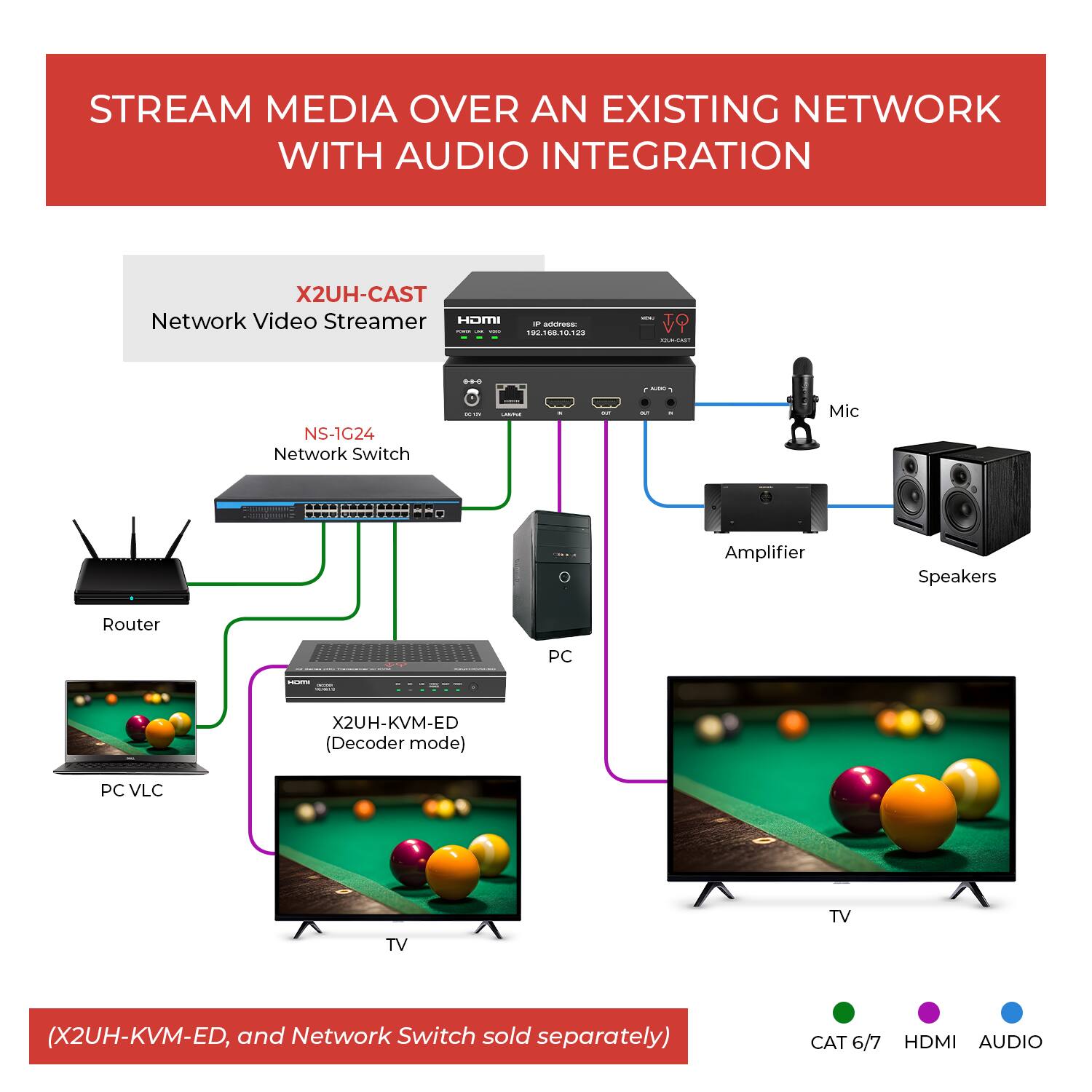

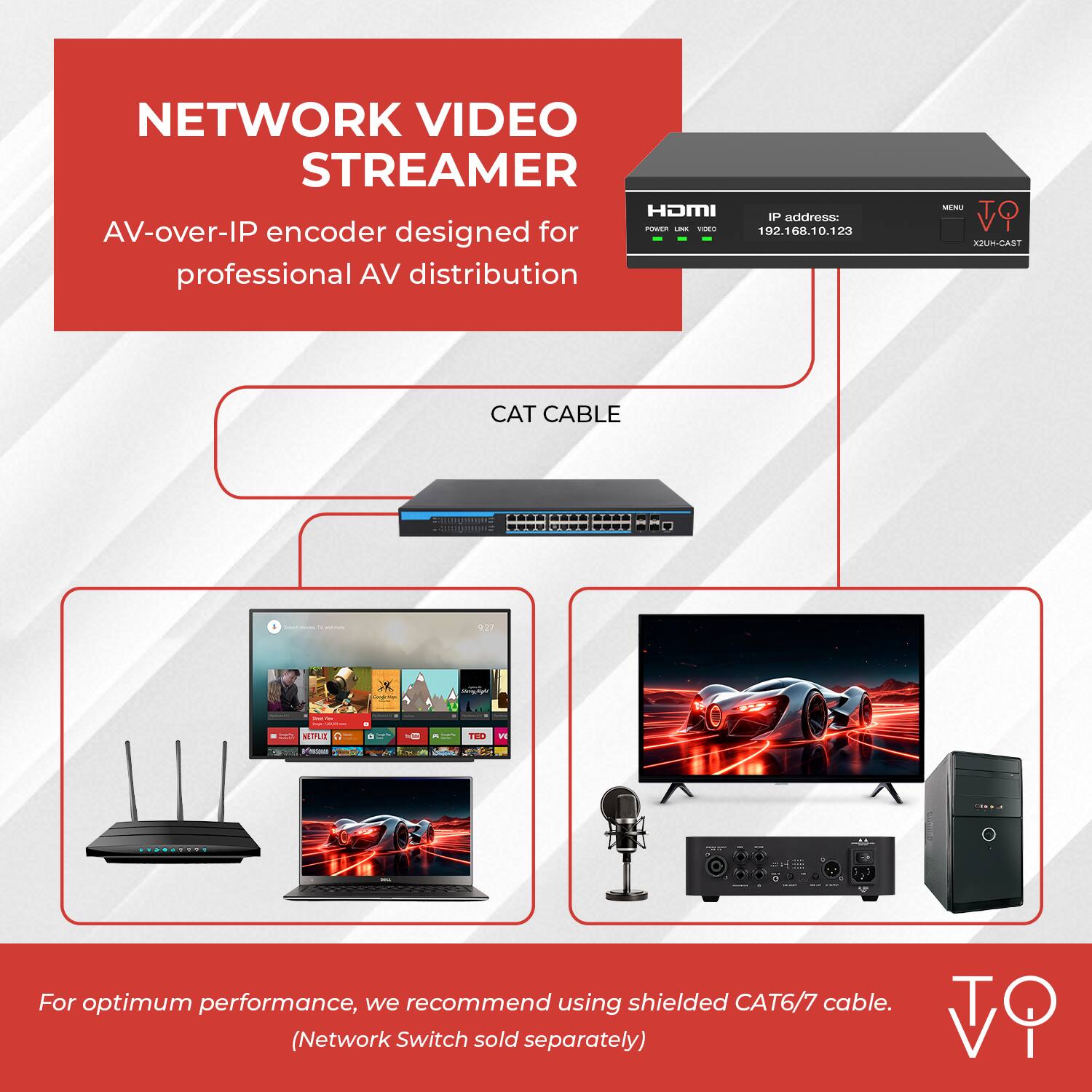

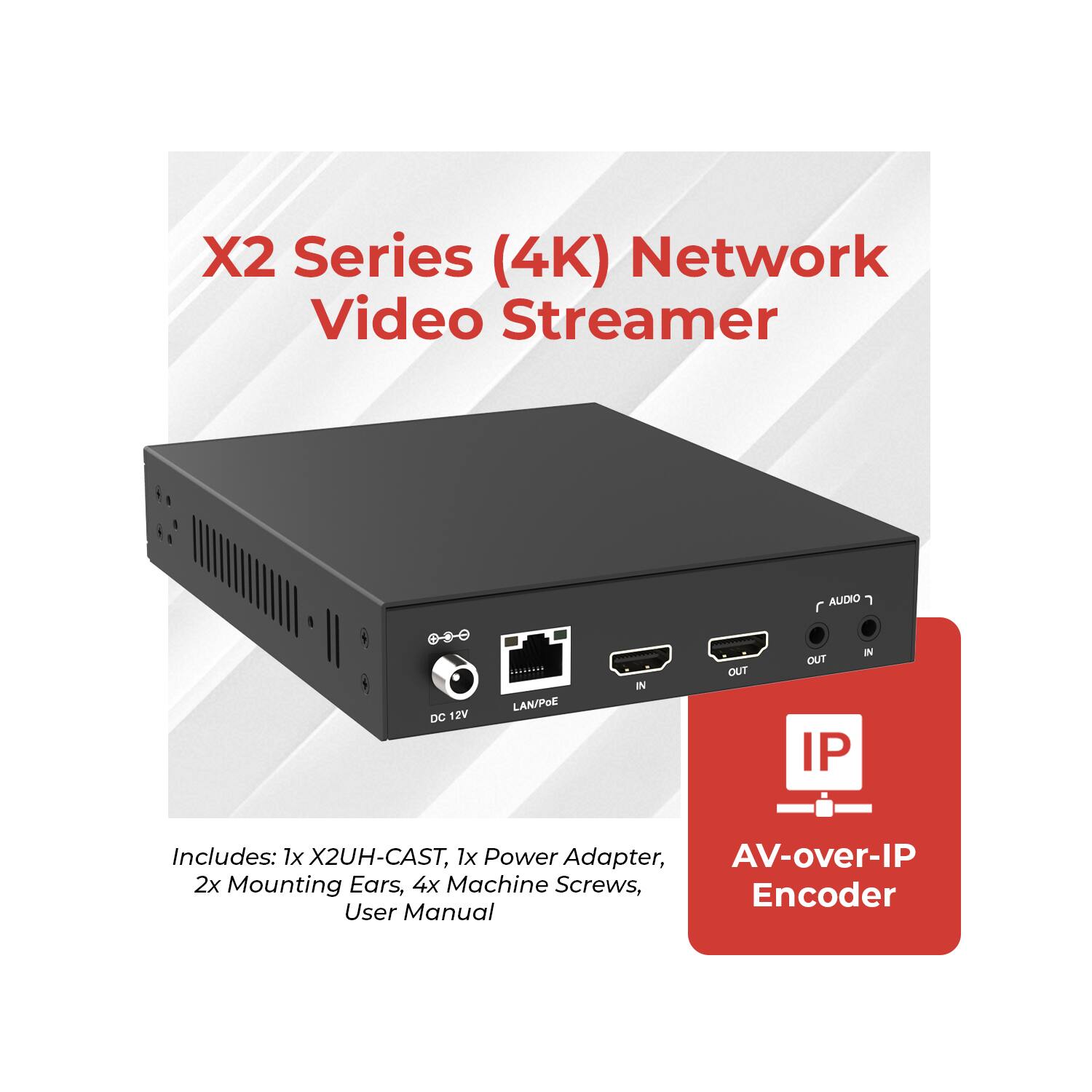

X2UH-CAST is a high-performance AV-over-IP encoder designed for professional AV distribution. Based on H.265/H.264 compression technology, it enables visually lossless 4K@60Hz (4:4:4) video transmission over a 100M/1G Ethernet network. Supporting three simultaneous streams (4K@60Hz H.264/H.265, 1080P@30Hz H.264, and 720P@50Hz JPEG), it ensures maximum flexibility for streaming, preview, and monitoring applications
- 4K@60Hz Ultra HD Encoding: Supports H.264/H.265 HEVC with up to 18Gbps video bandwidth (HDMI™ 2.0b).
- Triple Stream Output: In addition to pristine 4K@60Hz (4:4:4), it supports high-refresh and multi-resolution formats such as 2560×1440@25/30/60Hz, and 4096×2160@25/30/60Hz.

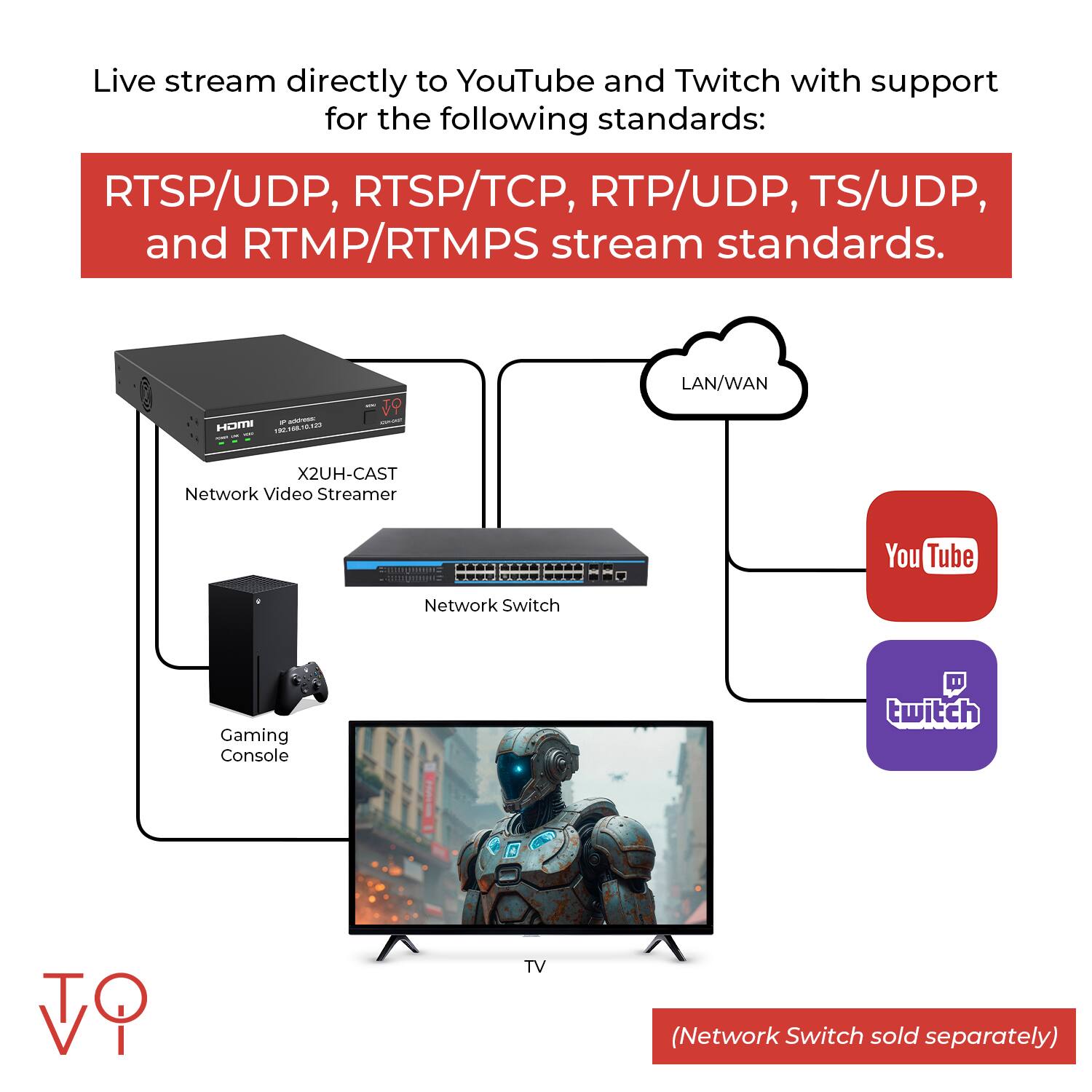

- Streaming Protocols: RTSP/UDP, RTSP/TCP, RTP/UDP, TS/UDP, RTMP/RTMPS.
- Flexible Streaming: Supports unicast, multicast, audio-only stream, and audio delay settings.
- Audio Support: LPCM 2CH (48kHz), analog audio embedding & extraction.
